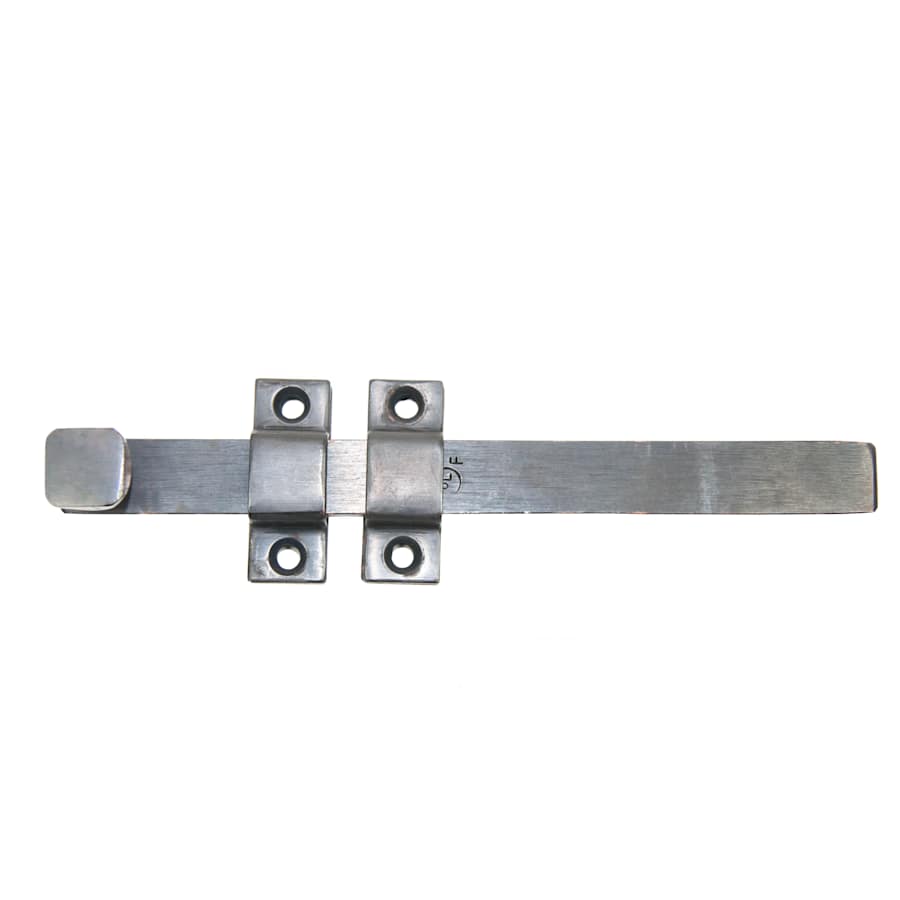

Ives Heavy Duty Steel Top and Bottom Strike UL Listed Surface Bolt 8″ Length with 1 13/16″ Throw

Heavy Duty Steel Top and Bottom Strike UL Listed Surface Bolt 8″ Length with 1 13/16″ Throw

This heavy duty steel top and bottom strike ul listed surface bolt 8″ length with 1 13/16″ throw features a concealed screw design to enhance the appearance and security. The interlocking construction provides strength and durability.

Features:

UL Listed
Top & Bottom Strikes Included
Surface Bolt Has 1 3/16″ Throw for Maximum Security
Strong Tension Springs Prevent Creep
Ideal for All Types of Doors
Units Packed with Standard Screws for Added Security
Units Packed with Both a Universal Top Strike and a Mortise Bottom Strike
Constructed of Heavy Duty Steel
Meets ANSI/BHMA a 15616 L84161
Optional Sex Bolts Available
Options Thru Bolts Available
Bar: 3/4″ Wide X 3/4″ Thick
Overall Width: 2 1/32″
Overall Projection: 2 1/16″
Top Strike: 1 1/2″ X 1 1/2″ Angle X 3/16″ Thick
Bottom Strike: 3 1/2″ Long X 1 5/8″ Wide X 1/8″ Thick

IVES has produced a full line of quality building hardware for over 120 years Throughout this time, IVES has adhered to the firm convictions of its founder, Hobart B Ives, that the success of a company is dependent on two major factors — product quality and customer service Today, IVES reputation is known for these core principles Emphasis is also placed on application flexibility and value IVES extensive hardware line includes a variety of pivots, flush bolts, push/pull handles, kick plates, doorstops, hinges and more
