Product Features:
Durable high-gloss acrylic material
Pure Air® bubbles provide gentle embracing massage
Balanced 360° balanced air flow system for a whole body experience
Sidewall, floor and/or TLC (Thermal Lumbar Comfort ) air inlets
Limited lifetime manufacturer’s warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.
Jacuzzi® Technology:
Silent Air Induction: Jacuzzi’s patented air induction system silently mixes air into the water creating that legendary Jacuzzi® Whirlpool experience without a hissing sound.
Pure Air® Features:
Automatic Purge: Drain activated system purges the air blowers after each use
360° Balanced Air Flow: A unique network of channels that push heated air evenly into the bath
TLC: Thermal Lumbar Comfort area delivers heated air to your back
Pure Air® Wave Mode: Cycles blower from its minimum to a user defined maximum

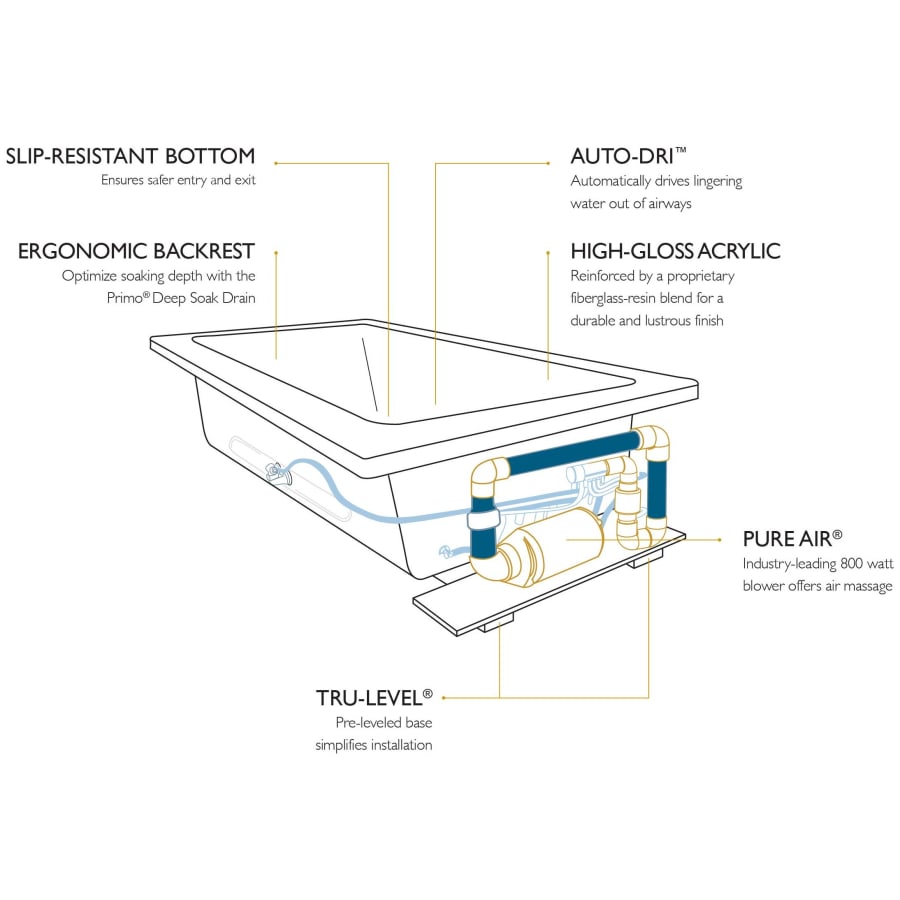

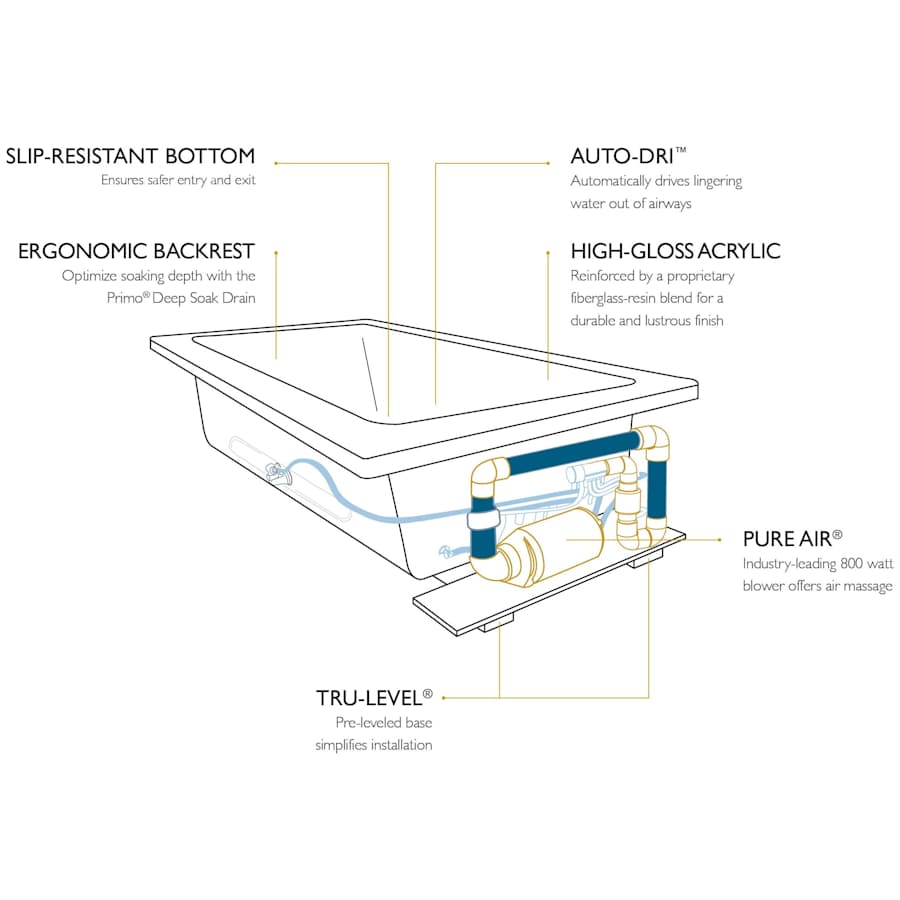

Tru-Level™ Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.
Product Specifications:

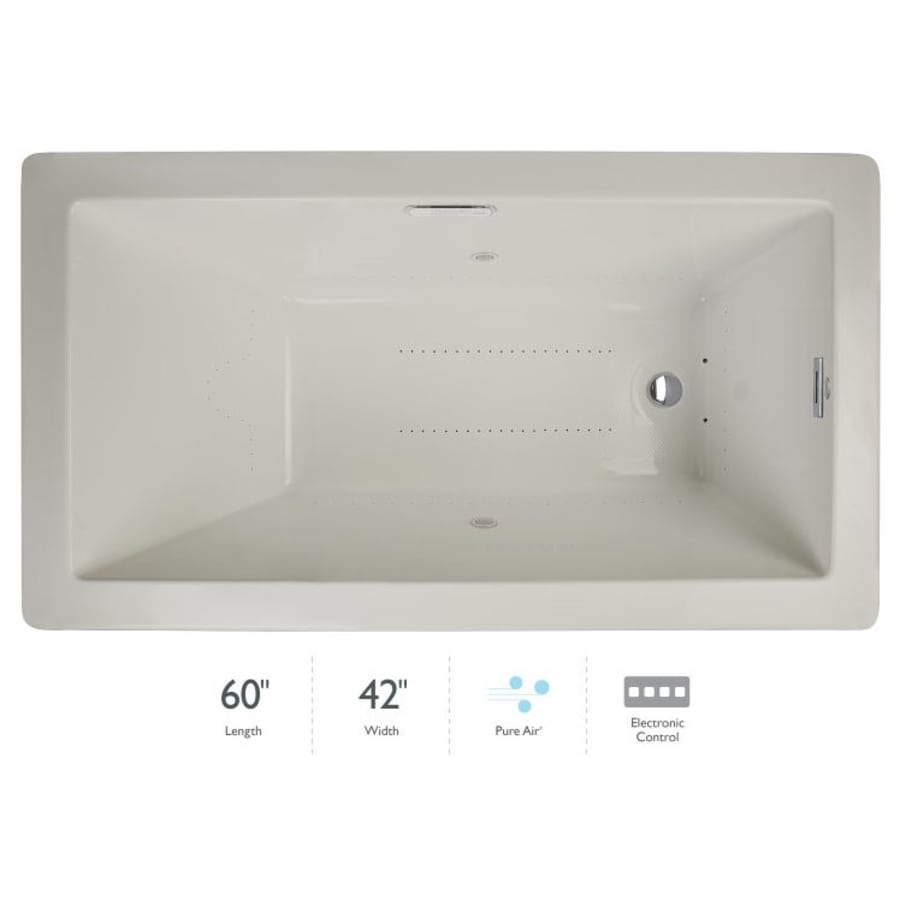

Overall Height: 26″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 42″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 26-4/5″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 38″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 34″ (back to front measurement of the top of basin walls)
Basin Length (Top): 52″ (right to left measurement of the top of basin walls)
Water Depth: 18-9/10″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 100 – gallons
Drain Location: Left
Blower Location: Right
Operating Gallons: 100
Drop-In Cutout Required: 50″ x 40″
Additional Jacuzzi Links
View the Manufacturer Warranty
Browse all Jacuzzi Products
Jacuzzi Elara Collection
Specifications
| Height | 26 in. |
| Width | 42 in. |
| Length | 60 in. |
| Nominal Width | 42 in. |
| Capacity (Gallons) | 100 |
| Nominal Length | 60 in. |
| Overflow Height | 18.9 in. |
| Bar Length | 38 in. |
| Base Width | 26.8 in. |
| Water Depth | 18.9 in. |
| Insulation Type | Drop In |
| Material | Acrylic |
| Thermostat | Modern |
| Drain Placement | Left |
| Number Of Bathers | 1 |
| Slip Resistant | Yes |
| Control Type | Electronic |
| Sound Dampening | Yes |
| Self Leveling Base | No |
| Tub Shape | Rectangular |
| Number of Jets | 14 |
| Pump Placement | Right |
| Collection | Luxury |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Drain Assembly Included | No |
| Light Included | No |
| Heater Included | No |
| Tile Flange | No |
| Walk-In Tub | No |
| Voltage | 120 |
| Amperage | 15 |
| Frequency | 60 Hertz |
| Color | Oyster, White |
| Color Tone | Whites |
