Product Features:
Durable high-gloss acrylic material
The ultimate combination of Pure Air® and Whirlpool technology
Multi-speed motor and balanced 360° air flow system for a customizable whole body experience
Variable-speed heated air blower keeps water comfortable
Limited lifetime manufacturer’s warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.
Note: The smaller Slim-Pro jets are ONLY offered with Polished Chrome, or color matched trim rings for your tub. If choosing the optional TargetPro™ trim rings offered later such as Oil Rubbed Bronze, you should choose the color match Tub and Jets Rings.

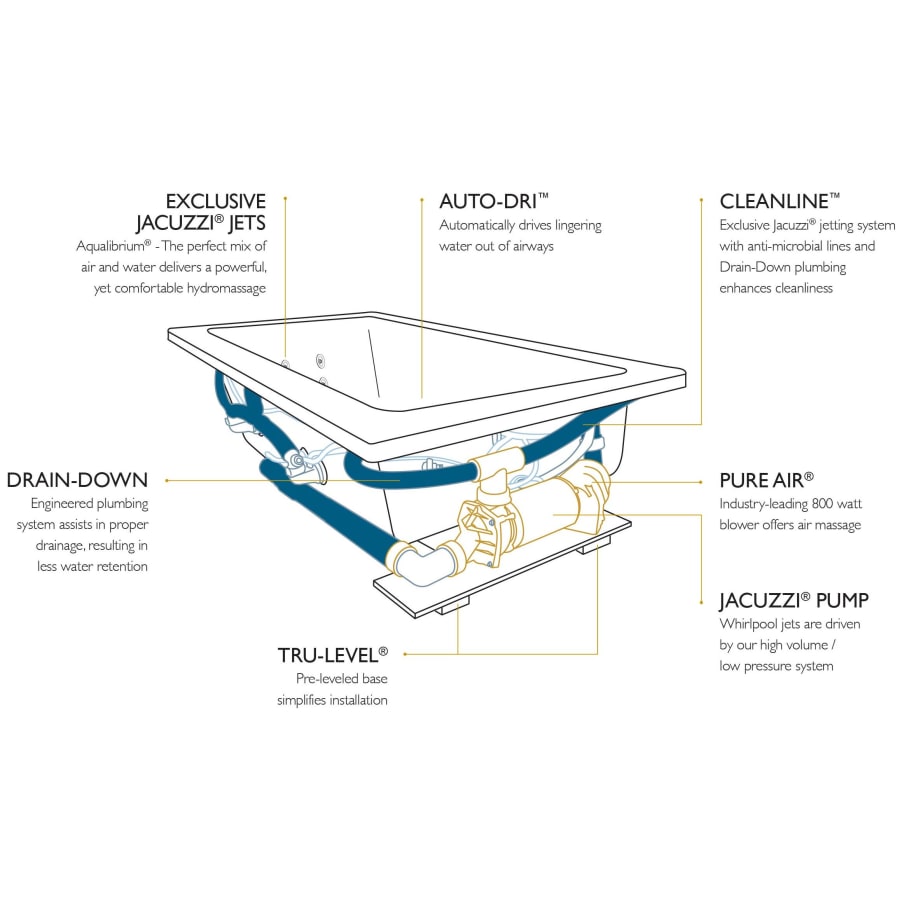

Jacuzzi® Technology:
TargetPro™ Jets: Jacuzzi® TargetPro™ jets offer incredible performance and comfort. With a low-profile face, easy to manipulate 60 degree range of adjustment, and simple low control, TargetPro™ allows you to tailor your experience.
CleanLine™ Water Lines: Jacuzzi’s CleanLine™ water lines contain anti-microbial additives to inhibit bacterial growth and odors over time.
Sleek Linear Overflow: The linear overflow offers a contemporary look to your bath while providing exceptional overflow protection.
Tru-Level™ Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.
Silent Air Induction: Jacuzzi’s patented air induction system silently mixes air into the water creating that legendary Jacuzzi® Whirlpool experience without a hissing sound.
Whirlpool Wave Mode: Cycle the air flow in the jets from no air flow to maximum air flow creating a unique wave-like experience.
RapidHeat™ Inline Heater: Maintains user defined temperatures eliminating the need to add more hot water during baths.
Pure Air® Features:
Automatic Purge: Drain activated system purges the air blowers after each use
360° Balanced Air Flow: A unique network of channels that push heated air evenly into the bath
TLC: Thermal Lumbar Comfort area delivers heated air to your back
Pure Air® Wave Mode: Cycles blower from its minimum to a user defined maximum
Controls:
Luxury Controls: Upgraded electronic, button-operated controls with light bars to the left of each button designating low, medium-low, medium-high, and high.
Lighting:
Chromatherapy: LED lighting that is able to produce a total of 256 mood-setting colors. Jacuzzi’s Chromatherapy lighting serves to not only enhance your bathing experience, but also provide for safe entry and exists in and out of the tub.
Product Specifications:
Overall Height: 26″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 42″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 26-4/5″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 38″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 34″ (back to front measurement of the top of basin walls)
Basin Length (Top): 52″ (right to left measurement of the top of basin walls)
Water Depth: 18-3/5″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 94 – gallons
Drain Location: Right
Blower Location: Left
Operating Gallons: 94
Drop-In Cutout Required: 58″ x 40″
Variations:
ELA6042CRL4CH: This model
ELA6042WRL2XX: This Model with Basic Controls and Whirlpool Experience – Without Heater or Chromatherapy Lighting
ELA6042CRL5CH: This model with LCD Controls and Illumatherapy Lighting
About Jacuzzi® Jacuzzi® has become the world’s most recognized and largest selling brand of jetted / whirlpool baths and spas. In addition to the first whirlpool bath patent, Jacuzzi® has 250 worldwide patents for advancements in pump systems, jet technology, air controls and product design. This ongoing commitment to innovative product development ensures Jacuzzi’s leadership position in the industry, and sets standards the world over.
Additional Jacuzzi Links
View the Manufacturer Warranty
Browse all Jacuzzi Products
Jacuzzi Elara Collection
Specifications
| Height | 26 in. |
| Width | 42 in. |
| Length | 60 in. |
| Nominal Length | 60 in. |
| Nominal Width | 42 in. |
| Capacity (Gallons) | 100 |
| Overflow Height | 18.9 in. |
| Water Capacity | 100 |
| Water Depth | 18.6 in. |
| Nominal Tub Length / Width | 60 in. |
| Thermostat | Contemporary |
| Insulation Type | Drop In, Undermount |
| Material | Acrylic |
| Drain Placement | Right |
| Control Type | Electronic |
| Sound Dampening | No |
| Apron Front | No |
| Number Of Bathers | 1 |
| Self Leveling Base | Yes |
| Slip Resistant | Yes |
| Tub Shape | Rectangular |
| Number of Jets | 14 |
| Pump Placement | Left |
| Soaking | No |
| Collection | Luxury |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| ADA | No |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Made in America | Yes |
| Frequency | 60 Hertz |
| Voltage | 240 |
| Amperage | 20 |
| Drain Assembly Included | No |
| Light Included | Yes |
| Heater Included | Yes |
| Tile Flange | No |
| Walk-In Tub | No |
| Color | Oyster / Chrome Trim, Oyster / Oyster Trim, White / Chrome Trim, White / White Trim |
| Color Tone | Silver Tones, Whites |
