Product Features:
The sleek lines of the Elara® bath make an elegant addition in any bathroom
Durable high-gloss acrylic material
Ergonomic design cradles the bather in a comfortable position
The foundation of hydrotherapy – quiet and calming
The combination of heat and water relaxes muscles and calms the senses
Limited lifetime manufacturer’s warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.

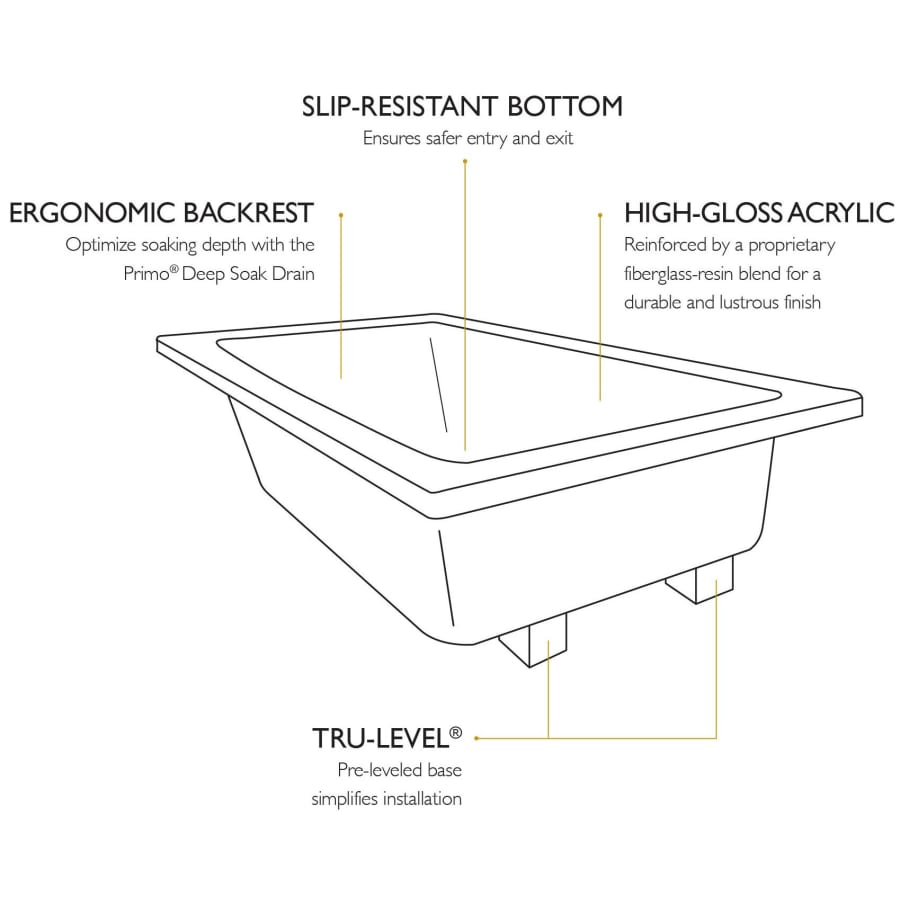

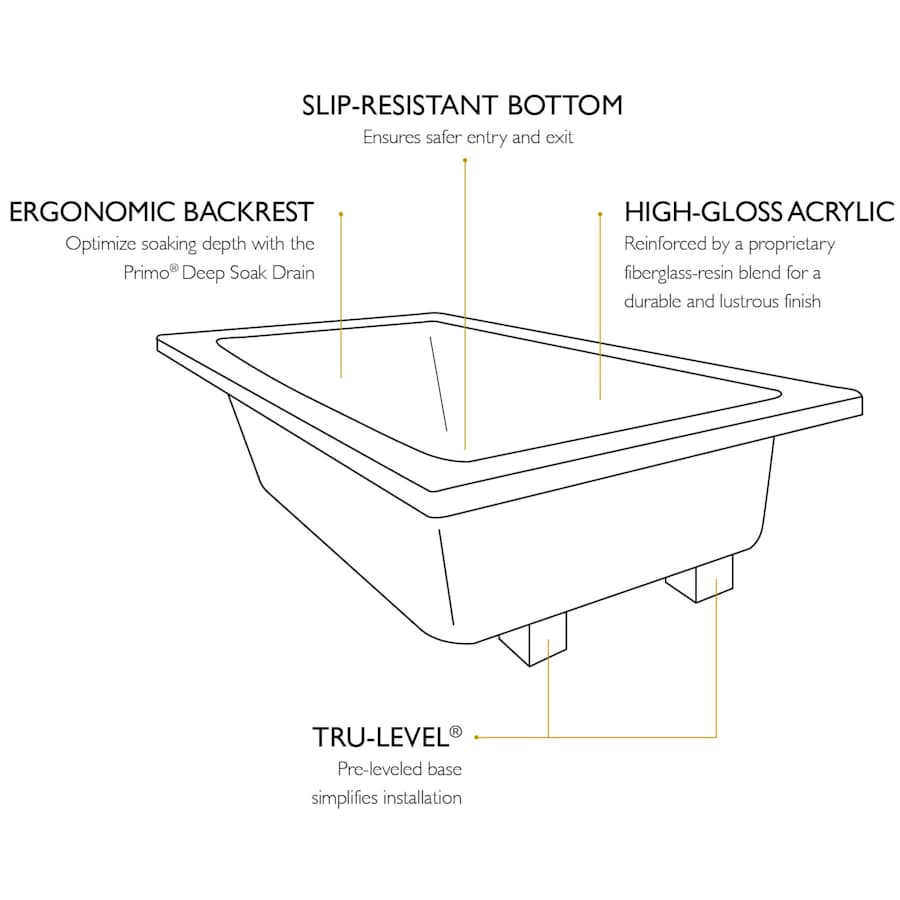

Jacuzzi® Technology:
Sleek Linear Overflow: The linear overflow offers a contemporary look to your bath while providing exceptional overflow protection.
Tru-Level™ Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.
Controls:
Luxury Controls: Upgraded electronic, button-operated controls with light bars to the left of each button designating low, medium-low, medium-high, and high.
Lighting:
Chromatherapy: LED lighting that is able to produce a total of 256 mood-setting colors. Jacuzzi’s Chromatherapy lighting serves to not only enhance your bathing experience, but also provide for safe entry and exists in and out of the tub.

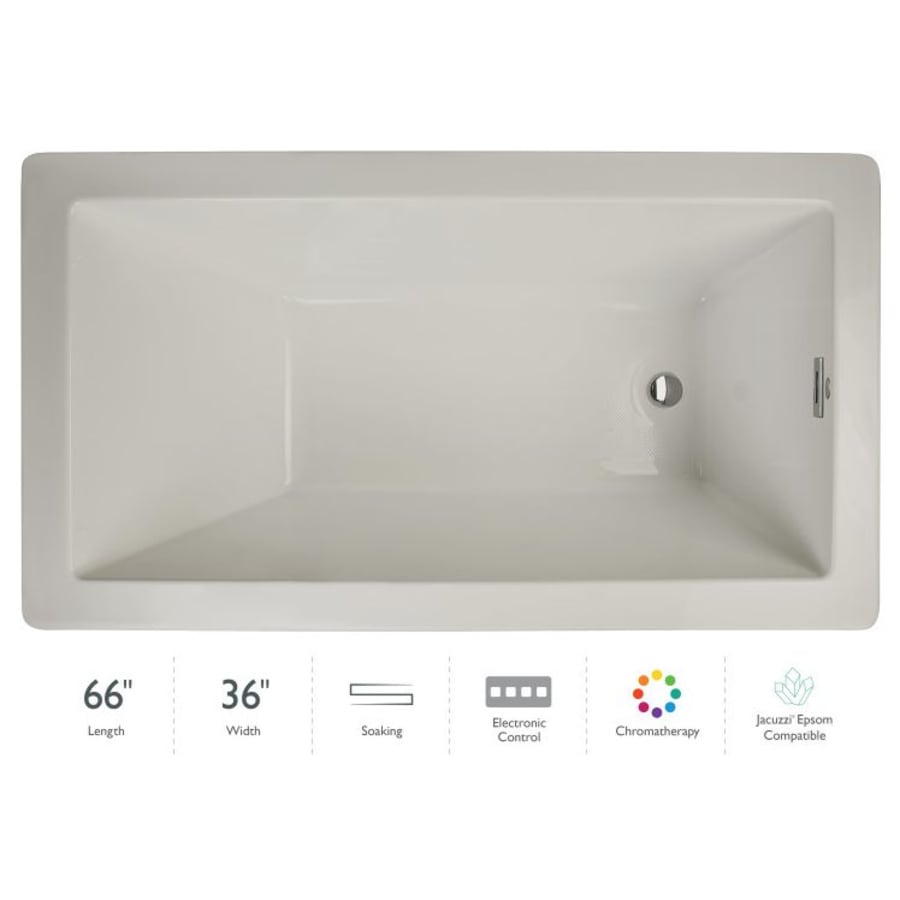

Product Specifications:
Overall Height: 26″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 36″ (measured from back most to front most point on outer rim)
Overall Length: 66″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 20-4/5″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 44-1/5″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 28″ (back to front measurement of the top of basin walls)
Basin Length (Top): 58″ (right to left measurement of the top of basin walls)
Water Depth: 18-15/16″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 91 – gallons
Drain Location: Reversible
Operating Gallons: 91
Drop-In Cutout Required: 64″ x 34″
Additional Jacuzzi Links
View the Manufacturer Warranty
Browse all Jacuzzi Products
Jacuzzi Elara Collection
Specifications
| Height | 26 in. |
| Width | 36 in. |
| Length | 66 in. |
| Backplate Depth | 21.413 in. |
| Nominal Length | 66 in. |
| Nominal Width | 36 in. |
| Capacity (Gallons) | 91 |
| Overflow Height | 18.9 in. |
| Water Depth | 18.913 in. |
| Water Capacity | 91 |
| Nominal Tub Length / Width | 66 in. |
| Thermostat | Modern |
| Control Type | Electronic |
| Material | Acrylic |
| Insulation Type | Undermount, Drop In |
| Drain Placement | Reversible |
| Apron Front | No |
| Number Of Bathers | 1 |
| Slip Resistant | Yes |
| Sound Dampening | No |
| Tub Shape | Rectangular |
| Self Leveling Base | Yes |
| Base Color | No |
| Collection | Luxury |
| Manufacturer Warranty | Limited Lifetime |
| Country Of Origin | USA |
| Made in America | Yes |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Drain Assembly Included | No |
| Light Included | Yes |
| Tile Flange | No |
| Heater Included | No |
| Walk-In Tub | No |
| Amperage | 20 |
| Color | Oyster, White |
