Product Features:
The sleek lines of the Elara® bath make an elegant addition in any bathroom
Durable high-gloss acrylic material
Ergonomic design cradles the bather in a comfortable position
The foundation of hydrotherapy – quiet and calming
The combination of heat and water relaxes muscles and calms the senses
Limited lifetime manufacturer’s warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.
Jacuzzi® Technology:

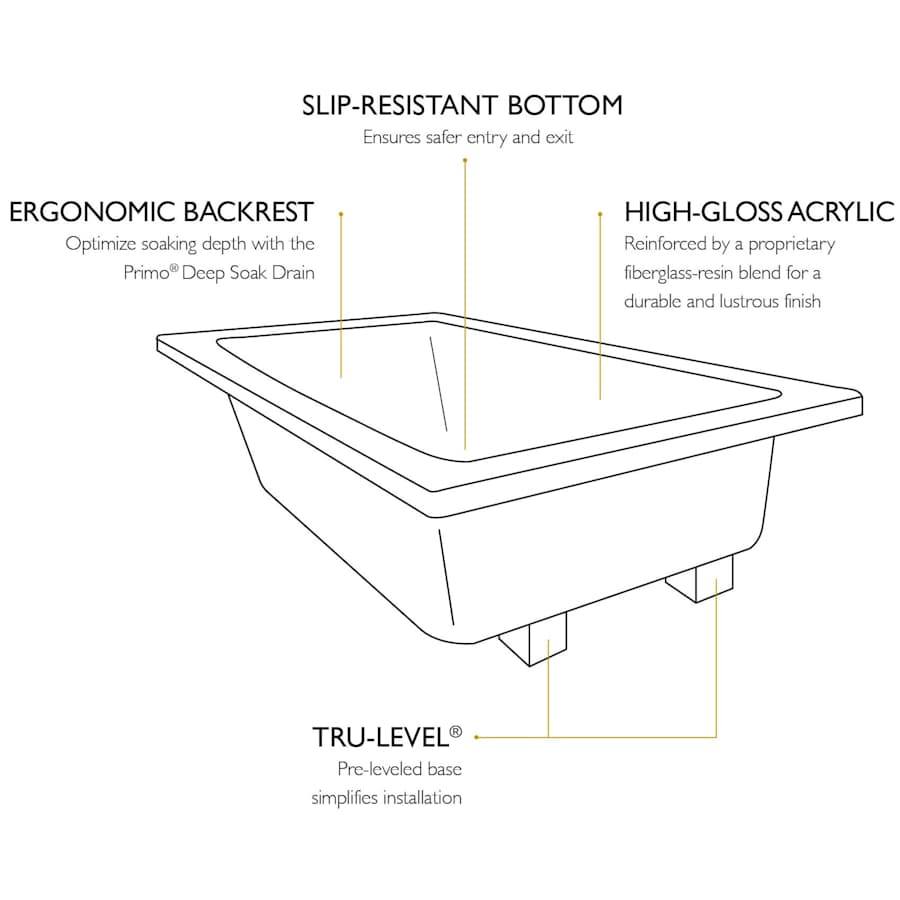

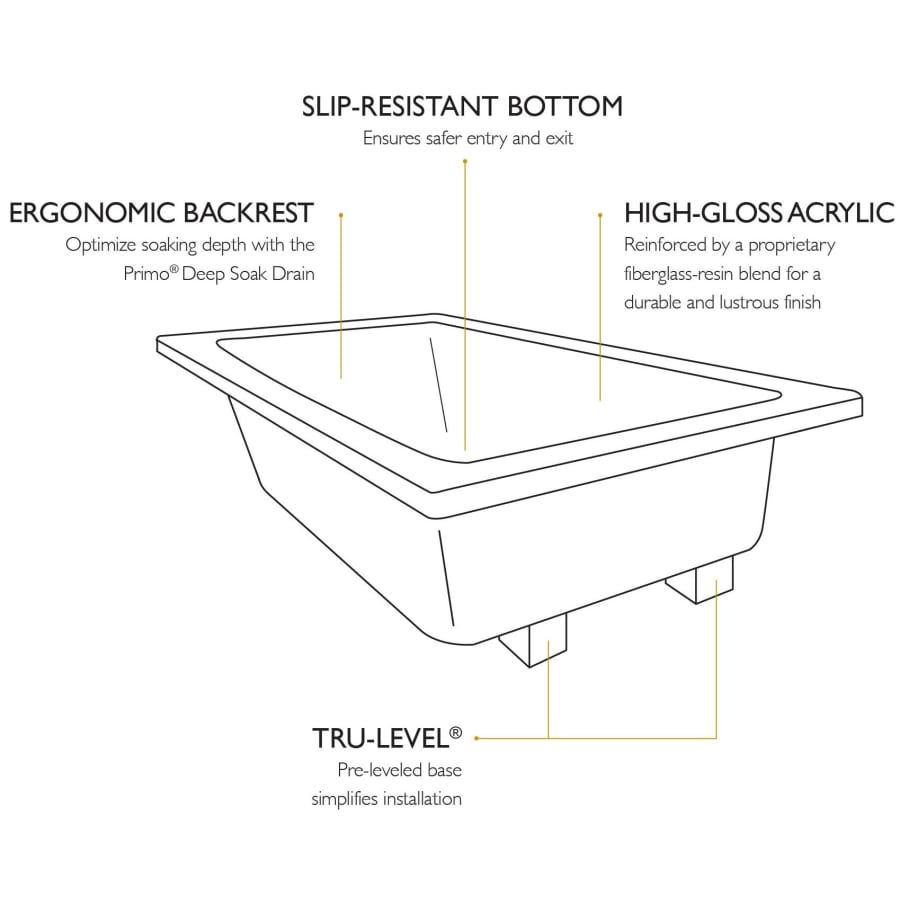

Sleek Linear Overflow: The linear overflow offers a contemporary look to your bath while providing exceptional overflow protection.
Tru-Level™ Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.
Controls:
Luxury Controls: Upgraded electronic, button-operated controls with light bars to the left of each button designating low, medium-low, medium-high, and high.
Â
Product Specifications:

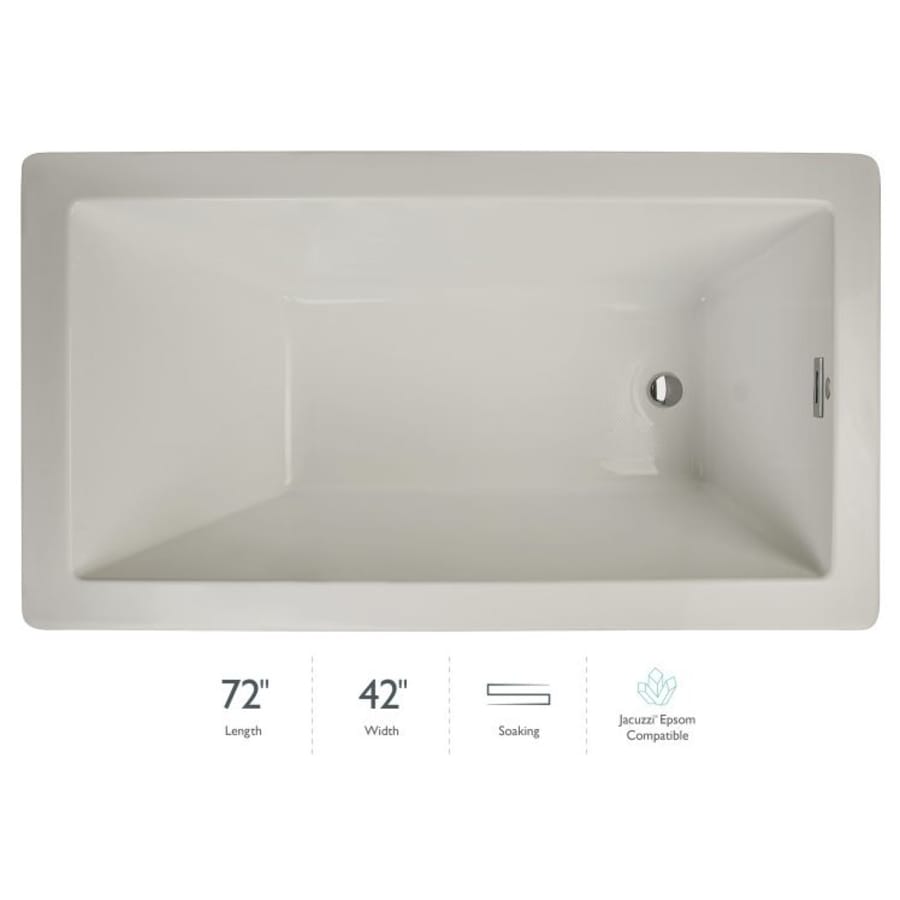

Overall Height: 26″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 42″ (measured from back most to front most point on outer rim)
Overall Length: 72″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 28-4/5″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 50-3/10″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 34″ (back to front measurement of the top of basin walls)
Basin Length (Top): 64″ (right to left measurement of the top of basin walls)
Water Depth: 18-15/16″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 127 – gallons
Drain Location: Reversible
Operating Gallons: 127
Drop-In Cutout Required: 70″ x 40″
Additional Jacuzzi Links
View the Manufacturer Warranty
Browse all Jacuzzi Products
Jacuzzi Elara Collection
Specifications
| Thermostat | Modern |
| Insulation Type | Undermount, Drop In |
| Material | Acrylic |
| Drain Placement | Reversible |
| Sound Dampening | No |
| Apron Front | No |
| Number Of Bathers | 1 |
| Self Leveling Base | Yes |
| Slip Resistant | Yes |
| Tub Shape | Rectangular |
| Height | 26 in. |
| Width | 42 in. |
| Backplate Depth | 21.413 in. |
| Length | 72 in. |
| Nominal Length | 72 in. |
| Nominal Width | 42 in. |
| Capacity (Gallons) | 127 |
| Overflow Height | 18.9 in. |
| Water Depth | 18.913 in. |
| Water Capacity | 127 |
| Nominal Tub Length / Width | 72 in. |
| Collection | Luxury |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Made in America | Yes |
| Drain Assembly Included | No |
| Heater Included | No |
| Tile Flange | No |
| Walk-In Tub | No |
| Color | Oyster, White |
| Color Tone | Whites |
