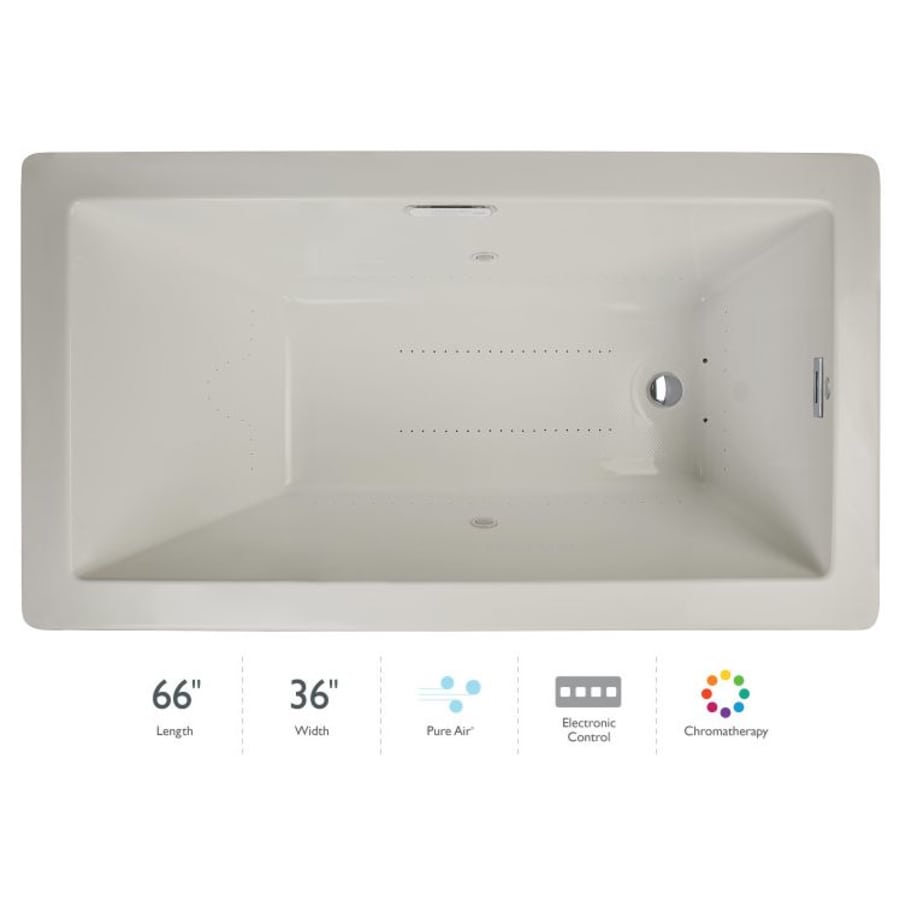

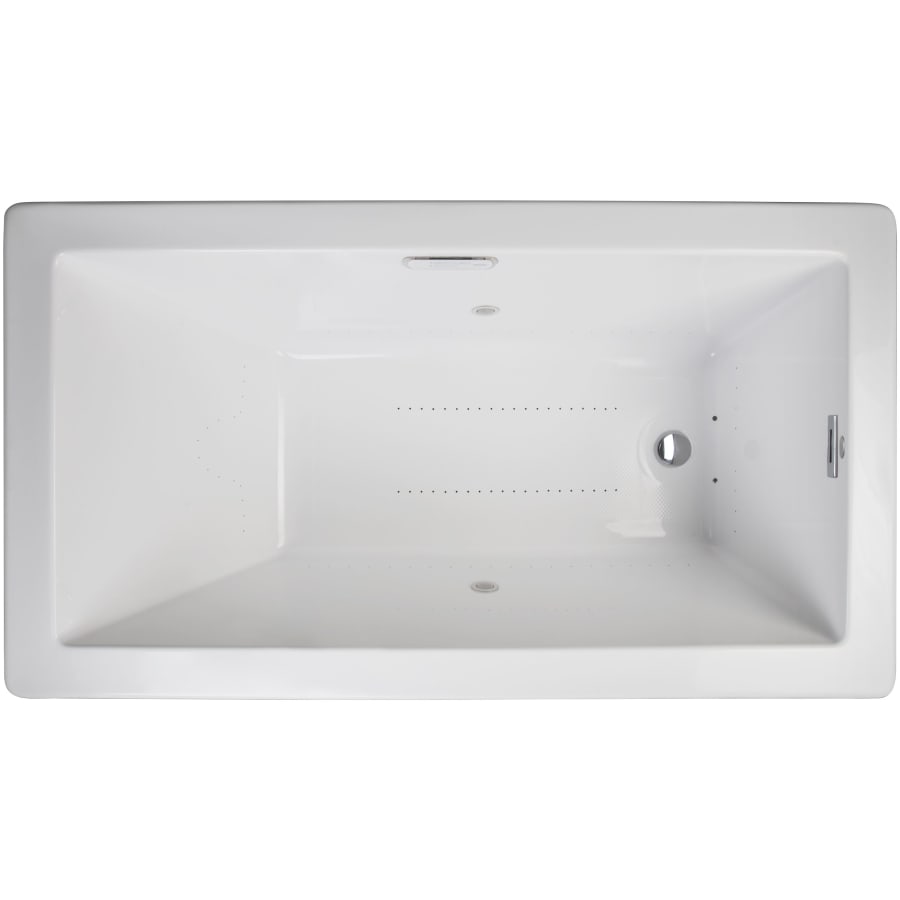

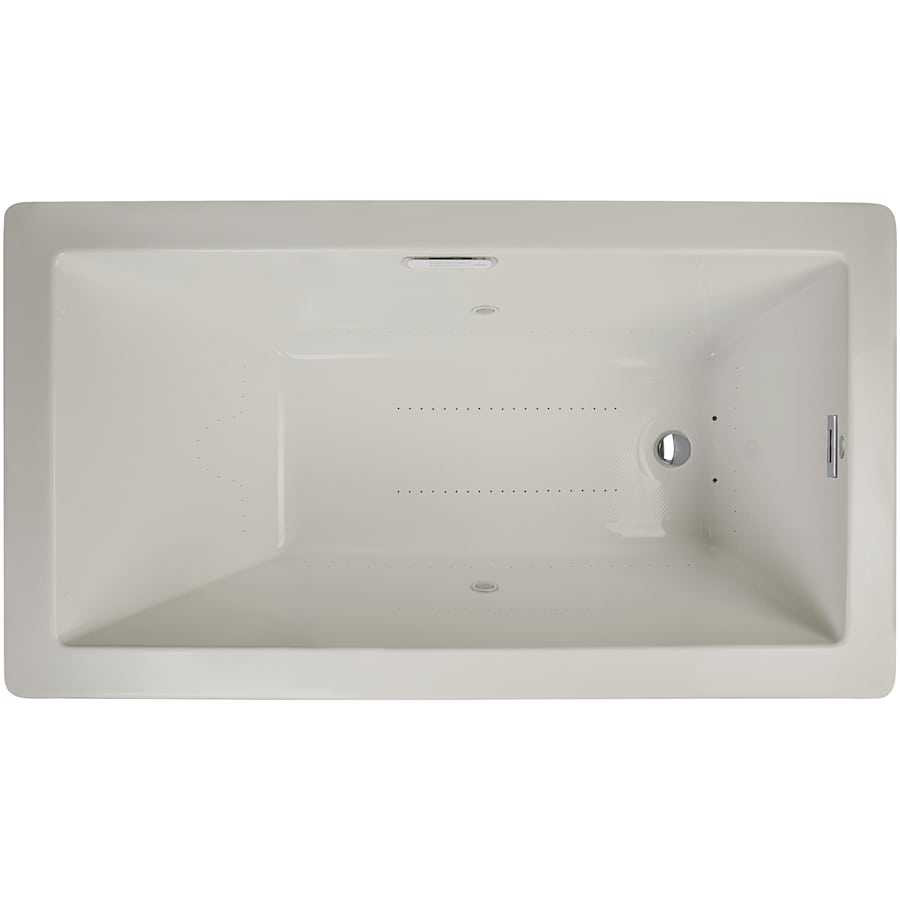

Jacuzzi Elara Low Profile 66″ Acrylic Air Bathtub for Drop-In Installations with Right Drain and Chromatherapy Lighting

Product Features:

Durable high-gloss acrylic material
Pure Air® bubbles provide gentle embracing massage
Balanced 360° balanced air flow system for a whole body experience
Sidewall, floor and/or TLC (Thermal Lumbar Comfort ) air inlets
Limited lifetime manufacturer’s warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.

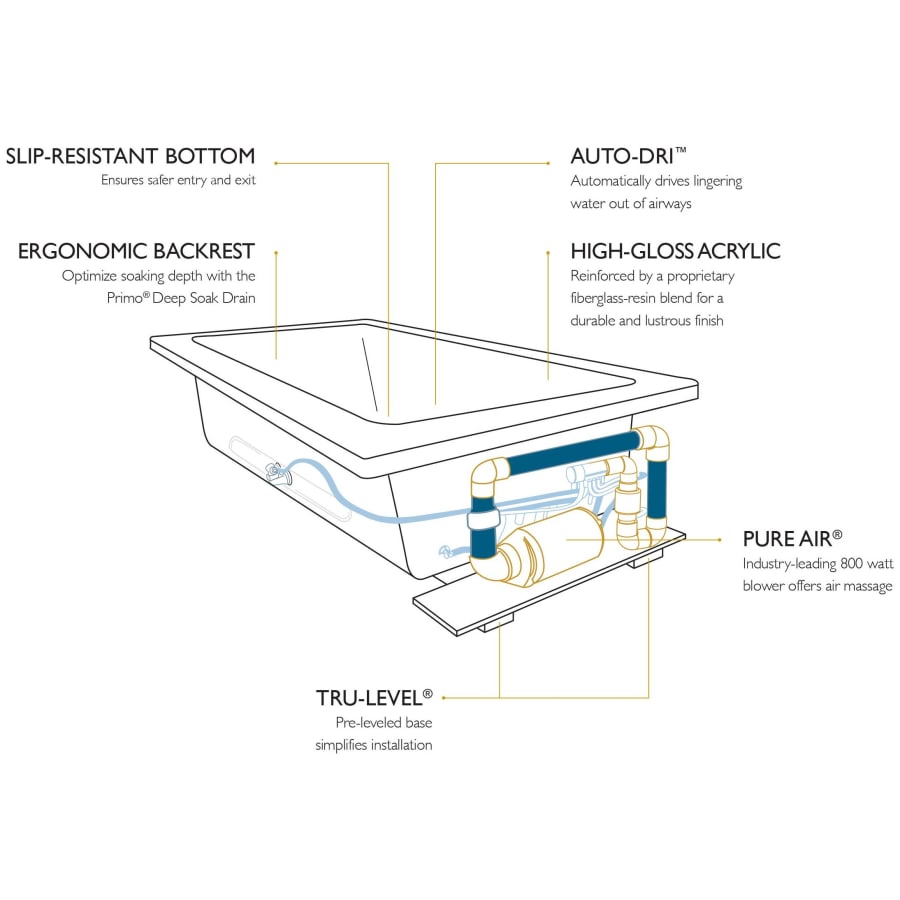

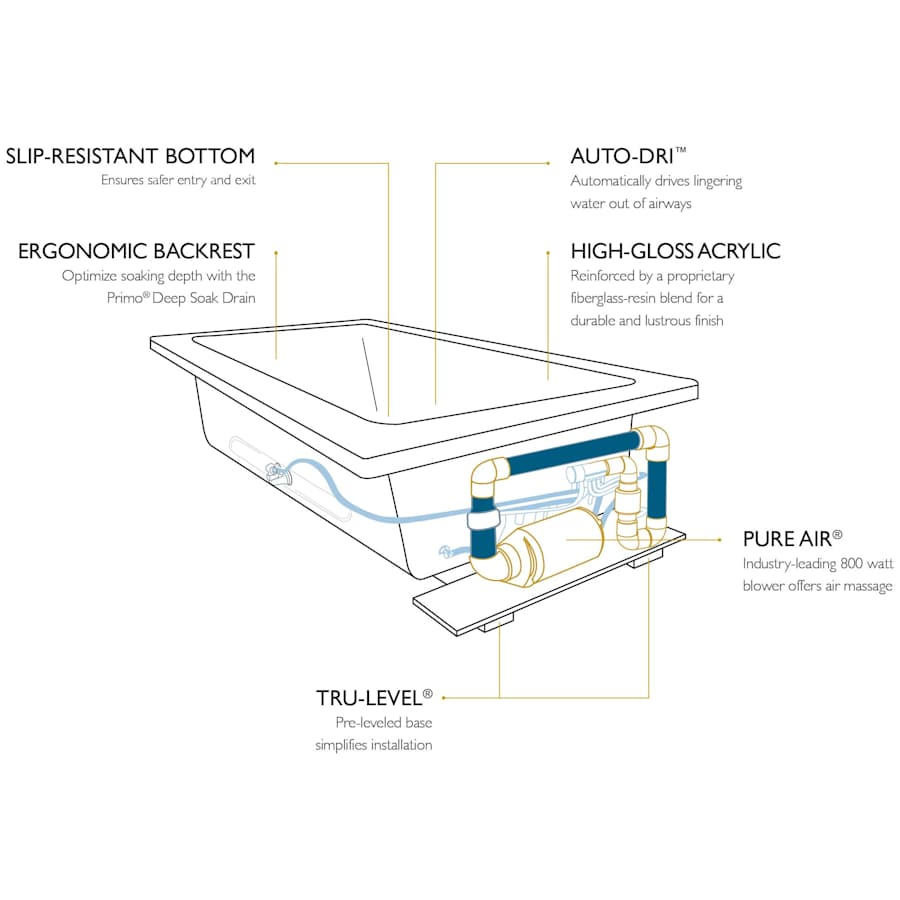

Jacuzzi® Technology:

SlimPro Jets: The ultra low-profile design is nearly flush with the bathing surface to provide maximum comfort.
Sleek Linear Overflow: The linear overflow offers a contemporary look to your bath while providing exceptional overflow protection.
Tru-Level™ Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.
Silent Air Induction: Jacuzzi’s patented air induction system silently mixes air into the water creating that legendary Jacuzzi® Whirlpool experience without a hissing sound.
Whirlpool Wave Mode: Cycle the air flow in the jets from no air flow to maximum air flow creating a unique wave-like experience.
Pure Air® Features:
Automatic Purge: Drain activated system purges the air blowers after each use
360° Balanced Air Flow: A unique network of channels that push heated air evenly into the bath
TLC: Thermal Lumbar Comfort area delivers heated air to your back
Pure Air® Wave Mode: Cycles blower from its minimum to a user defined maximum
Controls:
Luxury Controls: Upgraded electronic, button-operated controls with light bars to the left of each button designating low, medium-low, medium-high, and high.
Lighting:
Chromatherapy: LED lighting that is able to produce a total of 256 mood-setting colors. Jacuzzi’s Chromatherapy lighting serves to not only enhance your bathing experience, but also provide for safe entry and exists in and out of the tub.

Product Specifications:

Overall Height: 22-1/2″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 36″ (measured from back most to front most point on outer rim)
Overall Length: 66″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 22″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 46-1/2″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 28″ (back to front measurement of the top of basin walls)
Basin Length (Top): 58″ (right to left measurement of the top of basin walls)
Water Depth: 16-1/5″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 81 – gallons
Drain Location: Right
Blower Location: Left
Operating Gallons: 81
Drop-In Cutout Required: 64″ x 34″

Variations:

ELL6636ARL4CX: This model
ELL6636ARL2XX: This model with Basic Controls – without Chromatherapy Lighting
ELL6636WRL4CH: This mode with Whirlpool Experience and Heater

About Jacuzzi® Jacuzzi® has become the world’s most recognized and largest selling brand of jetted / whirlpool baths and spas. In addition to the first whirlpool bath patent, Jacuzzi® has 250 worldwide patents for advancements in pump systems, jet technology, air controls and product design. This ongoing commitment to innovative product development ensures Jacuzzi’s leadership position in the industry, and sets standards the world over.
