Product Features:
Durable high-gloss acrylic material
Jet trim ring finishes can be upgraded at time of order and come factory-installed
Multi-speed motor for personalized massage options
Limited lifetime manufacturer’s warranty for tub with 2 years warranty for labor and travel costs. Drilling for faucet mounting will NOT void the warranty.
Note: The smaller Slim-Pro jets are ONLY offered with Polished Chrome, or color matched trim rings for your tub. If choosing the optional TargetPro™ trim rings offered later such as Oil Rubbed Bronze, you should choose the color match Tub and Jets Rings.

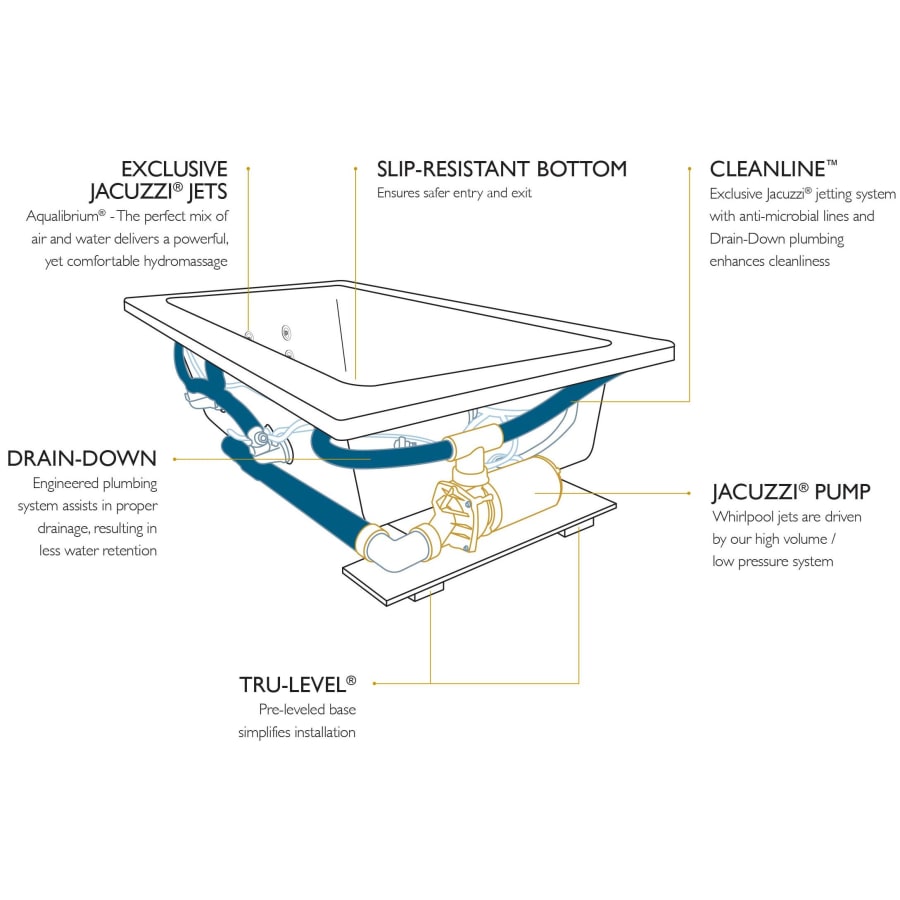

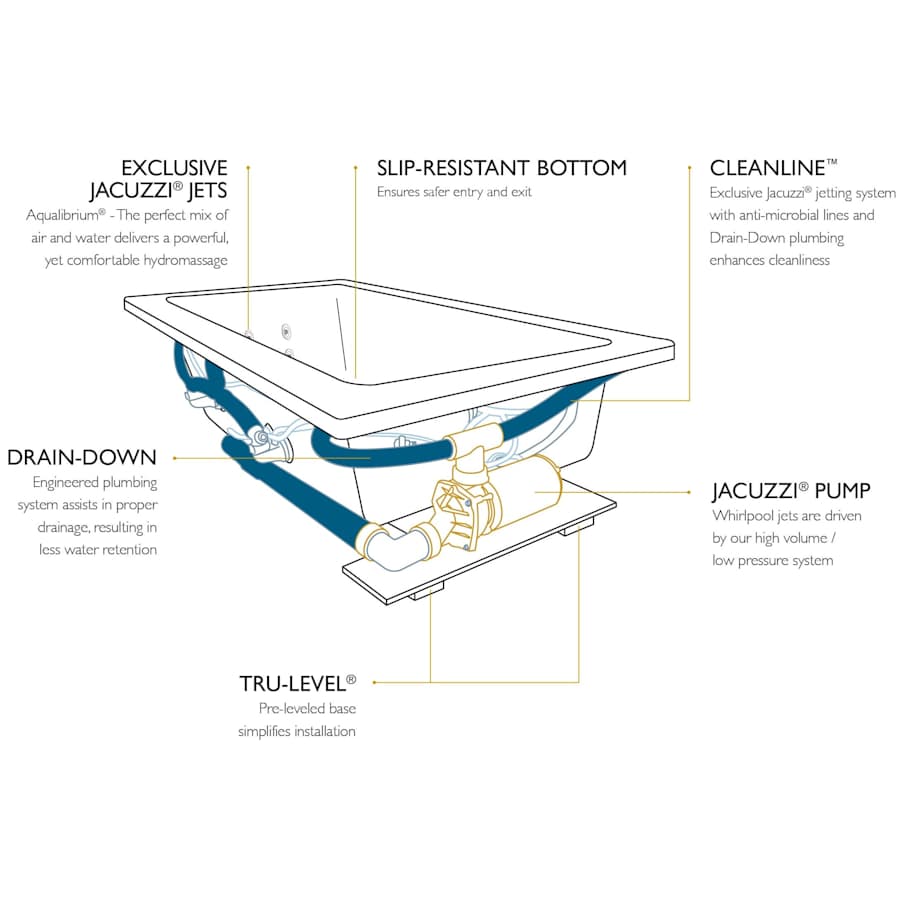

Jacuzzi® Technology:
SlimPro Jets: The ultra low-profile design is nearly flush with the bathing surface to provide maximum comfort.
CleanLine™ Water Lines: Jacuzzi’s CleanLine™ water lines contain anti-microbial additives to inhibit bacterial growth and odors over time.
Sleek Linear Overflow: The linear overflow offers a contemporary look to your bath while providing exceptional overflow protection.
Tru-Level™ Base: Ultra-high density foam levelers that provide support and easy leveling to simplify installation.
Slip-Resistant Bottom: A matte texturing technique is applied under the clear coat to create an invisible yet effective traction area.
Whirlpool Wave Mode: Cycle the air flow in the jets from no air flow to maximum air flow creating a unique wave-like experience.
Product Specifications:
Overall Height: 26″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 36″ (measured from back most to front most point on outer rim)
Overall Length: 66″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 22″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 46-1/2″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 28″ (back to front measurement of the top of basin walls)
Basin Length (Top): 58″ (right to left measurement of the top of basin walls)
Basin Depth: 21-3/8” (bottom of basin to tub rim)
Water Depth: 18-7/8″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 91gallons
Drain Location: Right
Blower Location: Left
Operating Gallons: 90
Drop-In Cutout Required: 64″ x 34″
Variations:
ELL6636WRL2XX: This model
ELL6636WRL2HX: This model with Heater
ELL6636WRL4CW: This model with Luxury Controls and Chromatherapy Lighting
About Jacuzzi® Jacuzzi® has become the world’s most recognized and largest selling brand of jetted / whirlpool baths and spas. In addition to the first whirlpool bath patent, Jacuzzi® has 250 worldwide patents for advancements in pump systems, jet technology, air controls and product design. This ongoing commitment to innovative product development ensures Jacuzzi’s leadership position in the industry, and sets standards the world over.
Additional Jacuzzi Links
View the Manufacturer Warranty
Browse all Jacuzzi Products
Jacuzzi Elara Collection
Specifications
| Thermostat | Contemporary |
| Insulation Type | Undermount, Drop In |
| Material | Acrylic |
| Drain Placement | Right |
| Sound Dampening | No |
| Control Type | Electronic |
| Apron Front | No |
| Number Of Bathers | 1 |
| Self Leveling Base | Yes |
| Slip Resistant | Yes |
| Tub Shape | Rectangular |
| Number of Jets | 10 |
| Soaking | No |
| Pump Placement | Left |
| Height | 26 in. |
| Width | 36 in. |
| Length | 66 in. |
| Nominal Length | 66 in. |
| Nominal Width | 36 in. |
| Depth | 21.4 in. |
| Capacity (Gallons) | 91 |
| Overflow Height | 18.9 in. |
| Water Depth | 18.9 in. |
| Water Capacity | 91 |
| ADA | No |
| Collection | Luxury |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Made in America | Yes |
| Drain Assembly Included | No |
| Light Included | No |
| Heater Included | No |
| Tile Flange | No |
| Walk-In Tub | No |
| Voltage | 120 |
| Amperage | 20 |
| Frequency | 60 Hertz |
| Color | Oyster / Chrome Trim, Oyster / Oyster Trim, White / Chrome Trim, White / White Trim |
| Color Tone | Silver Tones, Whites |
