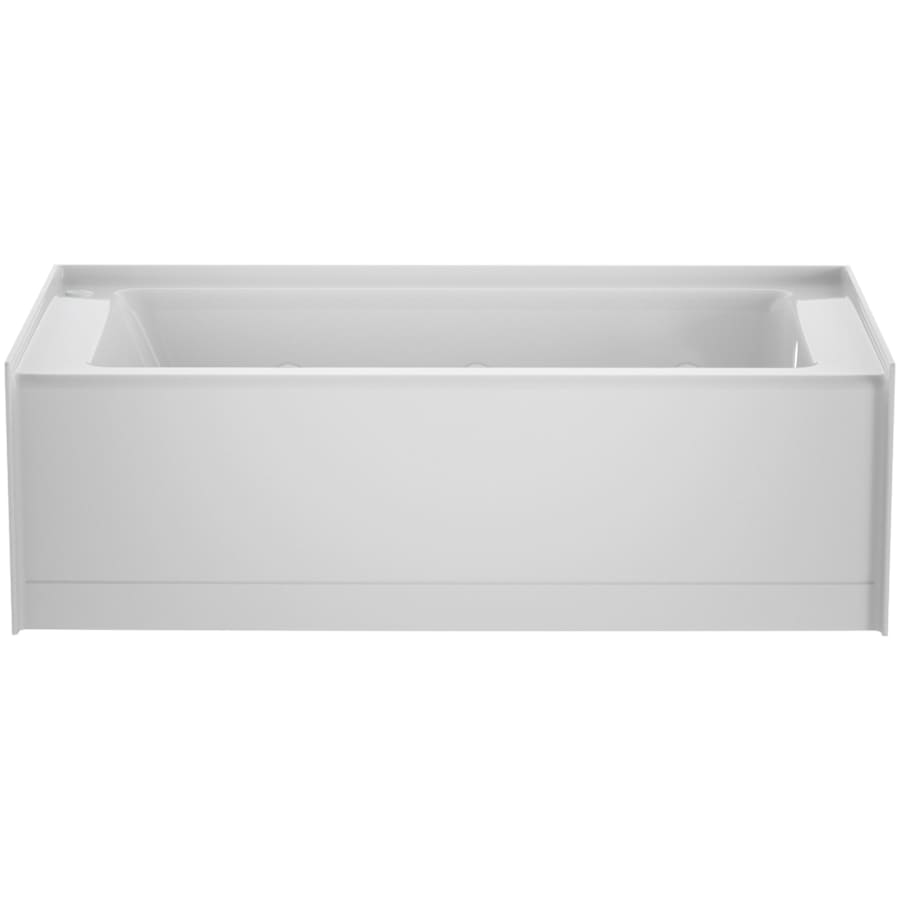

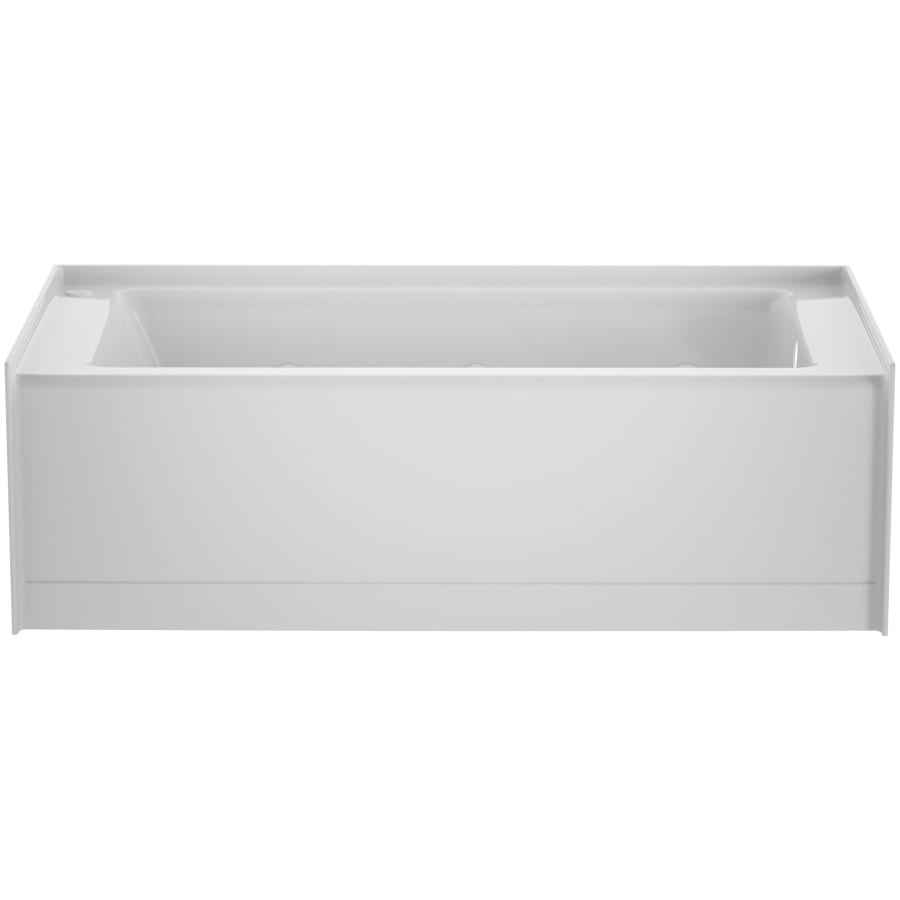

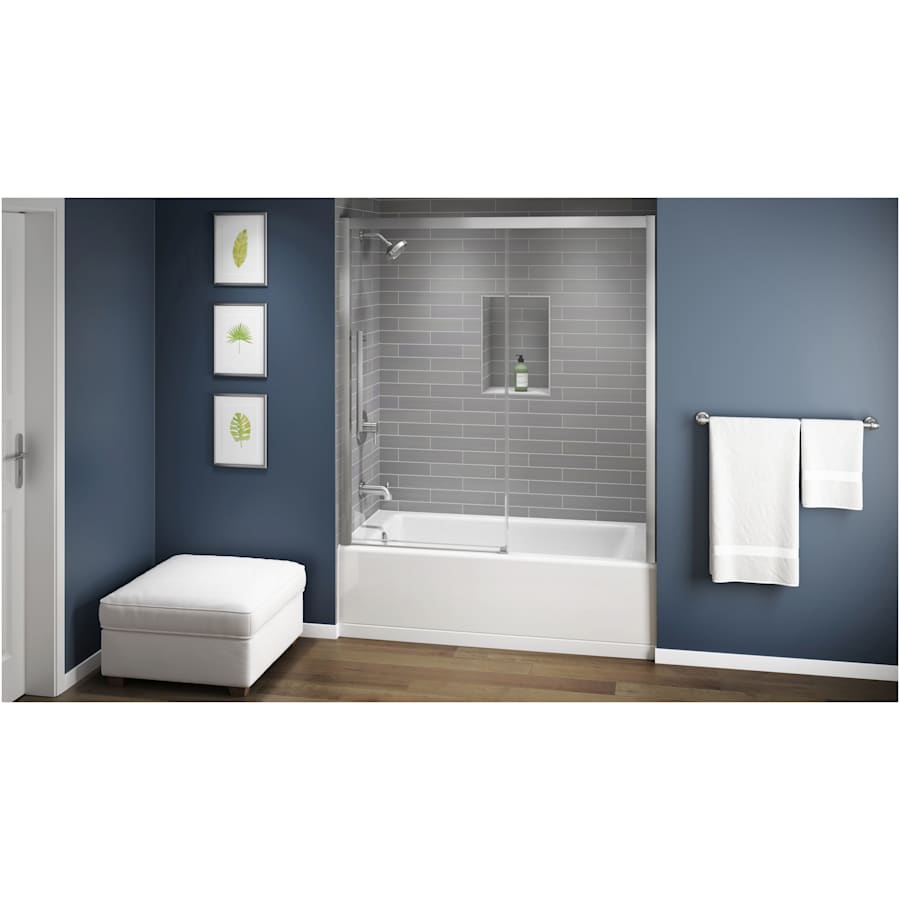

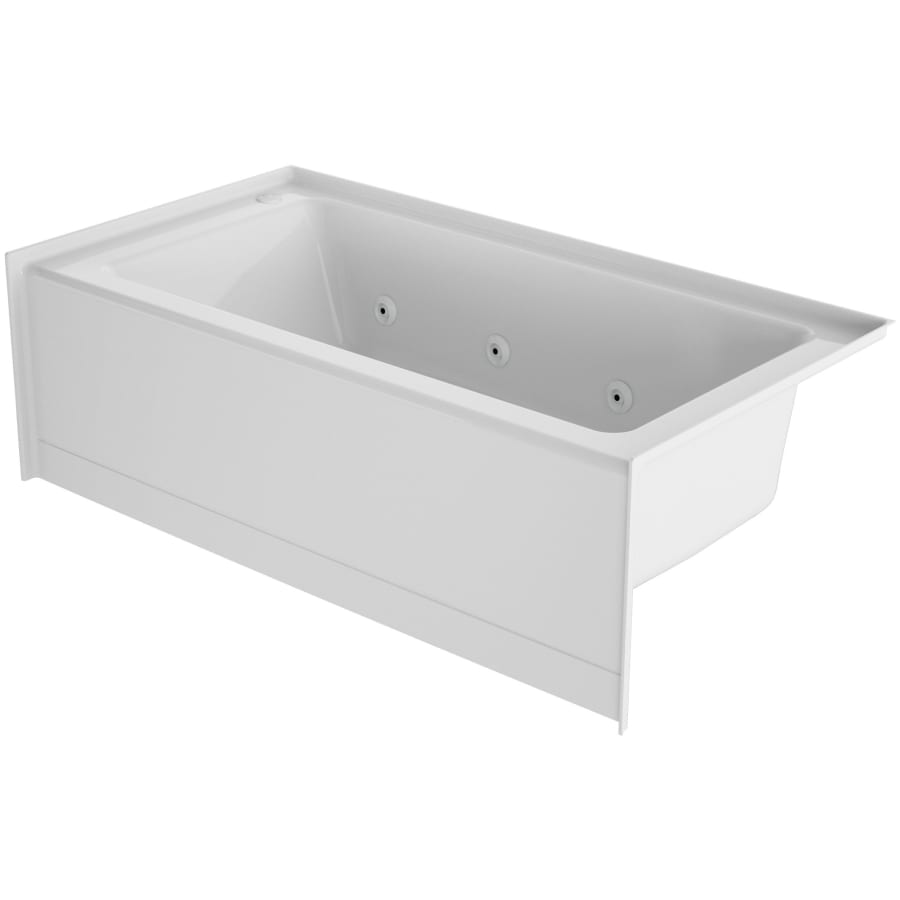

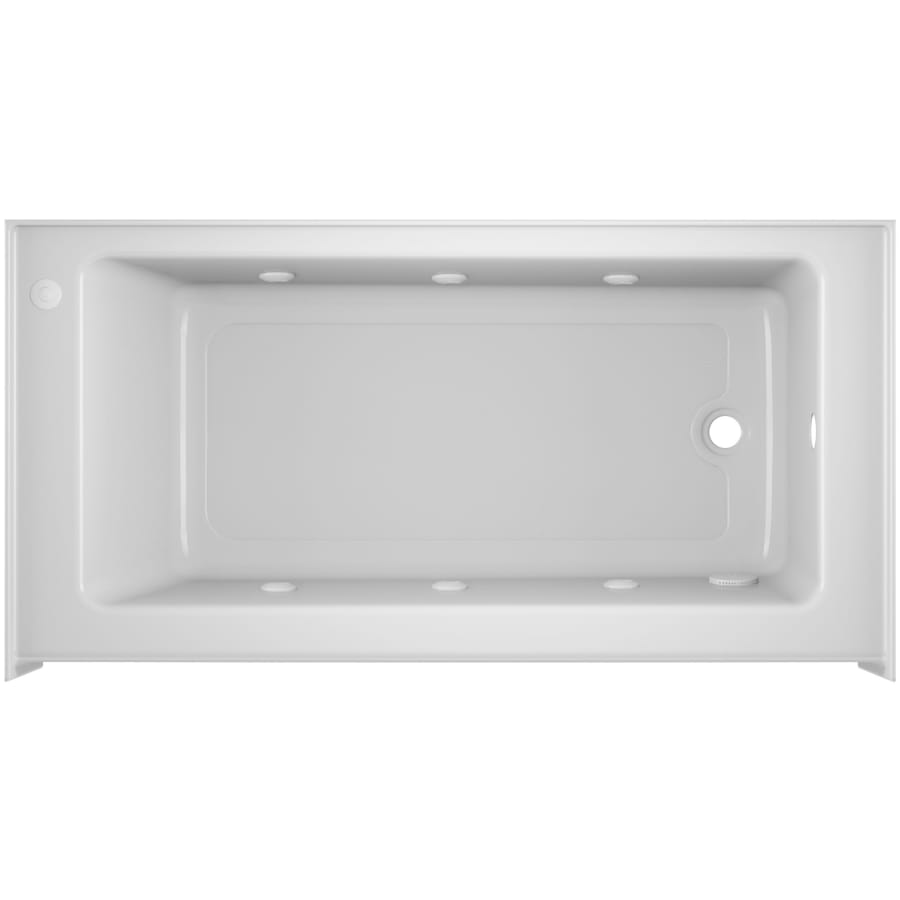

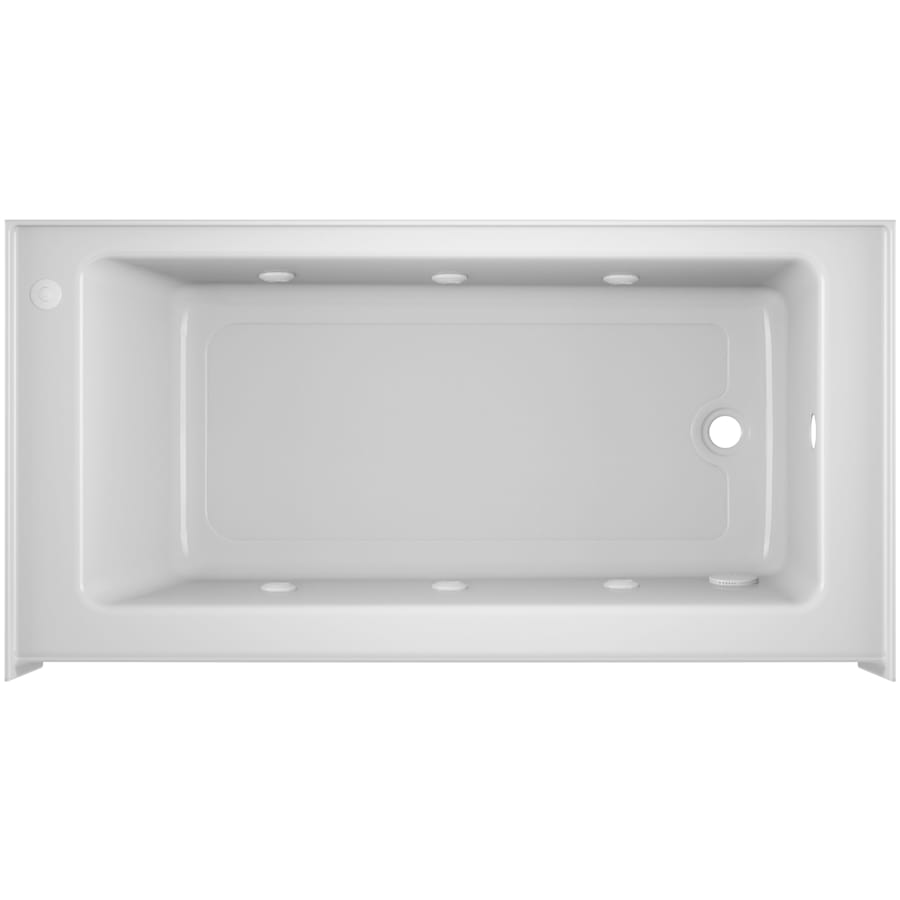

The clean lines of the Signature ® Low-Profile Bath complement any bathroom.
Jacuzzi J186030WRL1HX Features:
Durable high-gloss acrylic material

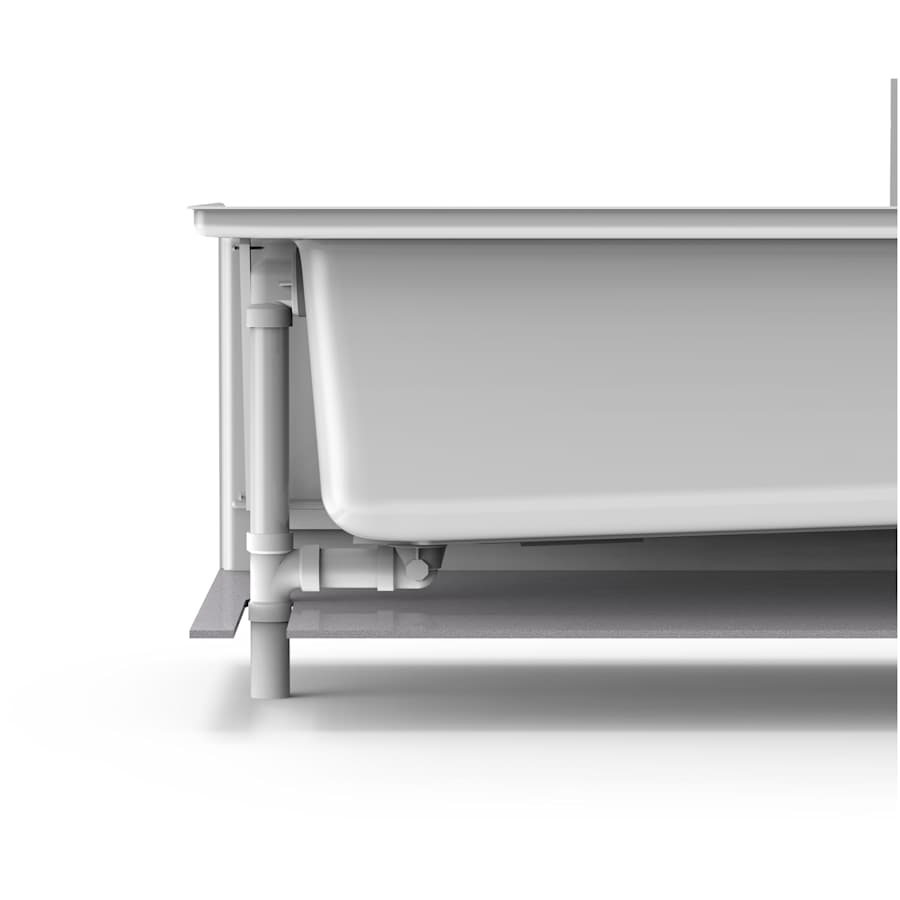

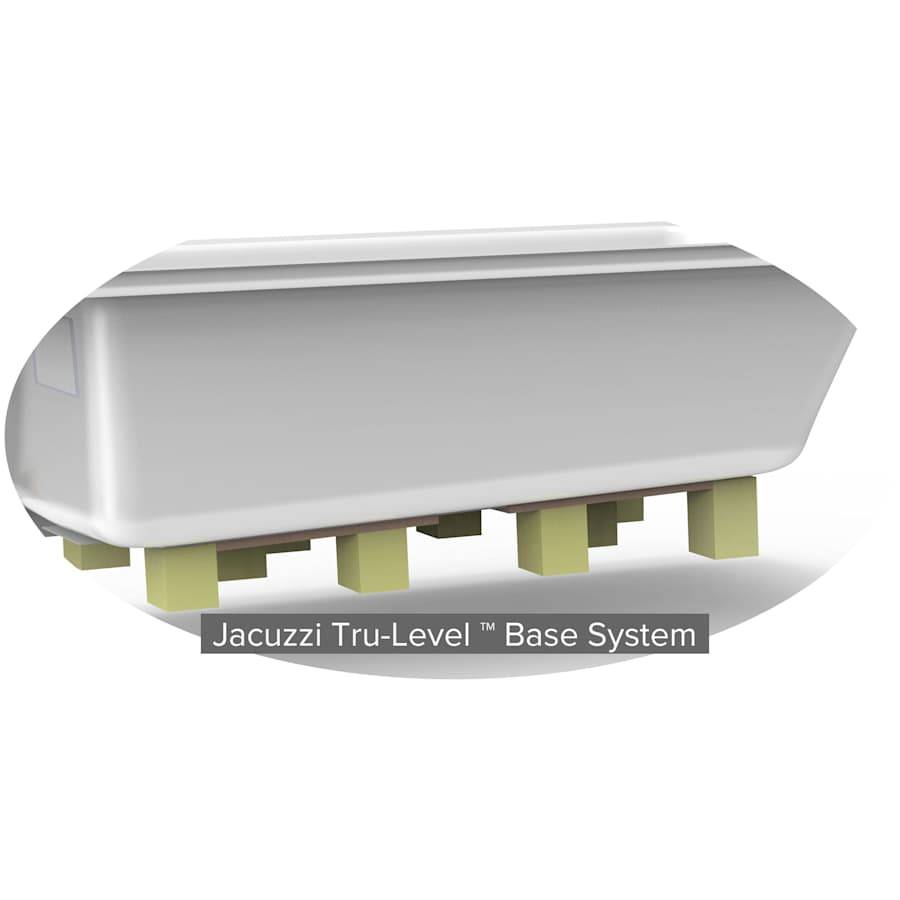

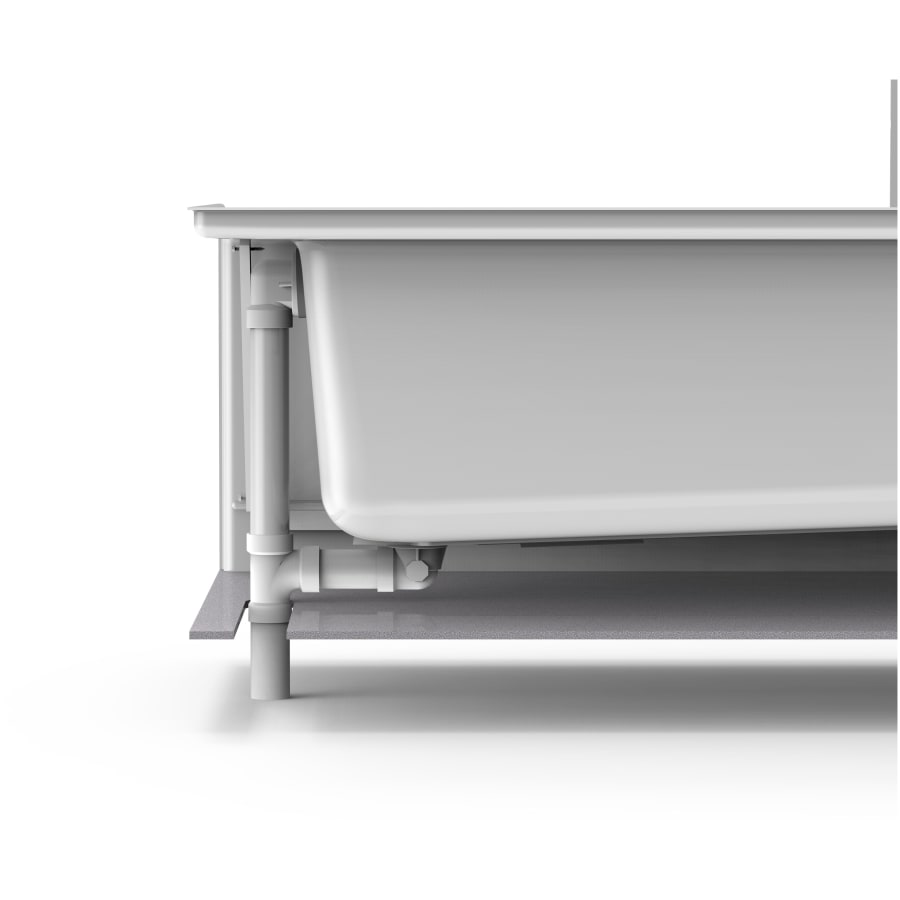

Tru-Level™ base and Above Floor Rough (AFR) clearance simplify installation
Original Jacuzzi invented optimal air and water therapy
Customizable intensity and directionality
Industry-leading jet performance and design
Heater aids temperature maintenance while running whirlpool system
18″ deck height provides easier access
Limited lifetime warranty
IAPMO/cUPC certified to stringent ANSI standards
ADA compliant when installed according to ADA Standards
Jacuzzi J186030WRL1HX Specifications:

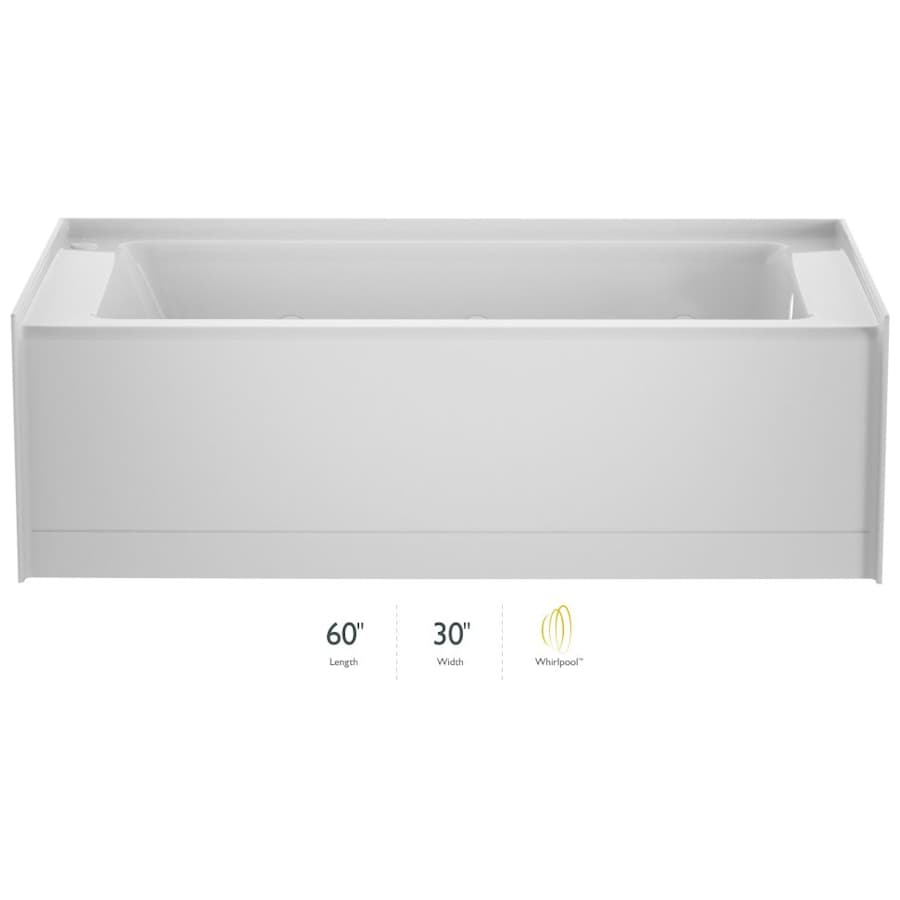

Overall Height: 18″ (bottom to top of tub)
Overall Length: 60″ (left to right of tub)
Overall Width: 30″ (front to back of tub)
Basin Length: 43-1/2″ (left to right of bottom basin)
Basin Width: 20-1/2″ (front to back of bottom basin)
Basin Depth: 18″ (top to bottom of basin)
Maximum Water Capacity: 43 gallons
Water Depth: 13-1/2″
Frequency: 60 Hz
Amperage: 15 A
Number of Jets: 6
Drain Connection: 1-1/2″
Additional Jacuzzi Links
View the Manufacturer Warranty
Browse all Jacuzzi Products
Jacuzzi Signature Collection
Specifications
| Product Weight | 63 lbs. |
| Height | 18 in. |
| Length | 60 in. |
| Width | 30 in. |
| Depth | 18 in. |
| Nominal Width | 30 in. |
| Nominal Length | 60 in. |
| Capacity (Gallons) | 43 |
| Water Depth | 13.5 in. |
| Overflow Height | 13.5 in. |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Signature |
| Country Of Origin | USA |
| ADA | Yes |
| Certifications | ANSI, ASME, CSA |
| Made in America | Yes |
| ANSI Certification | Z124.1.2 |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Control Type | Analog, Electronic |
| Insulation Type | Three Wall Alcove |
| Material | Acrylic |
| Thermostat | Modern |
| Drain Placement | Right |
| Overflow | Yes |
| Apron Front | Yes |
| Sound Dampening | No |
| Accepts Deck Mount Faucet | No |
| Number Of Bathers | 1 |
| Self Leveling Base | Yes |
| Slip Resistant | Yes |
| Tub Shape | Rectangular |
| Jet Type | Air |
| Number of Jets | 6 |
| Pump Placement | Left |
| Voltage | 120 |
| Amperage | 15 |
| Frequency | 60 Hertz |
| Light Included | No |
| Heater Included | Yes |
| Drain Assembly Included | No |
| Faucet Included | No |
| Handshower Included | No |

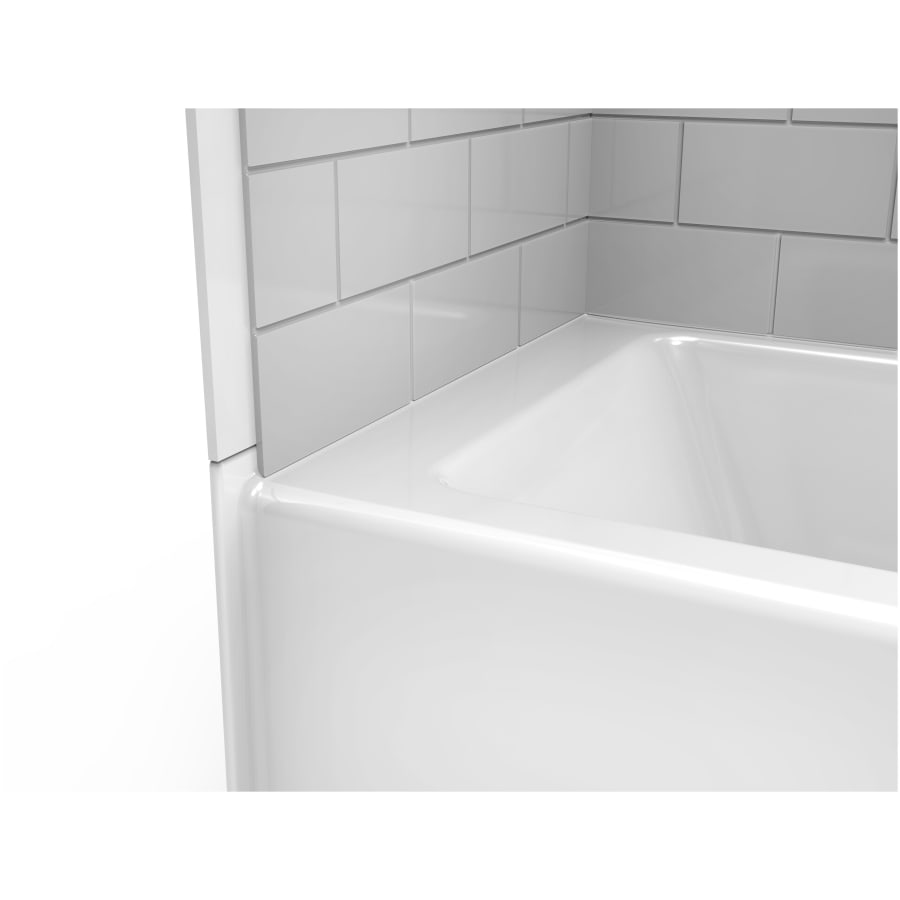

| Tile Flange | Yes |
| Blower | Yes |
| Color | White |
| Color Tone | Whites |
