Technology Highlights

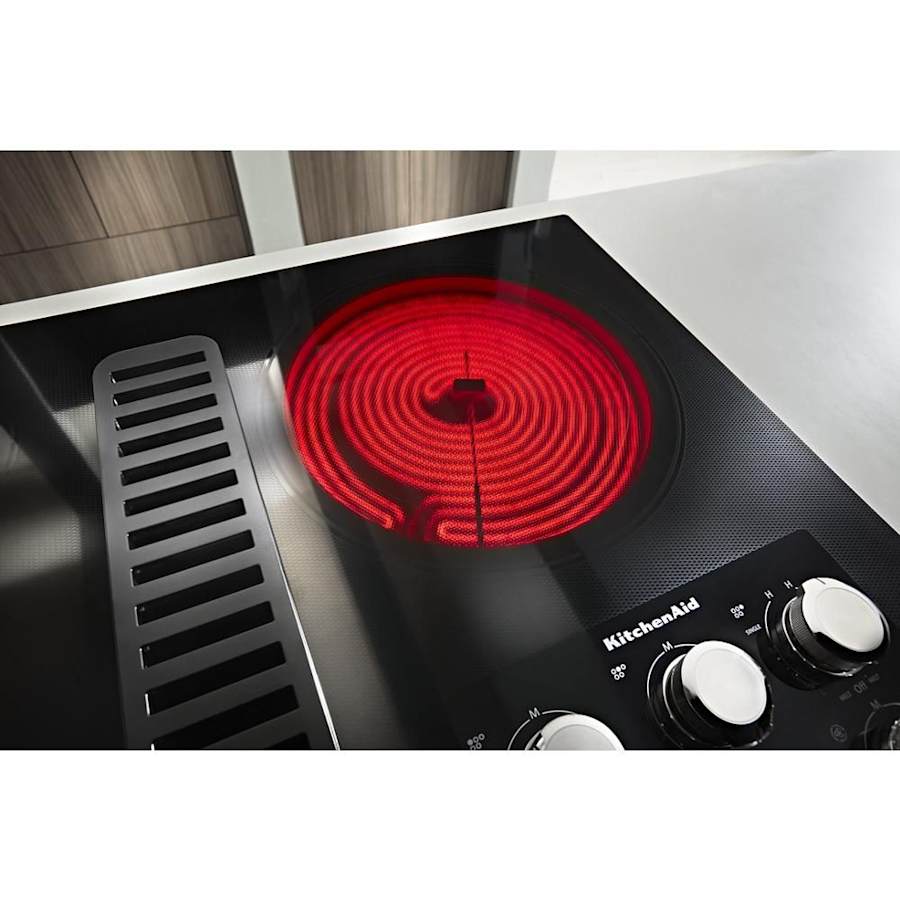

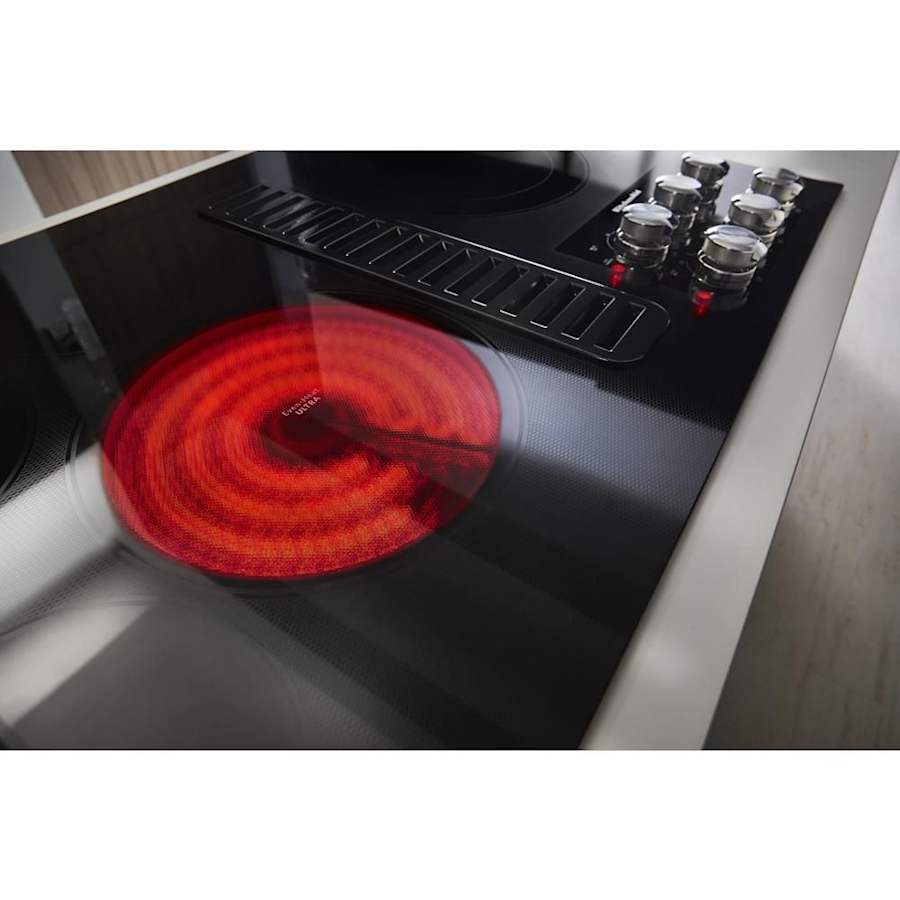

10″ Even-Heat Ultra Element with Simmer Setting: Provides more versatility for high and low temperature cooking techniques. Even-Heat Technology maintains a constant supply of power and delivers a range of simmer settings.

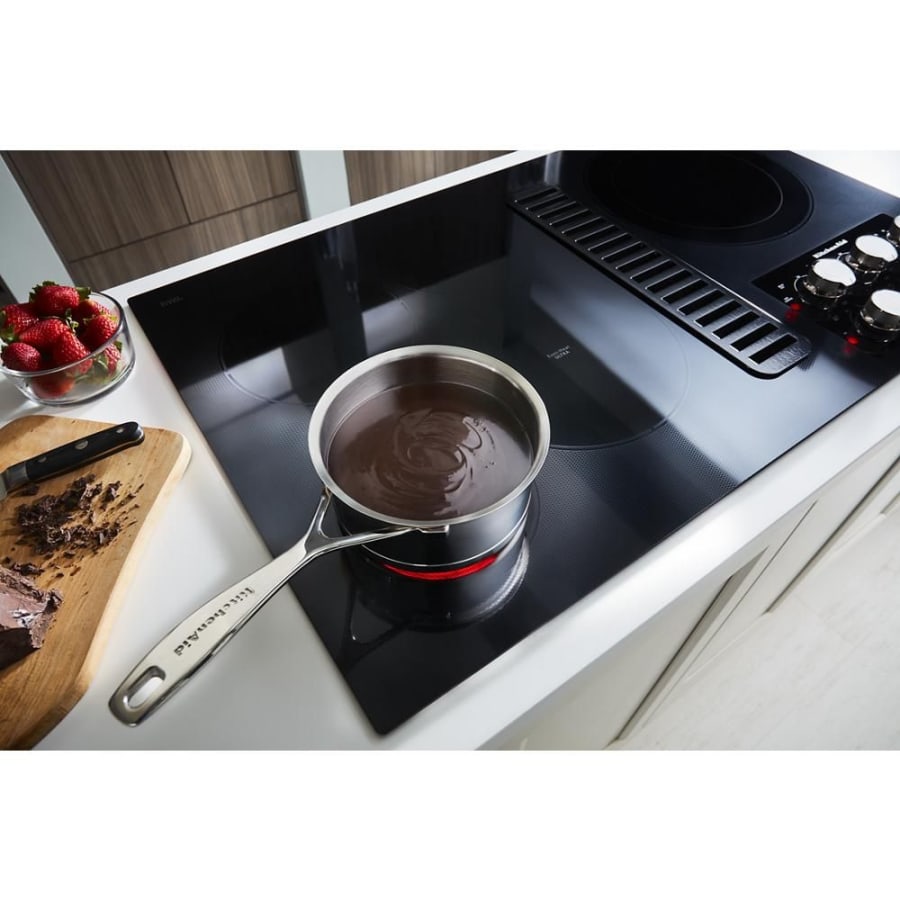

6” Even-Heat Element with Melt Setting: Combines the benefits of Even-Heat Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
Features:

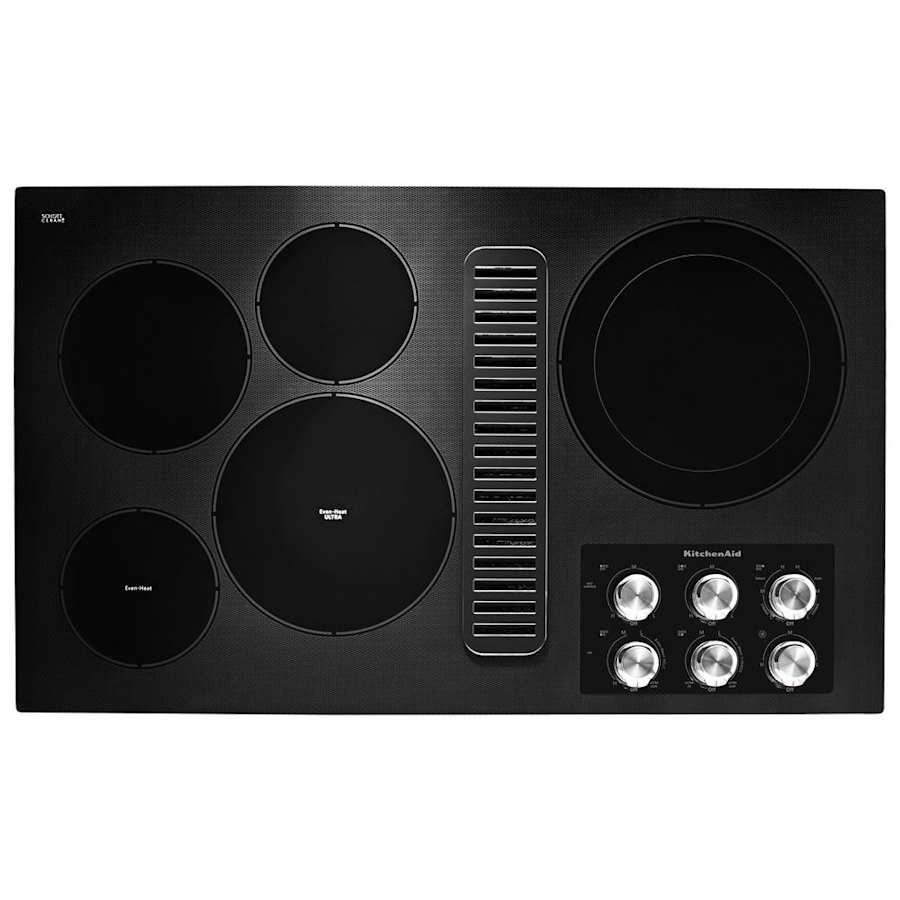

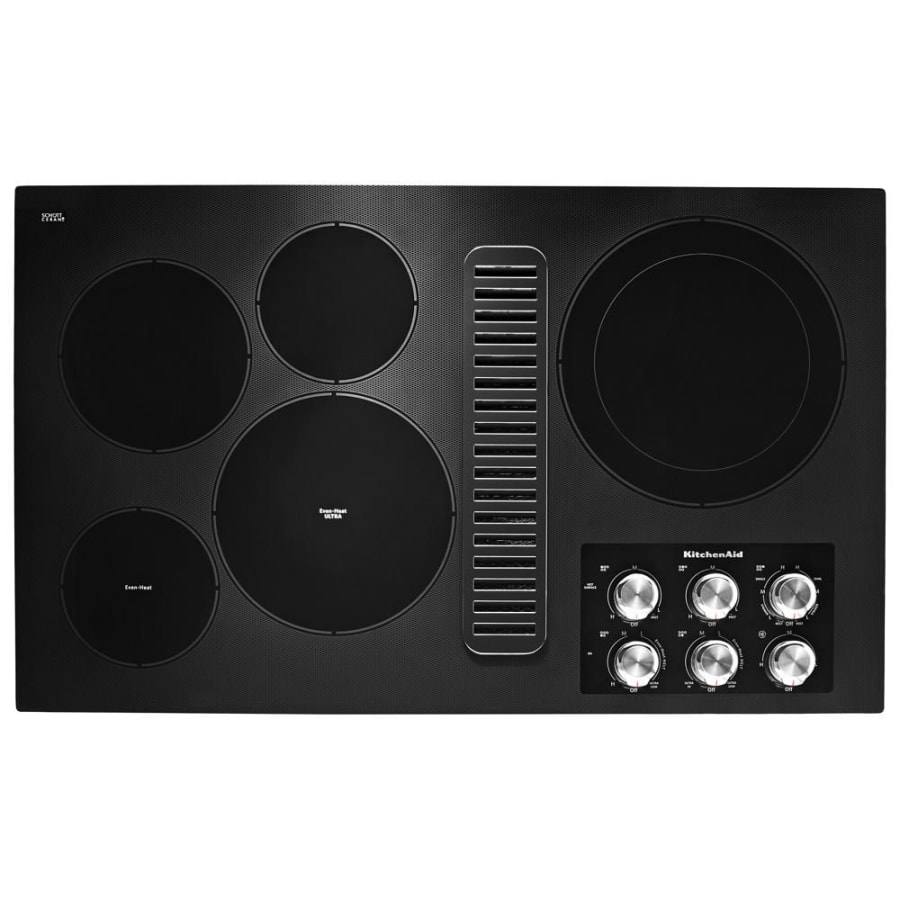

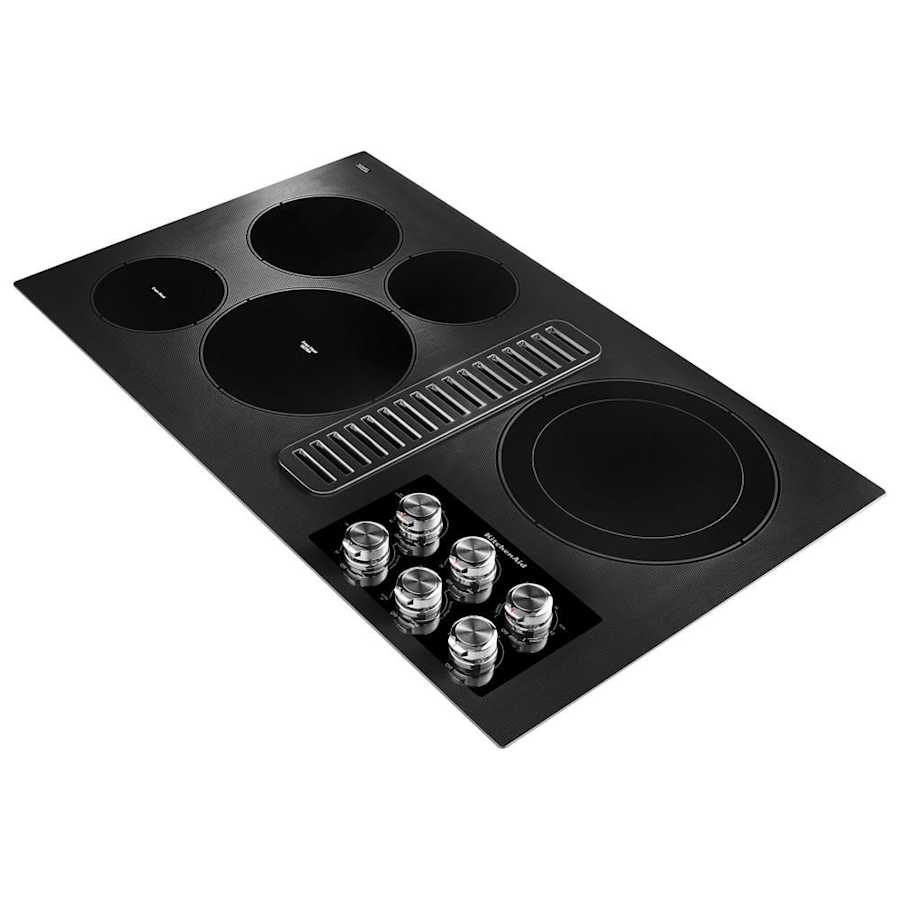

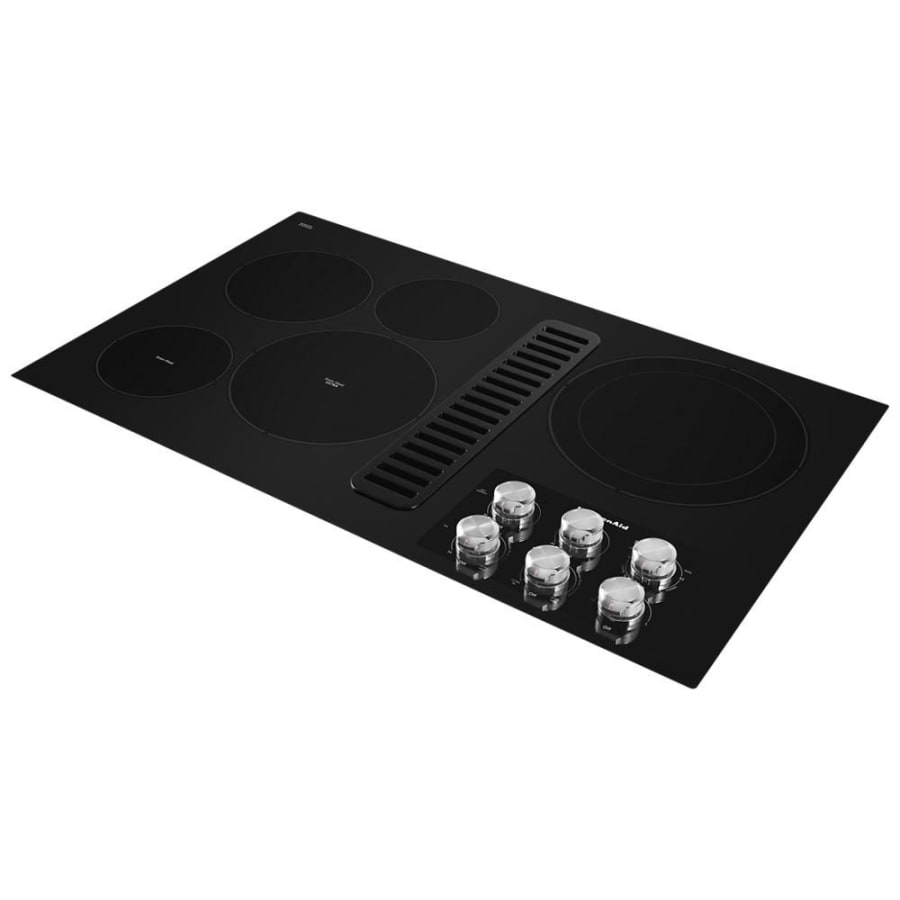

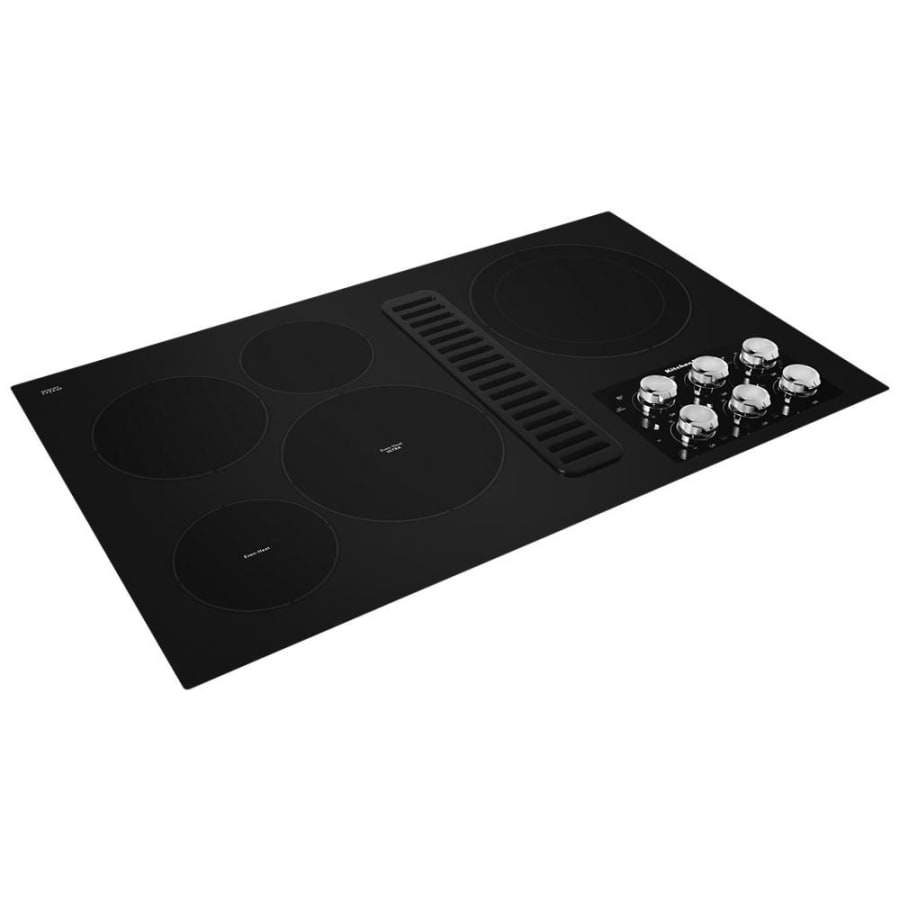

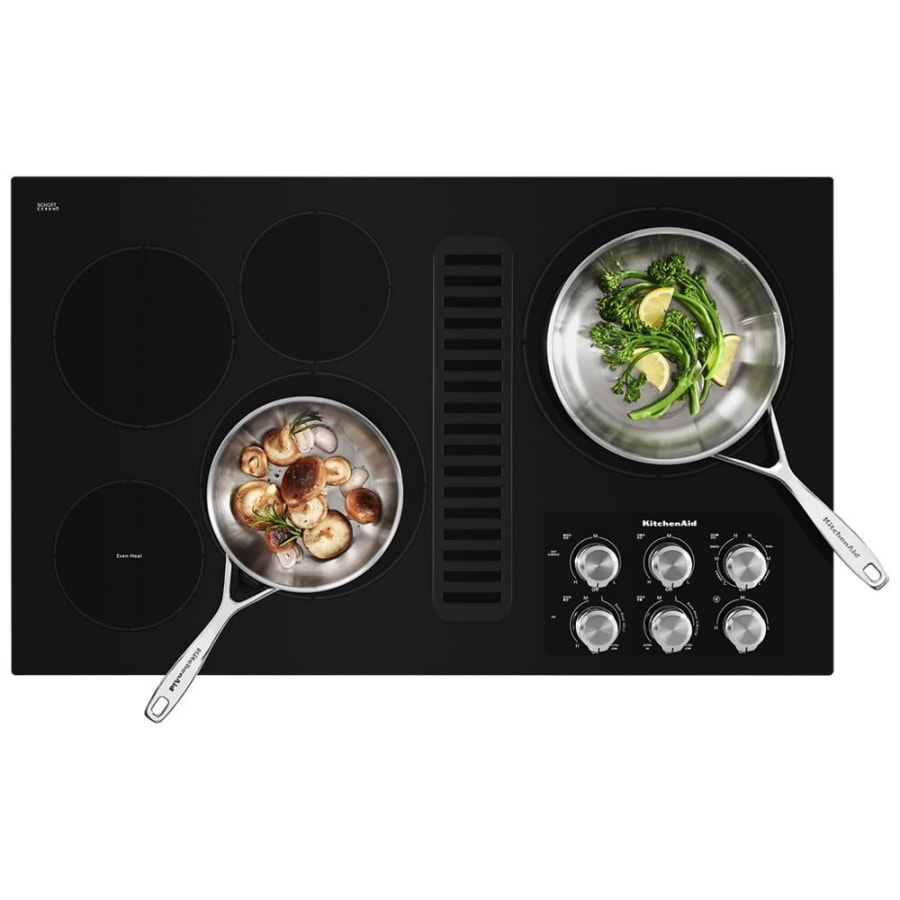

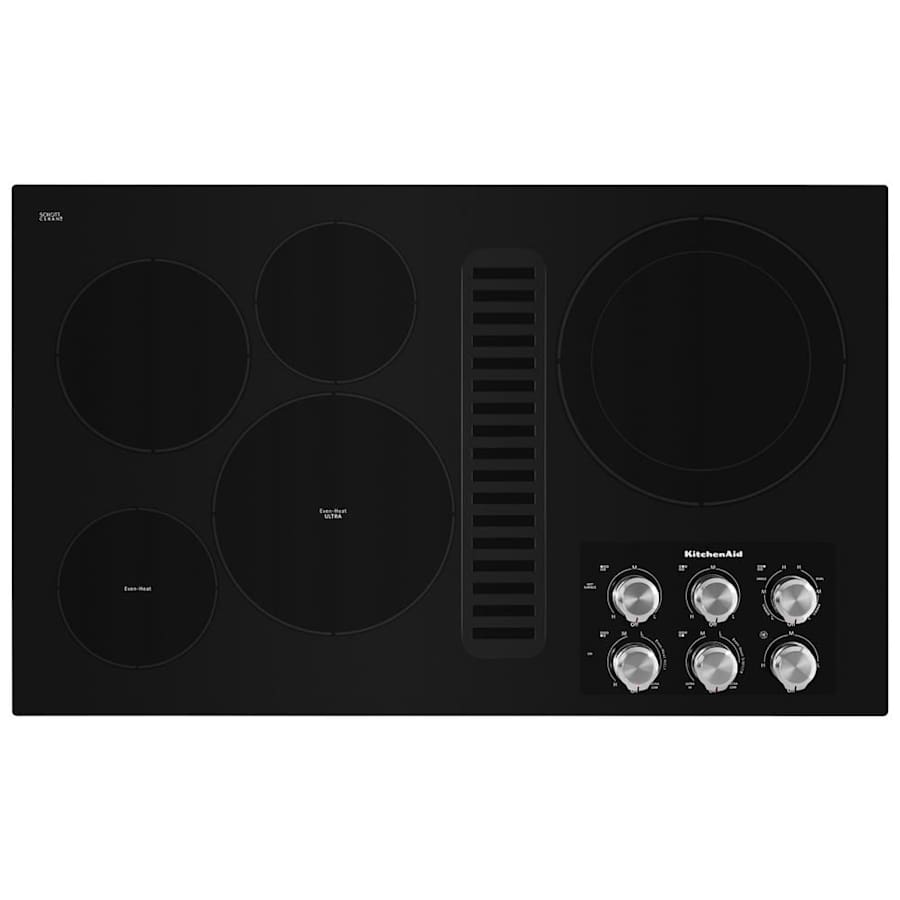

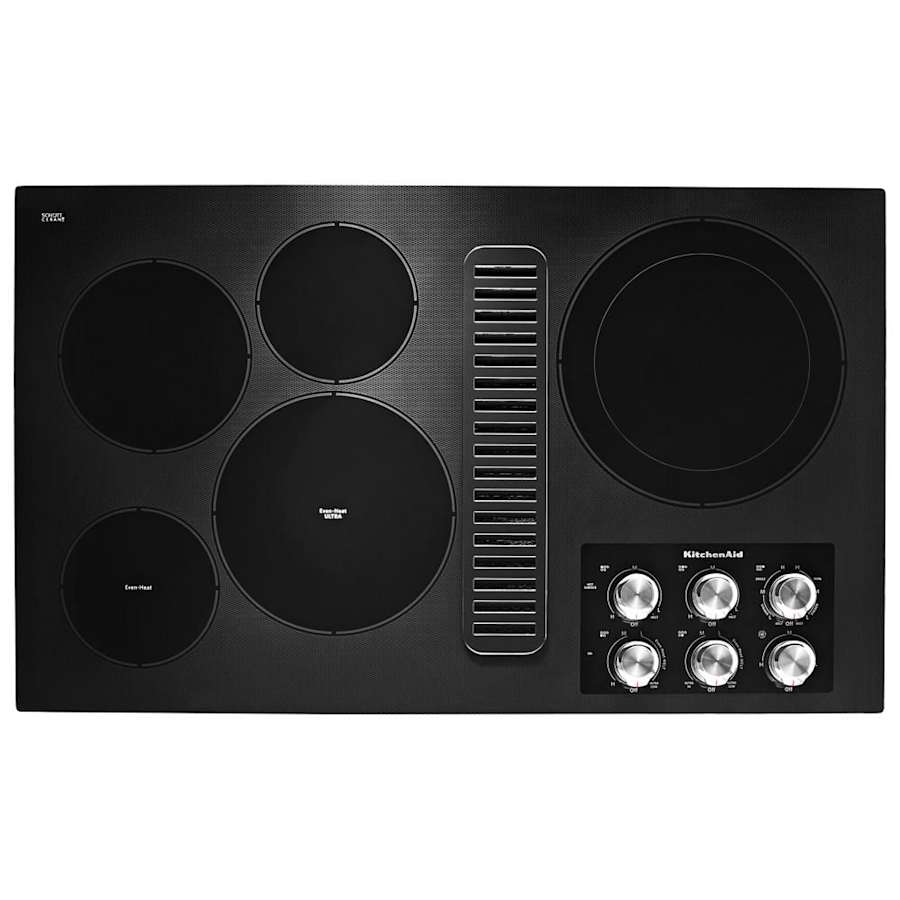

Smooth ceramic cooktop with radiant burners for even heating and easy cleanup
5 burners means plenty of space for cooking

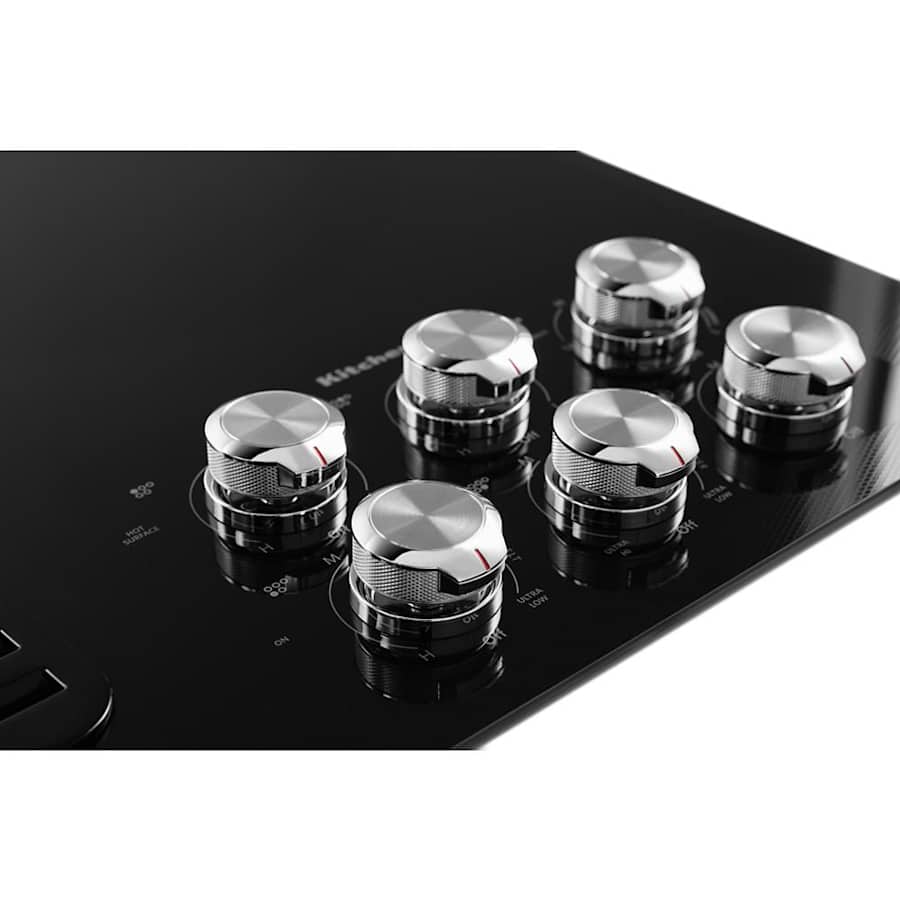

Turn knobs for setting burner power and fan speed control

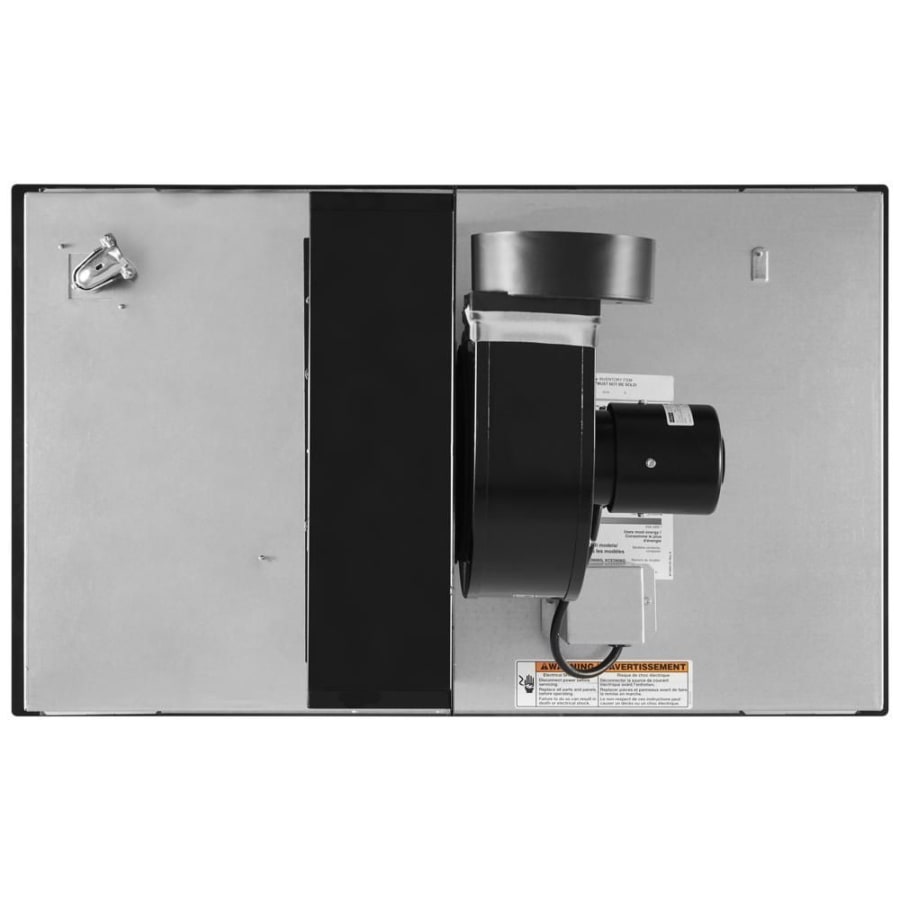

300 CFM downdraft fan clears the air around the cooktop quickly
5 year manufacturer warranty
Specifications:

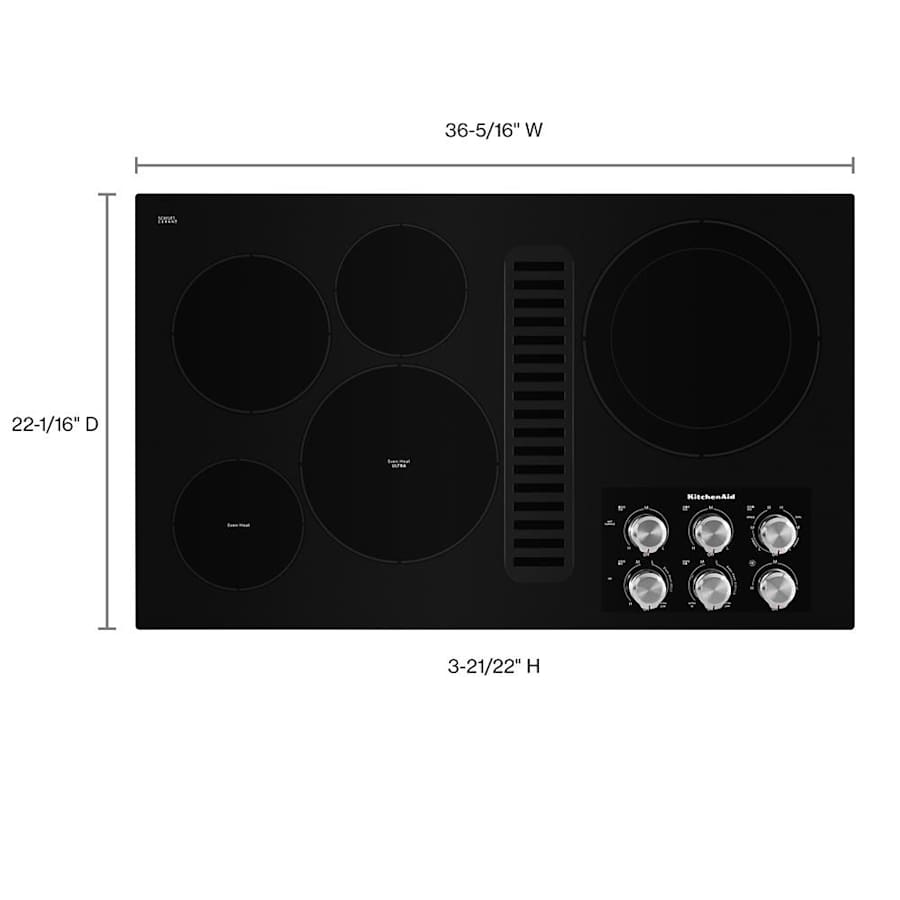

Width: 36-5/16″
Height: 18-3/4″
Depth: 22-1/16″
Product Weight: 57 lbs
Back Left Burner Watts: 1800
Back Right Burner Watts: 3000
Middle Burner Watts: 1200
Front Left Burner Watts: 1300
Front Right Burner Watts: 3200
Number Of Burners: 5
Fuel Type: Electric
Hot Surface Indicator Lights: Yes
Cutout Depth: 21-1/8″
Cutout Height: 18-3/4″
Cutout Width: 34-9/16″
Amperage: 40
Voltage: 240v
Additional KitchenAid Links
Browse all KitchenAid Products
Specifications
| Height | 18.71875 in. |
| Product Weight | 57 lbs. |
| Depth | 22.0625 in. |
| Width | 36.3125 in. |
| Nominal Width | 36 in. |
| Cup Depth | 21.125 in. |
| Cutout Height | 18.71875 in. |
| Cutout Width | 34.5625 in. |
| Duct Size | 6" Round |
| CFM | 300 |
| Insulation Type | Built-In |
| Material | Ceramic |
| Thermostat | Industrial, Contemporary, Modern |
| Frame Type | Framed |
| Control Type | Knob |
| Number of Bulbs | 5 |
| Sabbath Mode | No |
| Burner Style | Radiant |
| Hot Surface Indicator Lights | Yes |
| Downdraft Ventilated | Yes |
| Warm Function | Yes |
| Approved for Commercial Use | No |
| Country Of Origin | USA |
| Manufacturer Warranty | 5 Year |
| Made in America | Yes |
| ADA | No |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Outdoor Approved | No |
| Certifications | UL |
| Energy Star | No |
| Application | Cooktop |
| Voltage | 240 |
| Amperage | 40 |
| Frequency | 60 Hertz |
| Speeds | 3 |
| Fan Speeds | 3 |
| Fuel Type | Electric |
| Ignition Type | Electronic |
| Power Burner | No |
| Induction | No |
| Middle Burner Watts | 1200 |
| Auto Shut Off | No |
| Back Left Burner Watts | 1800 |
| Back Right Burner Watts | 3000 |
| Front Left Burner Watts | 1300 |
| Front Right Burner Watts | 3200 |
| Light Included | No |
| Convertible to Ductless / Recirculating | Yes |
| Griddle | No |
| Color | Black, Stainless Steel |
| Color Tone | Blacks, Stainless Steel |
