Technology Highlights
Electronic Ignition: Automatically lights burners so no standing pilot light is needed.
17K BTU Professional Burner: Provides the ability to use high-temperature cooking methods such as searing, stir-frying, and wok cooking as well as low temperatures suitable for simmering.
Convertible to Duct-Free Ventilation: Allows a downdraft cooktop to be placed nearly anywhere in the kitchen using a duct-free conversion kit (not included). This filters and recirculates the air without running ductwork, ideal for kitchens with installation restrictions or ducting limitations.
Features:
Downdraft Ventilation with 300CFM blower and 3-speed fan
Convertible to duct-free ventilation with optional kit
17,000 BTU power burner and 5,000 BTU simmer burner with melt cap
Electronic Ignition and Automatic Re-Ignition to keep cooktop safely lit
Stainless Steel Knobs for premium appearance and performance
Continuous cast-iron grates for ease of handling cookware
Liquid Propane conversion kit included
Specifications:
Back Left Burner BTU: 5,000 BTU
Back Right Burner BTU: 15,000 BTU
Front Left Burner BTU: 17,000 BTU
Front Right Burner BTU: 10,000 BTU

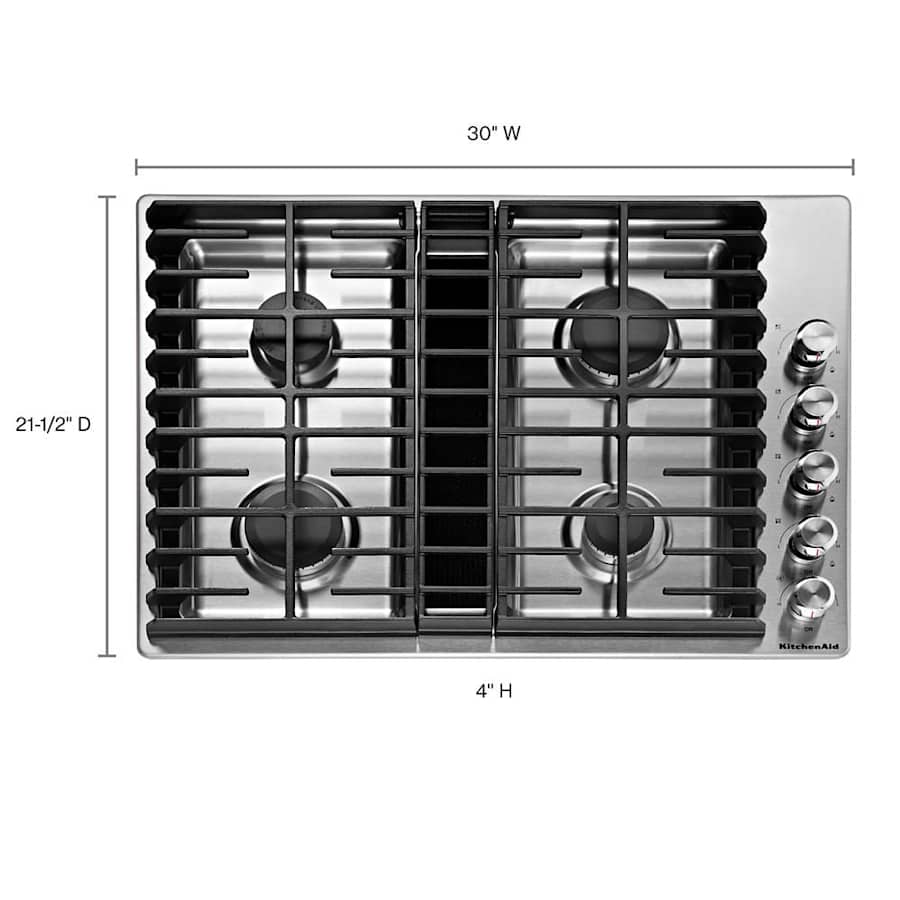

Cutout Depth: 19-15/16″
Cutout Width: 28-5/8″
Depth: 19-11/16″
Height: 18-7/16″
Product Weight: 66 Lb.
Width: 30″
Additional KitchenAid Links
Browse all KitchenAid Products
Specifications
| Height | 18.4375 in. |
| Product Weight | 66 lbs. |
| Width | 30 in. |
| Depth | 19.6875 in. |
| Nominal Width | 30 in. |
| Nominal Height | 19 in. |
| Nominal Depth | 20 in. |
| Cup Depth | 19.9375 in. |
| Cutout Width | 28.625 in. |
| Thermostat | Modern, Industrial, Contemporary |
| Control Type | Knob |
| Material | Stainless Steel |
| Burner Style | Sealed |
| Continuous Grates | Yes |
| Hot Surface Indicator Lights | No |
| LP Conversion | Yes |
| Number of Bulbs | 4 |
| Downdraft Ventilated | Yes |
| Warm Function | No |
| Voltage | 120 |
| Amperage | 15 |
| Frequency | 60 Hertz |
| Fuel Type | Gas |
| Ignition Type | Electronic |
| Back Left Burner BTU | 5000 |
| Back Right Burner BTU | 15000 |
| Front Left Burner BTU | 17000 |
| Front Right Burner BTU | 10000 |
| Gas Type | Natural Gas |
| Power Burner | Yes |
| Total BTUs | 47000 |
| Auto Shut Off | No |
| Induction | No |
| Manufacturer Warranty | 5 Year Burners, 1 Year |
| Outdoor Approved | No |
| Approved for Commercial Use | No |
| Lead Leaching Certified NSF/ANSI 61 | N/A (Regulation does not apply) |
| Application | Cooktop |
| Griddle | No |
| Color | Stainless Steel |
