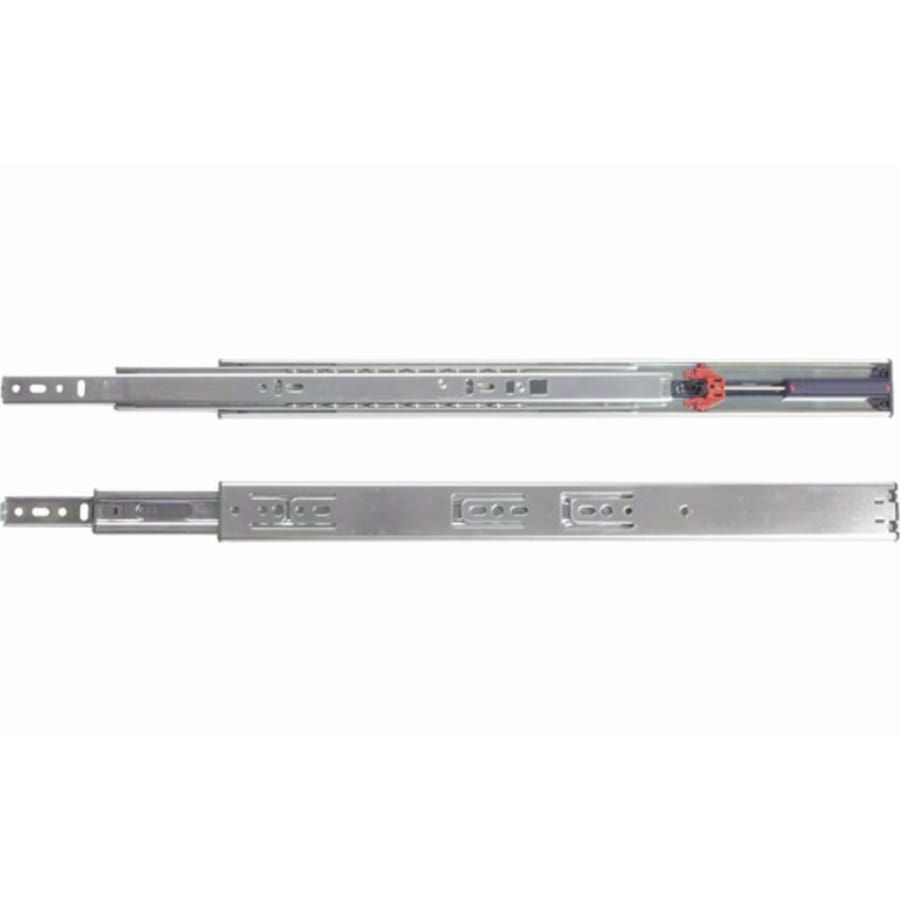

Features:
Designed to support up to 65 pounds of weight
Mounts to the side of the drawer
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 18-1/2″
Slide Length: 18″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 65 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Mounting hardware not included
Product Variations:
4450B 10: 10 Inch Drawer Slide
4450B 12: 12 Inch Drawer Slide
4450B 14: 14 Inch Drawer Slide
4450B 16: 16 Inch Drawer Slide
4450B 18 (This Model): 18 Inch Drawer Slide
4450B 20: 20 Inch Drawer Slide
4450B 22: 22 Inch Drawer Slide
4450B 24: 24 Inch Drawer Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 4450 Collection
Specifications
| Height | 1.42 in. |
| Width | 0.5 in. |
| Length | 18 in. |
| Nominal Length | 18 in. |
| Extension | 18 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 65 lbs. |
| Height mm | 36 mm |
| Width mm | 13 mm |
| Drainboard Length | 18.5 in. |
| Minimum Cabinet Depth | 18 in. |
| Minimum Clearance | 0.5 in. |
| Maximum Drawer Width | 24 in. |
| Collection | 4450 |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No, Yes |
| Series | 4450 |
| BHMA Certification | Grade 1 |
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Adjustable | No |
| Extension Type | Full Extension |
| Soft Close | Yes |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Detent | Yes |
| Disconnect Style | Lever |
| Push to Open | No |
| Self Closing | No |
| Slide Type | Ball Bearing |
| Color | Zinc |
| Color Tone | Greys |
