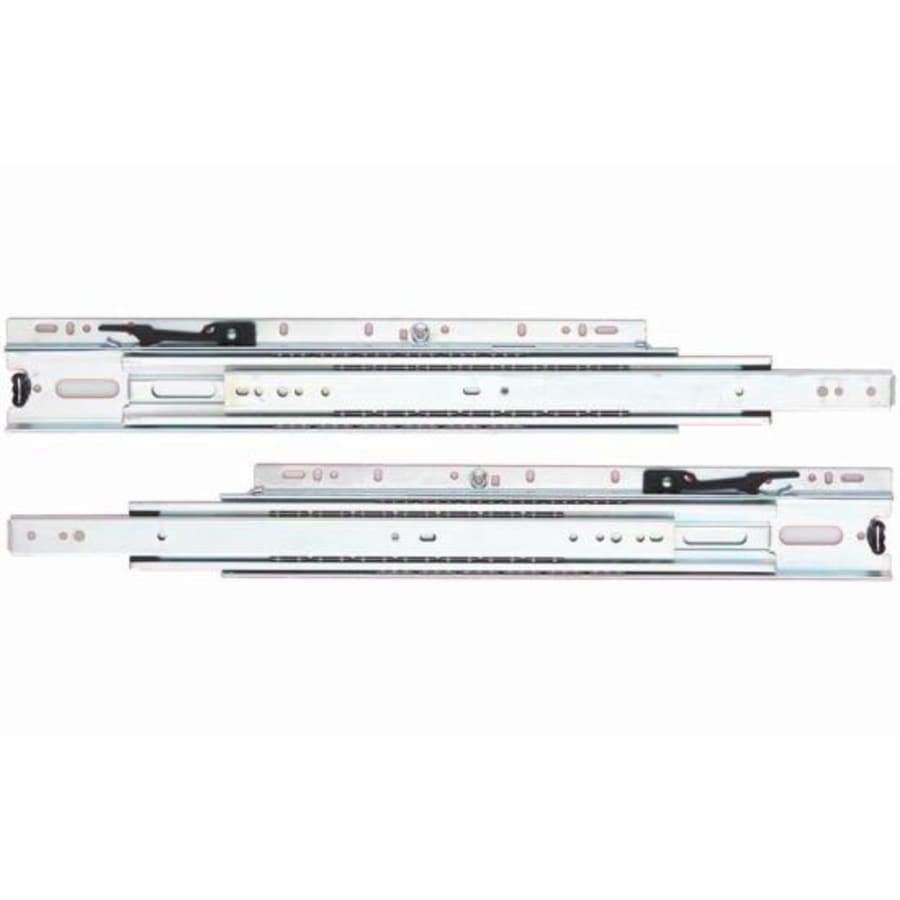

Features:
Designed to support up to 125 pounds of weight
Mounts to the side of the drawer
Provides maximum access to the drawer with overtravel slides
Rail disconnect allows easy removal of drawer
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 22-1/2″
Slide Length: 22″
Extension: Type: Over Travel
Slide Type: Ball Bearing
Weight Capacity: 125 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Mounting hardware not included
Product Variations:
6505B 12: 12 Inch Drawer Slide
6505B 14: 14 Inch Drawer Slide
6505B 16: 16 Inch Drawer Slide
6505B 18: 18 Inch Drawer Slide
6505B 20: 20 Inch Drawer Slide
6505B 22 (This Model): 22 Inch Drawer Slide
6505B 24: 24 Inch Drawer Slide
6505B 26: 26 Inch Drawer Slide
6505B 28: 28 Inch Drawer Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 6505 Collection
Specifications
| Height | 2.58 in. |
| Width | 0.5 in. |
| Length | 22 in. |
| Nominal Length | 22 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 125 lbs. |
| Height mm | 66 mm |
| Width mm | 13 mm |
| Minimum Clearance | 0.5 in. |
| Drainboard Length | 22.5 in. |
| Minimum Cabinet Depth | 22 in. |
| Maximum Drawer Width | 30 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Adjustable | No |
| Extension Type | Over Travel |
| Soft Close | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Self Closing | No |
| Push to Open | No |
| Detent | Yes |
| Disconnect Style | Rail |
| Slide Type | Ball Bearing |
| Collection | 6505 |
| Approved for Commercial Use | Yes, No |
| Manufacturer Warranty | Limited Lifetime |
| Series | 6505 |
| BHMA Certification | Grade 1 |
| Color | Zinc |
| Color Tone | Greys |
