Features:
Meets standards for ANSI/BHMA certification

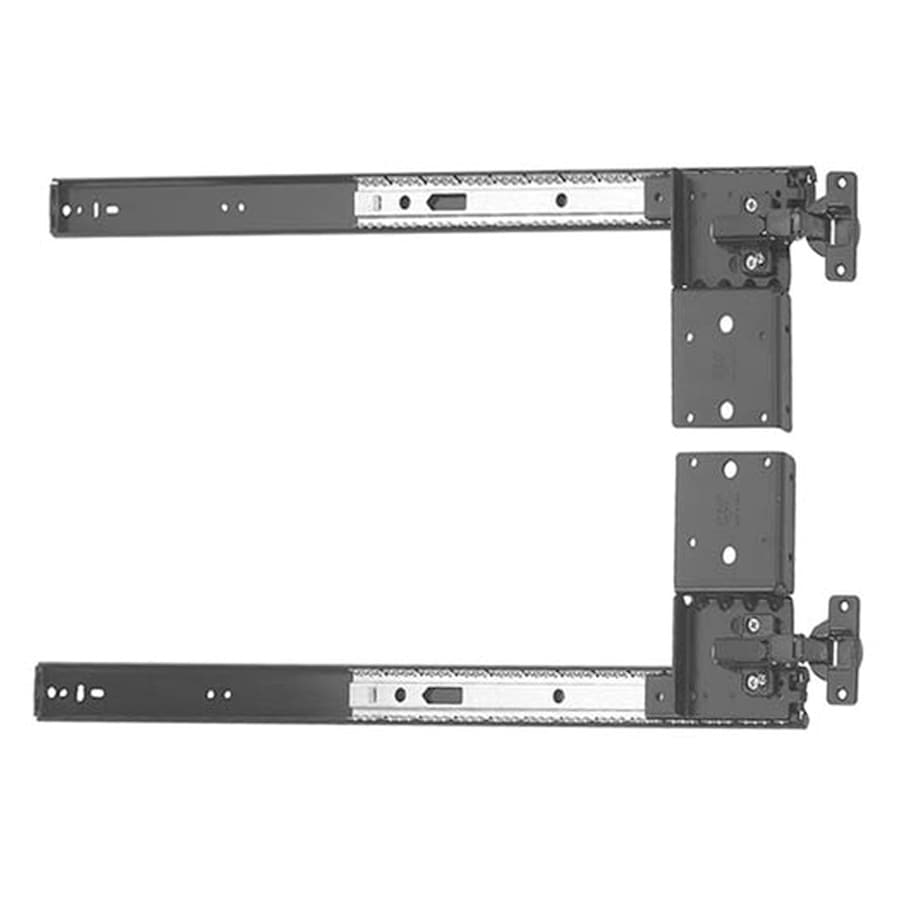

Convert normal cabinet doors to pivoting pocket doors
Designed for doors up to 72″ tall by 26″ wide
Includes a limited lifetime manufacturer warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your cabinet doors do not slide back open when closed with too much force.
Inset: An inset hinge is needed when the cabinet door sits inside the cabinet frame. Used with either face-frame or panel cabinets where having a door flush with the frame is ideal.
Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.
Specifications:
Length: 24″
Extension: 18″
Extension Type: 3/4 Extension
Maximum Width: 24″
Maximum Height: 42″
Weight Capacity: 30 lbs.
Slide Type: Ball Bearing
Material: Steel
Quantity: 2
Product Variations:
8070PEZ 12: 12 Inch Cabinet Slide
8070PEZ 14: 14 Inch Cabinet Slide
8070PEZ 16: 16 Inch Cabinet Slide
8070PEZ 18: 18 Inch Cabinet Slide
8070PEZ 20: 20 Inch Cabinet Slide
8070PEZ 22: 22 Inch Cabinet Slide
8070PEZ 24 (This Model): 24 Inch Cabinet Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Specifications
| Material | Steel |
| Insulation Type | Press-In, Screw |
| 3-Way Adjustable | Yes |
| Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Arm Type | Full Cranked |
| Cabinet Type | Panel (Frameless) |
| Demountable | No |
| Hinge Mount | Full Inset |
| Push to Open | No |
| Self Closing | Yes |
| Soft Close | No |
| Extension Type | 3/4 Extension |
| Mounting Type | Side Mount |
| Detent | Yes |
| Slide Type | Ball Bearing |
| Certifications | ANSI |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Length | 24 in. |
| Extension | 18 in. |
| Quantity | 2 |
| Maximum Height | 42 in. |
| Cup Diameter | 35 in. |
| Opening Angle | 90 |
| Max Capacity (Pounds) | 30 lbs. |
| Maximum Width | 24 in. |
| Inset | Full |
| Color | Black |
| Color Tone | Blacks |
