Features:

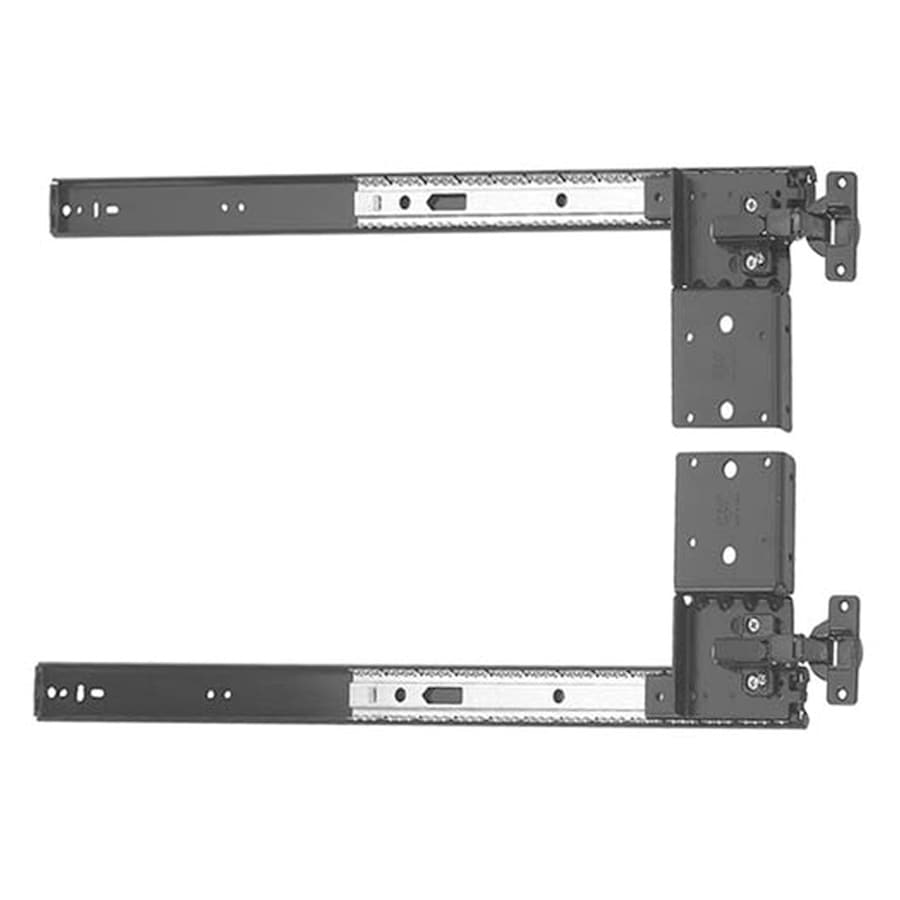

Includes two (2) pivot slides, purchase hinges and baseplate separately
Meets standards for ANSI/BHMA certification
Convert normal cabinet doors to pivoting pocket doors
Designed for doors up to 72″ tall by 26″ wide
Includes a limited lifetime manufacturer warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your cabinet doors do not slide back open when closed with too much force.
Specifications:
Length: 20″
Extension: 15″
Extension Type: 3/4 Extension
Maximum Width: 24″
Maximum Height: 42″
Weight Capacity: 30 lbs.
Slide Type: Ball Bearing
Material: Steel
Quantity: 2
Product Variations:
8071PEZ 12: 12 Inch Cabinet Slide
8071PEZ 14: 14 Inch Cabinet Slide
8071PEZ 16: 16 Inch Cabinet Slide
8071PEZ 18: 18 Inch Cabinet Slide
8071PEZ 20 (This Model): 20 Inch Cabinet Slide
8071PEZ 22: 22 Inch Cabinet Slide
8071PEZ 24: 24 Inch Cabinet Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Specifications
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ANSI |
| Approved for Commercial Use | No |
| Extension | 15 in. |
| Quantity | 2 |
| Length | 20 in. |
| Maximum Height | 42 in. |
| Maximum Width | 24 in. |
| Max Capacity (Pounds) | 30 lbs. |
| Material | Steel |
| Insulation Type | Screw |
| Cabinet Type | Panel (Frameless) |
| Mounting Type | Side Mount |
| Demountable | No |
| Push to Open | No |
| Self Closing | No |
| Soft Close | No |
| Extension Type | 3/4 Extension |
| Slide Type | Ball Bearing |
| Detent | Yes |
| Color | Black |
| Color Tone | Blacks |
