Features:

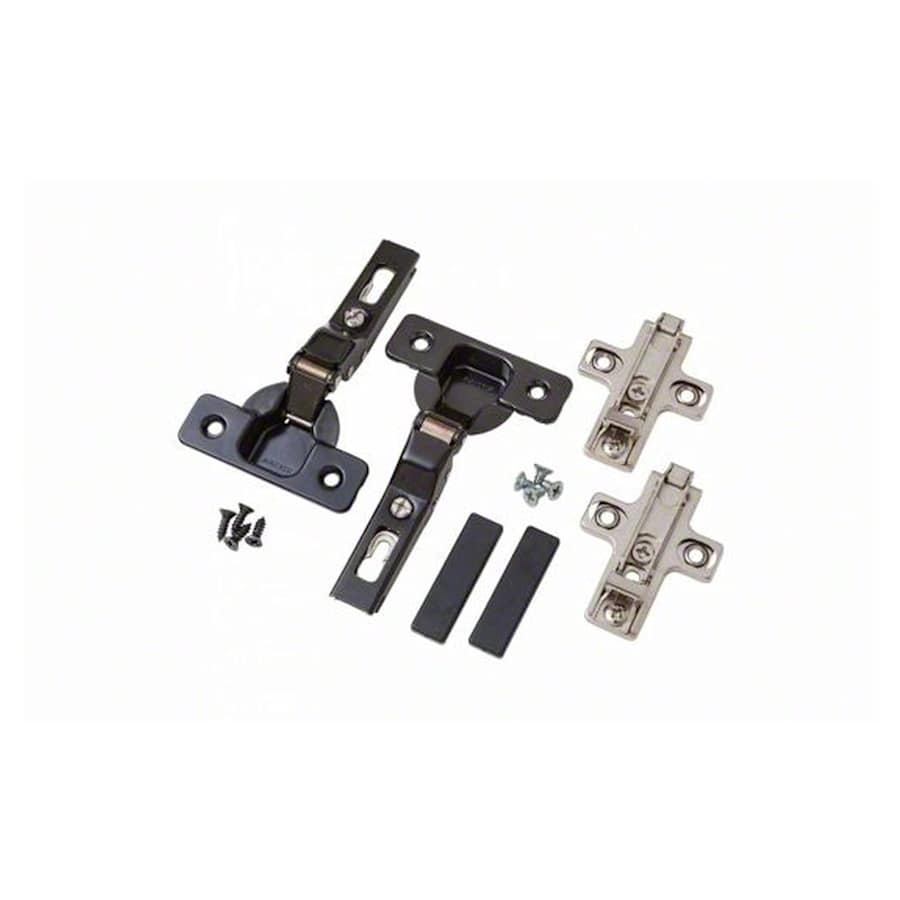

Includes two (2) hinges, two (2) mounting plates and installation hardware
Constructed of steel for long lasting durability
Designed to be 3 way adjustable for maximum versatility to get that perfect cabinet fit
Mounting hardware is included for quick and easy installation
Includes a limited lifetime manufacturer warranty
Product Technologies:
1-9/16 Inch Overlay: A 1-9/16″ overlay hinge is needed when the cabinet door you are mounting covers 1-9/16″ of the cabinet wall. 1-9/16″ overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.
Material – Steel: Steel is cheap, strong, and durable, making it a favorite for hinges of all types, despite it being slightly more prone to rusting than solid brass or stainless steel.
Mounting Type – Press-In (Press Fit): Press fit hinges are equipped with pre-mounted dowels that fit into holes drilled directly into the cabinet door. They do not require any screws, and generally make for quick installation and replacement.
Specifications:
Cup Diameter: 40 mm
Bore Distance: 15 mm
Hinge Mount: 3/8″ Overlay
Door Thickness: 3/4″ (19 mm)
Opening Angle: 90 Degree
Height Adjustment: +/- 2 mm
Depth Adjustment: +2.8 mm / -.5 mm
Side to Side Adjustment: +5.5 mm/-.5 mm
Material: Steel
Mount Type: Press-In
Quantity: 2
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Specifications
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Material | Steel |
| Insulation Type | Press-In, Screw |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Height | Yes |
| Adjustable Side to Side | Yes |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Demountable | No |
| Hinge Mount | Partial Overlay |
| Self Closing | No |
| Soft Close | No |
| Adjustable | Yes |
| Arm Type | Half Cranked |
| Quantity | 2 |
| Bottom Diameter | 15 mm |
| Max Cabinet Door Thickness | 0.75 in. |
| Max Cabinet Door Thickness mm | 19 mm |
| Opening Angle | 90 |
| Overlay | 3/8 Inch |
| Cup Diameter | 40 in. |
| Installation Hardware Included | Yes |
| Color | Black |
| Color Tone | Blacks |
