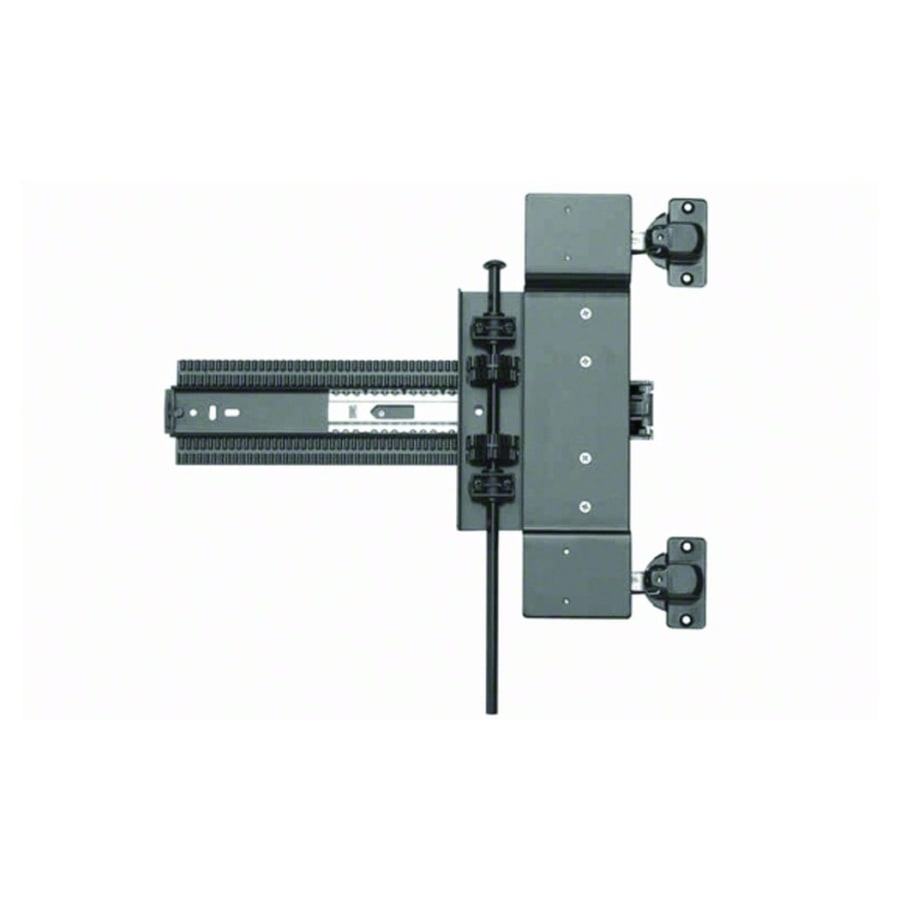

Features:
Intended for use with 8091 Series pivot slides and pinion shaft (purchase separately)
Requires that the interior of the cabinet have a partition wall
Max weight of 75 lbs. per cabinet door
Designed for doors up to 72″ tall by 26″ wide
Includes a limited lifetime manufacturer warranty
Set Includes:
Two (2) mounting brackets
Four (4) Mepla overlay hinges
Four (4) hinge mounting plates
Four (4) hinge base covers
Four (4) protective felt pads
Specifications:
Cup Diameter: 35 mm
Door Thickness: 3/4″
Overlay: Partial, 3/4″
Pocket Width: 1-3/4″
3 Way Adjustable: Yes
Weight Capacity: 75 lbs.
Material: Steel
Quantity: 2
Product Variations:
8091FULL34M (This Model): Overlay Hinge Kit
8091FULL34S: Overlay Hinge Kit
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Specifications
| Maximum Height | 72 in. |
| Quantity | 2 |
| Maximum Width | 26 in. |
| Max Capacity (Pounds) | 75 lbs. |
| Cup Diameter | 35 in. |
| Max Cabinet Door Thickness | 0.75 in. |
| Opening Angle | 90 |
| Overlay | 3/4 Inch |
| Certifications | ANSI |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Material | Steel |
| Insulation Type | Press-In |
| Adjustable | Yes |
| Extension Type | 3/4 Extension |
| Soft Close | No |
| Cabinet Type | Panel (Frameless) |
| Adjustable Height | Yes |
| Push to Open | No |
| Self Closing | Yes |
| Mounting Type | Side Mount |
| 3-Way Adjustable | Yes |
| Adjustable Depth | Yes |
| Adjustable Side to Side | Yes |
| Demountable | No |
| Hinge Mount | Full Overlay |
| Color | Black |
