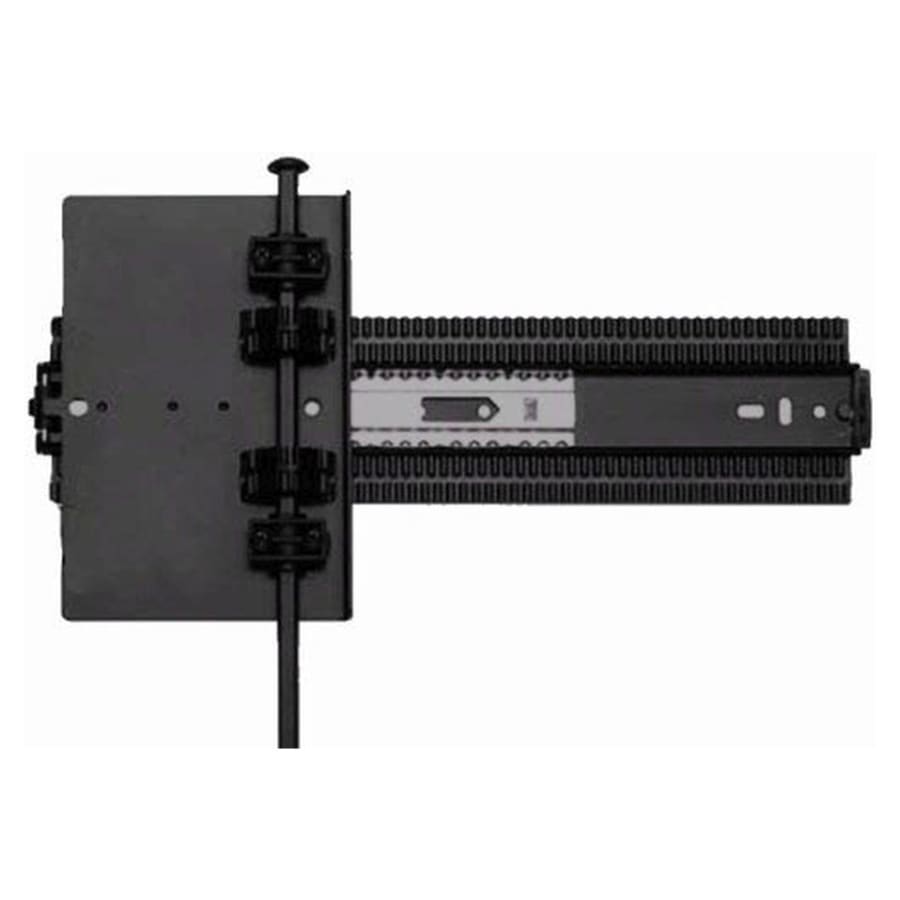

Features:
Includes two (2) pivot slides
Hinges, baseplates, and pinion shaft sold separately
Meets standards for ANSI/BHMA certification
Convert normal cabinet doors to pivoting pocket doors
Designed for doors up to 72″ tall by 26″ wide
Constructed of steel for durability and smooth operation
Includes a limited lifetime manufacturer warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your cabinet doors do not slide back open when closed with too much force.
Specifications:
Length: 20″
Extension: 15″
Extension Type: 3/4 Extension
Maximum Width: 26″
Maximum Height: 72″
Weight Capacity: 75 lbs.
Slide Type: Ball Bearing
Material: Steel
Quantity: 2
Product Variations:
8091P 14: 14 Inch Cabinet Slide
8091P 16: 16 Inch Cabinet Slide
8091P 18: 18 Inch Cabinet Slide
8091P 20 (This Model): 20 Inch Cabinet Slide
8091P 22: 22 Inch Cabinet Slide
8091P 24: 24 Inch Cabinet Slide
8091P 26: 26 Inch Cabinet Slide
8091P 28: 28 Inch Cabinet Slide
8091P 30: 30 Inch Cabinet Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Specifications
| Maximum Height | 72 in. |
| Length | 20 in. |
| Quantity | 2 |
| Extension | 15 in. |
| Max Capacity (Pounds) | 75 lbs. |
| Maximum Width | 26 in. |
| Material | Steel |
| Mounting Type | Side Mount |
| Insulation Type | Screw |
| Cabinet Type | Panel (Frameless) |
| Detent | Yes |
| Extension Type | 3/4 Extension |
| Push to Open | No |
| Self Closing | No |
| Slide Type | Ball Bearing |
| Soft Close | No |
| Demountable | No |
| Certifications | ANSI |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | No |
| Color | Black |
| Color Tone | Blacks |
