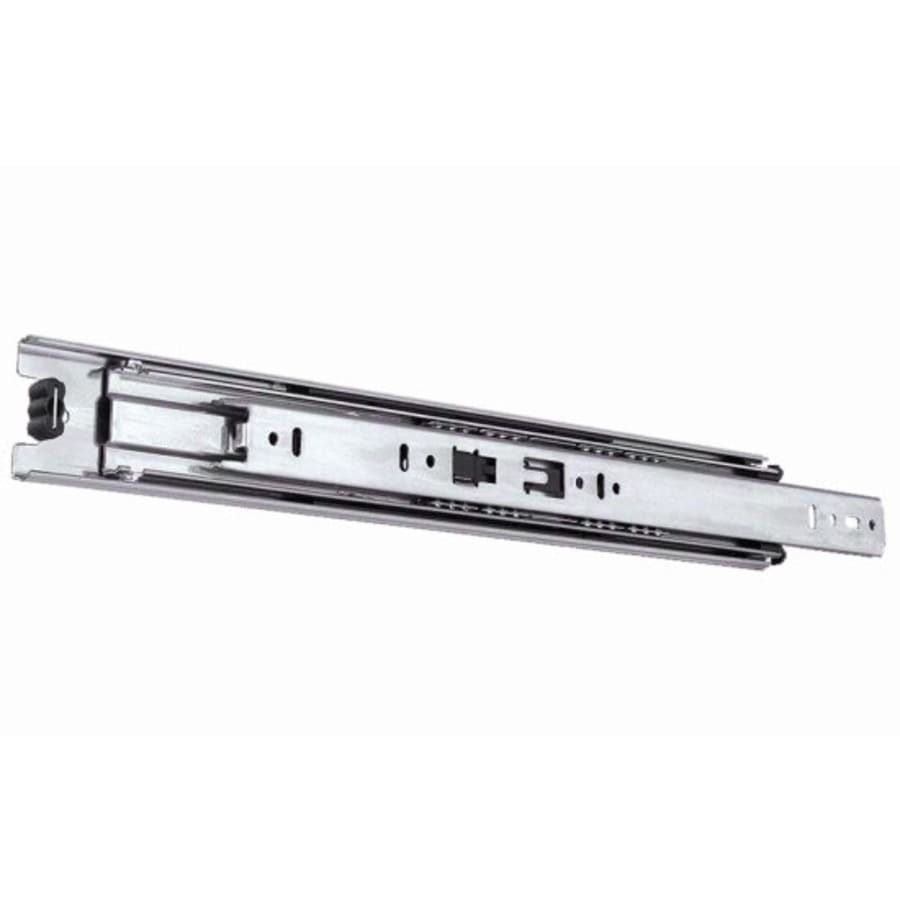

Features:
Designed to support up to 100 pounds of weight
Mounts to the side of the drawer
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 26-1/2″
Slide Length: 26″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Mounting hardware not included
Product Variations:
8400B 10: 10 Inch Drawer Slide
8400B 12: 12 Inch Drawer Slide
8400B 14: 14 Inch Drawer Slide
8400B 16: 16 Inch Drawer Slide
8400B 18: 18 Inch Drawer Slide
8400B 20: 20 Inch Drawer Slide
8400B 22: 22 Inch Drawer Slide
8400B 24: 24 Inch Drawer Slide
8400B 26 (This Model): 26 Inch Drawer Slide
8400B 28: 28 Inch Drawer Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 8400 Collection
Specifications
| Height | 1.79 in. |
| Width | 0.5 in. |
| Length | 26 in. |
| Nominal Length | 26 in. |
| Quantity | 2 |
| Extension | 26 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Height mm | 46 mm |
| Width mm | 13 mm |
| Drainboard Length | 26.5 in. |
| Minimum Cabinet Depth | 26 in. |
| Minimum Clearance | 0.5 in. |
| Maximum Drawer Width | 24 in. |
| Collection | 8400 |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes, No |
| Series | 8400 |
| BHMA Certification | Grade 1 |
| Material | Steel |
| Insulation Type | Side Mount |
| Adjustable | No |
| Extension Type | Full Extension |
| Soft Close | No |
| Mounting Type | Side Mount |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Detent | Yes |
| Disconnect Style | Lever |
| Push to Open | No |
| Self Closing | No |
| Slide Type | Ball Bearing |
| Color | Anochrome |
