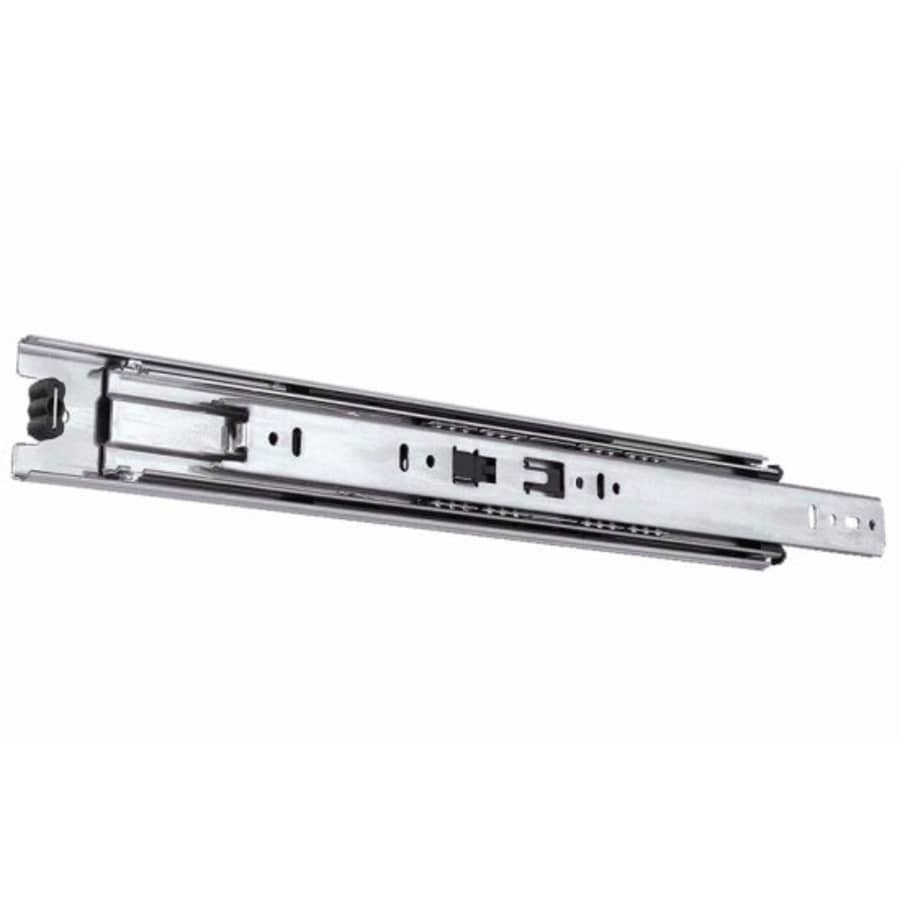

Features:
Made to support a maximum weight capacity of 100 pounds
Sleek design installs on the sides of the drawer
Full extension slides allow for maximum drawer accessibility
Easily disconnects with push-in lever
Packaged with brackets for installing into face frame or panel cabinets
Includes a Limited Lifetime Warranty
Side mount
Includes #7 1/2″ panhead screws
Product Technologies:
Anti-Rebound: Also known as slide detent, Anti-Rebound acts like a brake: ensuring your drawers do not roll back open when closed with too much force.
Specifications:
Slide Length: 16″ (406 mm)
Material: Steel
Extension Type: Full
Anti-Rebound/Detent: Yes
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Maximum Drawer Width: 24″
Product Variations:
8400P 12: 12 Inch Full Extension Ball Bearing Slides
8400P 14: 14 Inch Full Extension Ball Bearing Slides
8400P 16 (This Model): 16 Inch Full Extension Ball Bearing Slides
8400P 18: 18 Inch Full Extension Ball Bearing Slides
8400P 20: 20 Inch Full Extension Ball Bearing Slides
8400P 22: 22 Inch Full Extension Ball Bearing Slides
8400P 24: 24 Inch Full Extension Ball Bearing Slides
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 8400 Collection
Specifications
| Length | 16 in. |
| Quantity | 2 |
| Width | 0.5 in. |
| Width mm | 13 mm |
| Height | 1.79 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Height mm | 46 mm |
| Maximum Drawer Width | 24 in. |
| Minimum Cabinet Depth | 16 in. |
| Minimum Clearance | 0.5 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Detent | Yes |
| Disconnect Style | Lever |
| Extension Type | Full Extension |
| Slide Type | Ball Bearing |
| Approved for Commercial Use | No, Yes |
| Collection | 8400 |
| Manufacturer Warranty | Limited Lifetime |
| Series | 8400 |
| Color | Anochrome |
| Color Tone | Silver Tones |
