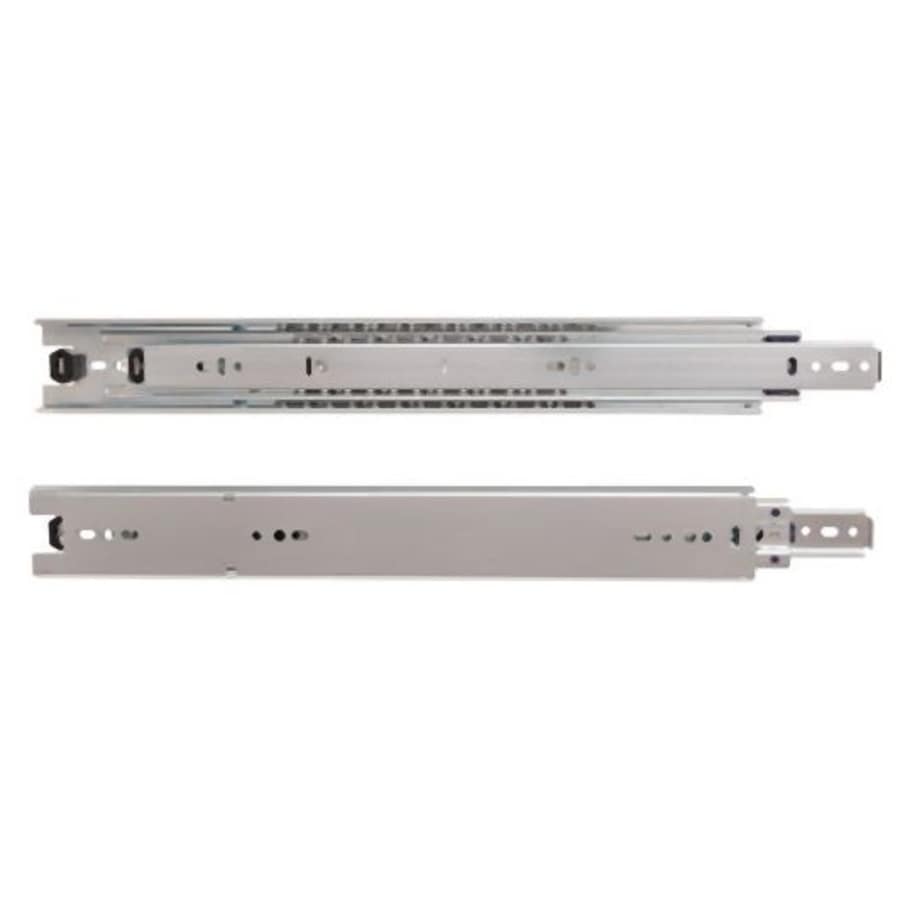

Features:
Designed to support up to 200 lbs of weight
Mounts to the side of the drawer for easy installation
Provides easy access to the drawer with full extension slides
Butterfly lever disconnect allows for easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Meets the minimum requirements for BHMA Grade 1 Certification
Includes a limited lifetime manufacturer warranty
Mounting hardware is not included
Requires #8 or #10 x 5/8″ Phillips flathead screws for installation
Product Technologies:
Detent: Also known as anti-rebound, slide detent acts like a brake; ensuring your drawers do not roll back open when closed with too much force.
Specifications:
Side Length: 19-11/16″
Nominal Length: 20″
Weight Capacity: 200 lbs.
Recommended Drawer Length: 20-1/2″
Maximum Drawer Width: 42″
Minimum Clearance: 3/4″
Quantity: 2
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 8810 Collection
Specifications
| Material | Steel |
| Insulation Type | Side Mount |
| Adjustable | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Extension Type | Full Extension |
| Soft Close | No |
| Push to Open | No |
| Self Closing | No |
| Detent | Yes |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Extension | 20 in. |
| Height | 2.09 in. |
| Product Weight | 7.25 lbs. |
| Width | 0.75 in. |
| Quantity | 2 |
| Length | 19.69 in. |
| Nominal Length | 20 in. |
| Max Capacity (Pounds) | 200 lbs. |
| Drainboard Length | 20.5 in. |
| Maximum Drawer Width | 42 in. |
| Minimum Clearance | 0.78 in. |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Series | 8810 |
| BHMA Certification | Grade 1 |
| Color | Zinc |
| Color Tone | Greys |
