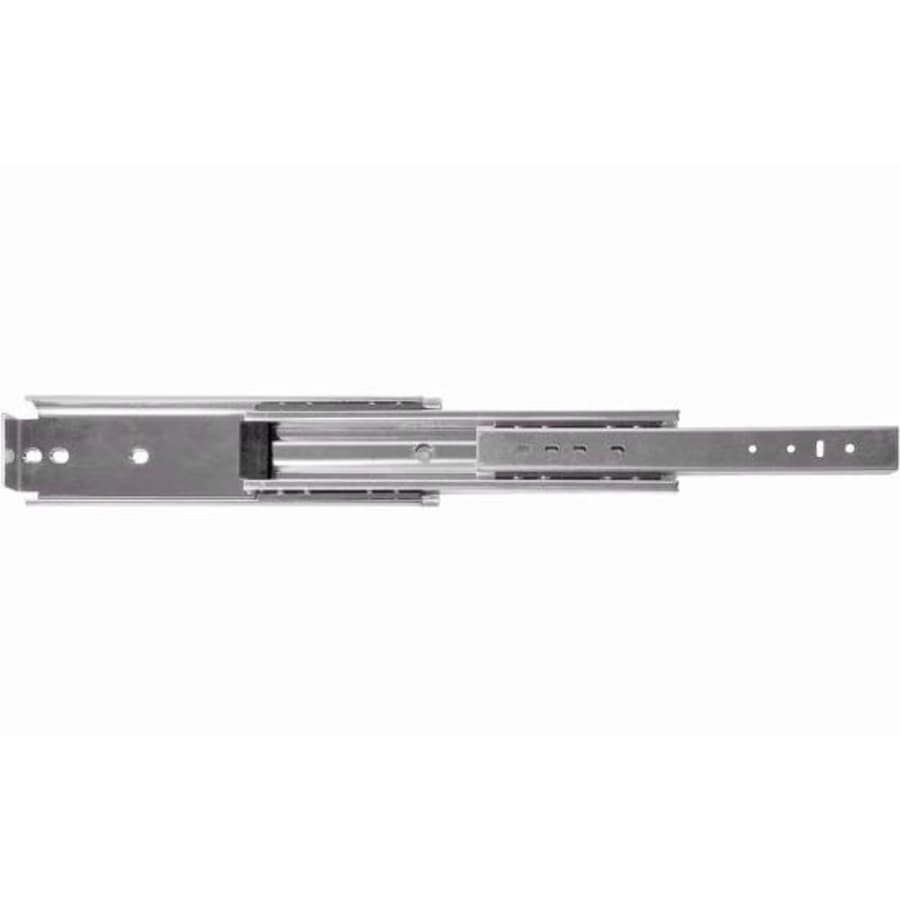

Features:
Designed to support up to 300 pounds of weight
Mounts to the side of the drawer
Provides easy access to the drawer with full extension slides
Non disconnect slides do not have a quick removal ability
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 36-1/2″
Slide Length: 36″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 300 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Mounting hardware not included
Product Variations:
8900P 32: 32 Inch Drawer Slide
8900P 34: 34 Inch Drawer Slide
8900P 36 (This Model): 36 Inch Drawer Slide
8900B 40: 40 Inch Drawer Slide
8900B 42: 42 Inch Drawer Slide
8900B 48: 48 Inch Drawer Slide
8900B 60: 60 Inch Drawer Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 8900 Collection
Specifications
| Height | 3 in. |
| Width | 0.75 in. |
| Length | 36 in. |
| Nominal Length | 36 in. |
| Extension | 36 in. |
| Quantity | 2 |
| Max Capacity (Pounds) | 300 lbs. |
| Height mm | 76 mm |
| Width mm | 19 mm |
| Drainboard Length | 36.5 in. |
| Minimum Cabinet Depth | 36 in. |
| Minimum Clearance | 0.75 in. |
| Maximum Drawer Width | 48 in. |
| Collection | 8900 |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes, No |
| Series | 8900 |
| BHMA Certification | Grade 1 |
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Adjustable | No |
| Extension Type | Full Extension |
| Soft Close | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Detent | No |
| Disconnect Style | Non Disconnect |
| Push to Open | No |
| Self Closing | No |
| Slide Type | Ball Bearing |
| Color | Zinc |
| Color Tone | Greys |
