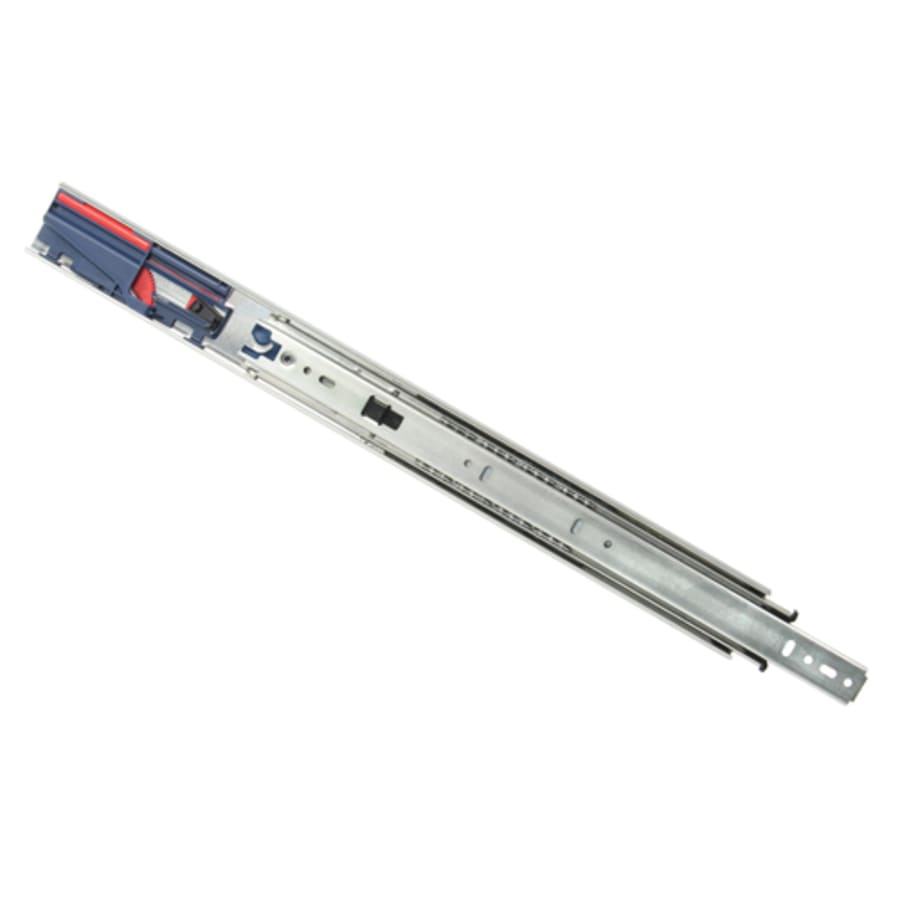

Features:
Each order includes one pair
Full extension
Designed to support up to 100 pounds of weight
Mounts to the side of the drawer
Ball bearing full extension slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Soft close
Product Technologies:
Soft Close: Whether large or small, heavy or light, soft closing action keeps drawers from slamming closed. It adapts to various closing speeds and features overload safety to protect the system from damage over time.
Specifications:
BHMA Certification: Grade 1
Recommended Drawer Length: 22-1/2″
Slide Length: 22″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Product Variations:
KV8450FM B12: 12 Inch Drawer Slide
KV8450FM B14: 14 Inch Drawer Slide
KV8450FM B16: 16 Inch Drawer Slide
KV8450FM B18: 18 Inch Drawer Slide
KV8450FM B20: 20 Inch Drawer Slide
KV8450FM B22 (This Model): 22 Inch Drawer Slide
KV8450FM B24: 24 Inch Drawer Slide
KV8450FM B26: 26 Inch Drawer Slide
KV8450FM B28: 28 Inch Drawer Slide
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 8450 Collection
Specifications
| Approved for Commercial Use | Yes, No |
| Manufacturer Warranty | Limited Lifetime |
| Series | 8450 |
| BHMA Certification | Grade 1 |
| Installation Hardware Included | No |
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Adjustable | No |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Soft Close | Yes |
| Extension Type | Full Extension |
| Push to Open | No |
| Detent | No |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Extension | 22 in. |
| Height | 1.8125 in. |
| Length | 22 in. |
| Nominal Length | 22 in. |
| Quantity | 2 |
| Minimum Clearance | .5 in. |
| Screw Size | 7 x 1/2 |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 22.5 in. |
| Maximum Drawer Width | 24 in. |
| Color | Anochrome |
| Color Tone | Silver Tones |
