Features:
20kW (LPG) / 18kW (NG) Air-Cooled Standby Generator

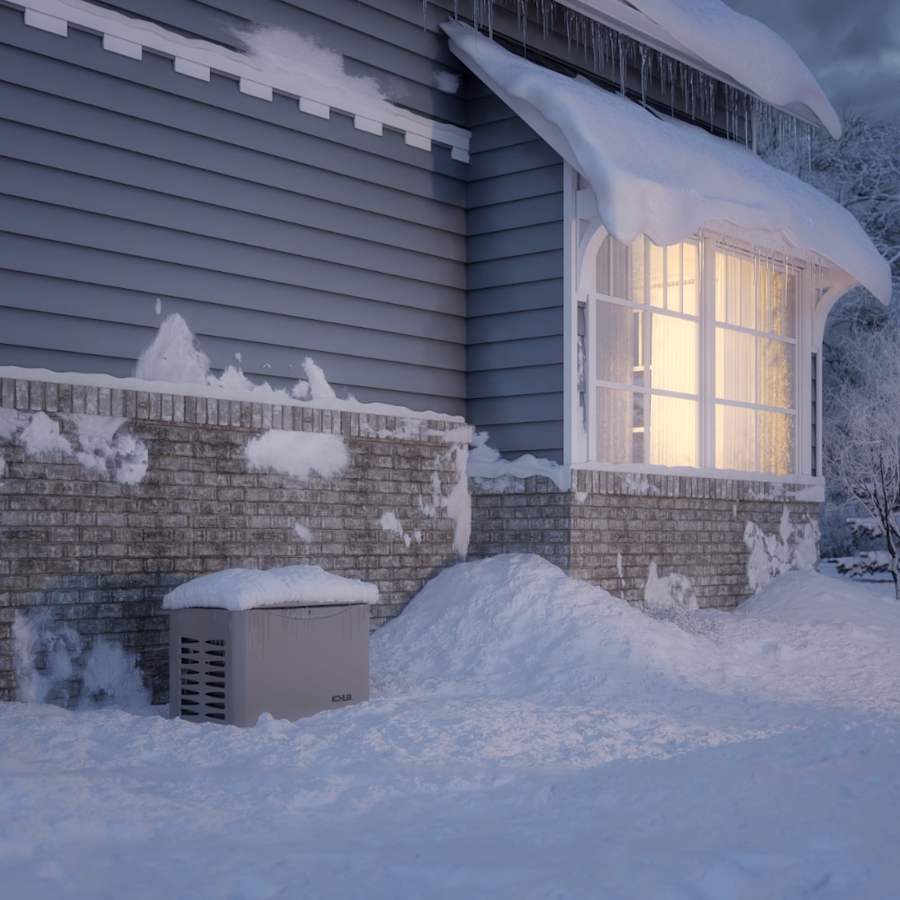

Protects your home and family during a power outage

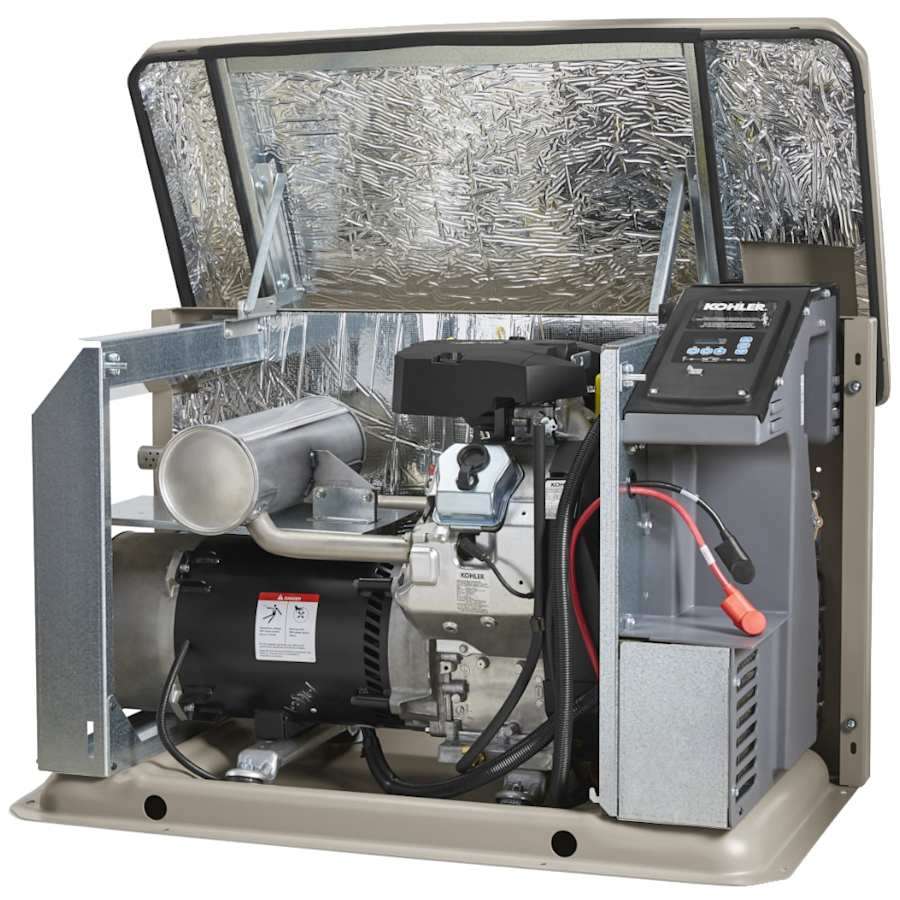

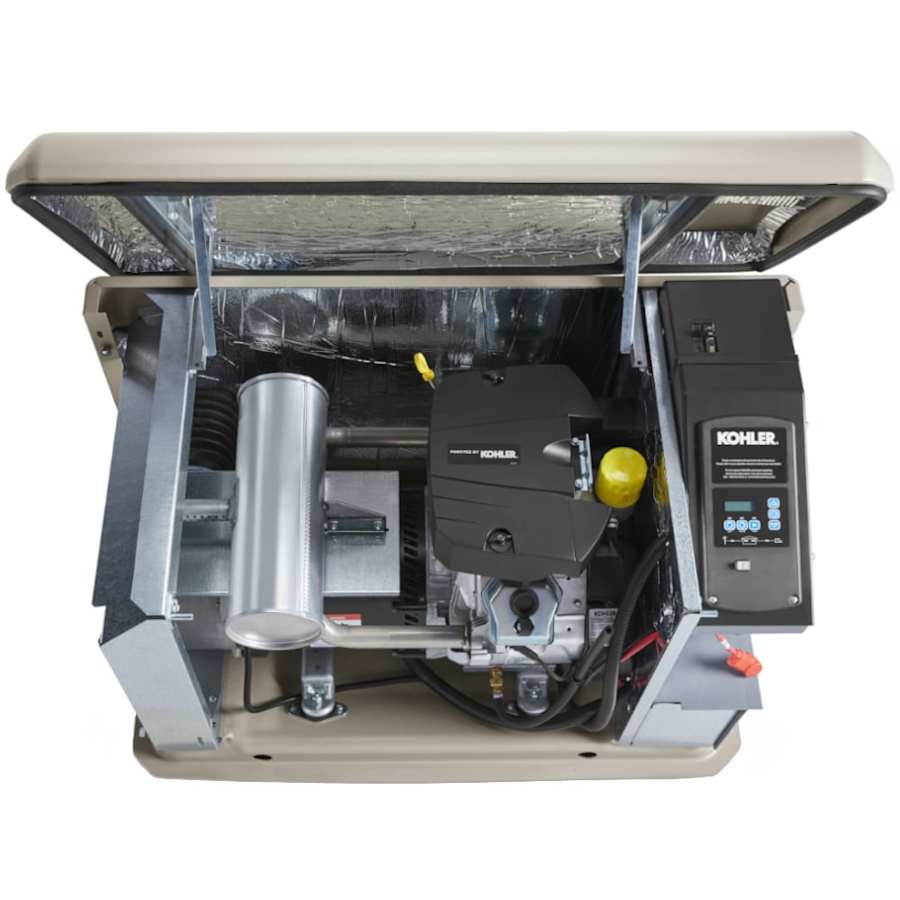

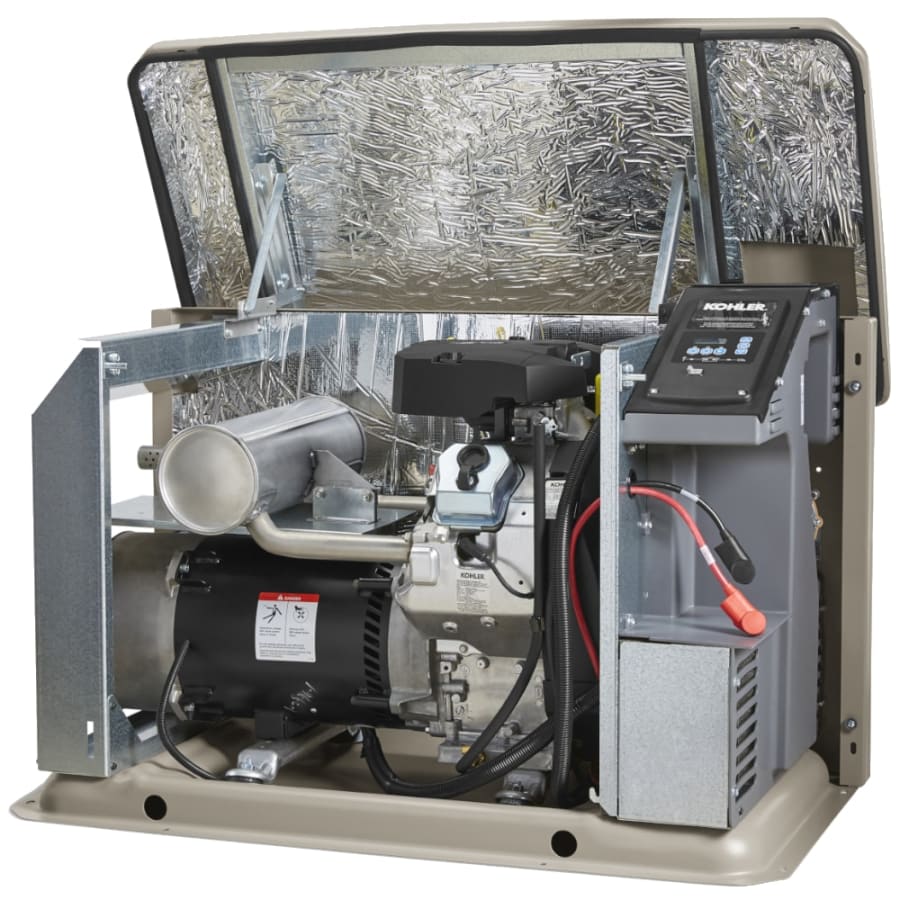

Kohler Command PRO® OHV Engine
Meets emission regulations for U.S. EPA and California
Powerful and reliable engine with hydraulic valve lifters

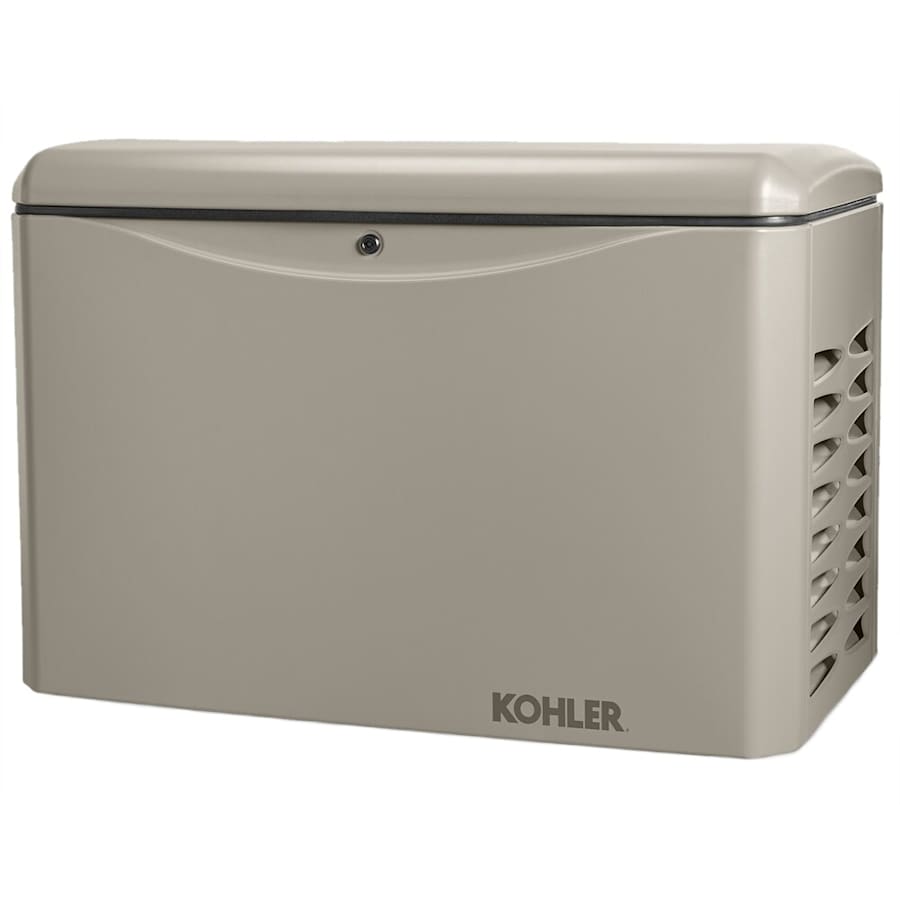

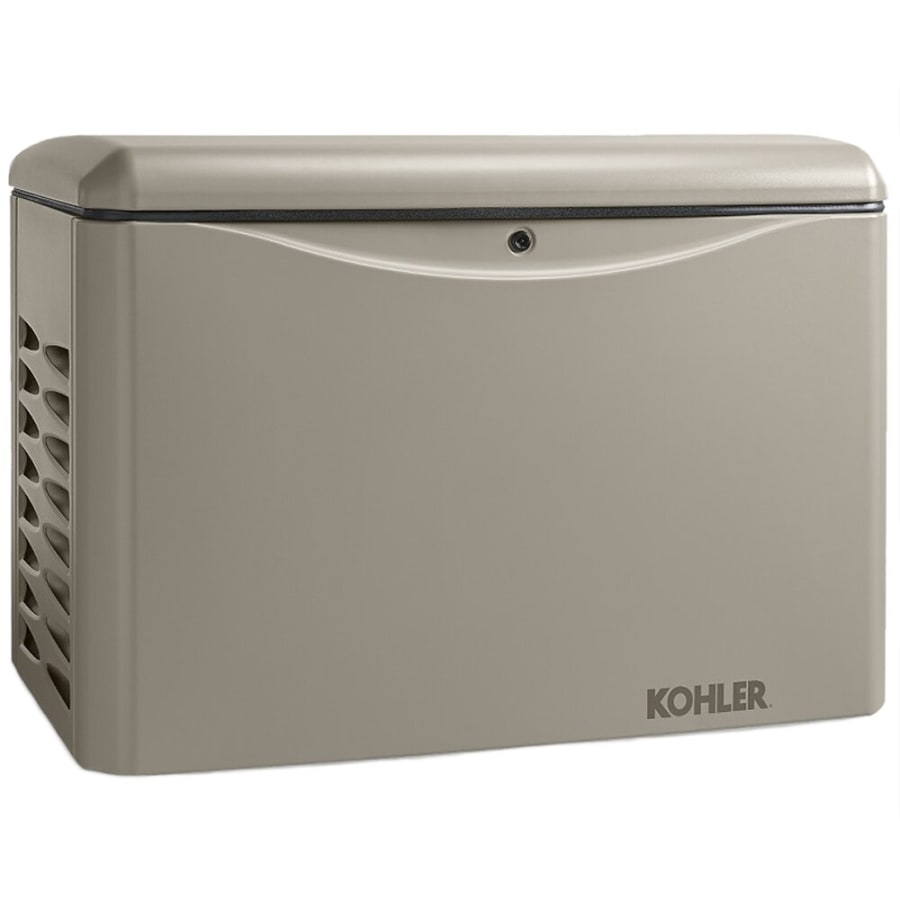

New 100% Corrosion-Proof Aluminum Enclosure

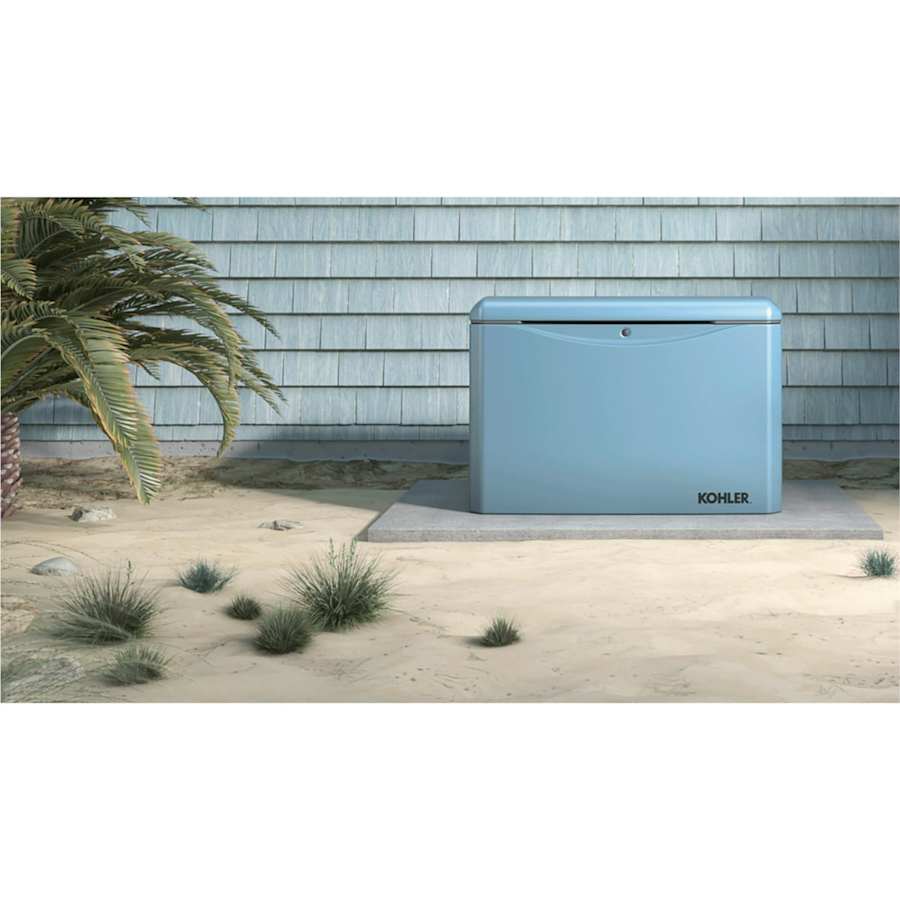

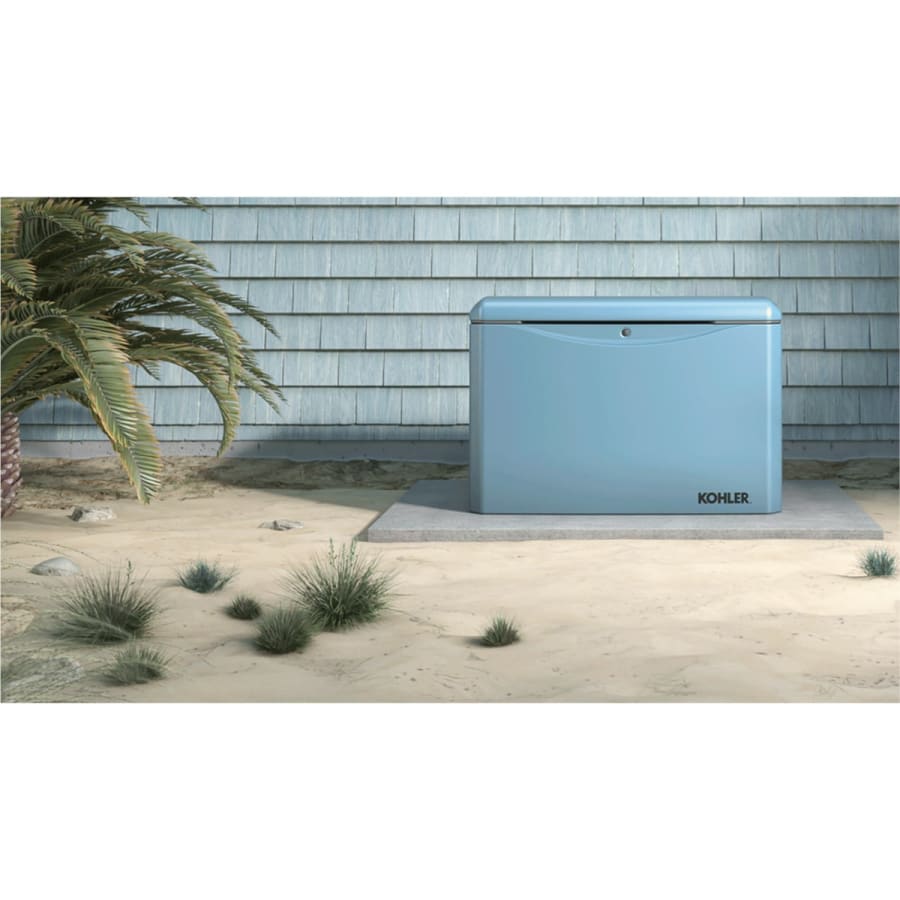

Aluminum base can be mounted on gravel or cement pad
Meets 181 MPH wind rating; Impact-resistant down to -30° F
Powerful Performance with PowerBoost™ Technology
Greater motor-starting ability for large electrical loads
Premium Power Quality (+/-1% Voltage Regulation)
Protects sophisticated electronics with low distortion (<5%THD)
Fast Response Time
Kohler™ generators restore power in as little as 10 seconds
New Silencer Reduces Sound Levels and Provides Quiet Operation
Maintains neighborhood solitude - approximately 69 dB(A) at 7 m (23 ft)

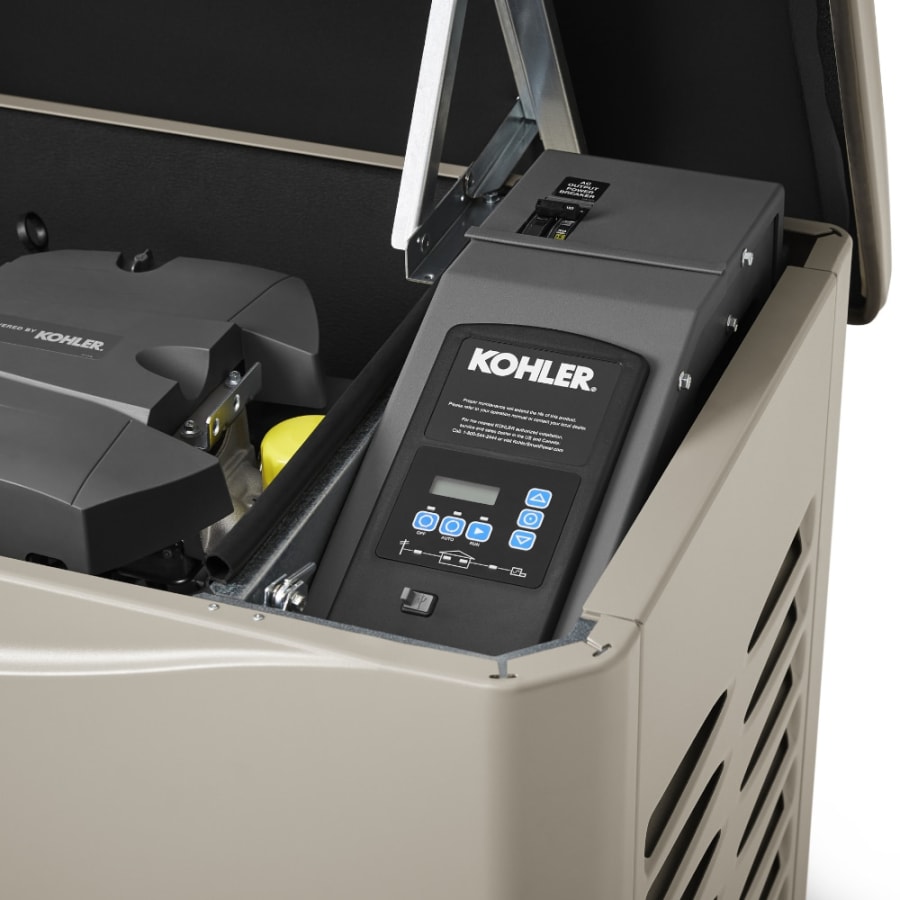

RDC2 (6-Button) Digital Controller
Glare-resistant, 2-line 16-character display - No More Codes
ATS status via LED lights on controller; Built-In 2.5A Battery Charger
OnCue® Plus Remote Monitoring System (Included)
Built-in Ethernet card, no hardware needed for OnCue
Easier Installation
Streamline design reduces time required to install generator
Installation Flexibility*
Can be installed within 18" of a building / home
*Always check local building codes
Premium Warranty - 5-Year/2,000-Hour Limited Warranty
Overview:
Product Category: Home Standby Generator
Generator Features: Low Oil Alert/Shutdown
Product Weight: 555 lbs
Length: 47"
Width: 26-3/16"
Height: 32-3/16"
Specifications:
Voltage: 120, 240V
Frequency: 60 Hz
Running Wattage: 20,000 Watts
Fuel Type: Liquid Propane, Natural Gas
NG Power Capacity: 18,000 Watts
LP Power Capacity: 20,000 Watts
NG Fuel Consumption @ 50% Load: 161 ft3/hr
NG Fuel Consumption @ 100% Load: 281 ft3/hr
LP Fuel Consumption @ 50% Load: 2 gallons/hr
LP Fuel Consumption @ 100% Load: 4 gallons/hr
Amperage: 83A
Decibel Rating @ 7m: 69 dB
Enclosure Material: Aluminum
Cooling Type: Air Cooled
Engine:
Engine Brand: Kohler
Starting System: 12v Auto Start
Cubic Capacity: 999 CC
Horsepower: 27.1 (NG) / 30.9 (LP)
RPM: 3600 RPM
Low Oil Alert/Shutdown: Yes
Product Assurance:
Certifications: UL
EPA Compliant
Approved for commercial use
Warranty: 5 Year Commercial Engine and 5 Year Residential Engine
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Specifications
| Height | 32.2 in. |
| Width | 26.2 in. |
| Product Weight | 555 lbs. |
| Length | 47 in. |
| Certifications | UL |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 5 Year Commercial Engine, 5 Year Residential Engine |
| EPA Compliant | Yes |
| CARB approved | Yes |
| SCAQMD Compliant | No |
| Amperage | 83 |
| Voltage | 120, 240 |
| Horsepower | 27.1, 30.9 |
| Fuel Type | Liquid Propane, Natural Gas |
| RPM | 3600 |
| Frequency | 60 Hertz |
| Electrical Phases | 1 |
| Air Conditioner Ton Rating | 5-Tons |
| Cubic Capacity | 999 cc |
| Decibel Rating @ 7m | 69 |
| LP Fuel Consumption @ 100% Load | 3.9 GPH |
| LP Fuel Consumption @ 50% Load | 2.3 GPH |
| LP Power Capacity | 20000 |
| NG Fuel Consumption @ 100% Load | 281 CFH |
| NG Fuel Consumption @ 50% Load | 161 CFH |
| NG Power Capacity | 18000 |
| Running Wattage | 20000 |
| Starting System | 12v Auto Start |
| Alternator | Brushed |
| Control Type | Air Cooled |
| Enclosure Material | Aluminum |
| Engine Brand | Kohler |
| Generator Features | Low Oil Alert/Shutdown |
| Automatic Transfer Switch Included | No |
| Color | Cashmere |
