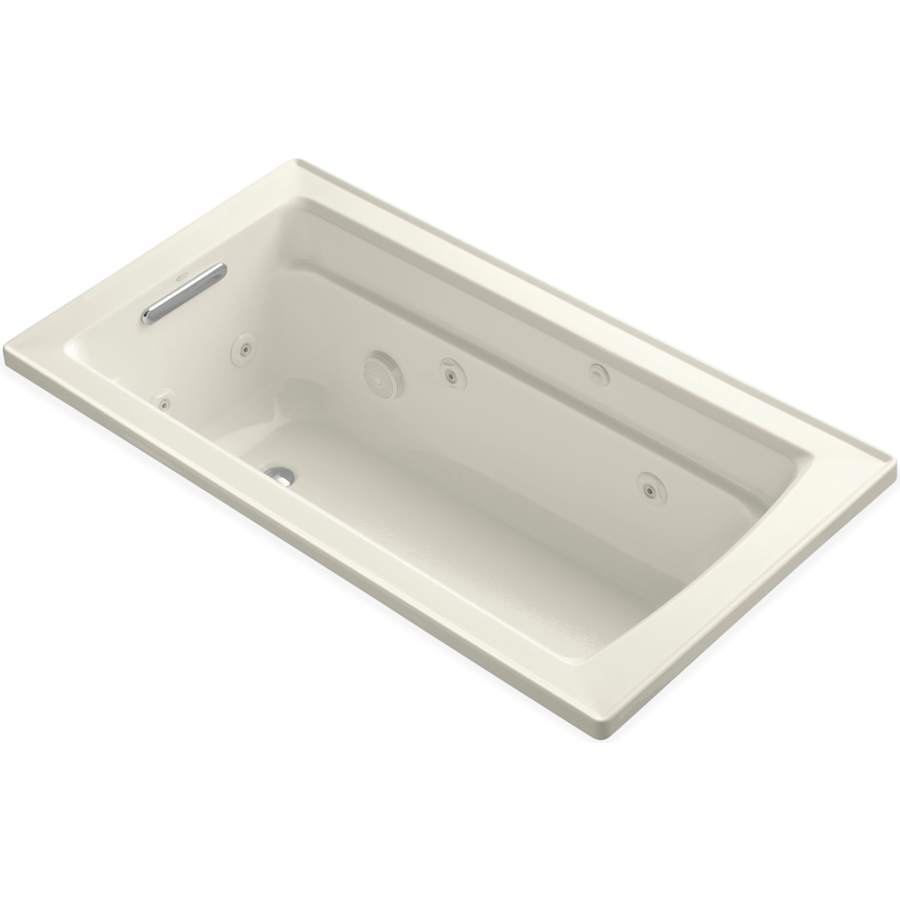

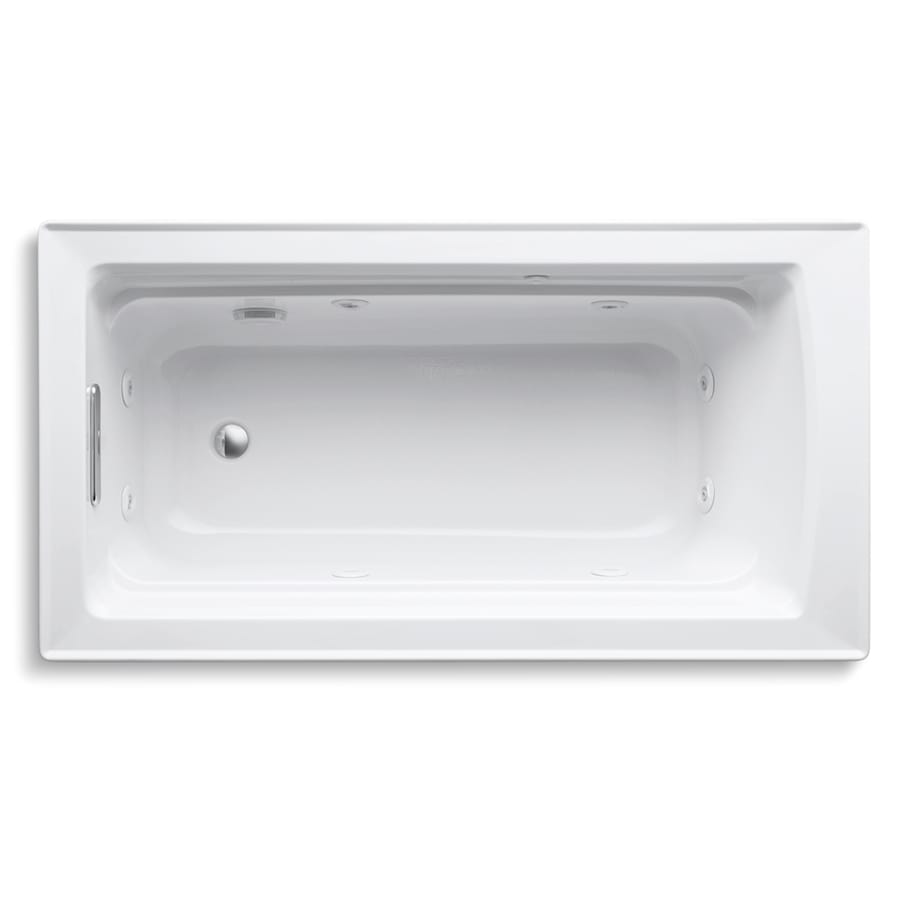

Kohler Archer Collection 60″ Drop In Jetted Whirlpool Bath Tub with Reversible Drain

Product Features:

Kohler tubs are fully covered under warranty for up to a year after installation
All jets are fully adjustable for water intensity and direction of flow
Jets can be turned off completely
Finger pads on outer ring for easy adjustment
Shallow recess for ease of cleaning
Tub is constructed from an Acrylic material making it strong and flex resistant
Whirlpool hydrotherapy tub – provides one of the most relaxing and invigorating bath experiences available
The Archer Series takes its design from traditional Craftsman furniture
Revealing beveled edges and curved bases for a clean, sophisticated style
Single-speed whirlpool with 8 fully adjustable color matched jets offers optimum performance and value
Hydro-massage flow and direction that can be controlled at each jet
Comfort height design – provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs
Installs in a drop-in configuration
Tub comes standard with molded lumbar support, furthering the users comfort
Textured bottom surface.
Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
ADA compliant – complies with the standard set forth by the American’s with Disabilities Act
Product Meets or Exceeds the Following Codes/Standards: ADA, ICC/ANSI, CSA, ASME, ASTM, UL
This tub coordinates seamlessly with other products from the Archer Collection

Product Technologies and Benefits:

Acrylic Material – A strong, flex resistant material with a smooth finish that resists chipping and cracking, as well as being easy to clean.
Whirlpool Tubs – Kohler Whirlpool tubs are designed to deliver powerful jets of water and air that are fully adjustable in direction and massage intensity, thus allowing your own personal massage.

Product Specifications:

Overall Height: 19″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 32″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 19-11/16″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45-1/8″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 25-5/16″ (back to front measurement of the top of basin walls)
Basin Length (Top): 52-3/4″ (left to right measurement of top of basin walls)
Water Depth: 15″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 58-gallons
Drain Location: Reversible (right or left)
Drop-In Cutout Required: 58-1/2″ X 30-1/2″
Pump Voltage: 120V

Variations of K-1122:

K-1123: soaking bath version of this tub
K-1123-W1: soaking bath and bask heated surface version of this tub
K-1122-G: bubblemassage air bath version of this tub
K-1122-GW: bubblemassage air bath and bask heated surface version of this tub
K-1122-VB: vibracoustic version of this tub
K-1122-VBW: vibracoustic and bask heated surface version of this tub
K-1122-H: whirlpool and heater version of this tub
K-1122-W1: whirlpool and bask heated surface version of this tub
K-1122-XHG: whirlpool and bubblemassage air bath version of this tub

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.
