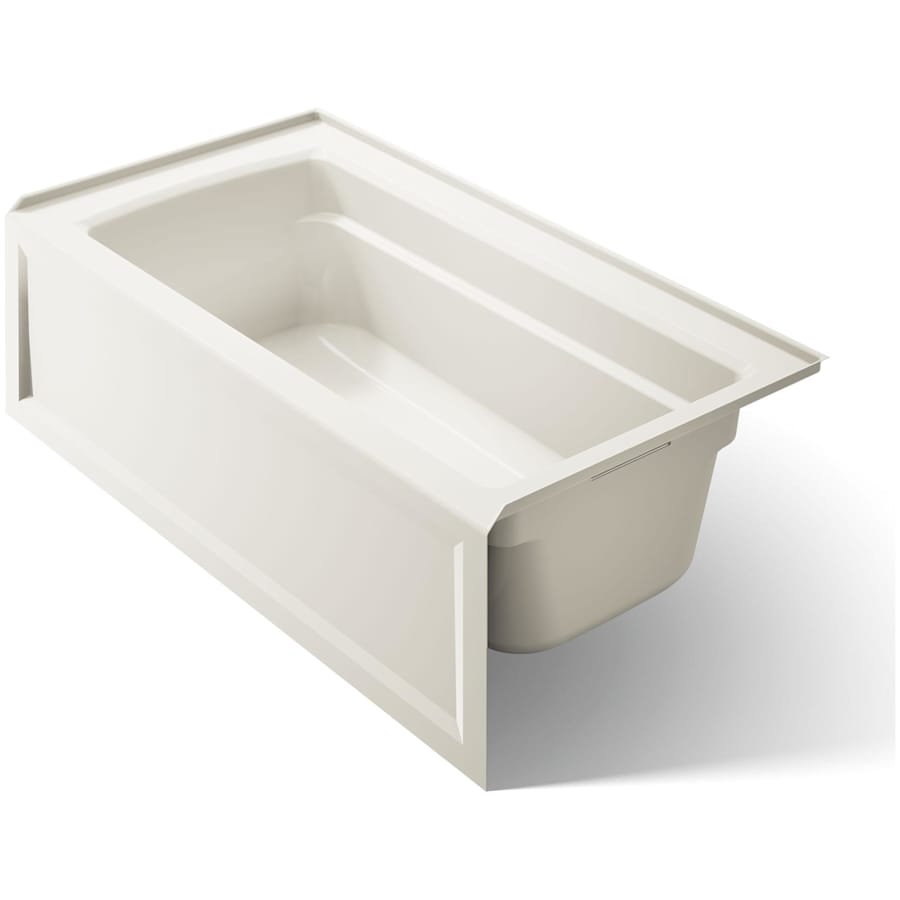

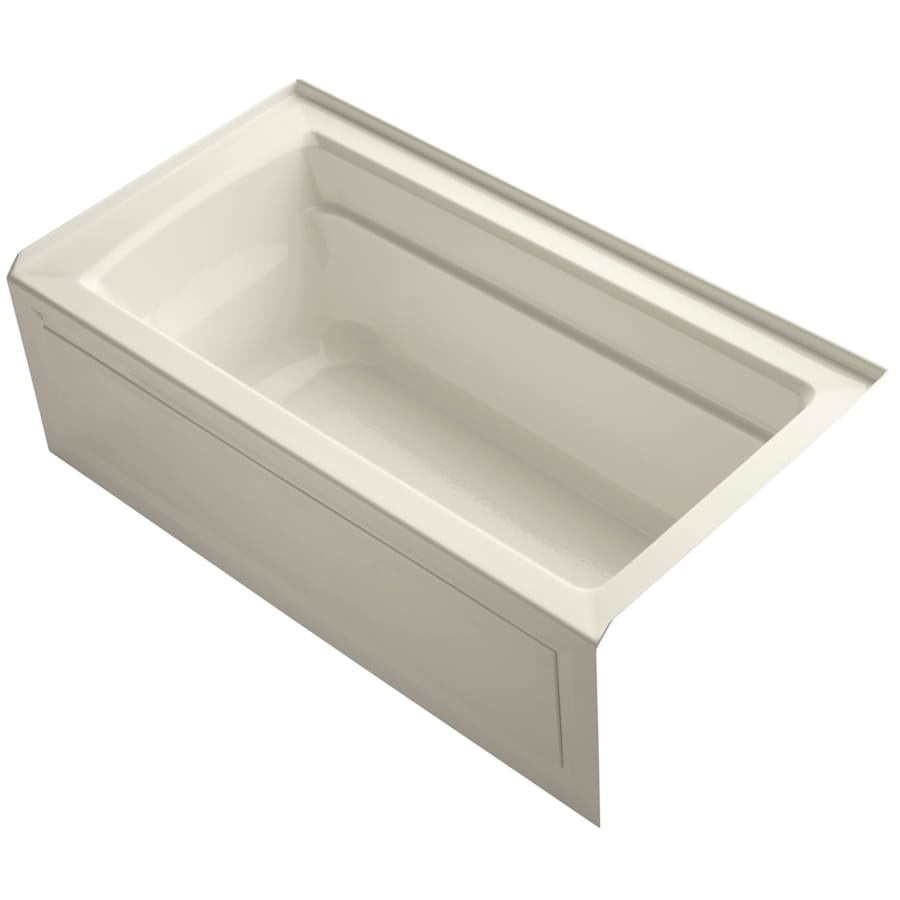

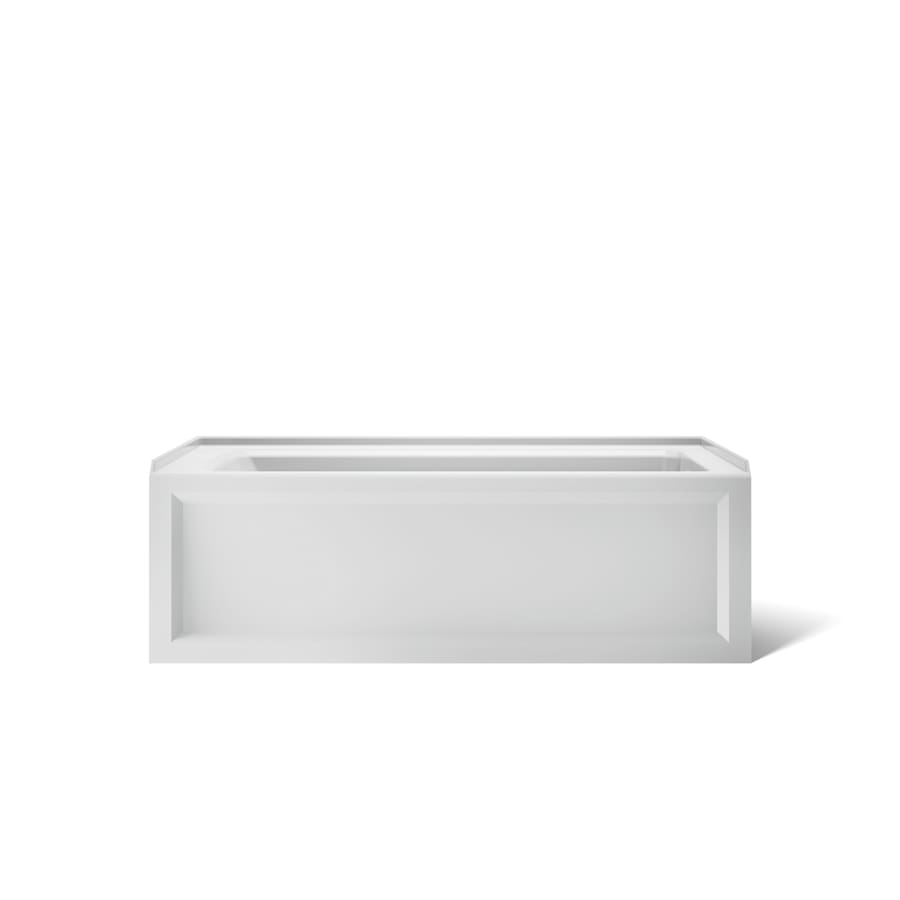

Archer
Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing for deep, comfortable soaking. A lumbar arch gently support the natural curves of your body.
Â
Product Features:
Kohler bathtubs are fully covered under warranty for up to a year after installation
Tub is constructed from an Acrylic material making it strong and flex resistant
Comfort height design – provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs
Taking its design from traditional Craftsman furniture, Archer reveals beveled edges and curved bases for a clean, sophisticated style

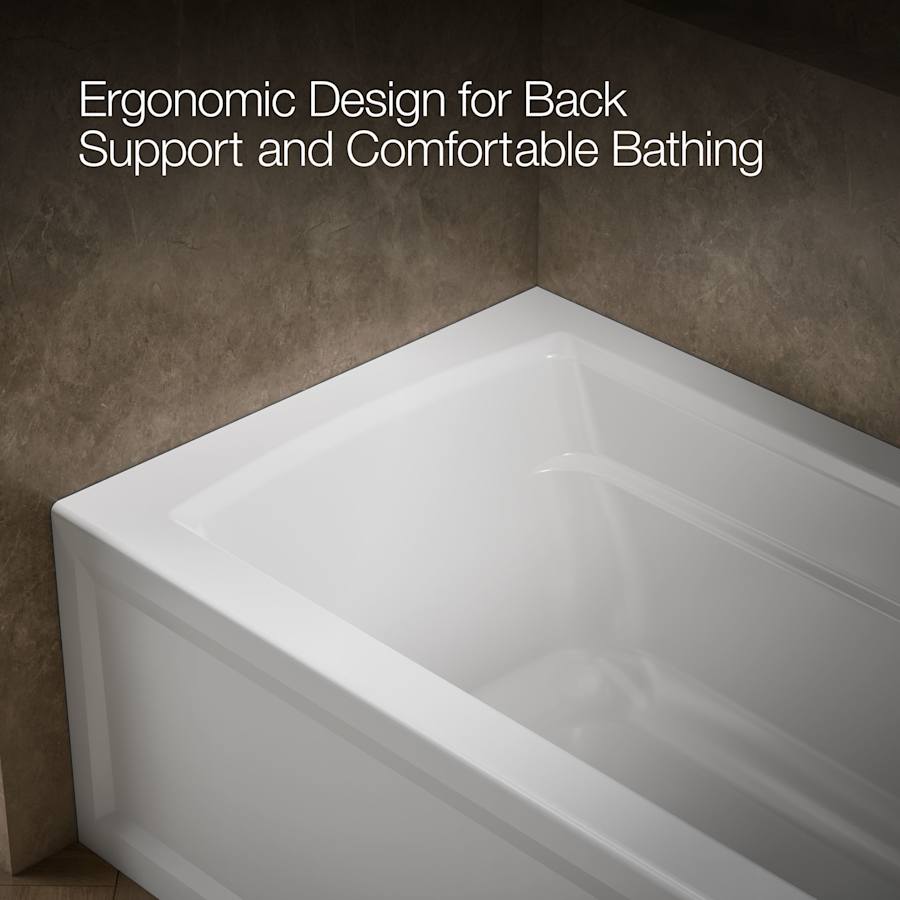

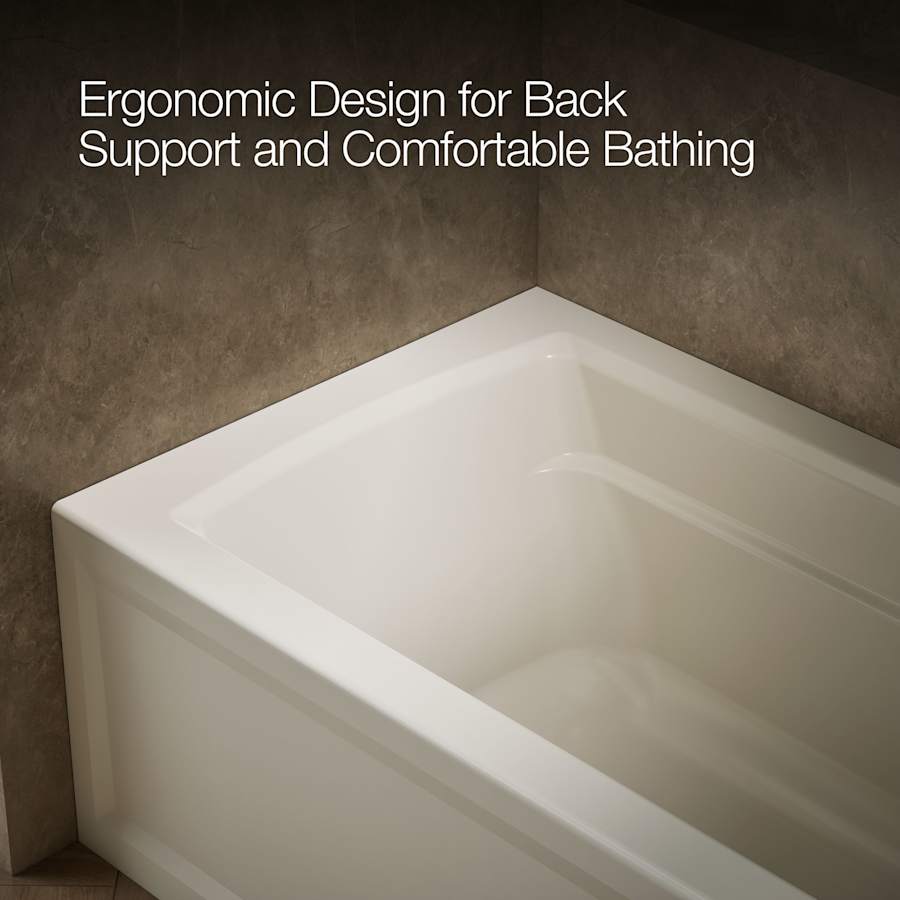

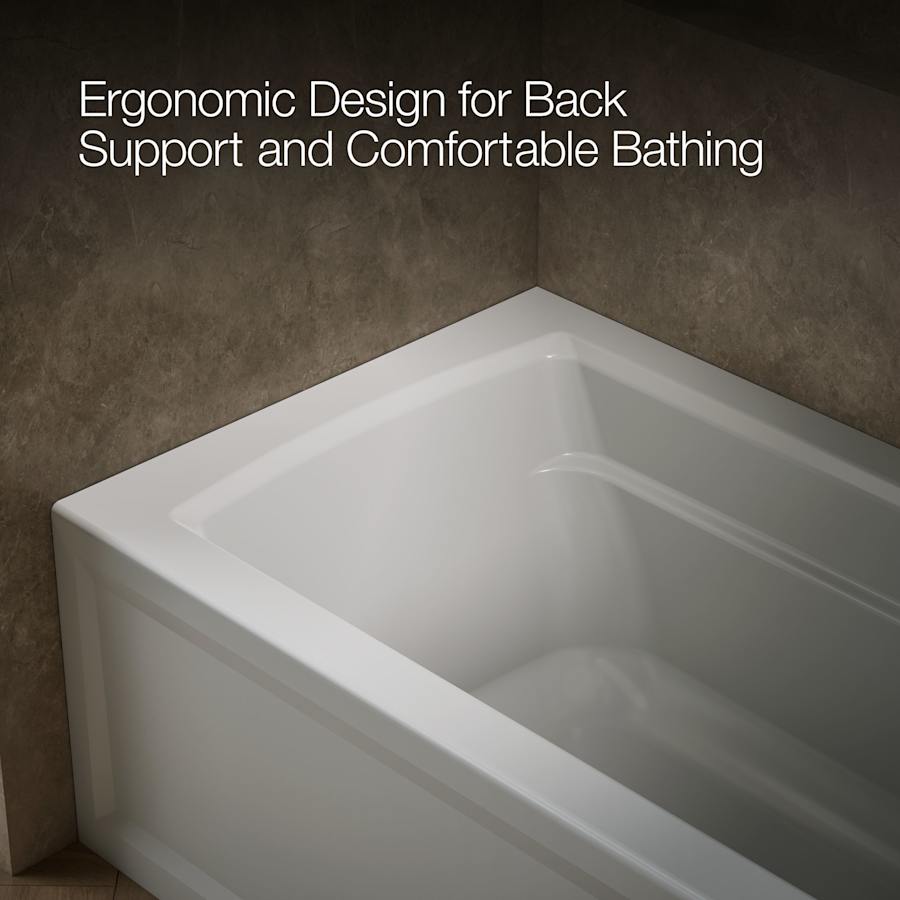

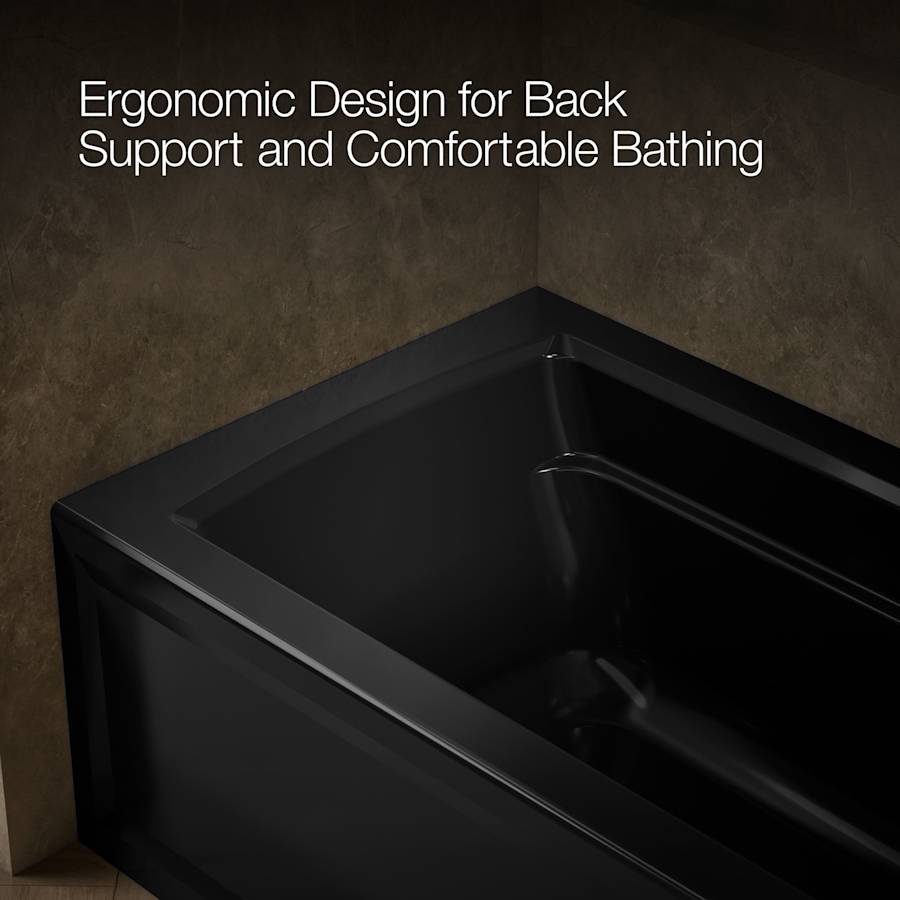

Integrated armrests and lumbar arches support the natural curves of your body

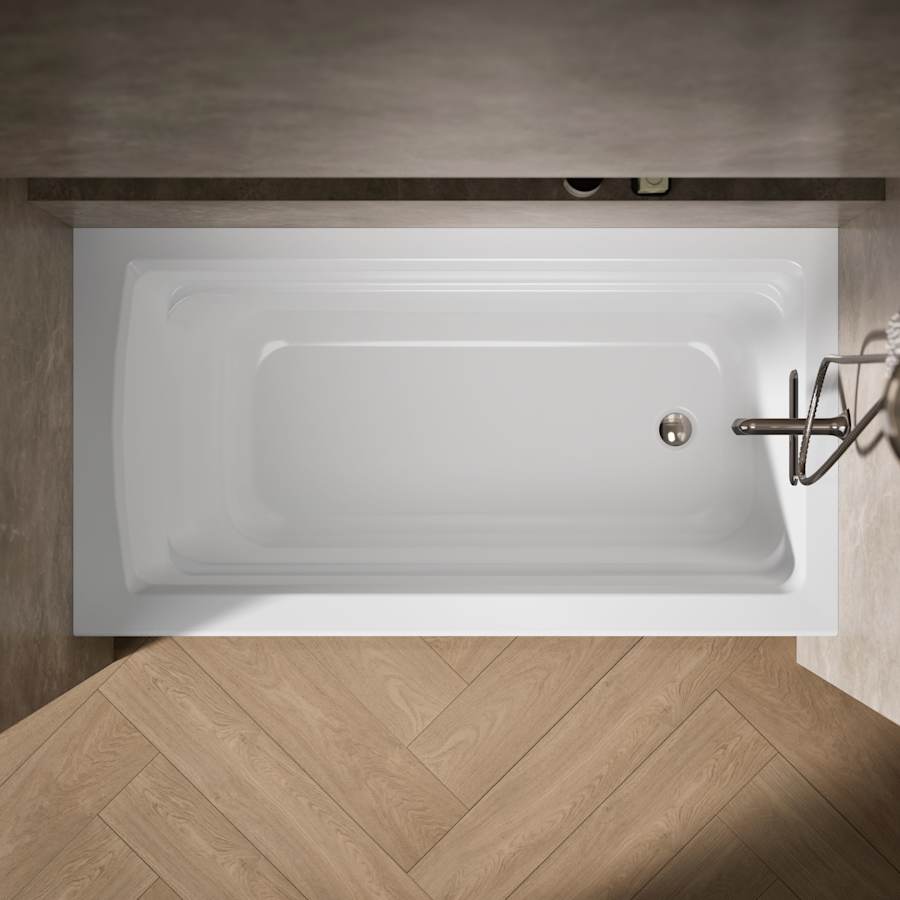

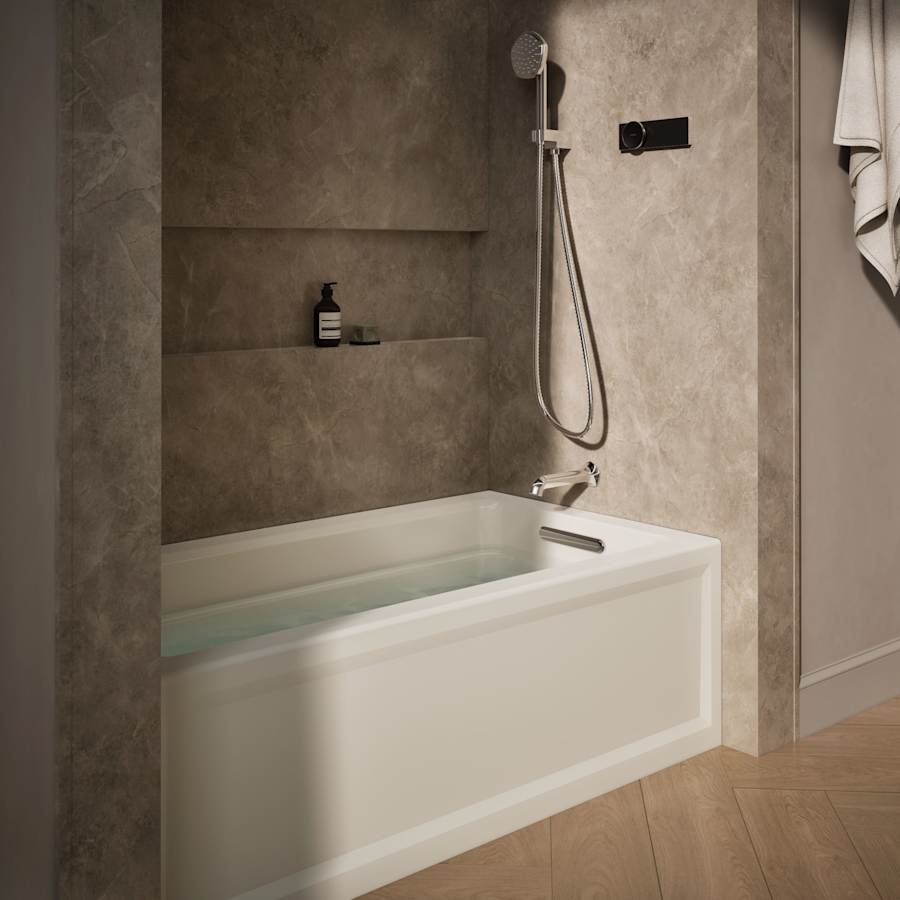

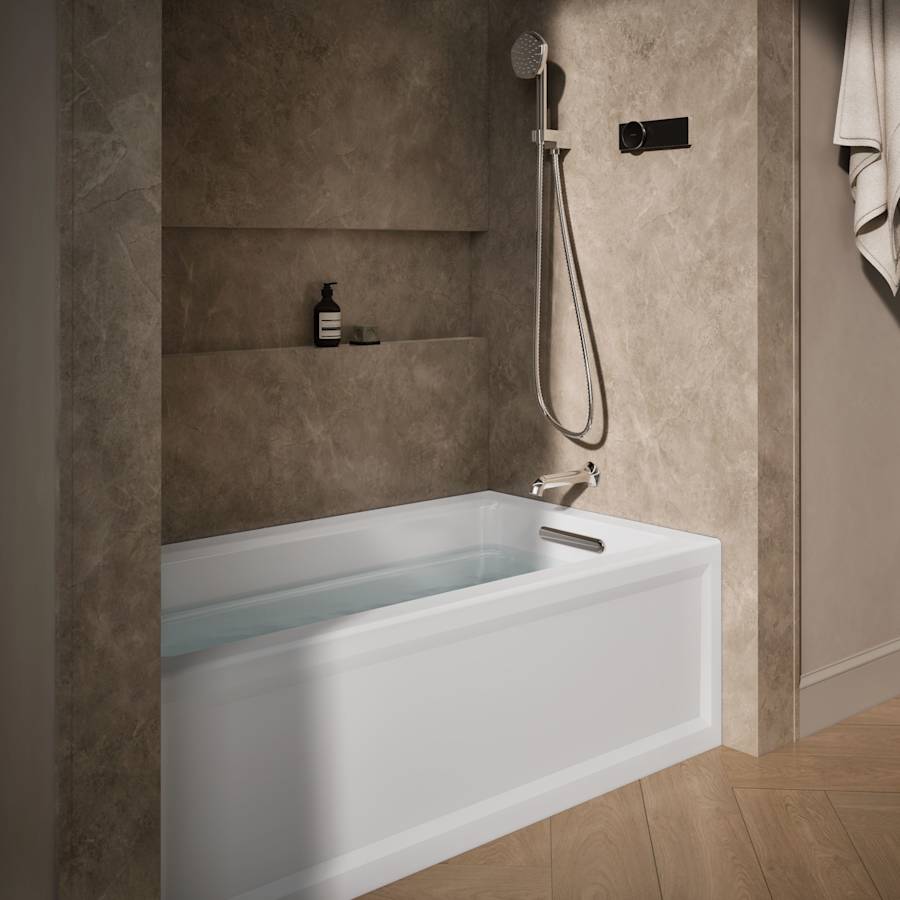

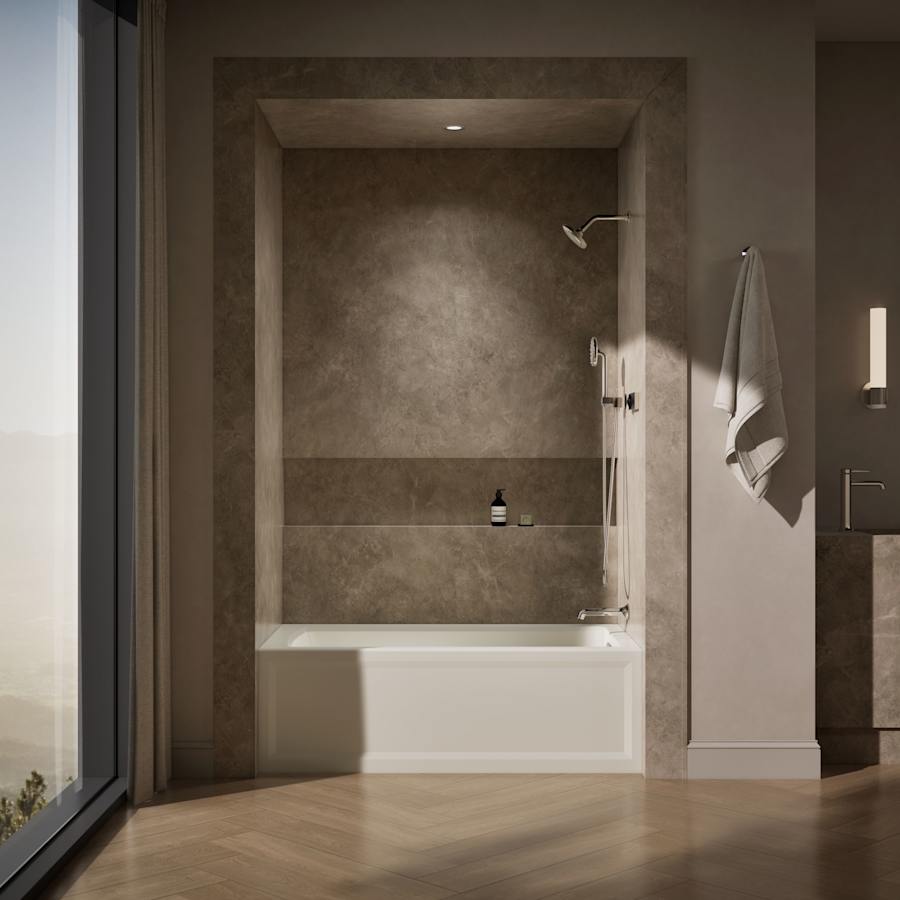

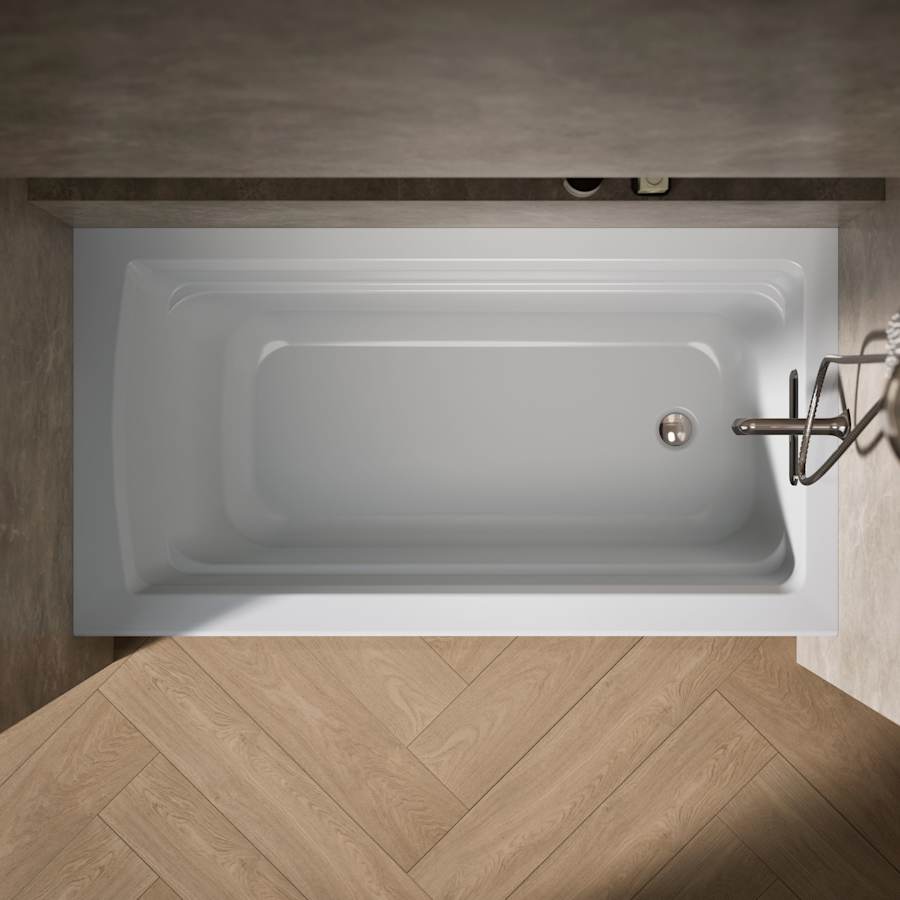

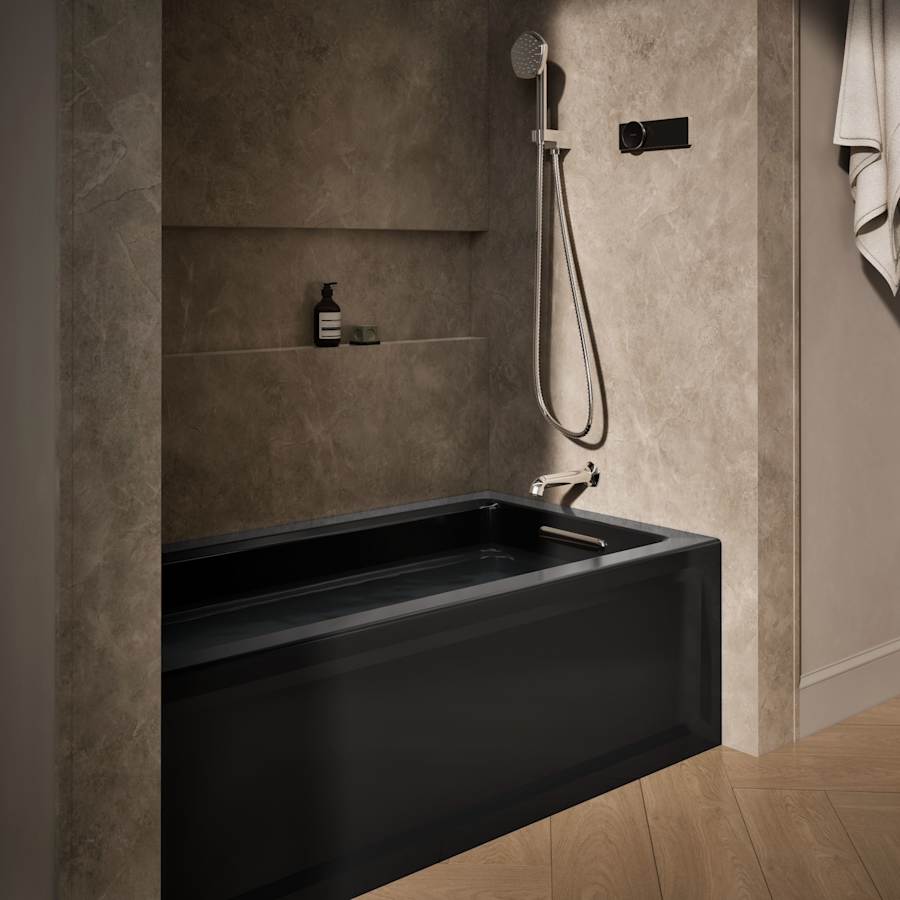

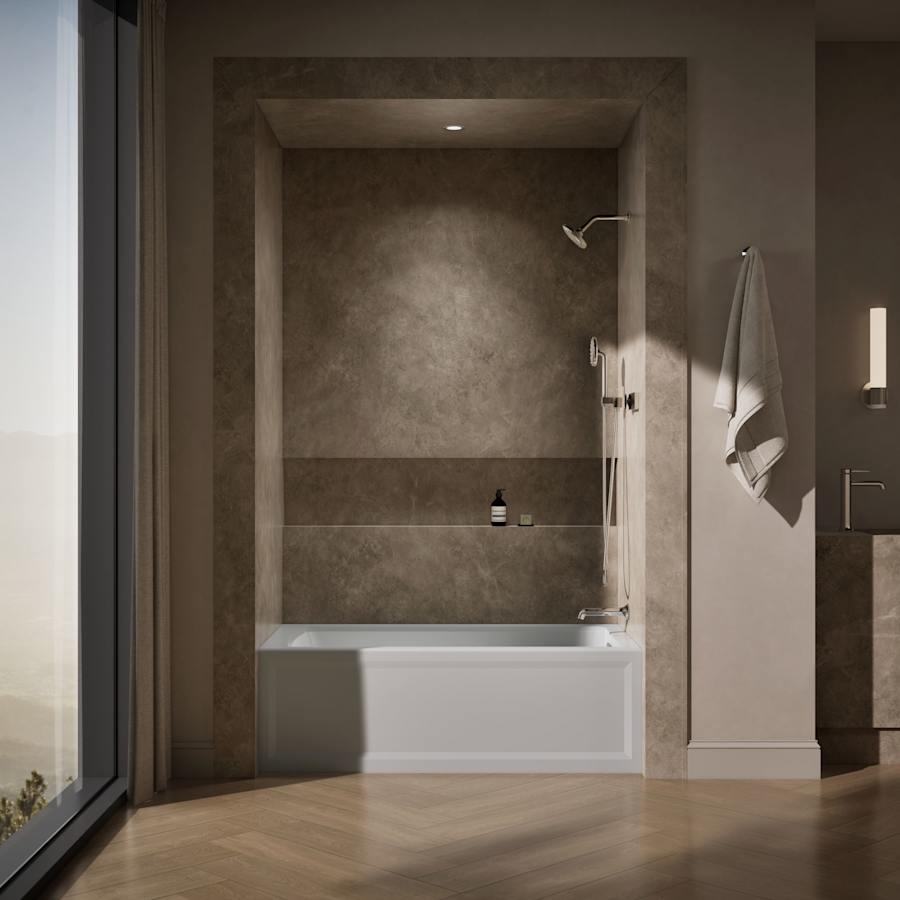

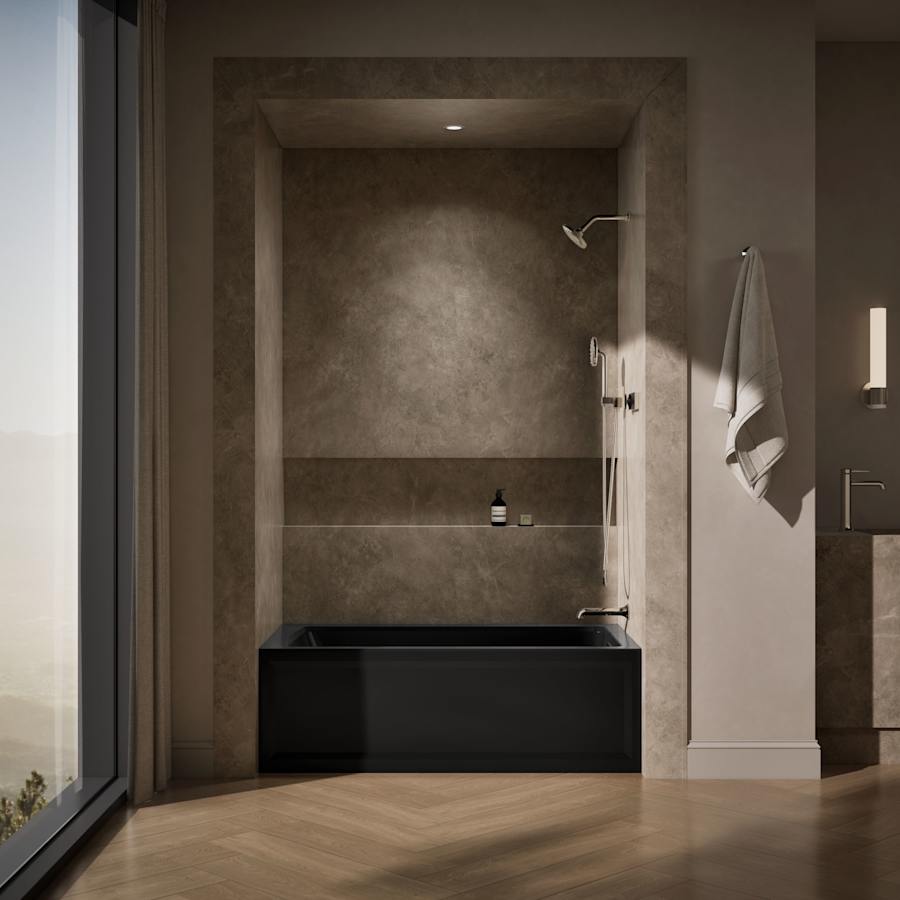

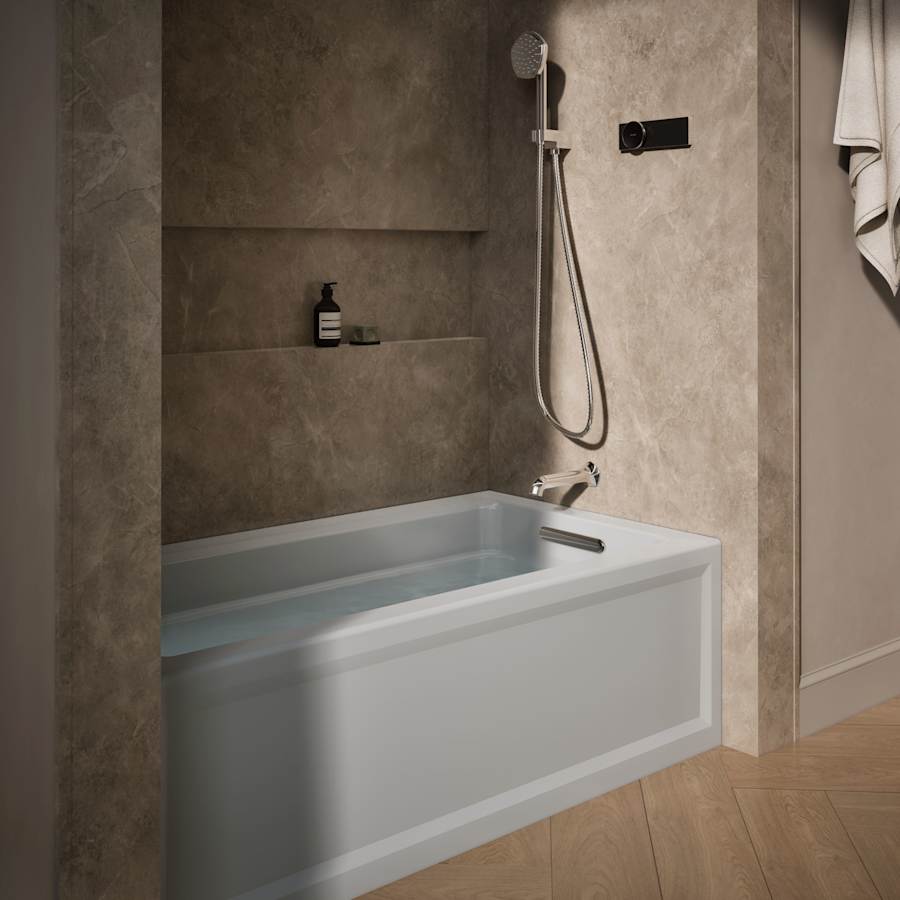

Installs in a Three-wall Alcove configuration
Tub comes standard with molded lumbar support, furthering the user’s comfort

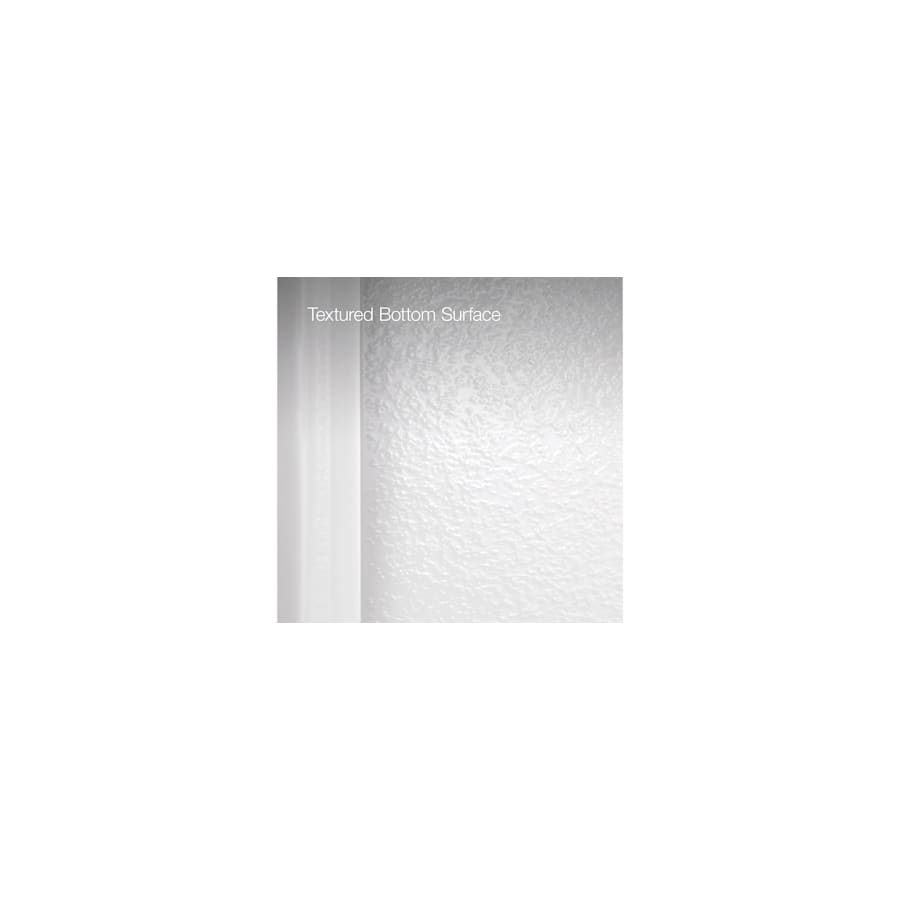

A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub

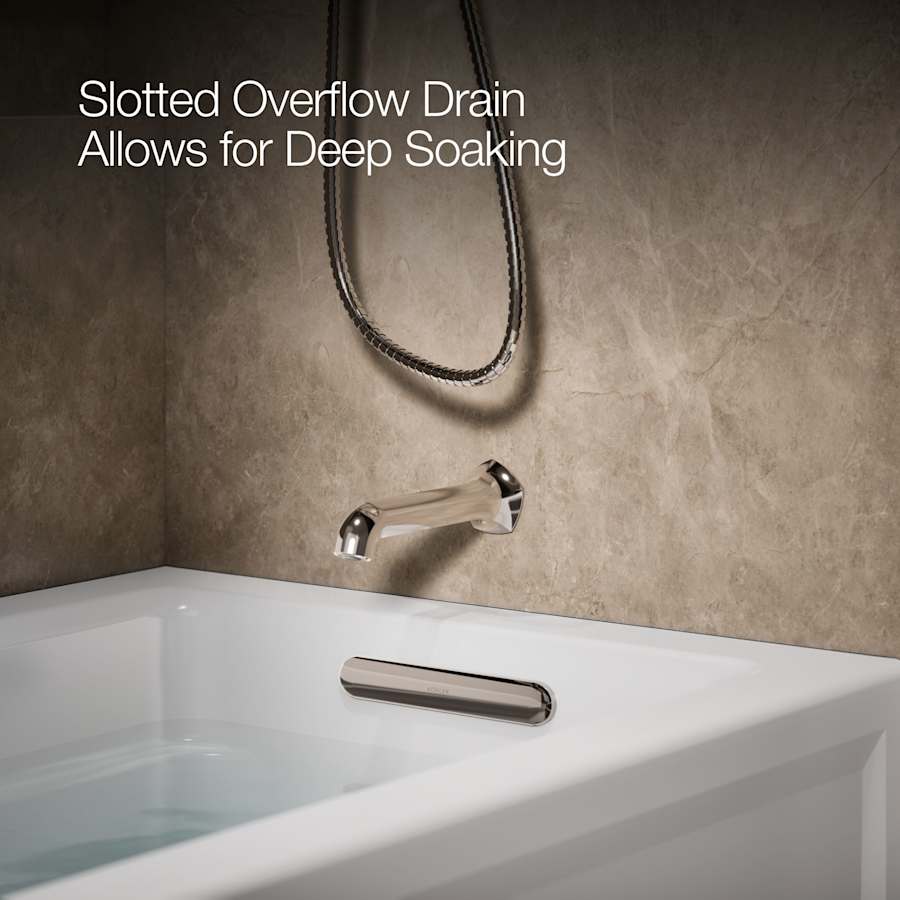

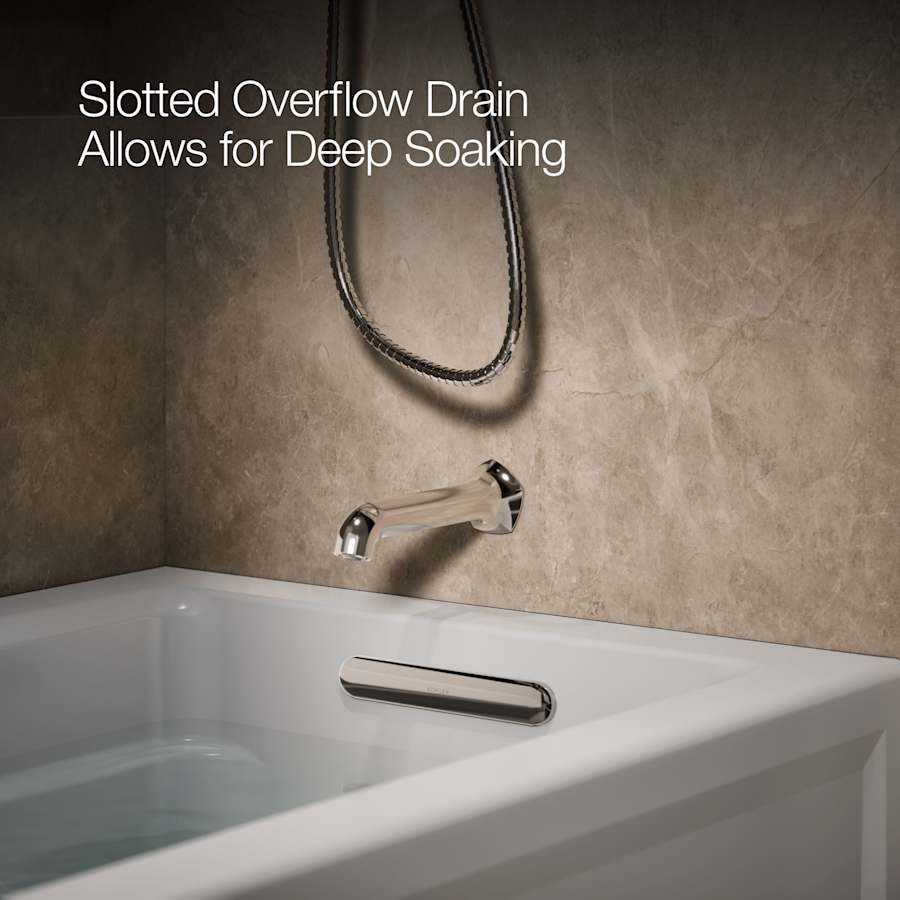

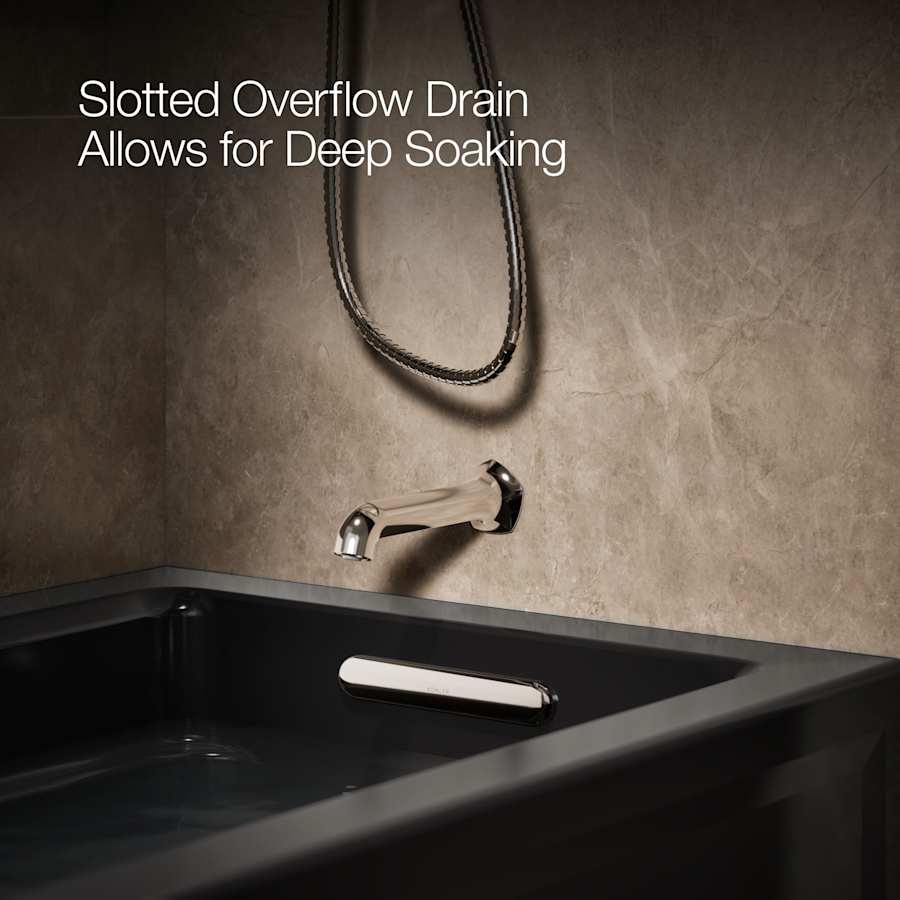

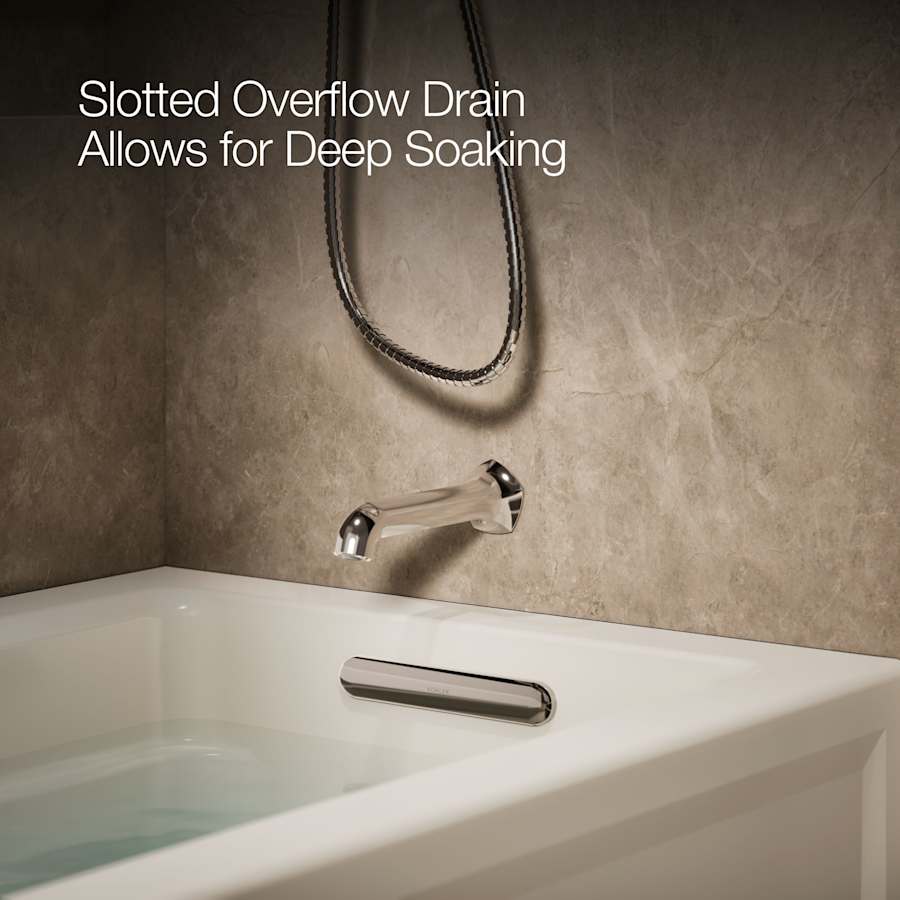

Tub is equipped with an overflow assembly – permitting the user to enjoy a deep soak without worrying about spillage
ADA compliant – complies with the standards set forth by the American’s with Disabilities Act
Product Meets or Exceeds the Following Codes and Standards: ADA, ICC/ANSI, CSA, ASTM

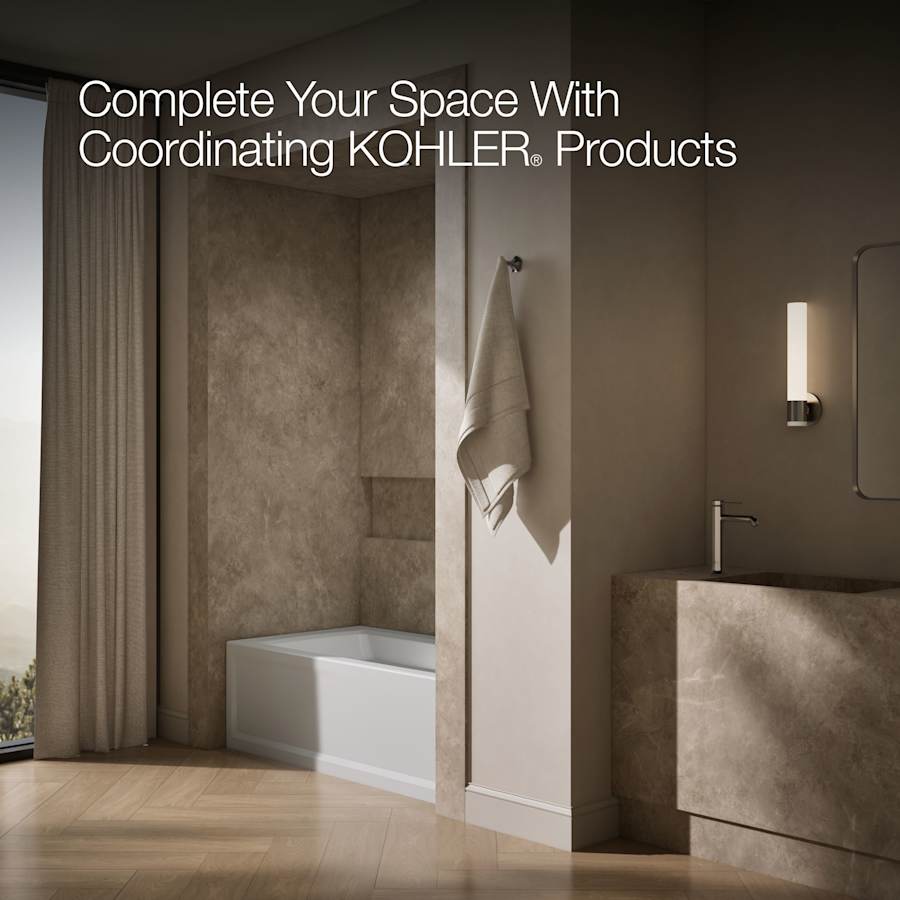

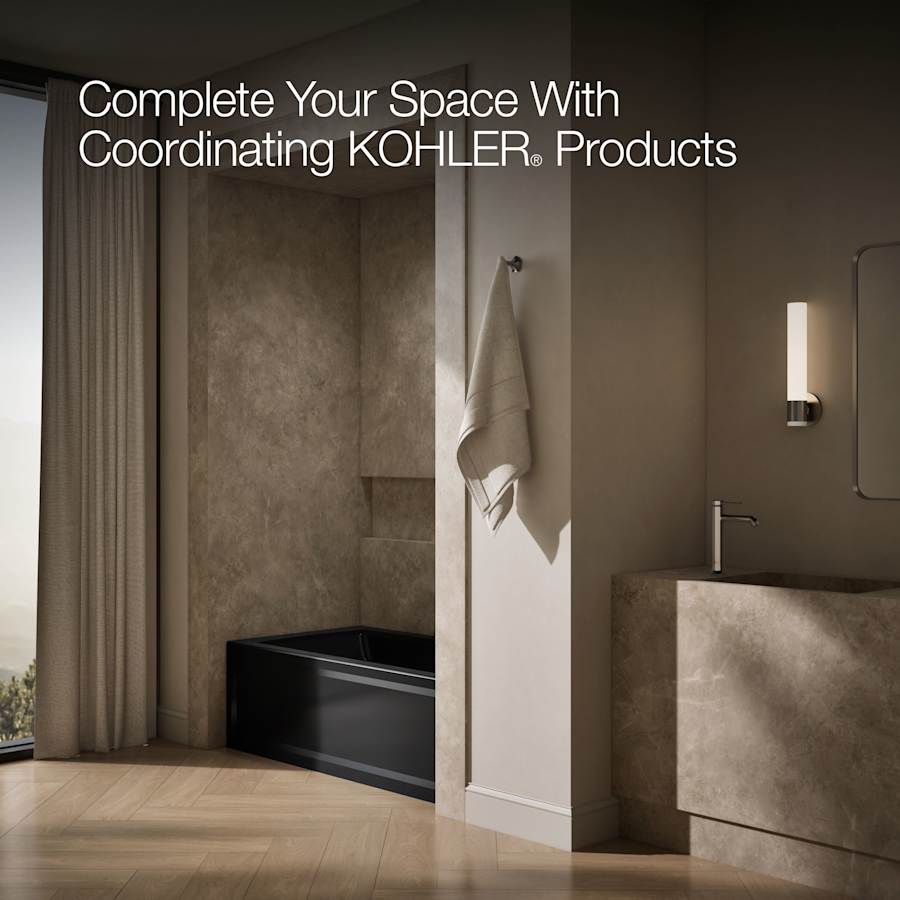

Pair this bath with other products from the Archer Collection for a coordinated elegant look in the bathroom
Product Technologies and Benefits:

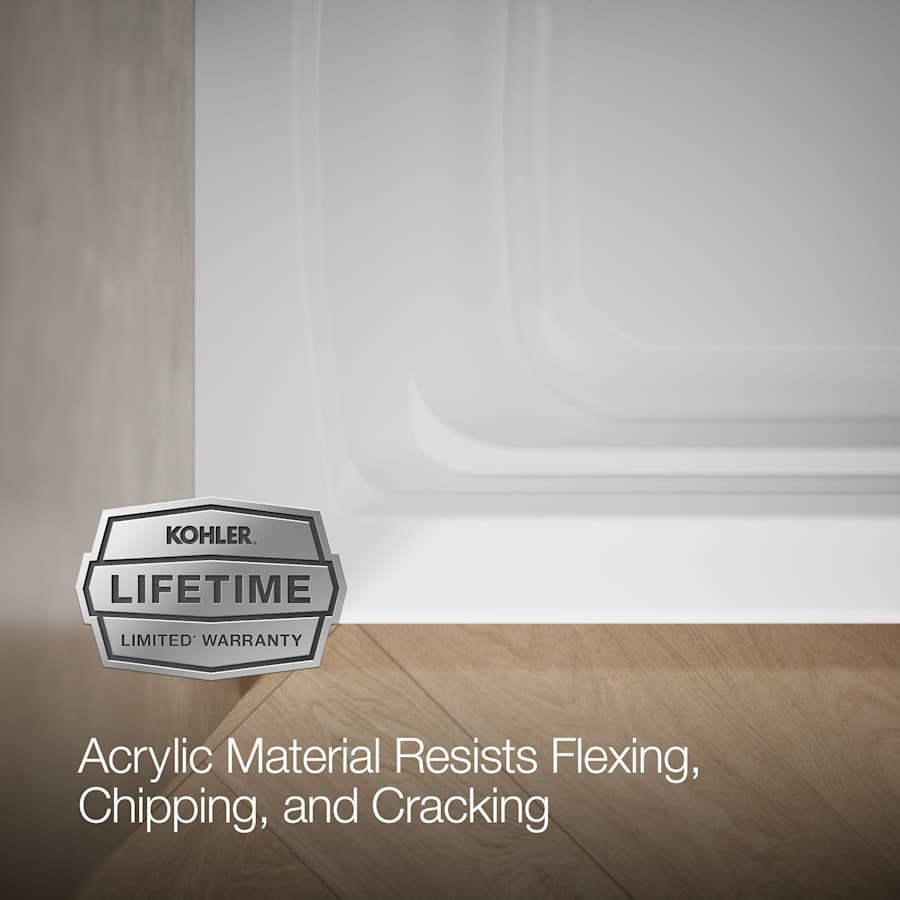

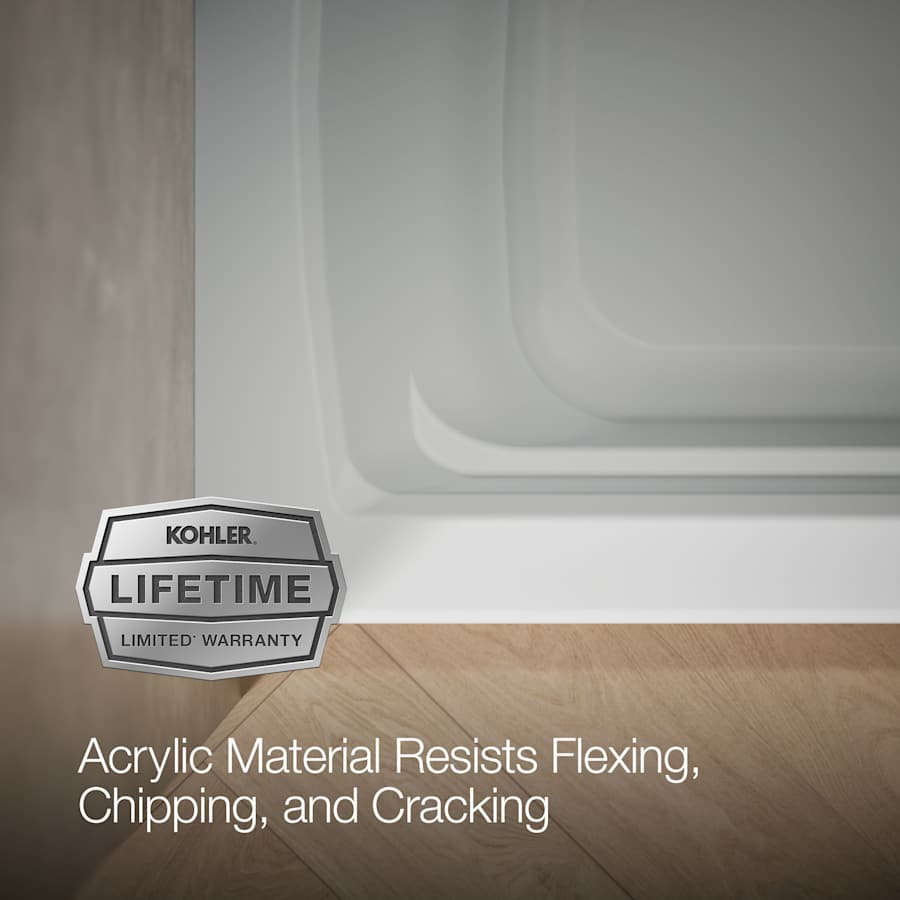

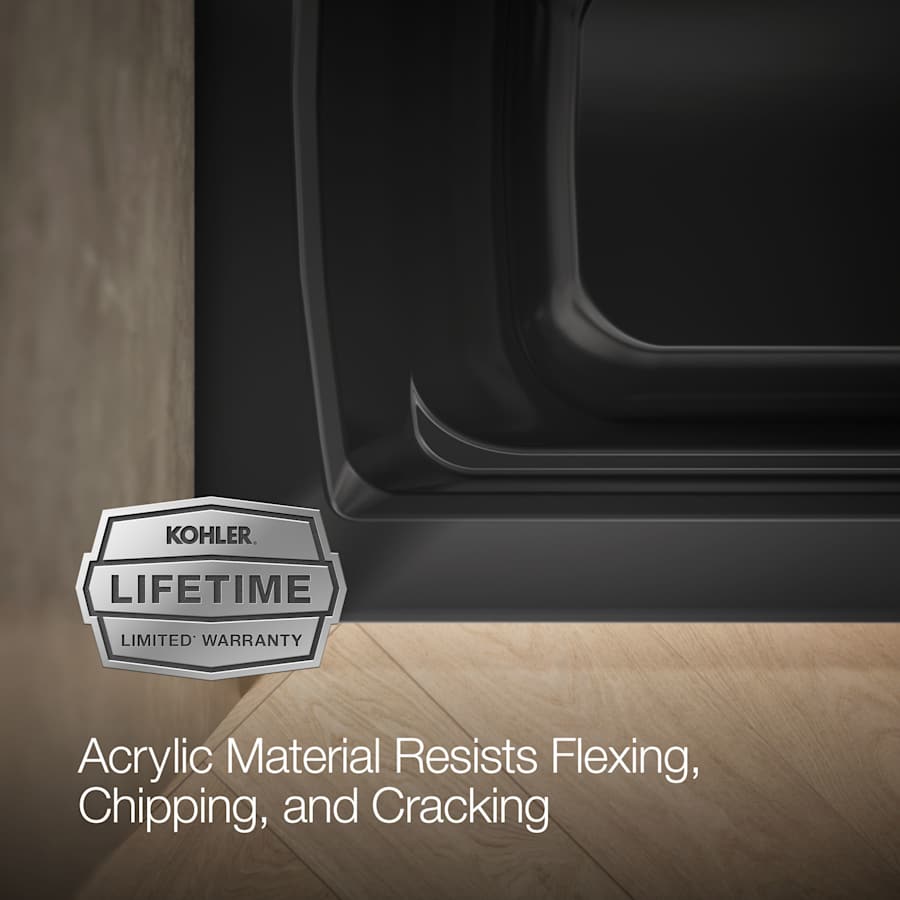

Acrylic Material – A strong, flex resistant material with a smooth finish that resists chipping and cracking, as well as being easy to clean.
Product Specifications:

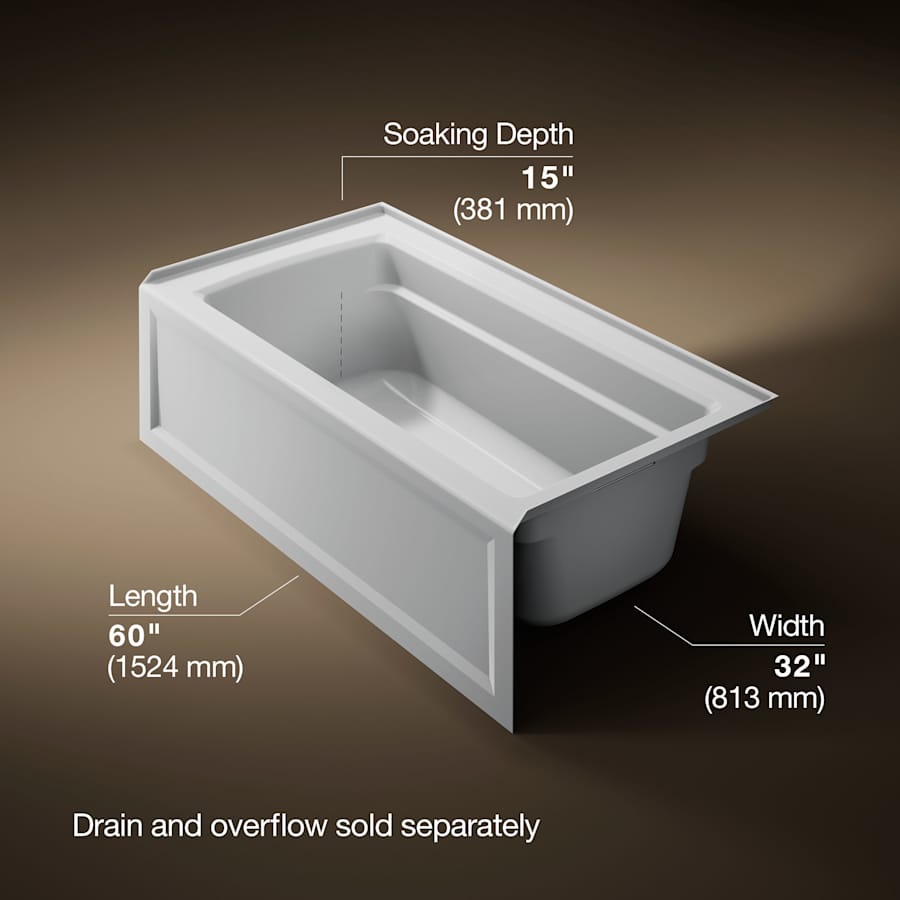

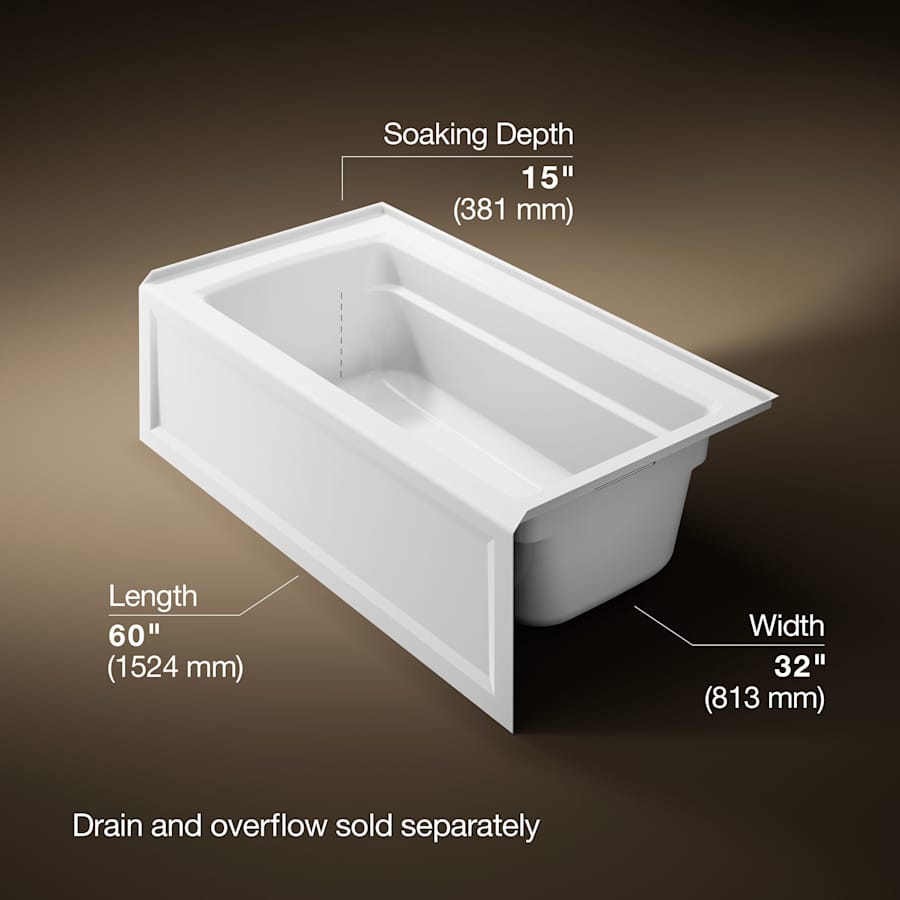

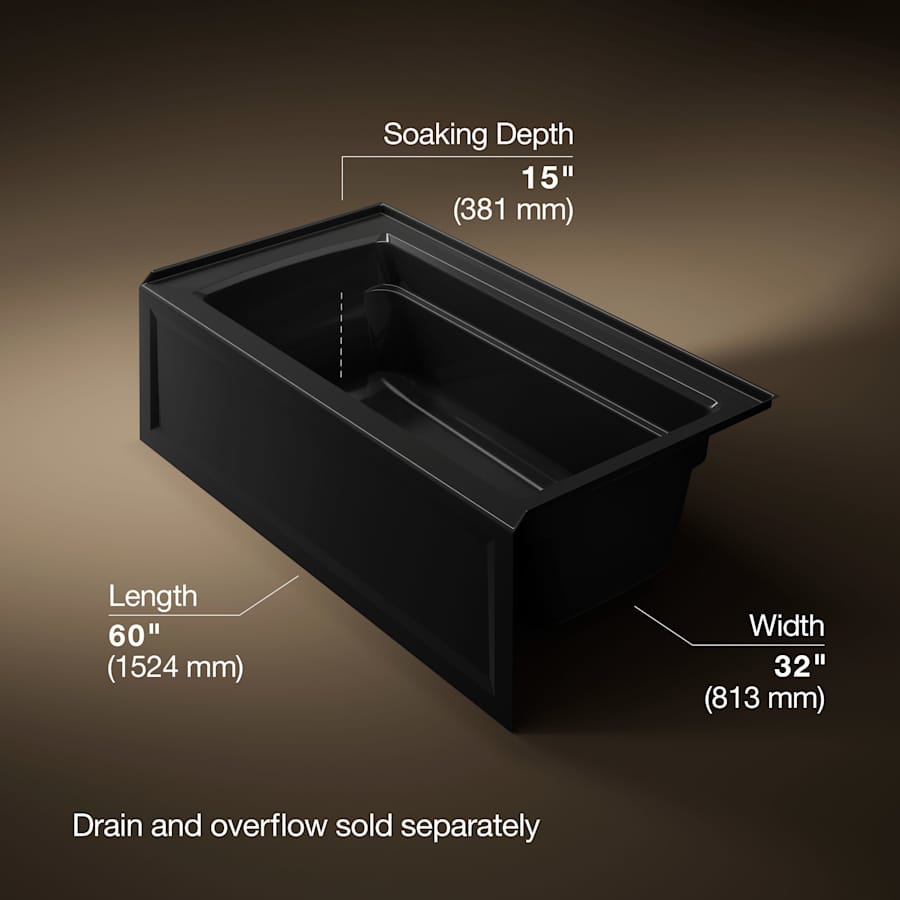

Overall Height: 19″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 32″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 19-11/16″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45-1/8″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 25-5/16″ (back to front measurement of the top of basin walls)
Basin Length (Top): 52-3/4″ (right to left measurement of the top of the basin walls)
Water Depth: 15″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 58-gallons

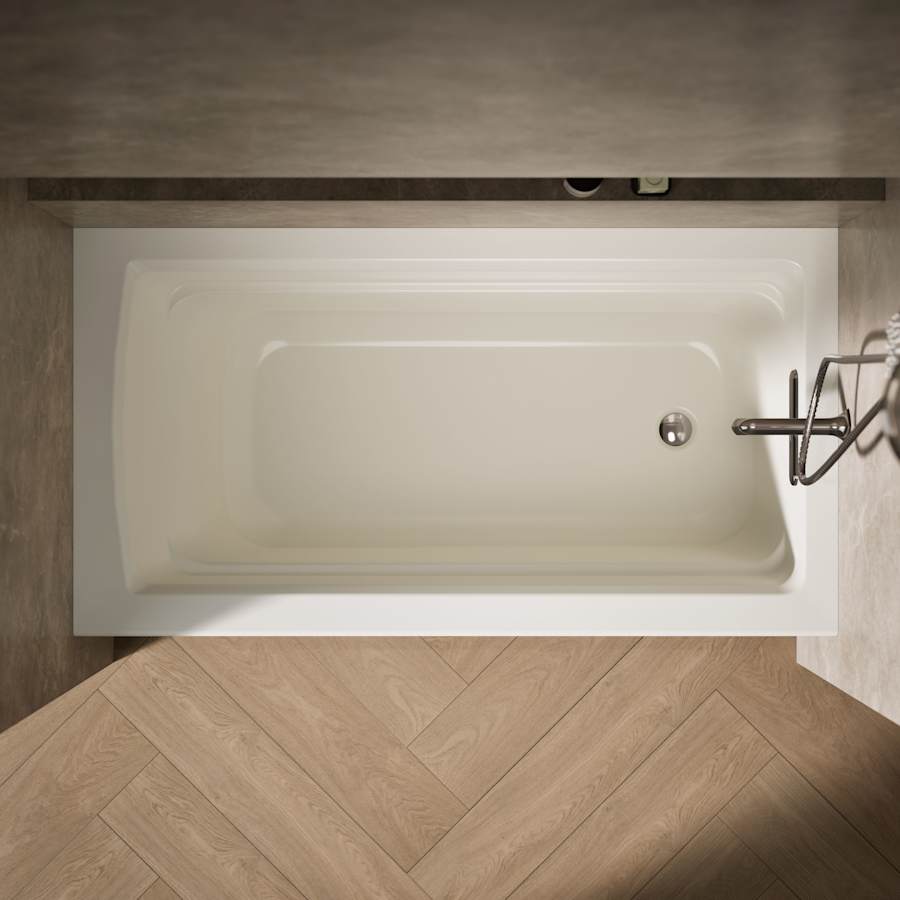

Drain Location: Right
Â
Variations:
K-1123
Drop-in version of this model with reversible drain
K-1123-LA
This model with left-hand drain
Â
Â
With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.
From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Archer Collection
Specifications
| Height | 19 in. |
| Width | 32 in. |
| Nominal Width | 32 in. |
| Product Weight | 70 lbs. |
| Length | 60 in. |
| Depth | 15 in. |
| Nominal Length | 60 in. |
| Bar Length | 45.125 in. |
| Base Width | 19.688 in. |
| Capacity (Gallons) | 58 |
| Overflow Height | 15 in. |
| Tub Size | 60 Inches |
| Insulation Type | Three Wall Alcove |
| Material | Acrylic |
| Thermostat | Modern |
| Overflow | Yes |
| Drain Placement | Right |
| Apron Front | Yes |
| Number Of Bathers | 1 |
| Tub Shape | Rectangular |
| ADA | Yes |
| Collection | Archer |
| Country Of Origin | USA |
| Made in America | Yes |
| Light Included | No |

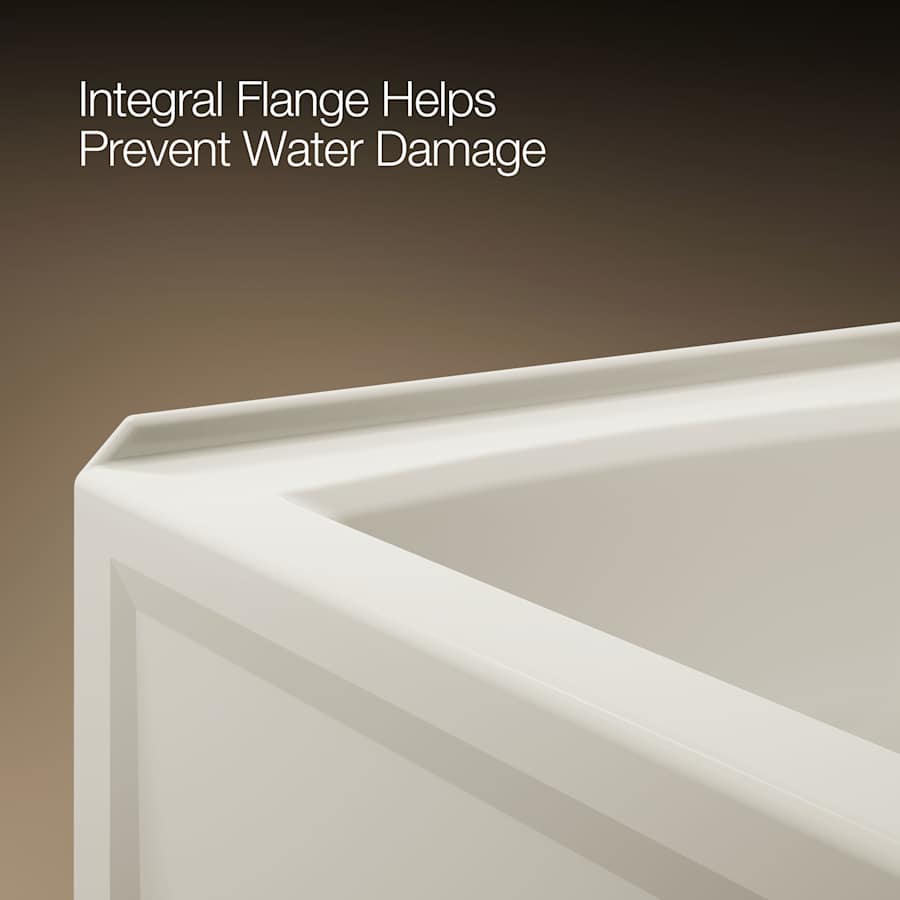

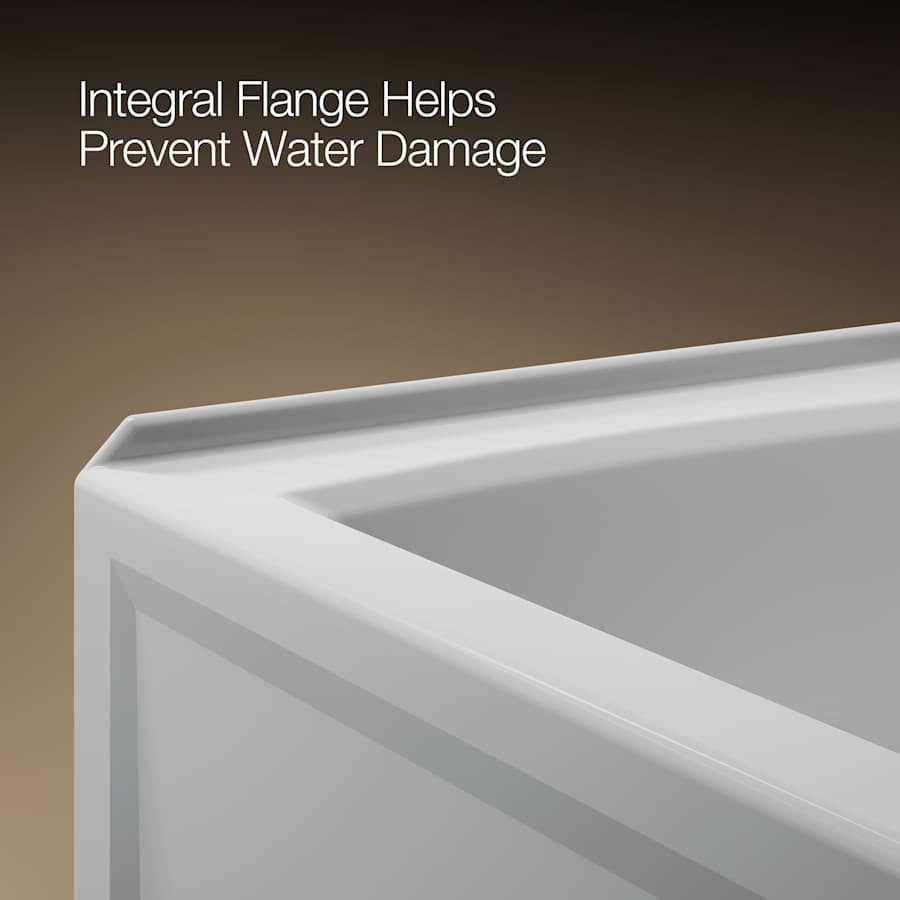

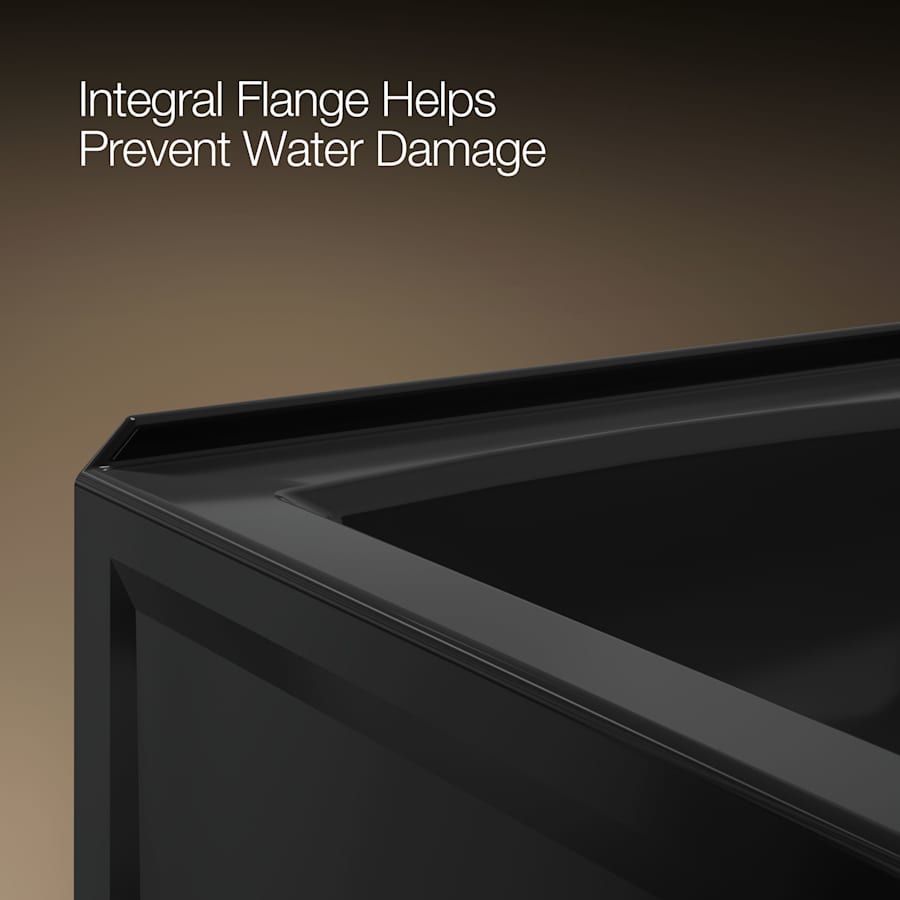

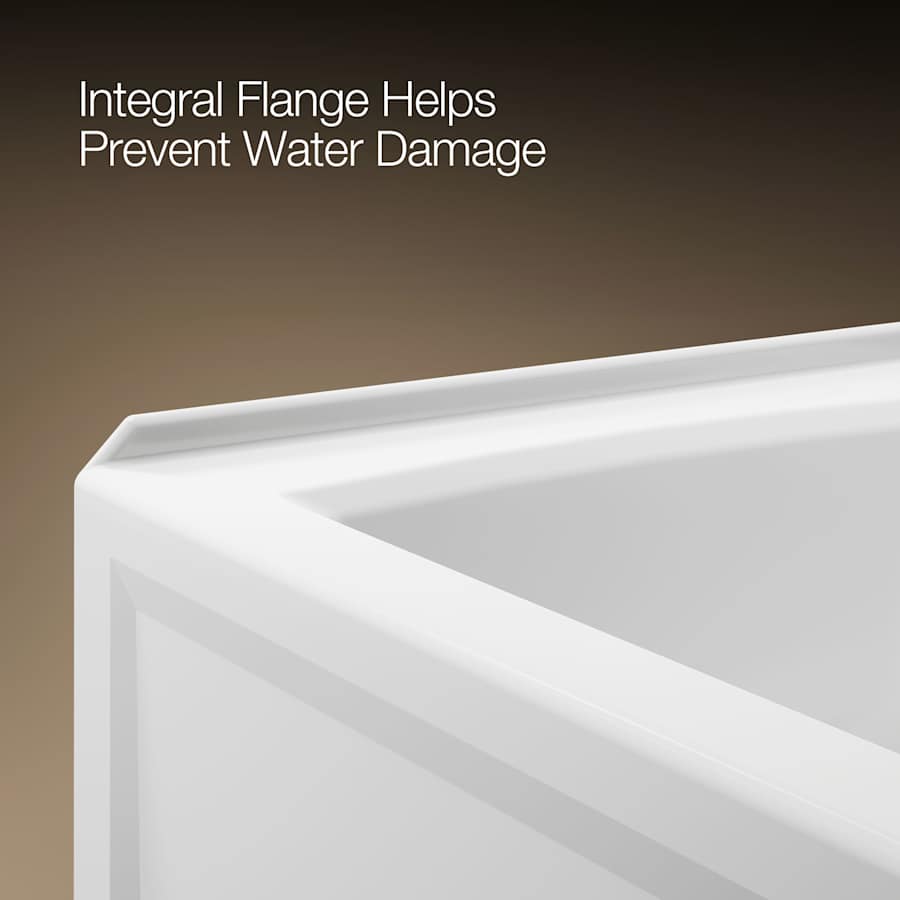

| Flange | Yes |

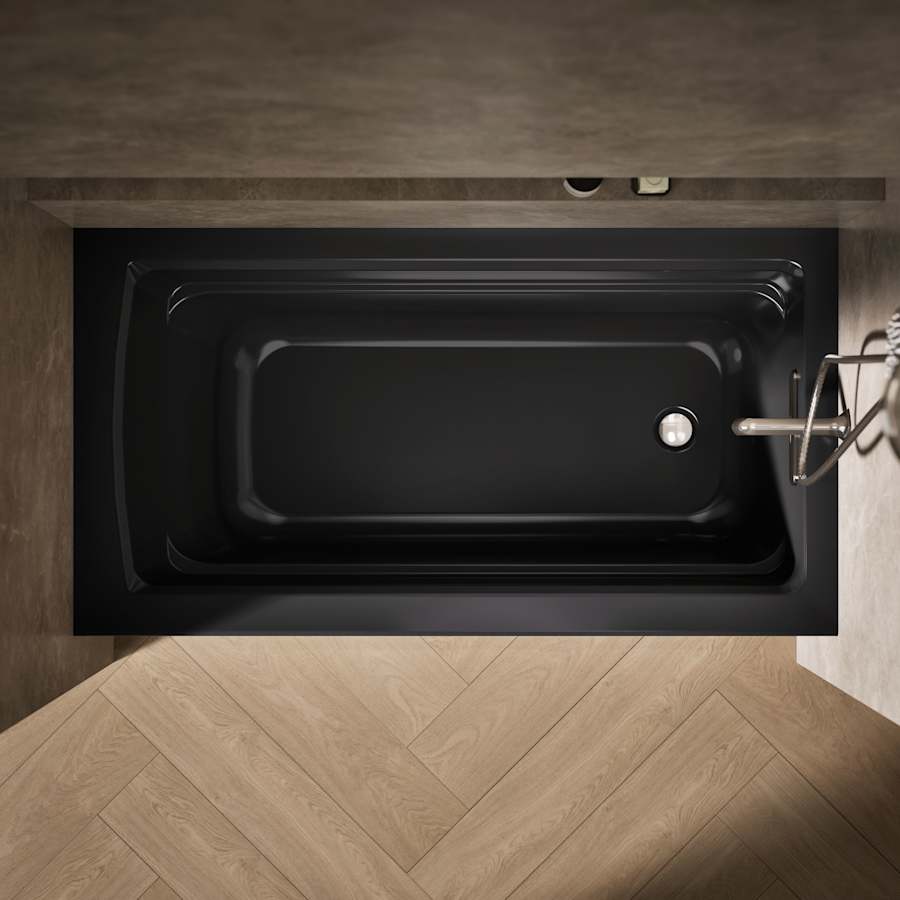

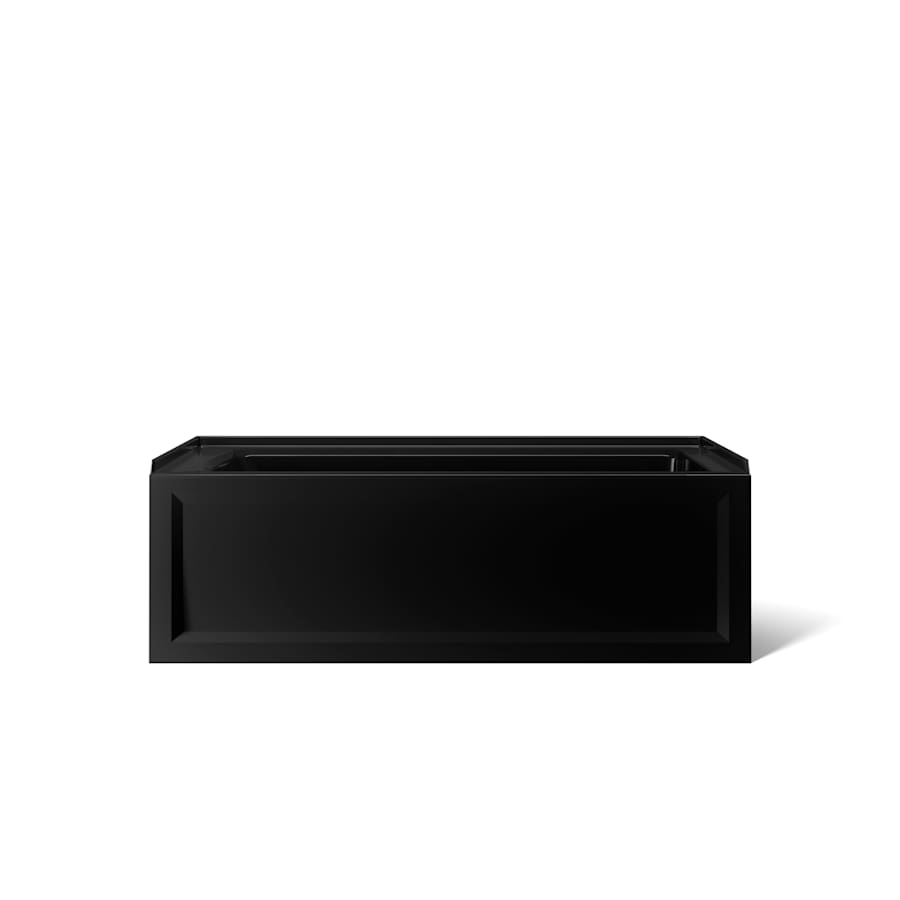

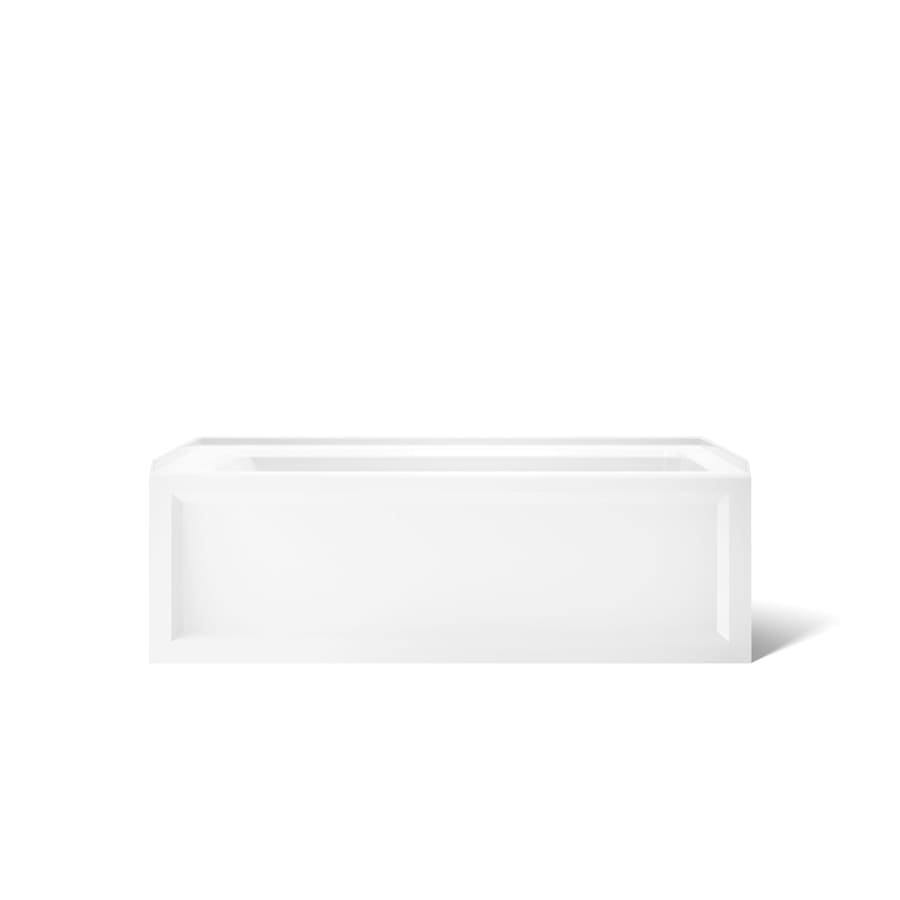

| Color | Almond, Biscuit, Black, Cashmere, Dune, Ice Grey, Innocent Blush, Mexican Sand, Sandbar, Skylight, Sunlight, Thunder Grey, White, Wild Rose |
| Color Tone | Blacks, Gold Tones, Greys, Neutrals, Pinks, Steel Tones, Whites |
