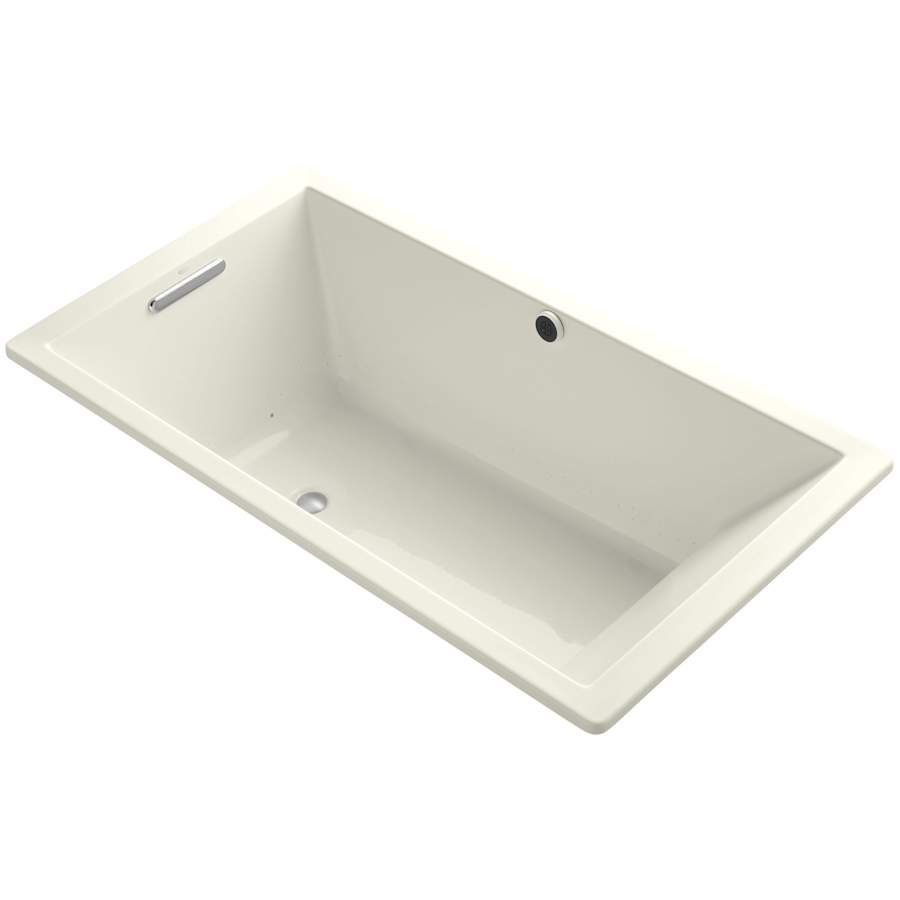

With clean, smooth lines, the Underscore heated Bubblemassage air bath is a welcome retreat to soak away the day’s tension and center your mind. Lay back and melt in the deep bath as strategically-placed airjets release thousands of bubbles to massage your body at the level of intensity you prefer, while the heated surface warms your back and neck with adjustable temperature settings to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger.
Kohler K-1173-GHW Features:
Covered under Kohler’s hydrotherapy component 5 year limited warranty, and tub limited lifetime warranty
Acrylic construction maintains heat longer and is easy to clean
Air bath – air injection system gives the user a unique, relaxing bathing experience

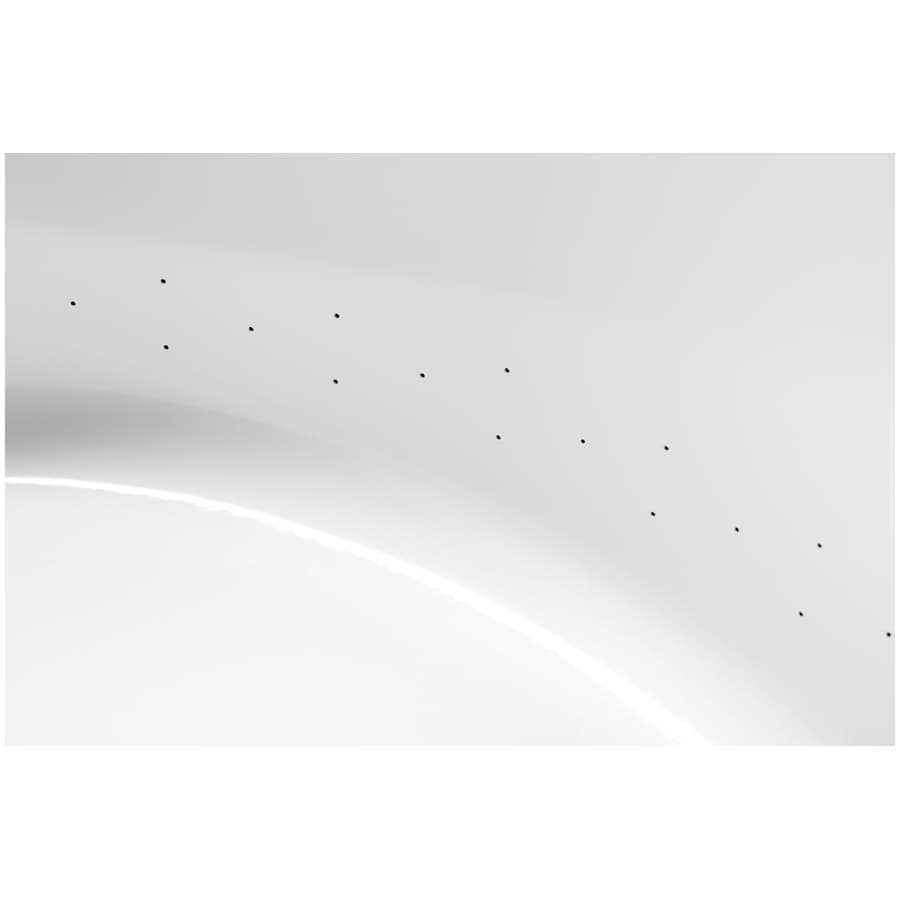

122 Airjets release thousands of heated bubbles that surround, support, and massage the body
Variable-speed blower lets you adjust massage intensity to 18 levels
Automatic and manual purge cycles remove residual water from air channels after use

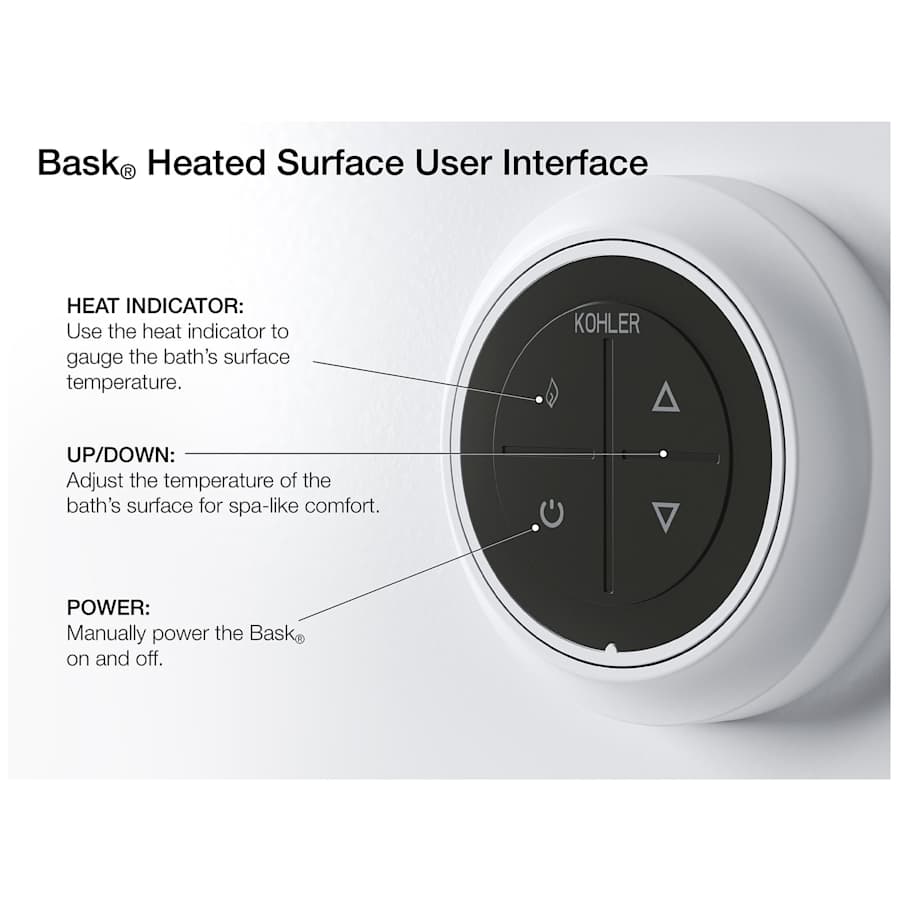

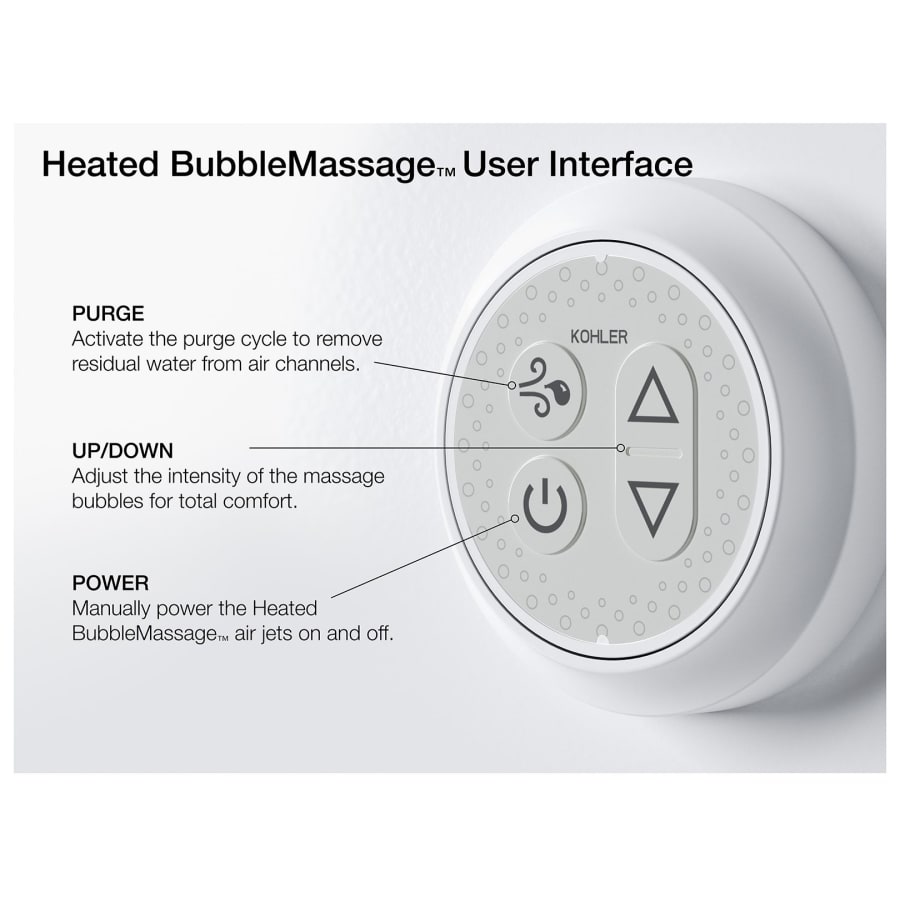

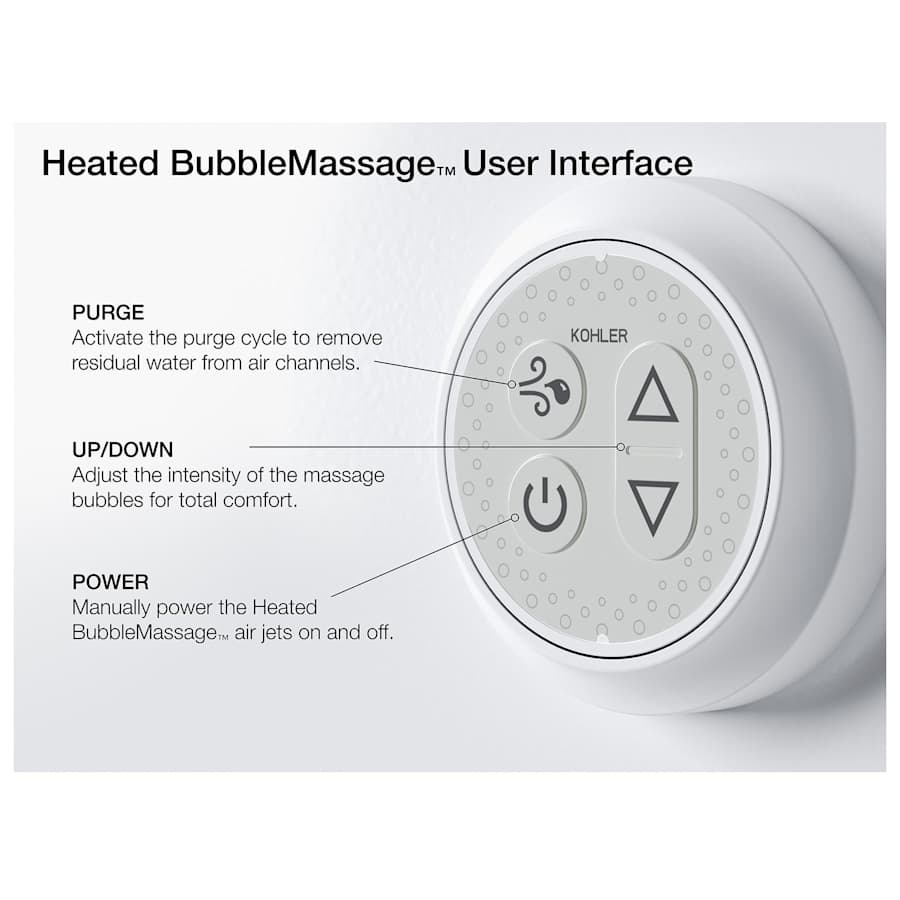

Control all features of your experience tub with a gentle touch of the keypad
60-minute automatic shutoff timer
Installs in a drop in or undermount configuration
An ultra-quiet variable-speed reversible blower allows you to adjust the air injection intensity
Tub features a heater that maintains water temperature for constant bathing comfort
Drain assembly sold separately
Pump is reversible – can be installed on either side
Slotted overflow allows for deep soaking
Integral lumbar support
Textured slip resistant bottom helps prevents falls
Generous 66-in length provides spacious bathing for up to two people
Made in America
Kohler K-1173-GHW Technologies and Benefits:

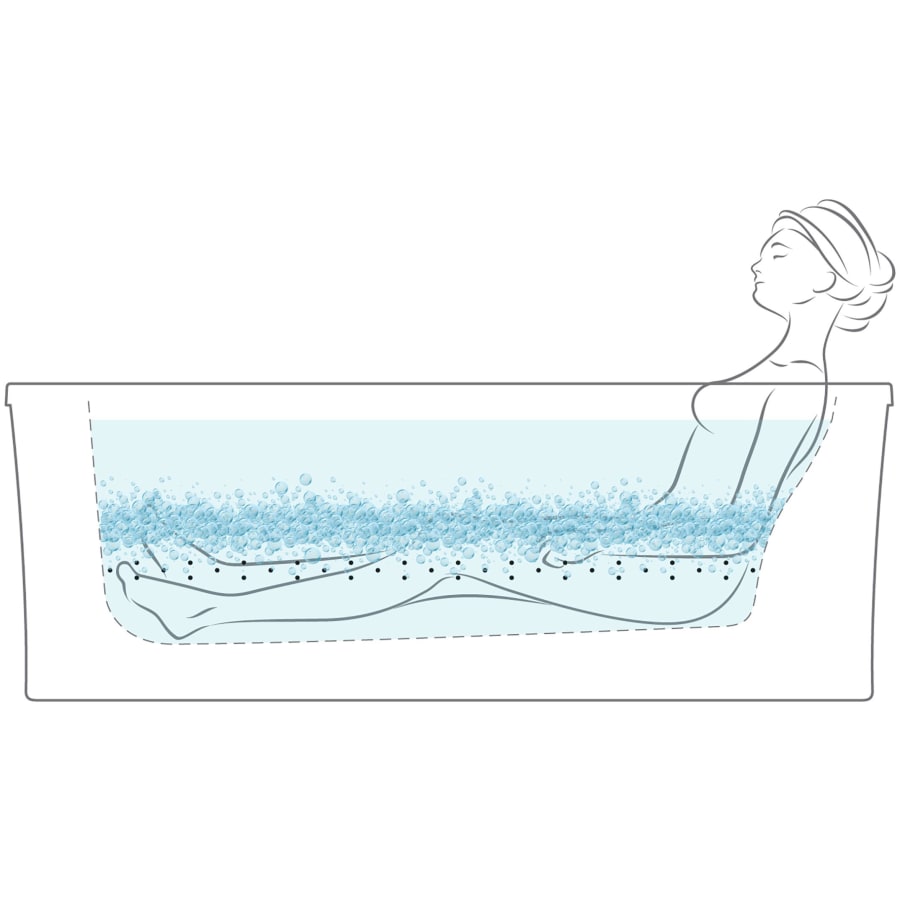

BubbleMassage™: BubbleMassage hydrotherapy delivers thousands of bubbles that thoroughly support and massage your body for an invigorating, blissful experience. The strategic placement of the BubbleMassage air jets on the lower perimeter of the bath create a luxurious bathing experience that stimulates the release of muscle tension and helps center the mind.

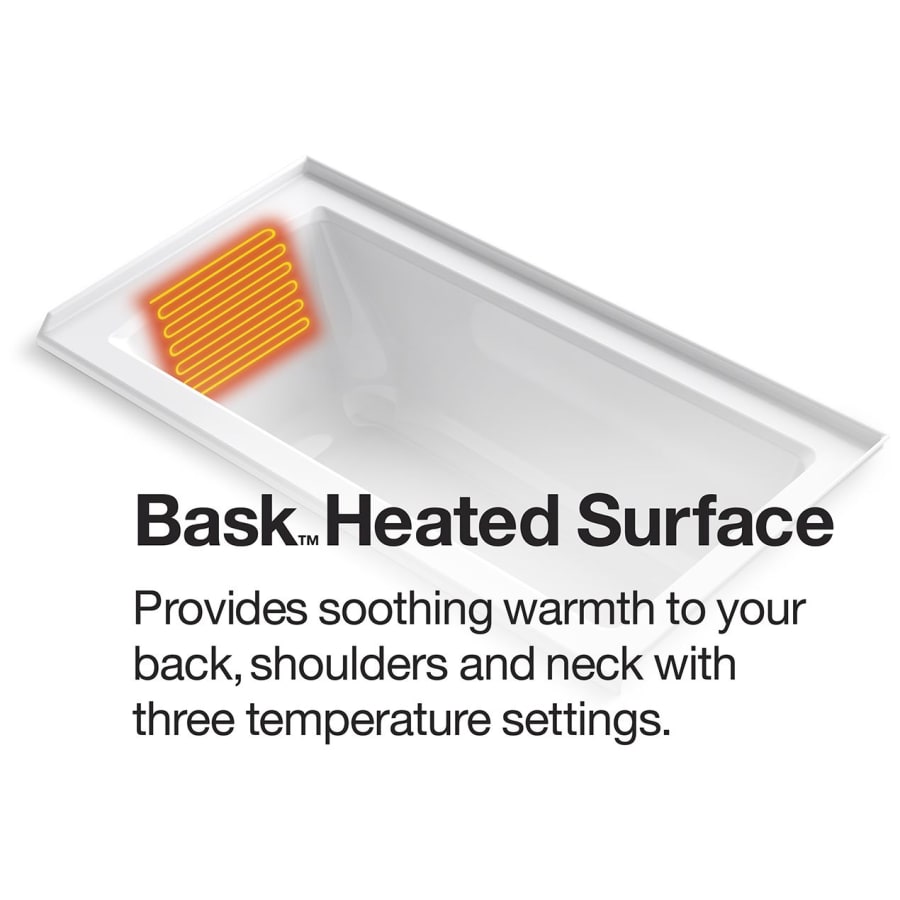

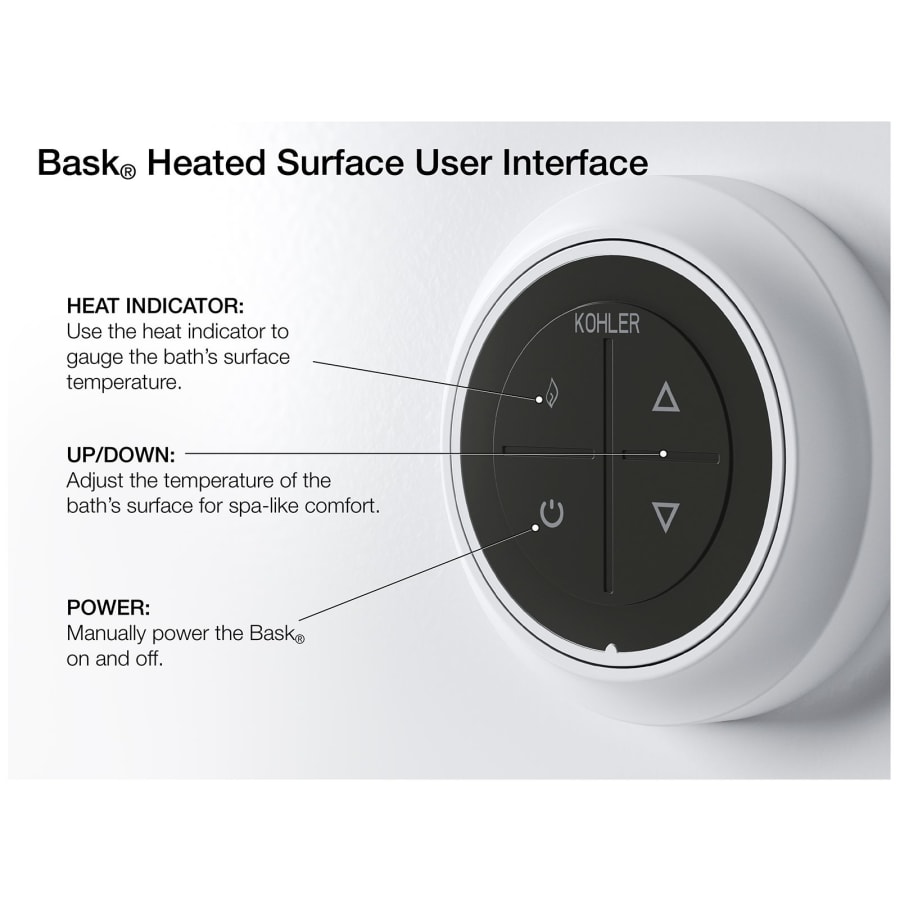

Bask®: Kohler tubs with the Bask heated surface warm your shoulders, back and neck as you bathe, creating a soothing, spa-like environment.
Kohler K-1173-GHW Specifications:
Overall Height: 22″ (bottom to top of tub)
Overall Length: 66″ (left to right of tub)
Overall Width: 36″ (front to back of tub)
Basin Length: 44-1/2″ (left to right of bottom basin)
Basin Width: 26-1/2″ (front to back of bottom basin)
Basin Depth: 21-3/16″ (top to bottom of basin)
Maximum Water Capacity: 102 gallons
Water Depth: 17-3/4″
Amperage: 15 A
Number of Jets: 122
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Underscore Rectangle Collection
Specifications
| Height | 22 in. |
| Width | 36 in. |
| Depth | 21.1875 in. |
| Nominal Width | 36 in. |
| Product Weight | 149 lbs. |
| Capacity (Gallons) | 102 |
| Length | 66 in. |
| Nominal Length | 66 in. |
| Water Depth | 17.75 in. |
| Voltage | 120 |
| Amperage | 15 |
| Collection | Underscore Rectangle |
| Manufacturer Warranty | 5 Year Limited, Limited Lifetime |
| ASSE Code | A112.19.7 |
| Certifications | ASME |
| CSA Code | B45.10, B45.5, C22.2 |
| Made in America | Yes |
| Insulation Type | Drop In, Undermount |
| Material | Acrylic |
| Thermostat | Transitional |
| Accepts Deck Mount Faucet | No |
| Drain Placement | Left, Reversible, Right |
| Number Of Bathers | 1 |
| Overflow | Yes |
| Tub Shape | Rectangular |
| Control Type | Electronic |
| Number of Jets | 122 |
| Pump Placement | Reversible, Right, Left |
| Slip Resistant | Yes |
| Drain Assembly Included | No |
| Faucet Included | No |
| Handshower Included | No |
| Light Included | No |
| Color | Biscuit, Black Black, Dune, Ice Grey, Thunder Grey, White |
| Color Tone | Blacks, Greys, Neutrals, Whites |
