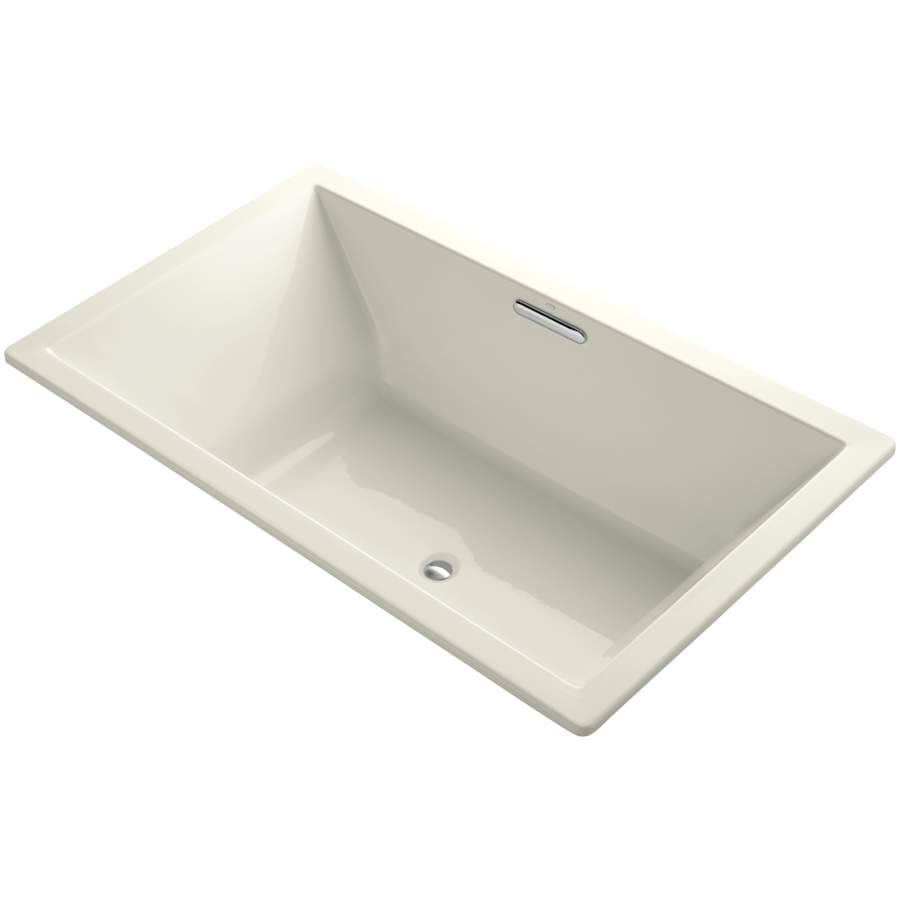

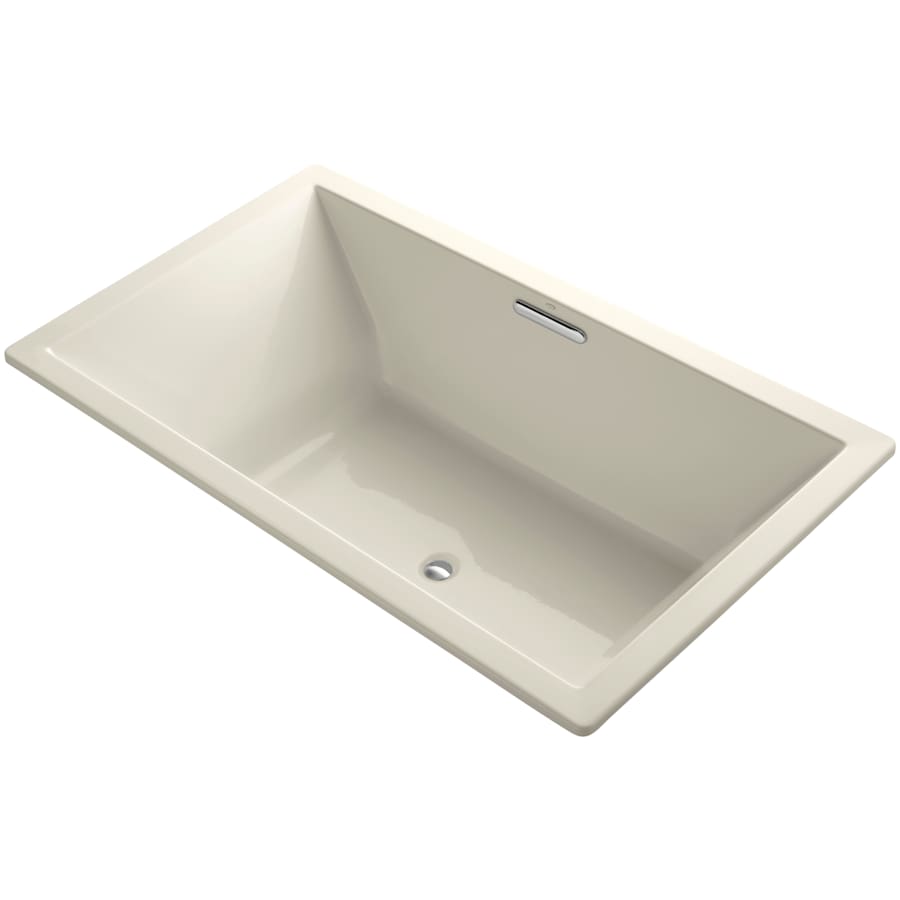

Product Features:
Kohler tubs are fully covered under warranty for up to a year after installation
Tub constructed of acrylic, a strong and flex-resistant material that is chip-resistant and easy to clean
Soaking tub – provides the user with a soothing and relaxing bathing experience
Streamlined for simplicity, baths from the Underscore collection exude refined style and contemporary flair
Installs in a drop-in or undermount configuration
Tub comes standard with molded lumbar support, furthering the user’s comfort
Equipped with an overflow assembly, permitting the user to enjoy a deep soak without worrying about spillage
Product Meets or Exceeds the Following Codes/Standards: CSA B45.5, C22.2; UL 1795
Product Technologies / Benefits:
Material – Acrylic: A strong, flex resistant material with a smooth finish that is easy to clean and resists chipping and cracking.

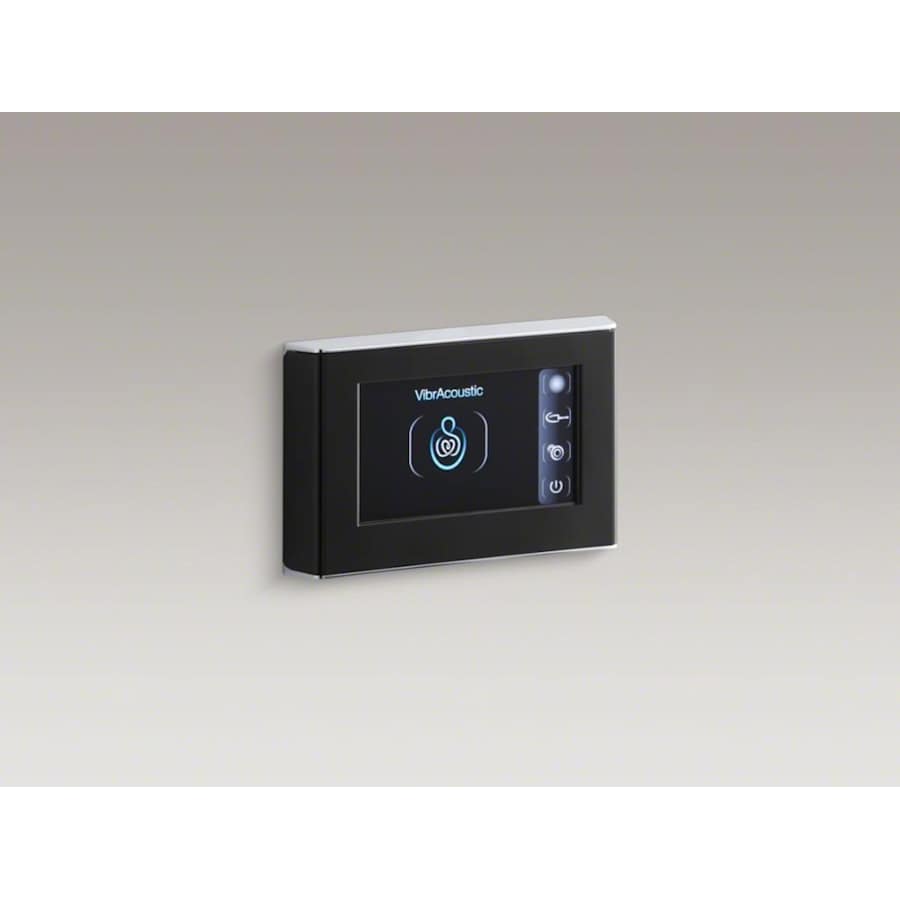

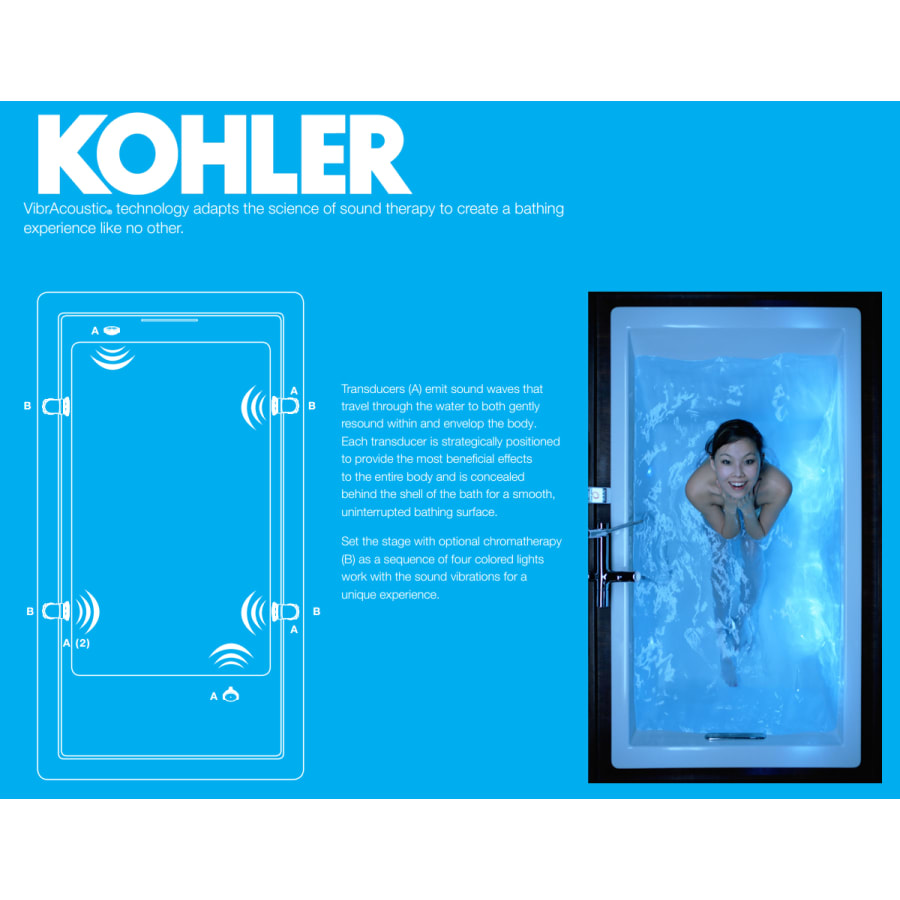

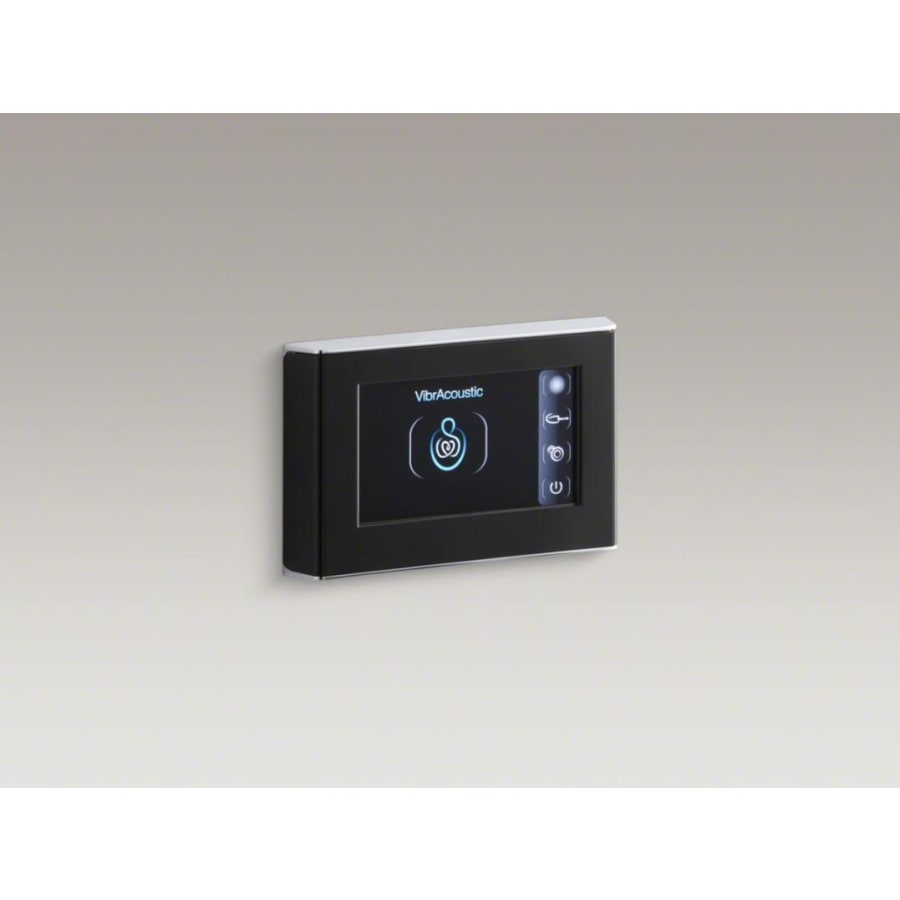

VibrAcoustic: VibrAcoustic sound panels allow the user to enjoy music in a whole new environment, allowing the tub to resonate with high quality sound and transmitting rhythmic vibrations throughout the bathwater. On tubs equipped with Chromatherapy lighting, music and ambient lighting are choreographed. VibrAcoustic tubs come preloaded with four compositions and sync with personal media devices via Bluetooth.
Product Specifications:
Overall Height: 23″ (measured from top of tub rim to bottom of basin)
Overall Width: 42″ (measured from back most to front most point on outer rim)
Overall Length: 72″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 32″ (back to front measurement at bottom of basin walls
Basin Length (Bottom): 45-3/4″ (left to right measurement at bottom of basin walls)
Basin Width (Top): 36″ (back to front measurement at top of basin walls)
Basin Length (Top): 66″ (left to right measurement at top of basin walls)
Water Depth: 19″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 139 gallons
Drain Location: Reversible
Drop-In Cutout Required: 70-1/2″ x 40-1/2″
Requires 110V electrical service
Includes amplifier and 25 feet of wiring
Variations of K-1174-VB:
K-1137: soaking bath version of this tub
K-1137-W1: soaking bath and bask heated surface version of this tub
K-1174-G: bubblemassage air bath version of this tub
K-1174-GCR: bubblemassage air bath and chromatherapy version of this tub
K-1174-GCW: bubblemassage air bath and bask heated surface and chromatherapy version of this tub
K-1174-GVB: vibracoustic and bubblemassage air bath version of this tub
K-1174-GVBCW: vibracoustic and bubblemassage air bath and bask heated surface and chromatherapy version of this tub
K-1174-GW: bubblemassage air bath and bask heated surface version of this tub
K-1174-H2: whirlpool and heater version of this tub
K-1174-VBC: vibracoustic and chromatherapy version of this tub
K-1174-VBCW: vibracoustic and chromatherapy and bask heated surface version of this tub
K-1174-VBW: vibracoustic and bask heated surface version of this tub
K-1174-XH2G: whirlpool and bubblemassage air bath version of this tub
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Underscore Collection
Specifications
| Width | 42 in. |
| Height | 23 in. |
| Length | 72 in. |
| Nominal Length | 72 in. |
| Product Weight | 90 lbs. |
| Backplate Depth | 22 in. |
| Nominal Width | 42 in. |
| Capacity (Gallons) | 139 |
| Overflow Height | 20.25, 19 in. |
| Water Depth | 19 in. |
| Tub Size | Over 60 Inches |
| Insulation Type | Undermount, Drop In |
| Material | Acrylic |
| Thermostat | Modern |
| Drain Placement | Reversible |
| Overflow | Yes |
| Control Type | Digital |
| Apron Front | No |
| Number Of Bathers | 1, 2 |
| Self Leveling Base | No |
| Slip Resistant | No |
| Tub Shape | Rectangular |
| Collection | Underscore |
| Manufacturer Warranty | 1 Year Limited |
| ADA | No |
| Certifications | UL, CSA |
| CSA Code | B45.5, C22.2 |
| Drain Assembly Included | No |
| Light Included | No |
| Heater Included | No |
| Tile Flange | No |
| Walk-In Tub | No |
| Voltage | 120 |
| Frequency | 50, 60 Hertz |
| Amperage | 15 |
| Color | Almond, Biscuit, Black Black, Cashmere, Dune, Ice Grey, Mexican Sand, Sandbar, Thunder Grey, White |
| Color Tone | Blacks, Greys, Neutrals, Whites |
