Product Features:
Kohler tubs are fully covered under warranty for up to a year after installation
Tub constructed of acrylic, a strong and flex-resistant material that is chip-resistant and easy to clean
Soaking tub – provides the user with a soothing and relaxing bathing experience
Streamlined for simplicity, baths from the Underscore collection exude refined style and contemporary flair

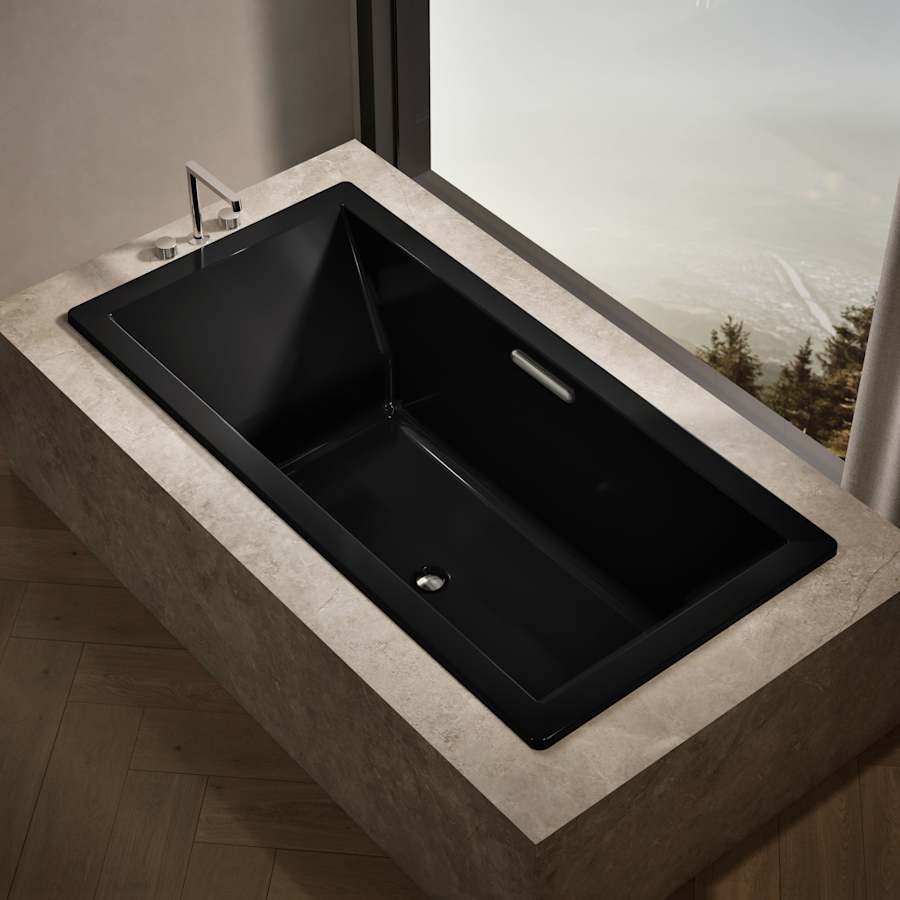

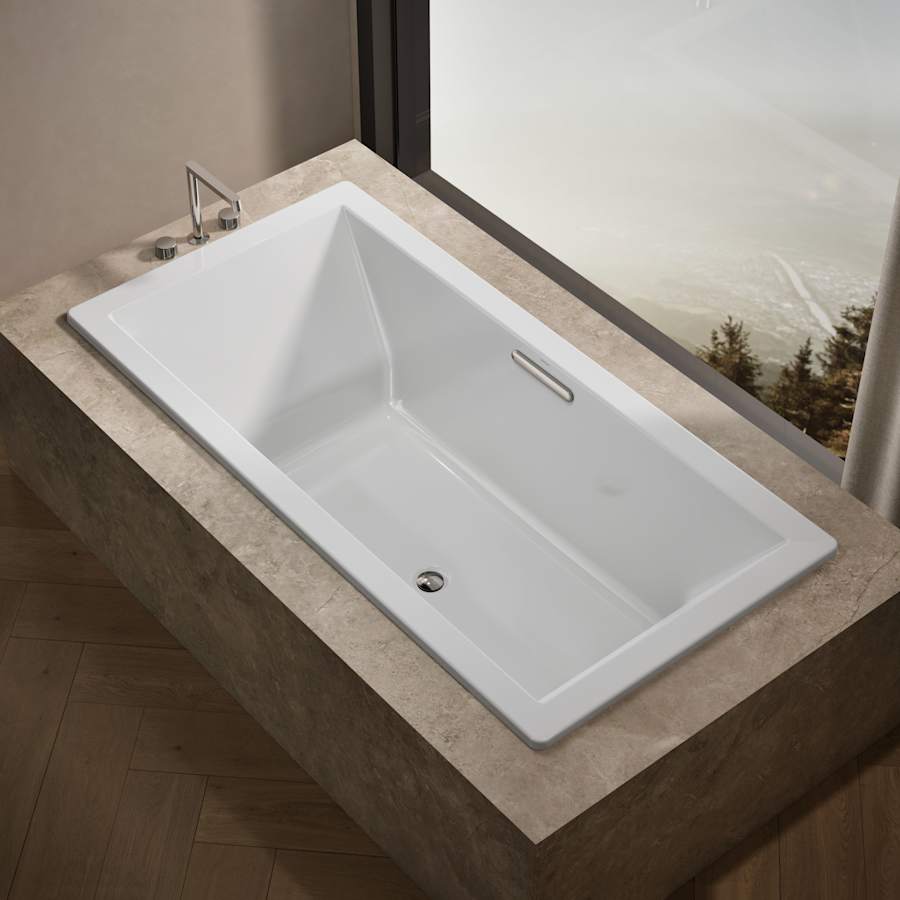

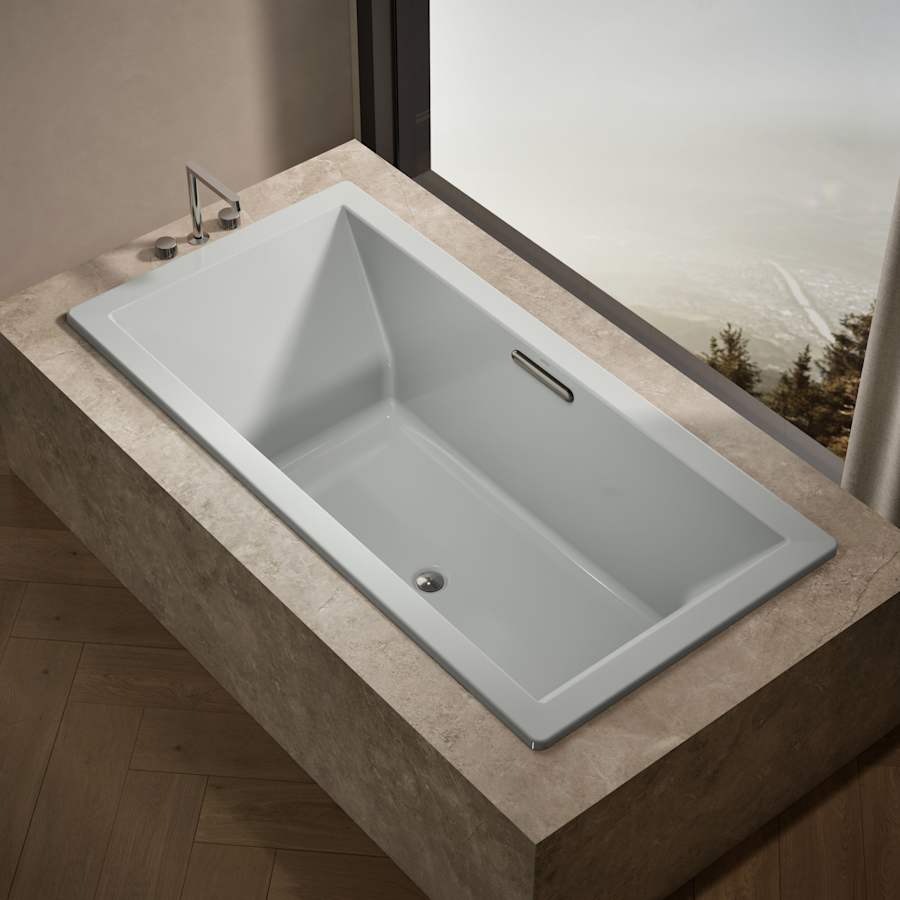

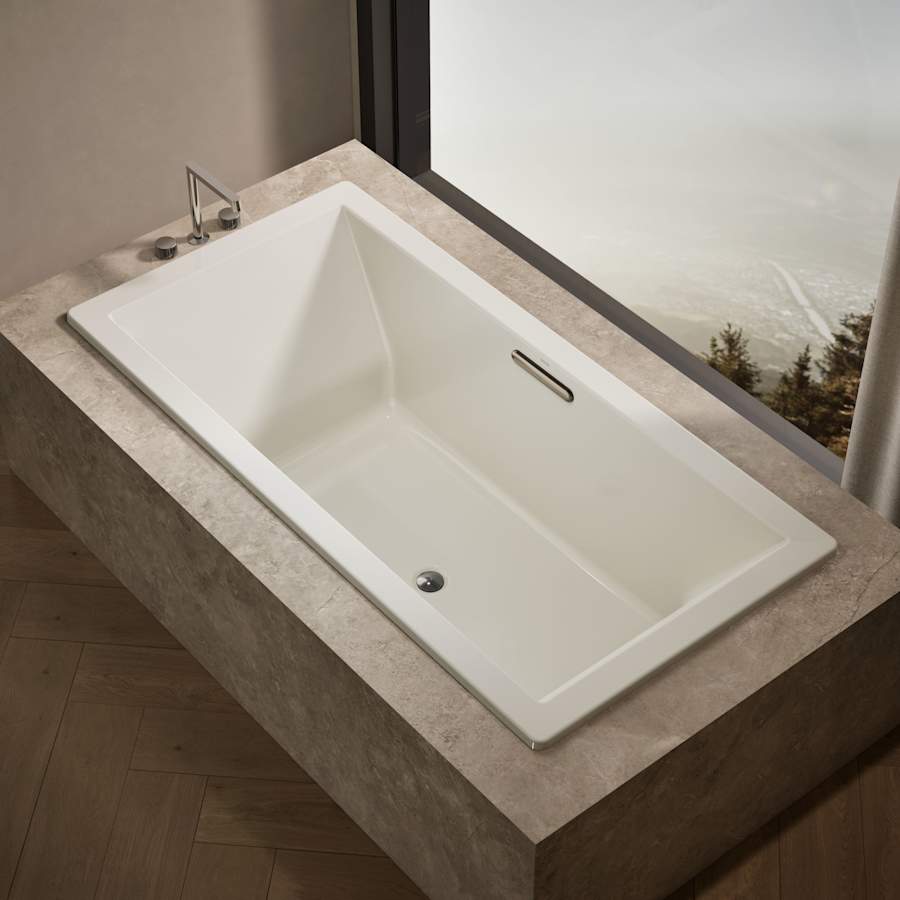

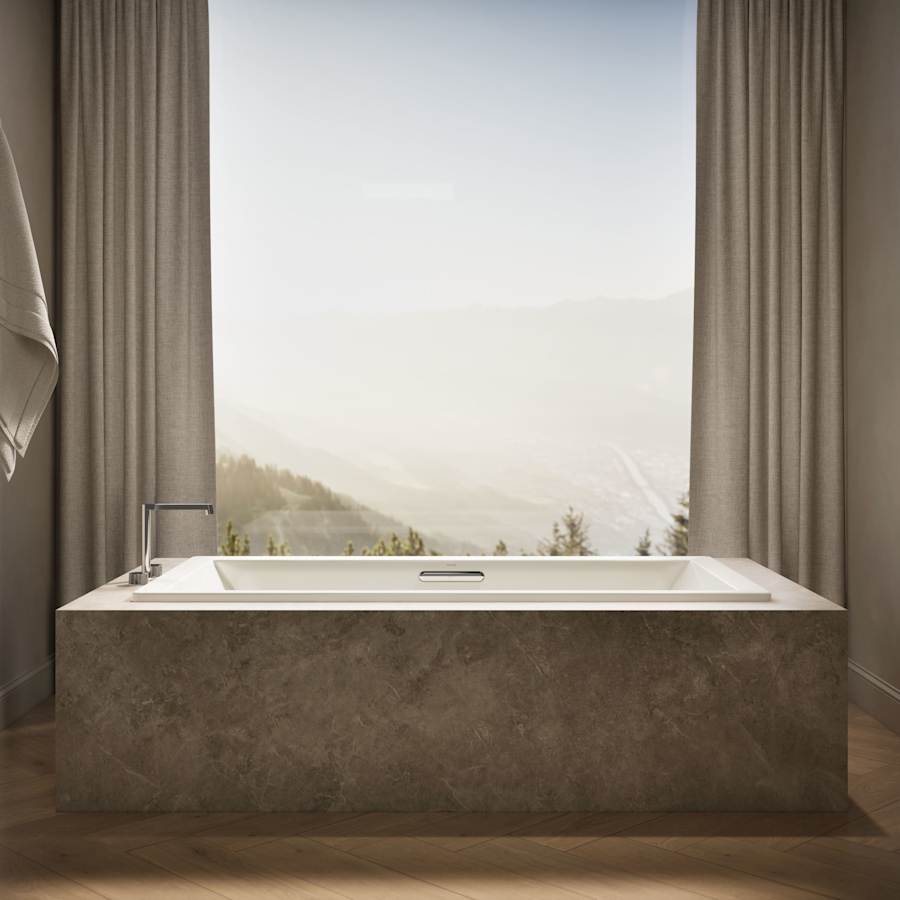

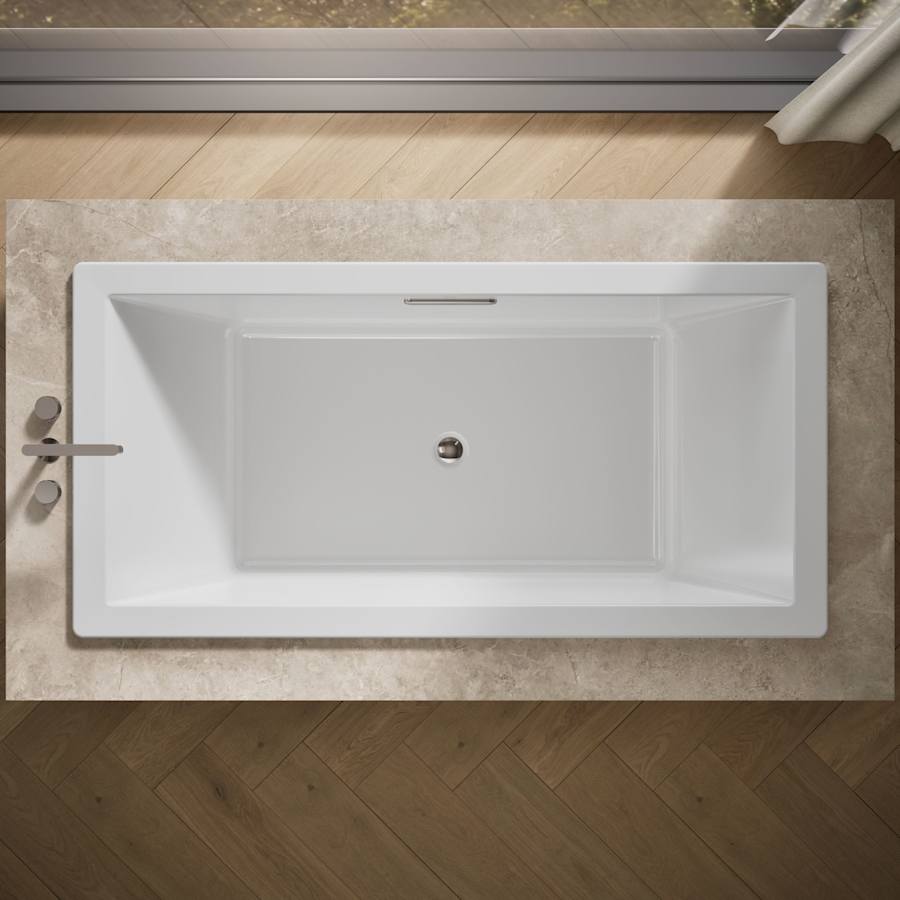

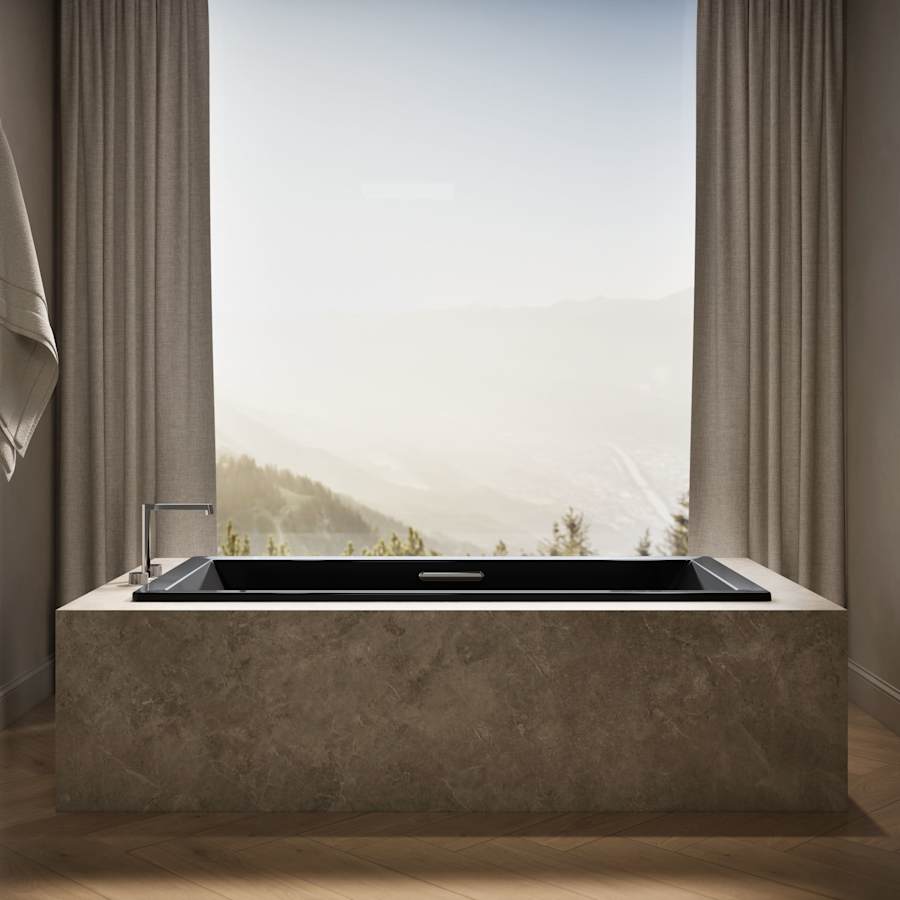

Installs in a drop-in configuration

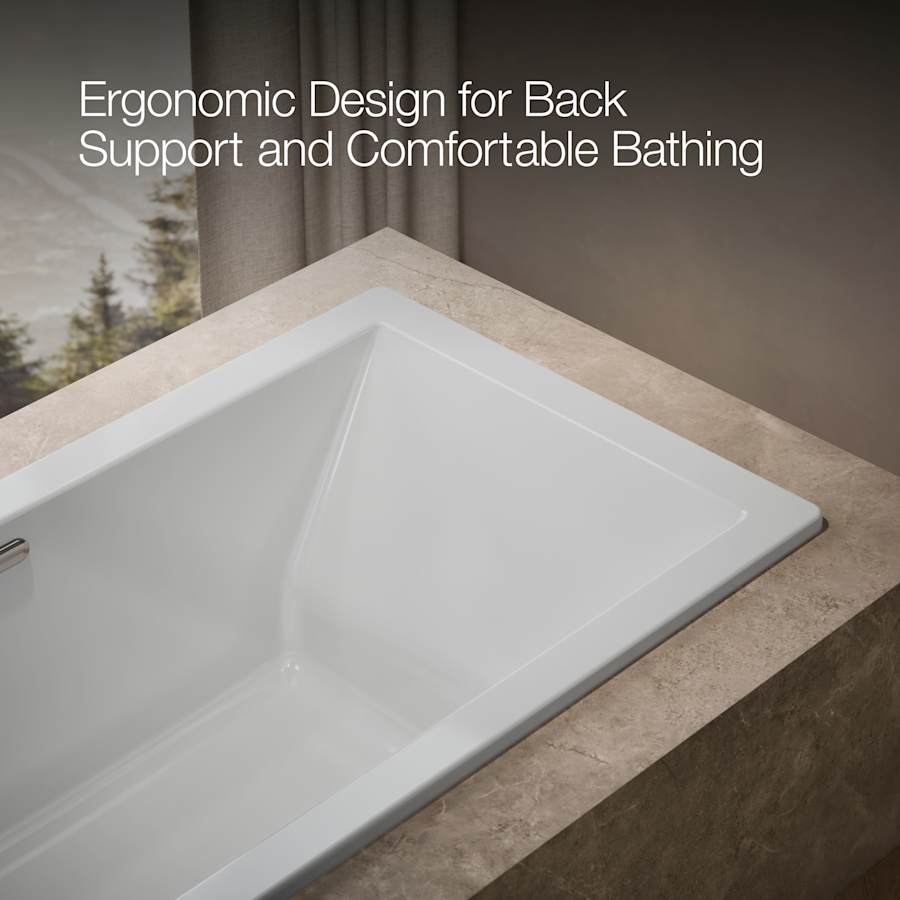

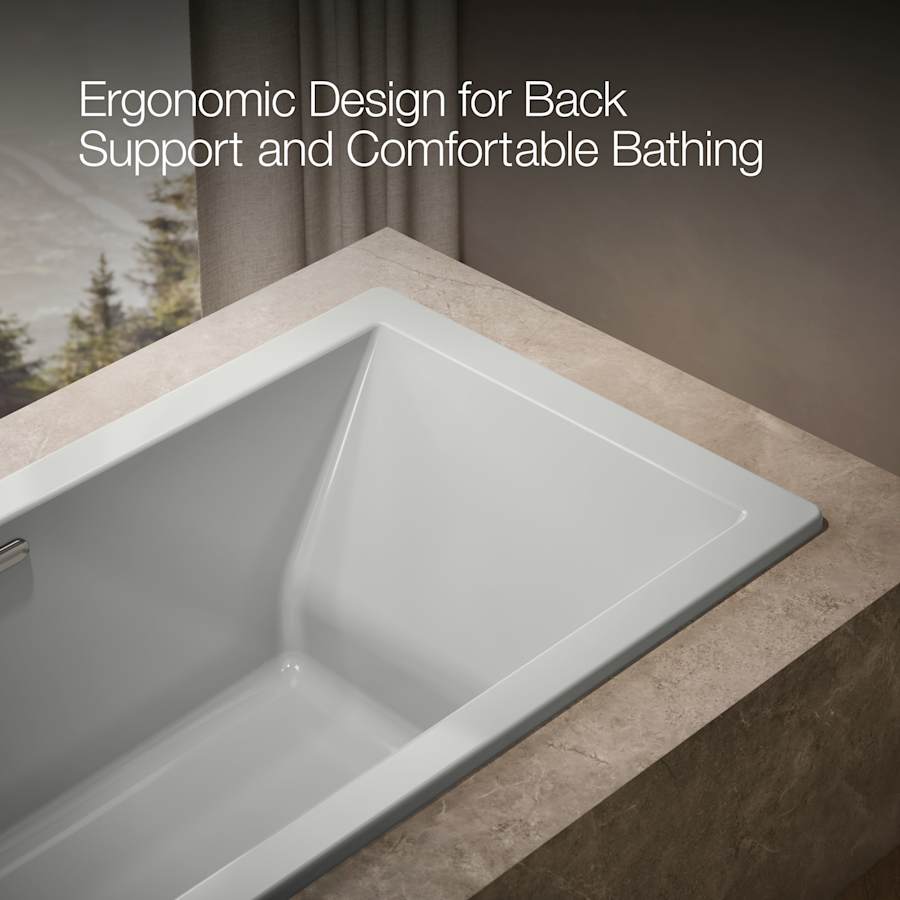

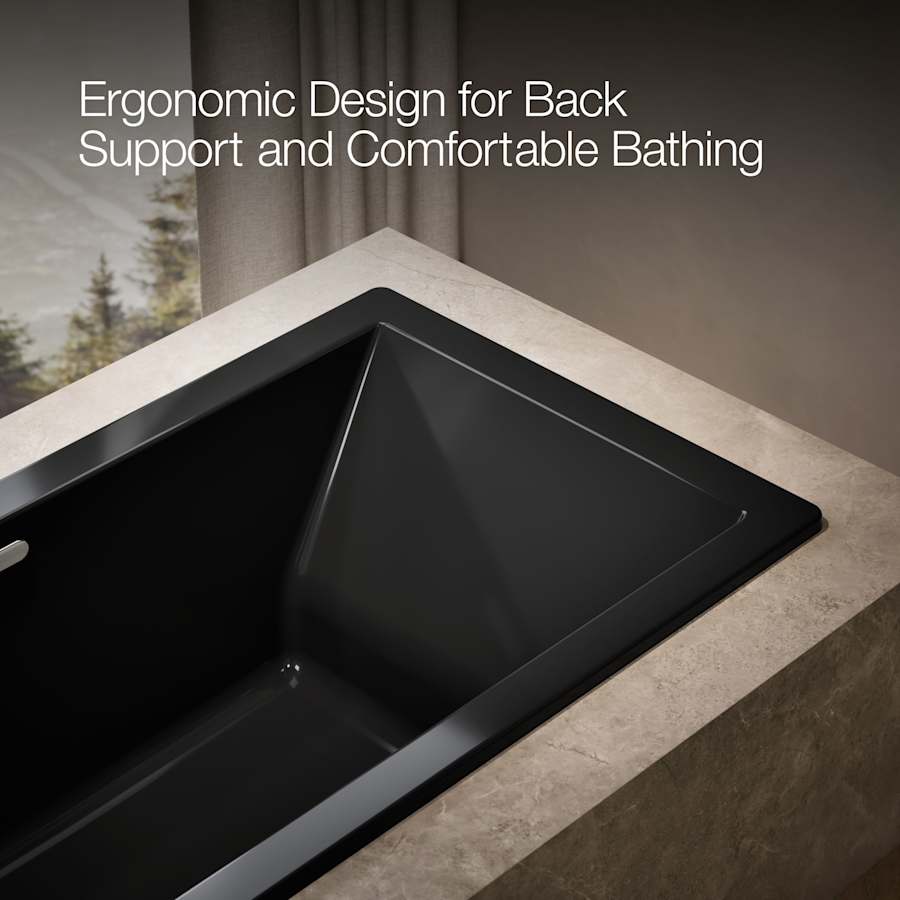

Tub comes standard with molded lumbar support, furthering the user’s comfort

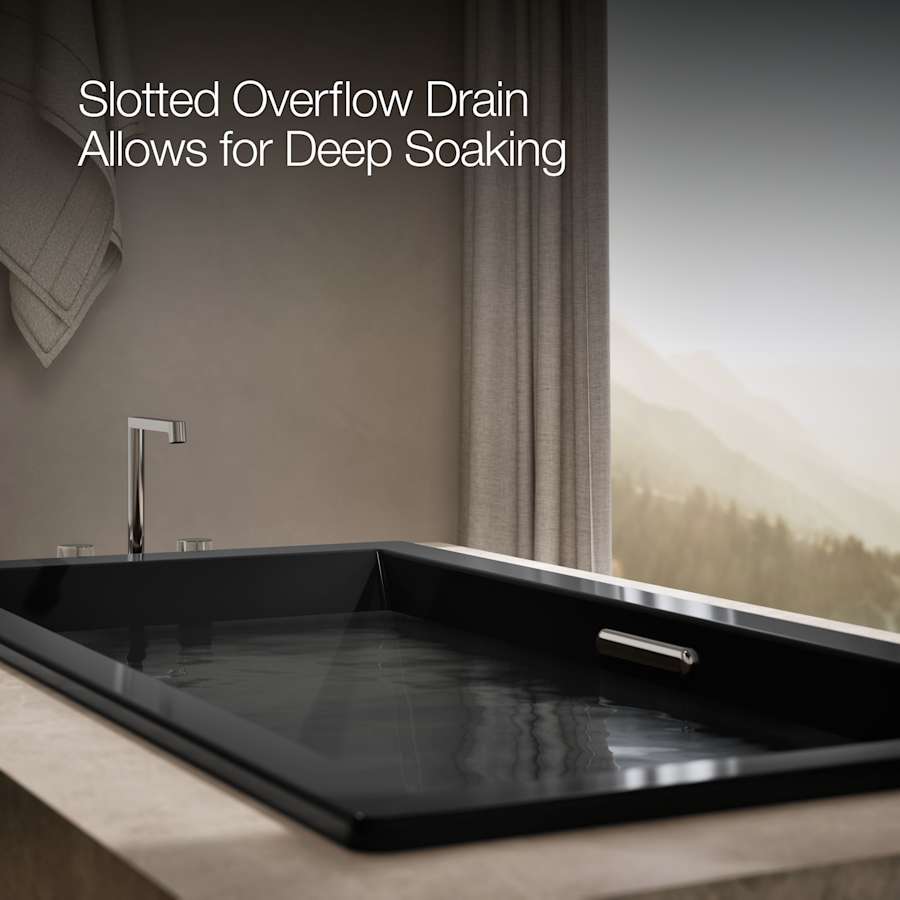

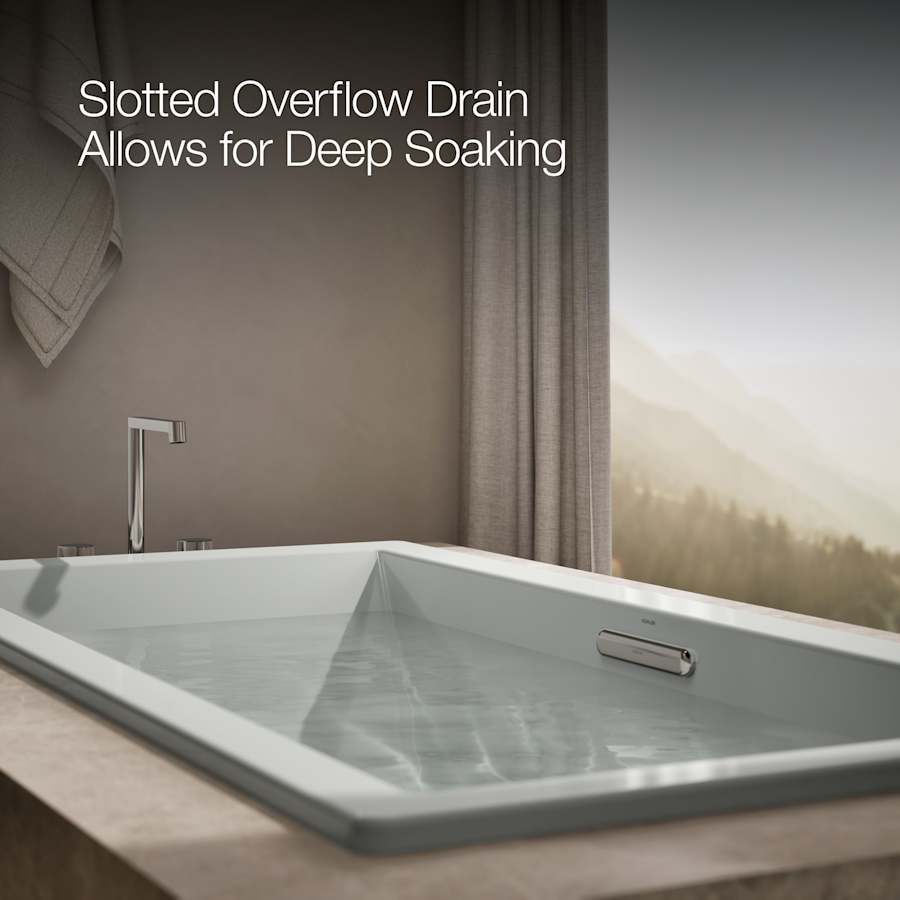

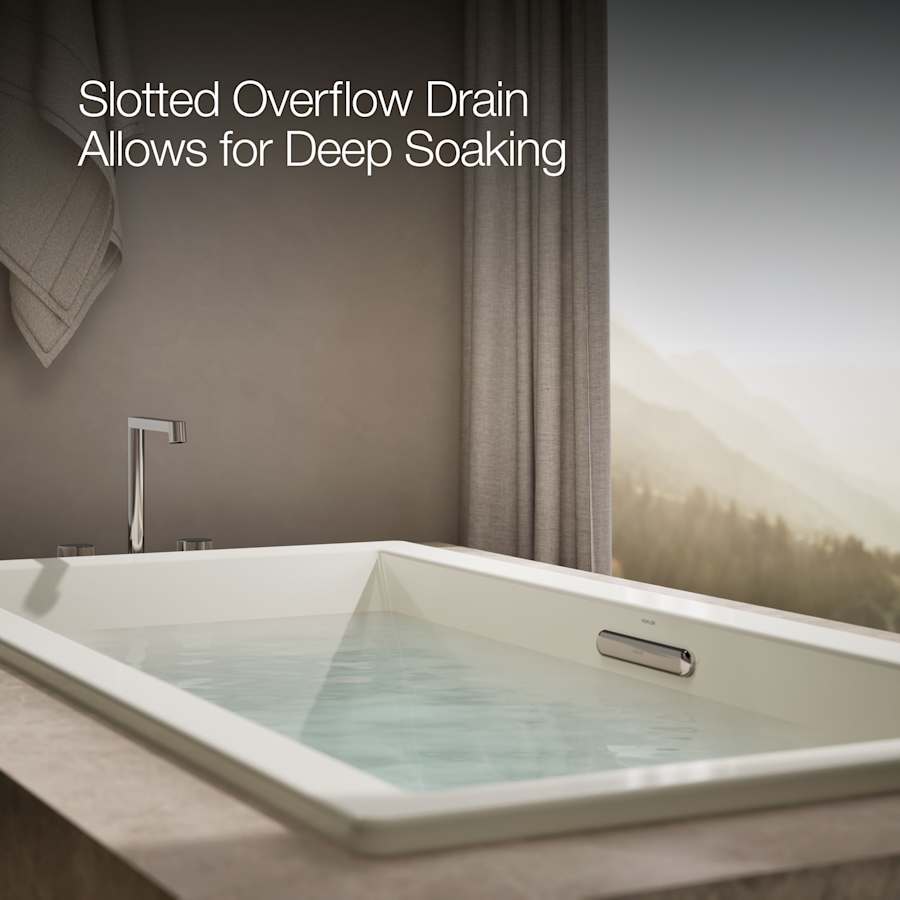

Equipped with an overflow assembly, permitting the user to enjoy a deep soak without worrying about spillage
Product Meets or Exceeds the Following Codes/Standards: CSA B45.5, B45.0; ANSI A117.1
Product Technologies / Benefits:

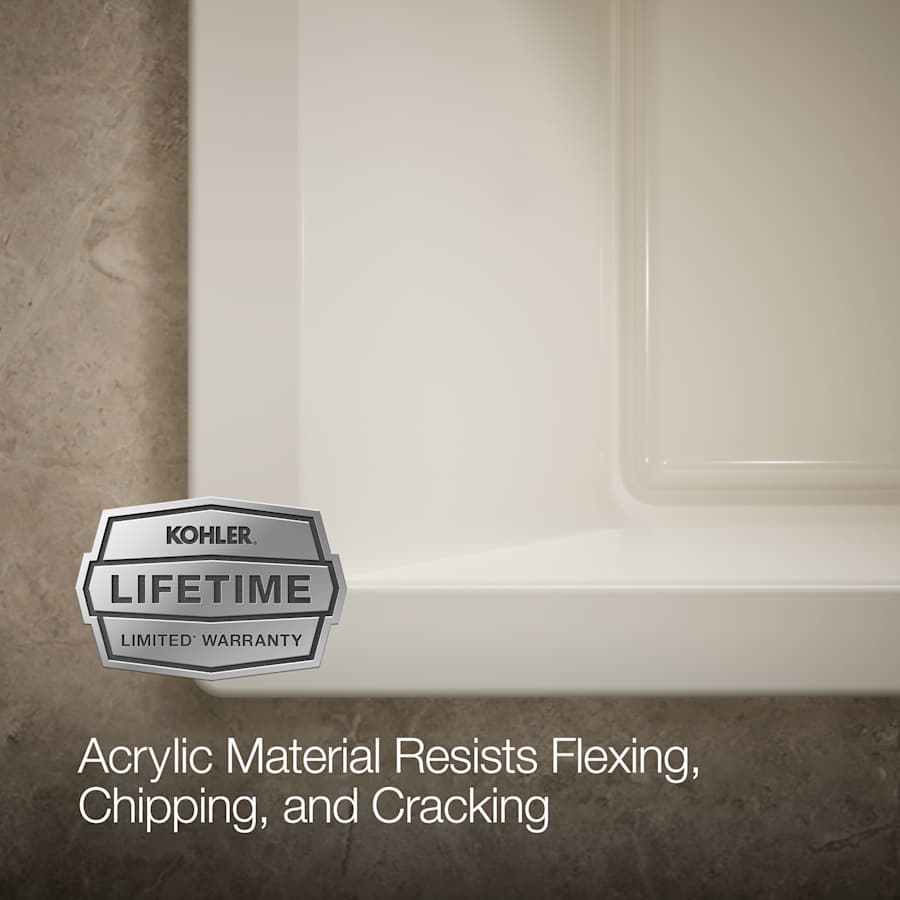

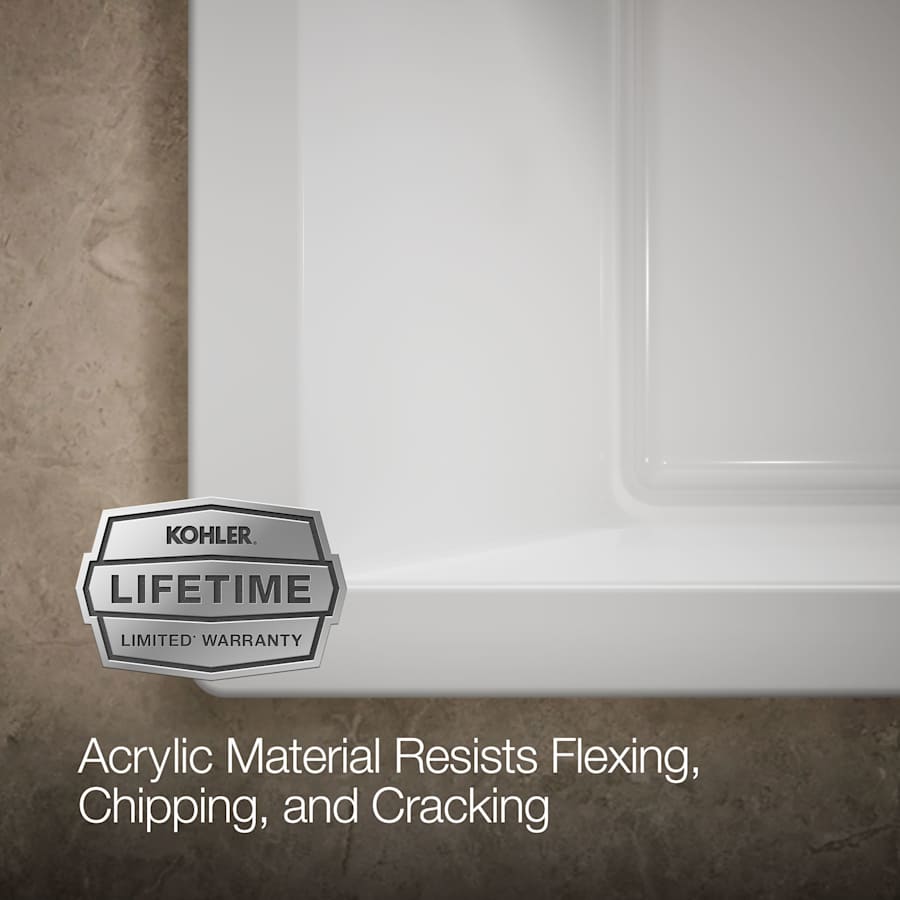

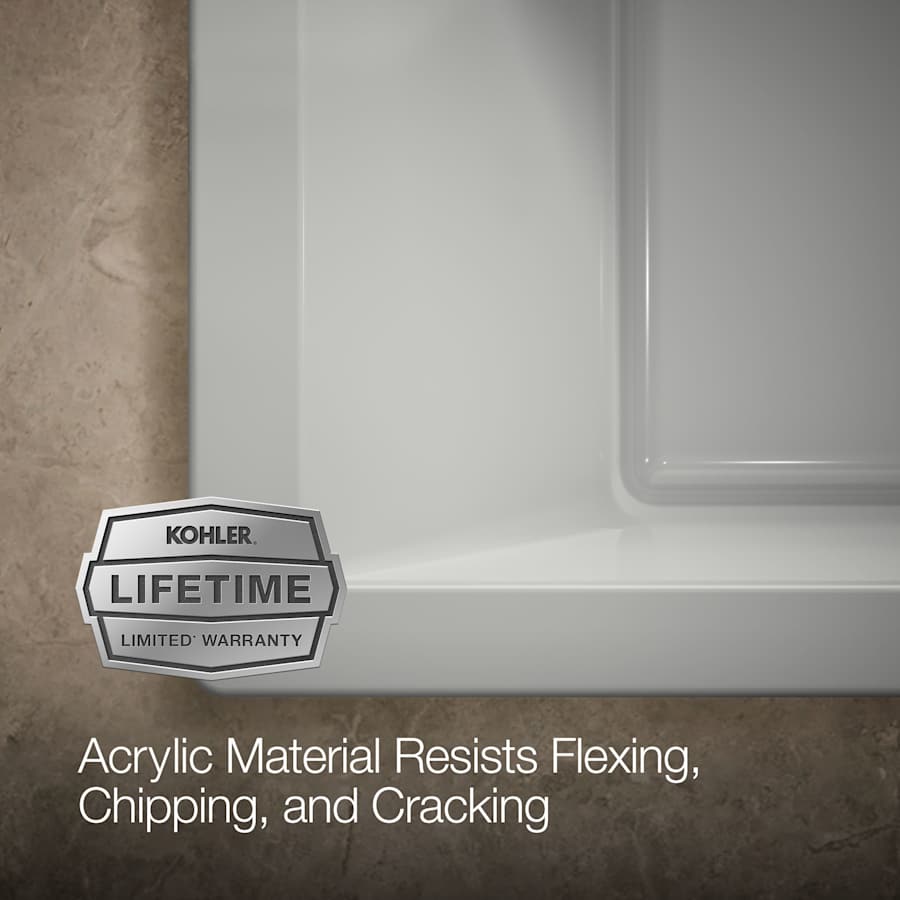

Material – Acrylic: A strong, flex resistant material with a smooth finish that is easy to clean and resists chipping and cracking.
Product Specifications:

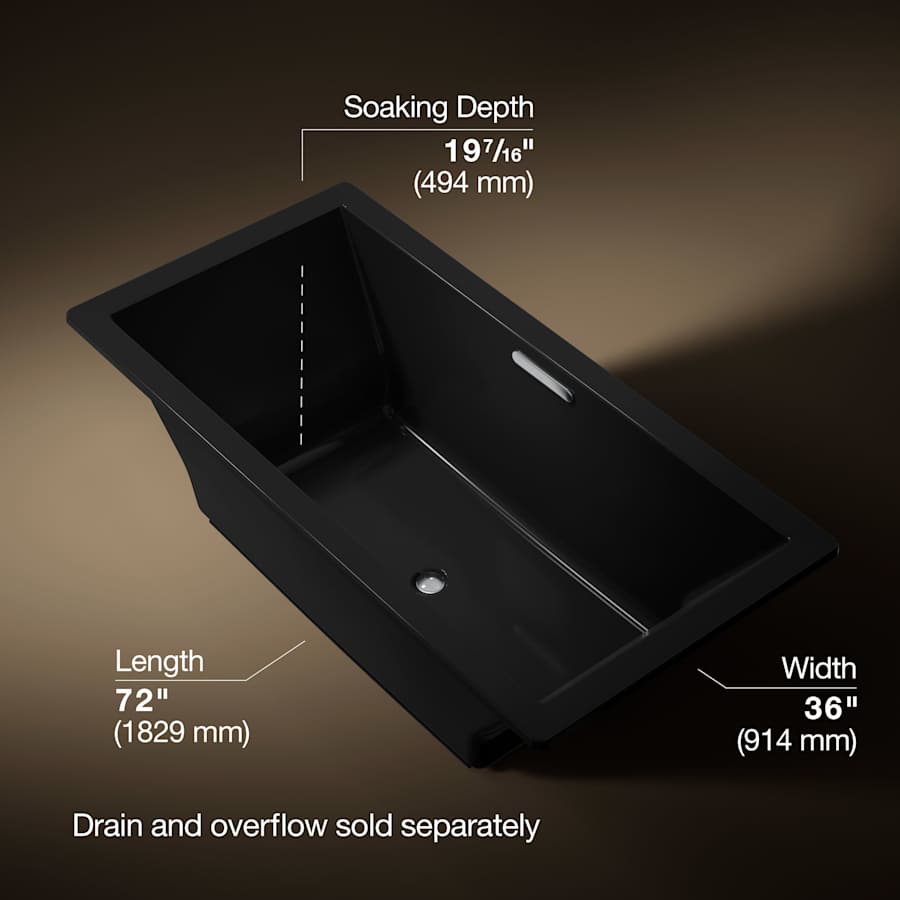

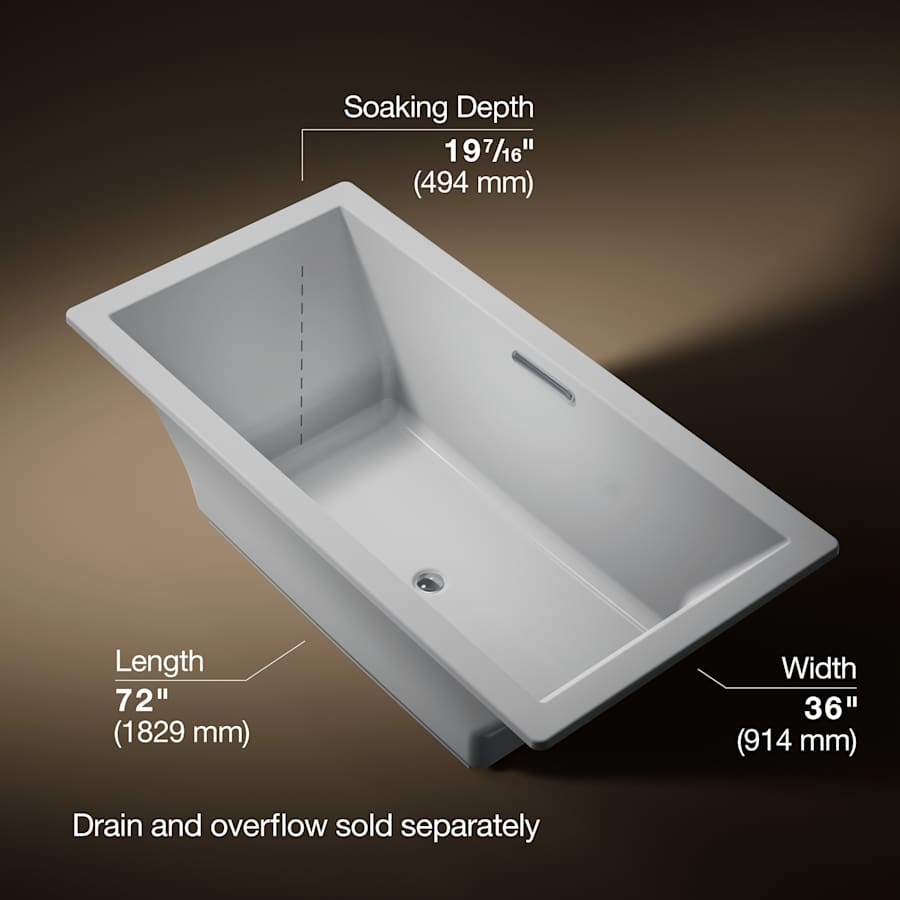

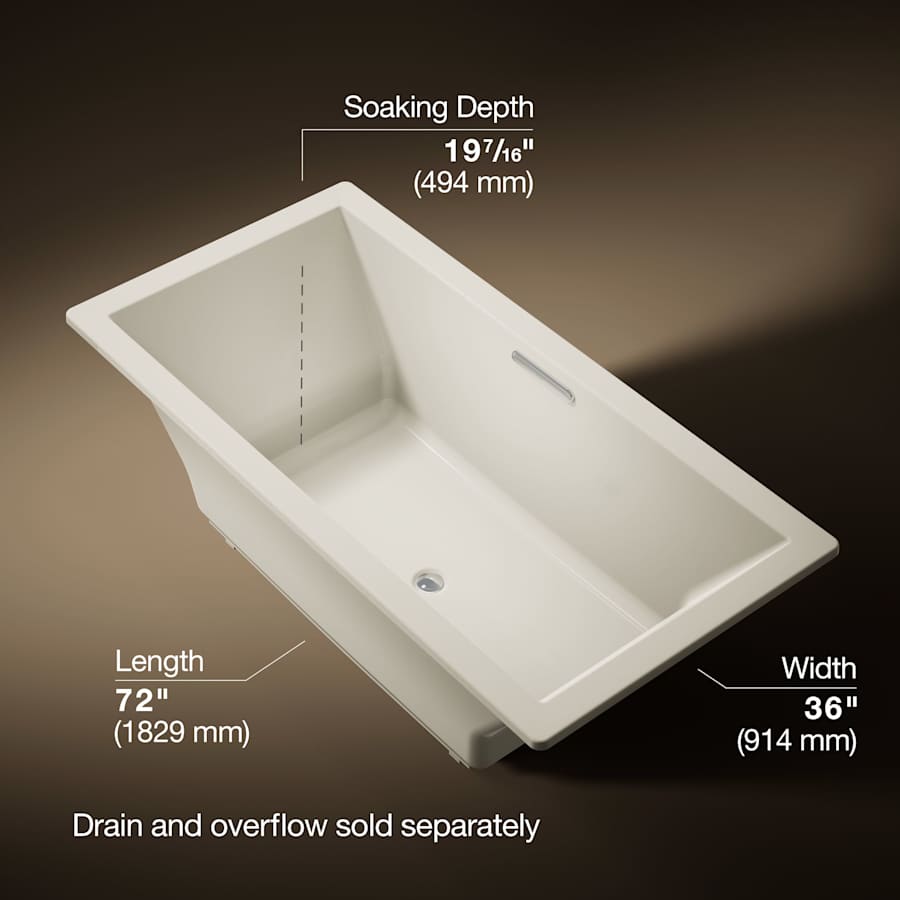

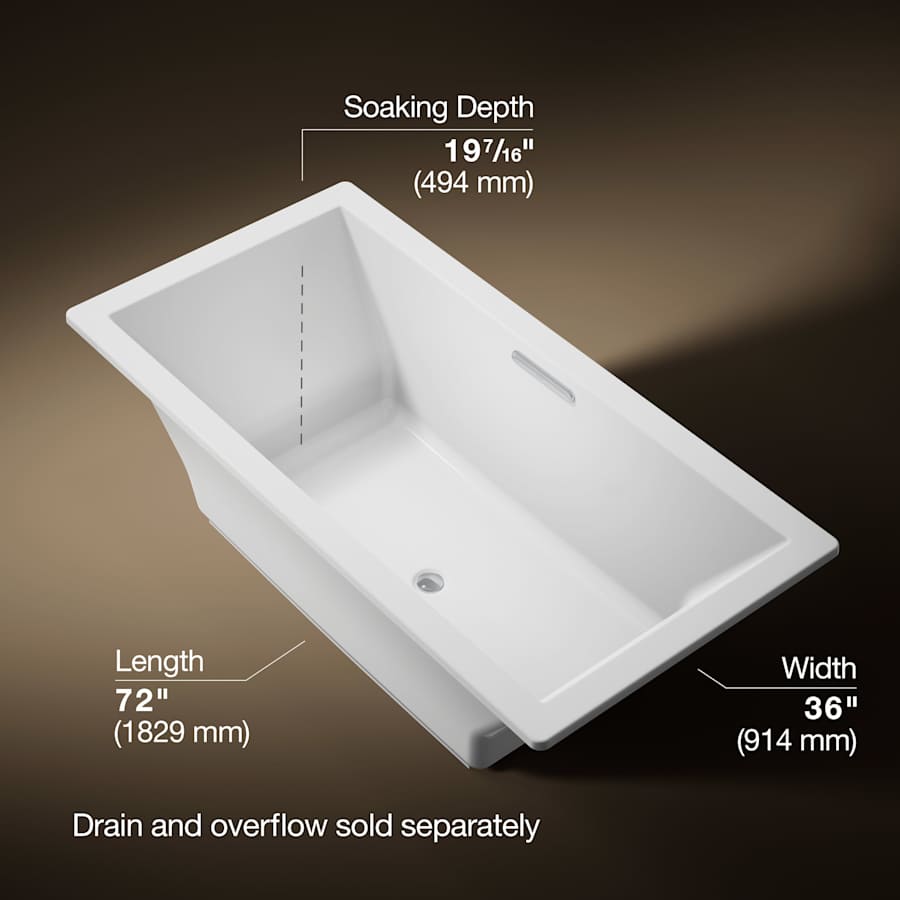

Overall Height: 23″ (measured from top of tub rim to bottom of basin)
Overall Width: 36″ (measured from back most to front most point on outer rim)
Overall Length: 72″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 25-15/16″ (back to front measurement at bottom of basin walls
Basin Length (Bottom): 45-3/4″ (left to right measurement at bottom of basin walls)
Basin Width (Top): 29-5/16″ (back to front measurement at top of basin walls)
Basin Length (Top): 65-3/8″ (left to right measurement at top of basin walls)
Water Depth: 19-7/16″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 112.9 gallons

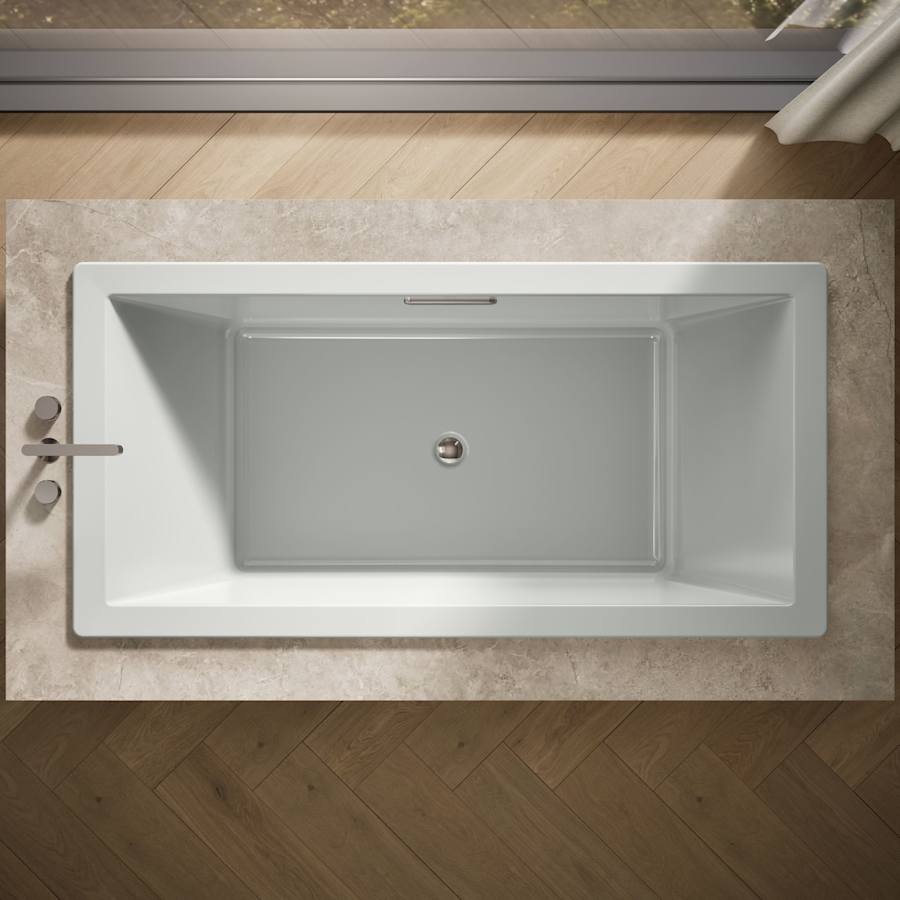

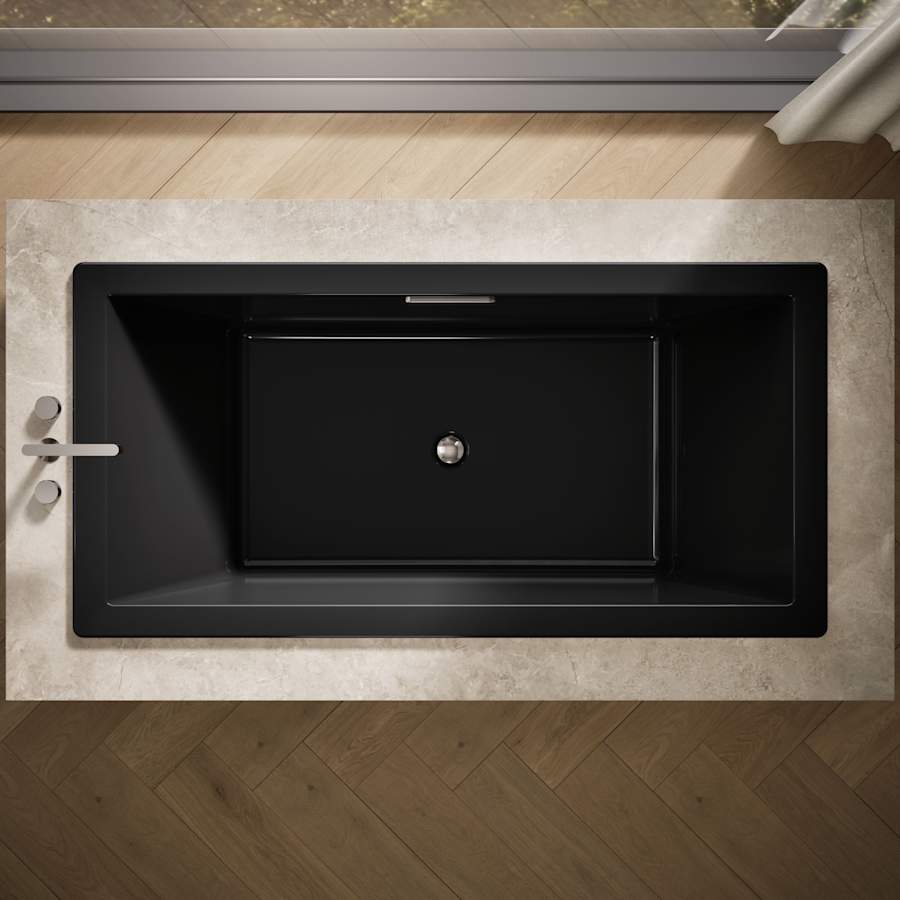

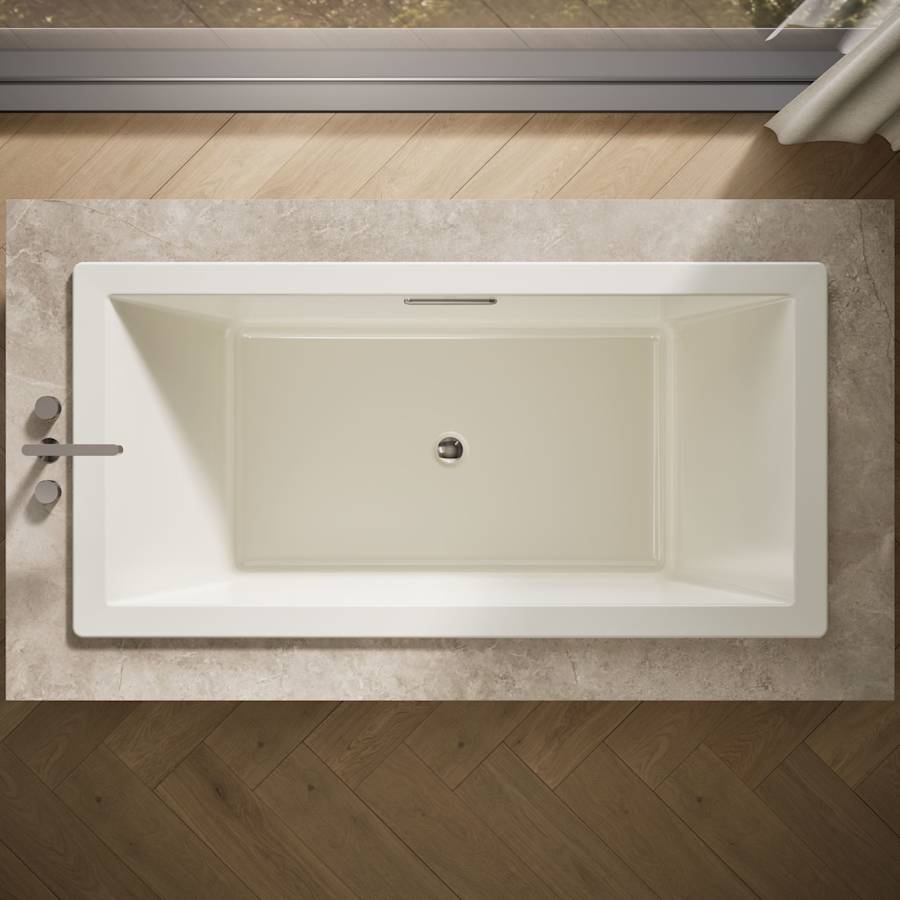

Drain Location: Center
Drop-In Cutout Required: 71-1/2″ x 35-1/2″
Variations of K-1834:
K-1834-W1: soaking bath and bask heated surface version of this tub
K-1835-G: bubblemassage air bath version of this tub
K-1835-GCR: bubblemassage air bath and chromatherapy version of this tub
K-1835-GCW: bubblemassage air bath and bask heated surface and chromatherapy version of this tub
K-1835-GVB: vibracoustic and bubblemassage air bath version of this tub
K-1835-GVBCW: vibracoustic and bubblemassage air bath and bask heated surface and chromatherapy version of this tub
K-1835-GW: bubblemassage air bath and bask heated surface version of this tub
K-1835-H2: whirlpool and heater version of this tub
K-1835-VB: vibracoustic version of this tub
K-1835-VBC: vibracoustic and chromatherapy version of this tub
K-1835-VBCW: vibracoustic and chromatherapy and bask heated surface version of this tub
K-1835-VBW: vibracoustic and bask heated surface version of this tub
K-1835-XH2G: whirlpool and bubblemassage air bath version of this tub
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Underscore Collection
Specifications
| Height | 23 in. |
| Product Weight | 82 lbs. |
| Width | 36 in. |
| Length | 72 in. |
| Nominal Length | 72 in. |
| Nominal Width | 36 in. |
| Backplate Depth | 20 in. |
| Bar Length | 45.75 in. |
| Base Width | 25.968 in. |
| Overflow Height | 20 in. |
| Capacity (Gallons) | 112.9 |
| Water Depth | 19.44 in. |
| Tub Size | Over 60 Inches |
| Thermostat | Modern |
| Overflow | Yes |
| Material | Acrylic |
| Insulation Type | Drop In |
| Drain Placement | Center |
| Farmhouse | No |
| Apron Front | No |
| Number Of Bathers | 1 |
| Self Leveling Base | No |
| Slip Resistant | No |
| Tub Shape | Rectangular |
| ADA | No |
| Country Of Origin | USA |
| Manufacturer Warranty | 1 Year Limited |
| Collection | Underscore |
| Made in America | Yes |
| Certifications | ANSI, CSA |
| CSA Code | B45.0, B45.5 |
| Handshower Included | No |
| Drain Assembly Included | No |
| Light Included | No |
| Heater Included | No |
| Tile Flange | No |
| Walk-In Tub | No |
| Color | Almond |
| Color Tone | Neutrals |
