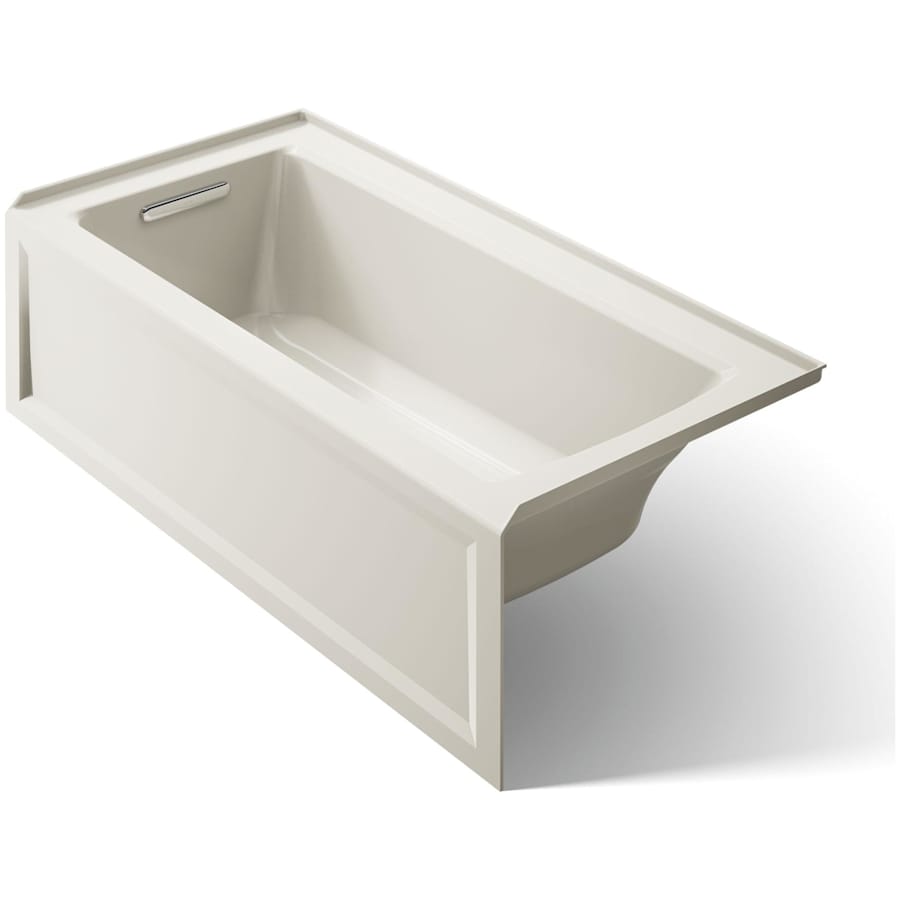

Kohler Archer Three Wall Alcove Soaking Tub with Left Hand Drain and Integral Apron

Archer

Taking its design cues from traditional Craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing deep, comfortable soaking. Lumbar arch gently support the natural curves of your body. Kohler ExoCrylic is the next generation of bathroom acrylics, featuring a lighter weight for easier installation and 90% fewer VOCs produced during manufacturing.

Product Features:

Kohler tubs are fully covered under warranty for up to a year after installation

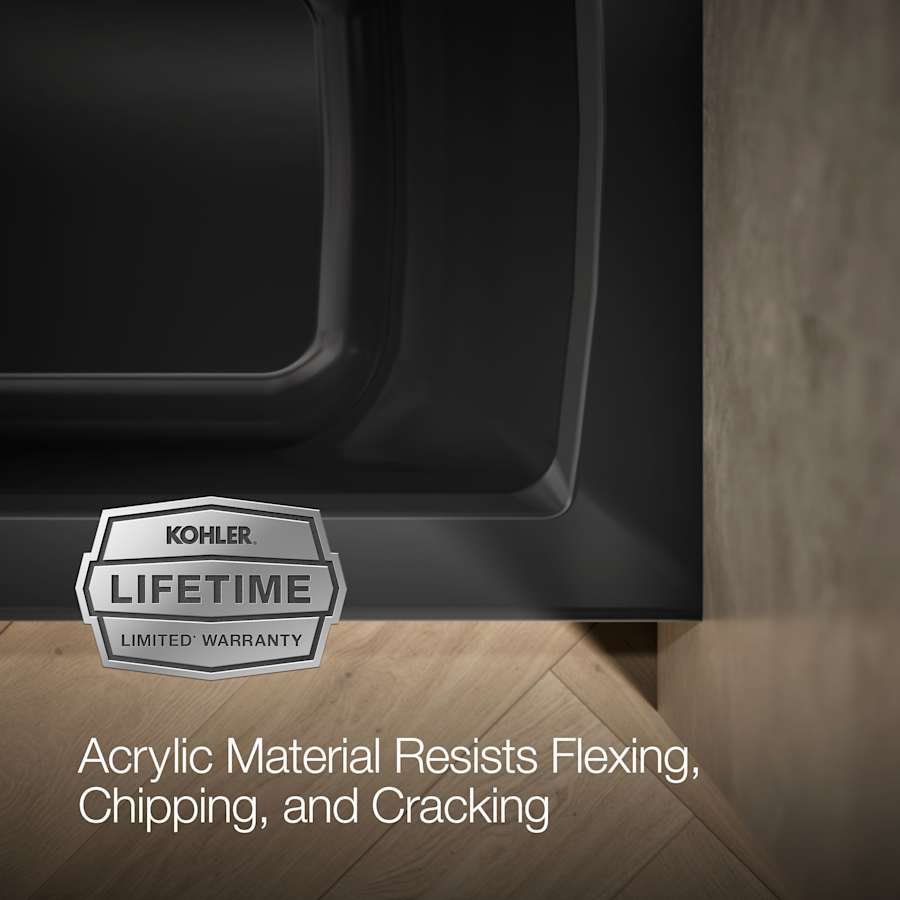

Tub constructed of acrylic
Comfort height design – provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs

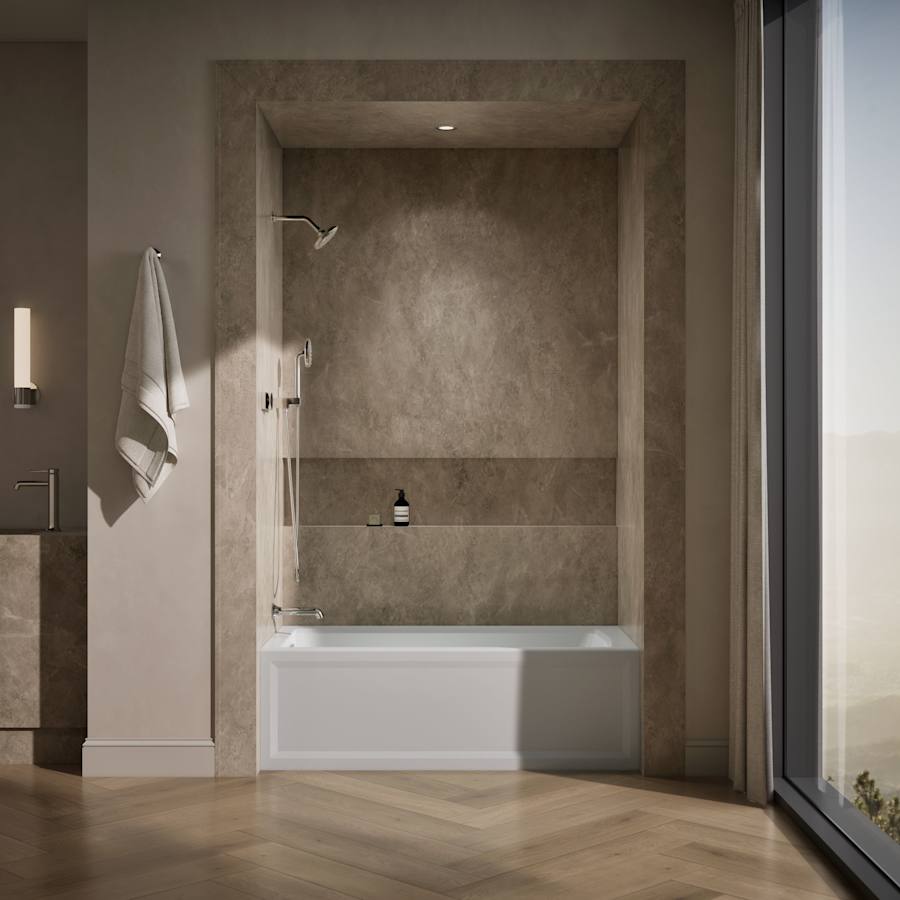

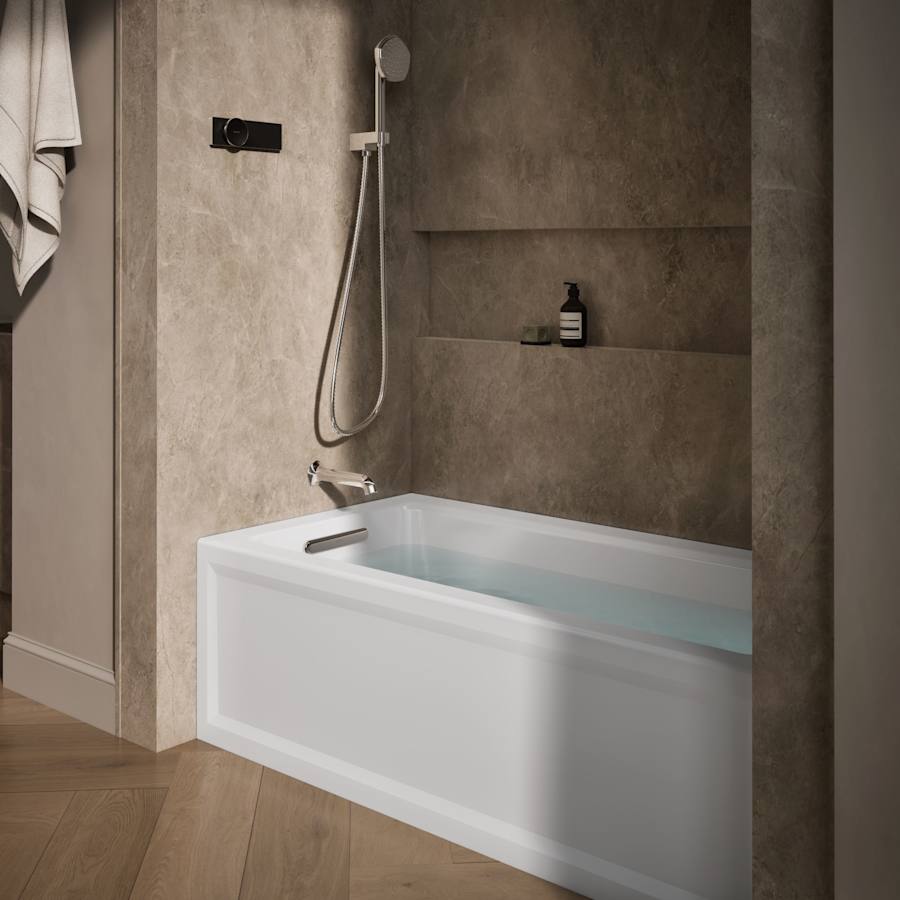

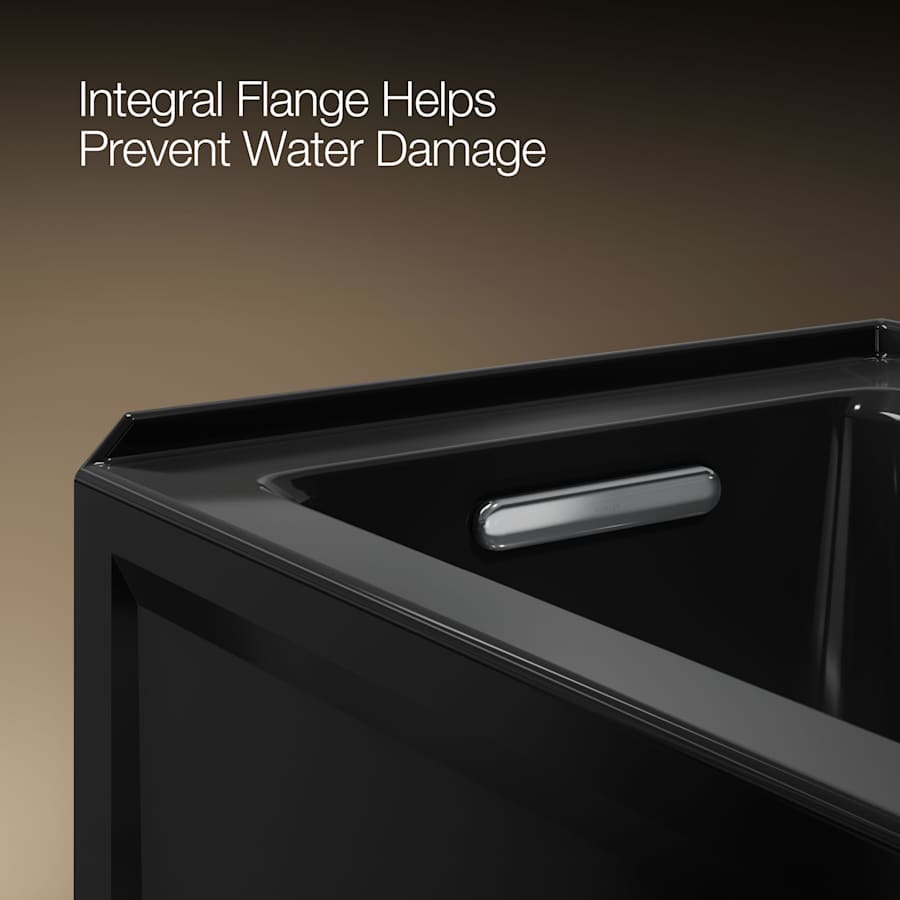

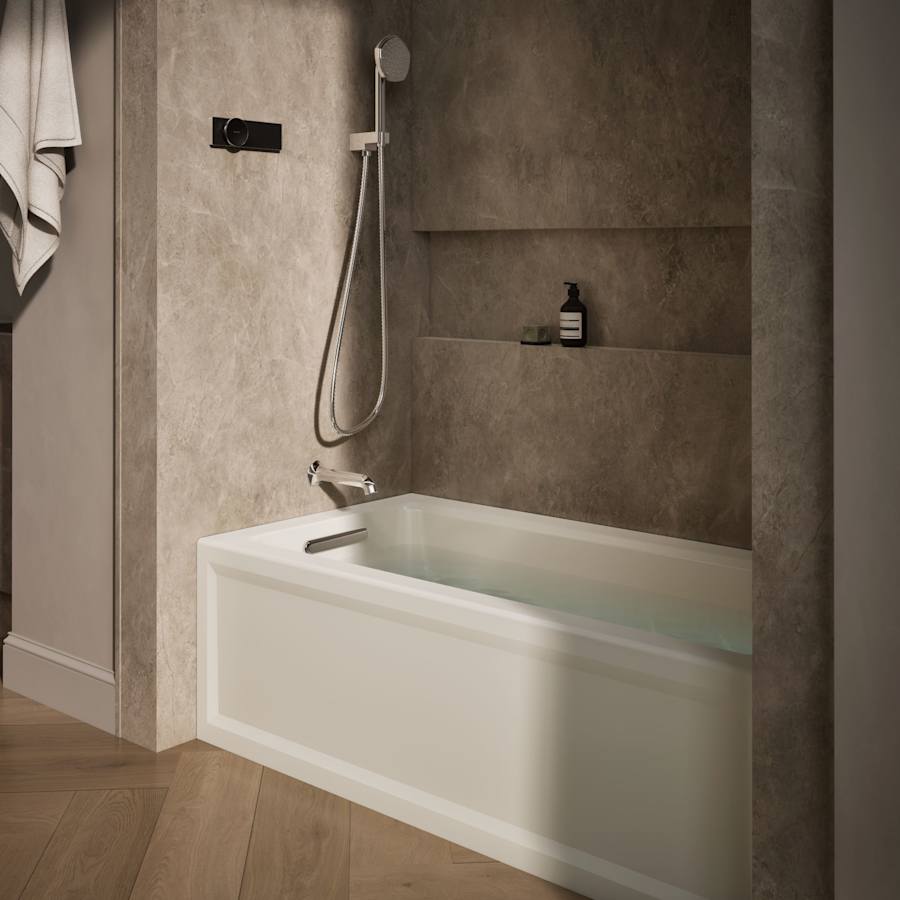

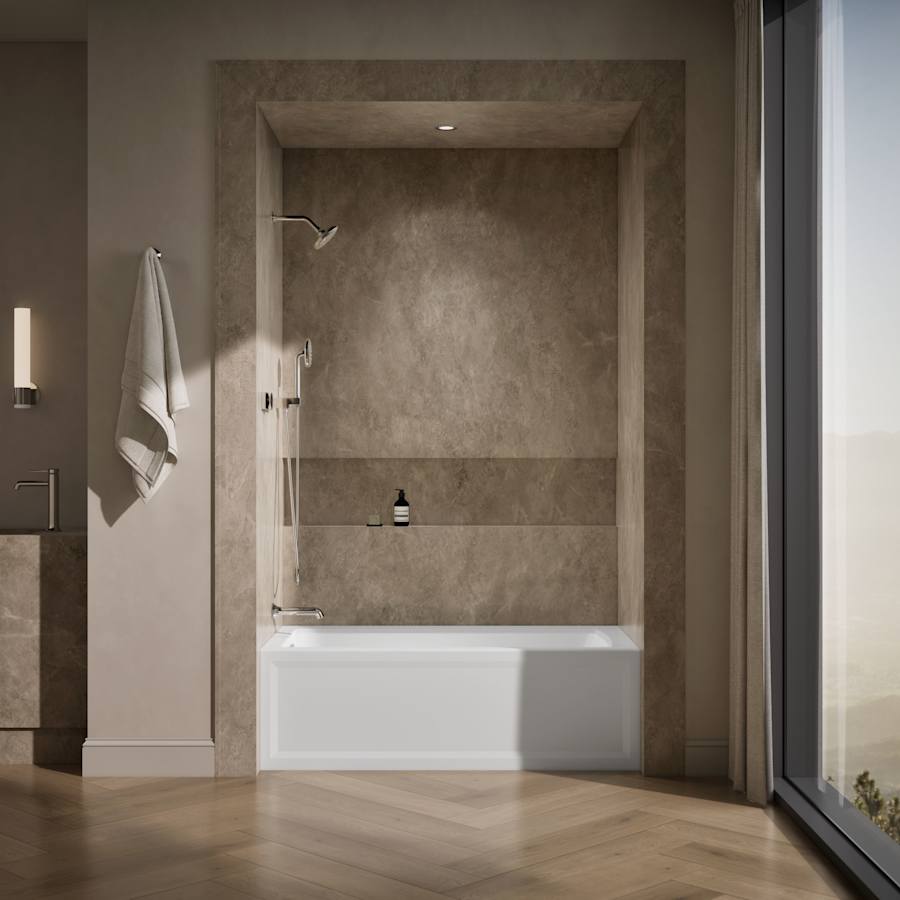

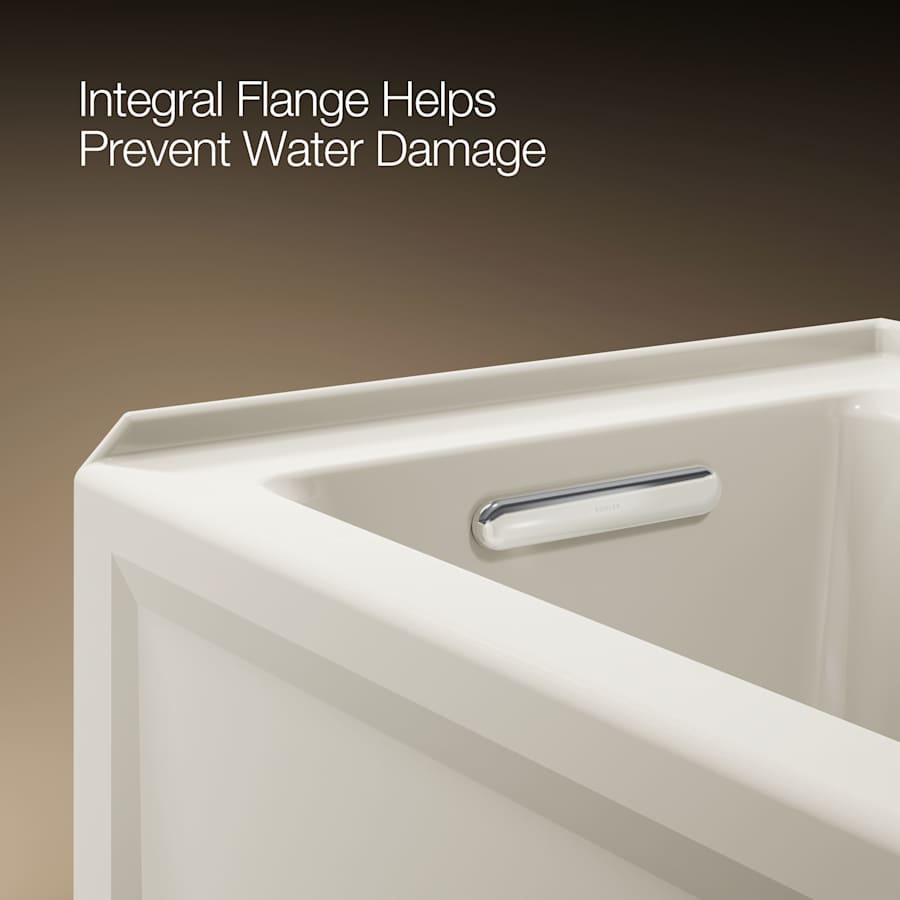

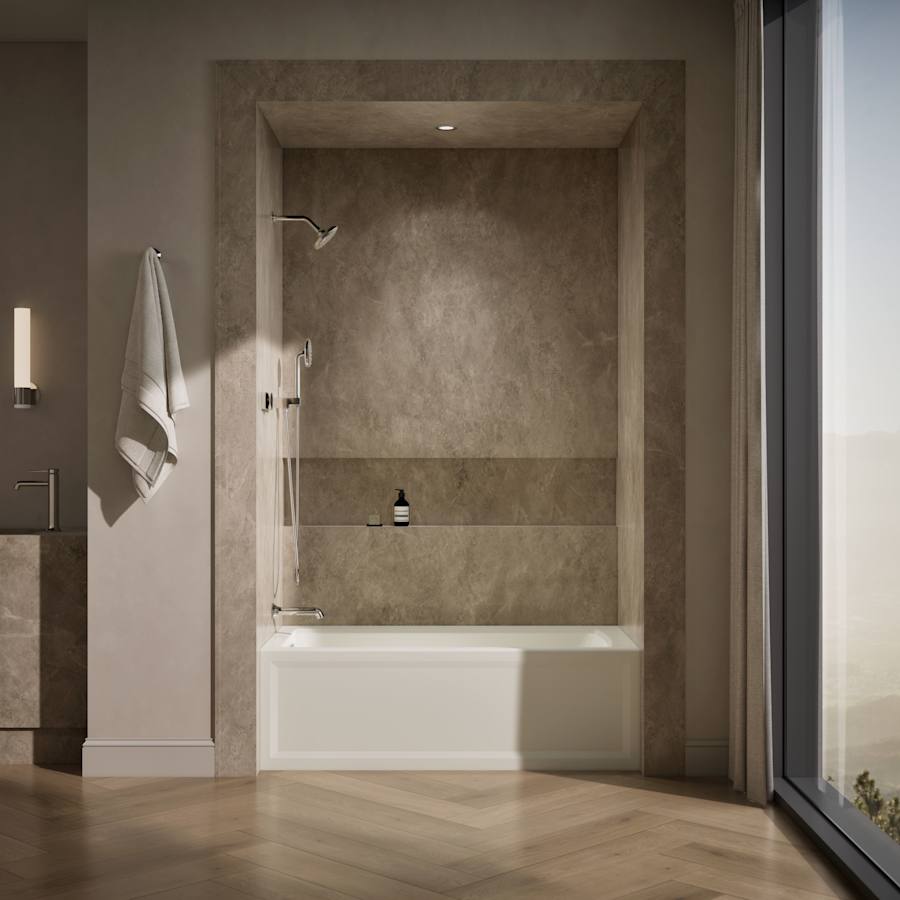

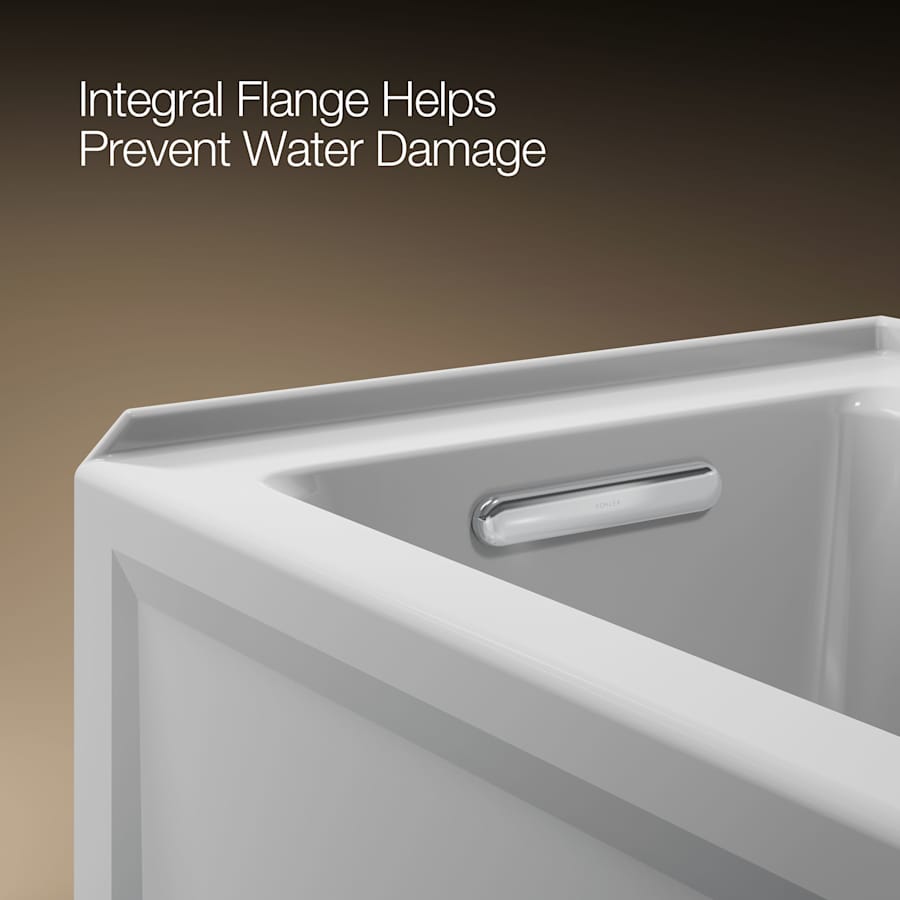

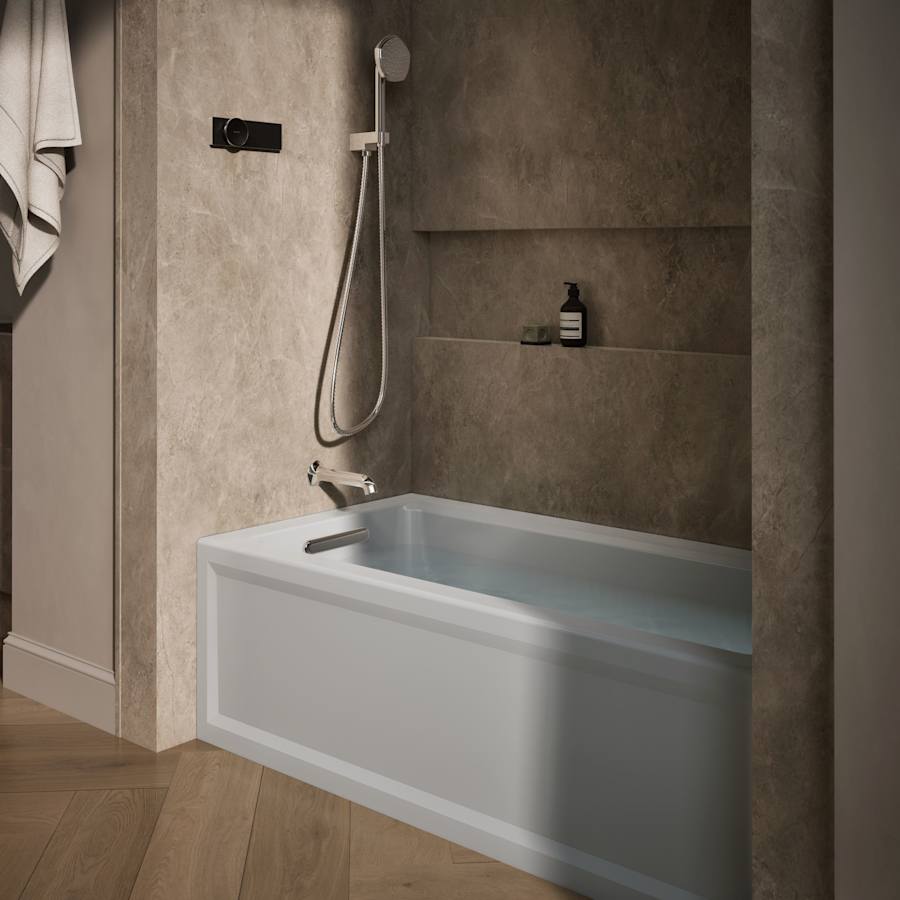

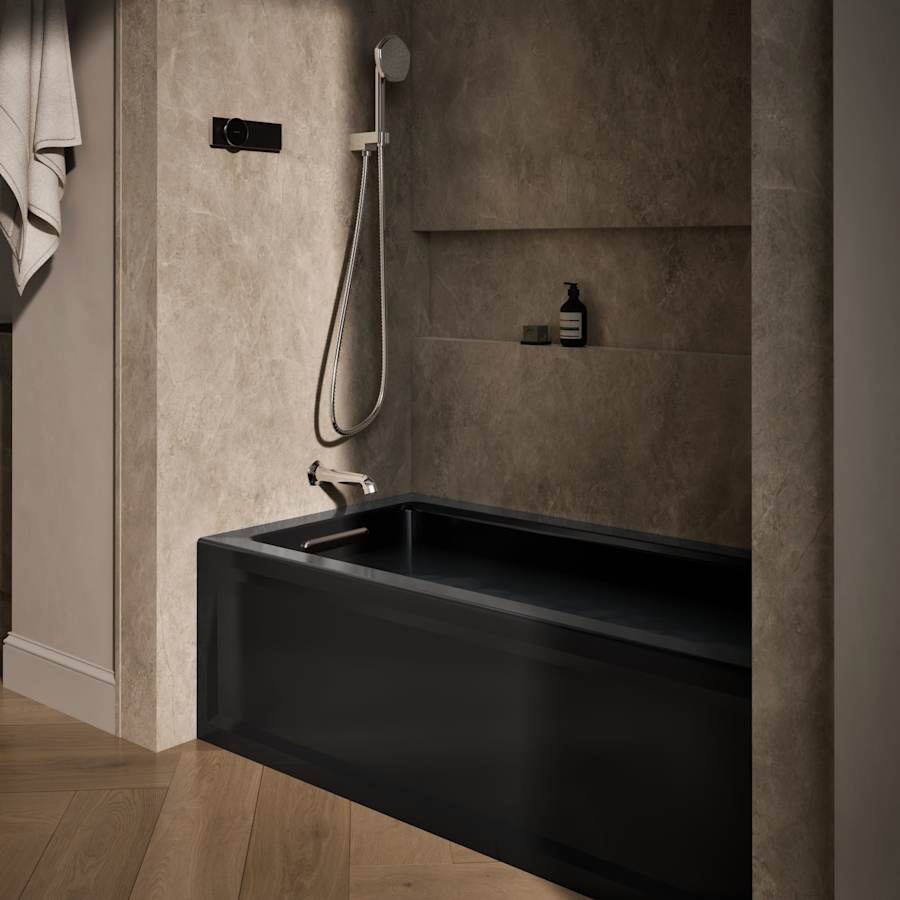

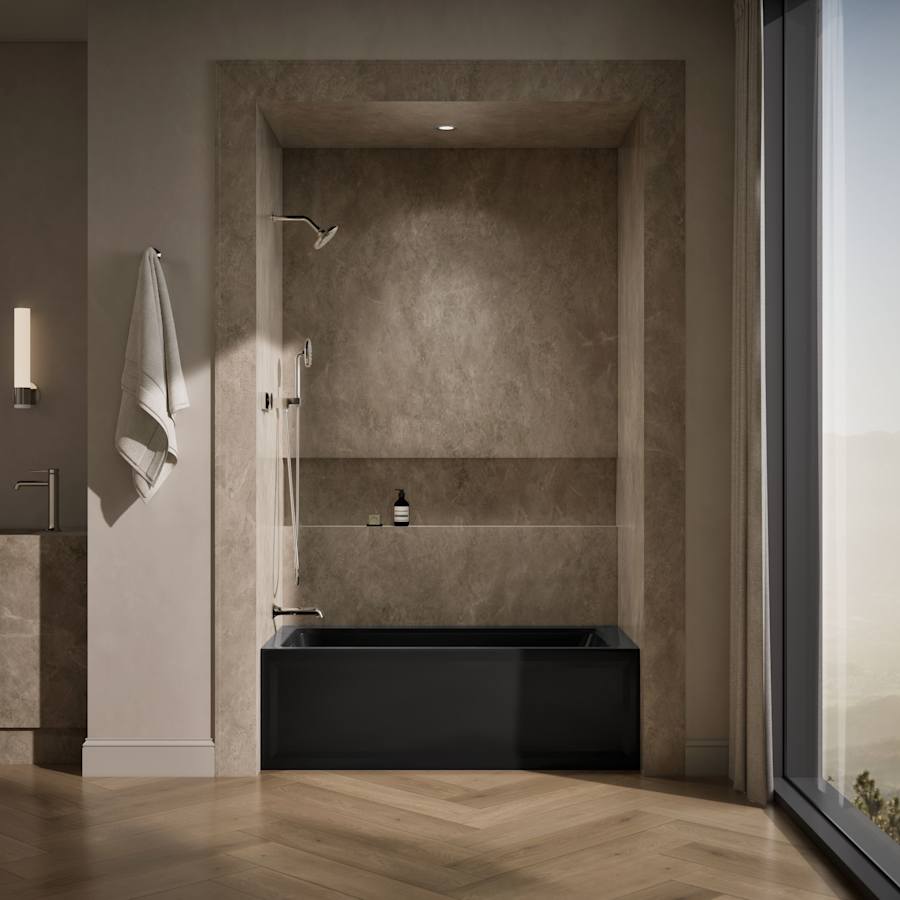

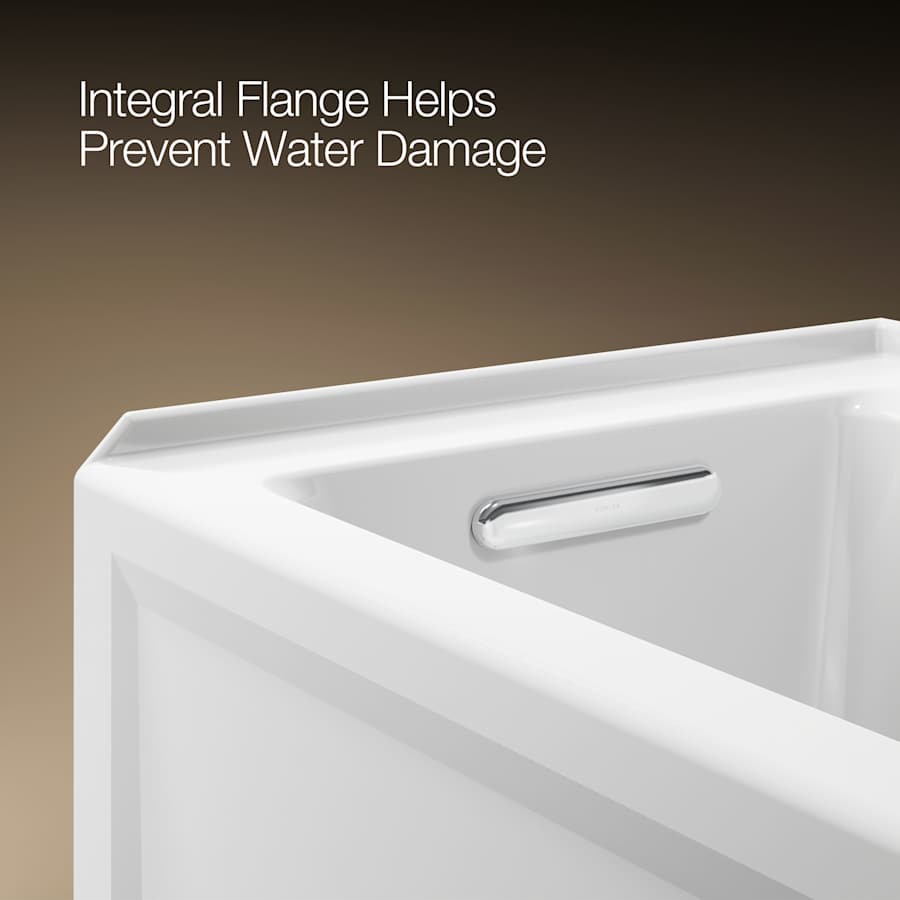

Three wall alcove installation type with tile flange and integral tub apron

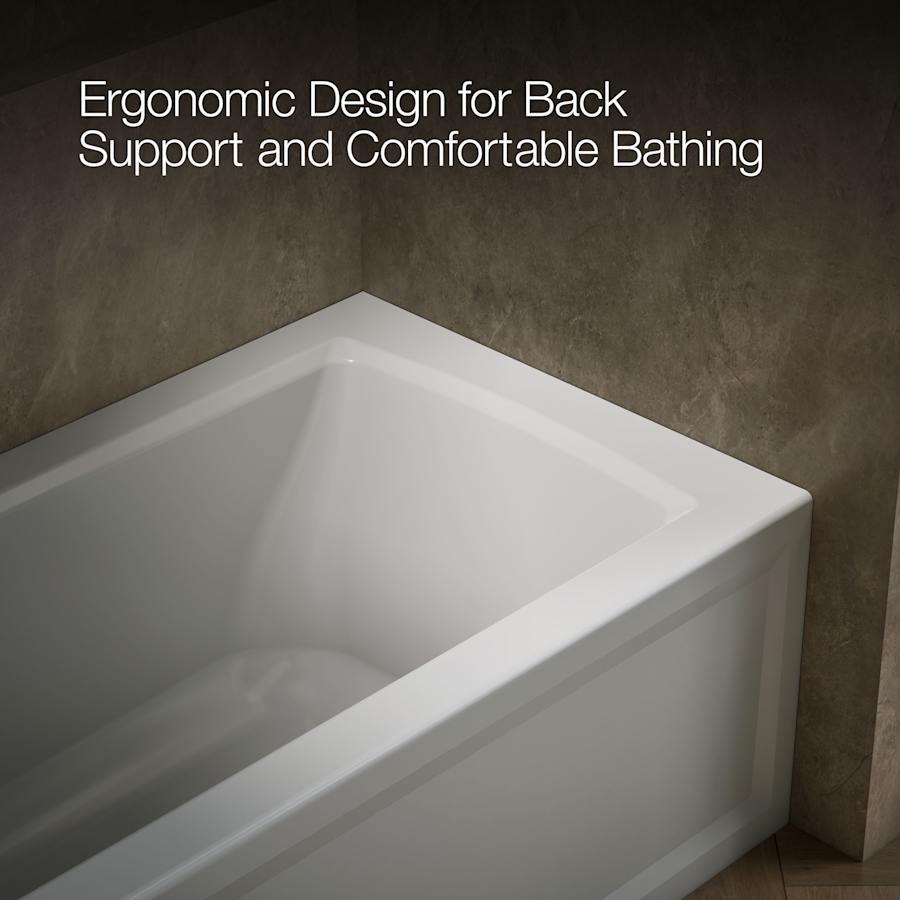

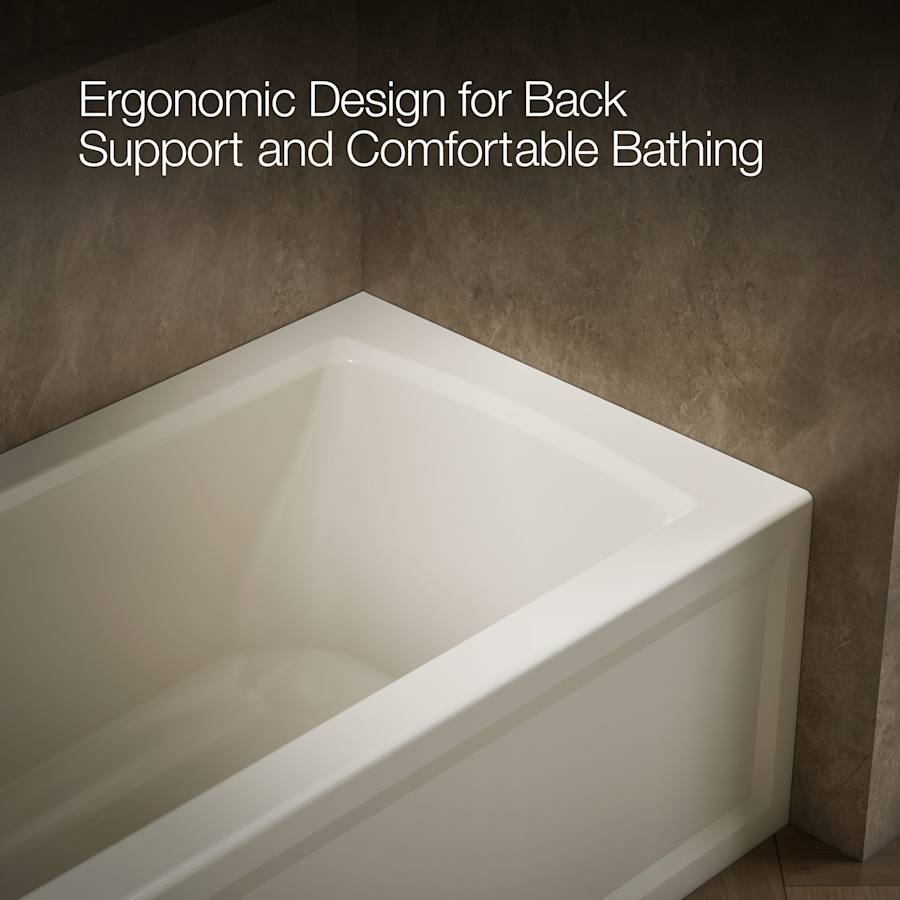

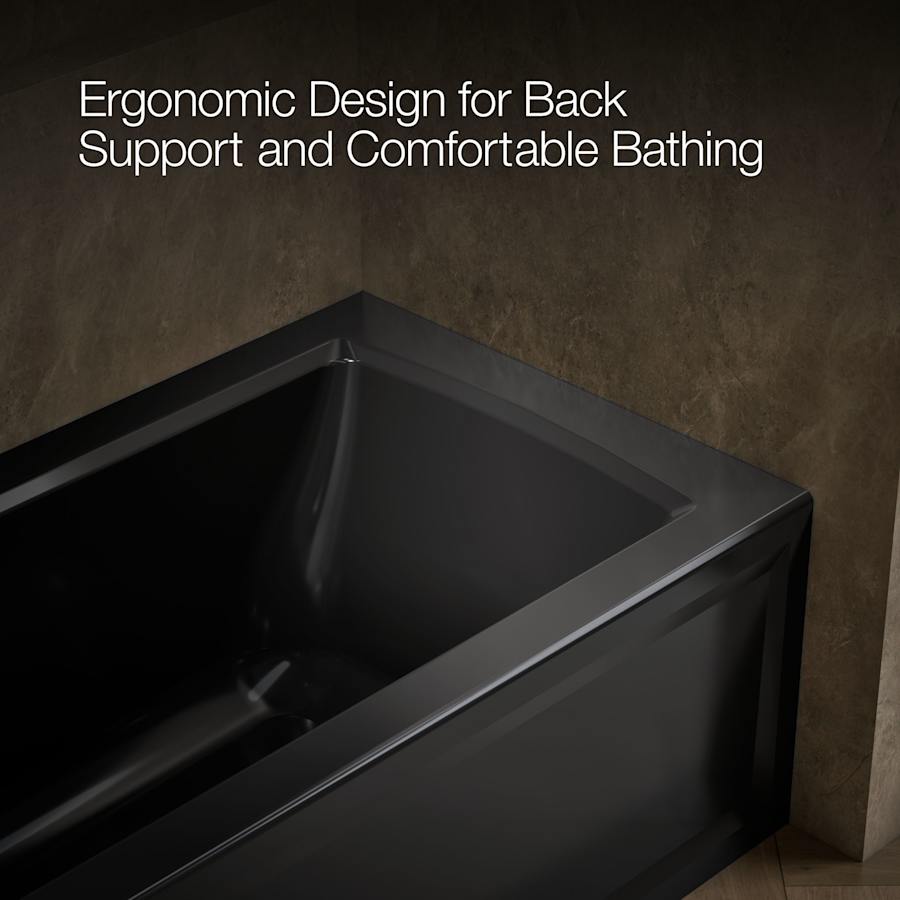

Tub comes standard with integral lumbar support furthering the users comfort

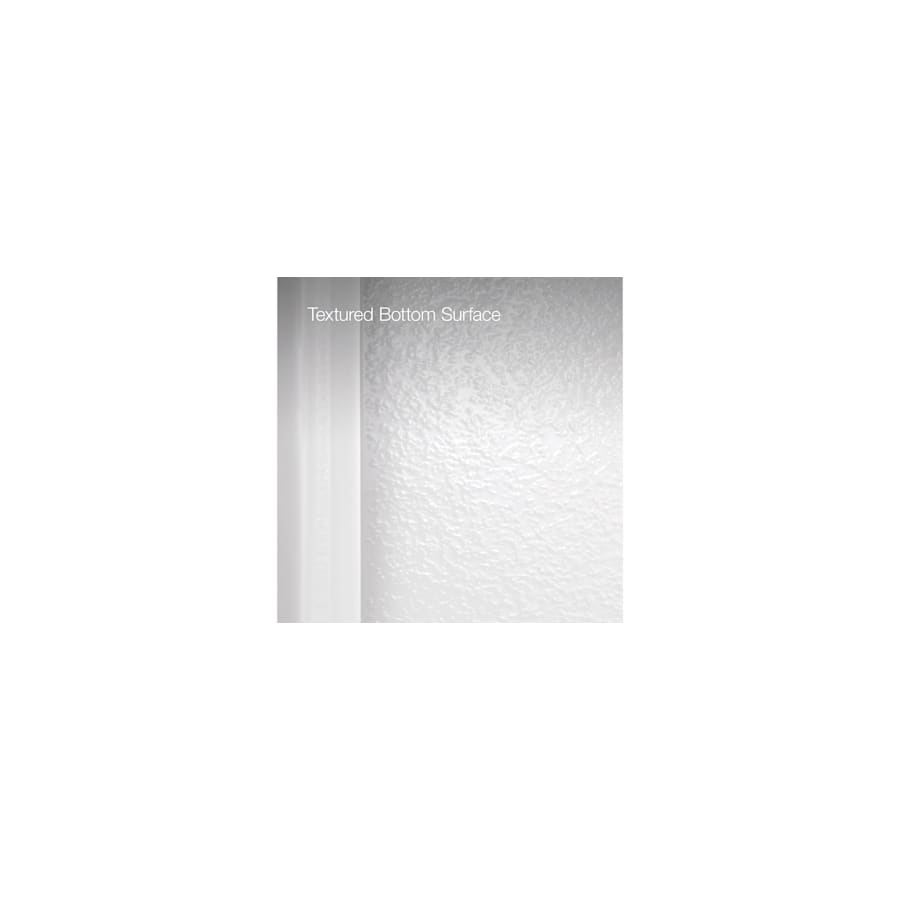

A textured slip-resistant bottom takes the worry out of slipping and sliding as you move about the tub

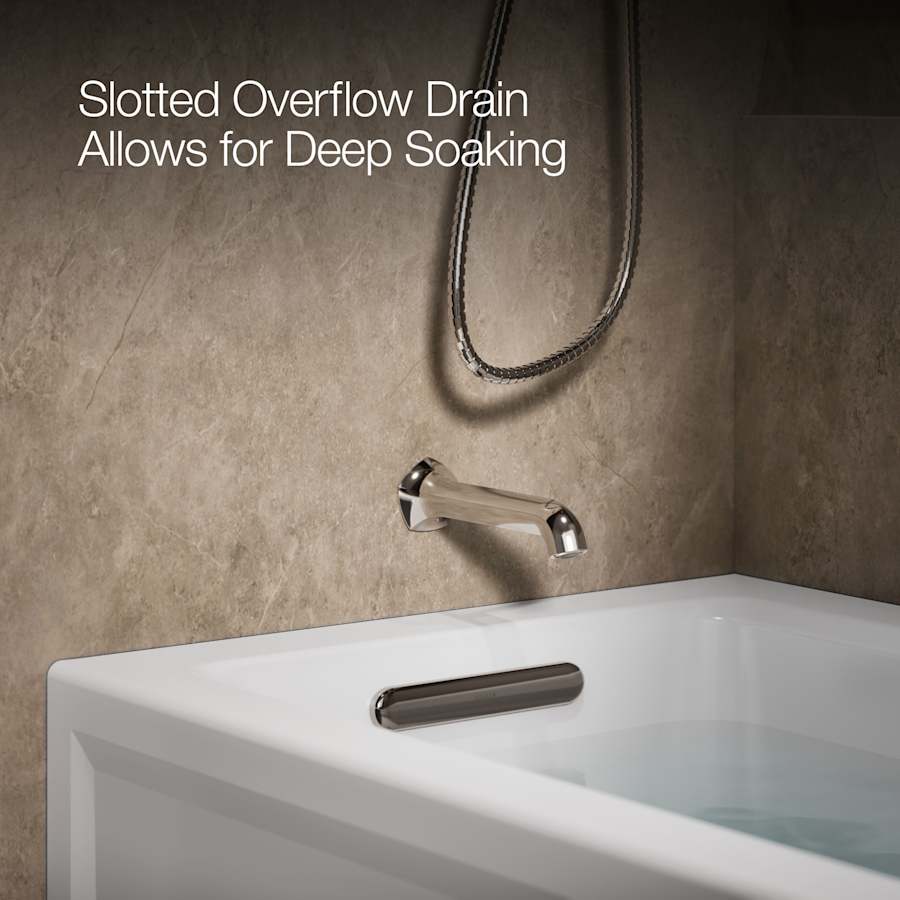

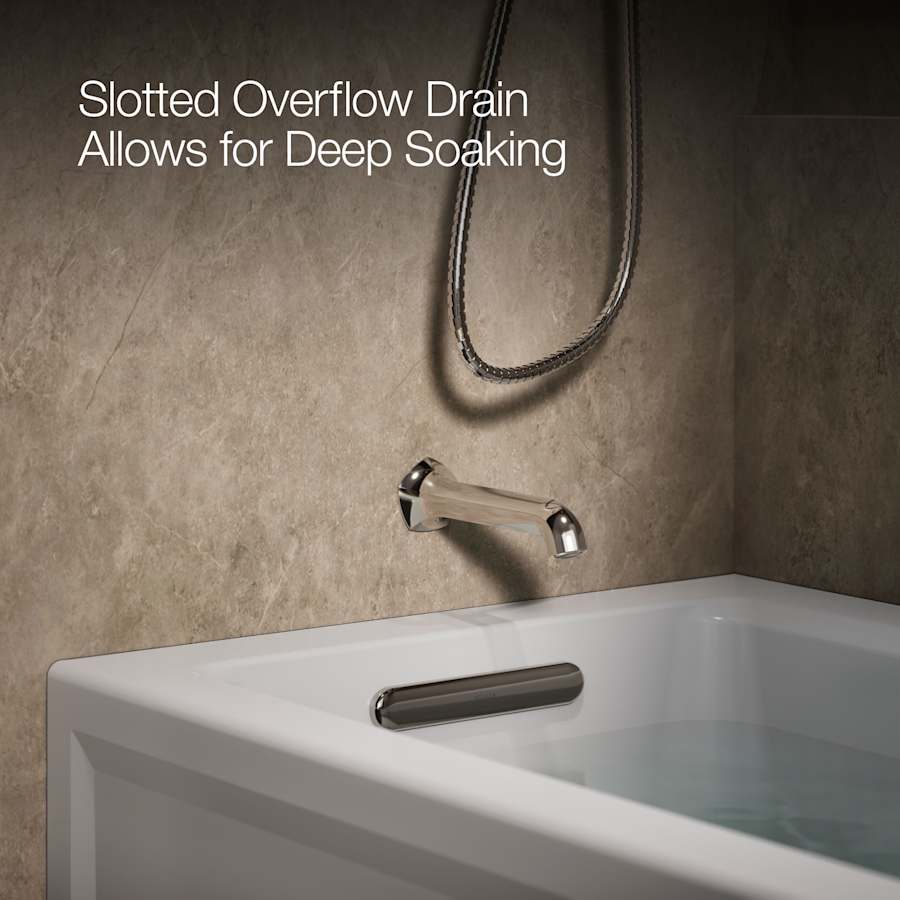

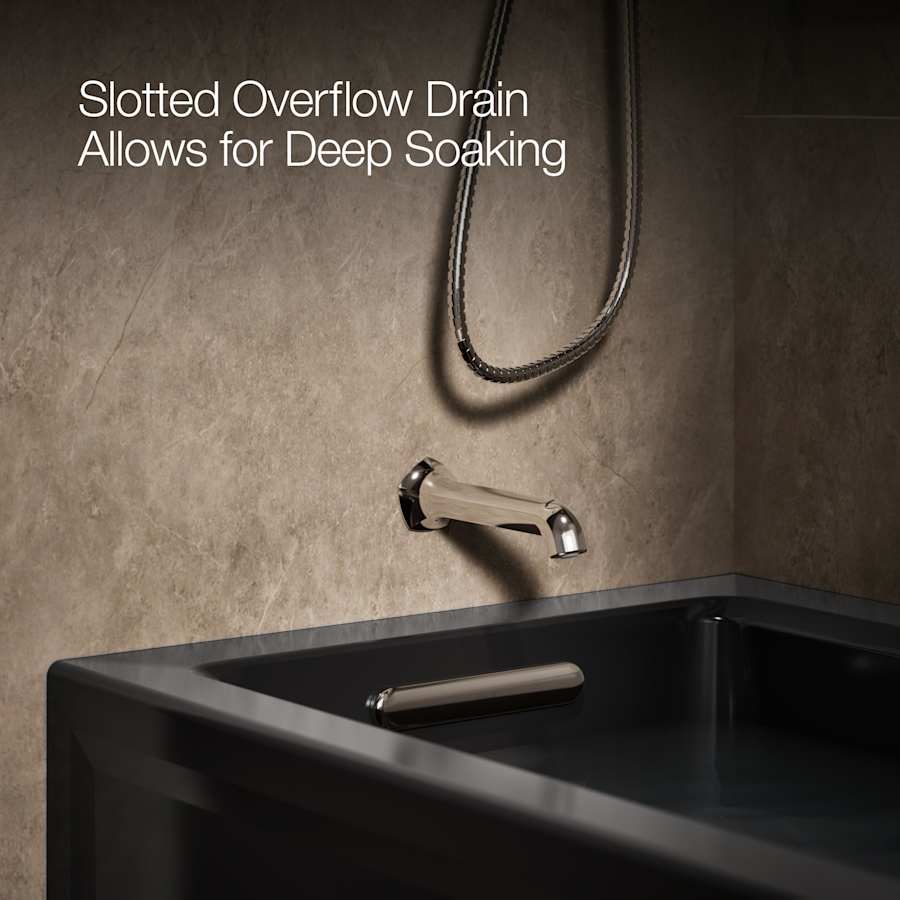

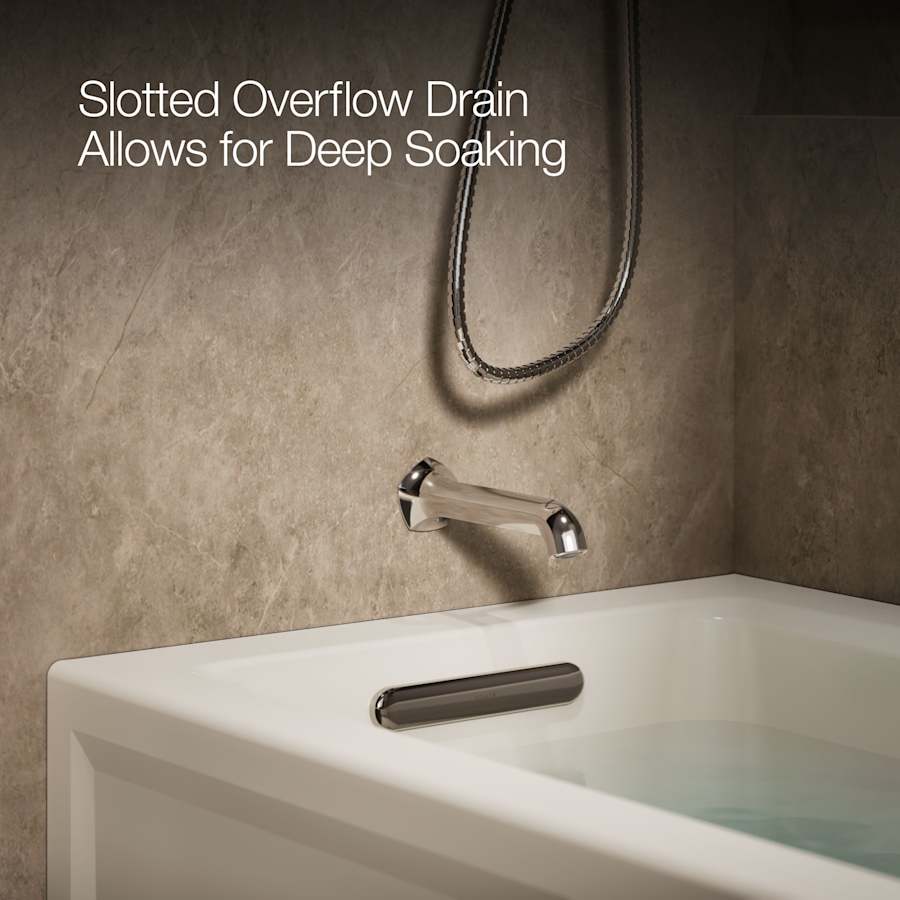

Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act
Product Meet or Exceeds the Following Codes/Standards: ADA, ICC/ANSI A117.1 and CSA B45.5/IAPMO Z124

Product Technologies and Benefits:

Material – ExoCrylic – Kohler Baths constructed of ExoCrylic material are 30% lighter and offer an easier, mortar-less installation, as well as using 90% fewer volatile organic compounds produced during manufacturing.

Product Specifications:

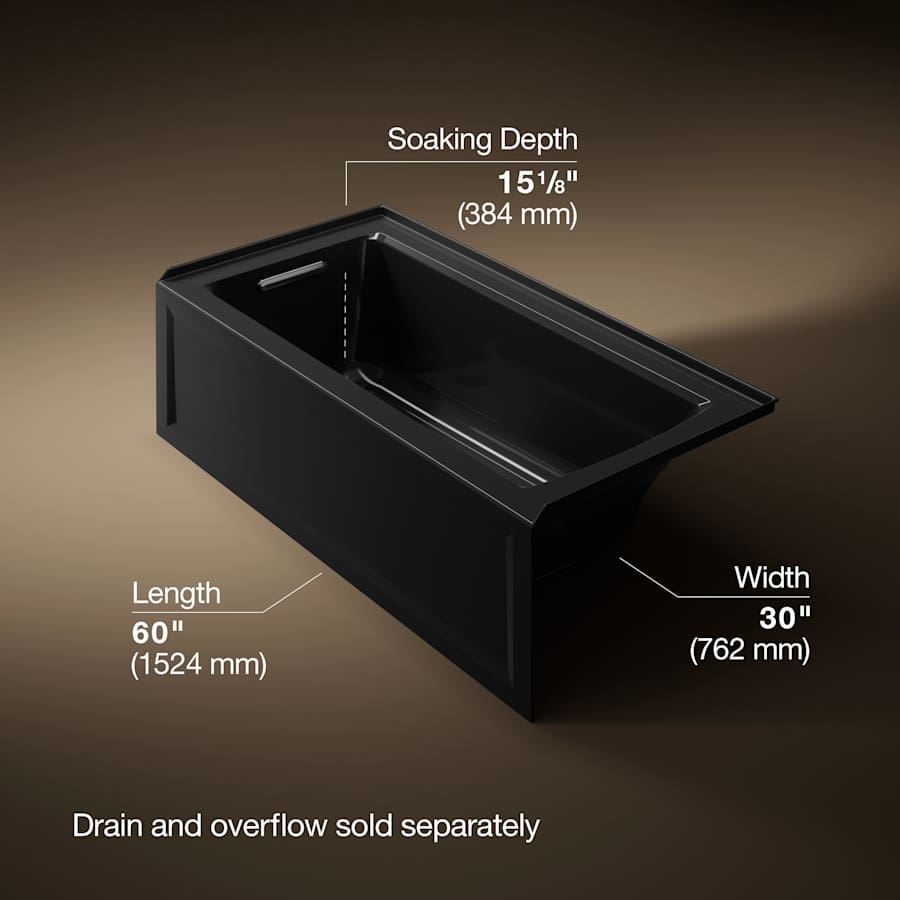

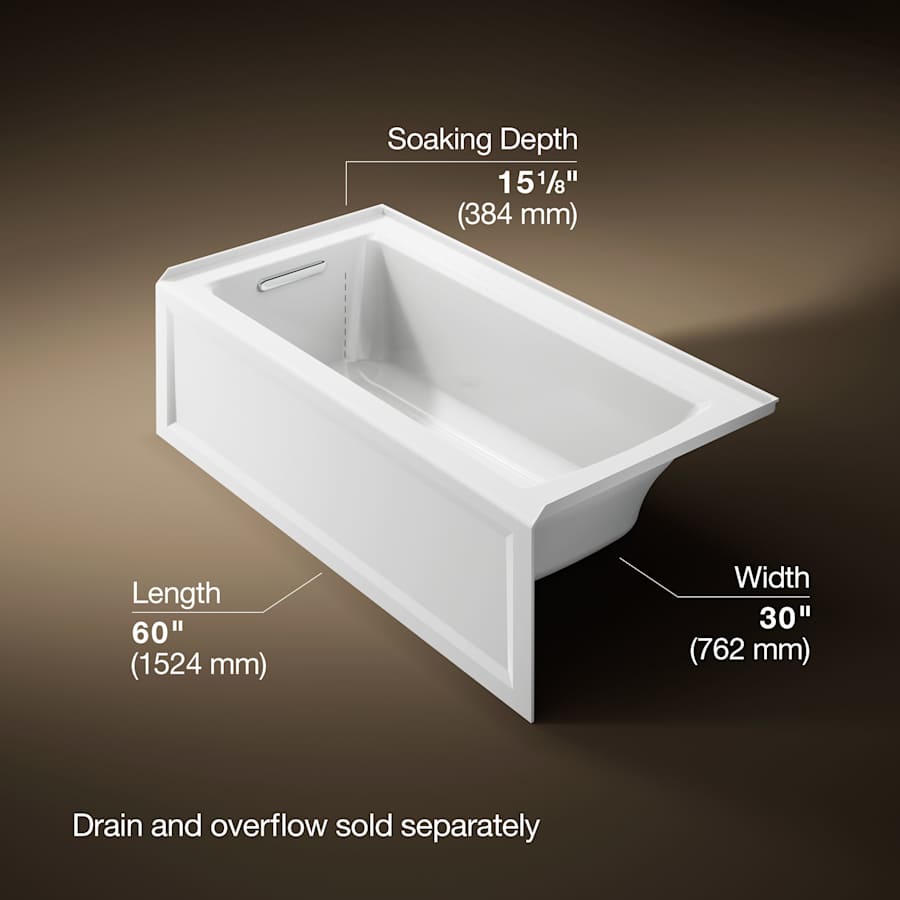

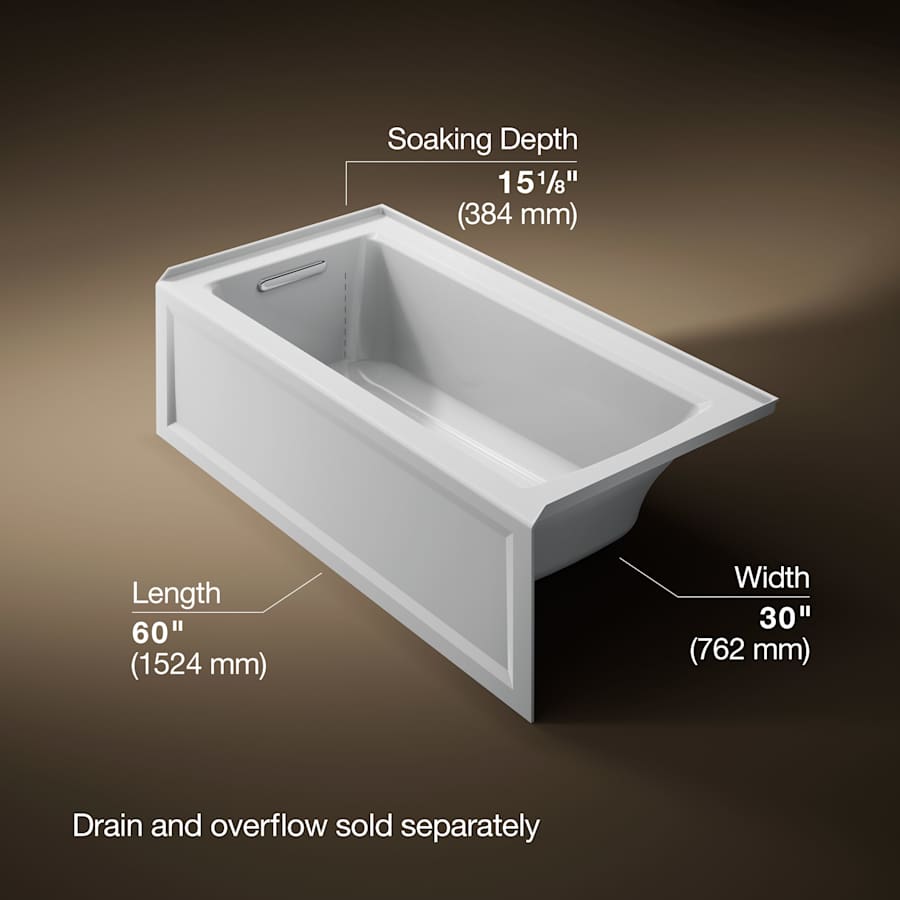

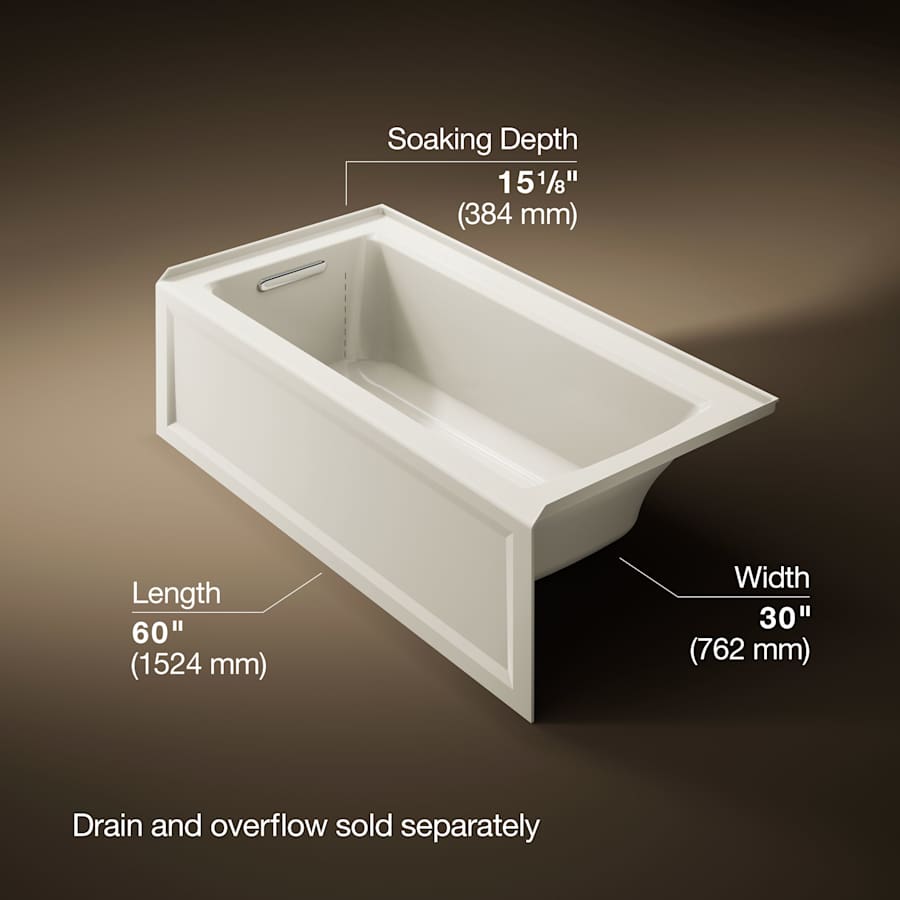

Overall Height: 19″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 30″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 19-11/16″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45-1/8″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 22-1/16″ (back to front measurement of the top of basin walls)
Basin Length (Top): 52-1/8″ (right to left measurement of the top of basin walls)
Water Depth: 15-1/8″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 57 – gallons

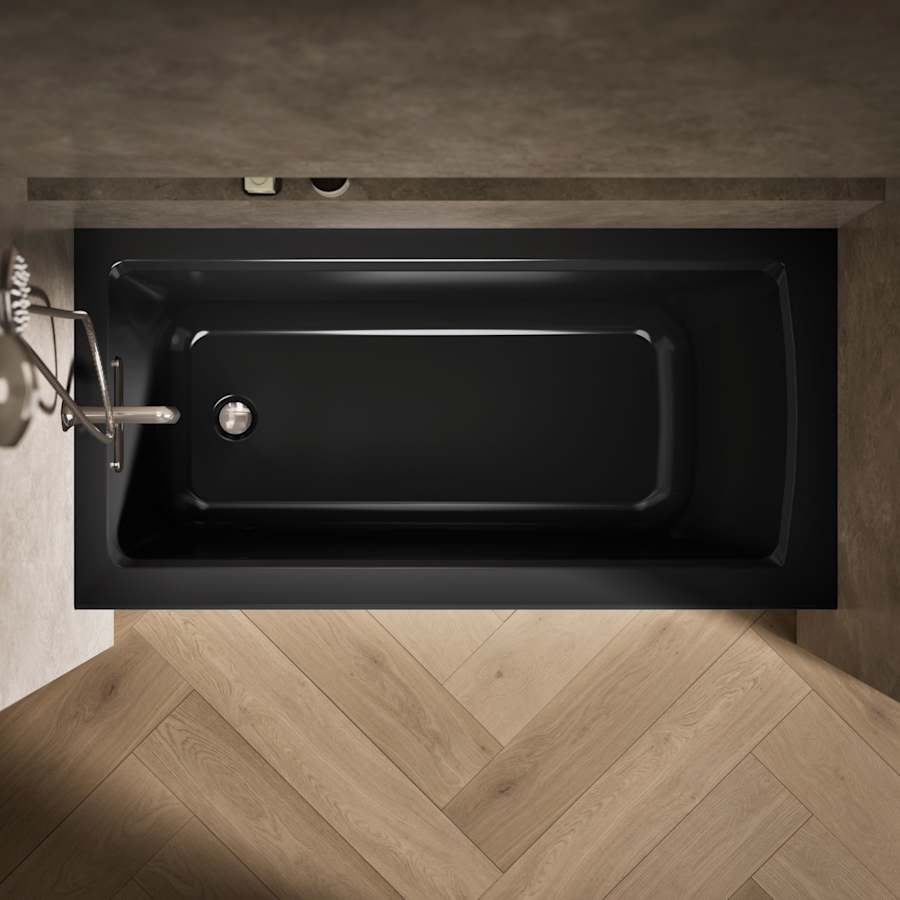

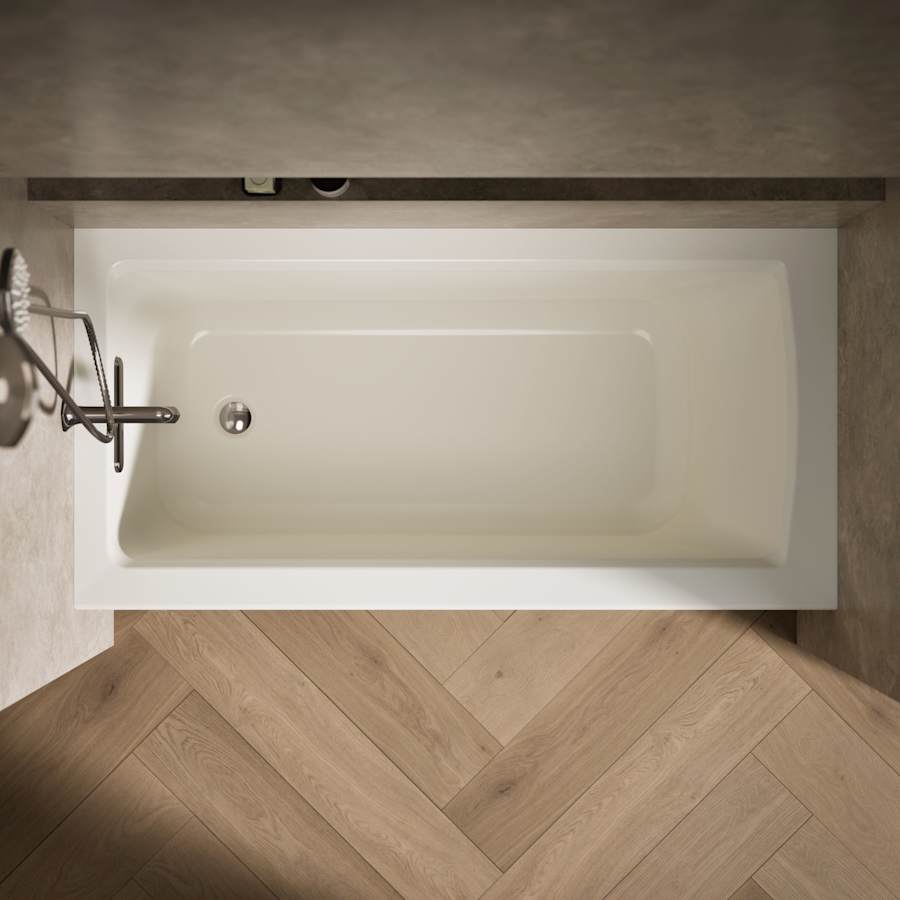

Drain Location: Left

Variations:

K-1946-LAW: Soaking with Bask
K-1947-GLA: Air Bath
K-1947-GLAW: Air Bath with Bask
K-1947-LA: Whirlpool
K-1947-HLA: Whirlpool with heater
K-1947-LAW: Whirlpool with Bask
K-1947-XHGLA: Whirlpool/Air
