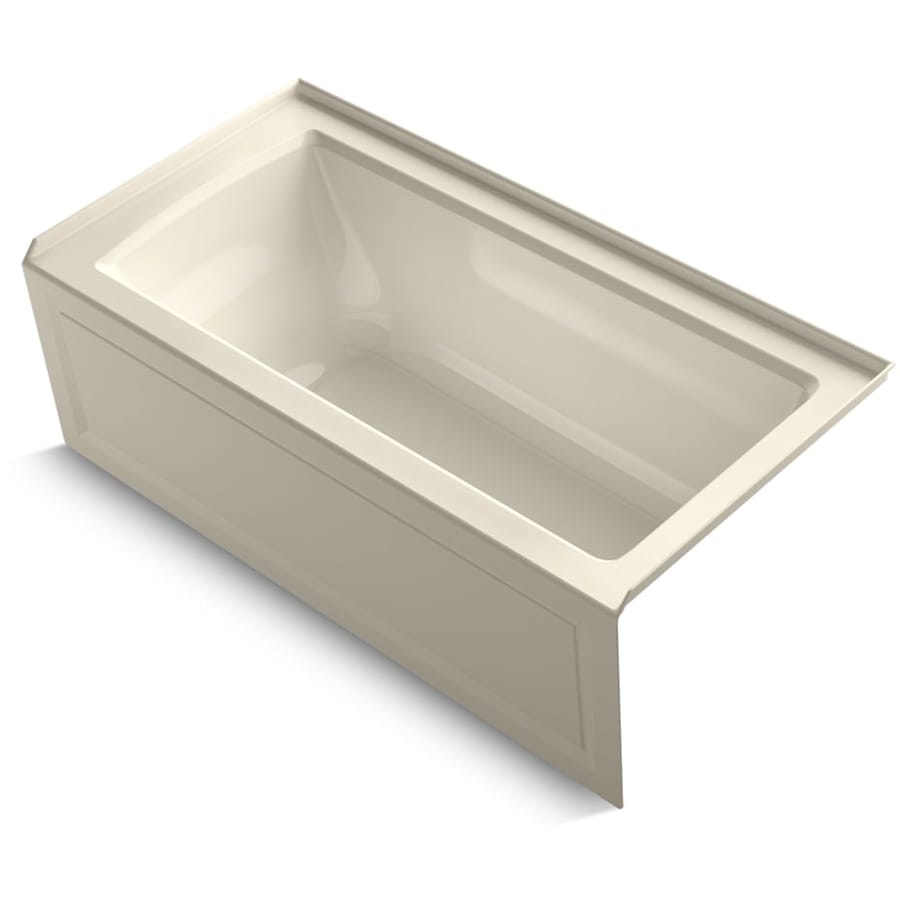

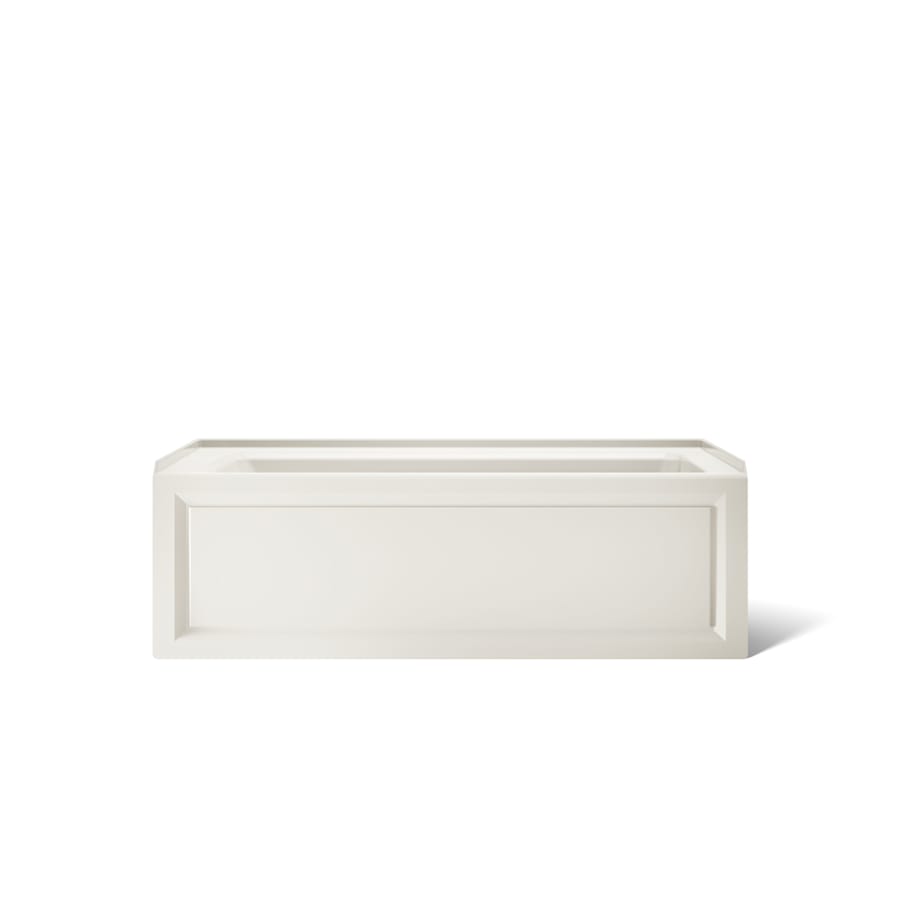

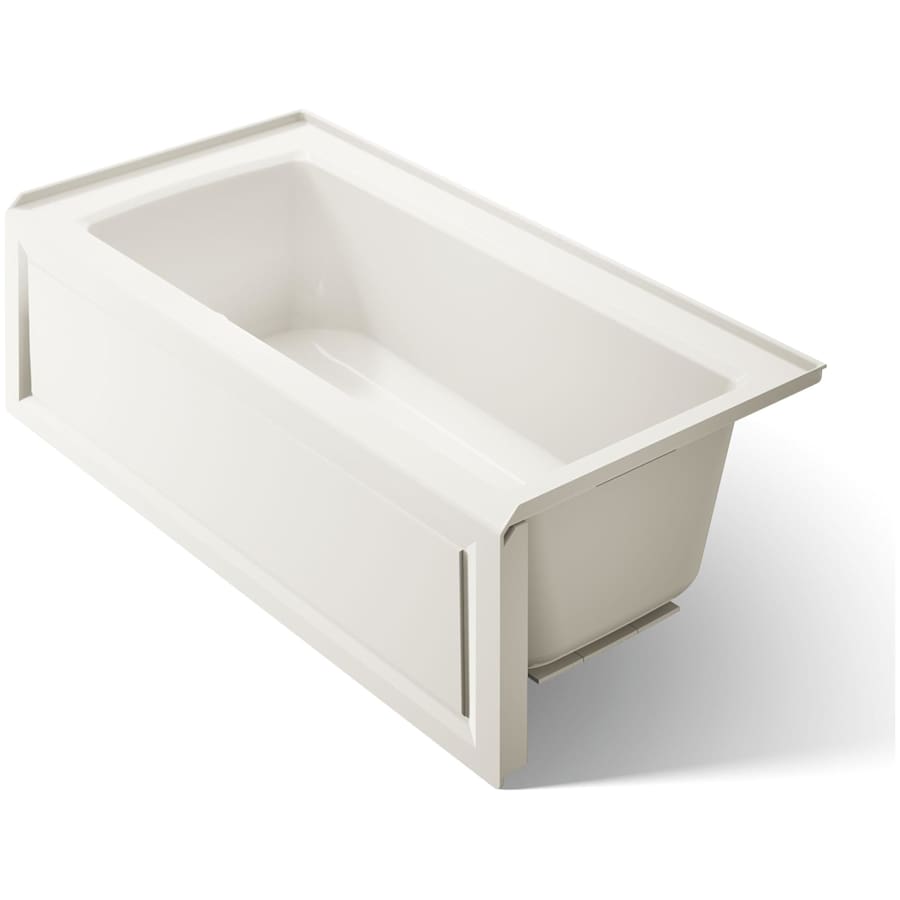

Product Features:
Kohler tubs are fully covered under warranty for up to a year after installation
Soaking tub – provides the user with a soothing and relaxing bathing experience
Bask® heated surface creates spa-like relaxation with soothing warmth on your back, shoulders, and neck
Three heat settings allow you to customize the surface temperature

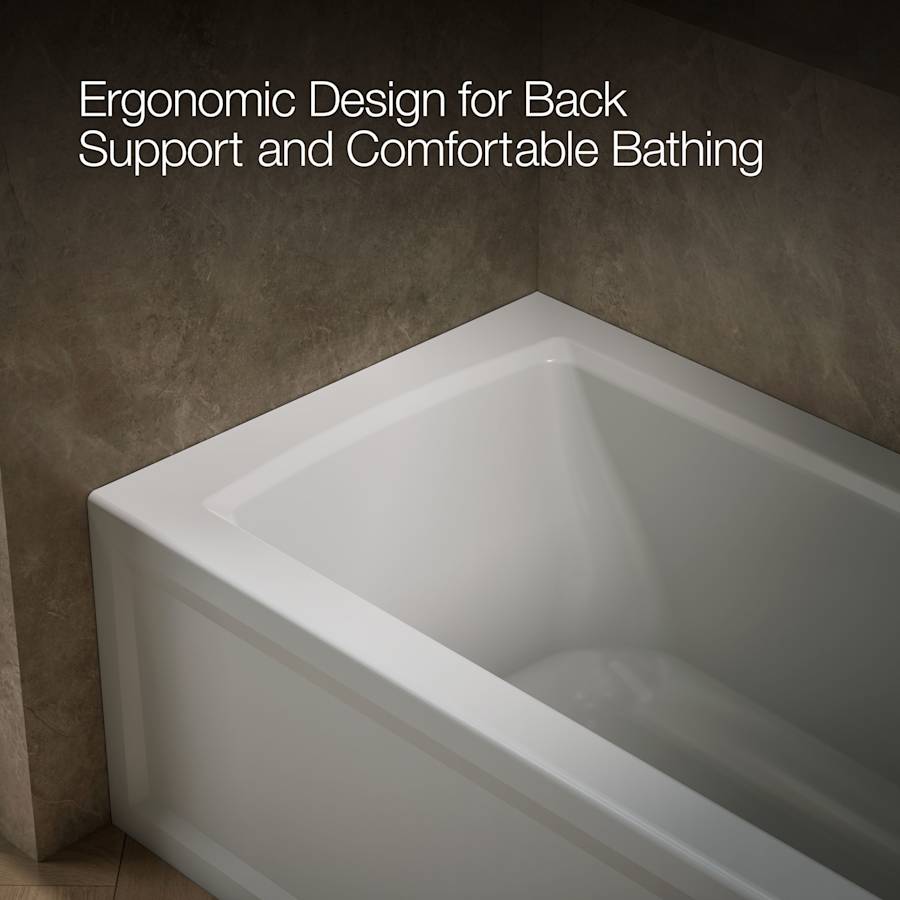

Comfort Depth® design offers a convenient 19″ step-over height while retaining the same depth as a standard 21″ bath

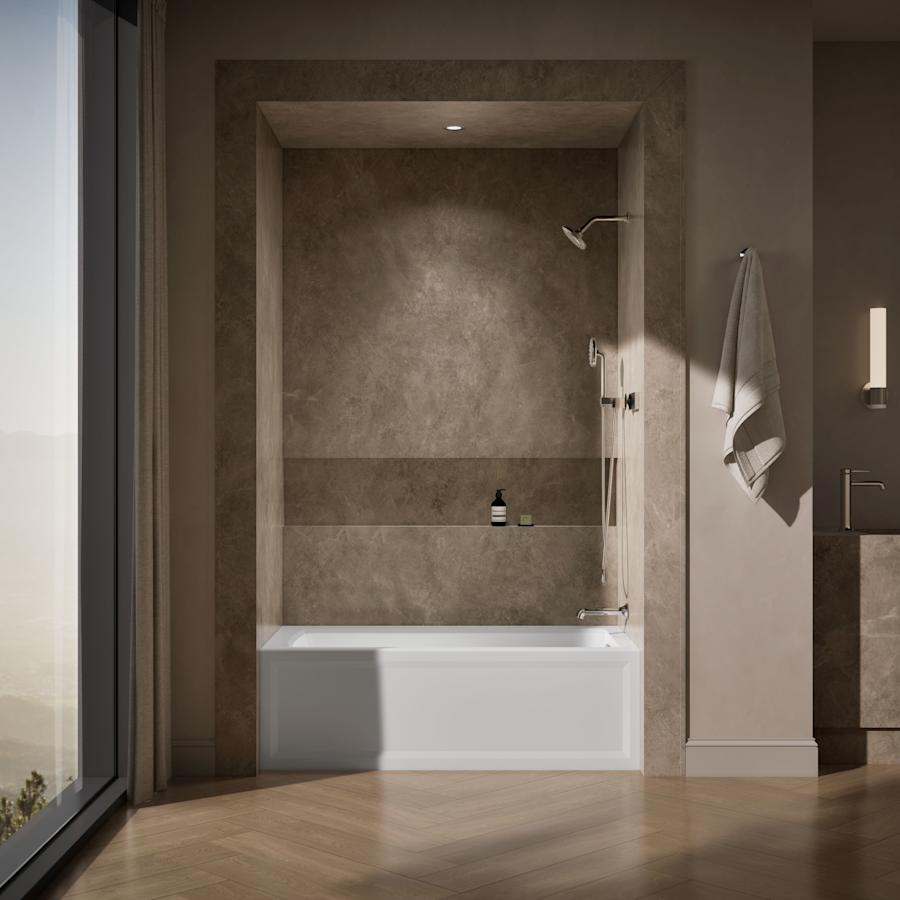

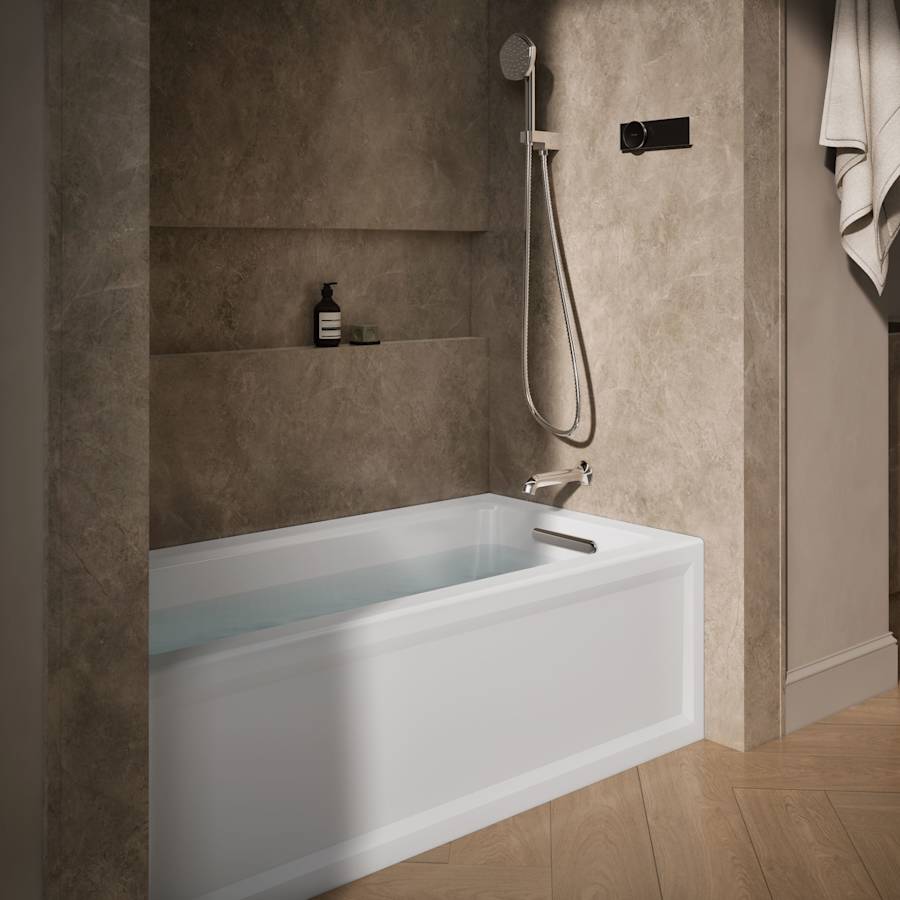

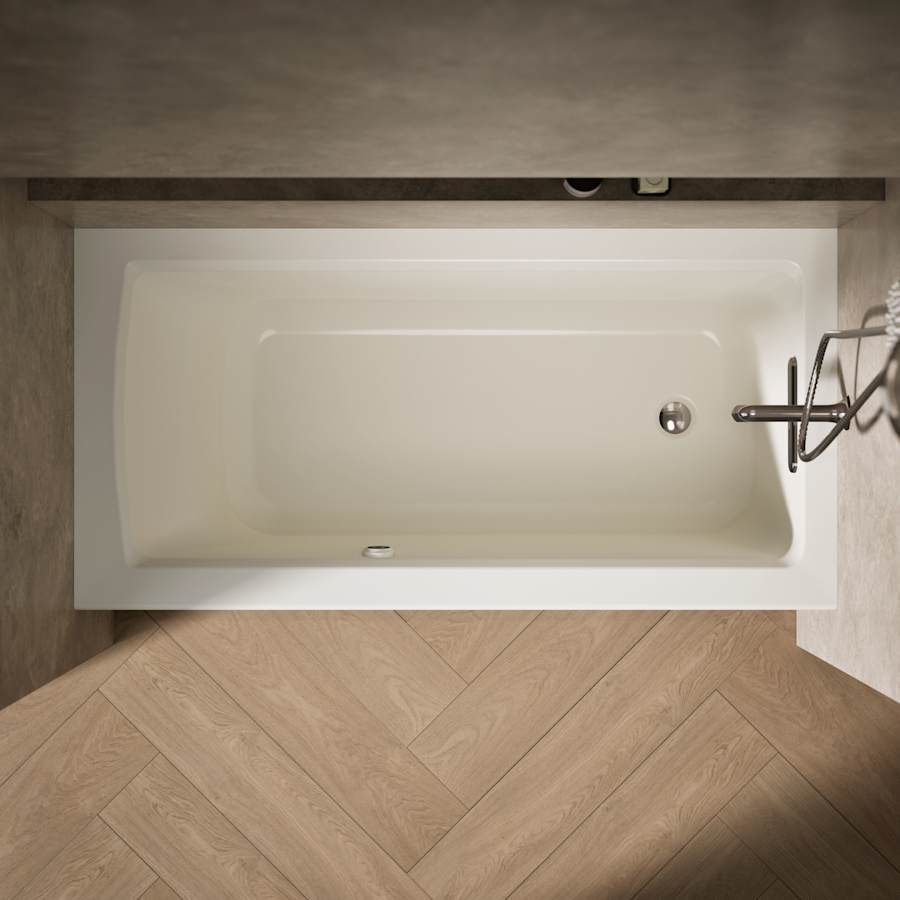

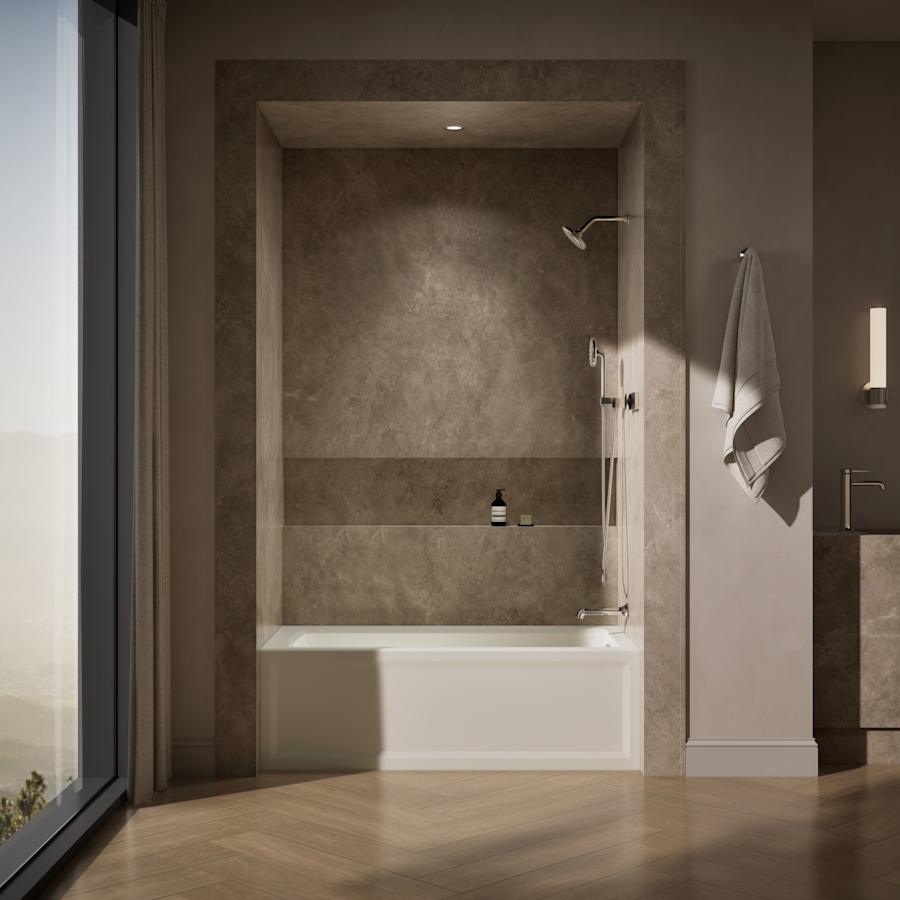

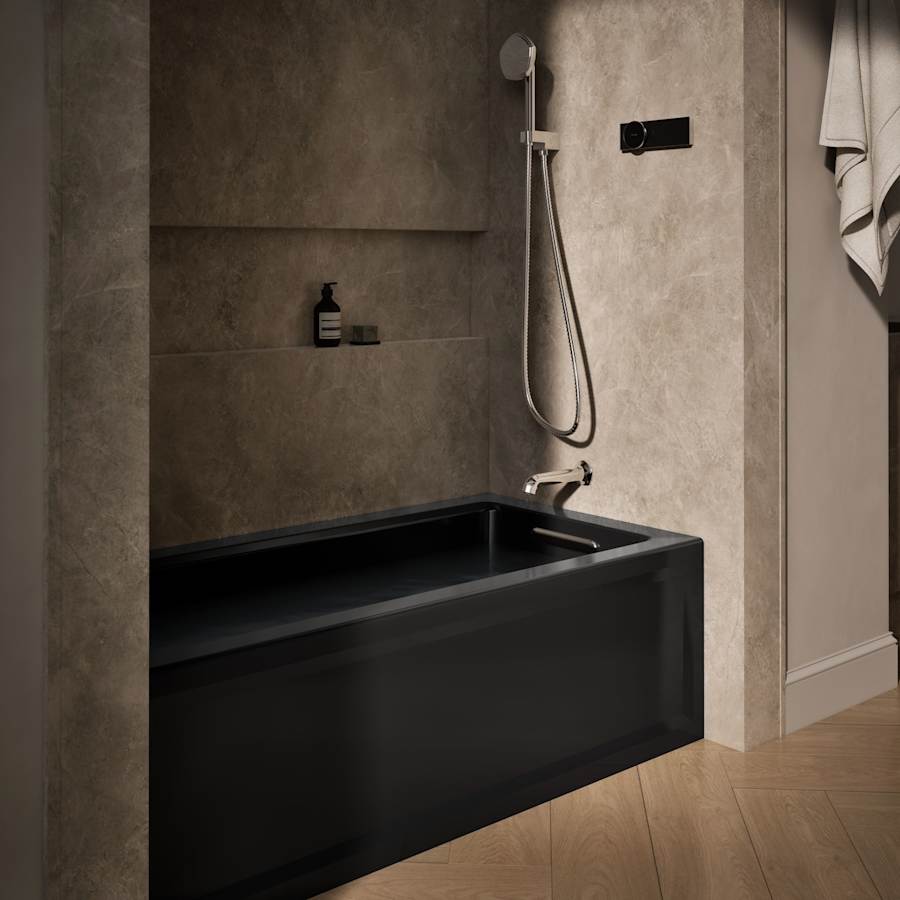

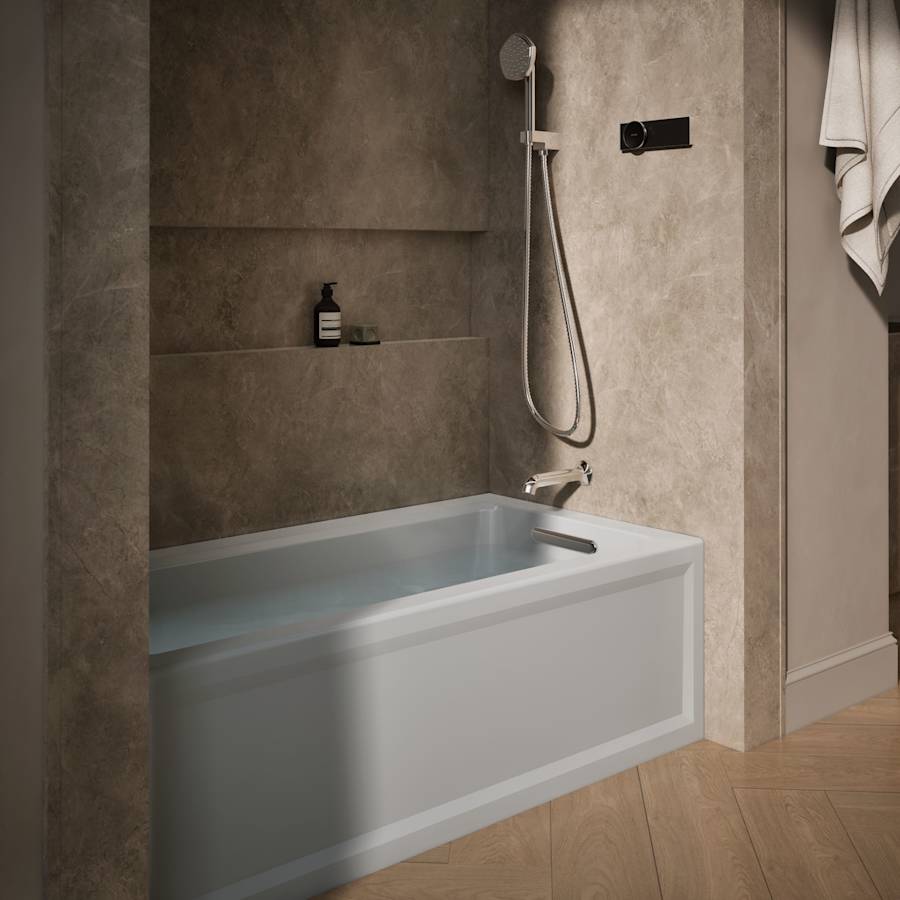

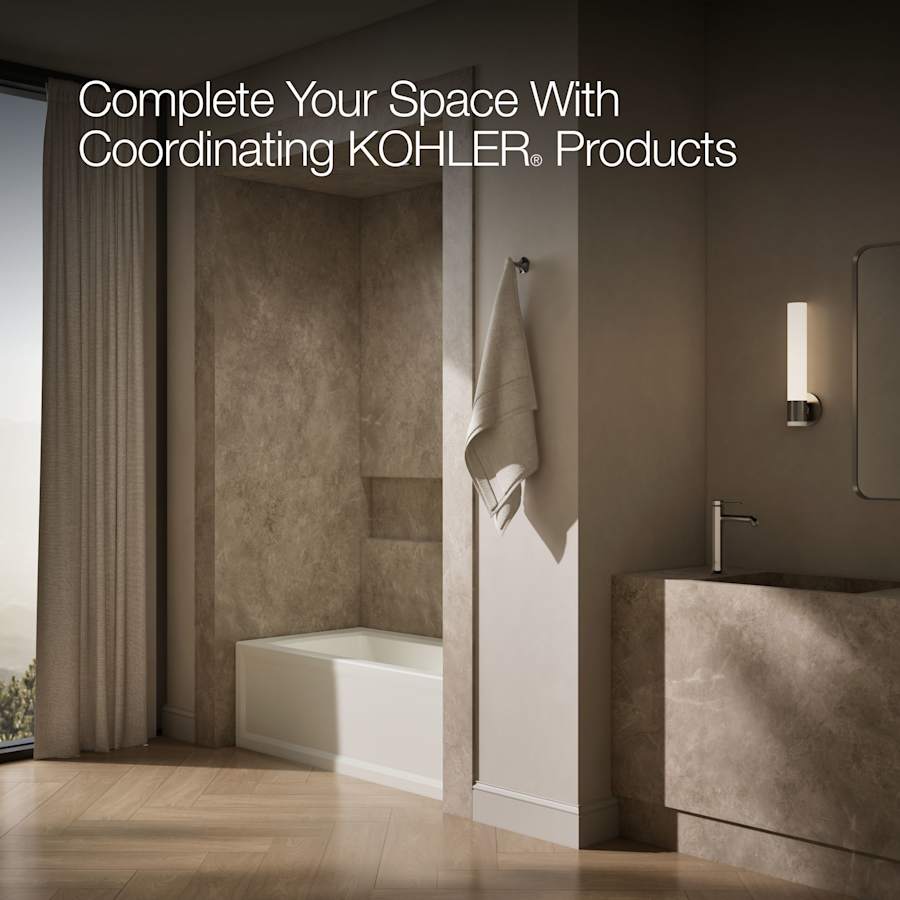

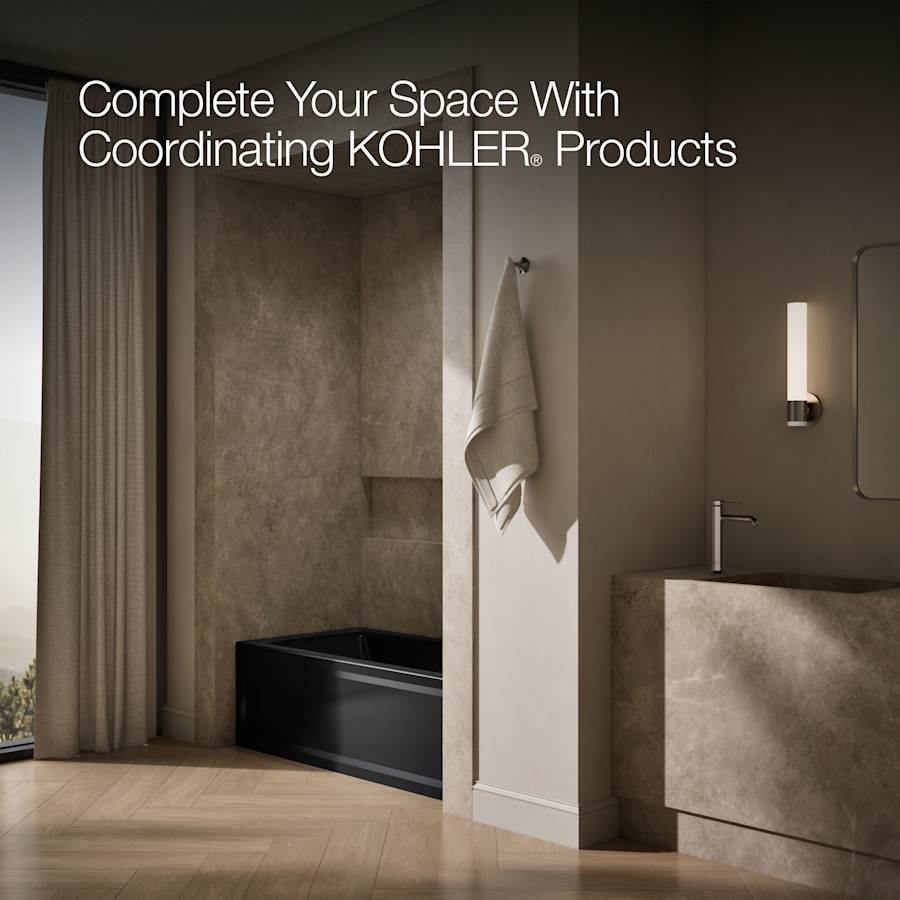

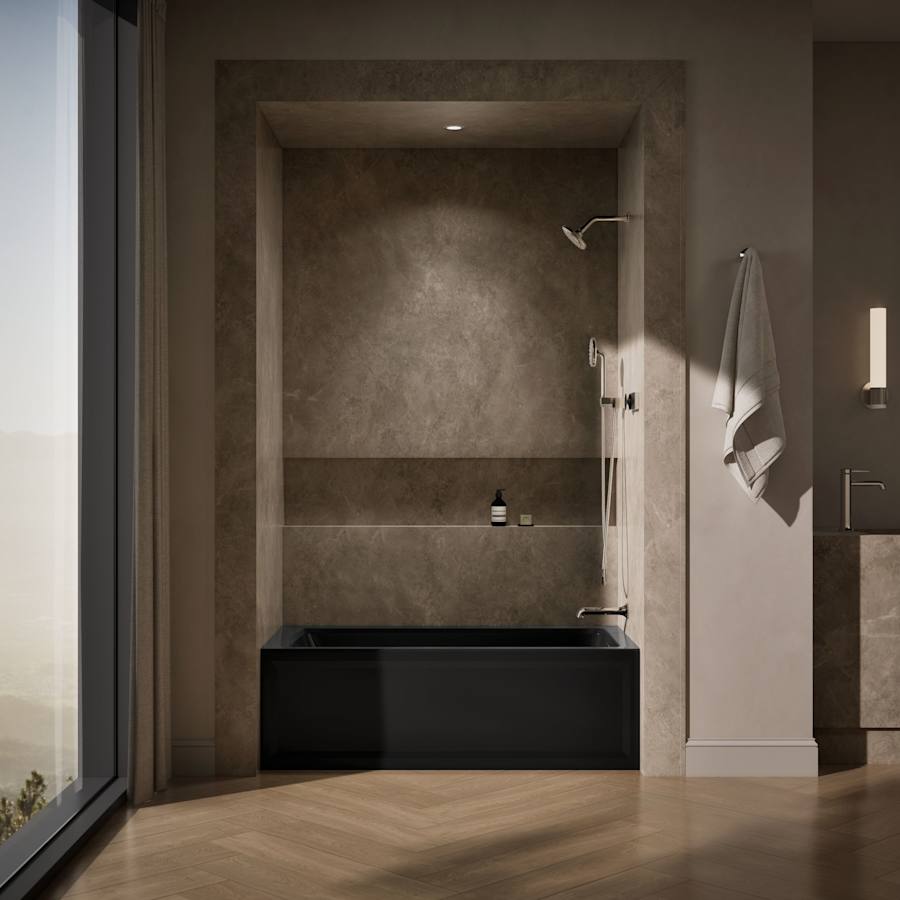

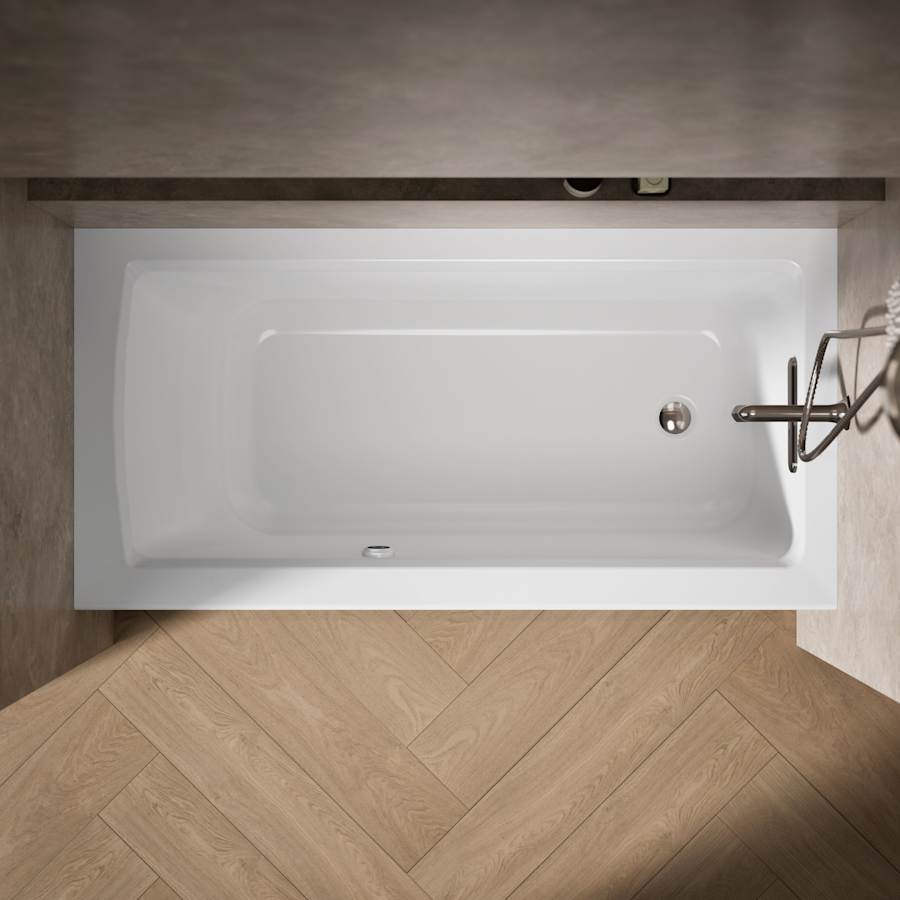

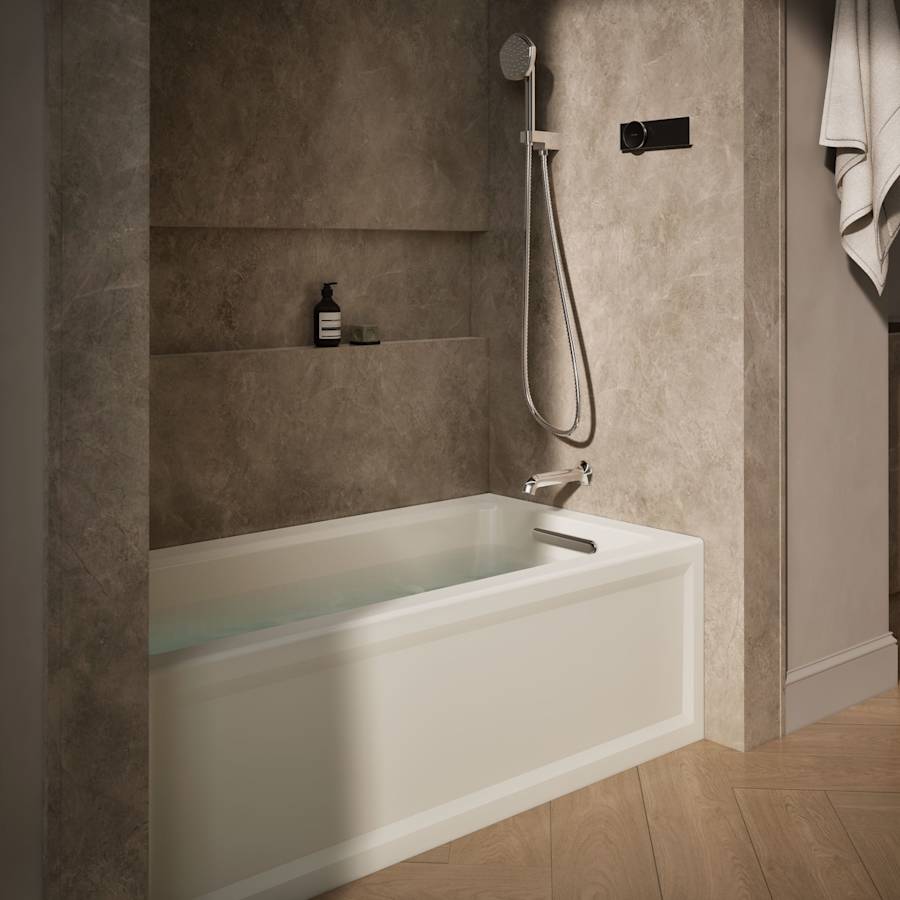

Installs in an alcove configuration

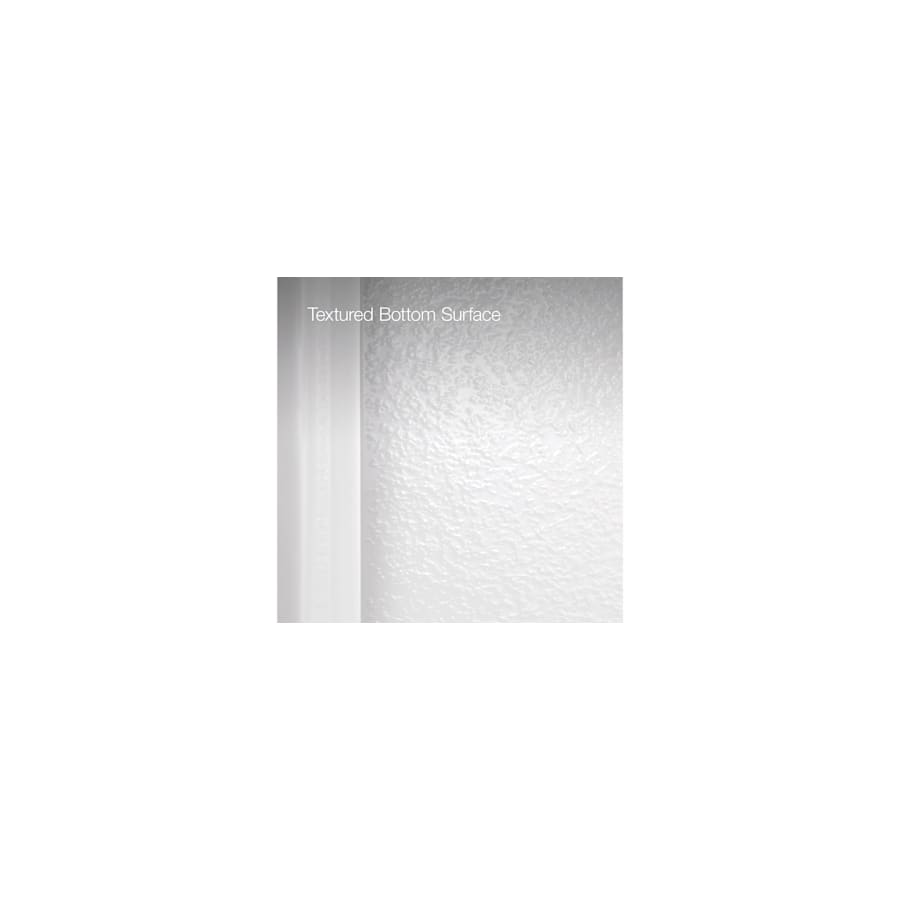

A textured, slip-resistant bottom removes the danger of slipping and sliding while moving about the tub

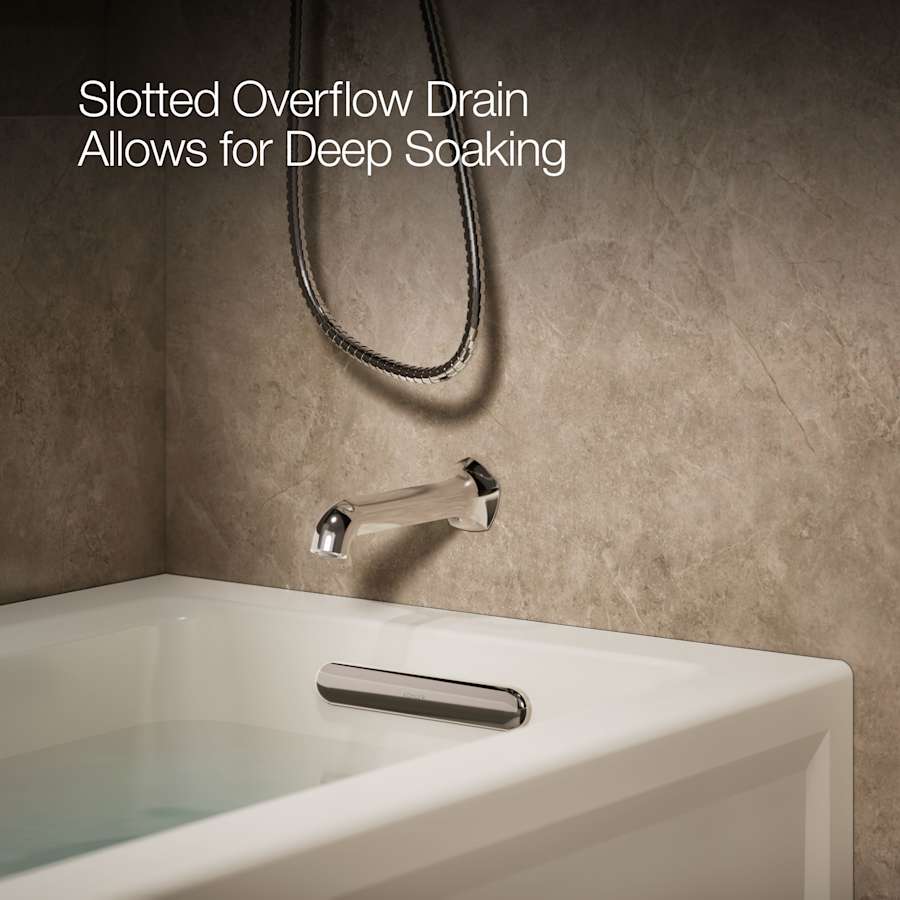

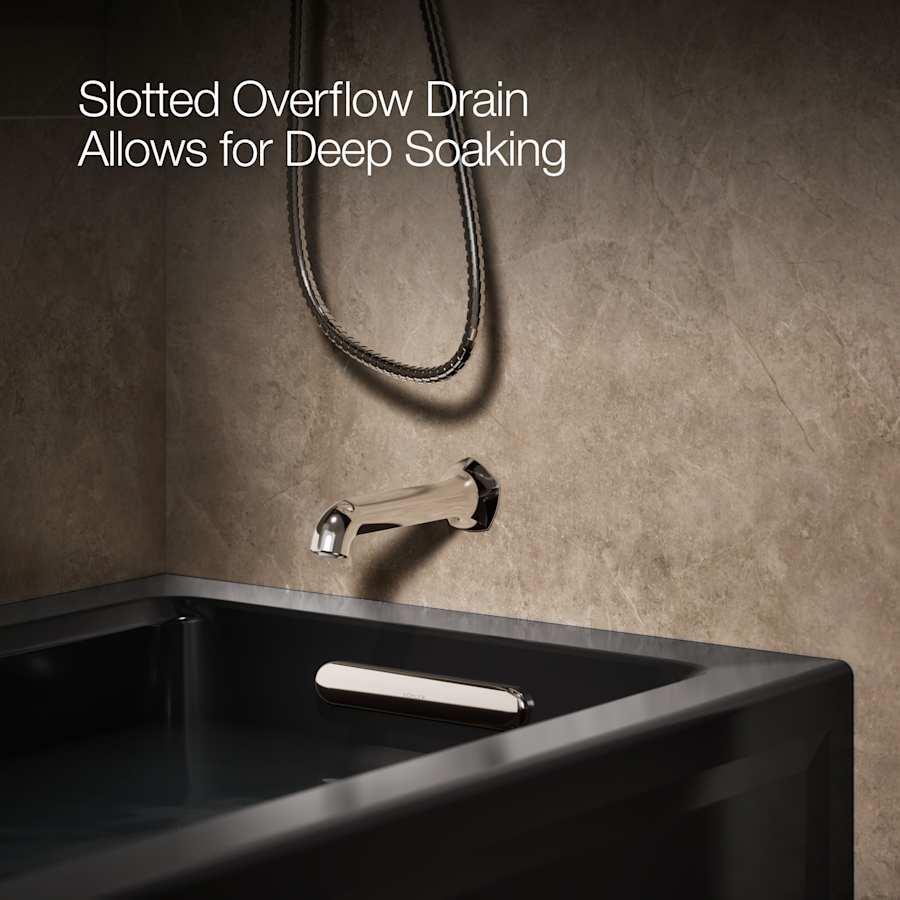

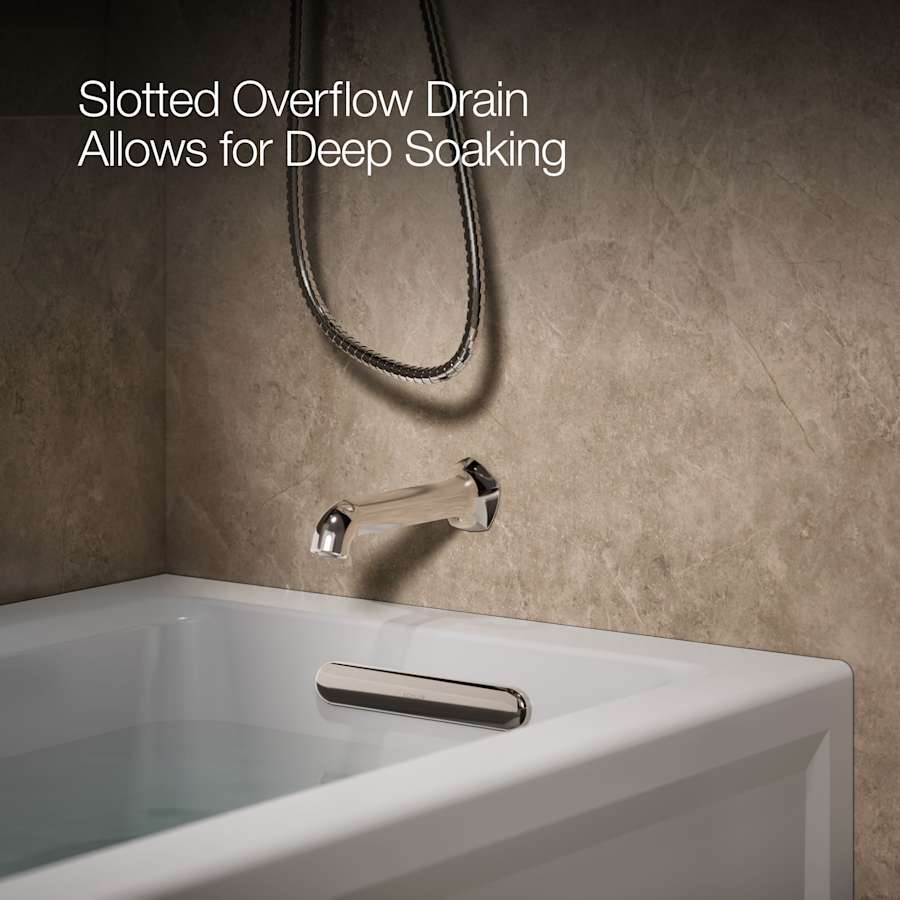

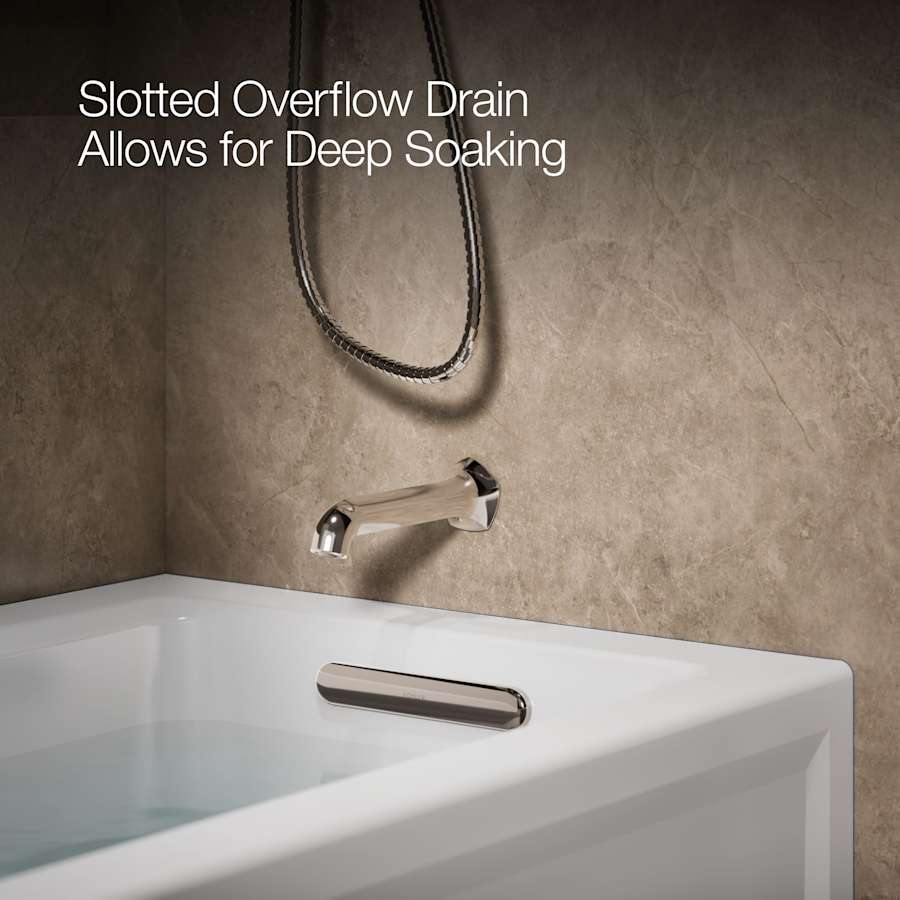

Slotted overflow allows for deep soaking
ADA compliant – complies with the standards set forth by the Americans with Disabilities Act
Product Technologies / Benefits:
Bask: Bask heated surfaces warm the neck and back in addition to the bathwater, creating a spa-like environment. Three temperature settings allow for the ultimate in bathing relaxation.
Product Specifications:

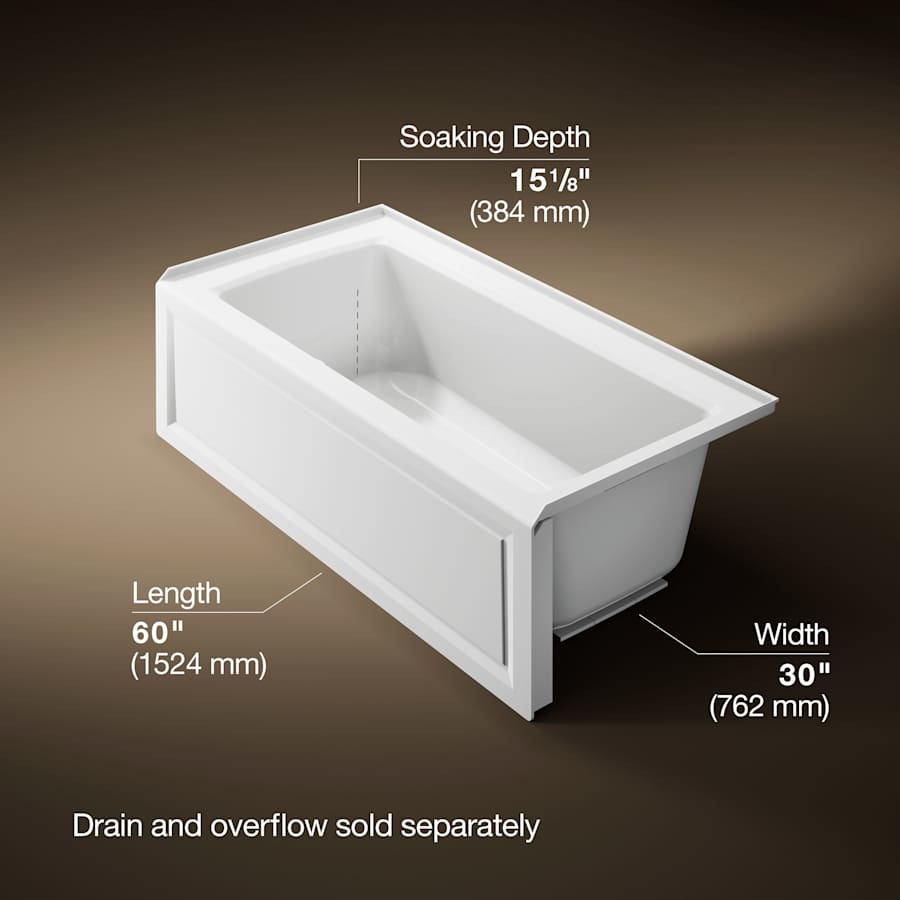

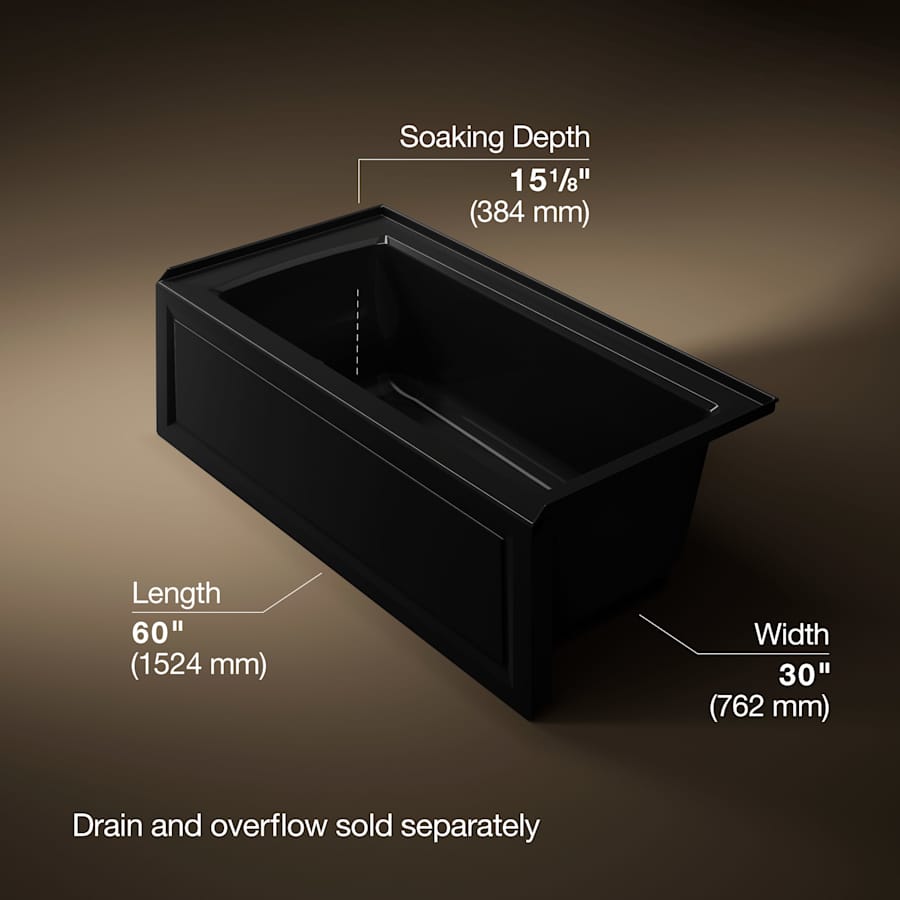

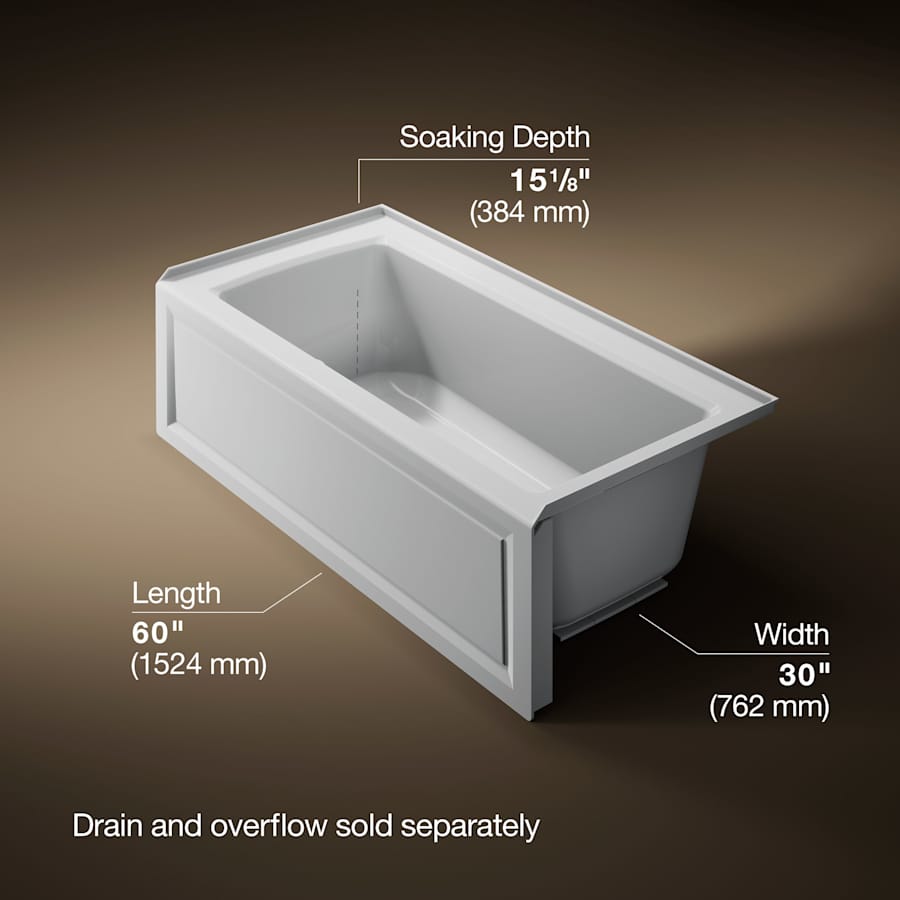

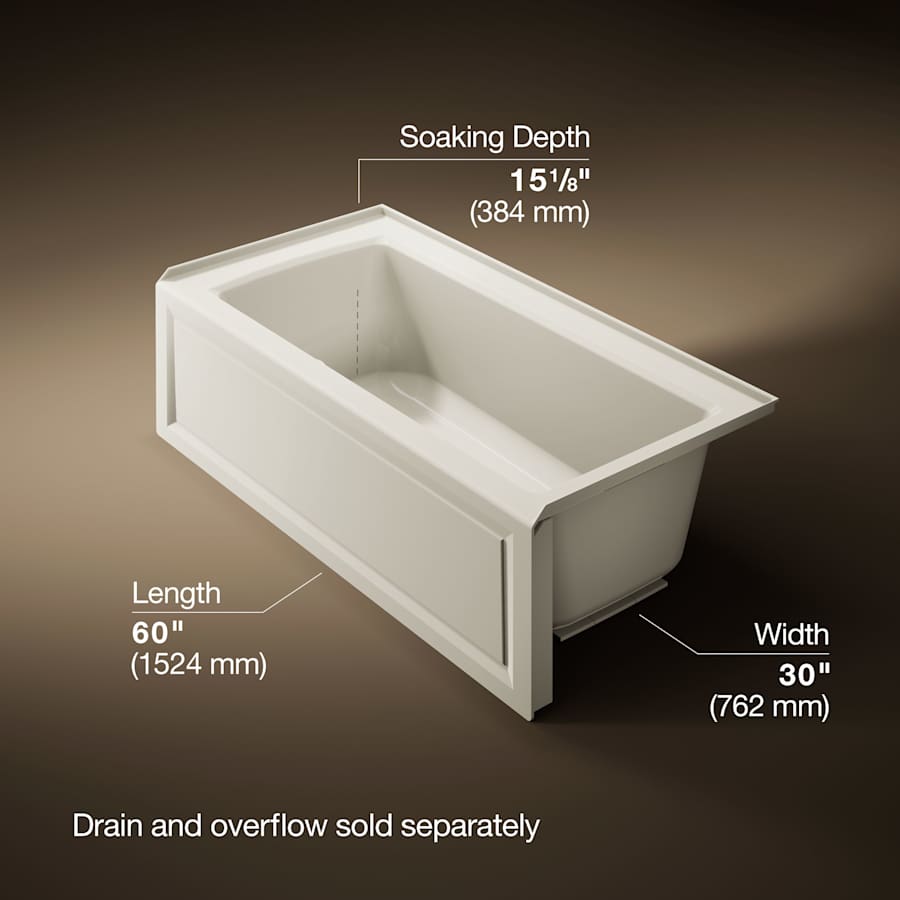

Overall Height: 20-1/4″ (measured from rim to the bottom of tub)
Overall Width: 30″ (measured from back outer rim to front outer rim)
Overall Length: 60″ (measured from left outer rim to right outer rim)
Basin Width (Bottom): 19-11/16″ (back to front measurement at bottom of basin walls)
Basin Length (Bottom): 45-1/8″ (right to left measurement at bottom of basin walls)
Basin Width (Top): 22-1/16″ (back to front measurement at top of basin walls)
Basin Length (Top): 52-1/8″ (right to left measurement at top of basin walls)
Water Depth: 15-1/8″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 57 gallons
Drain Location: Right
Variations of K-1946-RAW:
K-1946-RA: soaking bath version of this tub
K-1947-GRA: bubblemassage air bath version of this tub
K-1947-GRAW: bubblemassage air bath and bask heated surface version of this tub
K-1947-RA: whirlpool version of this tub
K-1947-HRA: whirlpool and heater version of this tub
K-1947-RAW: whirlpool and bask heated surface version of this tub
K-1947-XHGRA: whirlpool and bubblemassage air bath version of this tub
Â
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Archer Collection
Specifications
| Height | 20.25 in. |
| Width | 30 in. |
| Nominal Width | 30 in. |
| Backplate Depth | 19 in. |
| Length | 60 in. |
| Nominal Length | 60 in. |
| Capacity (Gallons) | 57 |
| Overflow Height | 15.125 in. |
| Water Depth | 15.125 in. |
| Water Capacity | 57 |
| Collection | Archer |
| ADA | Yes |
| Certifications | UL |
| Manufacturer Warranty | 1 Year Limited |

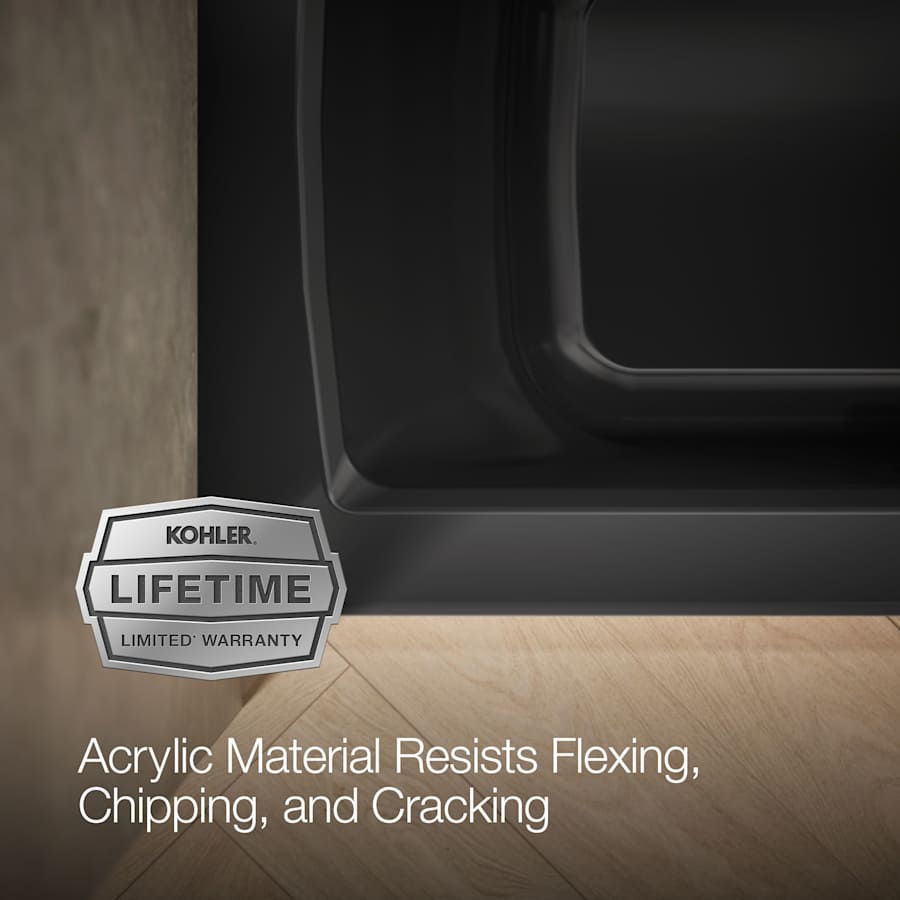

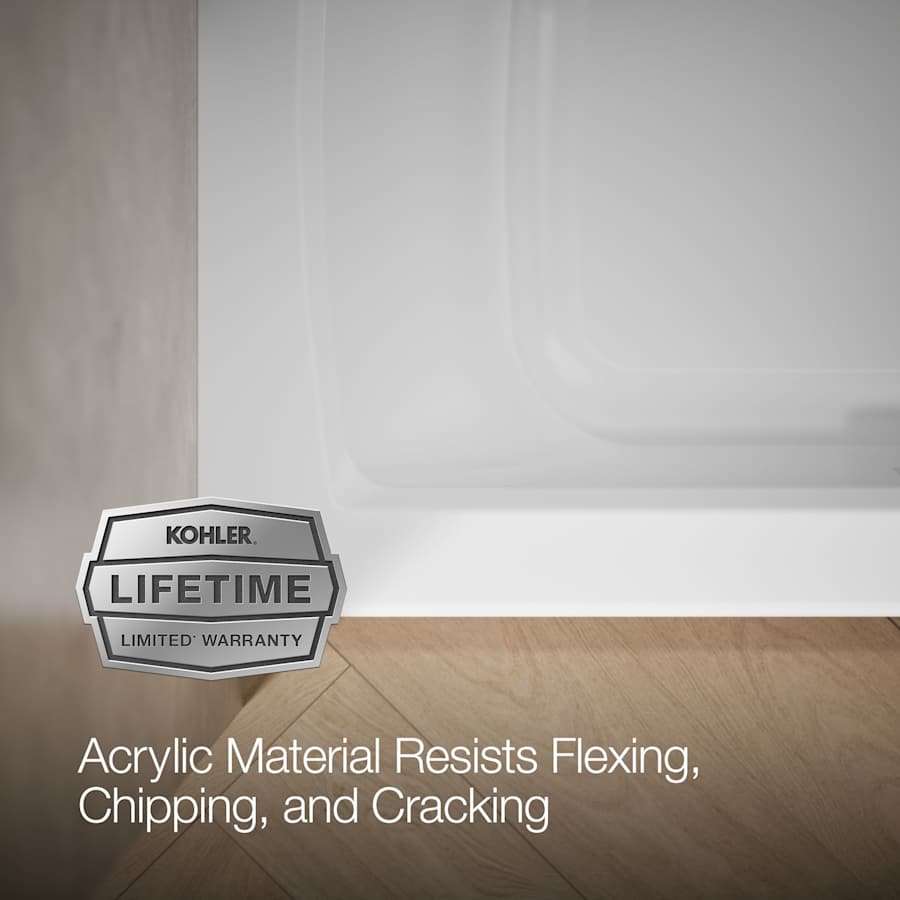

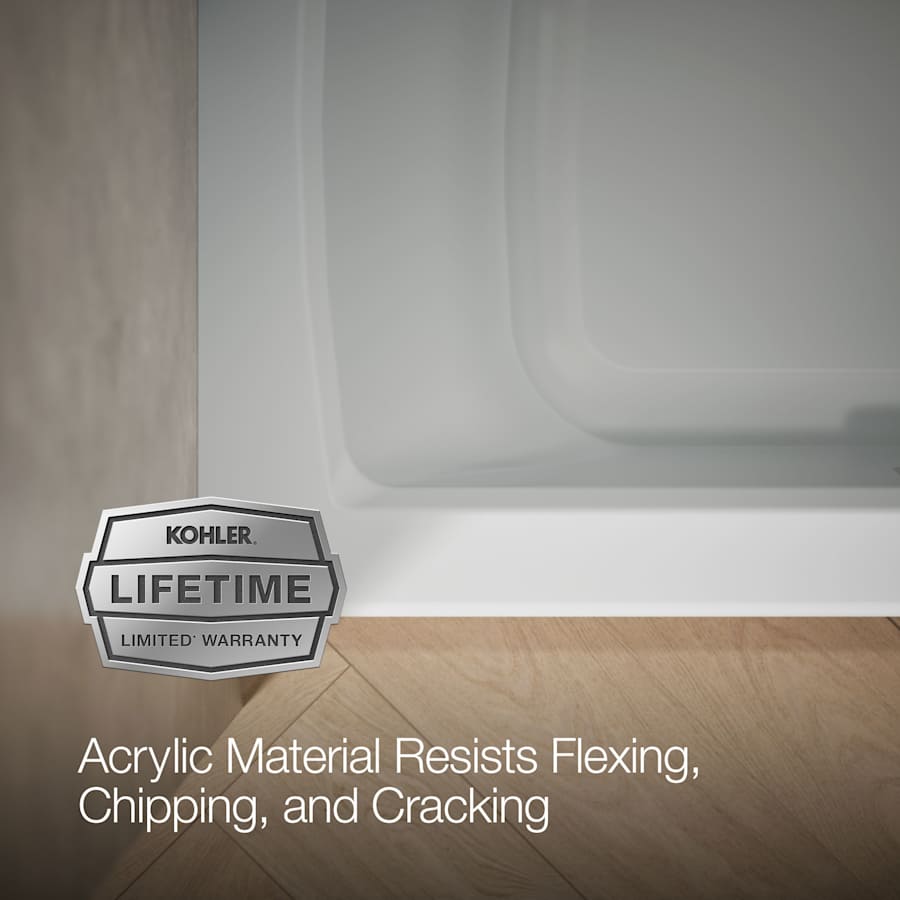

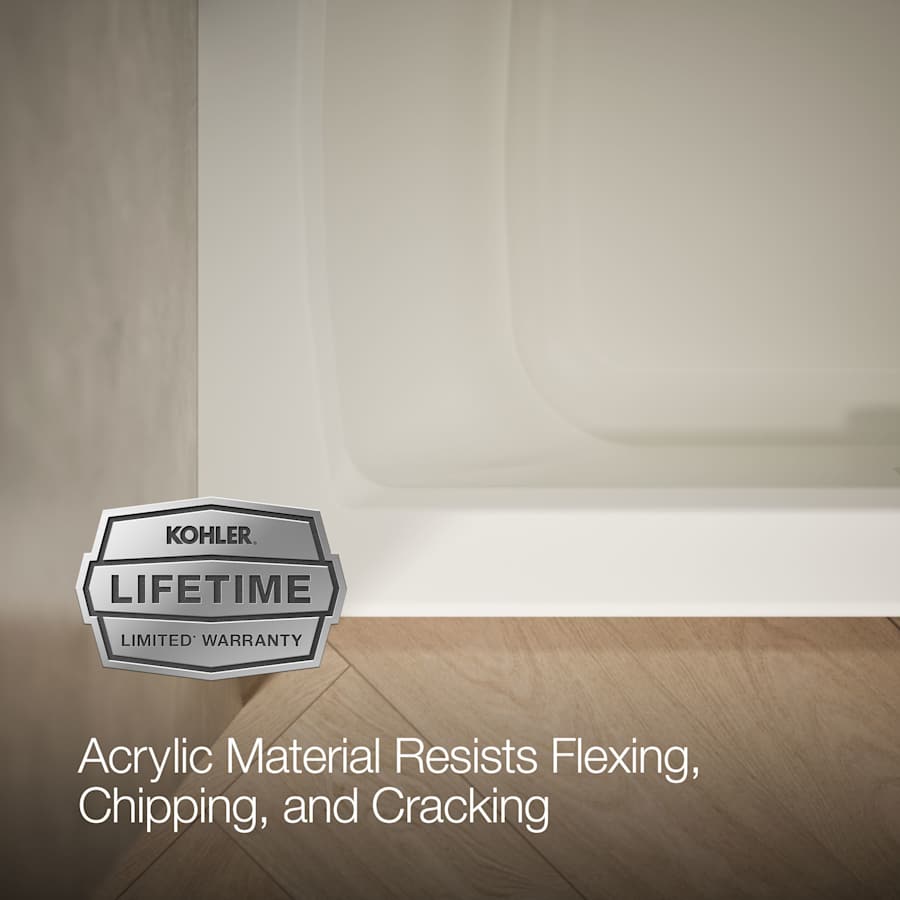

| Material | Acrylic |

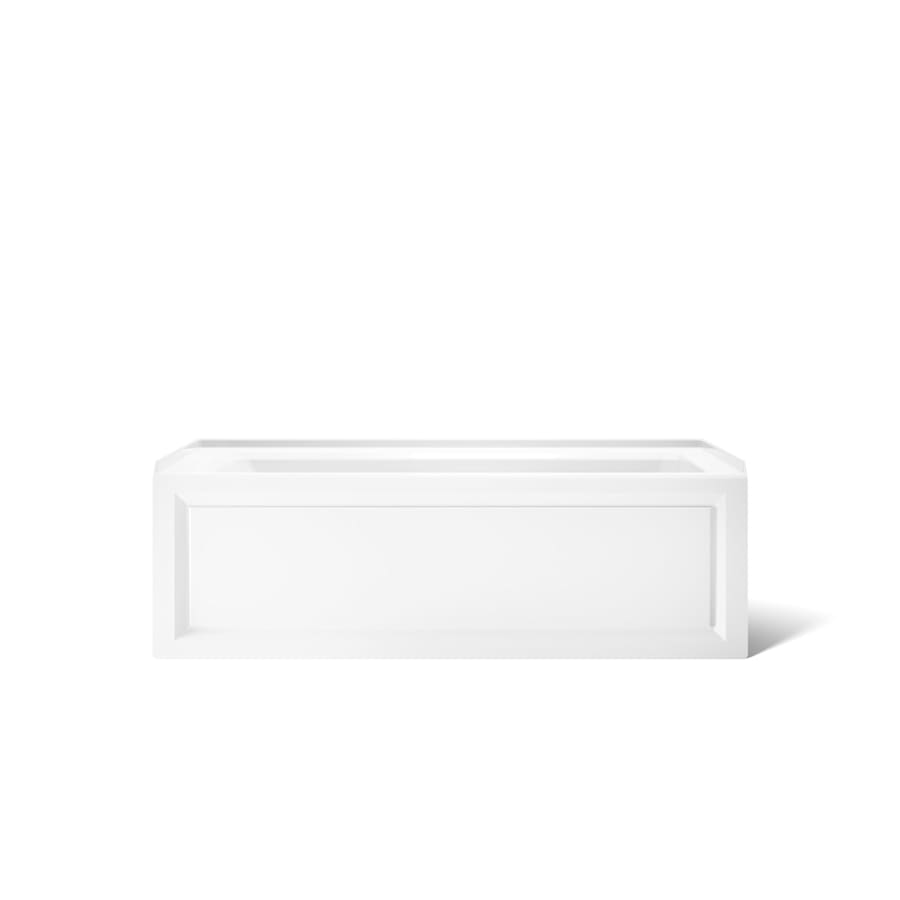

| Apron Front | Yes |
| Drain Placement | Right |
| Insulation Type | Three Wall Alcove |
| Slip Resistant | Yes |
| Number Of Bathers | 1 |
| Tub Shape | Rectangular |
| Voltage | 120 |
| Amperage | 0.5 |
| Frequency | 60 Hertz |
| Drain Assembly Included | No |

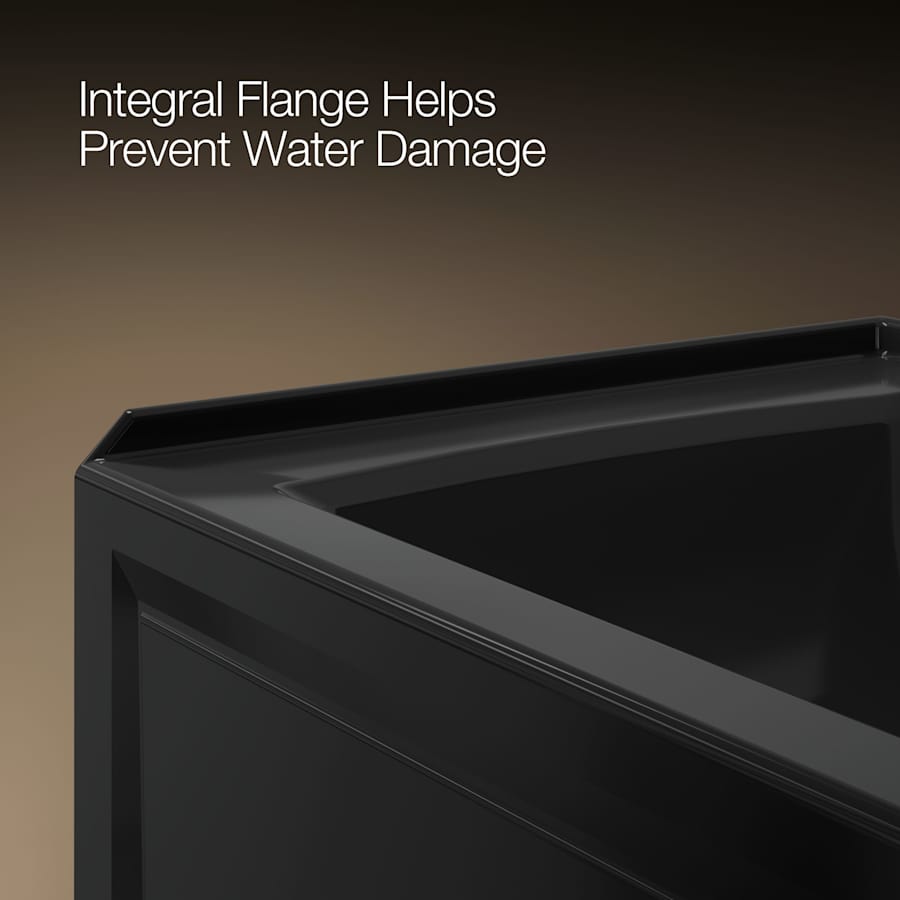

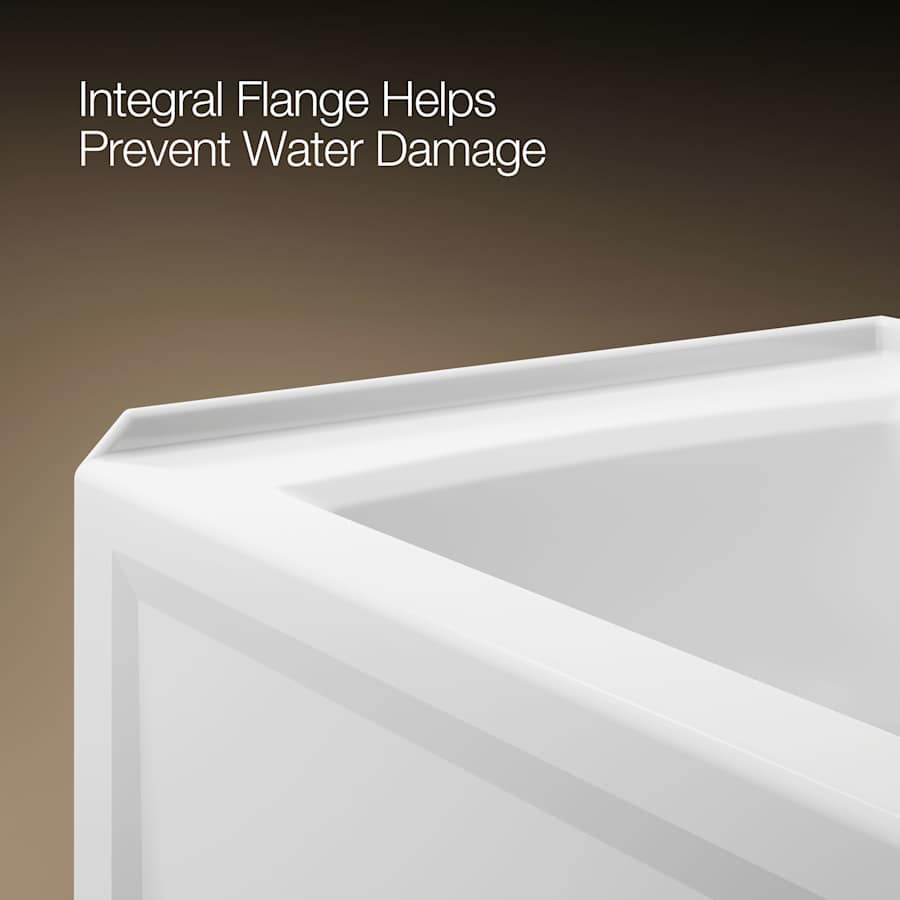

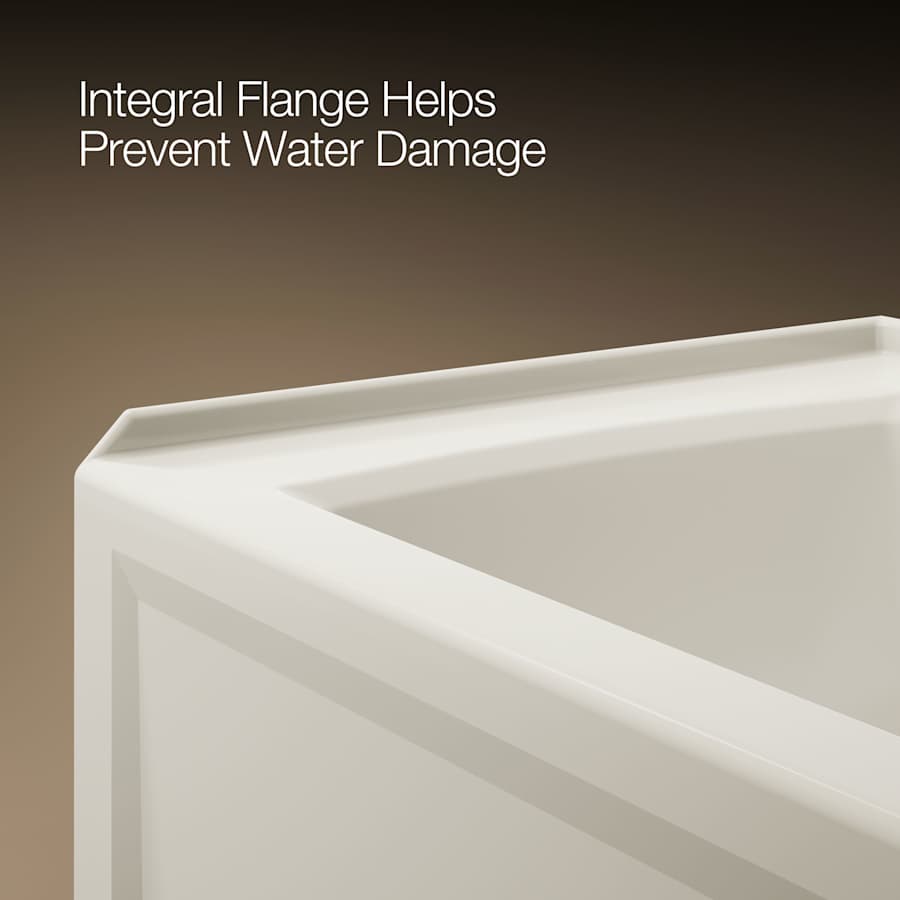

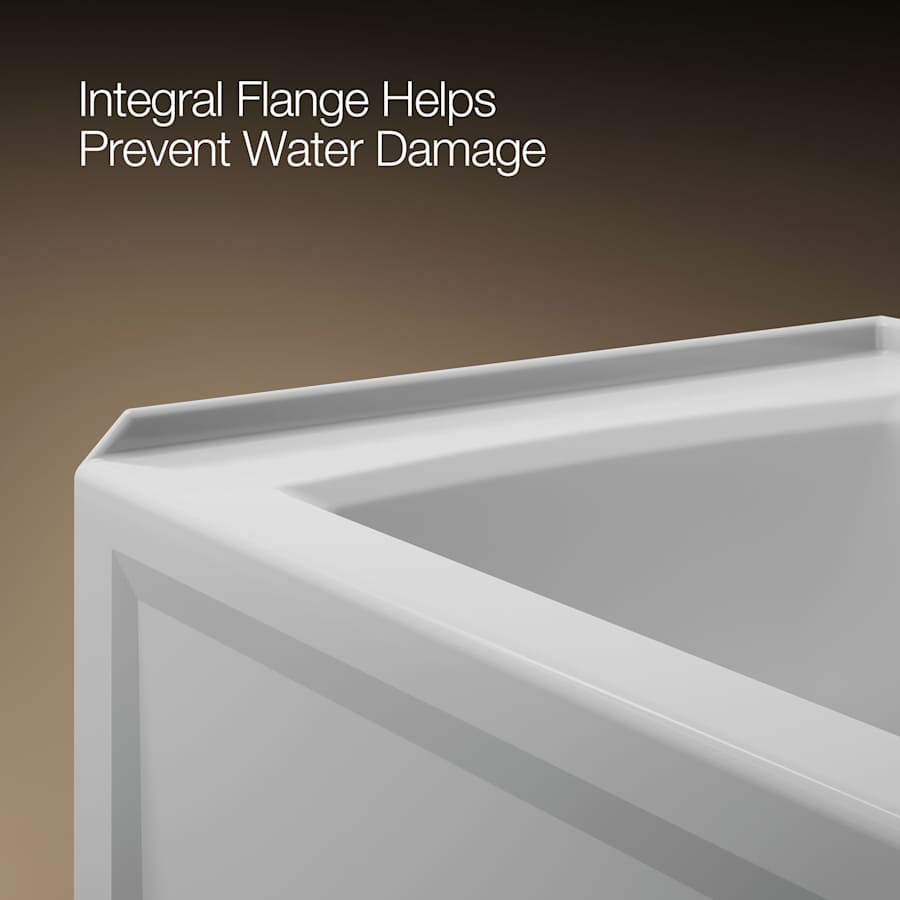

| Tile Flange | Yes |

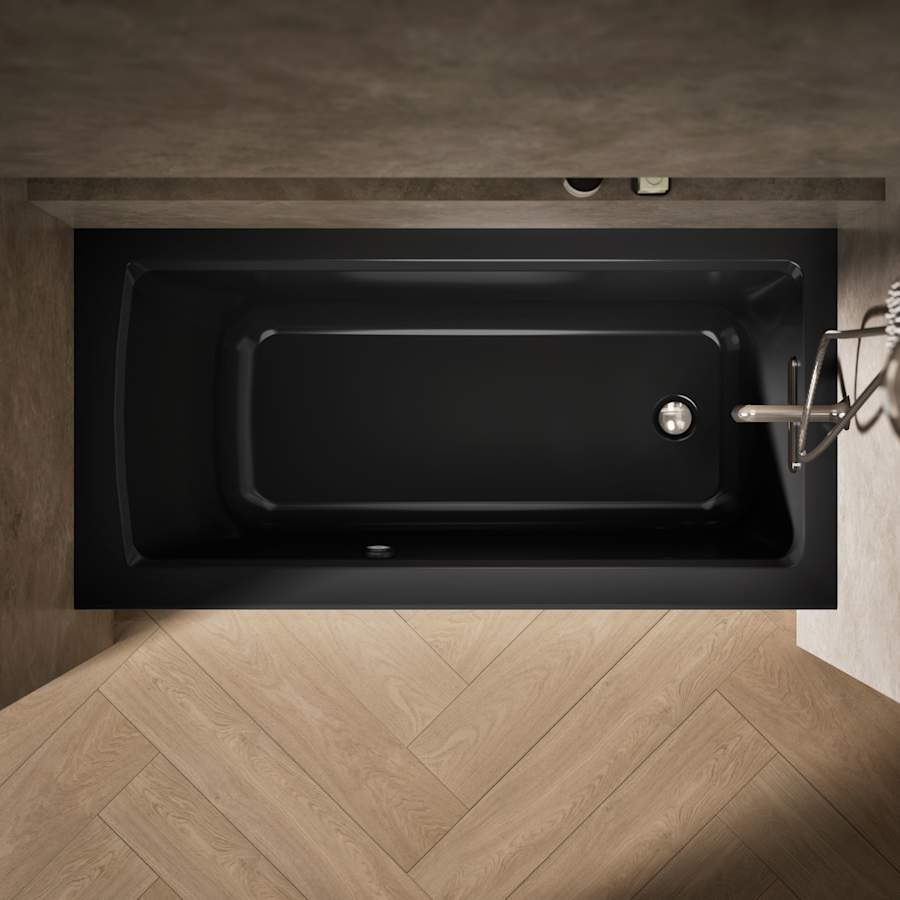

| Color | Almond, Biscuit, Black Black, Cashmere, Dune, Ice Grey, Mexican Sand, Sandbar, Thunder Grey, White |
| Color Tone | Blacks, Greys, Neutrals, Whites |
