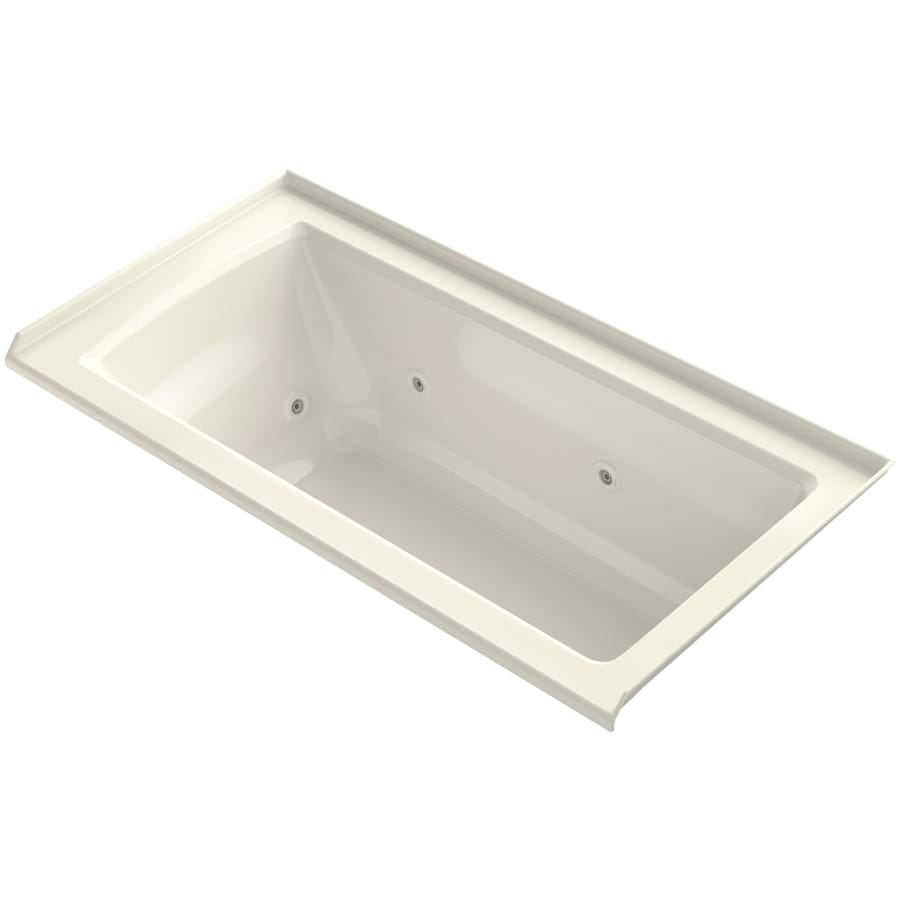

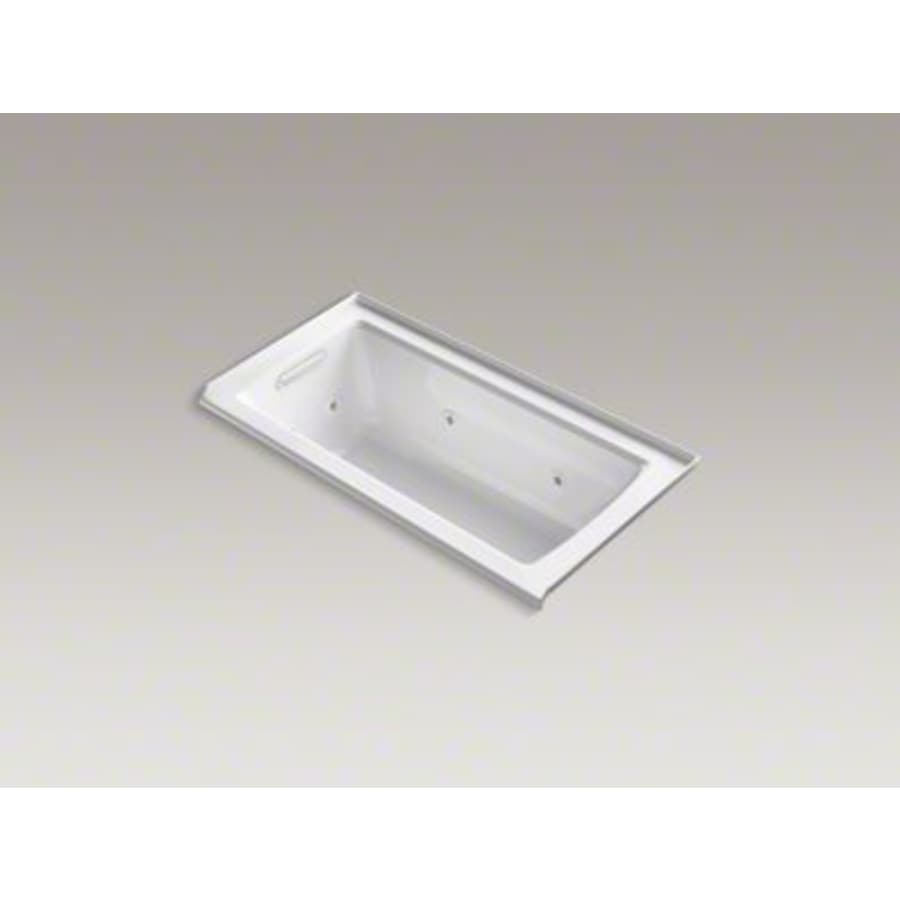

Kohler Archer 60″ Drop-In Whirlpool Bath Tub With Right Drain

Product Features:

Kohler tubs are fully covered under warranty for up to a year after installation
All jets are fully adjustable for water intensity and direction of flow
Jets can be turned off completely
Finger pads on outer ring for easy adjustment
Shallow recess for ease of cleaning
Tub constructed of acrylic
Whirlpool hydrotherapy tub – provides one of the most relaxing and invigorating bath experiences available
1-speed whirlpool with 8 fully adjustable color-matched jets offers optimum performance and value
Hydromassage flow and direction that can be controlled at each jet
Comfort height design – provides a lower wall to step over when entering the bath, while maintaining the comfortable soaking depth of standard tubs
Drop in and three wall alcove installation
Tub comes standard with molded lumbar support and armrests, furthering the users comfort
Equipped with an overflow assembly permitting the user to enjoy a deep soak without worrying about spillage
A built-in heater keeps the water at the desired temperature as the user enjoys a long soak without the water getting cold
ADA compliant – complies with the standards set forth by the American’s with Disabilities Act
Product Meet or Exceeds the Following Codes/Standards: ADA, ICC/ANSI A117.1, CSA B45.5/IAPMO Z124, CSA C22.2 No 218.2, ASME A112.19.7/CSA B45.10, UL 1795 and NMX-J-521
Product Technologies / Benefits:
Material – ExoCrylic – Kohler Baths constructed of ExoCrylic material are 30% lighter and offer an easier, mortar-less installation, as well as using 90% fewer volatile organic compounds produced during manufacturing.
Whirlpool Tubs – Kohler Whirlpool tubs are designed to deliver powerful jets of water and air that are fully adjustable in direction and massage intensity, thus allowing your own personal massage.
Built-In Heater – A Built-In Heater works to keep the water warm as it recirculates throughout the intake and whirlpool jets where the water would typically bleed off heat.
Product Specifications:
Overall Height: 19″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 30″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 19-11/16″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45-1/8″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 22-1/16″ (back to front measurement of the top of basin walls)
Basin Length (Top): 52-1/8″ (right to left measurement of the top of basin walls)
Water Depth: 15-1/8″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 57 – gallons
Drain Location: Right
Drop-In Cutout Required: 58-1/2″ x 28-1/2″
Pump Voltage: 120 V
Pump Amperage: 7 A
Heater Voltage: 120 V
Heater Amperage: 12.5 A

Variations of K-1947-RH:

K-1946-R: soaking bath version of this tub
K-1946-RW: soaking bath and bask heated surface version of this tub
K-1947-GRF: bubblemassage air bath version of this tub
K-1947-GRW: bubblemassage air bath and bask heated surface version of this tub
K-1947-VBR: vibracoustic version of this tub
K-1947-VBRW: vibracoustic and bask heated surface version of this tub
K-1947-R: whirlpool version of this tub
K-1947-RW: whirlpool and bask heated surface version of this tub
K-1947-XHGR: whirlpool and bubblemassage air bath version of this tub

With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.

From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.
