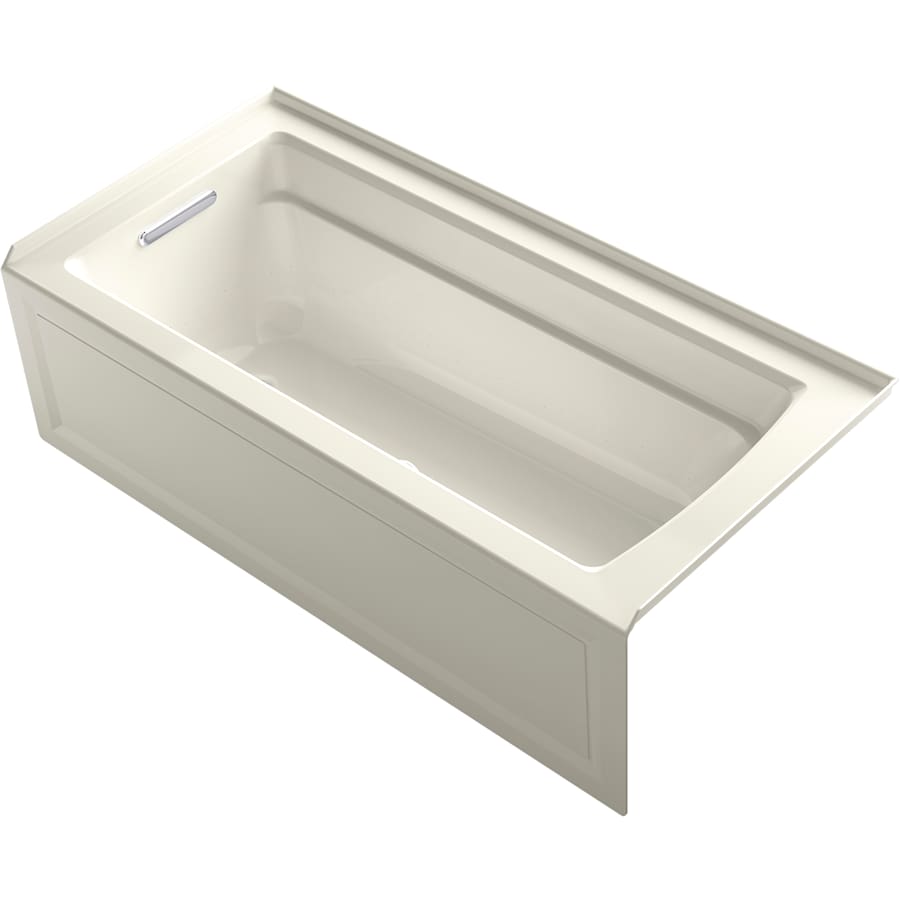

With heated BubbleMassage hydrotherapy, air jets release thousands of heated bubbles that deliver a blissfully warm, invigorating full-body massage designed to soothe and restore. Taking its design cues from traditional craftsman furniture, the Archer line of baths reveals beveled and curved bases for a clean, sophisticated style. This air bath offers a low step-over height while allowing for deep, comfortable soaking.
Kohler K-1949-GHLA Features:
Molded lumbar support offers extra comfort
Self-cleaning purge cycles remove residual water from channels
120 air jets release thousands of heated bubbles that surround and support the body in a warm massage
Variable-speed blower lets you adjust massage intensity to 18 levels
Comfort Depth design offers a convenient 19-in step-over height while retaining the same depth as a standard 21-in bath
Slotted overflow allows for deep soaking
Integral apron
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Left-hand drain
Kohler K-1949-GHLA Benefits and Technologies:

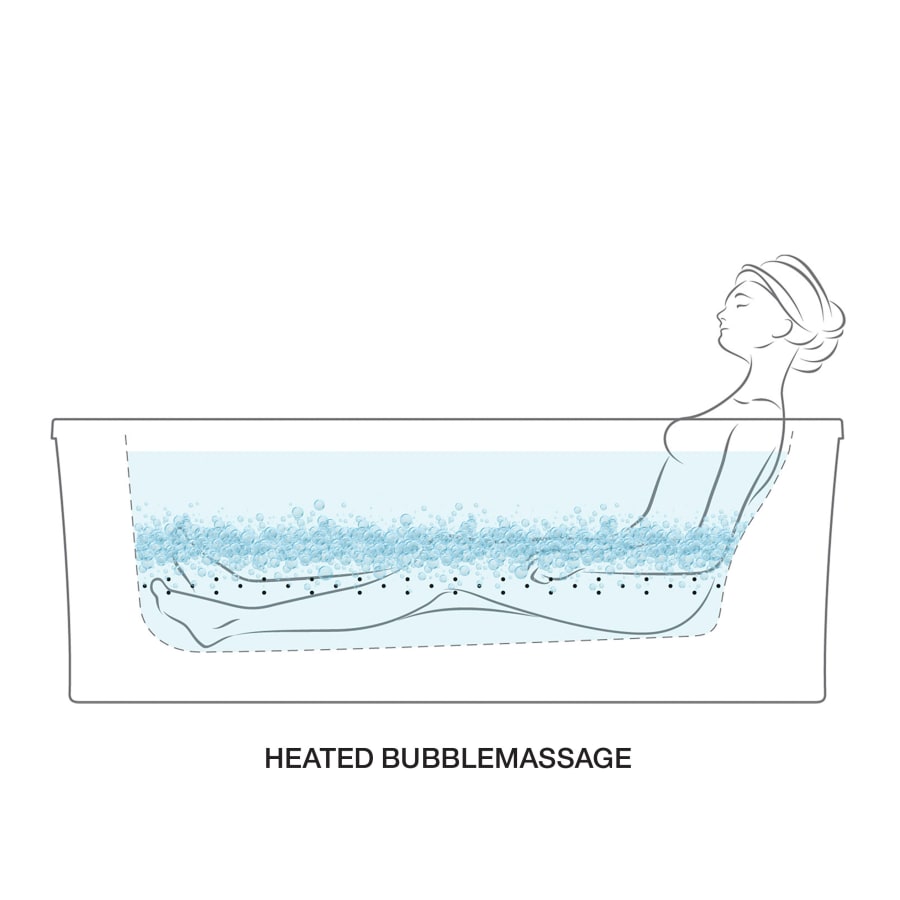

BubbleMassage: BubbleMassage hydrotherapy delivers thousands of bubbles that thoroughly support and massage your body for an invigorating, blissful experience. The strategic placement of the BubbleMassage air jets on the lower perimeter of the bath create a luxurious bathing experience that stimulates the release of muscle tension and helps center the mind
Comfort Depth: Provides the depth and comfort of a standard soaking tub for a long relaxing, cleansing soaks but offers a convenient 19″ step over height
K-1949-GHLA Specifications:
Overall Height: 20-1/4″ (bottom to top of tub)
Overall Length: 66″ (left to right of tub)
Overall Width: 32″ (back to front of tub)
Basin Length: 50-3/8″ (left to right of bottom basin)
Basin Width: 19-5/8″ (front to back of bottom basin)
Basin Depth: 19-1/4″ (bottom of basin to tub rim)
Maximum Water Capacity: 66 gallons
Water Depth: 19-1/4″
Frequency: 60 Hz
Amperage: 15 A
Number of Jets: 120
Drain Connections: 1-1/2″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Archer Collection
Specifications
| Height | 20.25 in. |
| Width | 32 in. |
| Depth | 19.25 in. |
| Length | 66 in. |
| Product Weight | 130 lbs. |
| Nominal Width | 32 in. |
| Capacity (Gallons) | 66 |
| Nominal Length | 66 in. |
| Overflow Height | 15.375 in. |
| Water Depth | 15.5 in. |
| Insulation Type | Three Wall Alcove |
| Material | Acrylic |
| Thermostat | Modern |
| Control Type | Electronic |
| Accepts Deck Mount Faucet | No |
| Apron Front | Yes |
| Drain Placement | Left |
| Number Of Bathers | 1 |
| Overflow | Yes |
| Tub Shape | Rectangular |
| Number of Jets | 120 |
| Pump Placement | Right |
| Jet Type | Air |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ANSI, ASME, CSA |
| Collection | Archer |
| ADA | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.19.7 |
| CSA Code | B45.10, C22.2, B45.5 |
| Light Included | No |
| Drain Assembly Included | No |
| Faucet Included | No |
| Handshower Included | No |
| Tile Flange | Yes |
| Heater Included | Yes |
| Blower | Yes |
| Voltage | 120 |
| Wattage | 600 |
| Amperage | 15 |
| Frequency | 60 Hertz |
| Speeds | 18 |
| Color | Almond, Biscuit, Black Black, Dune, Ice Grey, Thunder Grey, White |
| Color Tone | Blacks, Greys, Neutrals, Whites |
