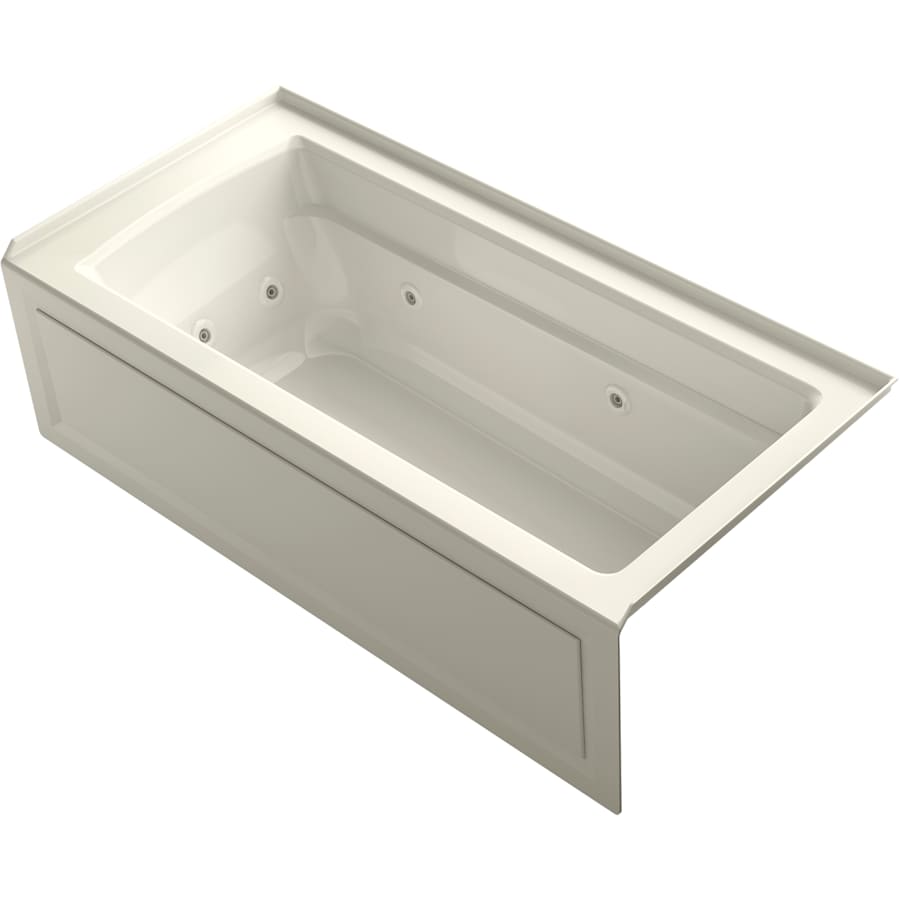

Taking its design cues from traditional craftsman furniture, the Archer line of baths reveals beveled edges and curved bases for a clean, sophisticated style. This bath offers a low step-over height while allowing deep, comfortable soaking. Whirlpool jets relax away the day’s tension as a built-in heater keeps your water at the perfect temperature. Kohler ExoCrylic™ is the next generation of bathroom acrylics, featuring a lighter weight for easier installation and 90% fewer VOCs produced during manufacturing.
Kohler K-1949-HRA Features:
Single speed whirlpool offers performance and value, with 8 fully adjustable jets
Hydromassage flow and direction can be controlled at each jet
Features built-in heater with integral apron
Comfort Depth® design offers a convenient 19″ step over height while retaining the same depth as a standard 21″ bath
Molded lumbar support offers extra comfort while bathing
Slotted overflow allows for deep soaking
Integral flange helps prevent water from seeping behind wall and simplifies alcove installation
Kohler K-1949-HRA Technologies and Benefits:
Comfort Depth®: Comfort Depth® design offers a convenient 19-inch step-over height while retaining the same depth as a standard 21-inch bath
Kohler K-1949-HRA Specifications:
Overall Height: 19″ (bottom to top of tub)
Overall Length: 66″ (left to right of tub)
Overall Width: 32″ (front to back of tub)
Basin Length: 50-7/8″ (left to right of bottom basin)
Basin Width: 19-5/8″ (front to back of bottom basin)
Basin Depth: 20-1/4″ (top to bottom of basin)
Maximum Water Capacity: 66 gallons
Water Depth: 15-5/16″
Frequency: 60 Hz
Amperage: 15 A
Number of Jets: 8
Drain Connection: 1-1/2″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Archer Collection
Specifications
| Width | 32 in. |
| Height | 19 in. |
| Length | 66 in. |
| Nominal Length | 66 in. |
| Product Weight | 120 lbs. |
| Depth | 20.25 in. |
| Nominal Width | 32 in. |
| Capacity (Gallons) | 66 |
| Overflow Height | 15.3125 in. |
| Water Depth | 15.3125 in. |
| Thermostat | Modern |
| Material | Acrylic |
| Insulation Type | Three Wall Alcove |
| Drain Placement | Right |
| Overflow | Yes |
| Control Type | Electronic |
| Sound Dampening | No |
| Apron Front | Yes |
| Number Of Bathers | 1 |
| Tub Shape | Rectangular |
| Number of Jets | 8 |
| Slip Resistant | Yes |
| Self Leveling Base | No |
| Pump Placement | Left |
| Accepts Deck Mount Faucet | No |
| Manufacturer Warranty | Limited Lifetime, 5 Year Limited |
| Country Of Origin | USA |
| Collection | Archer |
| ANSI Certification | A117.1 |
| Certifications | ANSI, ASME, CSA |
| ADA | Yes |
| Made in America | Yes |
| ASSE Code | A112.19.7 |
| CSA Code | B45.5, B45.10 |
| Drain Assembly Included | No |
| Faucet Included | No |
| Light Included | No |
| Handshower Included | No |
| Heater Included | Yes |
| Tile Flange | Yes |
| Blower | No |
| Arm Rests Included | Yes |
| Voltage | 120 |
| Wattage | 1500 |
| Frequency | 60 Hertz |
| Amperage | 15 |
| Speeds | 1 |
| Color | Almond, Biscuit, Black Black, Cashmere, Dune, Ice Grey, Sandbar, Thunder Grey, White |
| Color Tone | Blacks, Greys, Neutrals, Whites |
