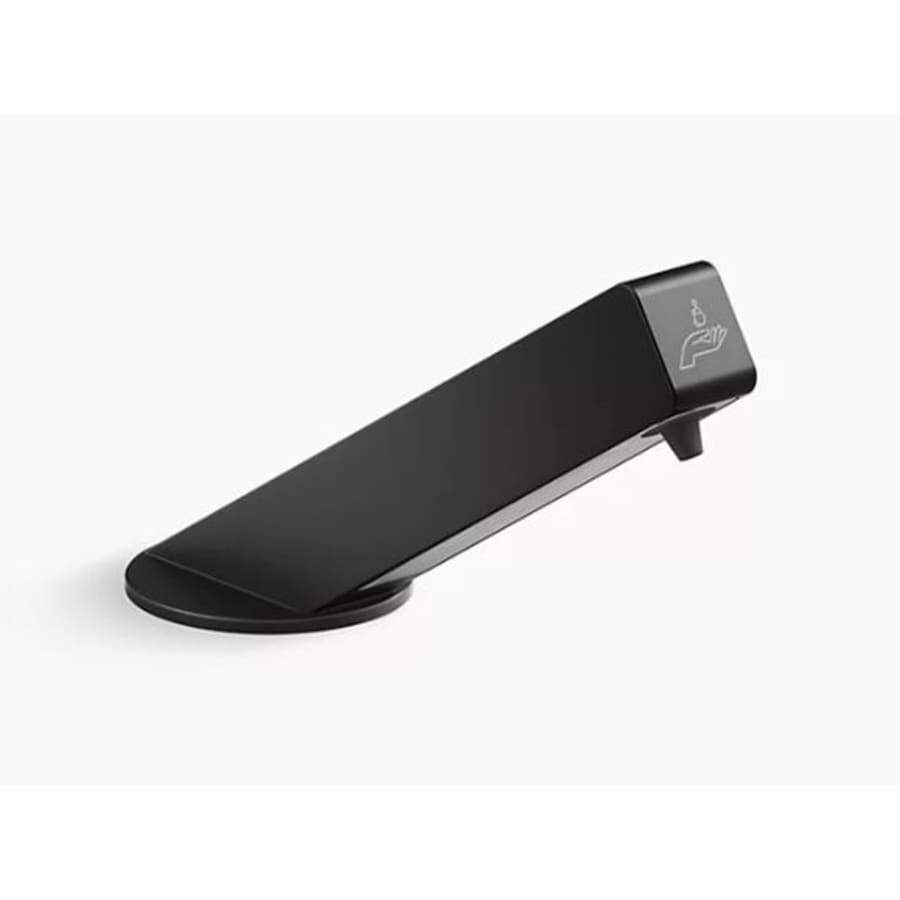

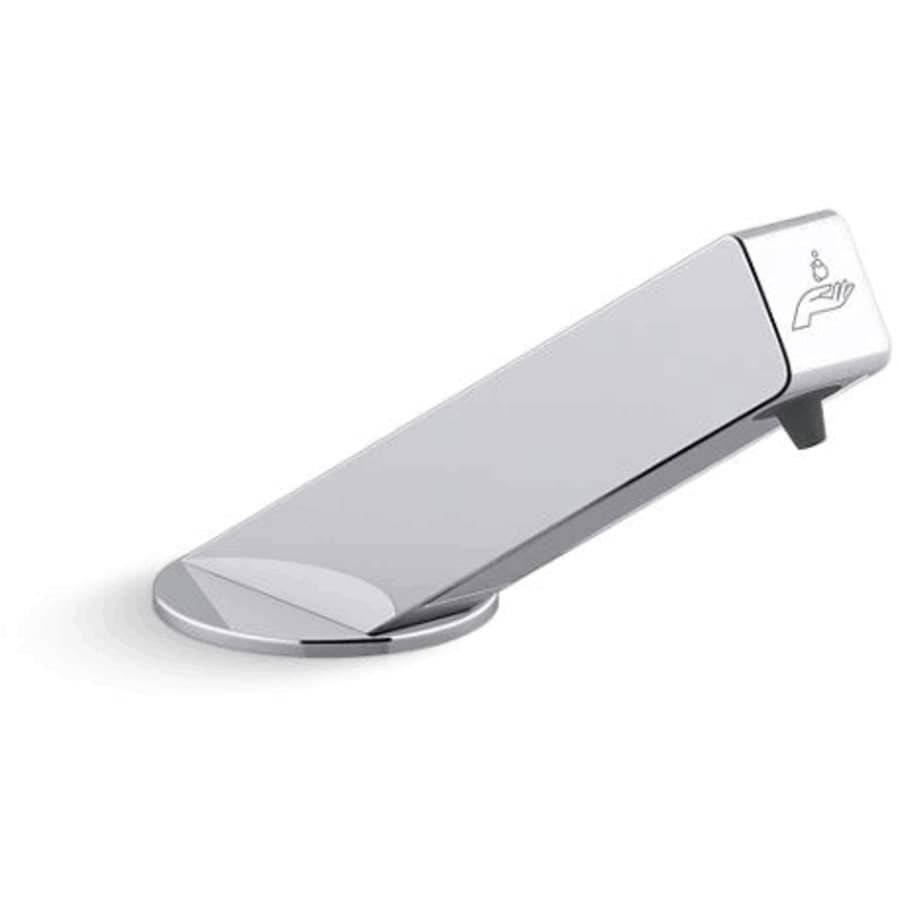

Kohler Angle Touchless DC-powered Foaming Soap Dispenser

This Angle 54-ounce high-capacity touchless foaming soap dispenser is ready to tackle high-traffic applications. With solid-brass construction, this battery-operated dispenser is equipped with above-the-counter lights to let you know when soap or battery life is low, and a vandal-resistant sensor to prevent soap waste.

Features

Soap dispensing volume can be adjusted to 0.8 mL, 1.2 mL, 1.6 mL, or 2.0 mL
54 oz. (1600 ml) high capacity soap reservoir
Optional 27 oz. (800 ml) low-capacity soap reservoir (sold separately)
Sensor range adjustable from 1″ to 4″ (25 to 101 mm). Default set at approximately 2-3/4″ (69 mm)
Maintenance/cleaning mode is activated for 30 seconds when sensor is blocked for 10 seconds
Vandal-resistant sensor delays dispensing for twenty seconds if activated 4 times in under 5 seconds
Low soap and low battery above-the-counter indicators
Easy below-the-counter refill
Battery-operated (4 “D” batteries supplied)
Requires low (1-20 cps or gr/m-s) viscosity foam soap with no suspended particles. Please see Installation Guide or Maintenance and Use Guide for specific soap recommendations

Material

Cast brass construction for durability and reliability

Installation

Optional deep rough-in mounting hardware kit for counters greater than 2″ (50 mm) thick and less than 4-1/2″ (114.3 mm) thick sold separately
