Sculpted with flowing and balanced curves, Veil toilets have a bold minimalist style. This Veil two-piece Comfort Height toilet features Revolution 360 swirl flushing technology to keep your bowl cleaner longer. The skirted trapway is not only attractive but makes cleaning so much easier, and our patented ReadyLock system saves valuable installation time.
Kohler K-28161-RA Features:
Covered under Kohler’s 10 year mechanical components and limited lifetime vitreous china material warranties
Coordinates with products from the Veil line seamlessly
Two-piece configuration allows for easier access to the area around the toilet
Installs in a floor mounted configuration

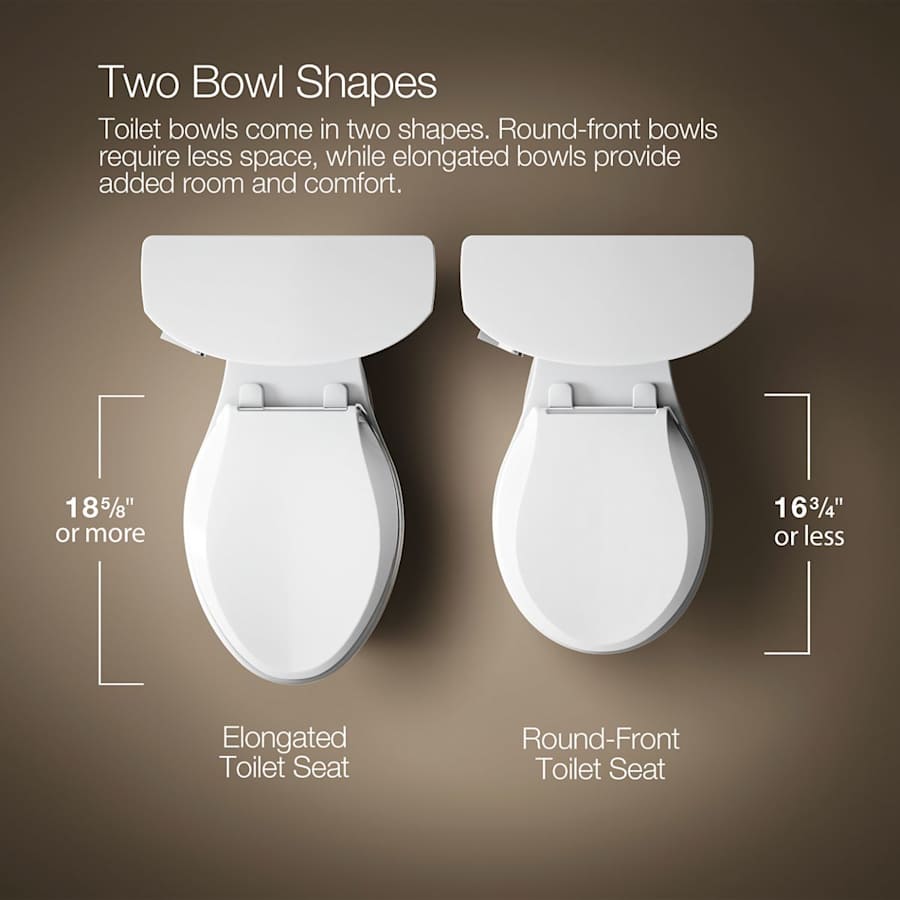

Elongated bowl provides extra comfort, extending out an extra 1-1/2″ compared to a round configuration
Right hand trip lever placement
Constructed of vitreous china ensuring durability and dependability
Premier finishing process – finishes will resist corrosion and tarnishing through everyday use
Concealed trapway – provides a smoother and less utilitarian appearance, a built in skirt hides the discharge passageway from view
Toilet seat not included with this product
WaterSense certified – toilet uses 20% less water than the current standard while maintaining superior performance
All hardware required for installation is included
Complies with ADA standards
Kohler K-28161-RA Technologies and Benefits:

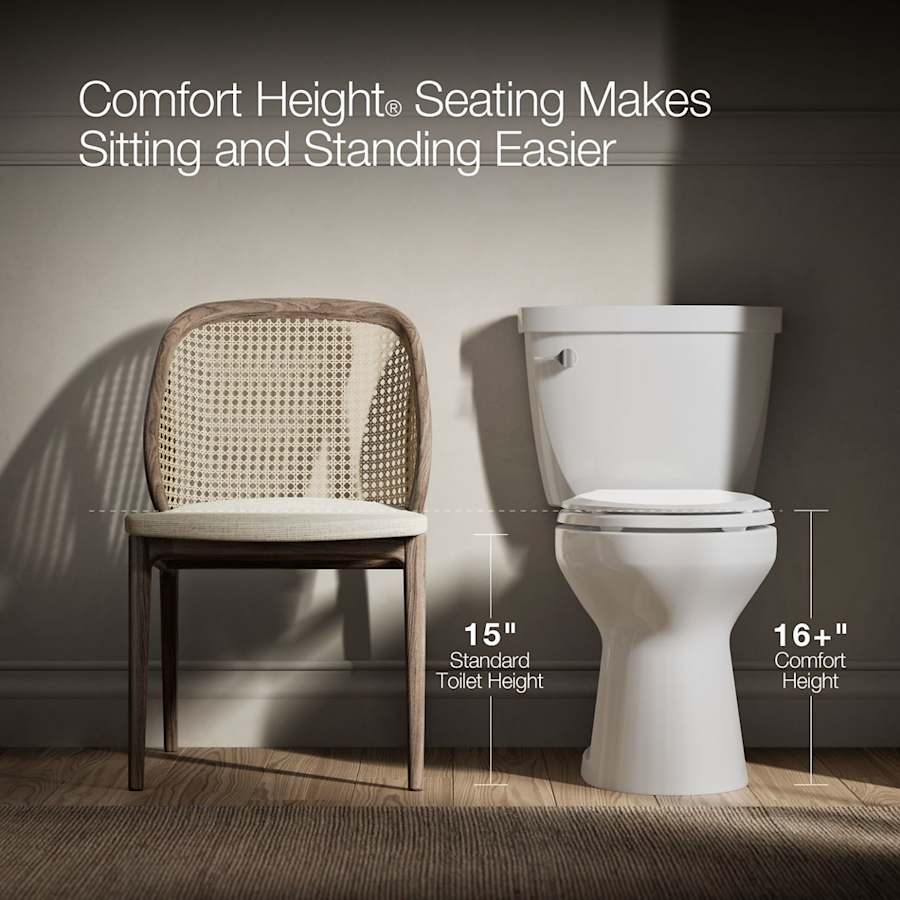

Comfort Height®: Comfort Height® toilets offer the greatest accessibility and ease of use with a bowl height of between 16-1/2″ and 18″, the same as a standard chair.
Revolution 360®: Revolution 360® flushing technology generates a forceful swirling motion to keep the bowl clean longer.
ReadyLock®: ReadyLock installation system saves time and hassle, and eliminates the need to drill into the floor for standard 12″ rough-in

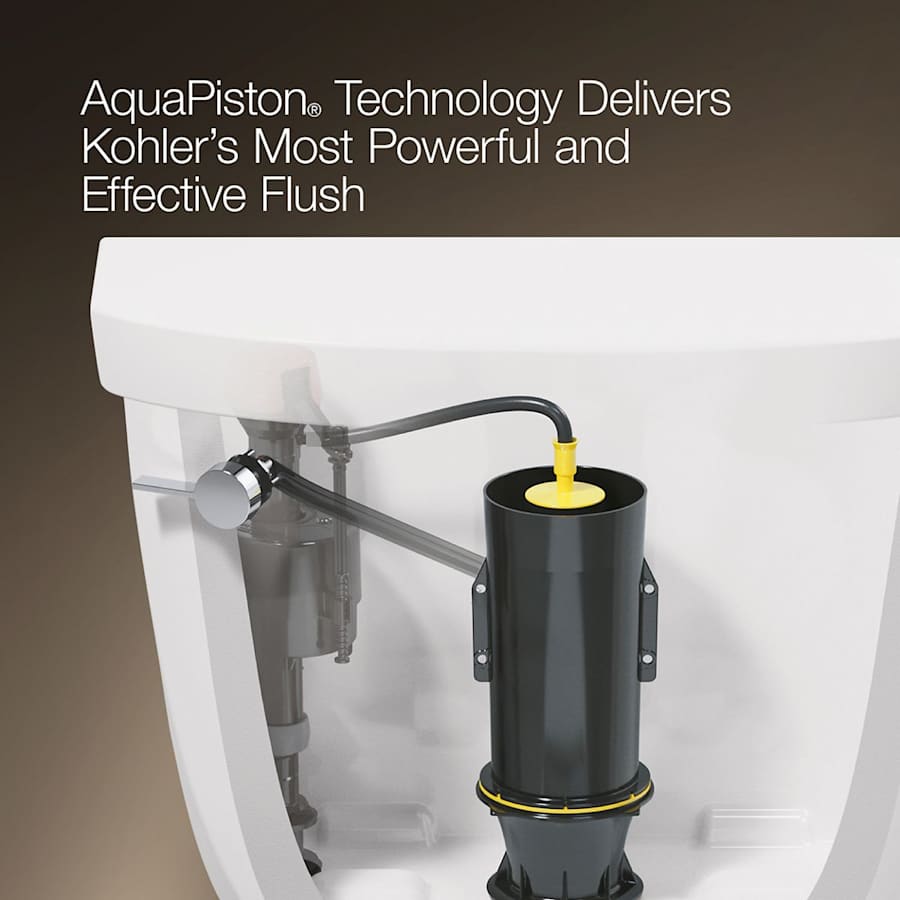

AquaPiston®: Kohler’s AquaPiston flush canister allows water to enter the canister from 360 degrees for a flush that packs a powerful punch to eliminate clogs without wasting water.
Kohler K-28161-RA Specifications:

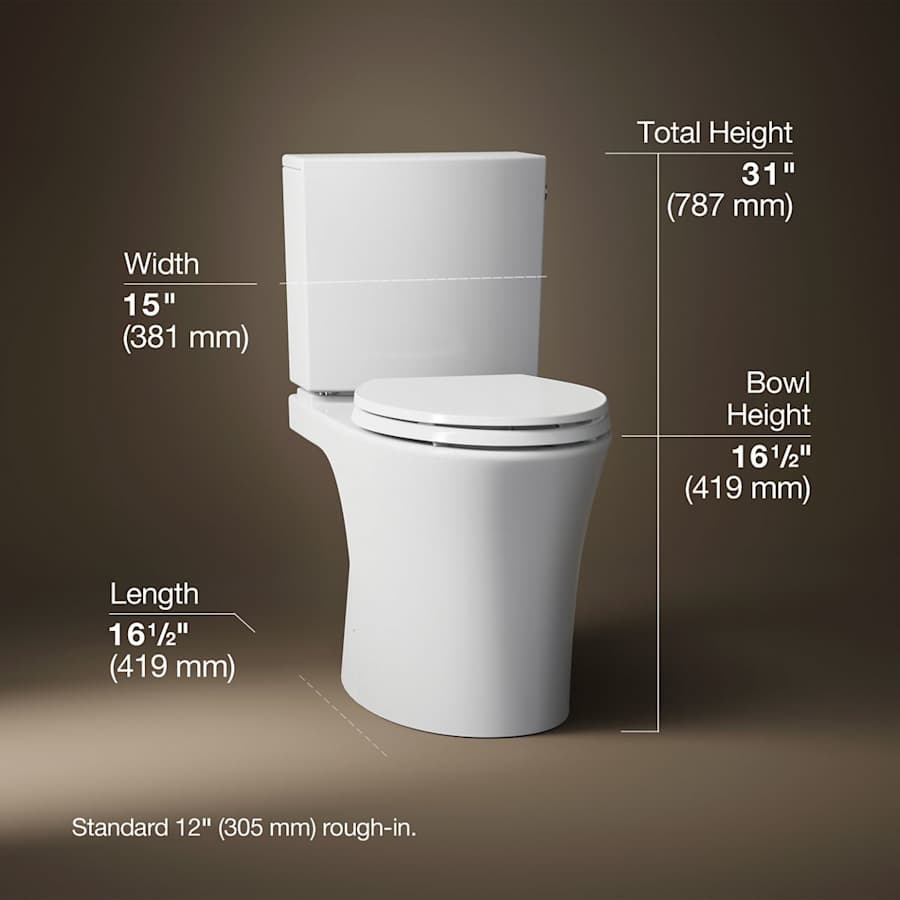

Overall Height: 31″ (bottom of the base to the highest point on the toilet)
Overall Depth: 28-1/4″ (furthest point back to front of toilet)
Overall Width: 15″ (furthest point left to furthest point right)
Bowl Height: 16-1/2″ (floor to the top of the bowl)
Flow Rate: 1.28 gallons-per-flush
Trapway (Discharge Passageway) Size: 2″
Rough-In: 12″
Distance Between Toilet Seat Installation Holes: 5-1/2″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Veil Collection
Specifications
| Height | 31.01 in. |
| Width | 15.02 in. |
| Depth | 28.25 in. |
| Product Weight | 90 lbs. |
| Bowl Height | 16.5 in. |
| Gallons Per Flush | 1.28 |
| Hinge Center to Center | 5.5 in. |
| Rough In | 12 in. |
| Trapway | 2 in. |
| Thermostat | Transitional |
| Insulation Type | Floor Mounted |
| Material | Vitreous China |
| Configuration | Two Piece |
| Water Efficient | Yes |
| Bowl Shape | Elongated |
| Design Features | Concealed Trapway, Configured for Bidet Seat, Glazed Trapway |
| Electronic | No |
| Flush Type | Gravity Flush |
| Trip Lever Placement | Right |
| Certifications | ANSI, ASME, CSA |
| Collection | Veil |
| Approved for Commercial Use | Yes |
| ADA | Yes |
| Country Of Origin | China |
| Manufacturer Warranty | 10 Year Mechanical, Limited Lifetime Material |
| ASSE Code | A112.19.2 |
| CA Drought Compliant | Yes |
| CSA Code | B45.1, B651 |
| WaterSense Certified | Yes |
| TX Drought Compliant | Yes |
| Commercial Warranty | 5 Year Limited |
| ANSI Certification | A117.1 |
| Bidet Seat Included | No |
| Seat Included | No |
| Color | White |
