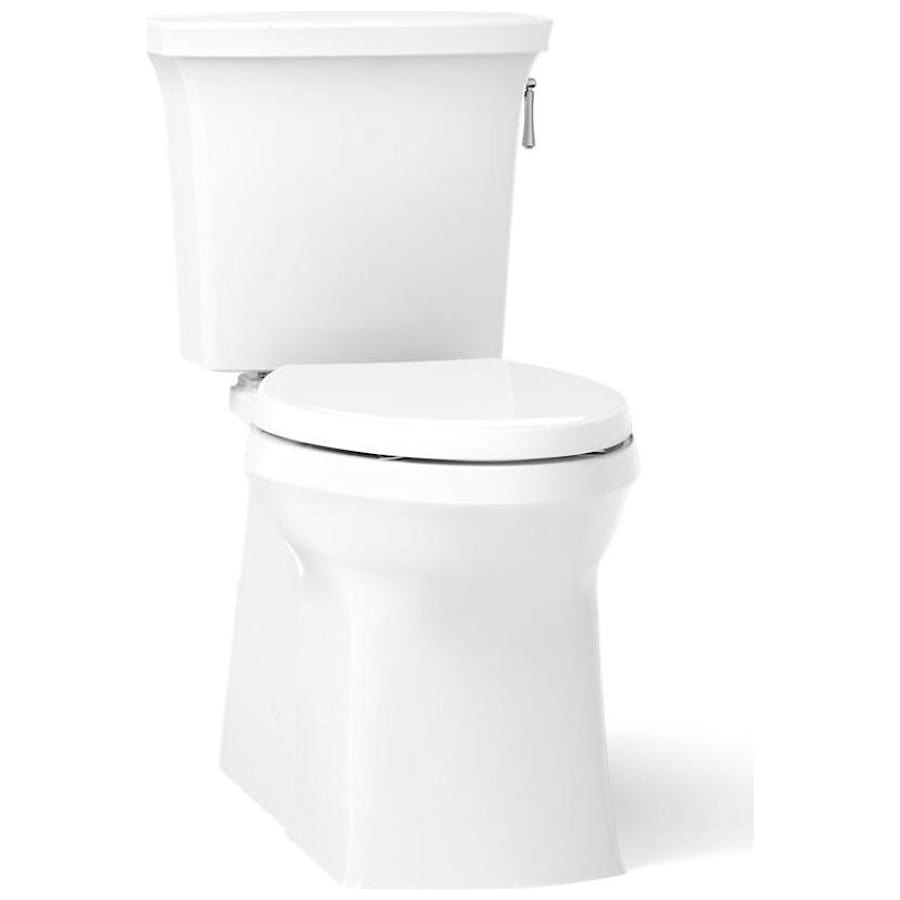

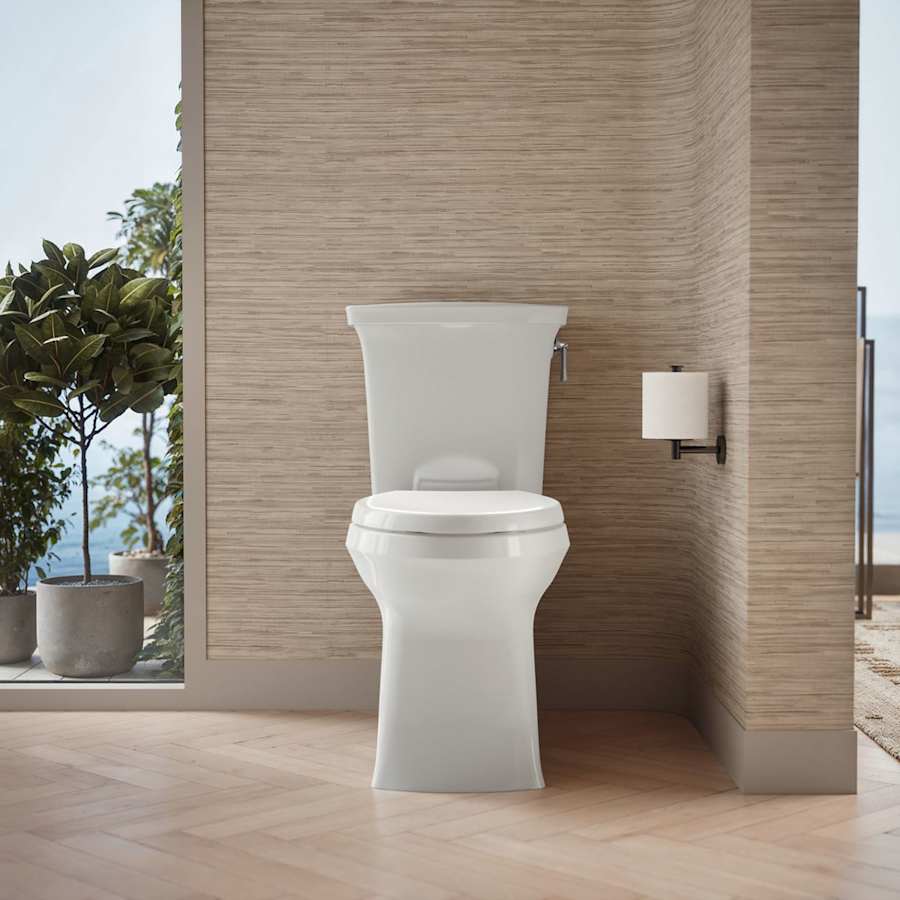

Kohler Corbelle 1.28 GPF Comfort Height Two-Piece Elongated Toilet with Revolution 360™ Flushing and Right-Hand Trip Lever

Kohler K-3814-RA Features:

Covered under Kohler’s 1 year limited warranty
One-piece configuration provides a uniform look and simplifies installation
The Corbelle Collection delivers style with a sleek, skirted design

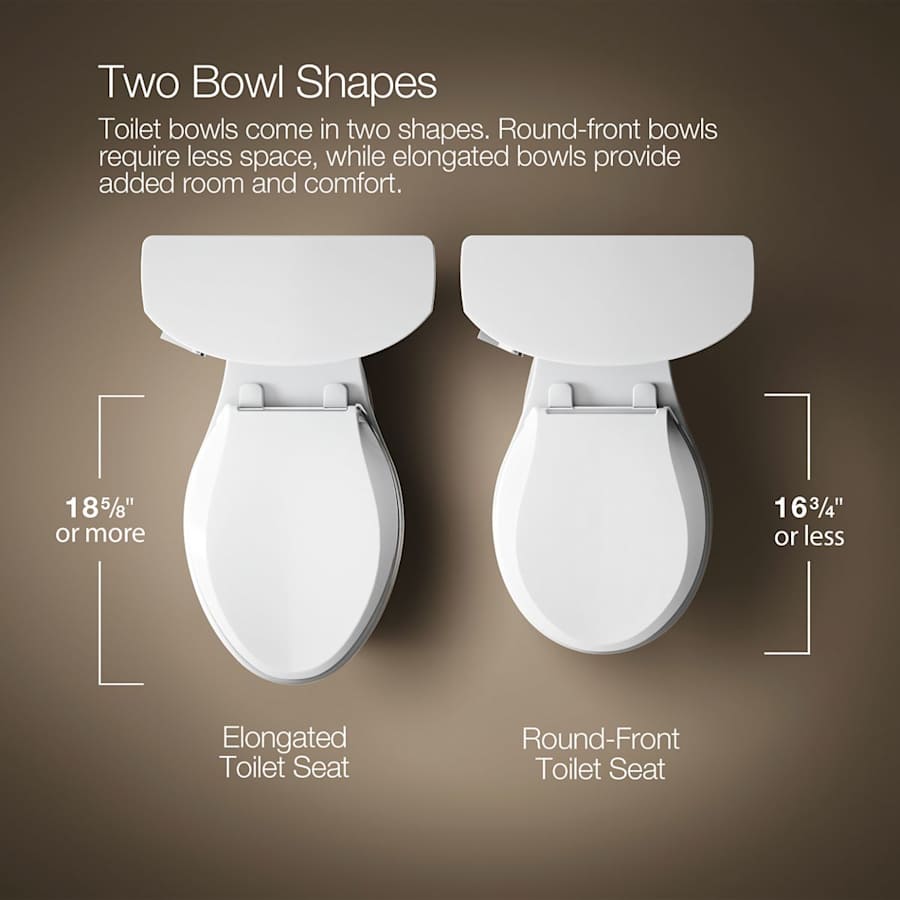

Elongated bowl offers comfort and convenience, extending out an extra 1-1/2″ compared to a round configuration
Includes right-hand polished chrome trip lever
Constructed of durable, easy to clean vitreous china
Finish includes CleanCoat®, a technology that prevents the growth of water scale and mineral stains for easier cleaning
Installs in a floor mounted configuration with Kohler’s ReadyLock™ installation system
Toilet features a powerful gravity flush that will keep your toilet cleaner longer with AquaPiston® and Revolution 360™ swirl flush technology
Concealed trapway – provides a smoother and less utilitarian appearance, a built in skirt hides the discharge passageway from view
Comfort Height® offers greater accessibility and ease of use with a bowl height of between 16-1/2″ and 18″
ADA compliant – complies with the standards for toilets set forth by the Americans with Disabilities Act
WaterSense certified – toilet uses 20% less water than the current standard while still maintaining superior performance
Toilet does not include seat or supply line

Kohler Technologies / Benefits:

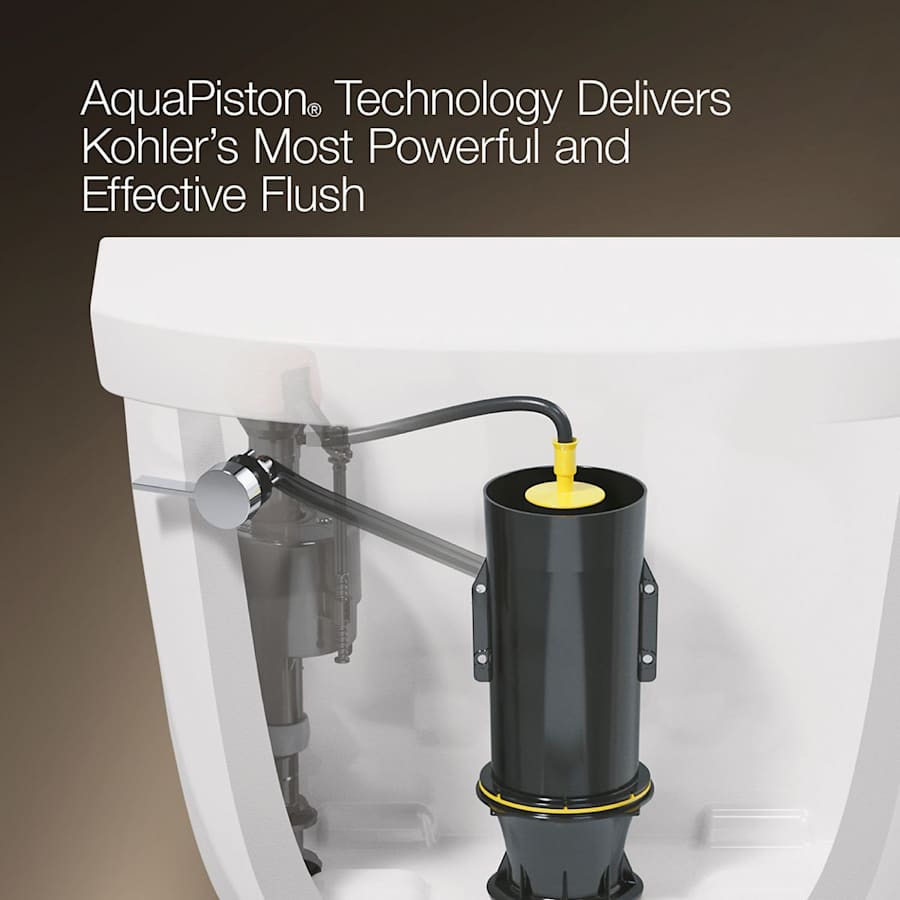

AquaPiston®: AquaPiston® single flush canister technology uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong, efficient siphon during flushing. The canister flush valve’s 3:2 ratio optimizes flush performance and resists warping and deterioration, while its durable design features 90% less exposed seal material than a standard 3-inch flapper flush valve, guaranteeing leak-free performance. The light-touch canister requires lower activation force than a flapper, and once activated, allows water to flow into the bowl from all sides (360 degrees), increasing each flush’s power and effectiveness.

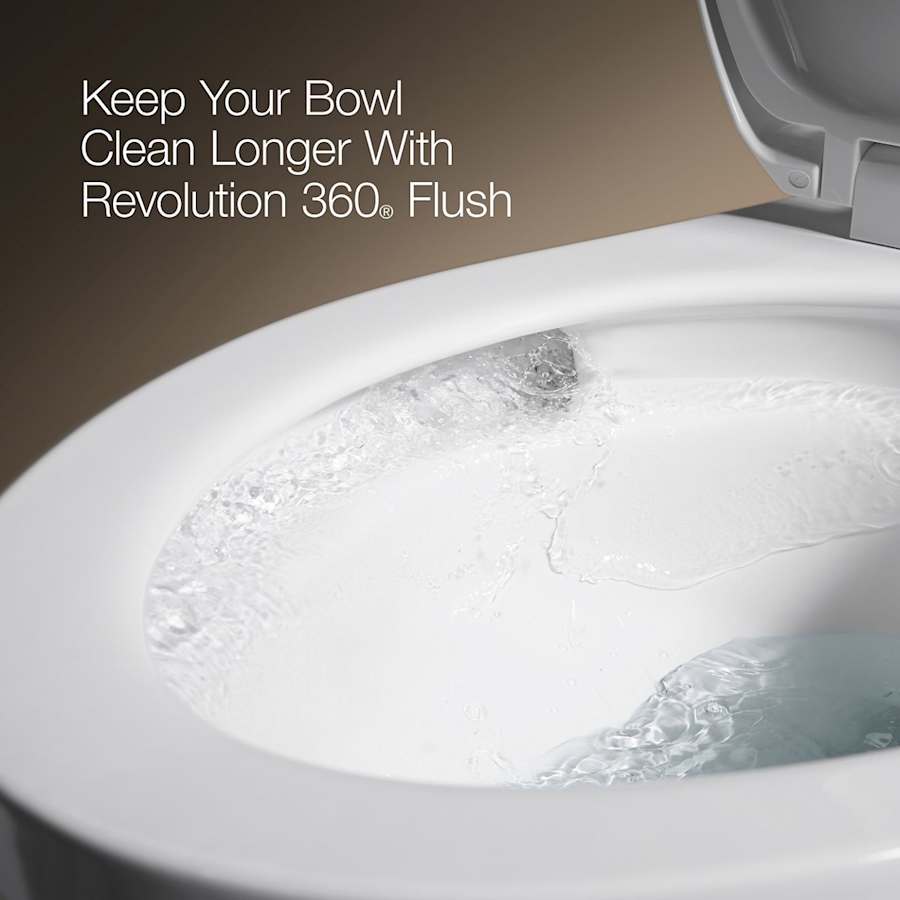

Revolution 360™: Revolution 360™ swirl flushing technology generates a forceful swirling motion to keep the bowl cleaner, longer.

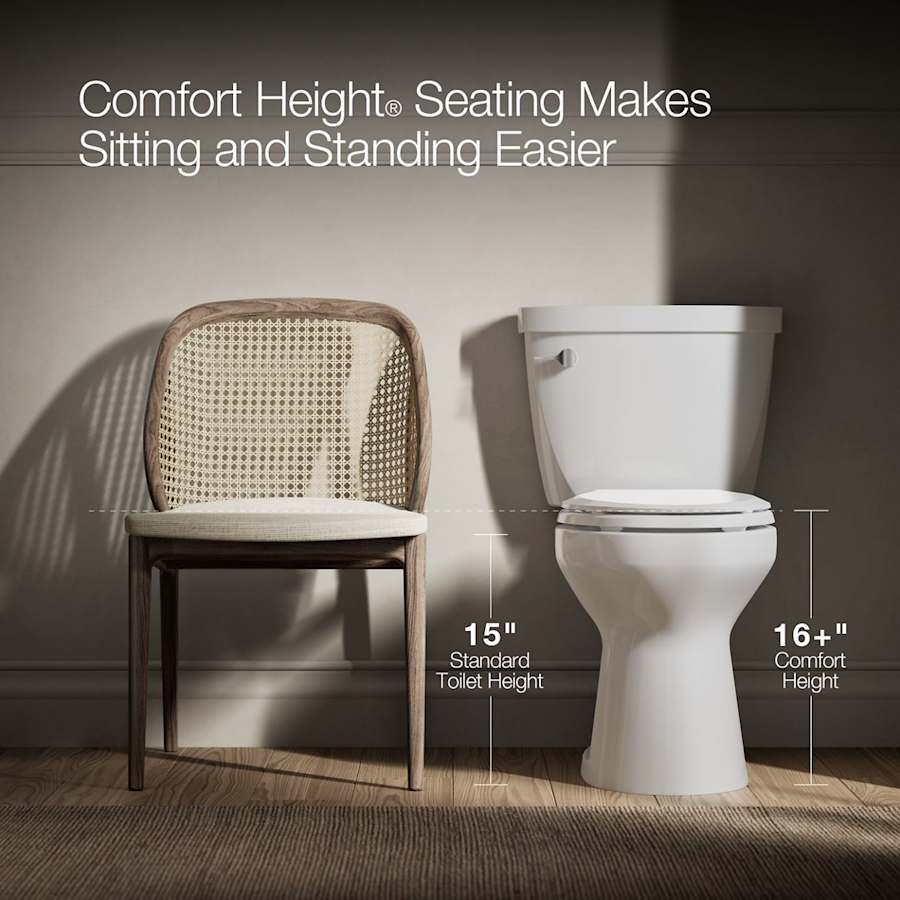

Comfort Height®: Comfort Height® toilets offer the greatest accessibility and ease of use with a bowl height of between 16-1/2″ and 18″, the same as a standard chair.
ReadyLock™ Patented ReadyLock™™ installation system is a simple solution for skirted toilets that saves time, hassle, and eliminates the need to drill into the floor for a standard 12-inch rough-in
WaterSense Certified Product: To help make a difference on a global scale and to further its role as an industry leader in eco-performance practices, Kohler has established partnerships with a number of environmental organizations, including WaterSense. Many Kohler faucets and toilets are equipped with low-flow technology – they use less water, while continuing to meet superior performance standards.

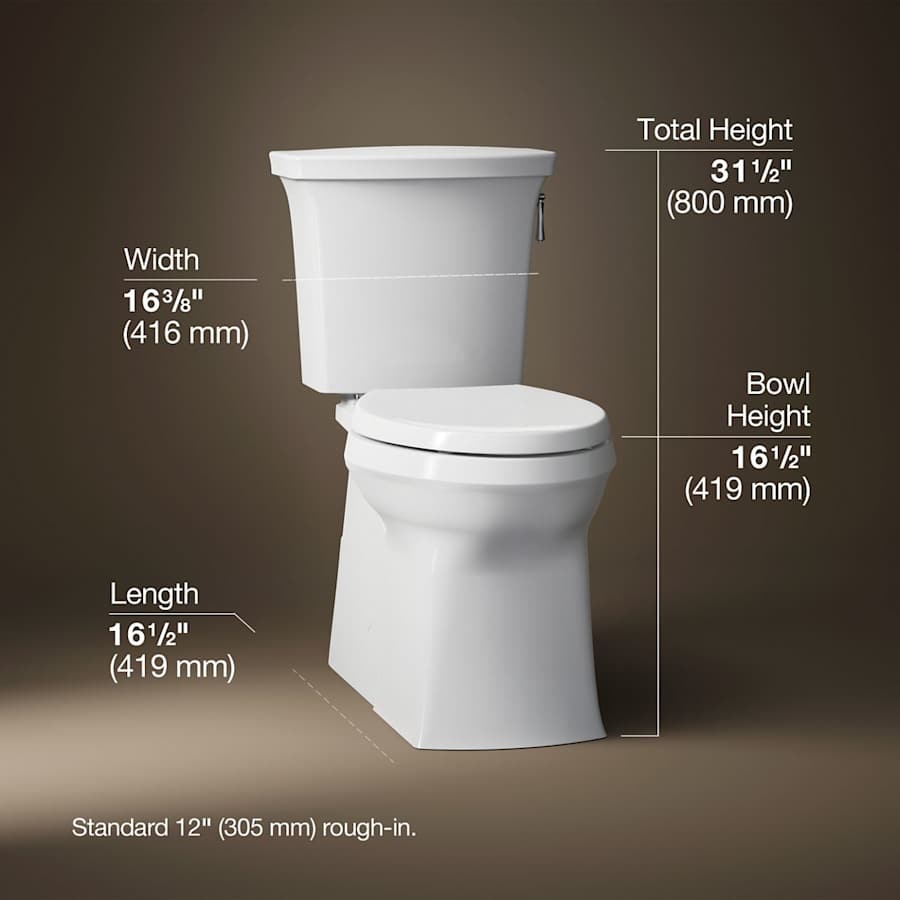

Kohler K-3814-RA Specifications:

Overall Height: 31-5/16″ (floor to top of tank)
Overall Depth: 29-3/8″ (back of tank to front of rim)
Overall Width: 16-1/2″ (left edge to right edge of toilet)
Bowl Height: 16-1/2″ (floor to bowl rim)
Flow Rate: 1.28 (gallons-per-flush)
Water Area: 9-3/4″ L x 7-1/4″ W
Depth to Water: 6-1/4″ (from rim to water surface)
Tank Width: 17-3/4″ (left edge to right edge of tank)
Tank Depth: 7-1/4″ (back edge to front edge of tank)
Trapway (Discharge Passageway) Size: 2-1/8″
Rough-In: 12″ (kits for 10″ and 14″ available)

Variations:

K-3814-RA: This model
K-3814: This model with a left hand trip lever
