Product Features:

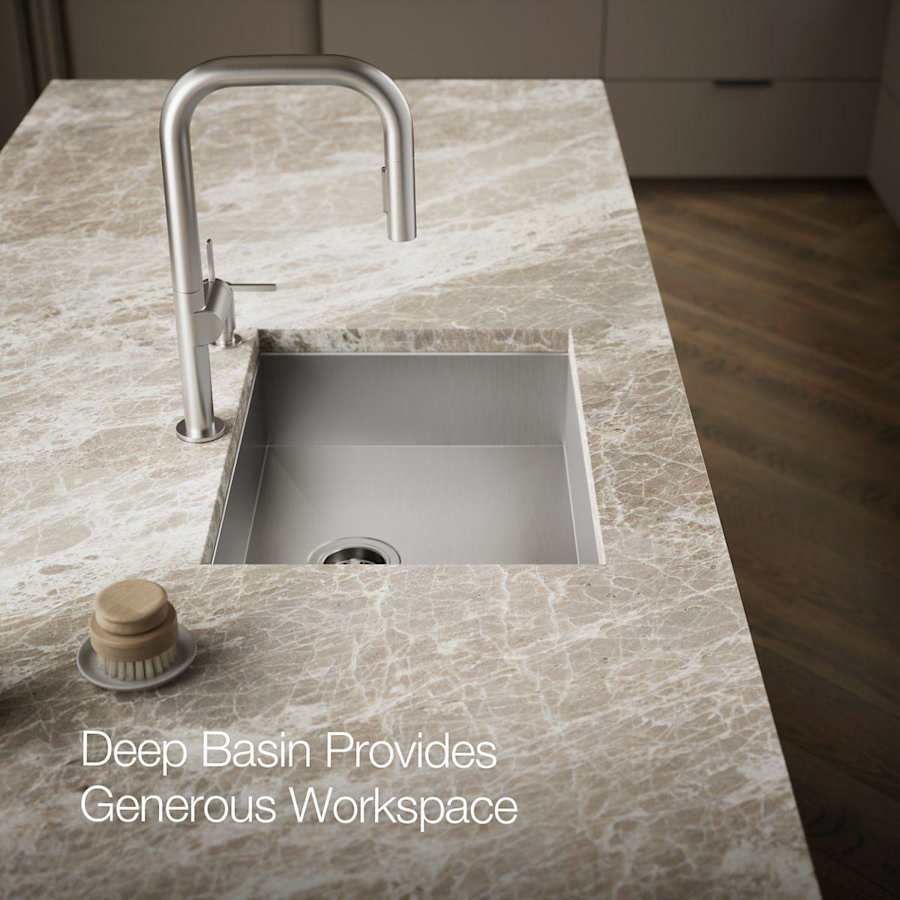

Single basin design provides maximum available workspace
Covered under Kohler’s limited lifetime warranty
Designed for ergonomics and accessibility, the modern lines of this Vault sink bring contemporary style to your kitchen

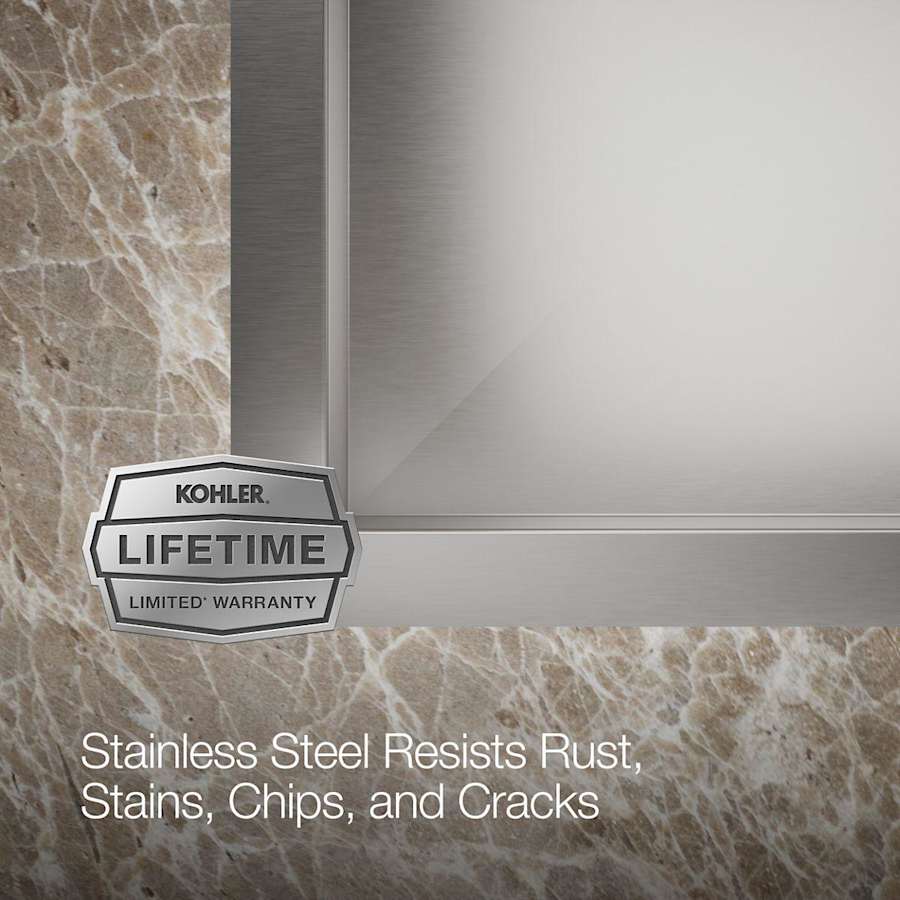

Constructed from 18-gauge stainless steel giving both the aesthetic beauty you want and the durability and longevity you need

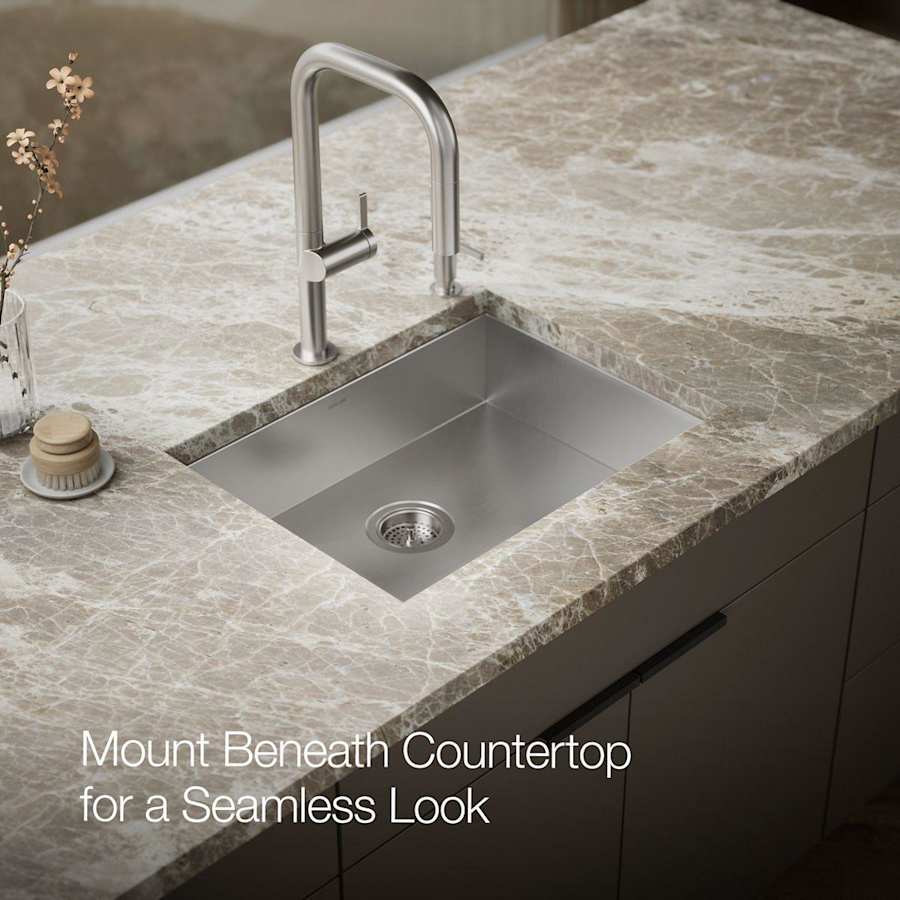

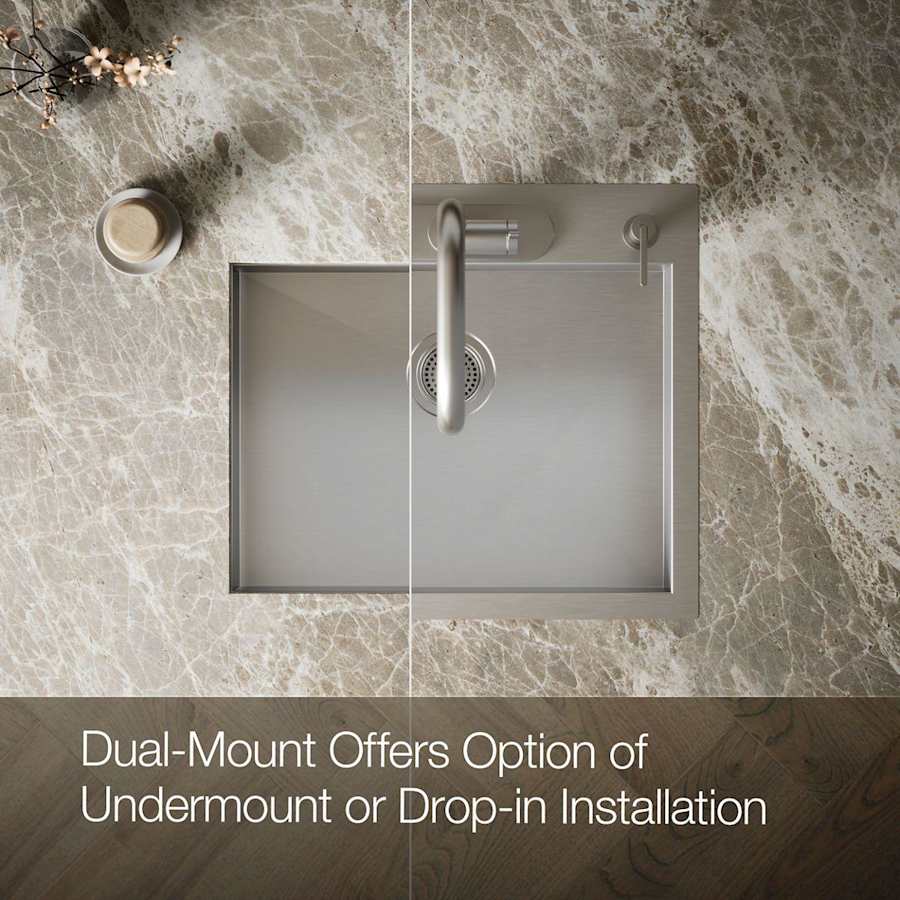

Top-mount or Under-mount installation options
Rear drain location increases workspace area in the sink as well as storage area underneath
All hardware needed for installation included
Product Technologies / Benefits:
SilentShield®: A sound-absorption system found in many Kohler sinks that significantly reduces the noise from clanging dishes and silverware, as well as undesirable noise caused by running water and disposals.
Product Specifications:

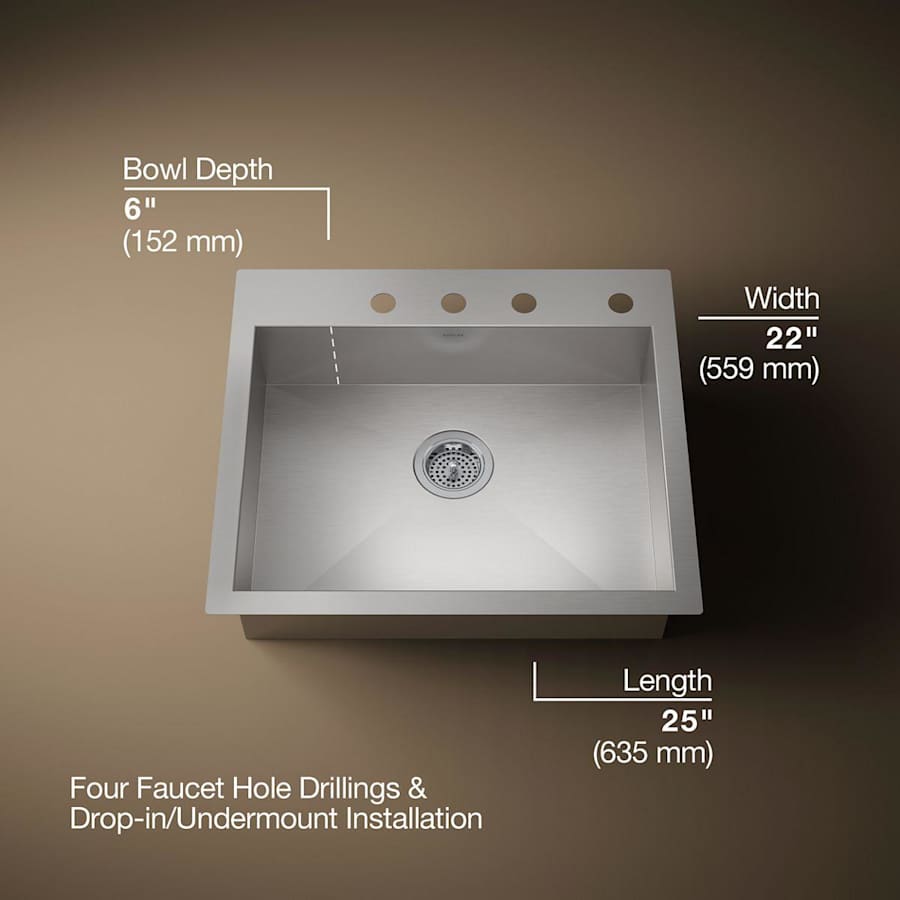

Height: 6″ (measured from the bottom of the sink to the top most point of the sink)
Overall Width: 22″ (measured from the back outer rim to the front outer rim)
Overall Length: 25″ (measured from the left outer rim to the right outer rim)
Basin Width: 16-9/16″ (measured from the back inner rim to the front inner rim)
Basin Length: 22-1/4″ (measured from the left inner rim to the right inner rim)
Basin Depth: 6″ (measured from center of the basin to the rim)
Installation Type: Top-mount or Under-mount
Number of Faucet Holes: 4
Drain Outlet Connection: 3-5/8″
Minimum Base Cabinet Width: 27″
With everything that Kohler does it lives on the leading edge of design and technology, while maintaining a constant level of quality regardless of price. Kohler sets the standard of excellence in its field, and yet is constantly striving to improve.
From sustainable products in the kitchen and bath, to engines for lawn tractors and generators, to power systems that protect data centers and urban landscapes all over the world; this is what the Kohler Company is all about.
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Vault Collection
Specifications
| Width | 22 in. |
| Depth | 6.31 in. |
| Length | 25 in. |
| Product Weight | 24 lbs. |
| Backplate Depth | 6 in. |
| Bar Length | 22.25 in. |
| Base Width | 16.56 in. |
| Faucet Centers | 4 in. |
| Nominal Length | 25 in. |
| Sink Length | 25 in. |
| Faucet Hole Size | 1.44 in. |
| Drain Connection | 3.625 in. |
| Nominal Width | 22 in. |
| Gauge | 18 |
| Insulation Type | Drop In |
| Material | Stainless Steel |
| Thermostat | Modern |
| Drain Placement | Rear |
| Faucet Holes | 4 |
| Number Of Bathers | 1 |
| Sink Shape | Rectangular |
| Farmhouse | No |
| Sound Dampening | Yes |
| Basin Split | Single Basin |
| ADA | Yes |
| Collection | Vault |
| Faucet Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
