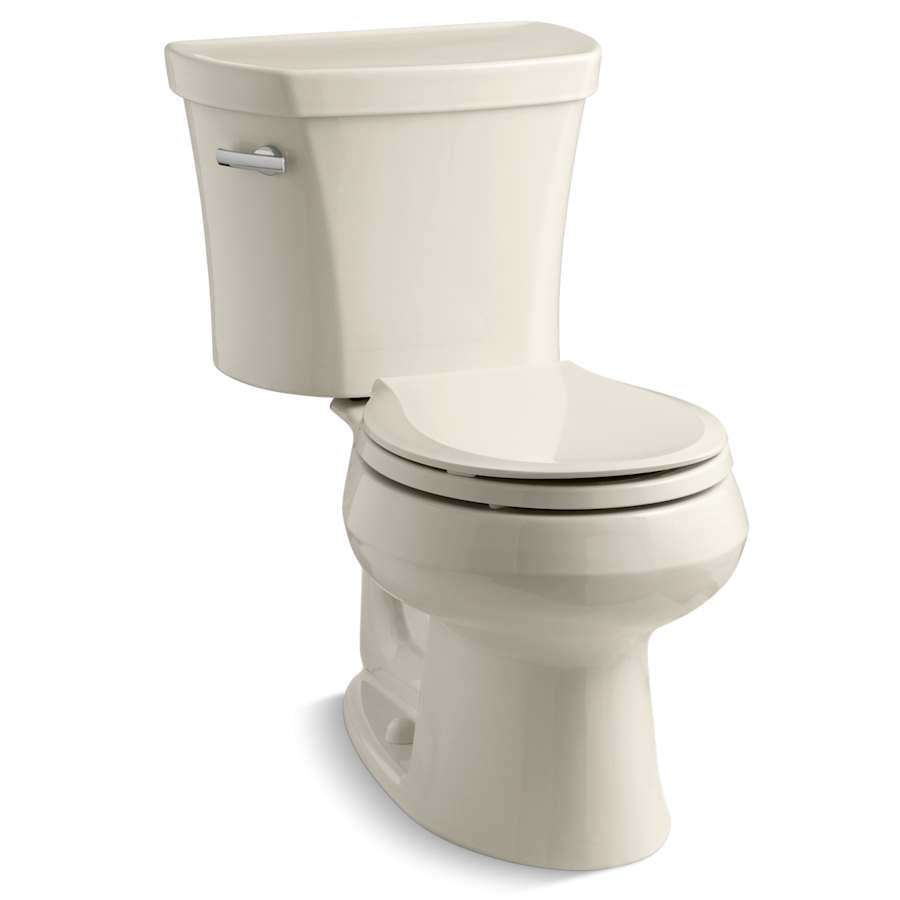

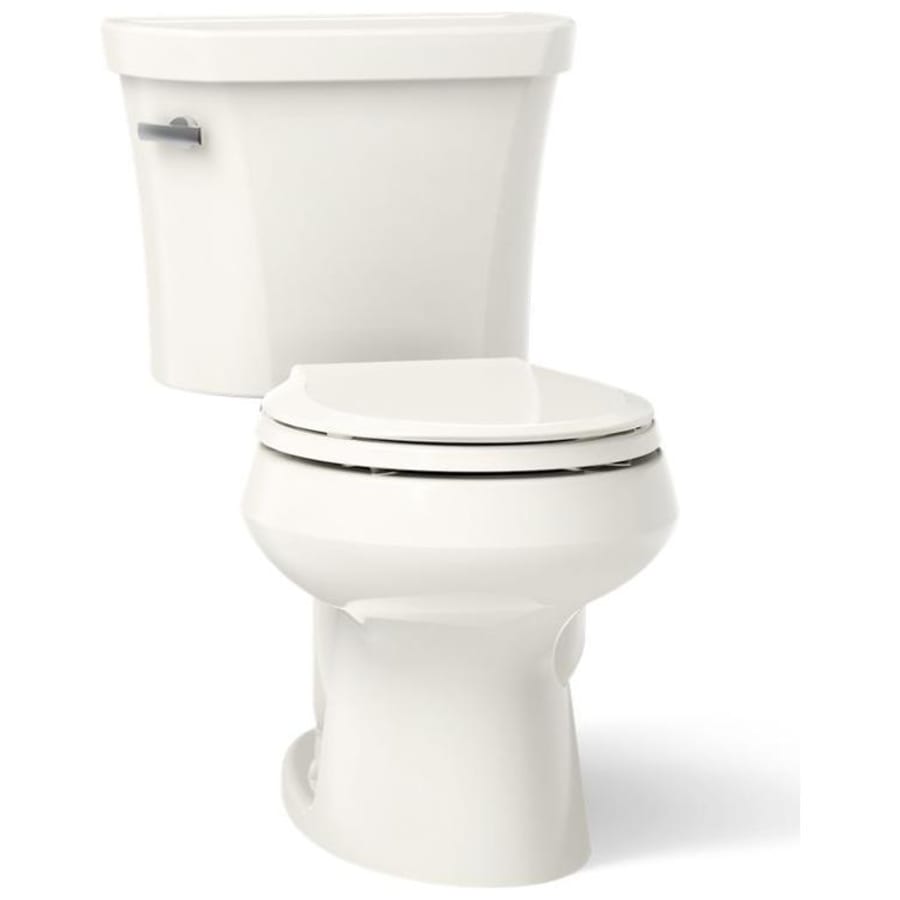

Kohler K-3947 Features:

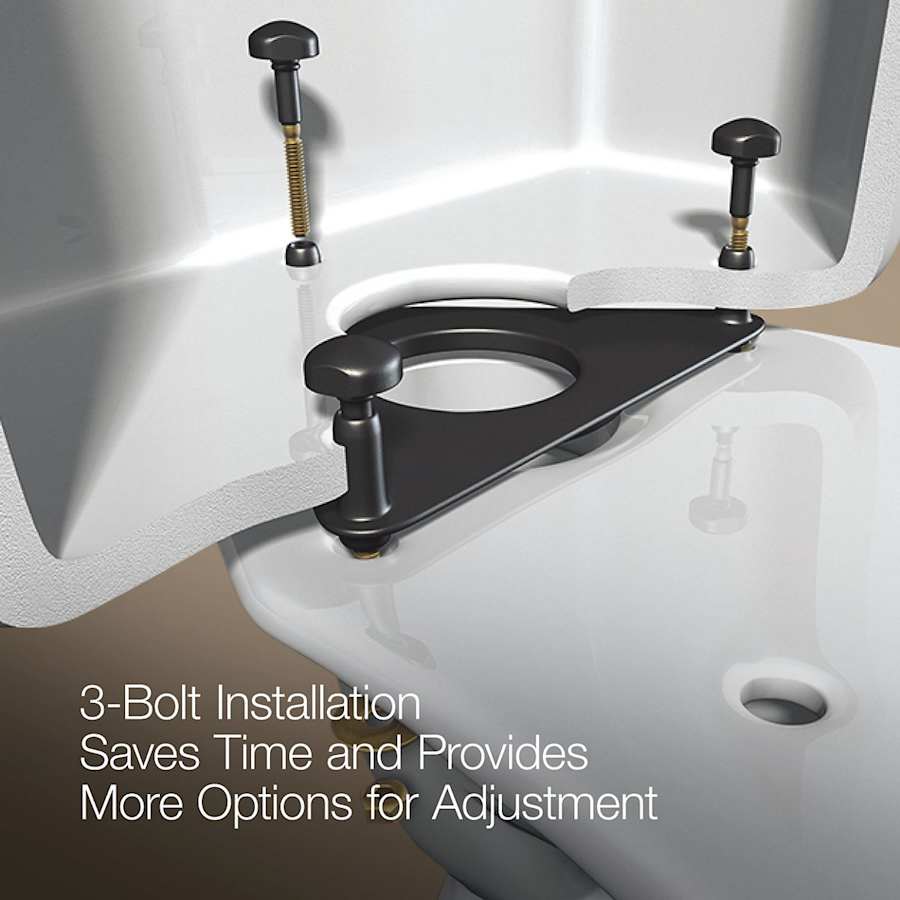

Two-piece configuration eases installation and maintenance

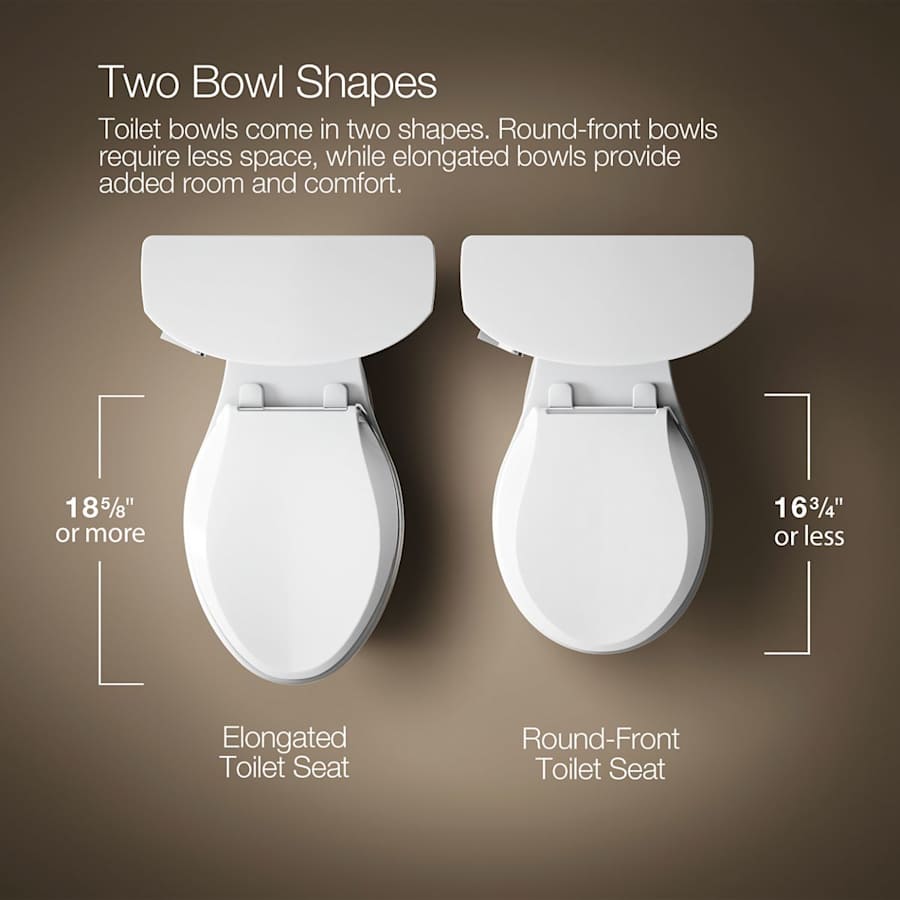

Round bowl is perfect for areas with limited space
Covered under Kohler’s one-year limited warranty
Made from vitreous china
Floor mounted
Insulated tank – prevents condensate from forming on the outside of the toilet tank and ending up on the floor
WaterSense certified – toilet uses 20% less water than the current standard while maintaining superior performance
Made proudly in the USA
Kohler Technologies:

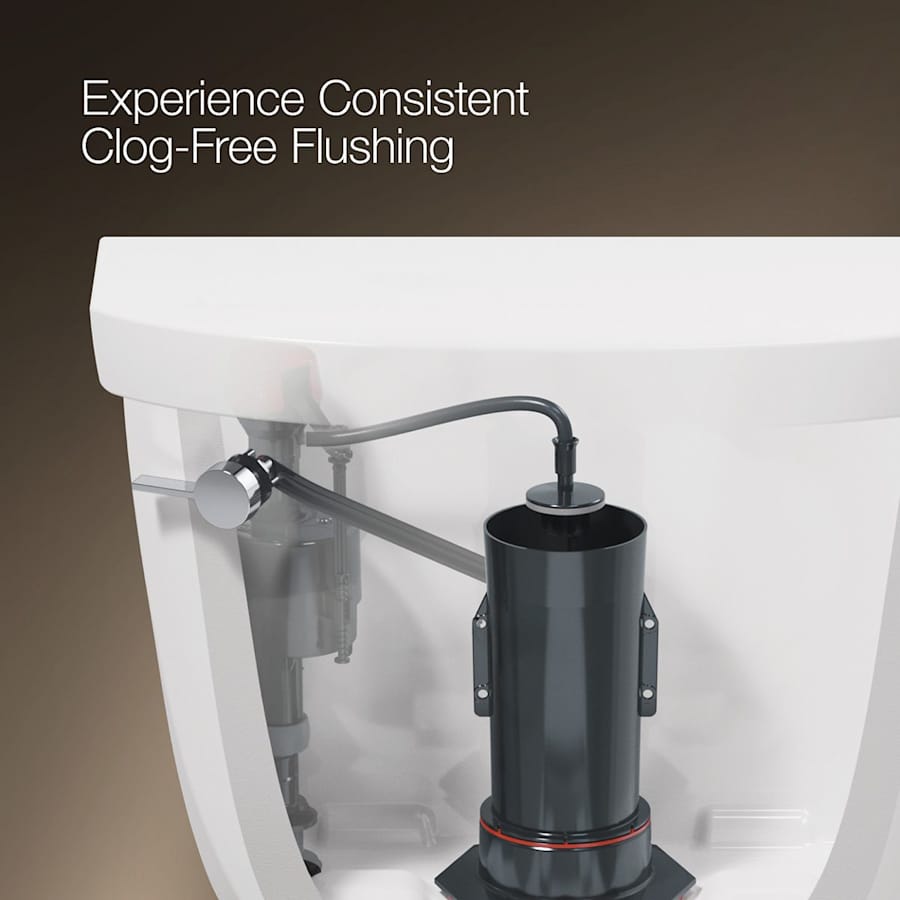

Class Five® The Class Five siphon jet flushing system is designed for high-powered bulk flushing performance. Water flow is maximized with a larger than standard flush valve, which allows rapid release of water, and direct fed jets that quickly clear the bowl.

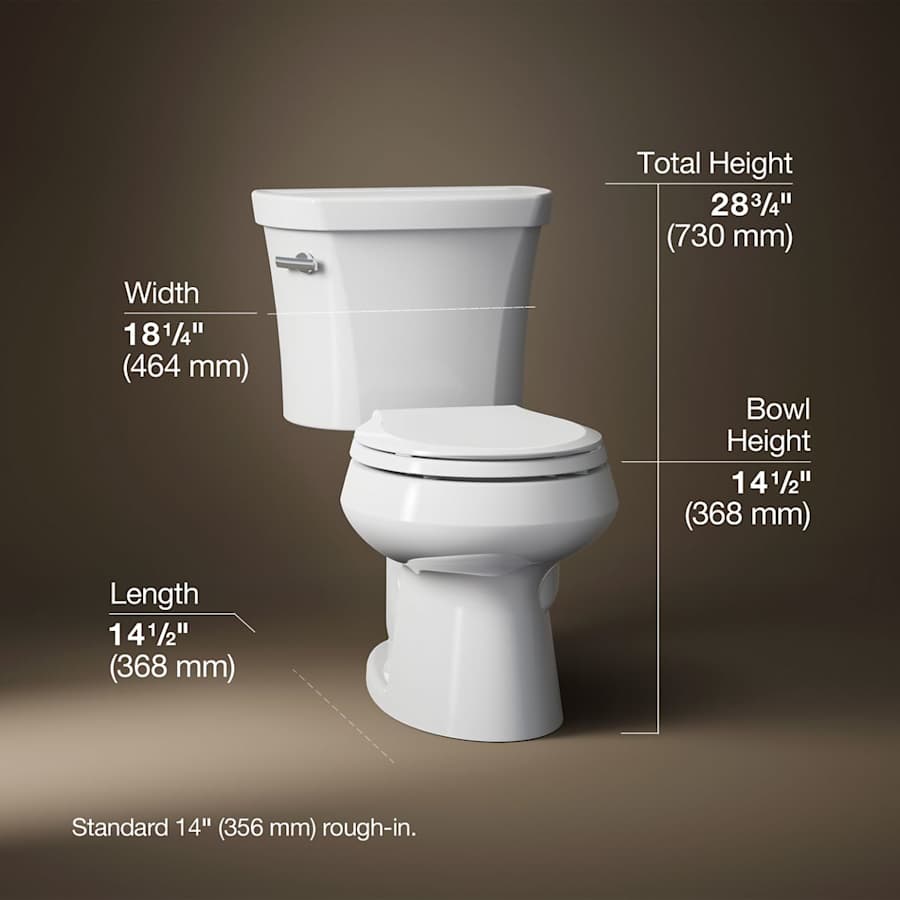

Kohler K-3947 Specifications:
Overall Height: 28-3/4” (measured from the bottom of the base to the highest point on the toilet)
Overall Length: 29-5/8” (measured from the back of the tank to the front of the rim)
Overall Width: 18-1/4” (measured from the furthest point on the left to the furthest on the right)
Bowl Height: 14-1/2” (measured from the bottom of the base to the rim)
Flow Rate: 1.28 GPF (gallons-per-flush)
Water Area: 10-1/2″ x 7-3/4″ (inner rim dimensions length X width)
Water Depth: 5-1/4″ (rim to water surface)
Tank Width: 18-1/4” (measured from left most to right most points on tank)
Tank Length: 10-1/2” (measured from back most to front most points on tank)
Trapway (Discharge Passageway) Size: 2-1/8″
Rough-In: 14″
Distance Between Toilet Seat Installation Holes: 5-1/2″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Wellworth Collection
Specifications
| Product Weight | 100 lbs. |
| Depth | 29.625 in. |
| Height | 28.75 in. |
| Width | 18.25 in. |
| Gallons Per Flush | 1.28 |
| Bowl Height | 14.5 in. |
| Rough In | 14 in. |
| Trapway | 2.125 in. |
| Flush Valve Size | 3.25 in. |
| Hinge Center to Center | 5.5 in. |
| Material | Vitreous China |
| Thermostat | Basic |
| Insulation Type | Floor Mounted |
| Configuration | Two Piece |
| Flush Type | Siphon Jet |
| Trip Lever Placement | Left |
| Water Efficient | Yes |
| Design Features | Glazed Trapway |
| Bowl Shape | Round |
| Trip Lever Finish | Chrome |
| Country Of Origin | USA |
| Approved for Commercial Use | No |
| Collection | Wellworth |
| ADA | No |
| ASSE Code | A112.19.2 |
| Certifications | ASME, CSA |
| CSA Code | B45.1 |
| CA Drought Compliant | Yes |
| TX Drought Compliant | Yes |
| WaterSense Certified | Yes |
| Made in America | Yes |
| Seat Included | No |
| Angle Supply Included | No |
| Color | Almond, Biscuit, Black, Dune, Ice Grey, Sandbar, White |
| Color Tone | Blacks, Greys, Neutrals, Whites |
