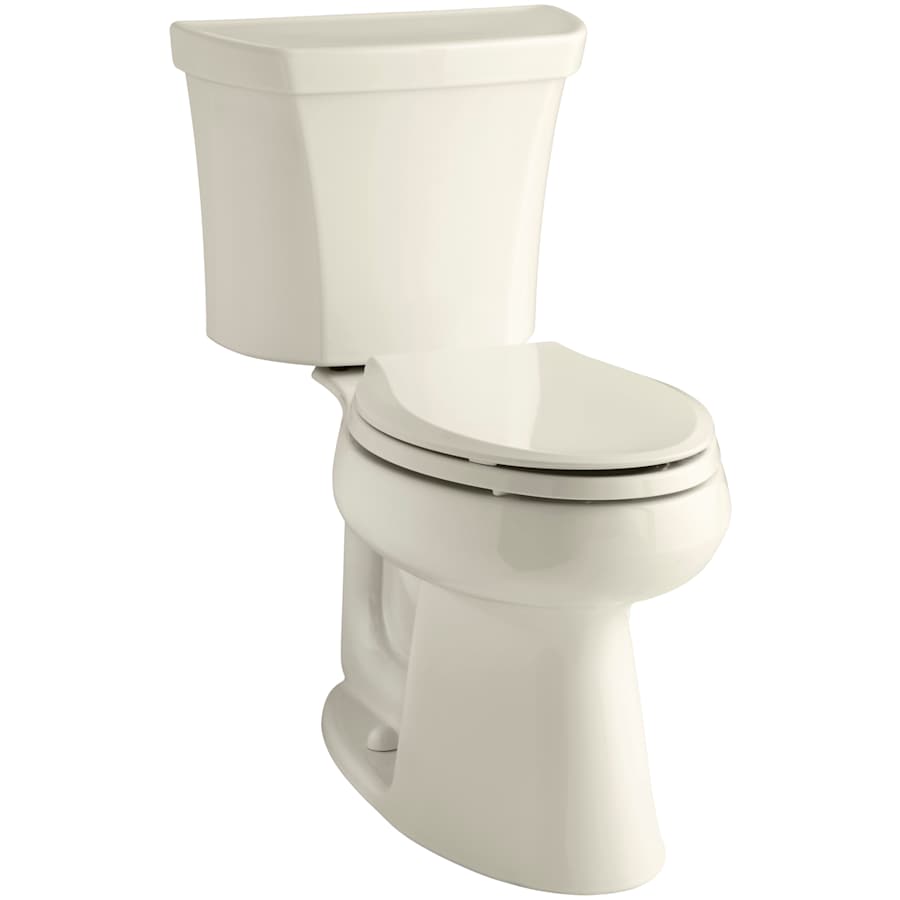

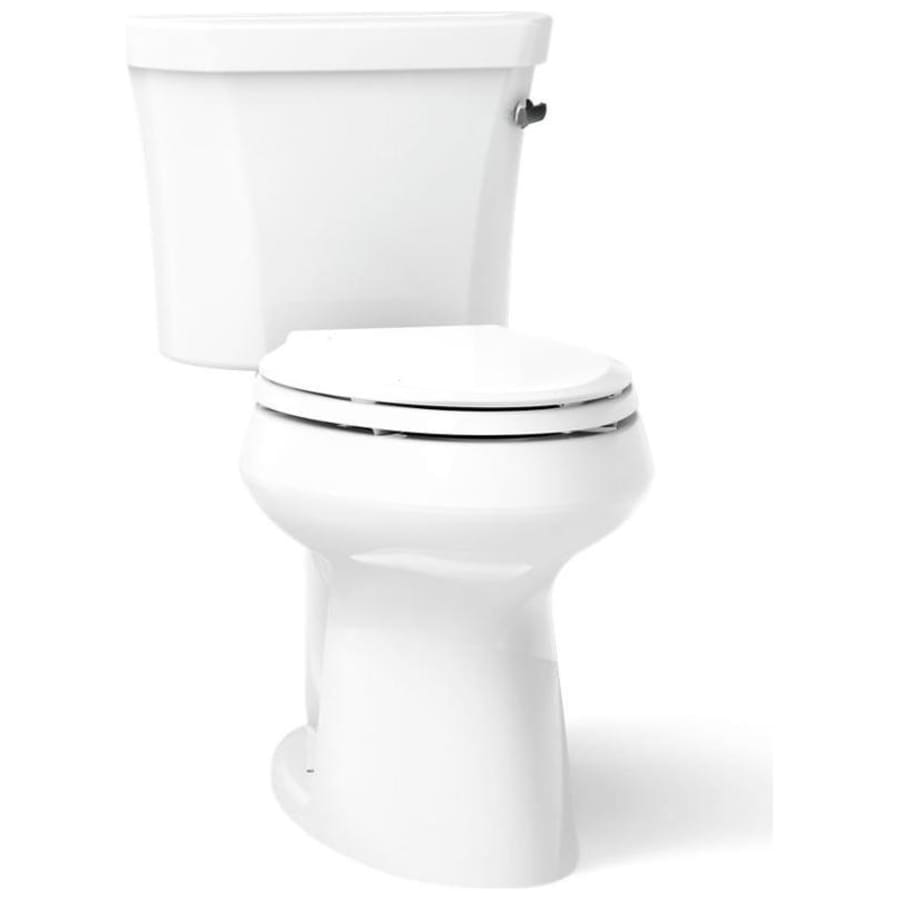

Kohler Highline 1.0 GPF Elongated Two-Piece Comfort Height Toilet with Right Hand Trip Lever and Class Five Flush Technology – Less Seat

Features:

Two-piece configuration allows for easier access to the area around the toilet

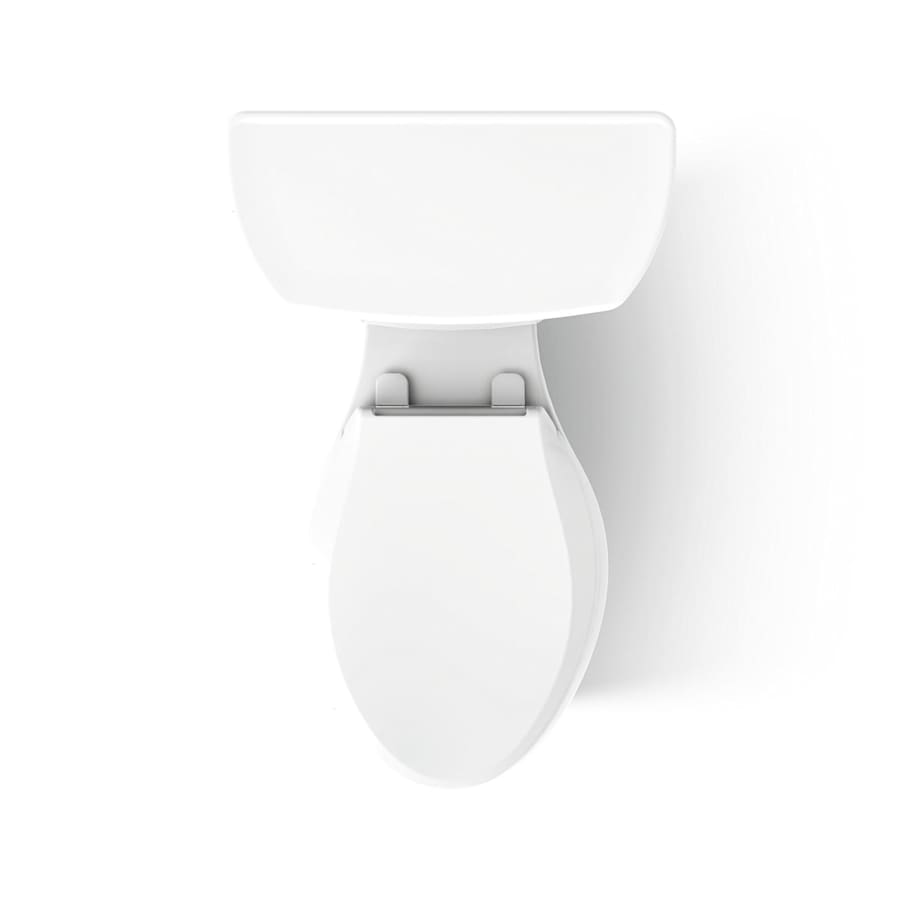

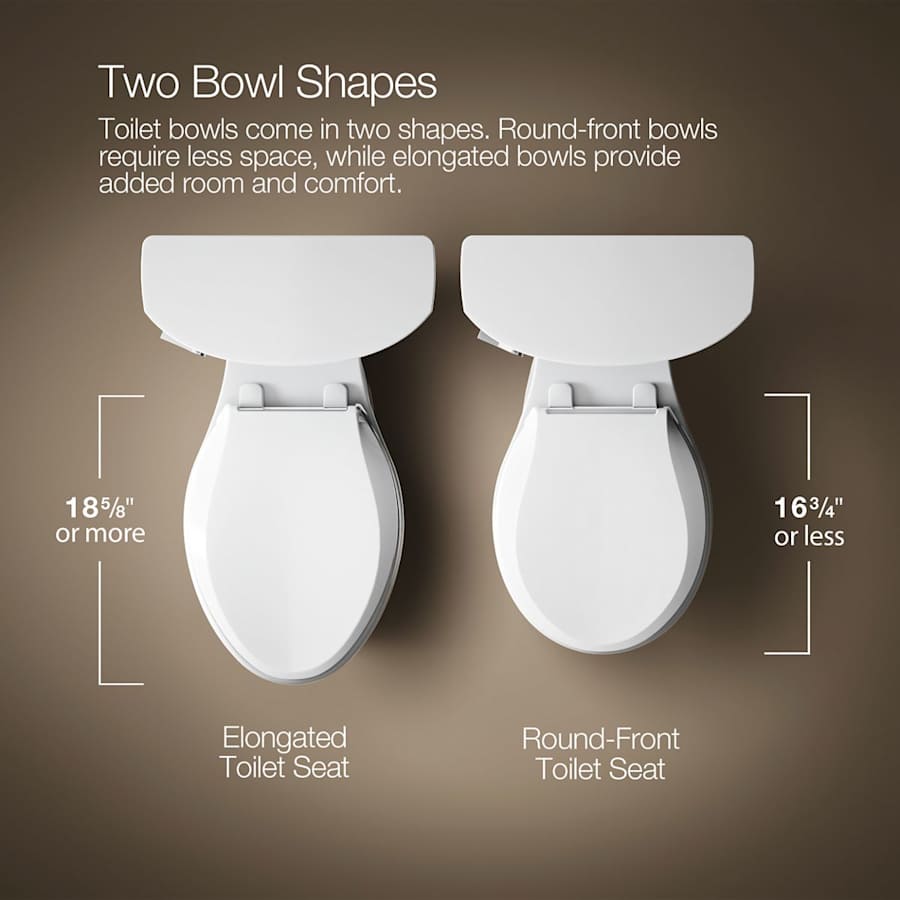

Elongated bowl offers comfort and convenience, extending out an extra 1-1/2″ compared to a round configuration
Covered under Kohler’s 1 year limited warranty
Constructed of durable, easy to clean vitreous china
Installs in a floor mounted configuration

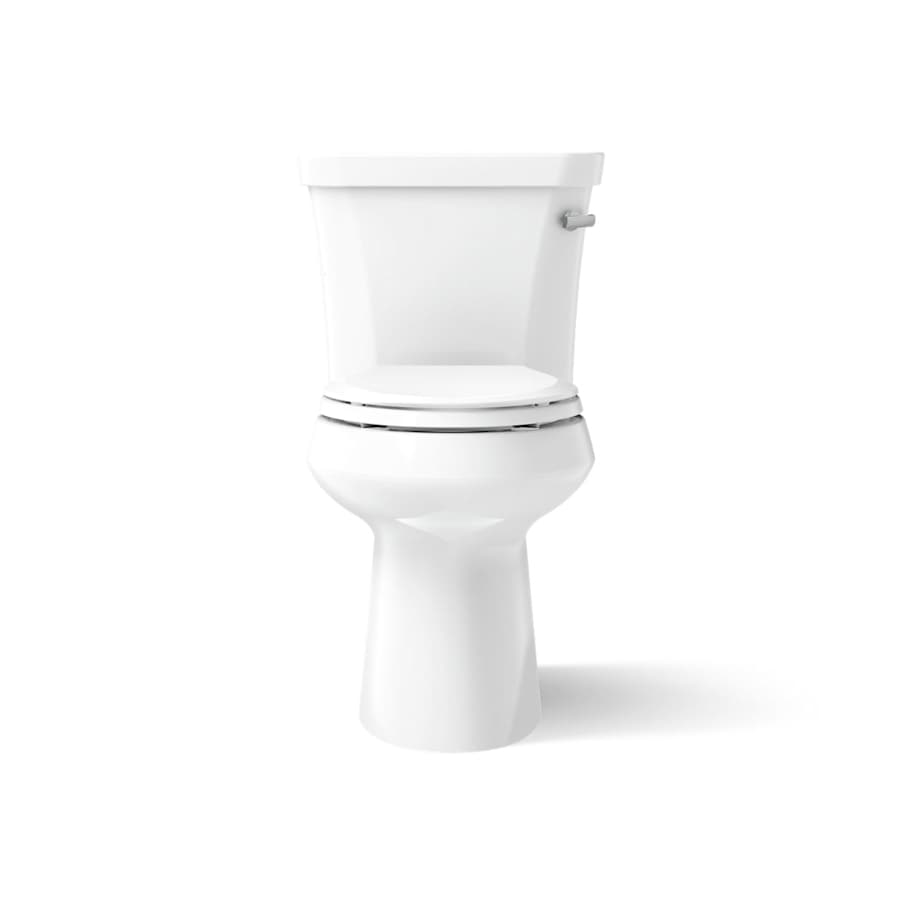

Right-hand trip lever
Single-flush gravity uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong siphon during flushing
ADA compliant – complies with the standards for toilets set forth by the Americans with Disabilities Act
Comfort Height – designed for ease of use, with a higher than average bowl
WaterSense certified – toilet uses 20% less water than the current standard while still maintaining superior performance
Supply line, seat, and cover not included with this model

Product Technologies / Benefits:

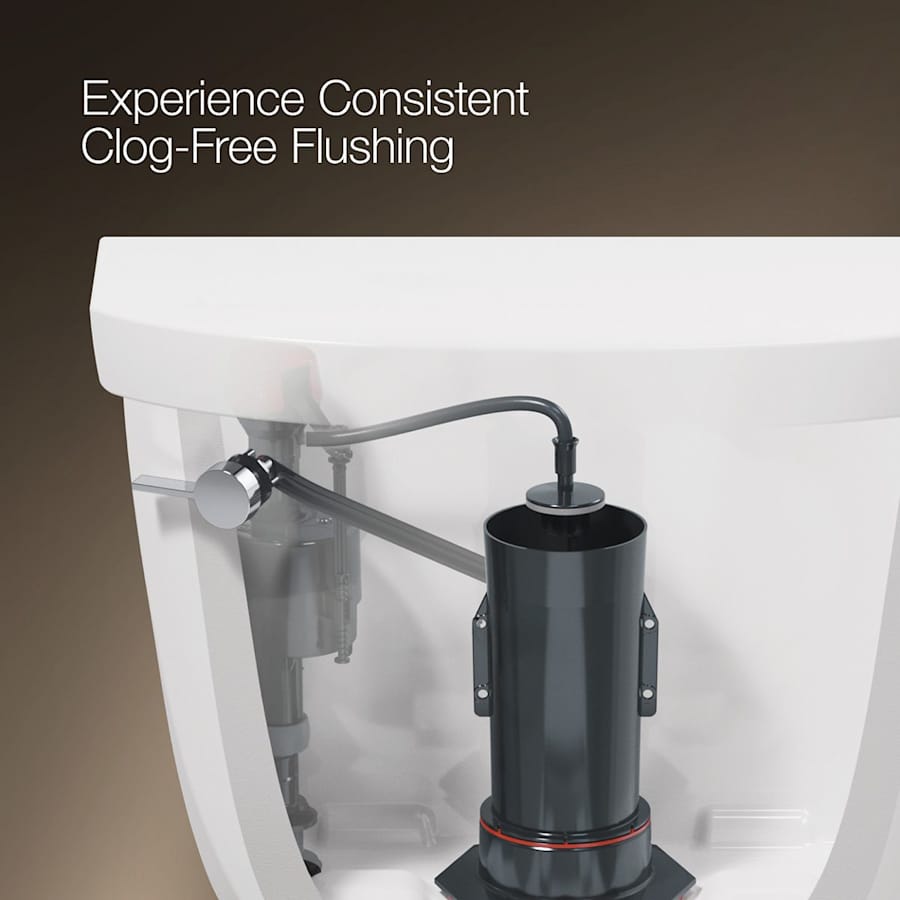

Class Five: The Class Five siphon jet flushing system is designed for high-powered bulk flushing performance. Water flow is maximized with a larger than standard flush valve, which allows rapid release of water, and direct fed jets that quickly clear the bowl.

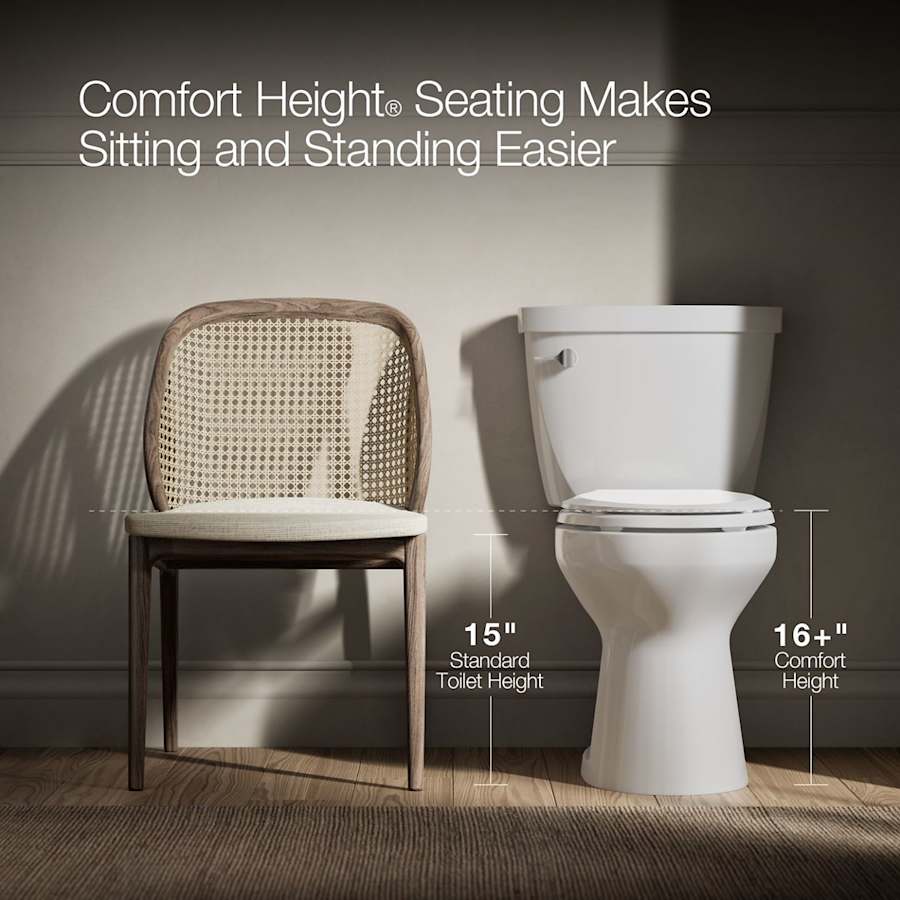

Comfort Height: Comfort Height toilets offer the greatest accessibility and ease of use with a bowl height of between 16-1/2″ and 18″, the same as a standard chair.
WaterSense Certified Product: To help make a difference on a global scale and to further its role as an industry leader in eco-performance practices, Kohler has established partnerships with a number of environmental organizations, including WaterSense. Many Kohler faucets and toilets are equipped with low-flow technology – they use less water, while continuing to meet superior performance standards.

Product Specifications:

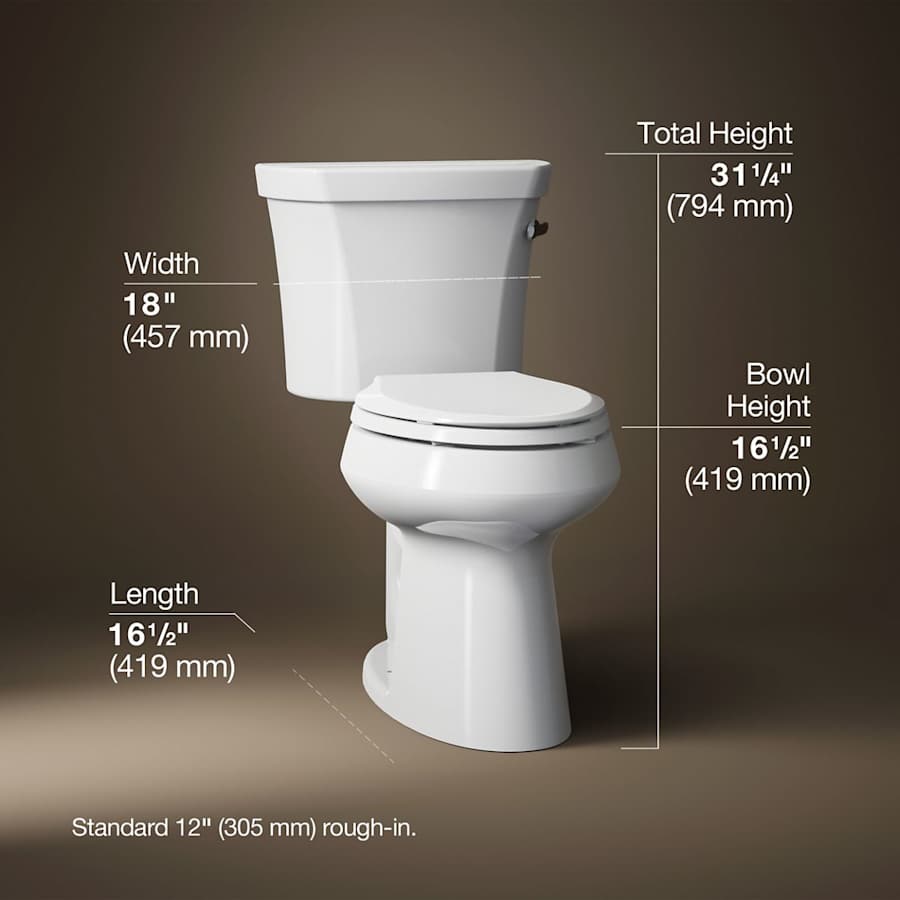

Overall Height: 31-1/4″ (measured from bottom of base to highest point on bowl)
Overall Depth: 29-1/2″ (measured from back to front of bowl)
Overall Width: 18″ (measured from rightmost to leftmost edge of bowl)
Bowl Height: 16-1/2″ (measured from floor to bowl rim)
Flow Rate: 1.0 GPF (gallons per flush)
Water Area: 9-5/8″ x 6-7/8″ (inner rim dimensions of bowl, length x width)
Water Depth (from Rim): 5-3/8″
Tank Width: 18″ (measured from leftmost to rightmost edge of tank)
Tank Depth: 8-9/16″ (measured from back edge to front edge of tank)
Trapway (Discharge Passageway) Size: 2-1/8″
Distance Between Toilet Seat Installation Holes: 5-1/2″
Rough-In: 12″

Variations:

K-5298-RA: This model
K-5298: This model with left-hand trip lever
