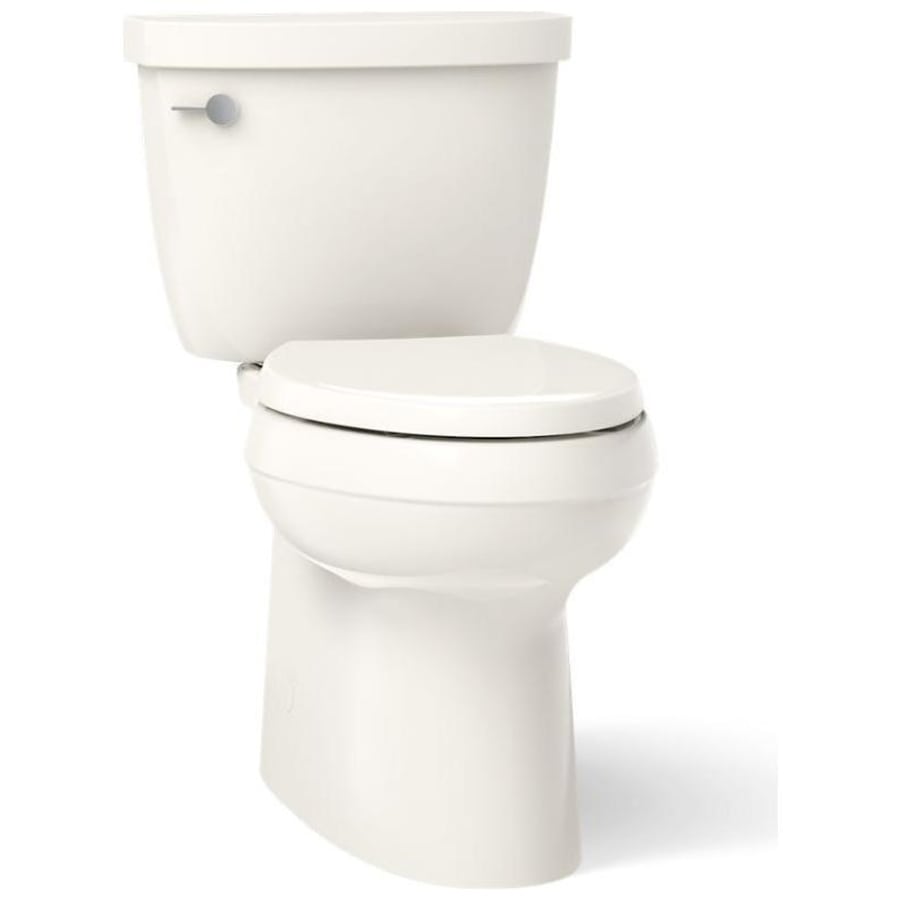

Kohler K-5310 Features:
Two piece elongated toilet

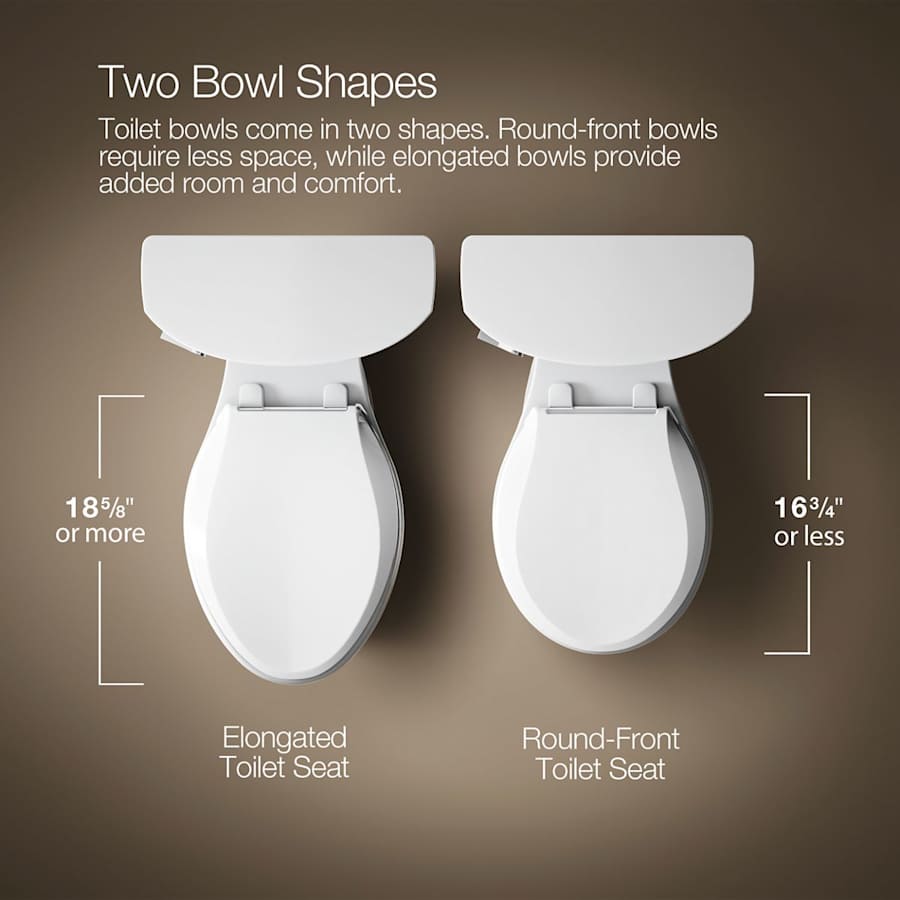

Elongated bowl offers comfort and convenience, extending out an extra 1-1/2″ compared to a round configuration
Covered under Kohler’s 1 year limited warranty
The Cimarron Collection combines versatile design with high-powered, efficient performance
Constructed of durable, easy to clean vitreous china
Installs in a floor mounted configuration
Features a powerful gravity flush with AquaPiston technology
ADA compliant – complies with the standards for toilets set forth by the Americans with Disabilities Act
Comfort Height – designed for ease of use, with a higher than average bowl
Seat and cover not included with this model
WaterSense certified – toilet uses 20% less water than the current standard while maintaining superior performance
Concealed trapway – provides a smoother and less utilitarian appearance, a built in skirt hides the discharge passageway from view
Product Technologies / Benefits:

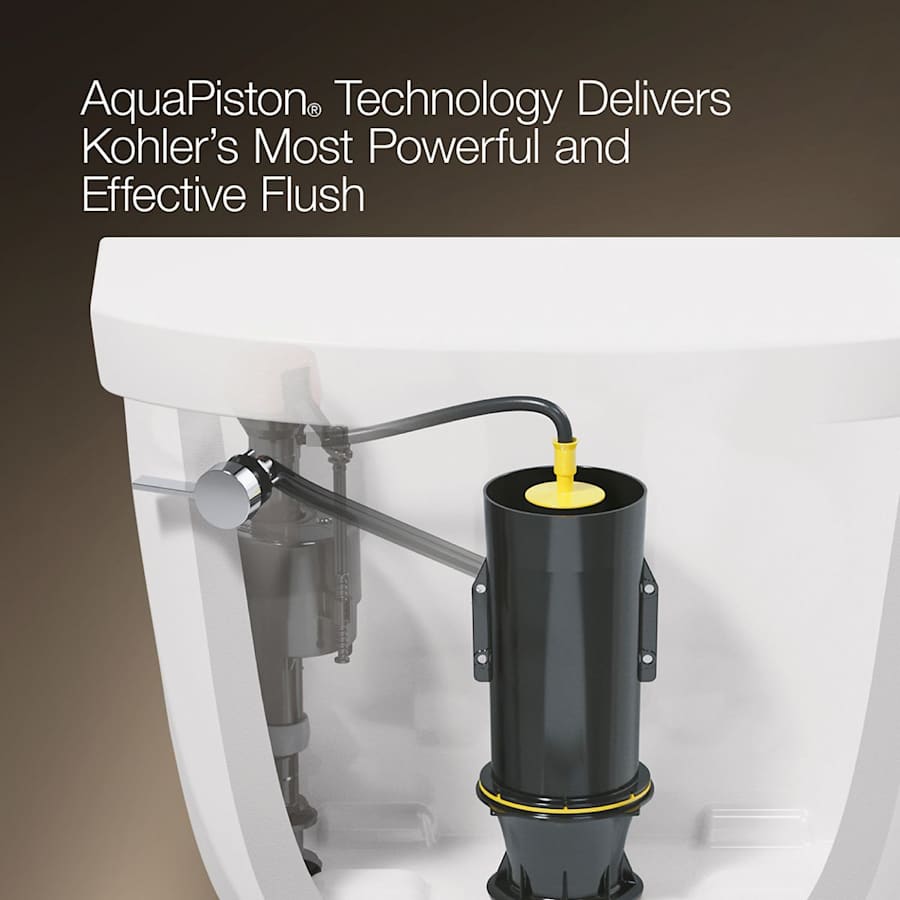

AquaPiston: AquaPiston single flush canister technology uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong, efficient siphon during flushing. The canister flush valve’s 3:2 ratio optimizes flush performance and resists warping and deterioration, while its durable design features 90% less exposed seal material than a standard 3-inch flapper flush valve, guaranteeing leak-free performance. The light-touch canister requires lower activation force than a flapper, and once activated, allows water to flow into the bowl from all sides (360 degrees), increasing each flush’s power and effectiveness.

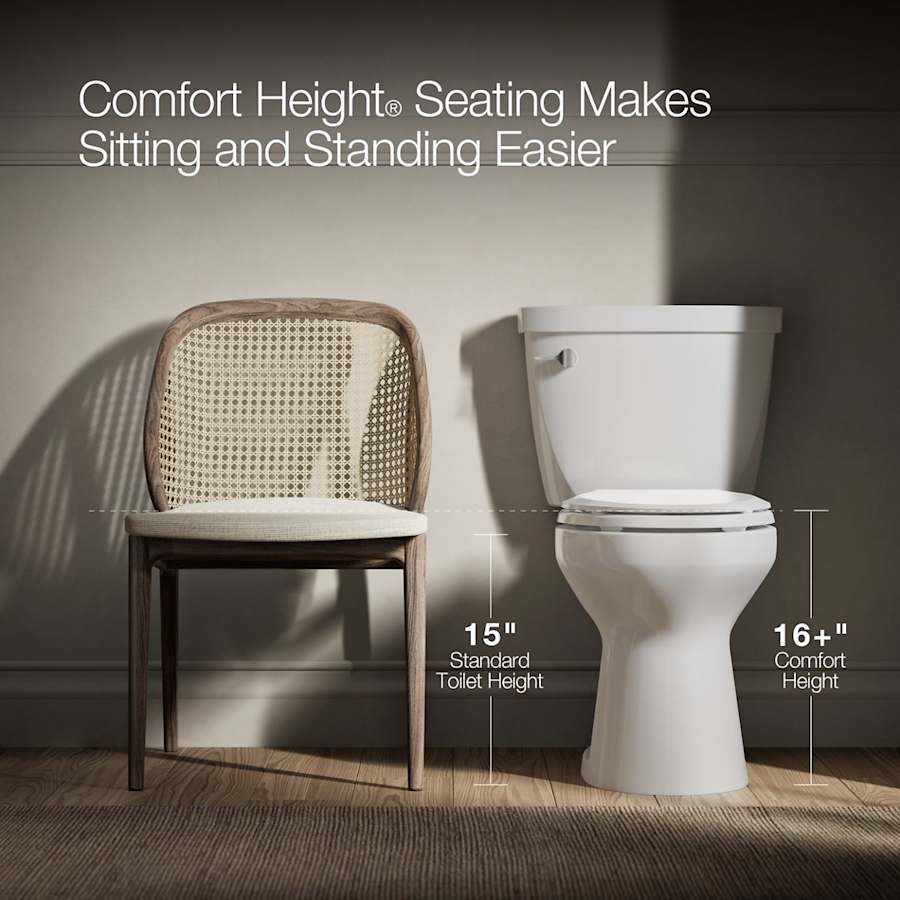

Comfort Height: Comfort Height toilets offer the greatest accessibility and ease of use with a bowl height of between 16-1/2″ and 18″, the same as a standard chair.
Kohler K-5310 Specifications:

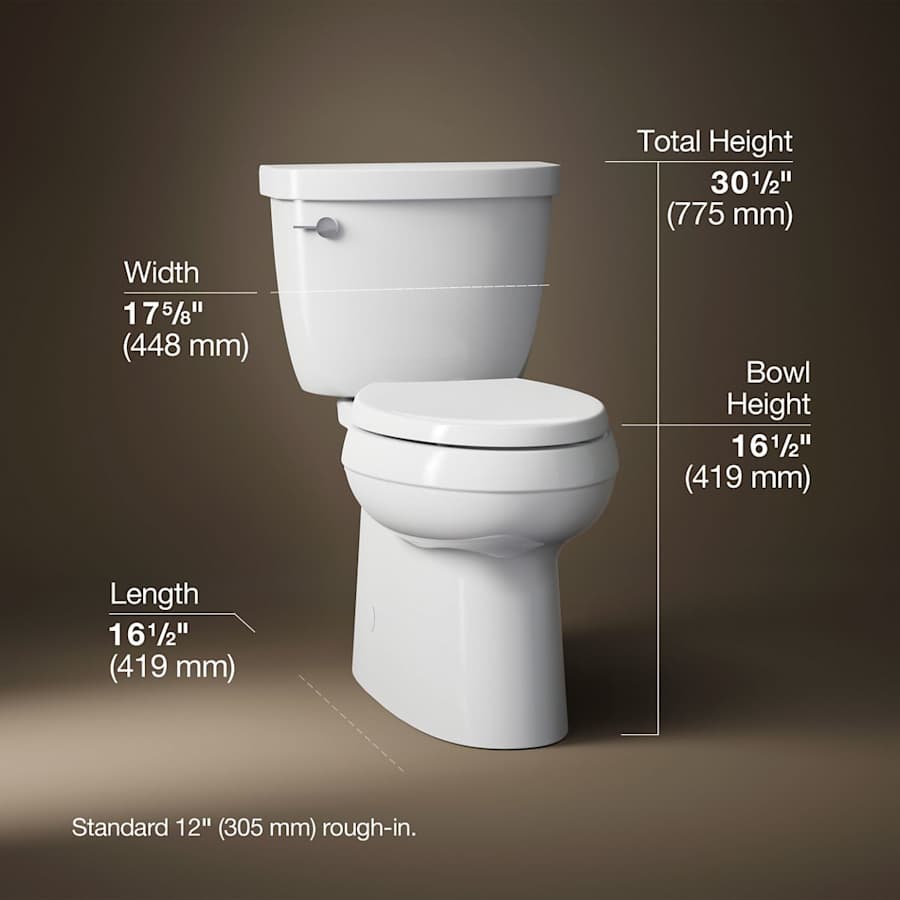

Overall Height: 30-1/2″ (bottom of base to top of tank)
Overall Depth: 29″ (back of tank to front of rim)
Overall Width: 17-5/8″ (rightmost to leftmost edge of toilet)
Bowl Height: 16-1/2″ (floor to bowl rim)
Flow Rate: 1.28 GPF (gallons per flush)
Water Area: 9-5/8″ x 6-5/8″ (inner rim dimensions of bowl, length x width)
Water Depth (from Rim): 6-3/8″
Trapway (Discharge Passageway) Size: 2-1/8″
Distance Between Toilet Seat Installation Holes: 5-1/2″
Rough-In: 12″
About Kohler K-5310:

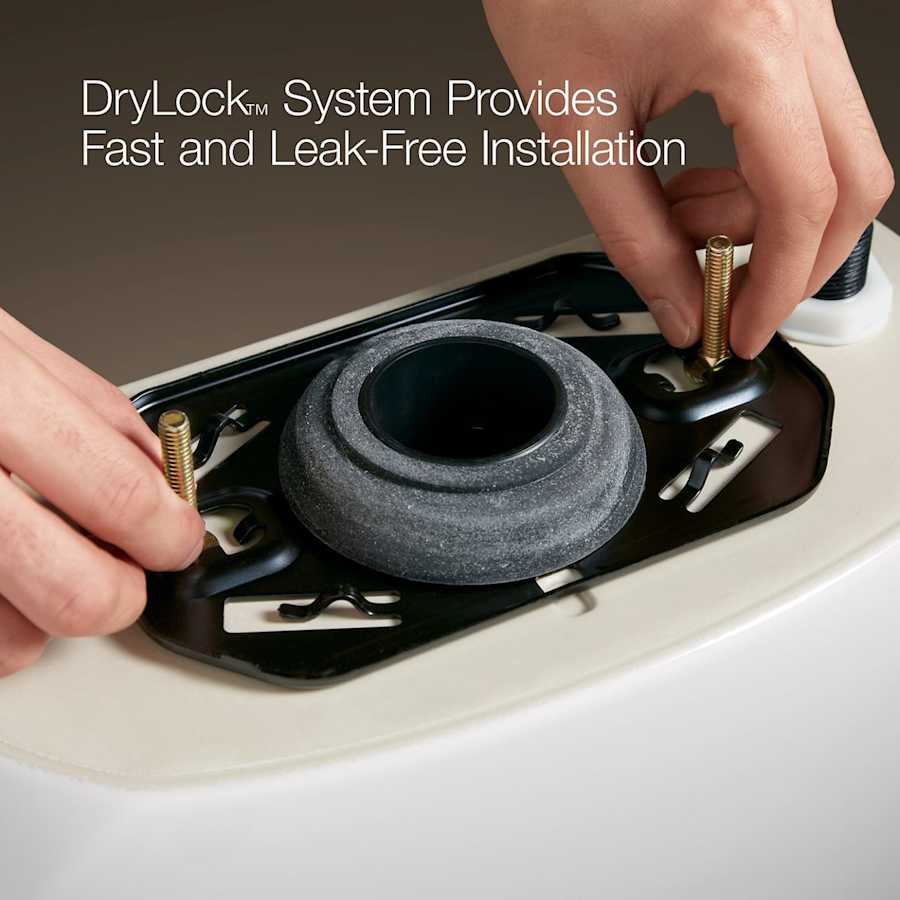

This WaterSense-labeled high-efficiency toilet delivers water conservation and easy installation in a sleek, skirted design. The Cimarron two-piece skirted toilet utilizes Kohler’s innovative new installation system for easier, more intuitive installation. The skirted trapway installs to the floor flange and attaches to the toilet, eliminating the need to drill holes while offering the same secure installation as non-skirted toilets.
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Cimarron Collection
Specifications
| Depth | 29 in. |
| Height | 30.5 in. |
| Product Weight | 80 lbs. |
| Width | 17.625 in. |
| Bowl Height | 16.5 in. |
| Rough In | 12 in. |
| Trapway | 2.125 in. |
| Water Area | 9.625 x 6.625 |
| Gallons Per Flush | 1.28 |
| Hinge Center to Center | 5.5 in. |
| Insulation Type | Floor Mounted |
| Material | Vitreous China |
| Thermostat | Basic |
| Configuration | Two Piece |
| Bowl Shape | Elongated |
| Flush Type | Gravity Flush |
| Trip Lever Finish | Chrome |
| Trip Lever Placement | Left |
| Design Features | Concealed Trapway, Chair Height |
| Approved for Commercial Use | No |
| Collection | Cimarron, Comfort Height |
| Country Of Origin | USA |
| Made in America | Yes |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| CA Drought Compliant | Yes |
| Certifications | ANSI, ASME, CSA |
| WaterSense Certified | Yes |
| TX Drought Compliant | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.19.2 |
| CSA Code | B45.1 |
| Seat Included | No |

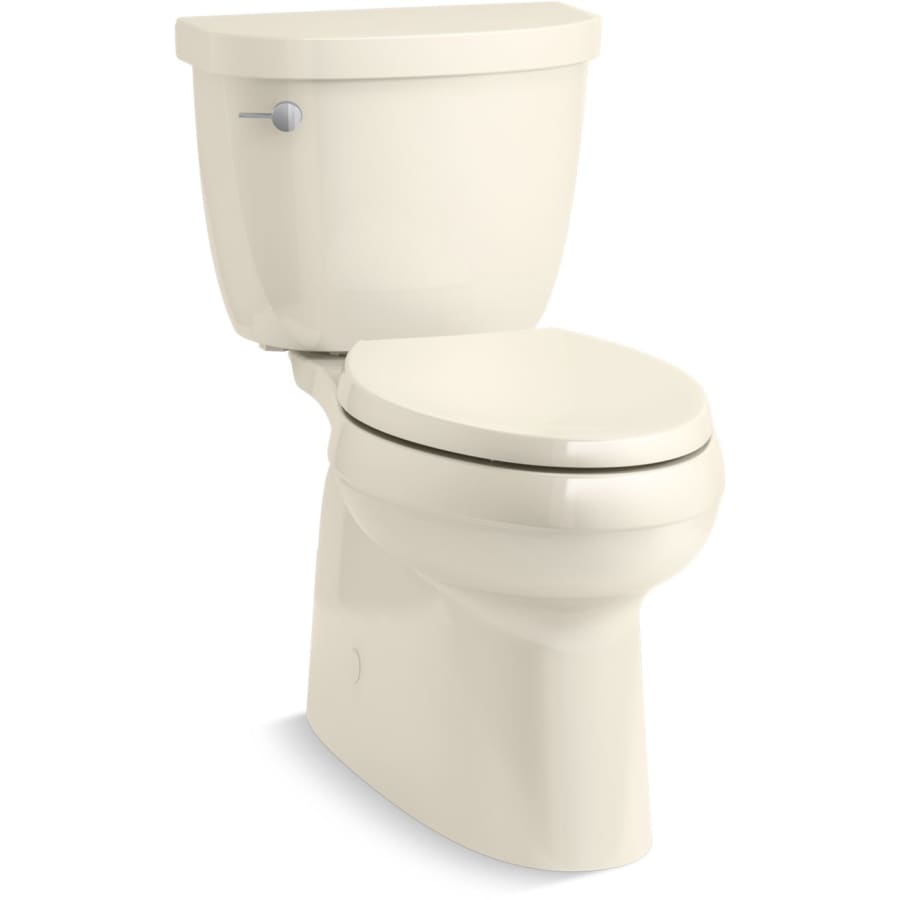

| Color | Almond, Biscuit, Black Black, Dune, Ice Grey, Sandbar, White |
| Color Tone | Blacks, Greys, Neutrals, Whites |
