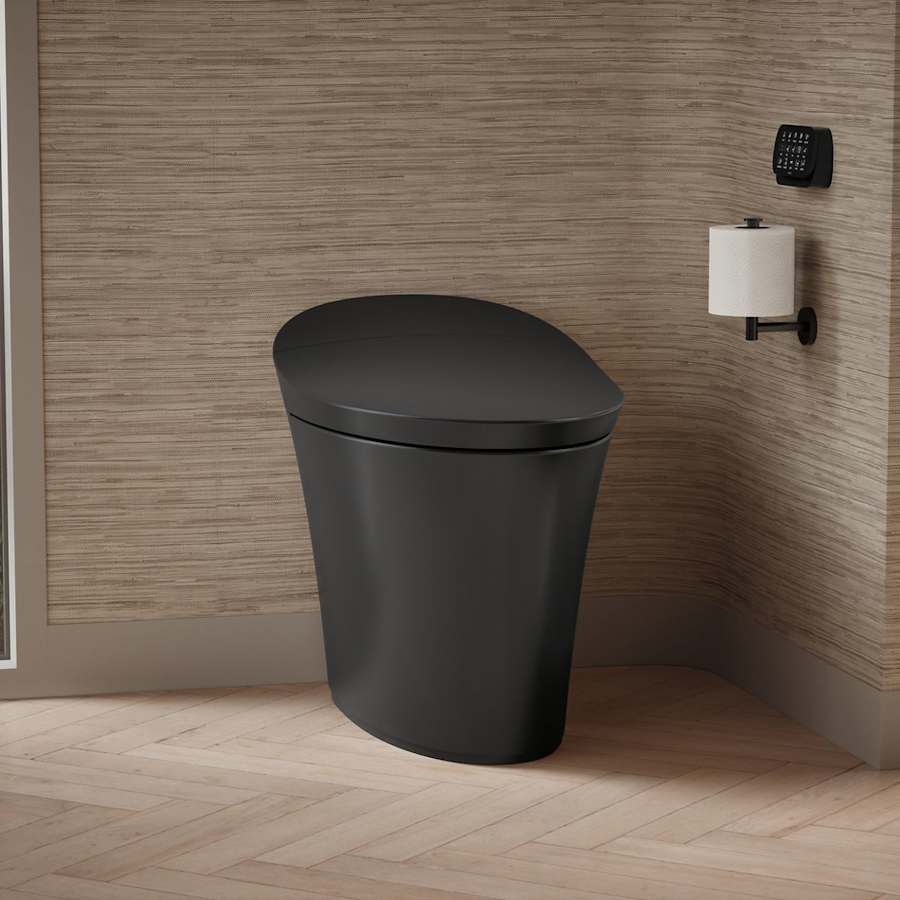

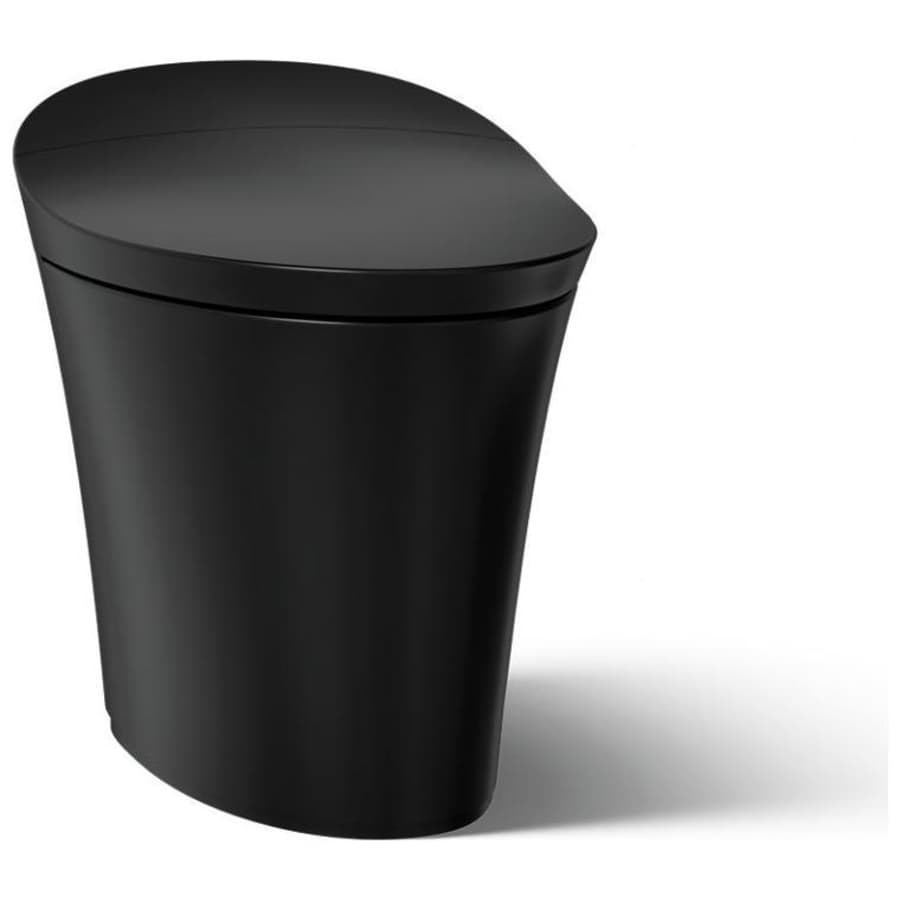

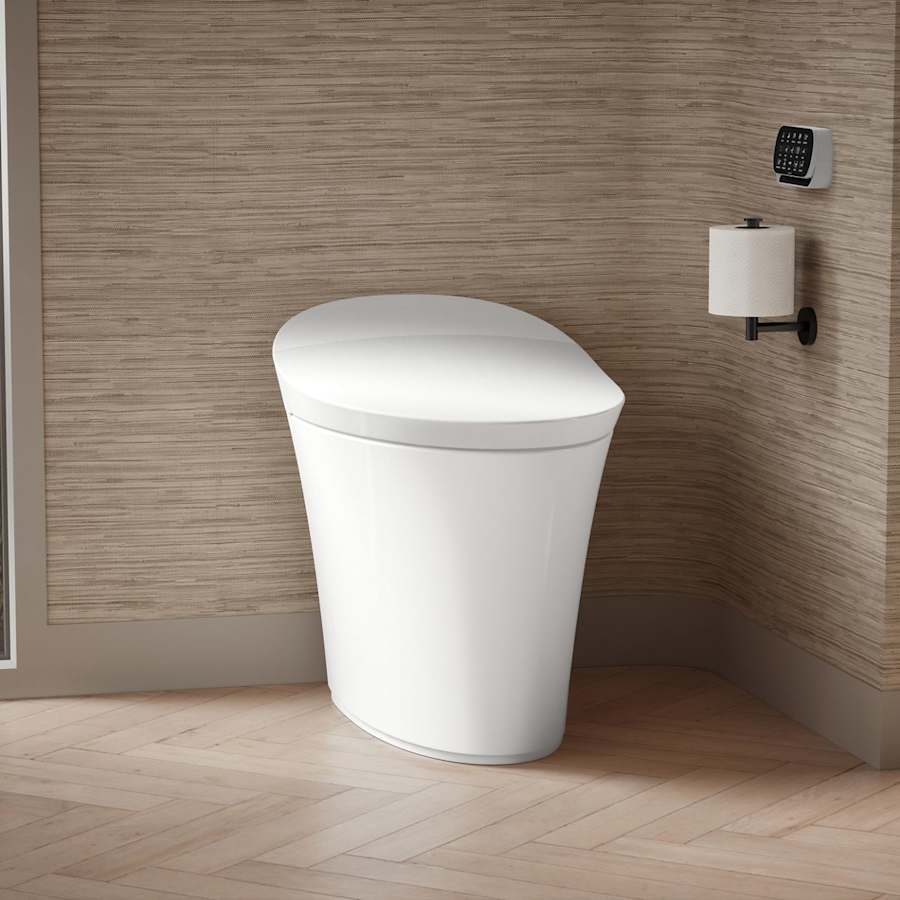

Sculpted with flowing and balanced curves, the Veil® one-piece toilet pairs bold minimalist style with the comfort of personal cleansing. Upgraded to a 17″ seating height, this Veil® dual-flush toilet meets ADA code requirements. Pump-assisted flushing delivers peak flush performance every time. A full suite of convenient features includes heated seat, night-light, hands-free opening/closing and automatic flush, plus a touchscreen remote. With emergency backup flushing at the touch of a button, you’re always covered in the event of a power outage.
KOHLER UV-light technology automatically cleans the bidet wand every 24 hours, reducing bacteria by 99.9%.*
*Tested against Escherichia coli, Staphylococcus aureus, and Pseudomonas aeruginosa.
Kohler K-5401-PA Features:
Compact, streamlined one-piece intelligent toilet with integrated personal cleansing.
Elongated bowl offers added room and comfort.
Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults.
Tankless design with direct water supply.
Stainless steel wand offers adjustable spray shape, position, water pressure, temperature, pulsate, and oscillate functions.
Front and rear wash modes provide warm water for cleansing.

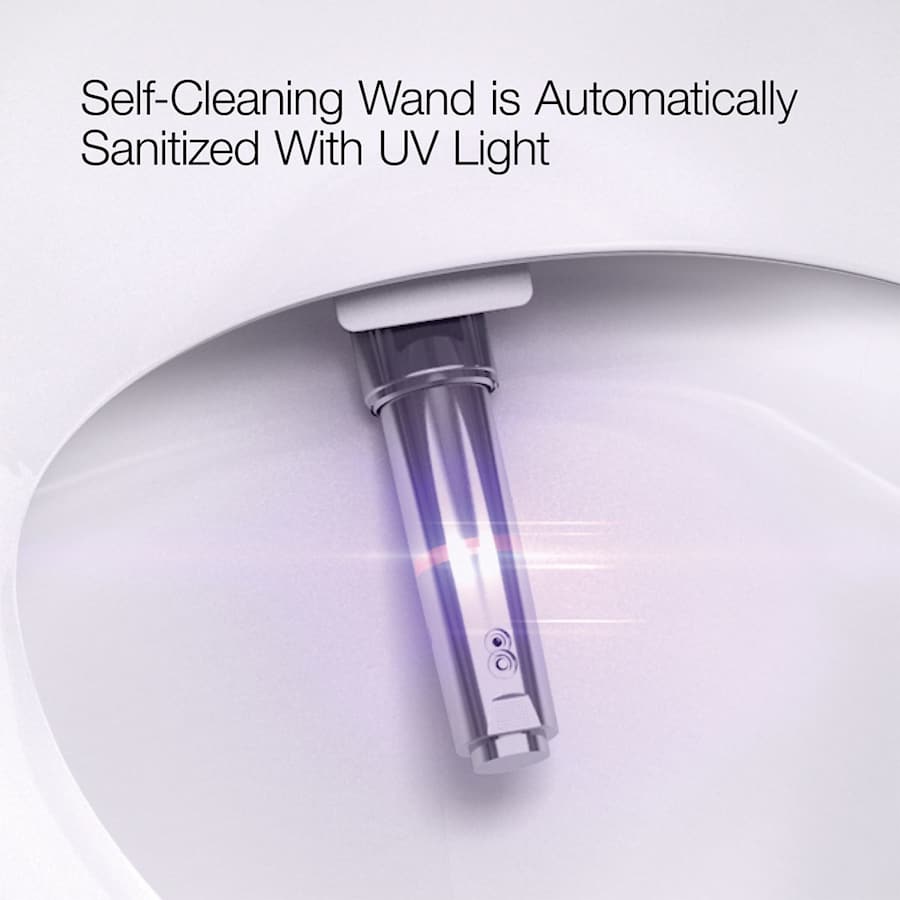

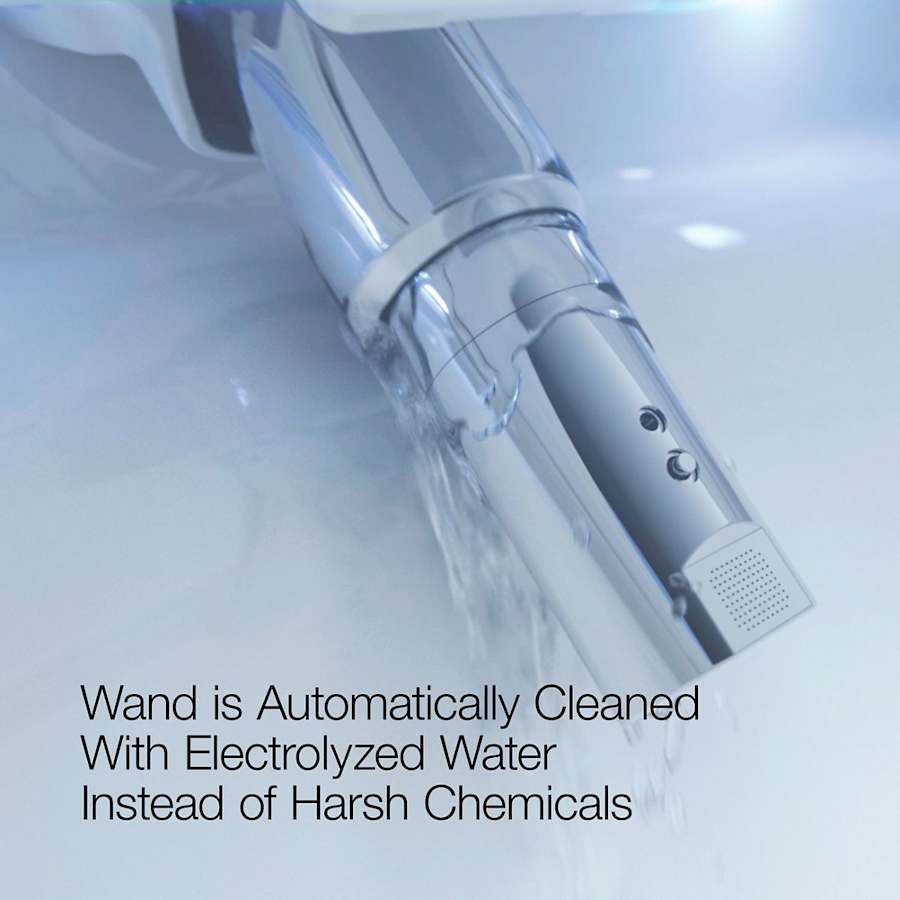

Self-cleaning function uses UV light and electrolyzed water systems to automatically clean the wand surfaces.

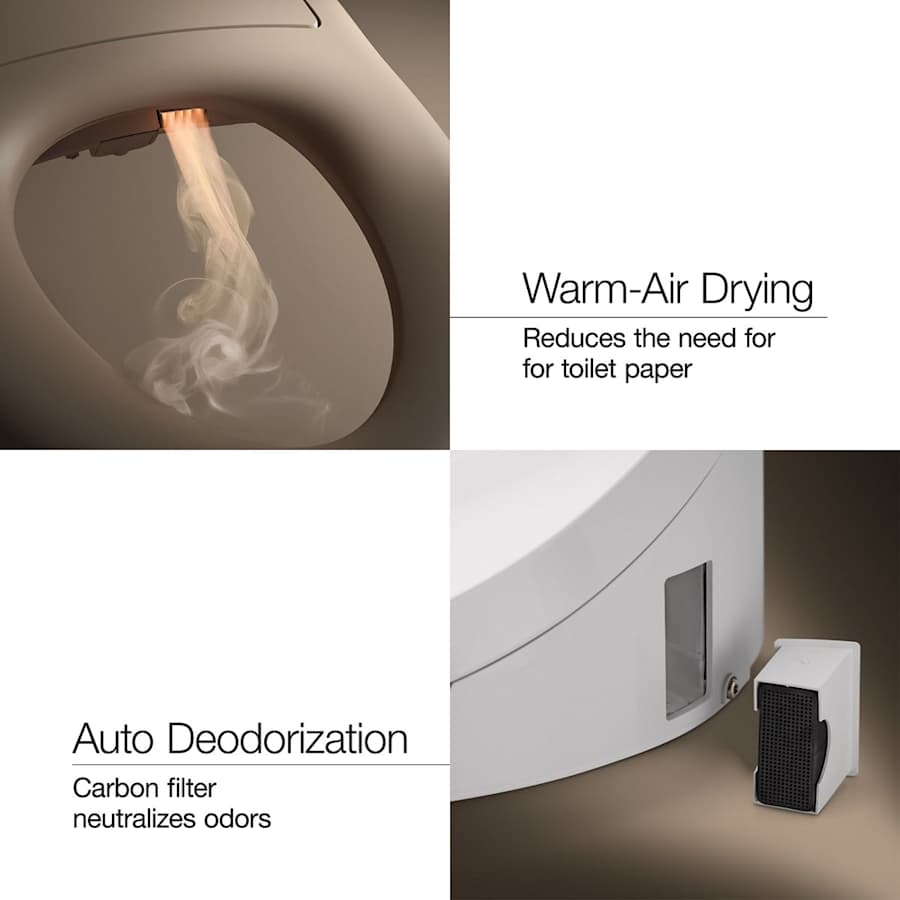

Warm-air drying system with adjustable temperature settings.
Automatic deodorization system.
Heated seat with adjustable temperature settings.

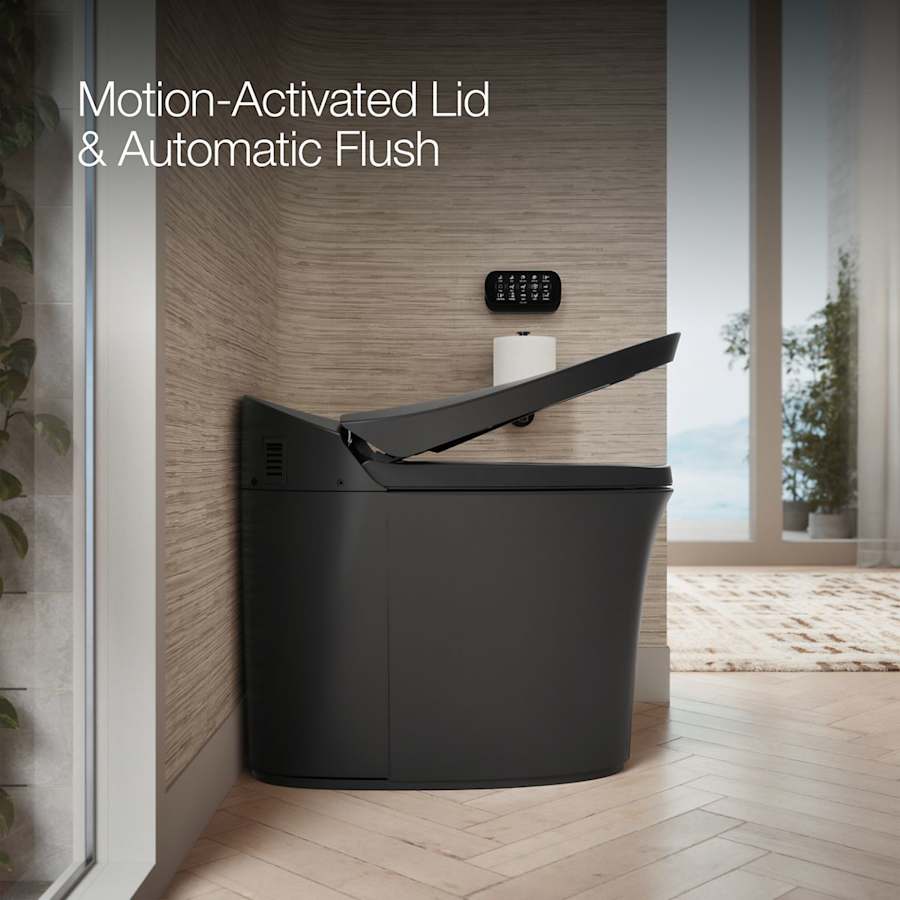

Motion-activated, hands-free opening/closing of cover.
Quiet-Close™ elongated seat closes quietly.
LED lighting illuminates the bowl to serve as a nightlight.

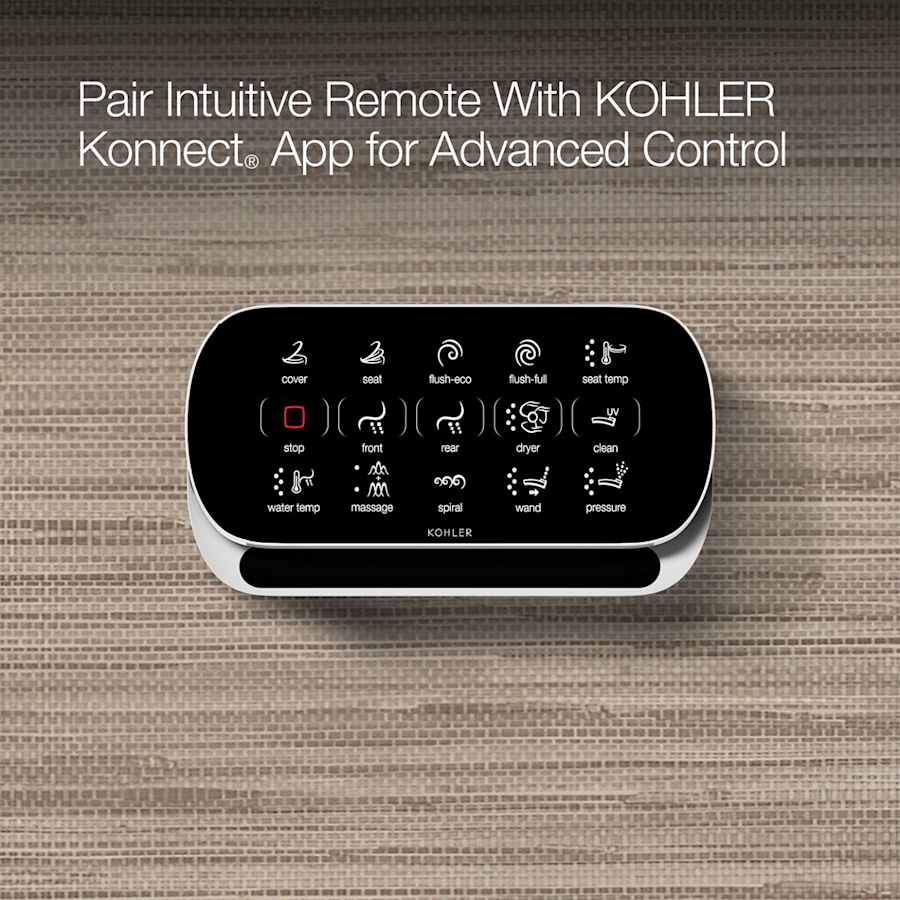

English-language touchscreen LCD remote control.

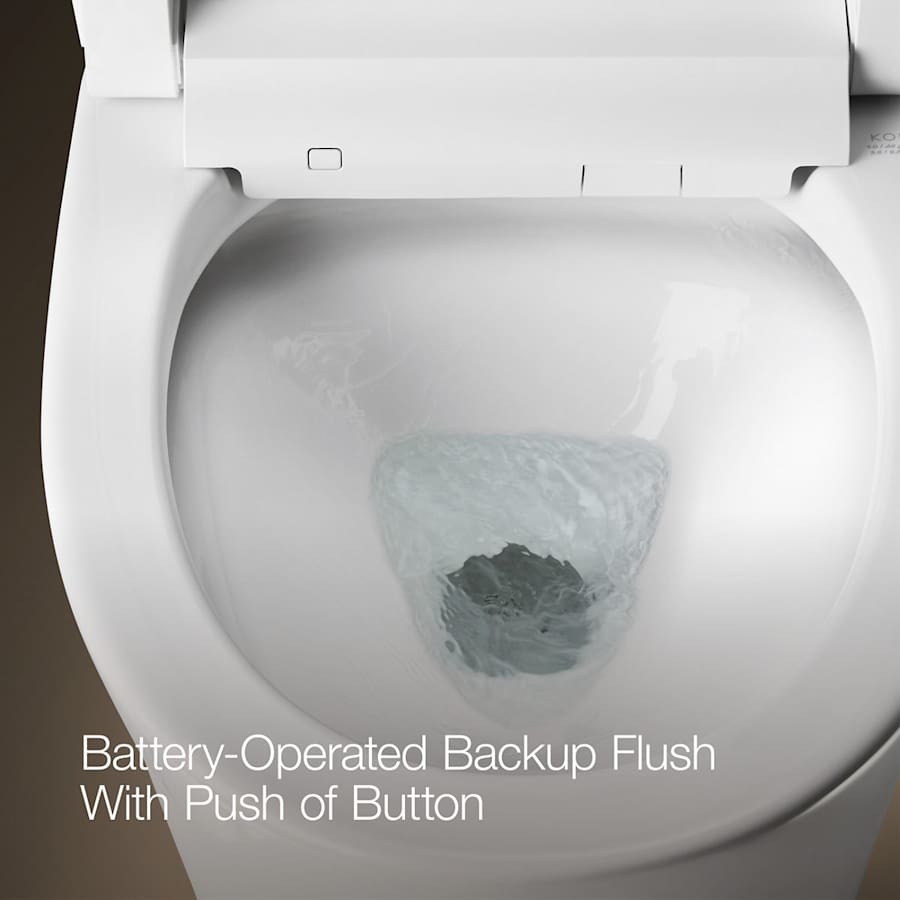

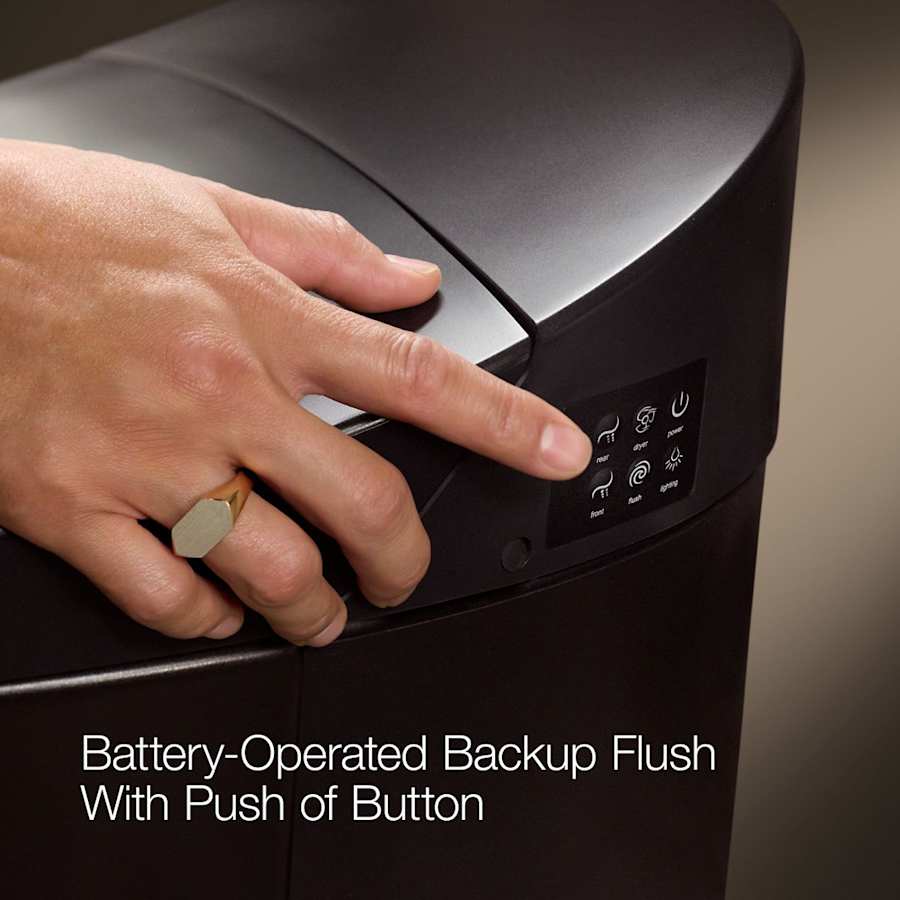

Emergency flush supports up to 100 flushes during power outage with simple touch-button activation.
Dual flush offers a choice of 0.8 or 1.19 gpf (3.0 or 4.5 lpf).
Includes: Complete toilet and seat, supply stop valve, braided inlet supply hose, power cord, and remote control.
Covered under Kohler’s 3 year limited warranty
Kohler K-5401-PA Specifications:
Overall Height: 21-7/16” (bottom of the base to the highest point on the toilet)
Overall Depth: 29-3/8” (furthest point back to front of toilet)
Overall Width: 16-3/8” (furthest point left to furthest point on the right)
Bowl Height: 16-1/8” (floor to the top of the bowl)
Flow Rate: 0.8/1.28 (gallons-per-flush)
Water Area: 7-15/16″ x 5-5/8″ (inner bowl dimensions length x width)
Rough-In: 12”
Distance Between Toilet Seat Installation Holes: 5-1/2”
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Veil Collection
Specifications
| Height | 21.4375 in. |
| Width | 17.25 in. |
| Bowl Height | 16.125 in. |
| Depth | 26.125 in. |
| Gallons Per Flush | 0.8, 1.28 |
| Hinge Center to Center | 5.5 in. |
| Rough In | 12 in. |
| Trapway | 1.9375 in. |
| Product Weight | 114.6 lbs. |
| Thermostat | Modern |
| Insulation Type | Floor Mounted |
| Bowl Shape | Elongated |
| Configuration | One Piece |
| Design Features | Dual Flush, Concealed Trapway, Soft Close, Chair Height, Low Profile |
| Electronic | Yes |
| Tech Features | Heated Seat |
| Seat Front | Closed |
| ADA | Yes |
| Collection | Smart Toilets, Veil |
| ANSI Certification | A117.1 |
| ASSE Code | A112.19.2 |
| Certifications | ANSI, ASME, CSA |
| Country Of Origin | China |
| CSA Code | B45.1 |
| Manufacturer Warranty | 3 Year Limited |
| Bidet Seat Included | Yes |
| Seat Included | Yes |
| Color | Honed Black, White |
| Color Tone | Blacks, Whites |
