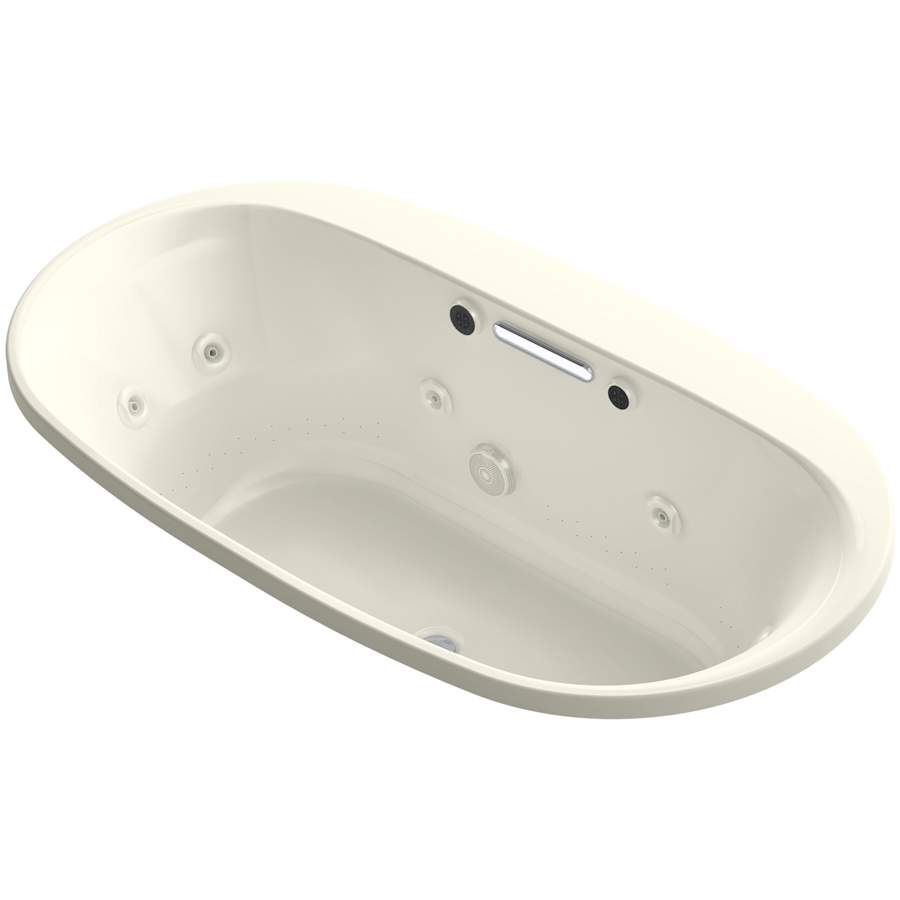

With clean, smooth lines, the Underscore heated Bubblemassage air bath and whirlpool is a welcome retreat to soak away the day’s tension and center your mind. Lay back and melt in the deep bath as strategically-placed airjets release thousands of bubbles to massage your body at the level of intensity you prefer, while another eight fully-adjustable jets deliver a powerful hydromassage to create a soothing, spa-like environment. Realize your vision. It’s all at the touch of your finger.

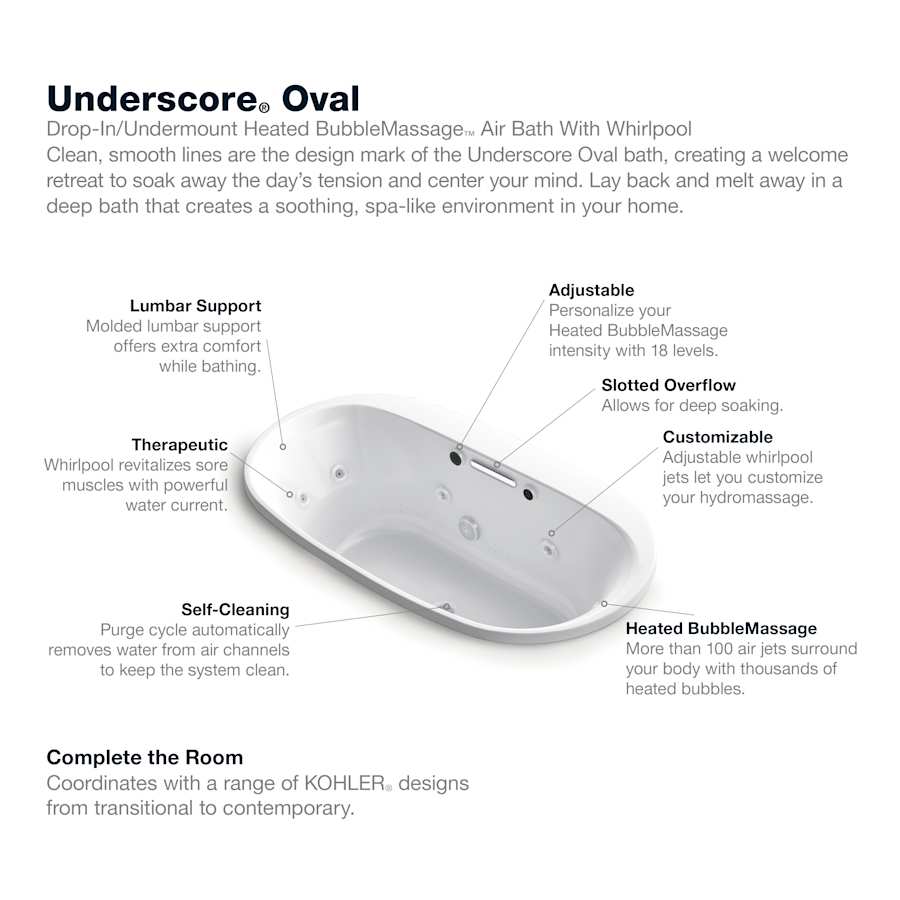

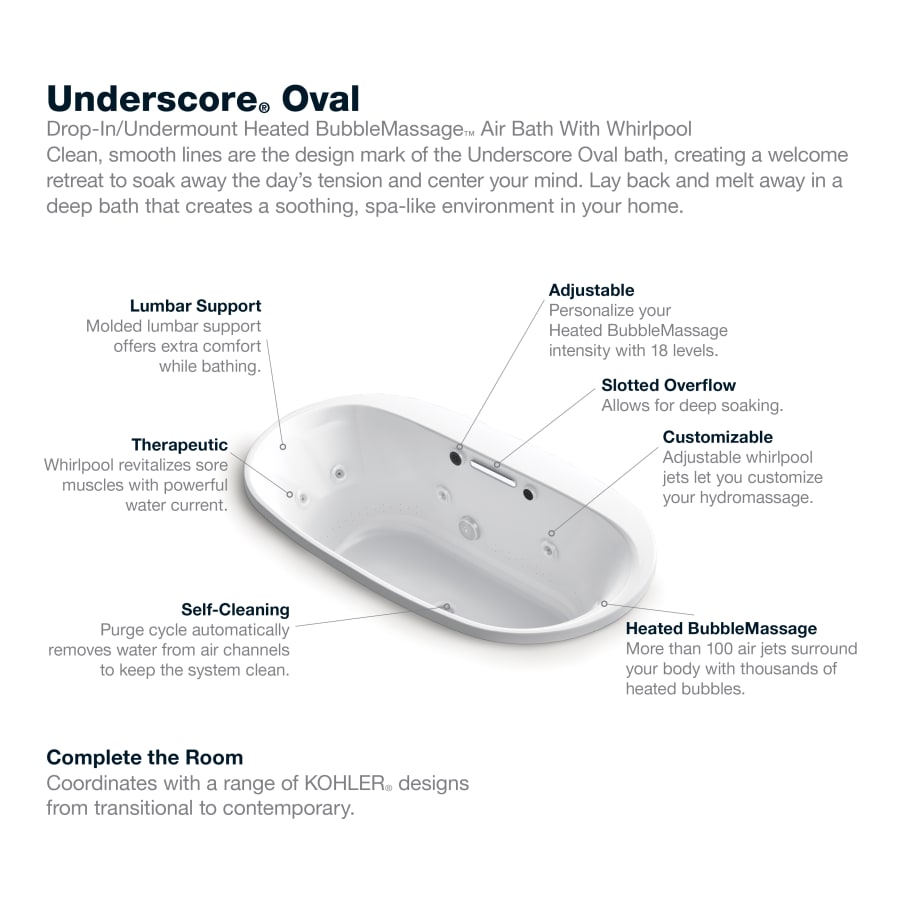

Kohler K-5716-XHGH Features:
Covered under Kohler’s hydrotherapy component 5 year limited warranty, and tub limited lifetime warranty
Acrylic construction maintains heat longer and is easy to clean
Combination air-whirlpool tub provide a relaxing and invigorating bathing experience
122 Airjets release thousands of heated bubbles that surround, support, and massage the body
Variable-speed blower lets you adjust massage intensity to 18 levels
Eight Flexjet hydromassage jets can be individually adjusted for water flow and direction
Automatic and manual purge cycles remove residual water from air channels after use
Control all features of your experience tub with a gentle touch of the keypad
60-minute automatic shutoff timer
Installs in a drop in or undermount configuration
An ultra-quiet variable-speed left-side blower allows you to adjust the air injection intensity
Tub features a heater that maintains water temperature for constant bathing comfort
Drain assembly sold separately
Pump is located on the left side
Slotted overflow allows for deep soaking
Integral lumbar support for added bathing comfort
Oval-shaped basin offers a graceful and spacious bathing experience
Generous 66-in length provides spacious bathing for up to two people
Made in America
Kohler K-5716-XHGH Technologies and Benefits:
BubbleMassage™: BubbleMassage hydrotherapy delivers thousands of bubbles that thoroughly support and massage your body for an invigorating, blissful experience. The strategic placement of the BubbleMassage air jets on the lower perimeter of the bath create a luxurious bathing experience that stimulates the release of muscle tension and helps center the mind.
Kohler K-5716-XHGH Specifications:
Overall Height: 22″ (bottom to top of tub)
Overall Length: 66″ (left to right of tub)
Overall Width: 36″ (front to back of tub)
Basin Length: 47″ (left to right of bottom basin)
Basin Width: 26-1/4″ (front to back of bottom basin)
Basin Depth: 21-3/16″ (top to bottom of basin)
Maximum Water Capacity: 85-1/2 gallons
Water Depth: 17-9/16″
Amperage: 15 A
Number of Jets: 122
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Underscore Oval Collection
Specifications
| Length | 66 in. |
| Capacity (Gallons) | 85.5 |
| Depth | 21.1875 in. |
| Height | 22 in. |
| Nominal Length | 66 in. |
| Nominal Width | 36 in. |
| Product Weight | 165 lbs. |
| Width | 36 in. |
| Water Depth | 17.5625 in. |
| Material | Acrylic |
| Thermostat | Transitional |
| Accepts Deck Mount Faucet | No |
| Drain Placement | Center |
| Insulation Type | Undermount, Drop In |
| Number Of Bathers | 1 |
| Overflow | Yes |
| Slip Resistant | Yes |
| Tub Shape | Oval |
| Control Type | Electronic |
| Number of Jets | 122 |
| Pump Placement | Left |
| Manufacturer Warranty | 5 Year Limited, Limited Lifetime |
| Collection | Underscore Oval |
| Certifications | ASME |
| Made in America | Yes |
| ASSE Code | A112.19.7 |
| CSA Code | B45.10, B45.5, C22.2 |
| Drain Assembly Included | No |
| Faucet Included | No |
| Handshower Included | No |
| Light Included | No |
| Voltage | 120 |
| Amperage | 15 |
| Color | Biscuit, Black Black, Dune, Ice Grey, Thunder Grey, White |
