Product Features:

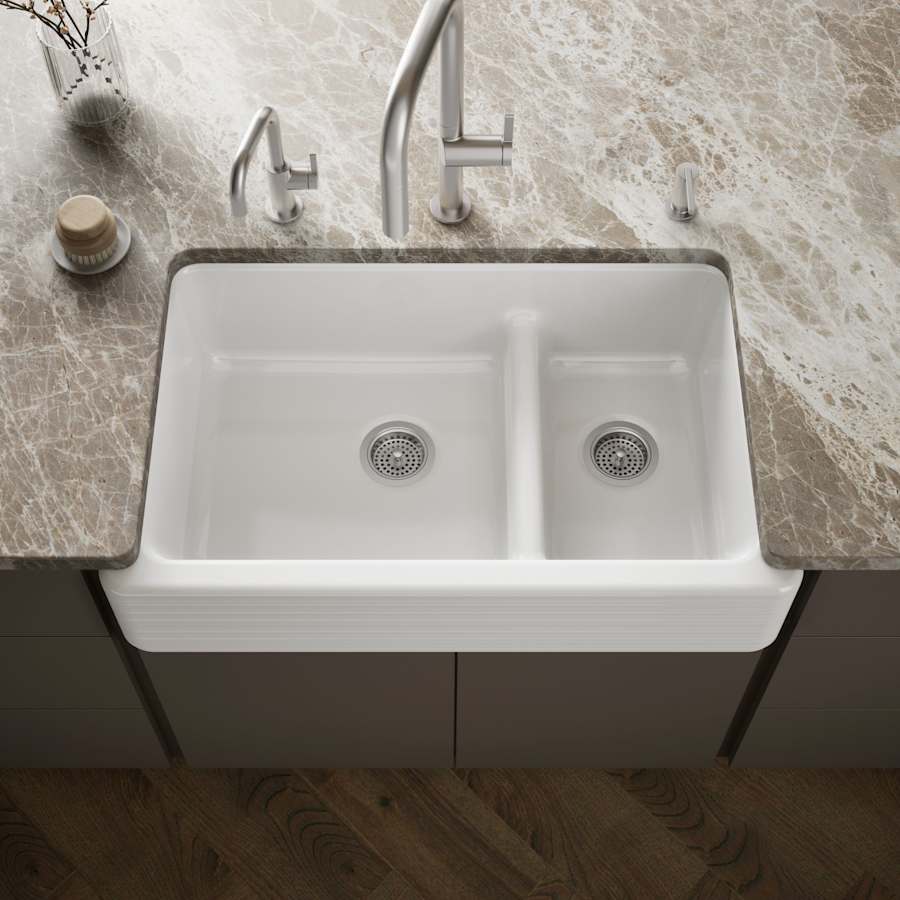

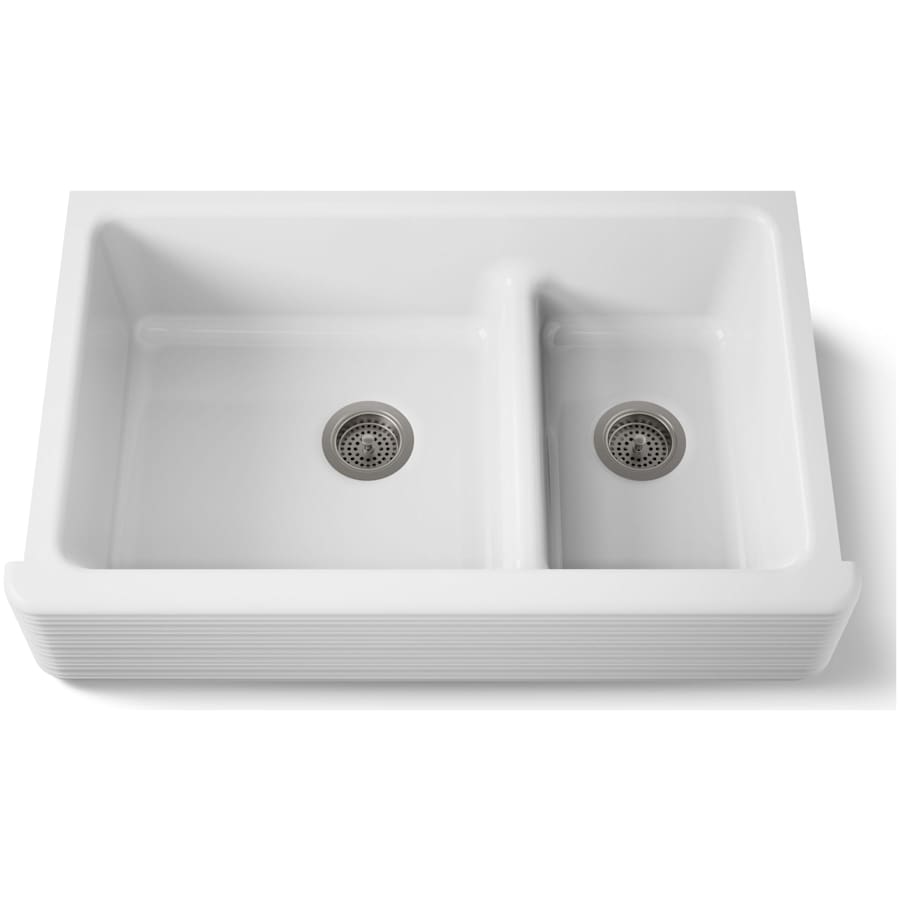

Double basin sink with a 60/40 split provides increased versatility for any task
Covered under Kohler’s limited lifetime warranty
Apron features an elegant, textured ridge design
Basins slope 2 degrees toward drains to minimize water pooling
Constructed of enameled cast-iron, which combines strength, durability, and insulation benefits for years of beauty and reliable performance
Farmhouse installation type
Offset drain location increases workspace area in the sink as well as storage space underneath
All hardware needed for installation is included
Product Technologies / Benefits:

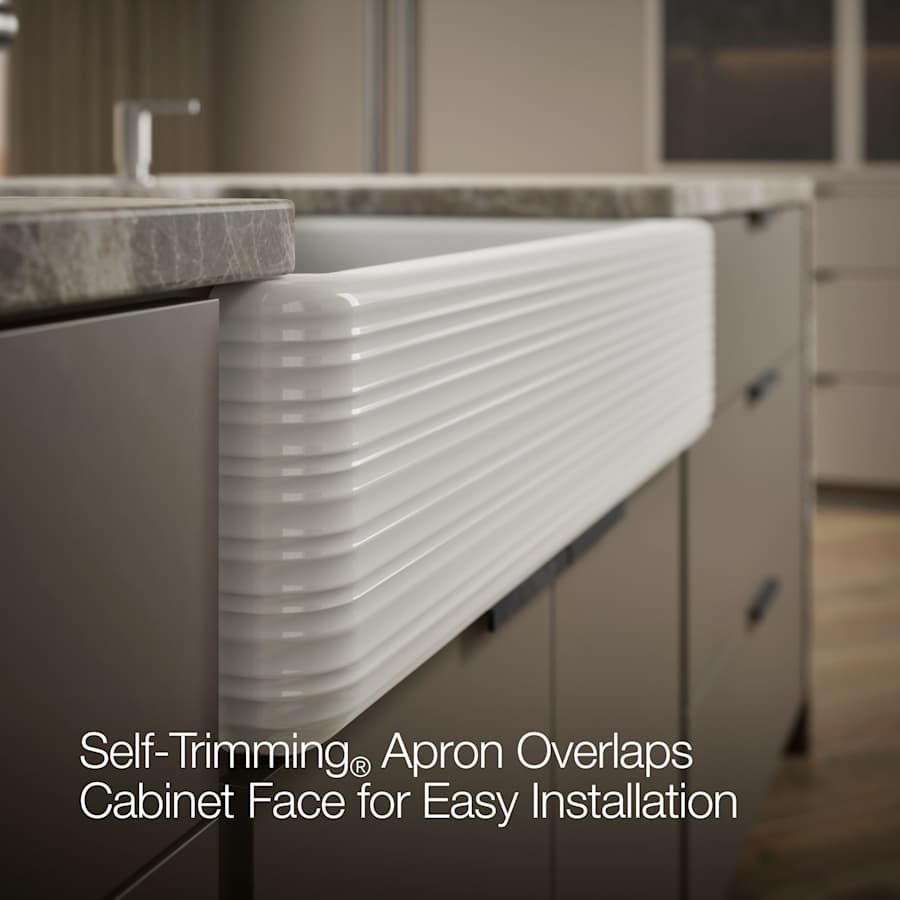

Self-Trimming: A farmhouse design that overlaps the apron of the sink down over a portion of existing cabinetry. This allows the installation of a farmhouse sink with only minor countertop modification.

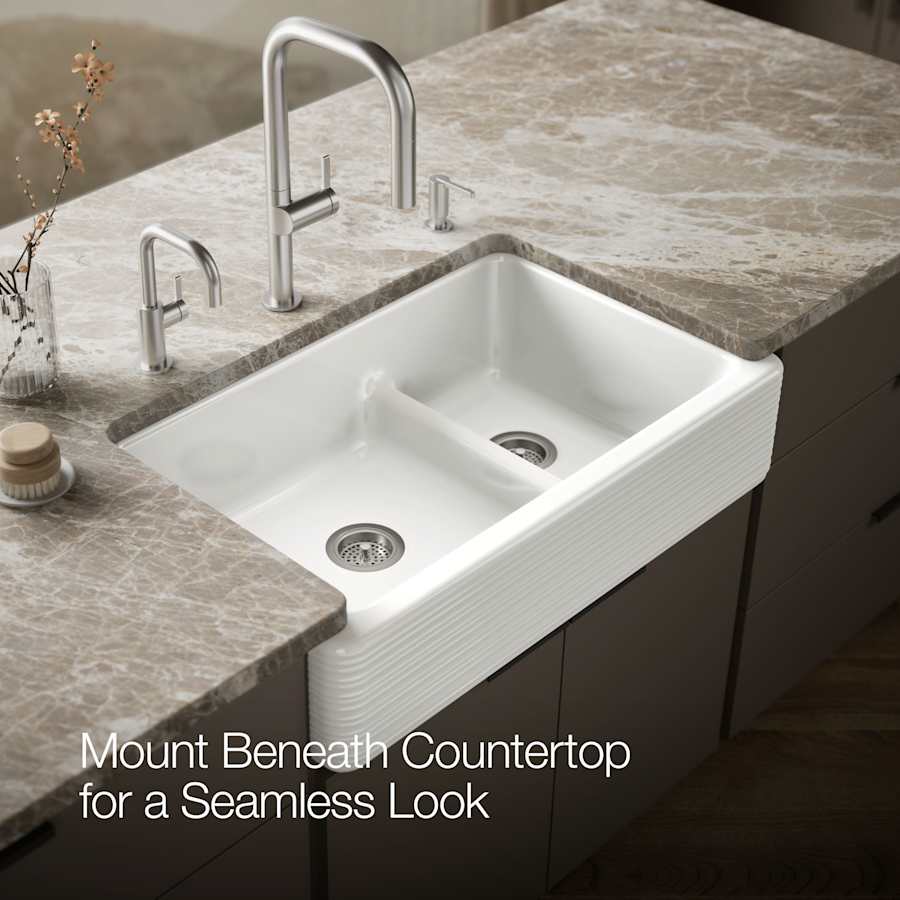

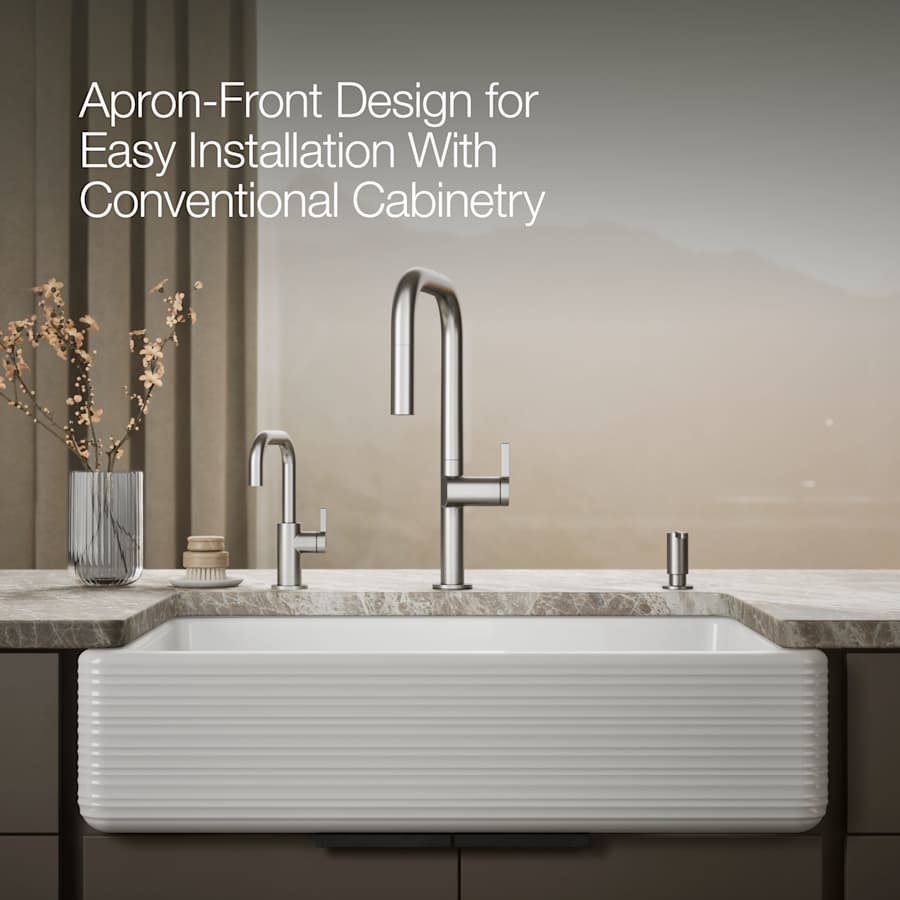

Apron Front: Once known as “farmhouse sinks” because they evoke images of traditional kitchens, Kohler apron-front sinks have a stylish panel in front and are available in both tile-in and under-mount models. Self-Trimming installation lets you install an apron-front sink with most conventional cabinetry.

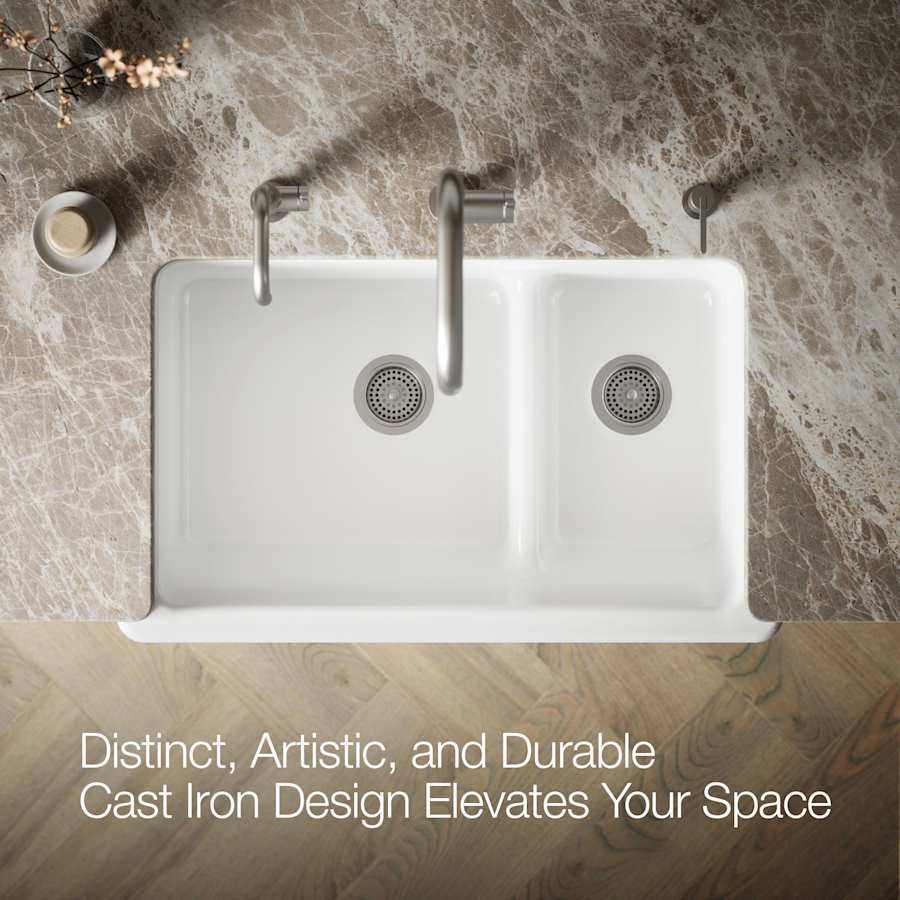

Enameled Cast-Iron: Kohler Enameled Cast-Iron combines the strength, durability, and insulation benefits of cast-iron with the scratch, chip, and burn resistance of a baked, powder coat finish and comes with an exceptional Lifetime Limited Warranty. When these materials are combined it gives the sink or tub the strength to last a lifetime of use. Kohler Enameled Cast-Iron is also available in a wide variety of specialty colors allowing you to truly customize your home.

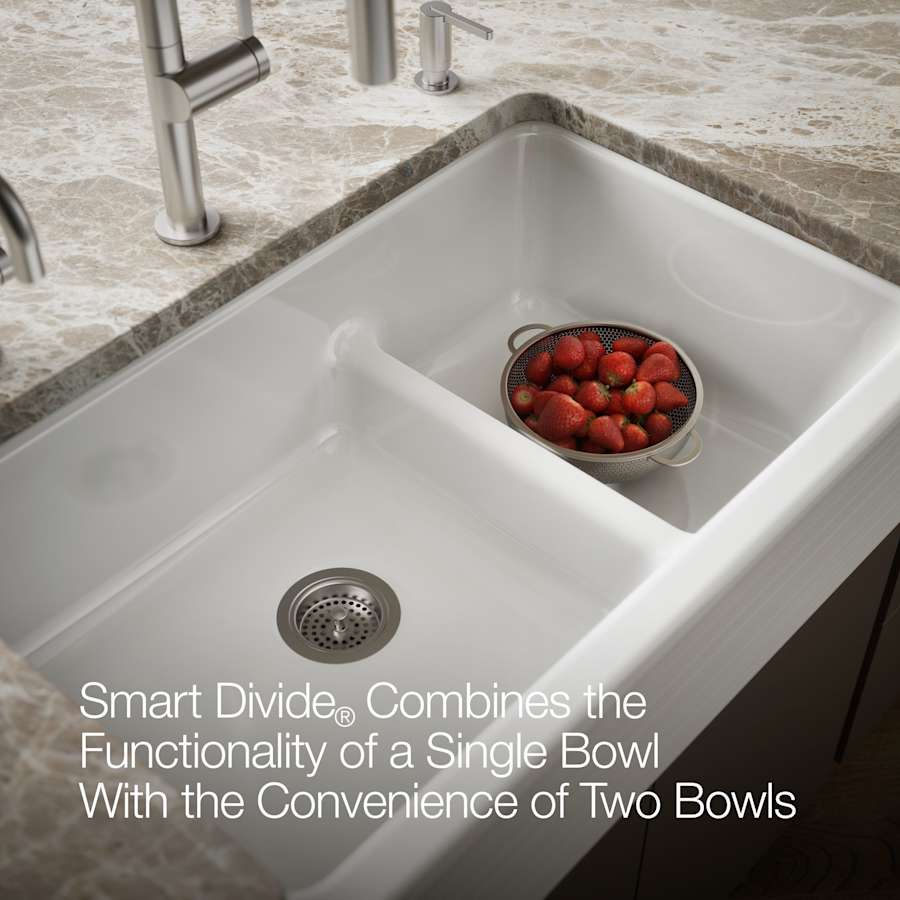

SmartDivide: The basin divider is set to a lower height than perimeter of the sink; you gain the convenience of a single basin sink completely filled, without losing the functionality of a double basin sink. The lower divider also gives more room for working with larger pots and pans providing more access for filling and cleaning.
Product Specifications:

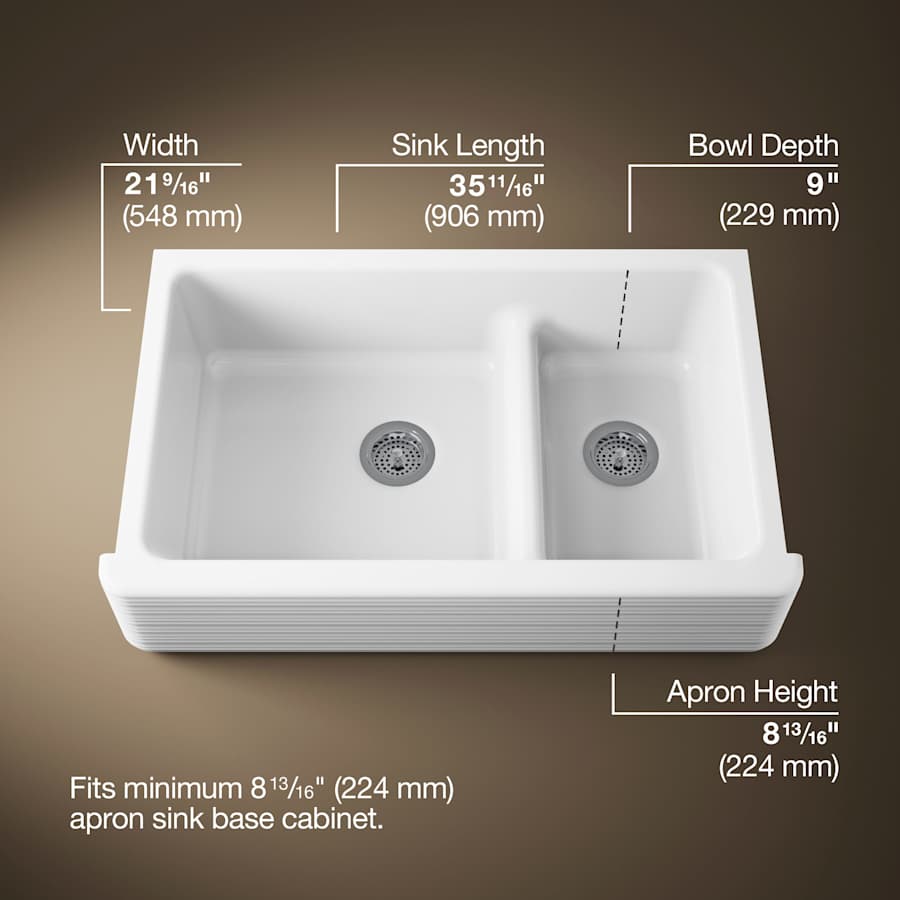

Height: 9-5/8″ (measured from bottom of sink to top of rim)
Overall Width: 21-9/16″ (measured from back outer rim to front outer rim)
Overall Length: 35-11/16″ (measured from left outer rim to right outer rim)
Basin Width (Left): 18-1/16″ / Basin Width (Right): 18-1/16″
Basin Length (Left): 17″ / Basin Length (Right): 11″
Basin Depth (Left): 9″ / Basin Depth (Right): 9″
Installation Type: Farmhouse
Drain Outlet Connection: 3-5/8″
Minimum Base Cabinet Width: 36″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Whitehaven Collection
Specifications
| Height | 9.625 in. |
| Width | 21.56 in. |
| Nominal Width | 22 in. |
| Length | 35.69 in. |
| Nominal Length | 36 in. |
| Backplate Depth | 9 in. |
| Drain Connection | 3.625 in. |
| Sink Length | 35.69 in. |
| Basin Depth (Left) | 9 in. |
| Basin Depth (Right) | 9 in. |
| Basin Length (Left) | 17 in. |
| Basin Length (Right) | 11 in. |
| Basin Width (Left) | 18.06 in. |
| Basin Width (Right) | 18.06 in. |
| Minimum Cabinet Size | 36 in. |
| Insulation Type | Farmhouse, Undermount |
| Material | Cast Iron |
| Thermostat | Traditional |
| Overflow | No |
| Sink Shape | Rectangular |
| Drain Placement | Rear, Right |
| Number Of Bathers | 2 |
| Farmhouse | Yes |
| Sound Dampening | Yes |
| Basin Split | 60/40 |
| Undercoating | No |
| ADA | No |
| Collection | Whitehaven |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | ASME, CSA |
| ASSE Code | A112.19.1 |
| CSA Code | B45.2 |
| Installation Hardware Included | Yes |
| Faucet Included | No |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Color | White |
| Color Tone | Whites |
