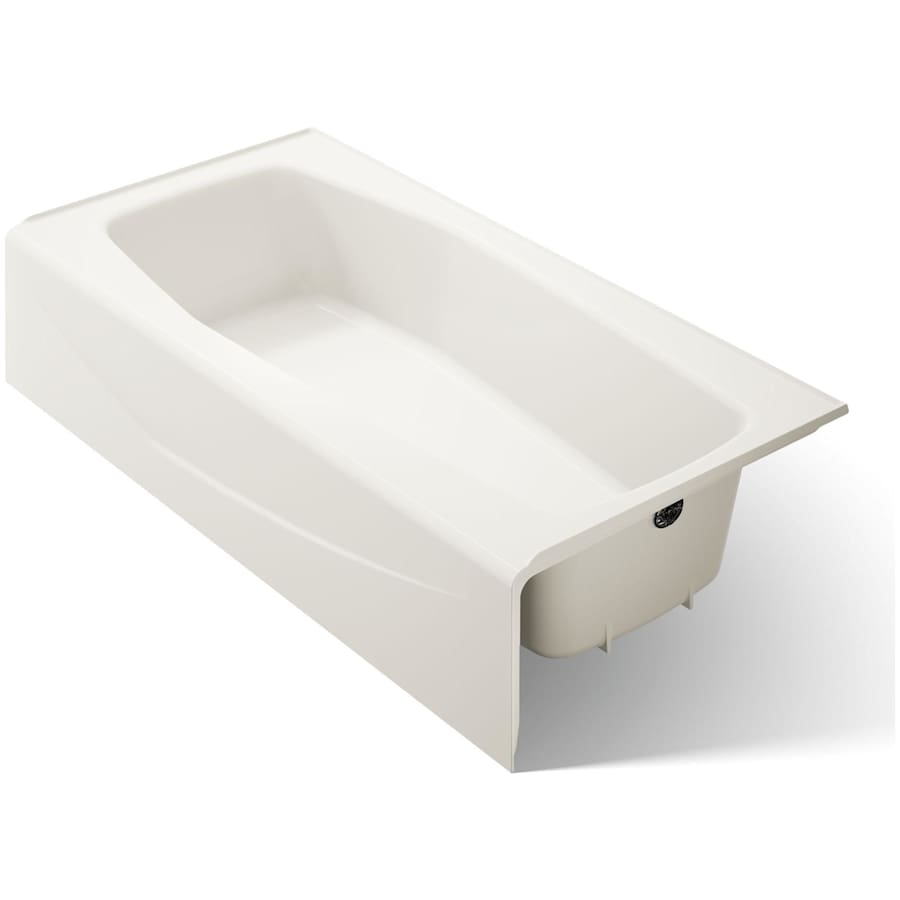

Villager
Functional design and Kohler styling, the Villager is our most popular bath. The integral apron allows for quick installation. This model features a right-hand drain. Safeguard slip-resistant surface enhances safety.
Â
Kohler K-716 Features:

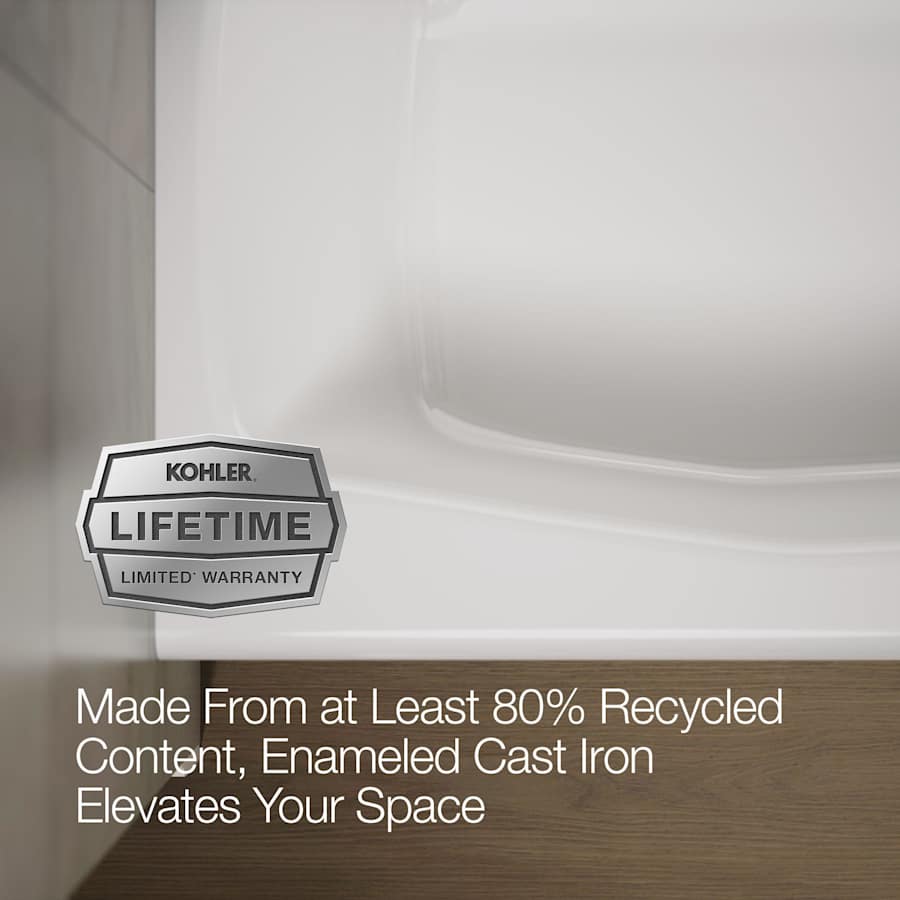

Kohler’s cast iron components carry a limited lifetime warranty
Tub is constructed from Enameled Cast Iron combining strength with durability

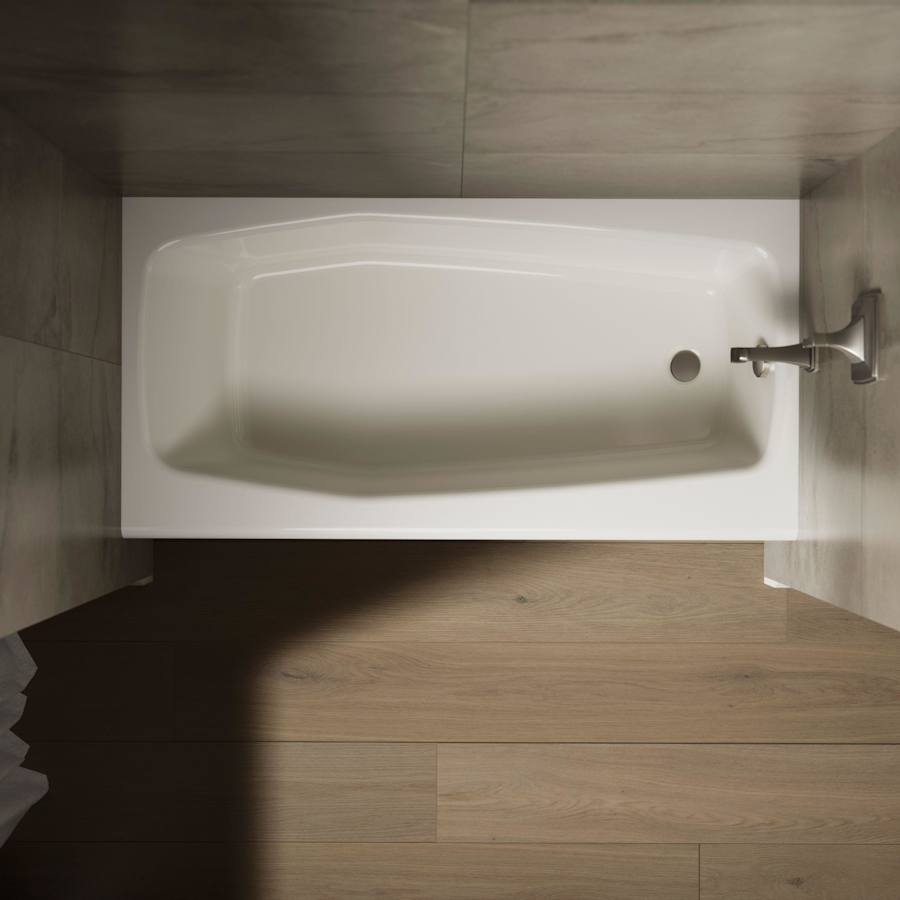

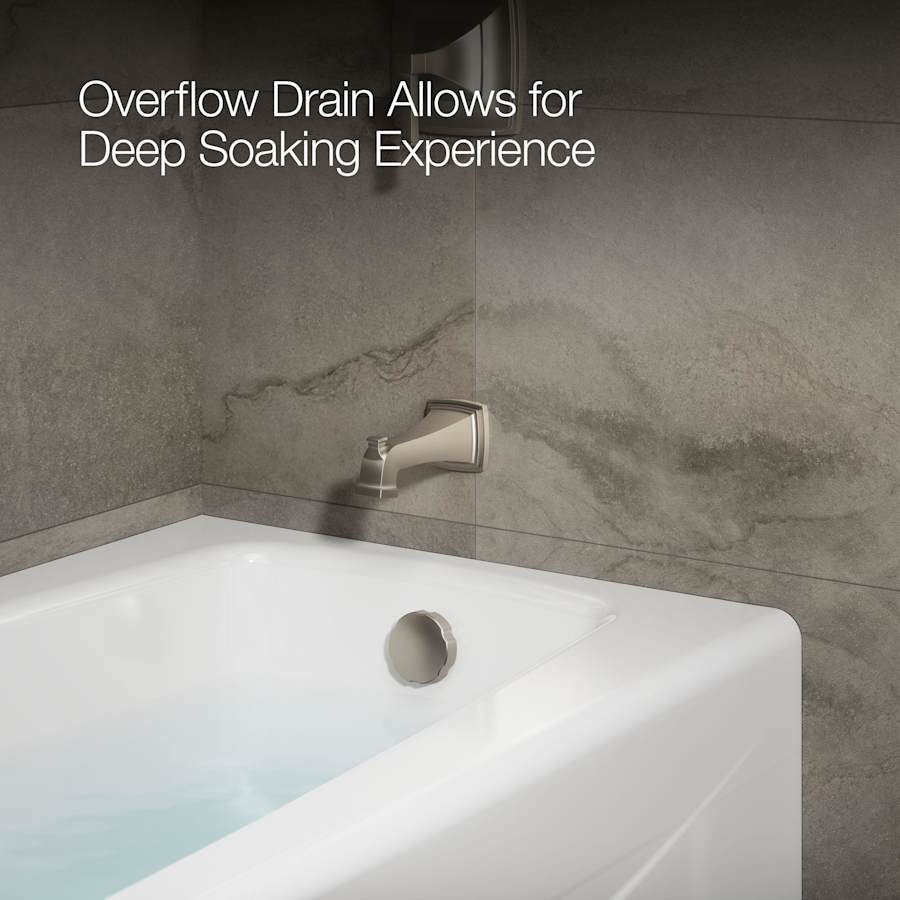

Right drain with round overflow

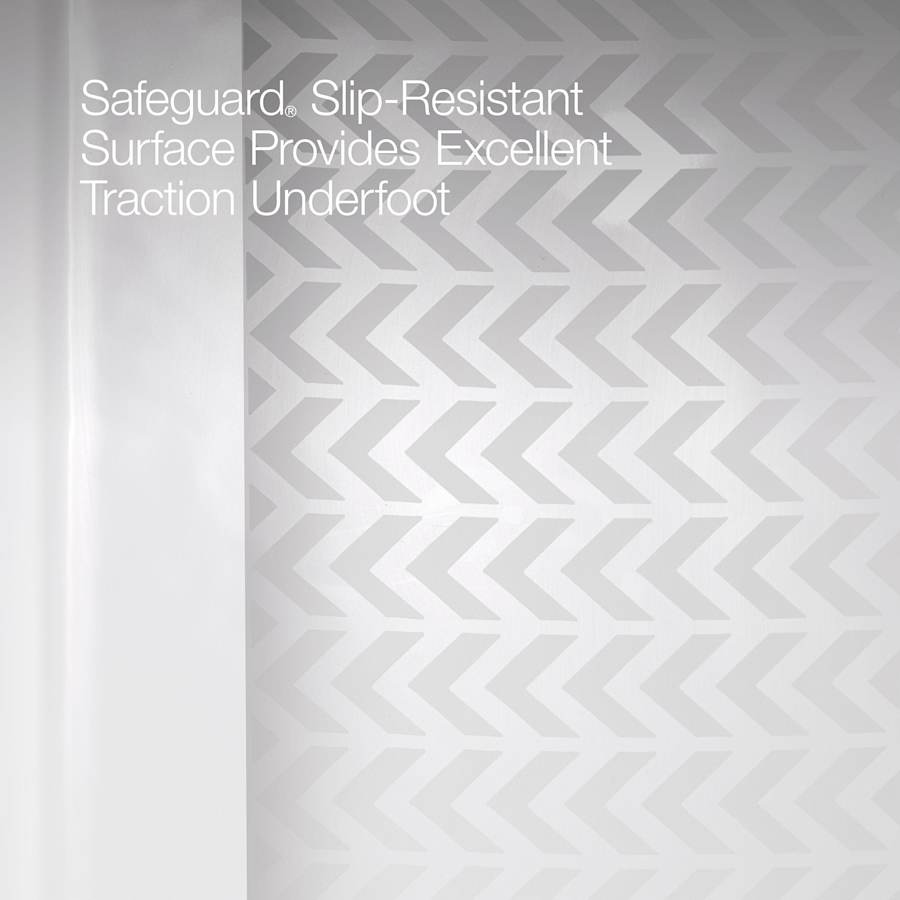

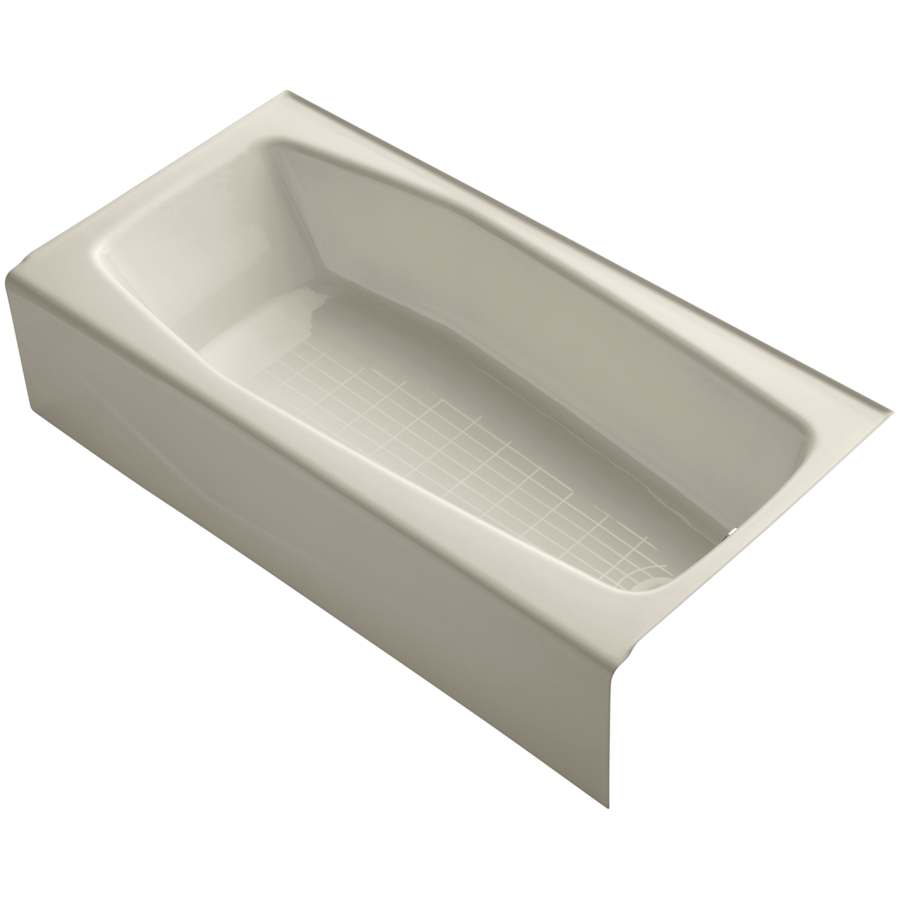

Textured slip-resistant bottom
With its functional design and straight forward styling, the Villager is the most popular of the Kohler baths

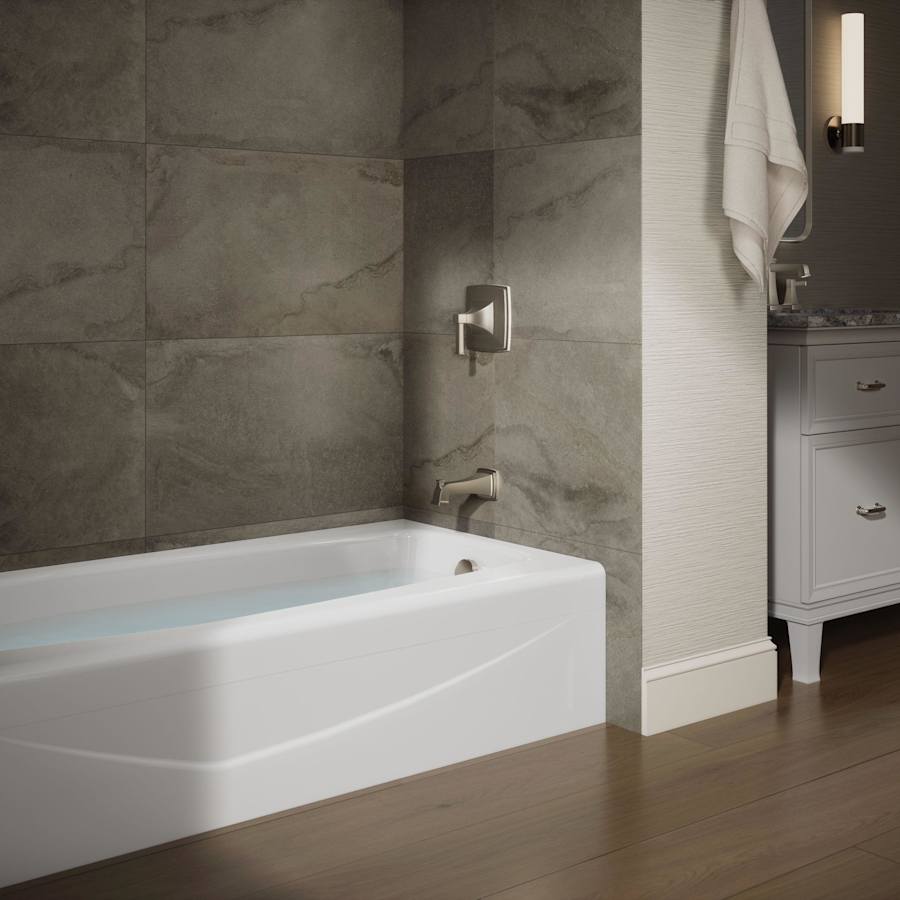

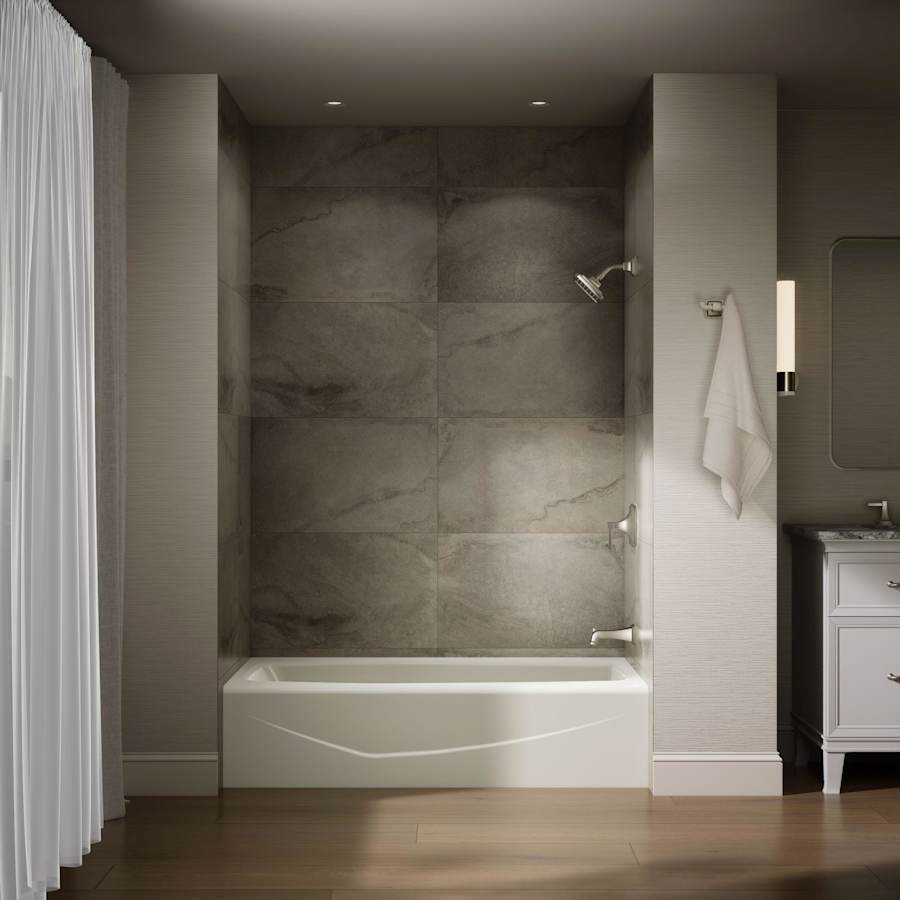

Installs in a Three-wall Alcove configuration

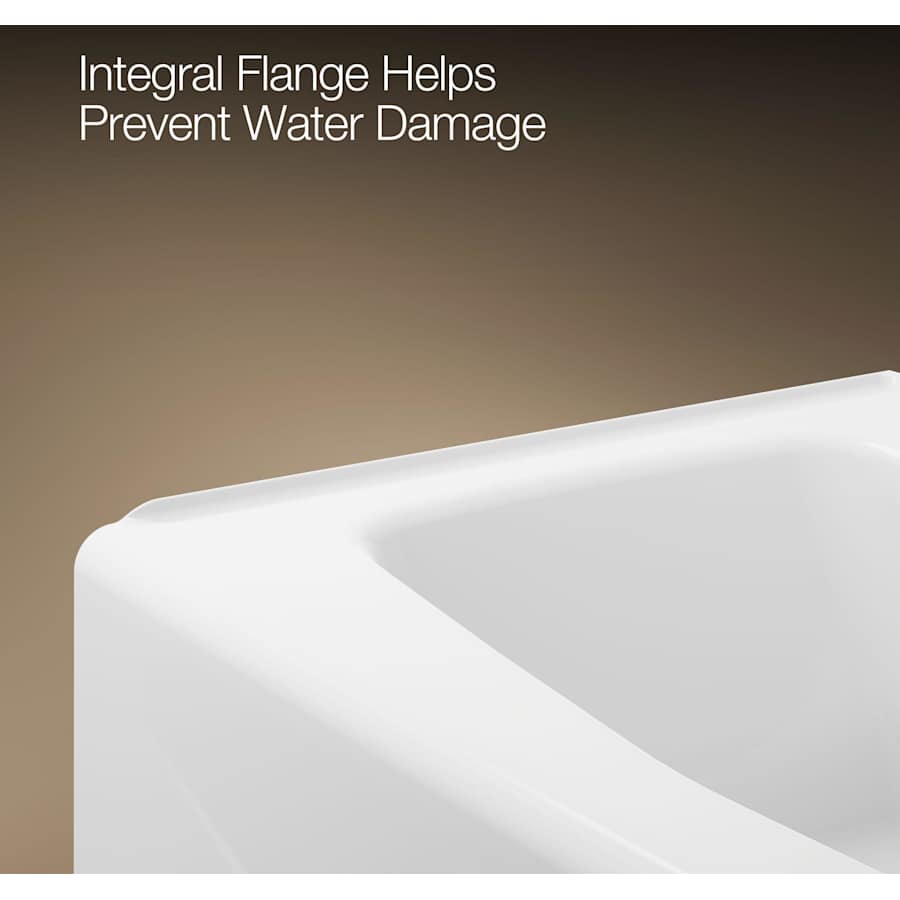

Integrated tile flange
ADA compliant – complies with the standards set forth by the American’s with Disabilities Act
Product Meets or Exceeds the Following Codes and Standards: ADA, ICC/ANSI, CSA, OBC, ASME

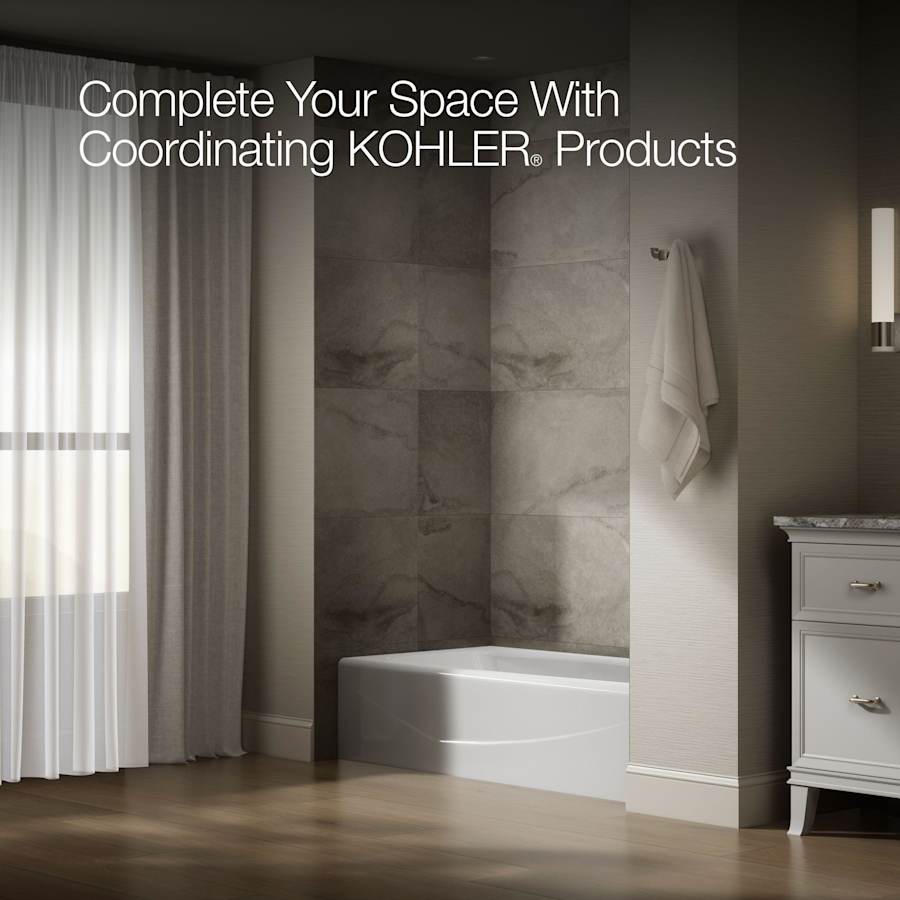

Pair this bath with other products from the Villager Collection for a coordinated elegant look in the bathroom
Integrated apron front
Made proudly in the USA
Material:
Kohler enameled cast iron

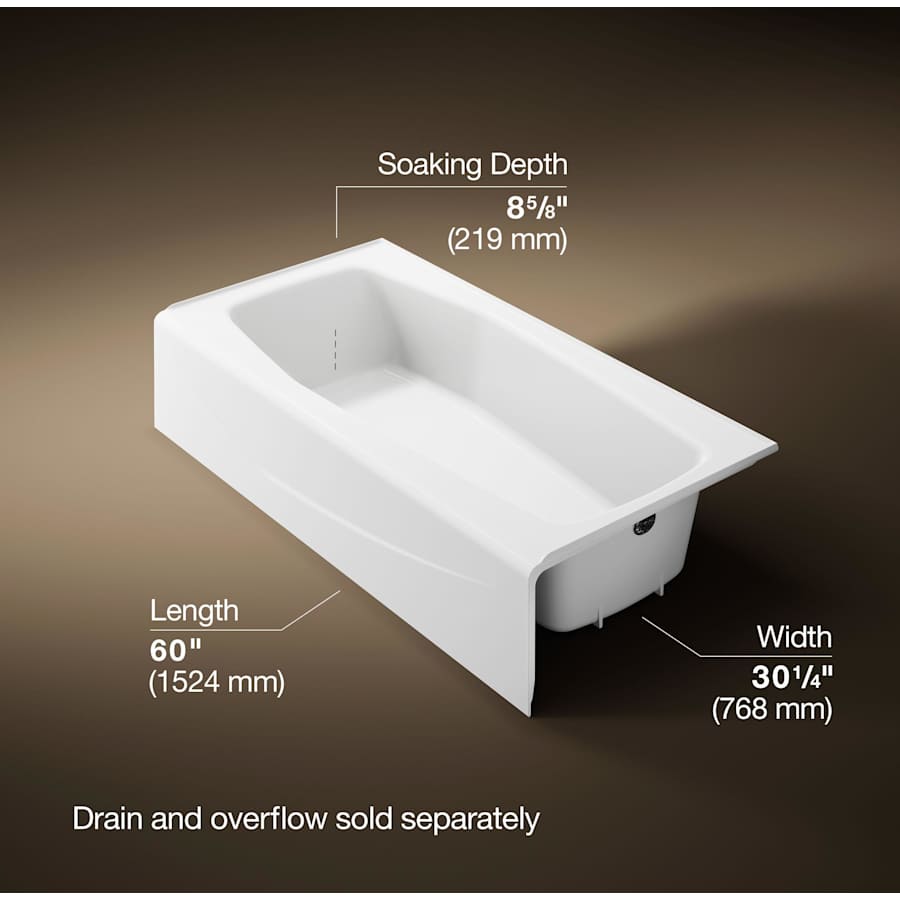

Kohler K-716 Specifications:
Overall Height: 14″ (measured from the top of tub rim to the bottom of basin)
Overall Width: 30-1/4″ (measured from back most to front most point on outer rim)
Overall Length: 60″ (measured from left most to right most point on outer rim)
Basin Width (Bottom): 22″ (back to front measurement of the bottom of basin walls)
Basin Length (Bottom): 45″ (right to left measurement of the bottom of basin walls)
Basin Width (Top): 24″ (back to front measurement of the top of basin walls)
Basin Length (Top): 55″ (right to left measurement of the top of the basin walls)
Water Depth: 8-5/8″ (depth of water at tub’s maximum capacity)
Maximum Water Capacity: 33-gallons
Drain Connection: 1-1/2″
Kohler K-716 Installation:
Alcove
Integral flange
Right drain
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Villager Collection
Specifications
| Height | 14 in. |
| Width | 30.25 in. |
| Depth | 8.625 in. |
| Length | 60 in. |
| Product Weight | 316 lbs. |
| Bar Length | 22 in. |
| Base Width | 45 in. |
| Nominal Length | 60 in. |
| Nominal Width | 30 in. |
| Capacity (Gallons) | 33 |
| Overflow Height | 8.63 in. |
| Water Depth | 8.625 in. |
| Tub Size | 60 Inches |
| Top Area | 55 x 24 in. |
| Insulation Type | Three Wall Alcove |
| Material | Cast Iron |
| Thermostat | Modern |
| Drain Placement | Right |
| Overflow | Yes |
| Sound Dampening | Yes |
| Apron | Yes |
| Number Of Bathers | 1 |
| Slip Resistant | Yes |
| Tub Shape | Rectangular |
| Apron Front | Yes |
| Accepts Deck Mount Faucet | No |
| ADA | Yes |
| Collection | Villager |
| Approved for Commercial Use | Yes |
| Country Of Origin | USA |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.19.1 |
| Certifications | ANSI, ASME, CSA |
| ANSI Certification | A117.1 |
| Made in America | Yes |
| CSA Code | B45.2 |
| Light Included | No |
| Drain Assembly Included | No |
| Faucet Included | No |
| Handshower Included | No |
| Tile Flange | Yes |
| Color | Almond, Biscuit, Cashmere, Dune, Ice Grey, Innocent Blush, Mexican Sand, Sandbar, Seafoam Green, Skylight, Sunlight, Tea Green, White, Wild Rose |
| Color Tone | Gold Tones, Greens, Greys, Neutrals, Pinks, Steel Tones, Whites |
