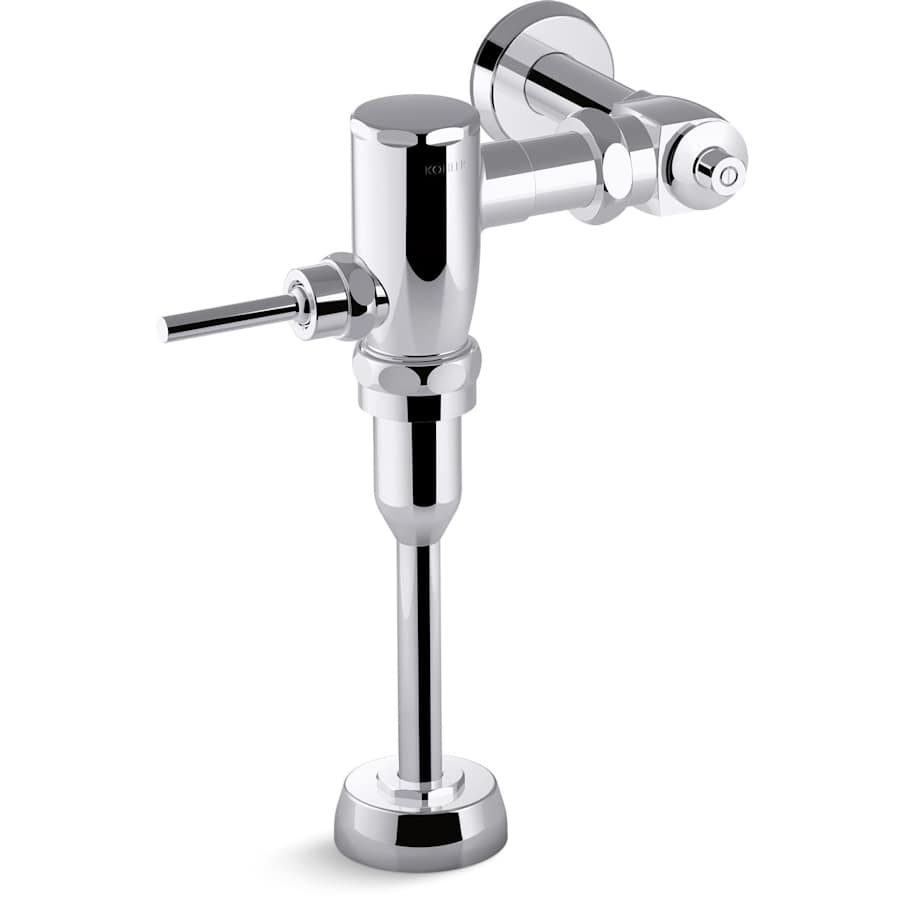

The Primme urinal flushometer valve features a simple, brass-body design and reliable piston technology to meet the demands of high-use installations. Easy to install and suitable for retrofit, this water-saving manual flush valve is compatible with Kohler tailpiece and stop valves.
Kohler K-76318 Features:
Covered under Kohler’s 1 year limited warranty
Coordinates with products from the Primme line
Engineered for optimal performance with Kohler urinals
Reliable piston valve technology with self-cleaning and anti-clogging features
Non-hold-open handle provides ease of use – simply pull and release
Constructed of brass
3/4 top mounted spud placement
Handle is included with this model
Chloramine resistance on all rubber components exposed to waterway
Includes vacuum breaker and control stop
Complies with ADA standards
WaterSense certified – flushometer uses 20% less water than the current standard while maintaining superior performance
Kohler K-76318 Specifications:
Height: 13-3/16″ (top to bottom)
Width: 5″ (left to right)
Depth: 6-1/2″ (front to back)
Flow Rate (GPF): 0.5 gallons-per-flush
Spud Connection Size: 3/4″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Primme Collection
Specifications
| Depth | 6.5 in. |
| Height | 13.1875 in. |
| Width | 5 in. |
| Spud Size | 0.75 in. |
| Gallons Per Flush | 0.5 |
| Material | Brass |
| Insulation Type | Wall Mounted |
| Control Type | Manual |
| Spud Placement | Top |
| Handle Material | Brass |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Water Efficient | No |
| Electronic | No |
| Certifications | ASSE, ANSI, ASME, CSA |
| Collection | Primme |
| Country Of Origin | China |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| ANSI Certification | A117.1 |
| CSA Code | B651, B125.37 |
| WaterSense Certified | Yes |
| ASSE Code | 1037 |
| TX Drought Compliant | Yes |
| Handshower Included | Yes |
| Color | Polished Chrome |
