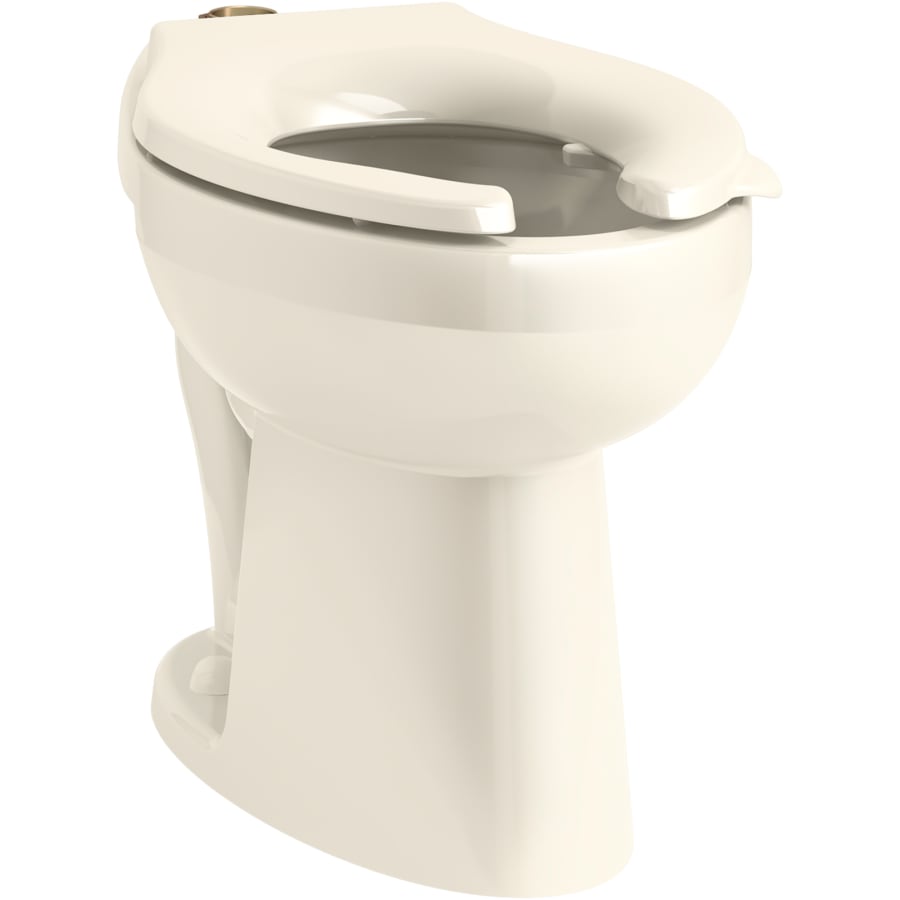

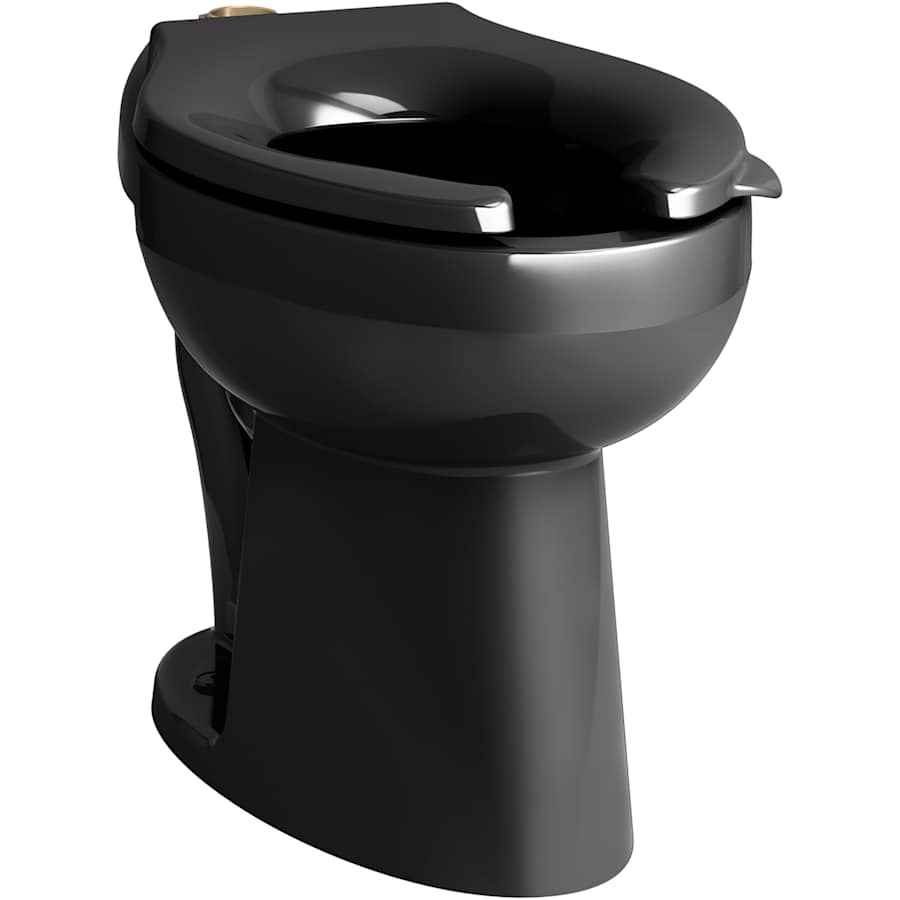

This Highcliff Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design with bedpan lugs. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. The Highcliff Ultra is listed from 1.1 to 1.6 GPF but can operate at 1.0 GPF. It performs well at every flush interval, making it uniquely effective with dual flush valves.
Kohler K-96057-L Features:
ADA compliant elongated toilet bowl
1.1 to 1.6 GPF (gallons-per-flush) range (1.1, 1.28, and 1.6 GPF) dependent on flushometer (purchased separately)
Seat not included
Kohler K-96057-L Specifications:
Overall Height: 16-5/8″ (bottom of the base to the highest point on the toilet)
Overall Depth: 26-1/8″ (furthest point back to front of toilet)
Overall Width: 14-7/8″ (furthest point left to furthest point on the right)
Flow Rate: (gallons-per-flush)
Bowl Height: 16-5/8″ (floor to top of the bowl)
Trapway: 2-1/8″
Rough-In: 10, 12″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Highcliff Ultra Collection
Specifications
| Material | Vitreous China |
| Thermostat | Modern |
| Insulation Type | Floor Mounted |
| Bowl Shape | Elongated |
| Configuration | Bowl Only |
| Design Features | Glazed Trapway, Chair Height |
| Spud Placement | Top |
| Approved for Commercial Use | Yes |
| Collection | Highcliff Ultra |
| ADA | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Certifications | ANSI, ASME, CSA |
| ANSI Certification | A117.1 |
| Country Of Origin | Thailand |
| ASSE Code | A112.19.2 |
| CSA Code | B651, B45.1 |
| Depth | 26.125 in. |
| Height | 16.625 in. |
| Product Weight | 57.75 lbs. |
| Width | 14.875 in. |
| Bowl Height | 16.625 in. |
| Rough In | 10, 12 in. |
| Trapway | 2.125 in. |
| Spud Size | 1.5 in. |
| Seat Included | No |
| Color | Almond, Biscuit, Black Black, White |
| Color Tone | Blacks, Neutrals, Whites |
