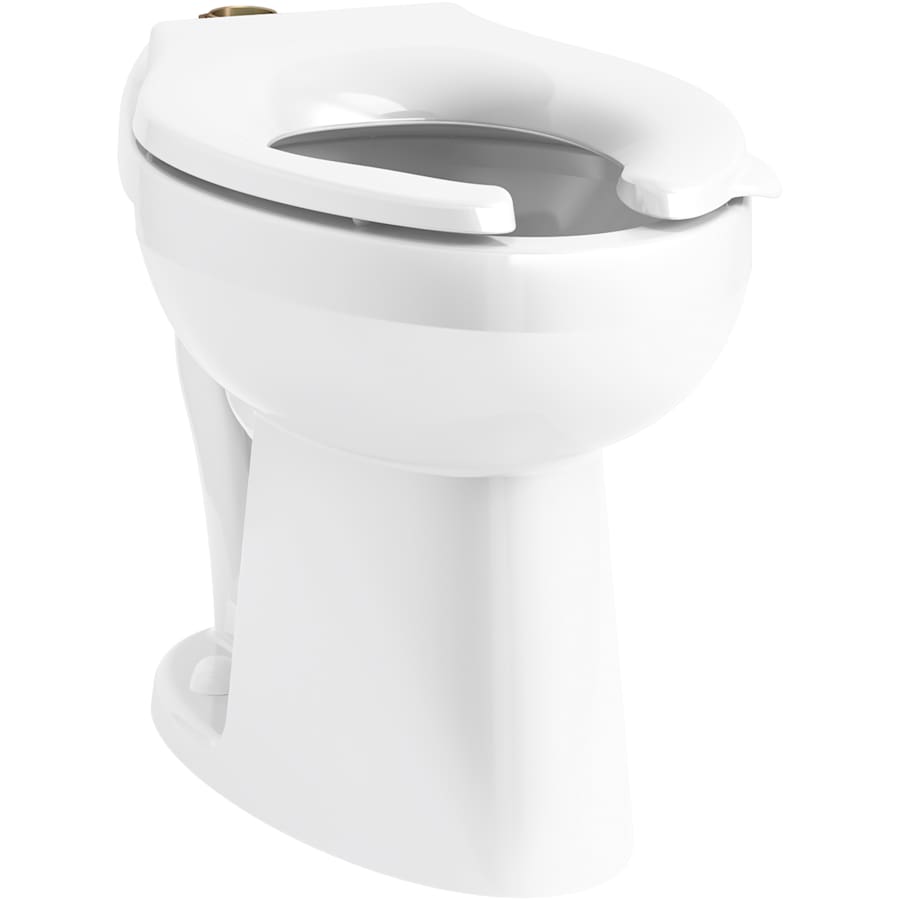

This Highcliff Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design with bedpan lugs. The Ultra engine represents a breakthrough in flush performance, tolerating a wide range of water supply conditions found in R&R and new construction. The Highcliff Ultra is listed from 1.1 to 1.6 GPF but can operate at 1.0 GPF. It performs well at every flush interval, making it uniquely effective with dual flush valves.
Kohler K-96057-SSL Features:
ADA compliant elongated toilet bowl
Ideal for healthcare and education installations
1.1 to 1.6 GPF (gallons-per-flush) range (1.1, 1.28, and 1.6 GPF) dependent on flushometer (purchased separately)
Seat not included
Kohler K-96057-SSL Specifications:
Overall Height: 16-5/8″ (bottom of the base to the highest point on the toilet)
Overall Depth: 26-1/8″ (furthest point back to front of toilet)
Overall Width: 14-7/8″ (furthest point left to furthest point on the right)
Flow Rate: (gallons-per-flush)
Bowl Height: 16-5/8″ (floor to top of the bowl)
Trapway: 2-1/8″
Rough-In: 10, 12″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Highcliff Ultra Collection
Specifications
| Product Weight | 57.75 lbs. |
| Height | 16.625 in. |
| Width | 14.875 in. |
| Depth | 26.125 in. |
| Bowl Height | 16.625 in. |
| Trapway | 2.125 in. |
| Spud Size | 1.5 in. |
| Rough In | 12, 10 in. |
| Manufacturer Warranty | 1 Year Limited |
| ADA | Yes |
| Certifications | ANSI, ASME, CSA |
| Collection | Highcliff Ultra |
| Country Of Origin | Thailand |
| Approved for Commercial Use | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.19.2 |
| CSA Code | B651, B45.1 |
| Material | Vitreous China |
| Thermostat | Modern |
| Configuration | Bowl Only |
| Insulation Type | Floor Mounted |
| Bowl Shape | Elongated |
| Spud Placement | Top |
| Design Features | Glazed Trapway, Chair Height |
| Seat Included | No |
| Color | White |
| Color Tone | Whites |
