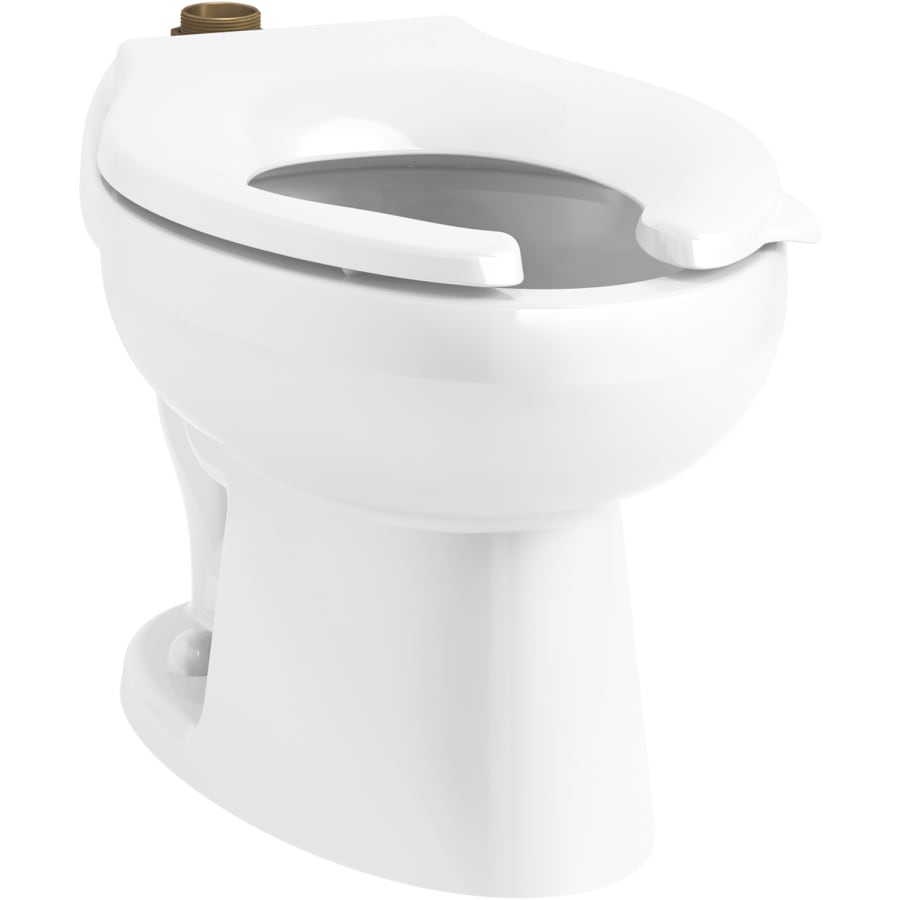

Ideal for school construction and remodeling, the Juvenile Ultra floor-mount flushometer bowl features a revolutionary flushing engine and refined aesthetic design. The Juvenile Ultra meets both ADA and Texas Accessibility Standard (TAS) height requirements for elementary school children, 5 through 8 years old. The Juvenile Ultra is listed from 1.1 to 1.6 GPF but can operate at 1.0 GPF, and performs well at every flush interval.
Kohler K-96059-SS Features:
Elongated bowl at juvenile height
1.1 to 1.6 GPF (gallons-per-flush) range (1.1, 1.28, and 1.6 GPF) dependent on flushometer (purchased separately)
Seat not included
Kohler K-96059-SS Specifications:
Overall Height: 13-3/4″ (bottom of the base to the highest point on the toilet)
Overall Depth: 25-15/16″ (furthest point back to front of toilet)
Overall Width: 14-7/8″ (furthest point left to furthest point on the right)
Flow Rate: (gallons-per-flush)
Bowl Height: 13-3/4″ (floor to top of the bowl)
Trapway: 2-1/8″
Rough-In: 10, 12″
Additional Kohler Links
View the Manufacturer Warranty
Browse all Kohler Products
Kohler Juvenile Ultra Collection
Specifications
| Depth | 25.9375 in. |
| Height | 13.75 in. |
| Product Weight | 44.69 lbs. |
| Width | 14.875 in. |
| Bowl Height | 13.75 in. |
| Rough In | 10, 12 in. |
| Spud Size | 1.5 in. |
| Trapway | 2.125 in. |
| Material | Vitreous China |
| Thermostat | Modern |
| Insulation Type | Floor Mounted |
| Bowl Shape | Elongated |
| Configuration | Bowl Only |
| Spud Placement | Top |
| ADA | Yes |
| Certifications | ANSI, ASME, CSA |
| Collection | Juvenile Ultra |
| Country Of Origin | Mexico |
| Manufacturer Warranty | 1 Year Limited |
| Approved for Commercial Use | Yes |
| ANSI Certification | A117.1 |
| ASSE Code | A112.19.2 |
| CSA Code | B651, B45.1 |
| Seat Included | No |
| Color | White |
| Color Tone | Whites |
