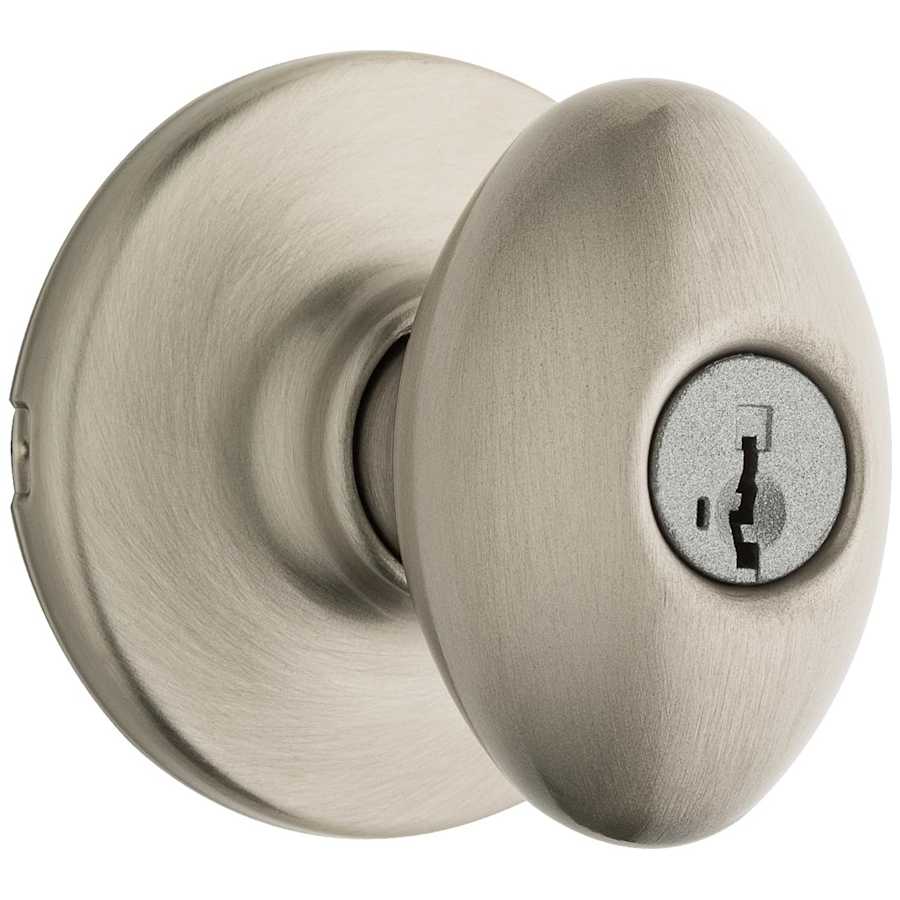

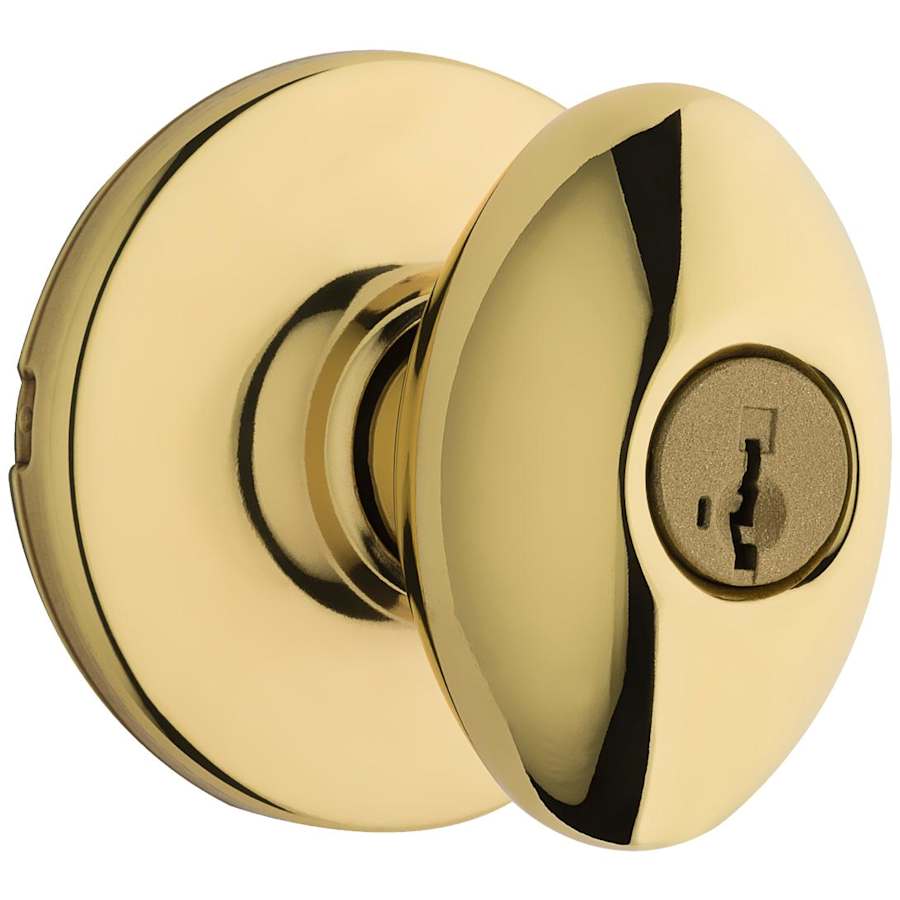

Keyed Entry (Single Cylinder) Function: This knob set is locked and unlocked from the exterior using a key and can be locked and unlocked from the interior using the turnbutton located on the knob. Perfect for securing entrances, side doors, and anywhere else that needs a bit more security.
Features:
BHMA Security Grade 3
Designed for left or right handed doors
Easy to install on standard doors
Includes an adjustable latch to fit all standard doors
Lifetime mechanical and finish warranty
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
SmartKey®:
This technology allows you to re-key your lock in seconds with 3 simple steps and features stainless steel racks, pins, and side locking bar for increased strength and security.
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″, 1-3/4″, 1-3/8″, 1-5/8″
Handing: Left, Right, Reversible
Knob Height: 2.4″
Projection: 2.75″
Product Weight: 1.24 lbs
Latch Faceplate: Round Corner
Cylinder: SmartKey 5 Pin
Additional Functions:
200AO: Aliso Passage Door Knob Set
300AO: Aliso Privacy Door Knob Set
400AO-S (This Model): Aliso Keyed Entry Door Knob Set with SmartKey
488AO: Aliso Single Dummy Door Knob
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Aliso Collection
Specifications
| Thermostat | Transitional |
| Handle Material | Metal |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner |
| Concealed Screws | No |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Keyway | KW1 |
| Panic Proof | No |
| Rosette Shape | Round |
| Knob Shape | Egg |
| Locking Mechanism | Thumbturn |
| ADA | No |
| Collection | Aliso |
| Approved for Commercial Use | No |
| Series | Kwikset Series |
| Certifications | ANSI |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 3 |
| Product Weight | 1.24 lbs. |
| Door Thickness | 1-3/8", 1-5/8", 1-1/2", 1-3/4" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Handle Height | 2.4 in. |
| Edge Bore | 1" |
| Cross Bore | 2-1/8" |
| Handle Projection | 2.75 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Color | Polished Brass, Polished Chrome, Satin Nickel, Venetian Bronze |
| Color Tone | Brass Tones, Bronze Tones, Nickel Tones, Silver Tones |
