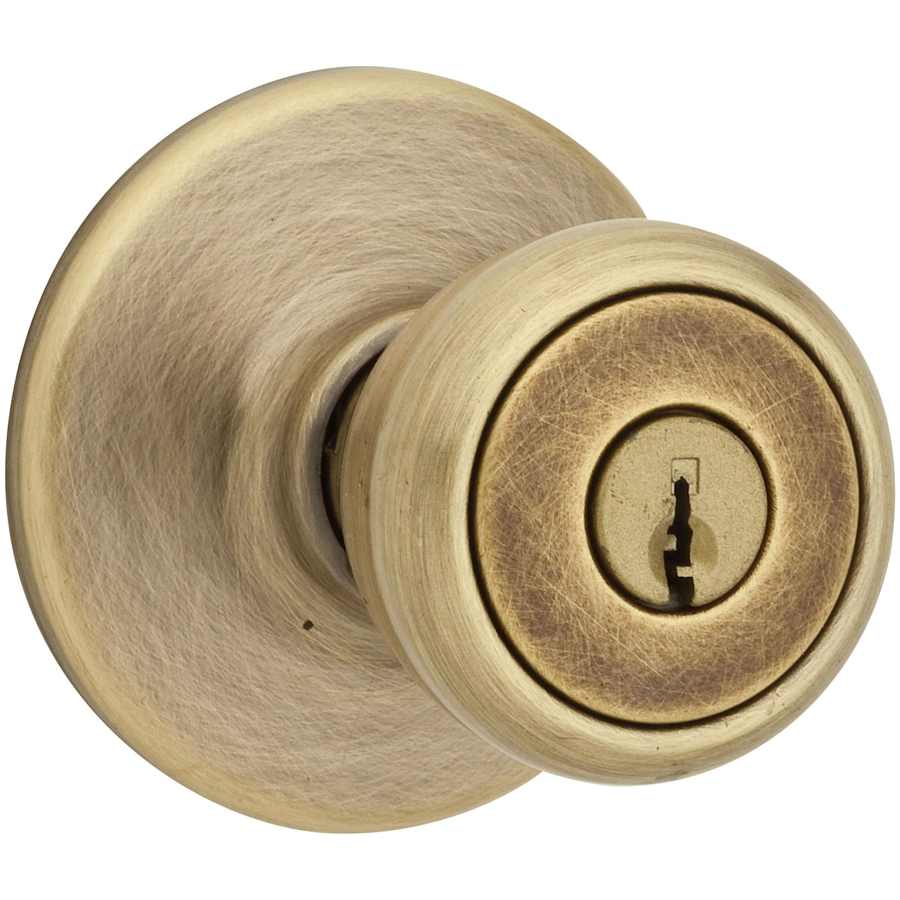

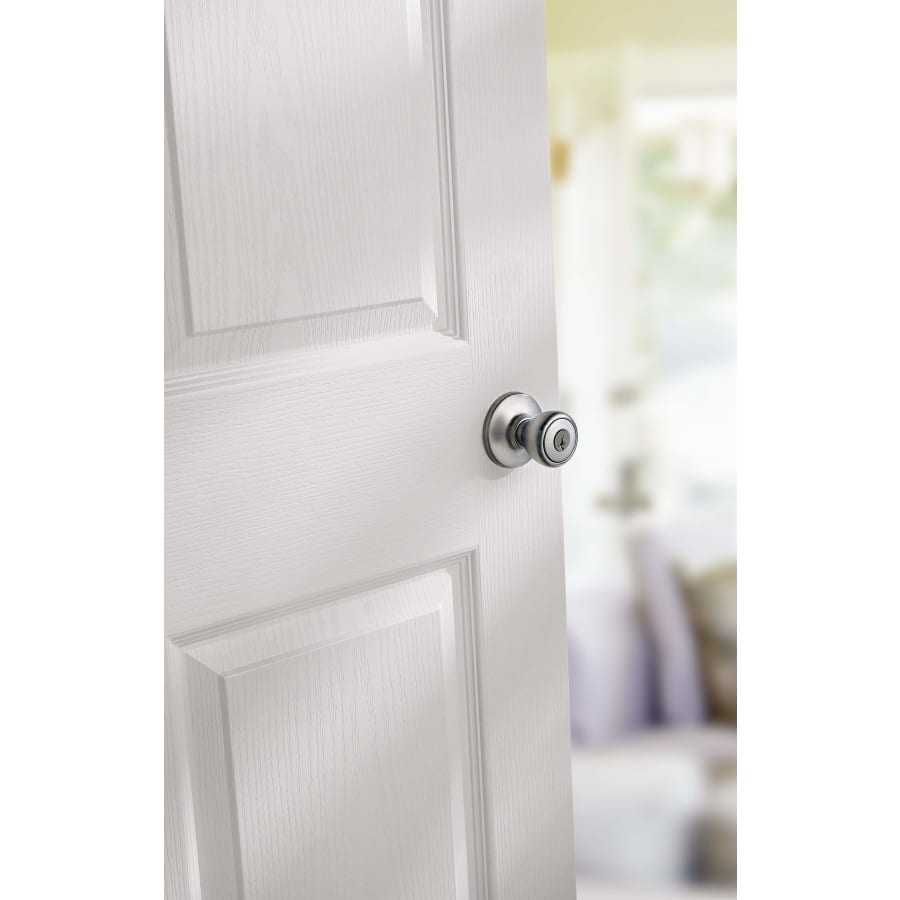

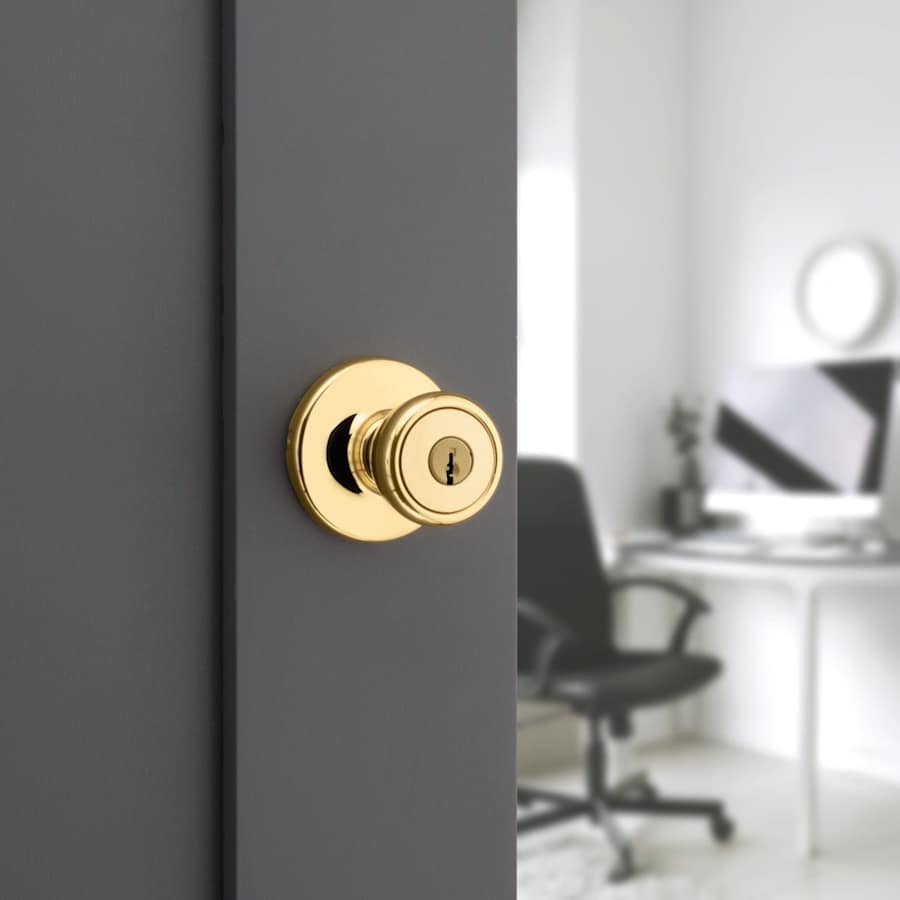

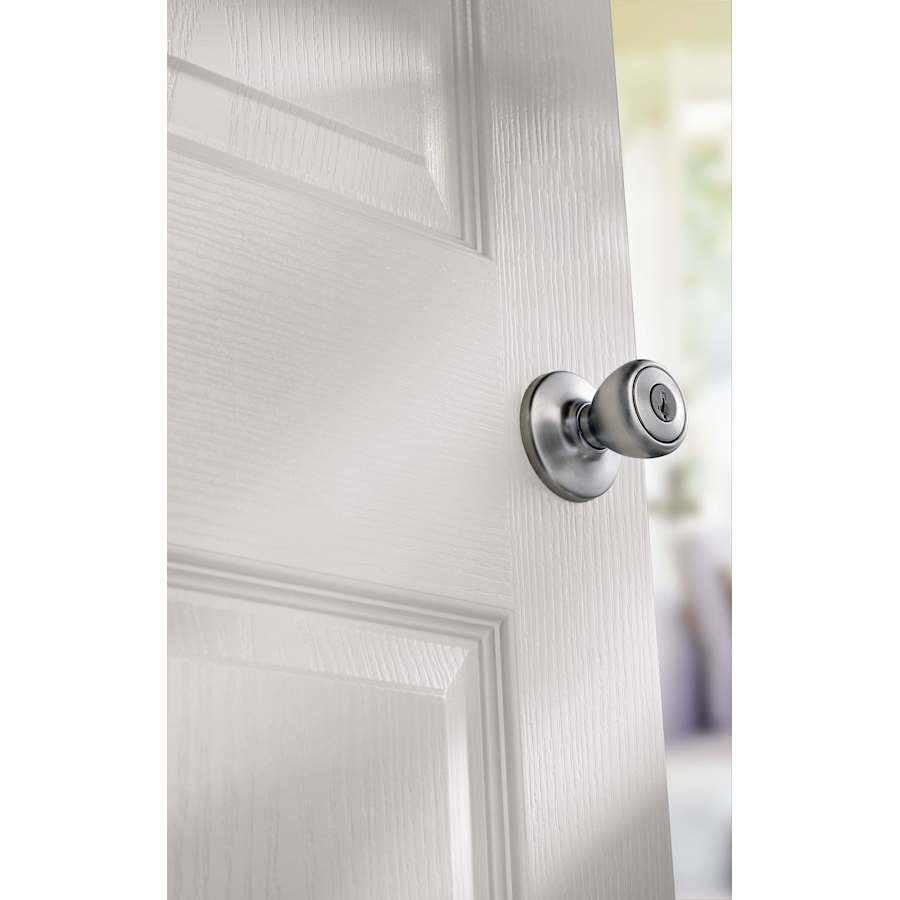

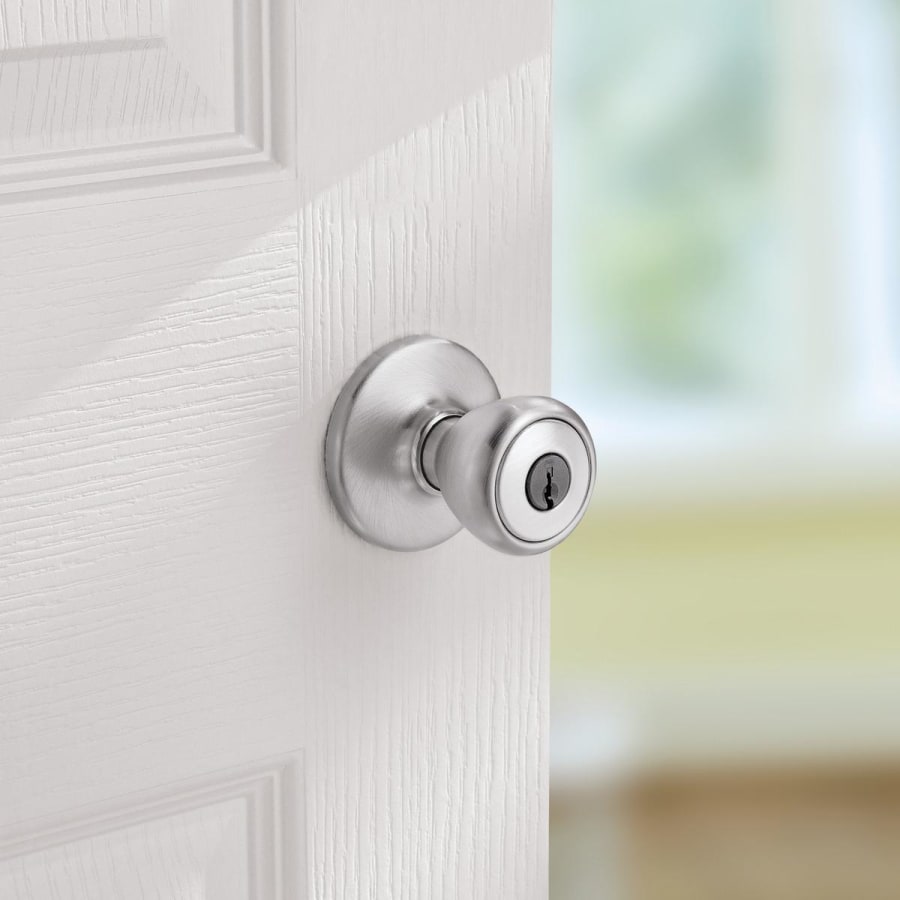

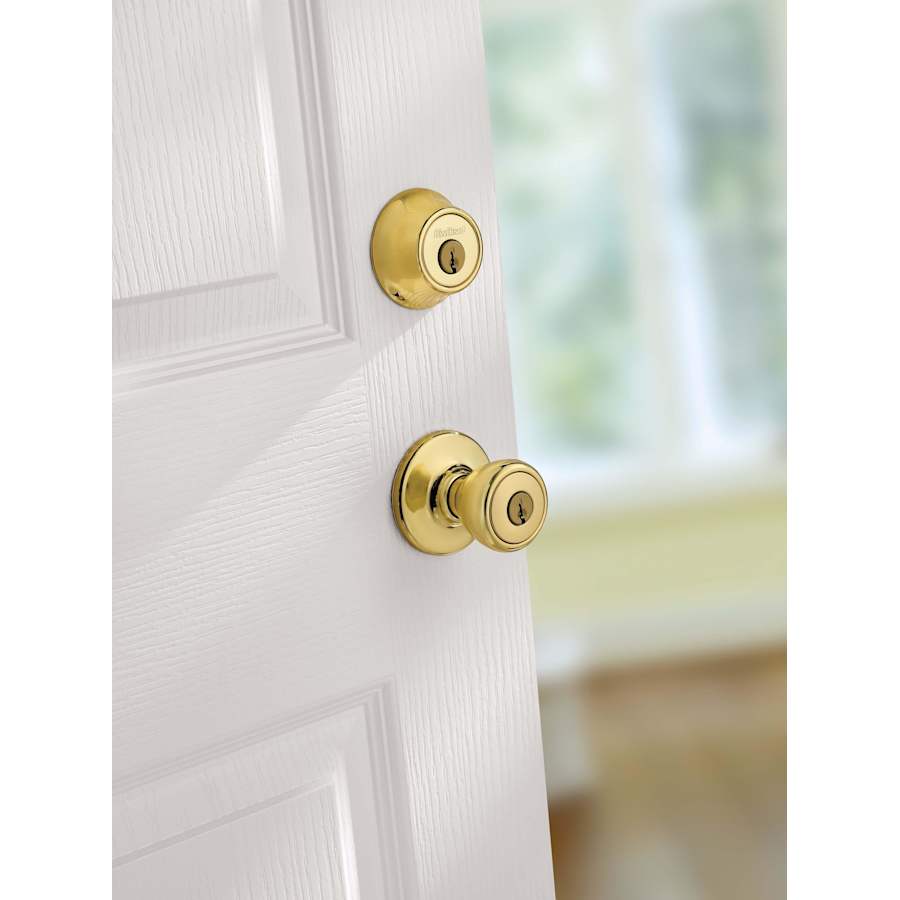

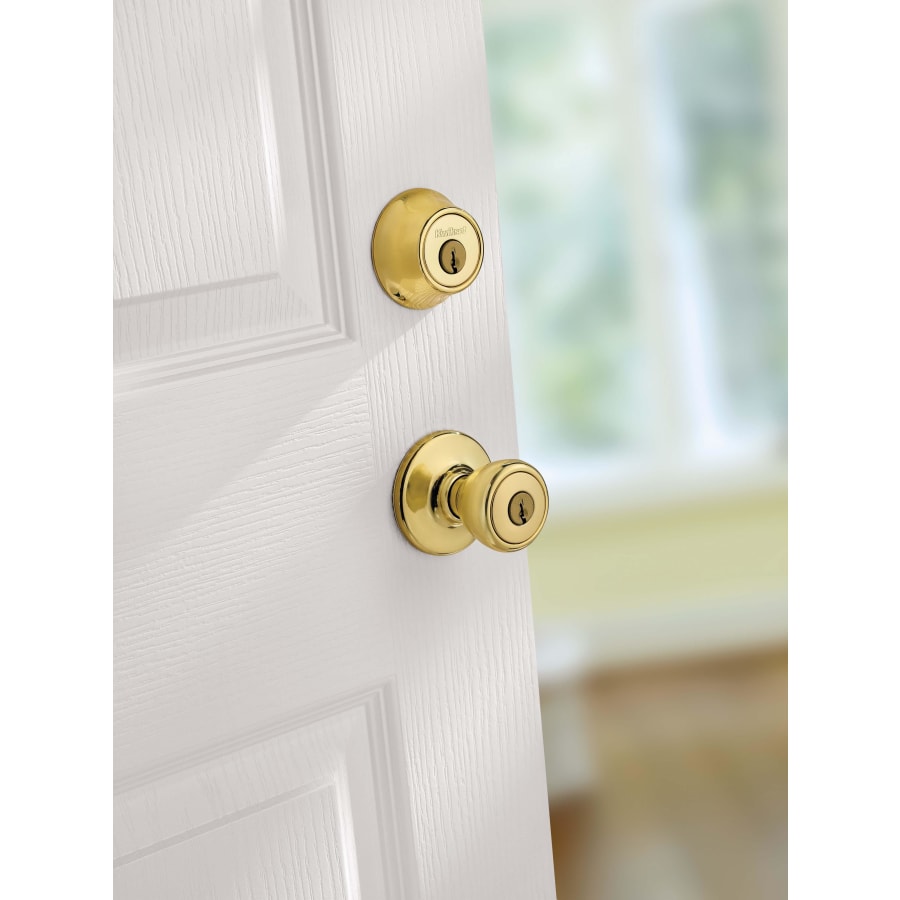

Kwikset Security Series Tylo Single Cylinder Keyed Entry Door Knobset

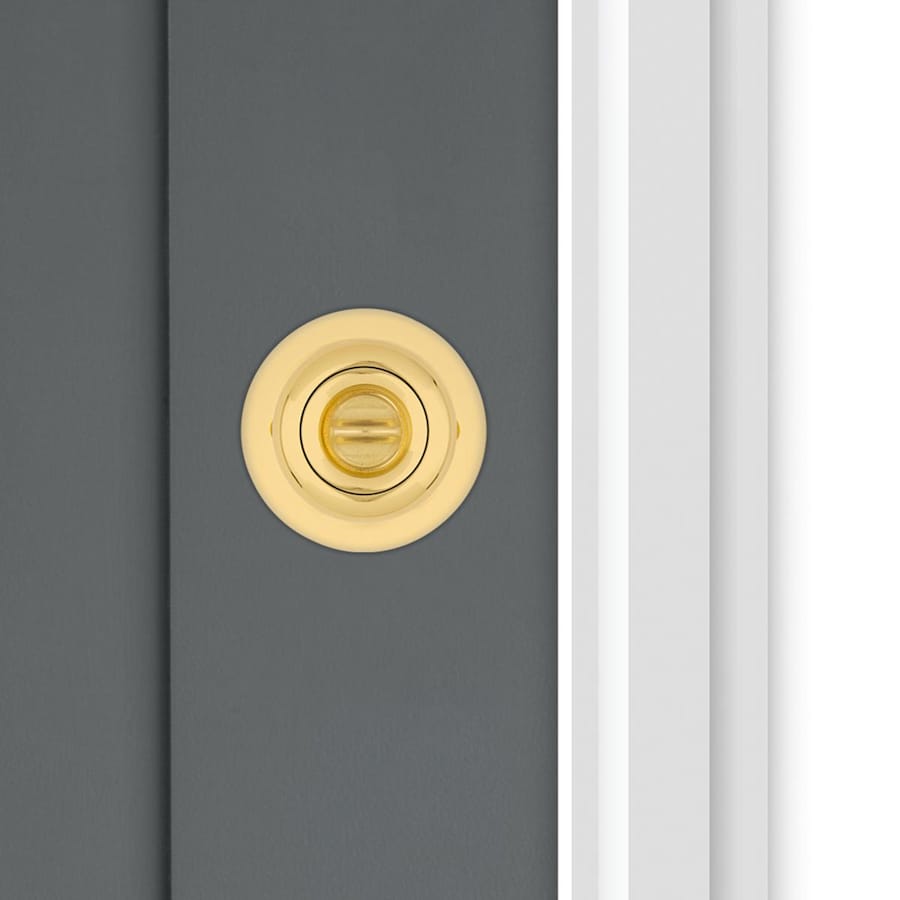

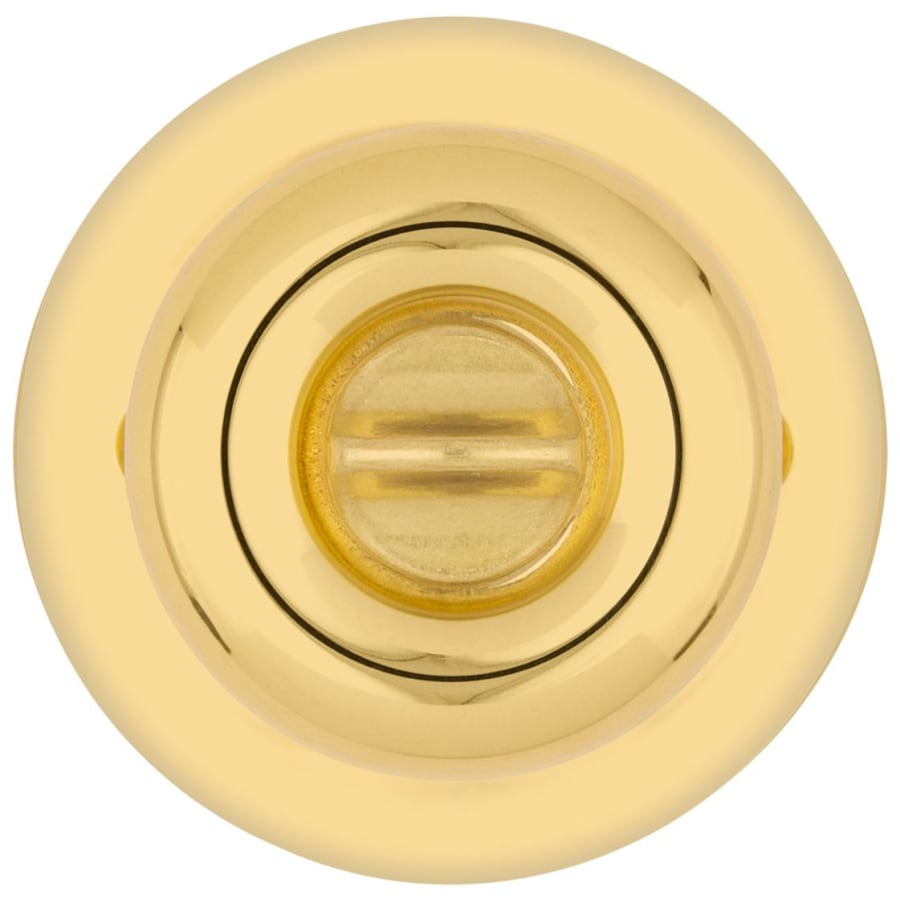

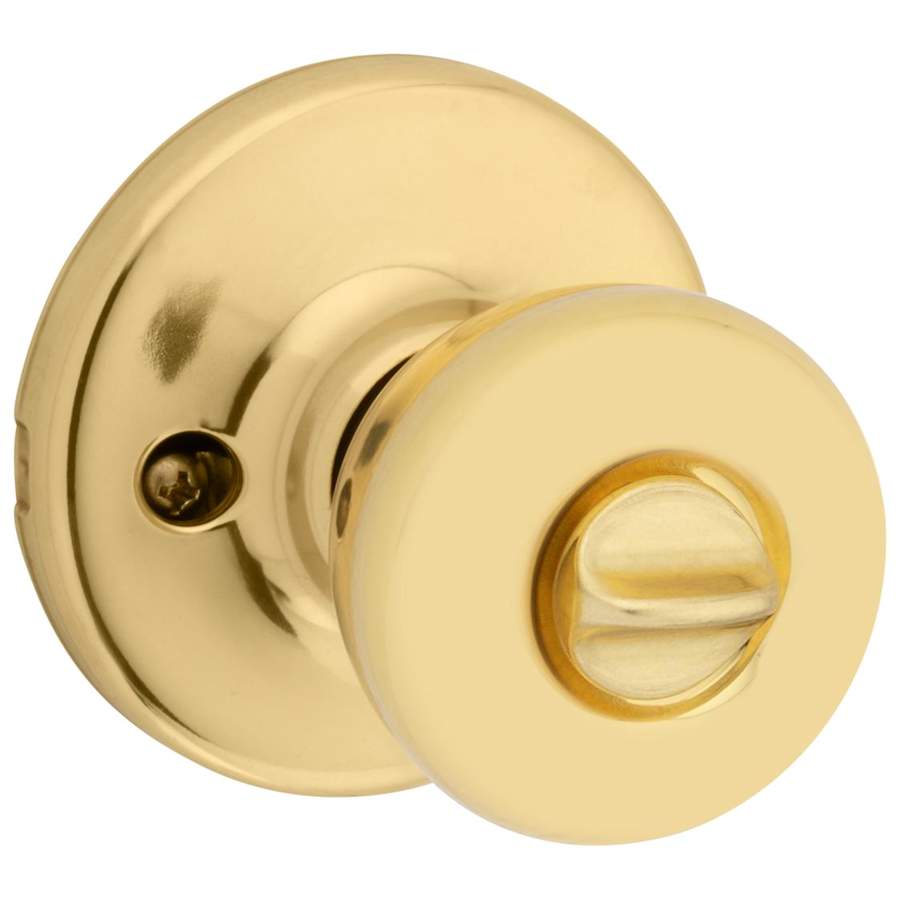

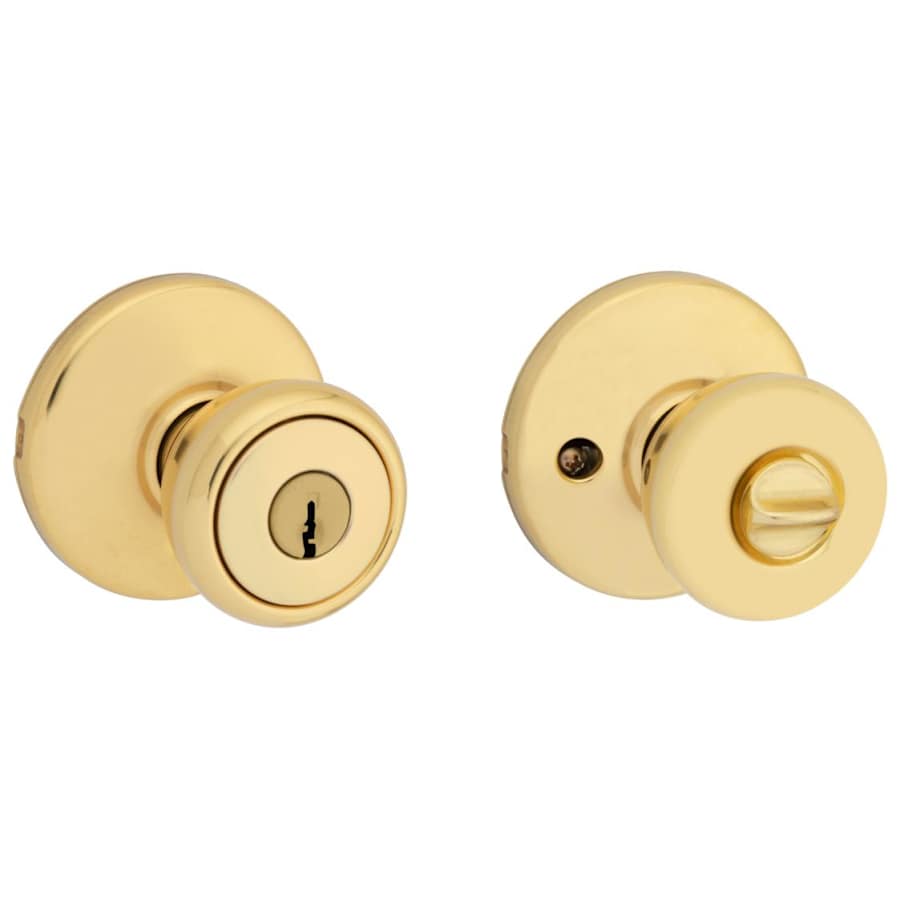

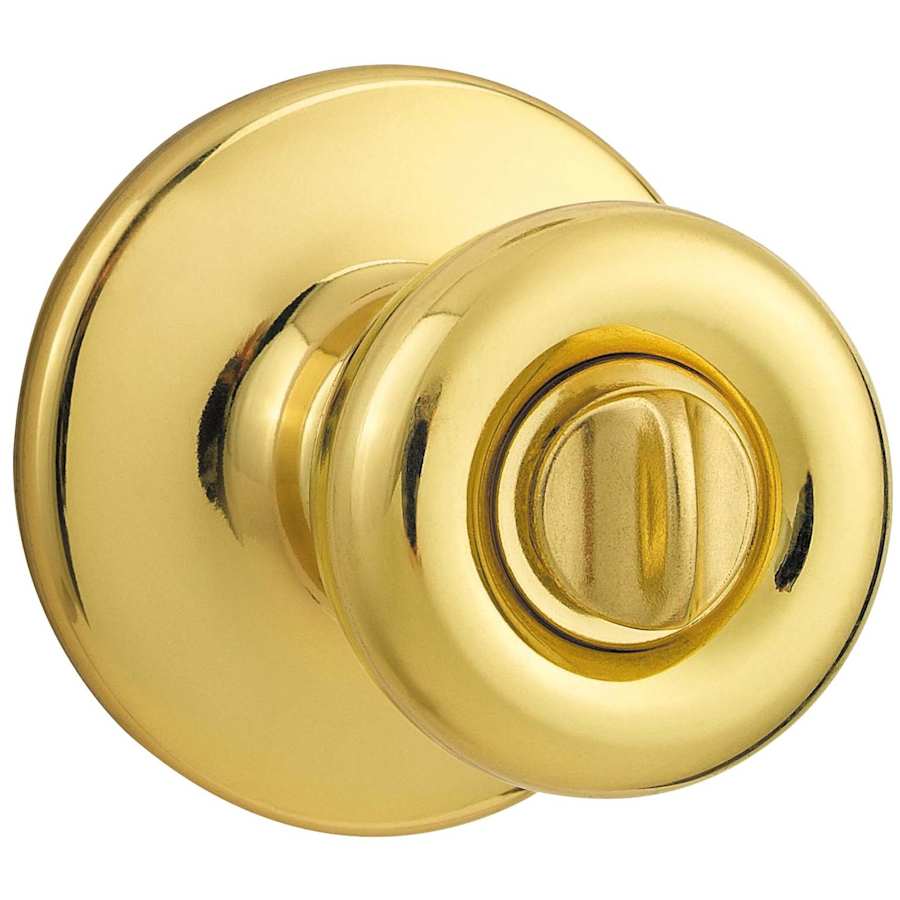

The classic design of the Tylo® is at home in any décor. The style lends a graceful finish to any door. Perfect for garage doors and entrances, this knob locks and unlocks from the inside with a turn button and locks and unlocks from the outside with a key.

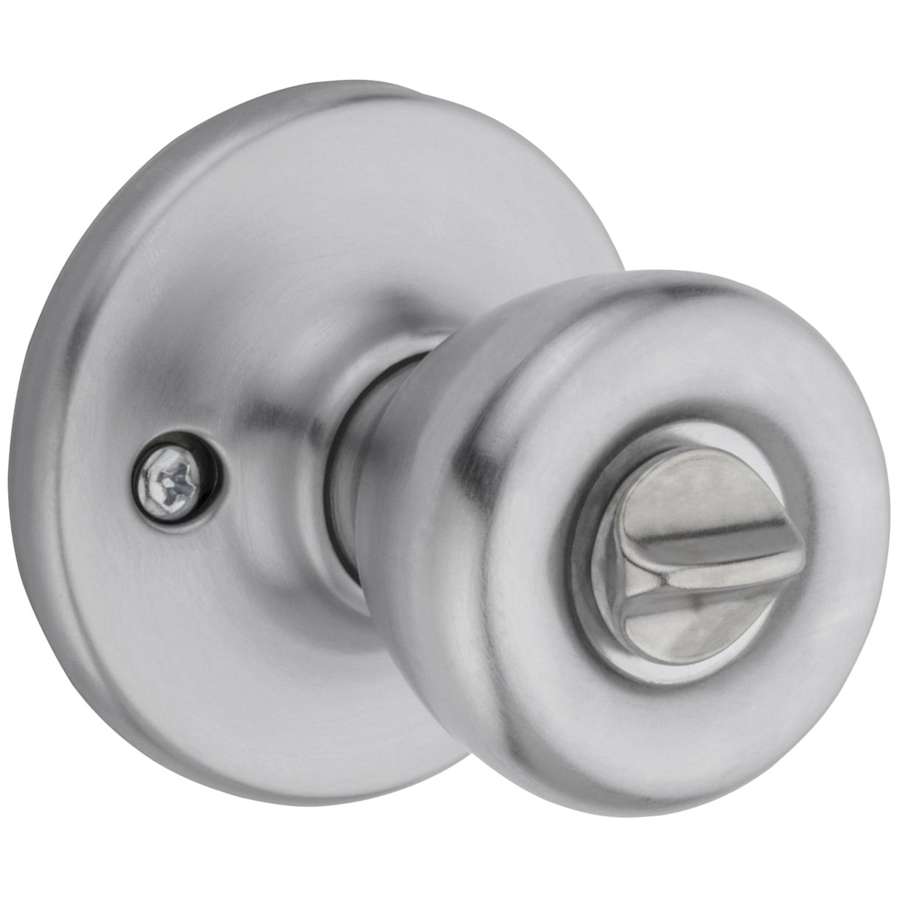

Interior Rosette has EXPOSED SCREWS and are not concealed on the interior side.
Includes Standard Round Corner Strike Plate Part Number 83796 (Strike Plate is on Door Jamb). For Square Corner Strike Plate See Product: Kwikset 83437. For a T-Strike Plate See: Kwikset 83028.
There is an optional kit available for 2-1/4″ thick doors, see product ID 81706.
Latch fits squared, rounded, or drive-in applications

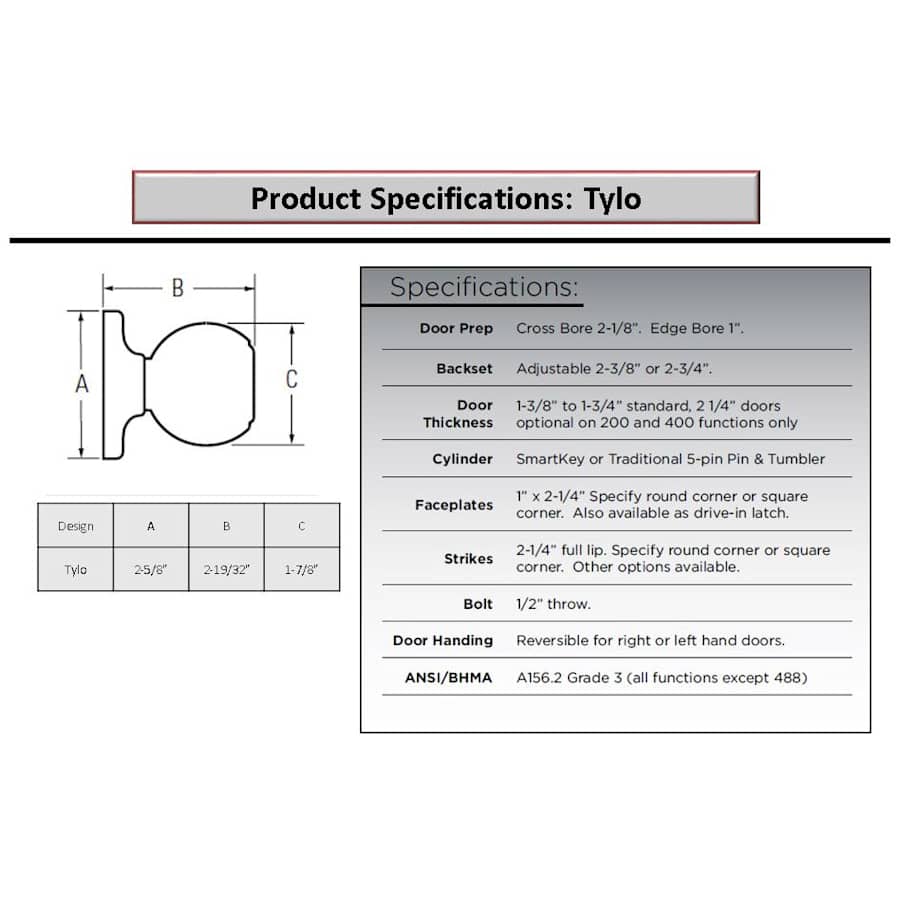

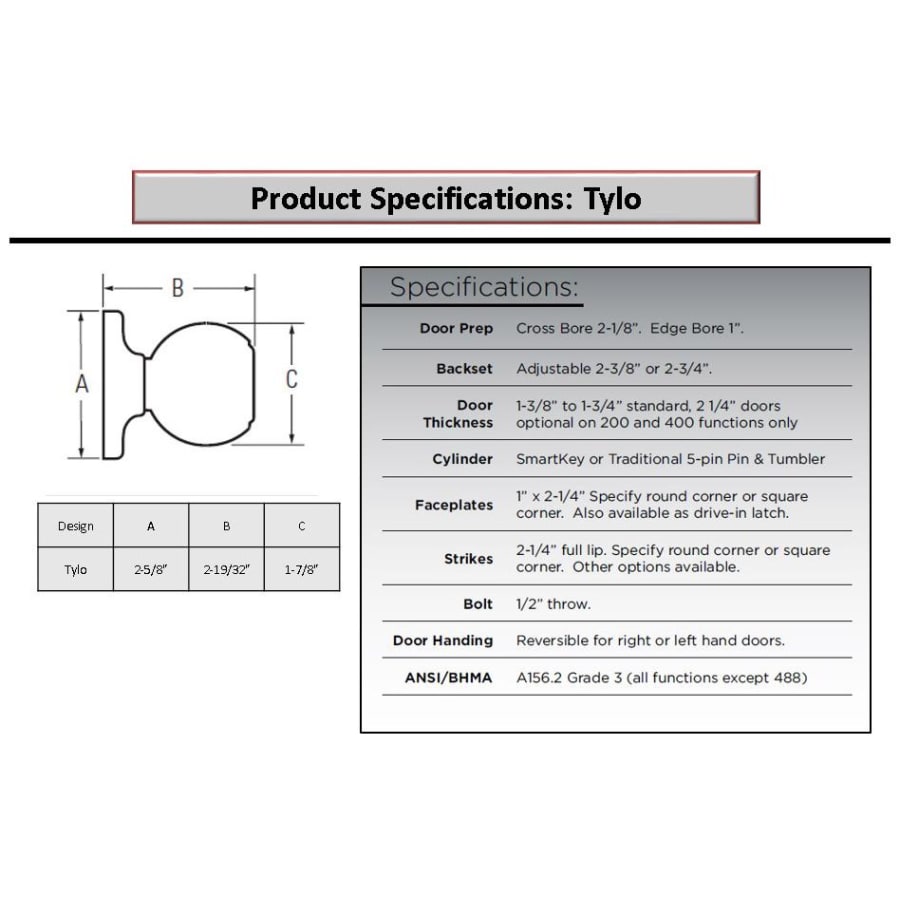

Door Prep: Cross bore 2-1/8″ Edge Bore 1″ Latch Face 1″ x 2-1/4″
Door thickness: 1-3/8″-1-3/4″ doors standard. 2-1/4″ optional on 200 and 400 functions only.

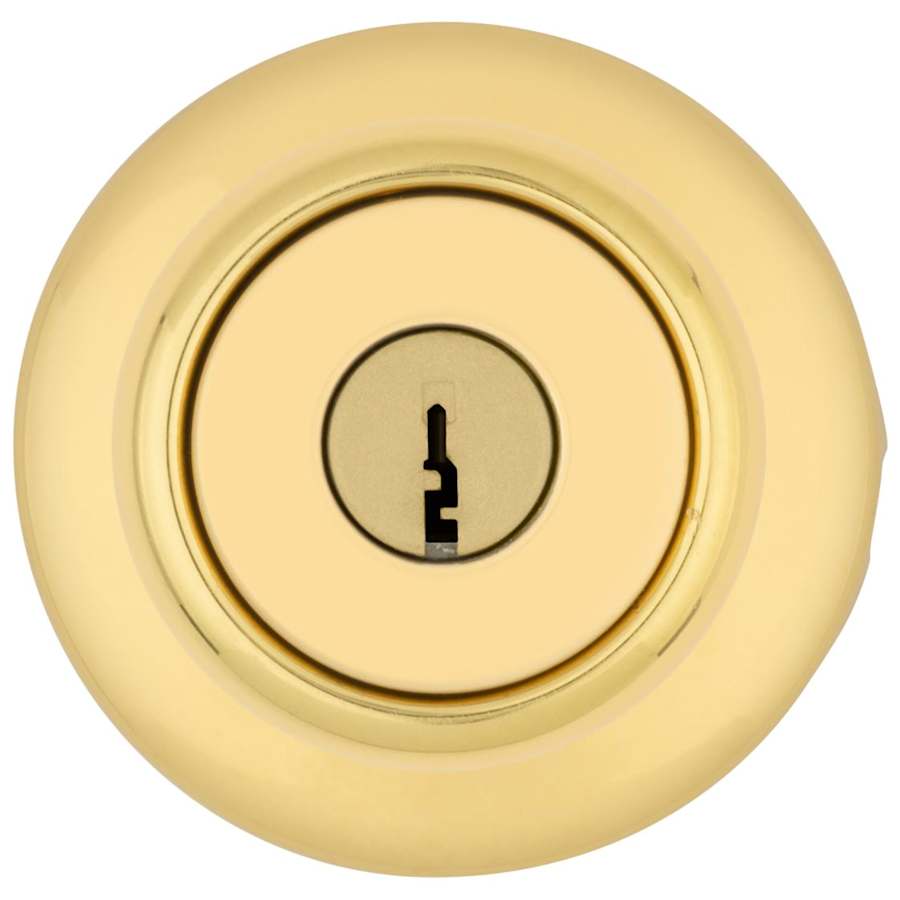

Cylinder: 5-pin
Bolt: 1/2″ throw
ANSI/BHMA A156.2 Grade 3 Security
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Manufacturer Model Numbers:
Antique Brass: 94002-447
Polished Brass: 94002-066
Satin Chrome: 94002-441
Satin Nickel: 94002-760
Additional Kwikset Links
View the Manufacturer Warranty
Browse all Kwikset Products
Kwikset Tylo Collection
Specifications
| Thermostat | Traditional |
| Handshower | Left, Reversible, Right |
| Handle Material | Metal |
| Latch Faceplate | Round Corner |
| Concealed Screws | No |
| Cylinder | 5 Pin |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Keyway | KW1 |
| Knob Shape | Tulip |
| Rosette Shape | Round |
| Locking Mechanism | Thumbturn |
| Approved for Commercial Use | No |
| Collection | Tylo |
| Series | Kwikset Series |
| ADA | No |
| BHMA Certification | Grade 3 |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8" |
| Backset | 2-3/8", Adjustable 2-3/8" or 2-3/4", 2-3/4" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.375 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Handle Width | 1.875 in. |
| Handle Height | 1.875 in. |
| Color | Antique Brass, Polished Brass, Polished Chrome, Satin Chrome, Satin Nickel |
| Color Tone | Brass Tones, Nickel Tones, Silver Tones |
